Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

CChakradhar Maraneni21 Jul 2021

AIM: To Create a Bracket.

OBJECTIVE: To design a 'Bracket' using Siemens NX Sheetmetal Application.

INTRODUCTION:

Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metal working and it can be cut and bent into a variety of shapes. Countless everyday objects are fabricated from sheet metal.

Applications: Aircraft bodies, Automobile bodies, Utensils used for domestic purpose, Bevarage Cans.

The Sheetmetal Application provides an environment for the design of sheetmetal parts used in Machinery,Automotive,Aerospace etc.

By using Sheetmetal Application We can do:

Import, clean up, and convert a non-sheetmetal part to a valid sheetmetal part.
Export lat pattern data of sheetmetal part to a valid sheetmetal part.

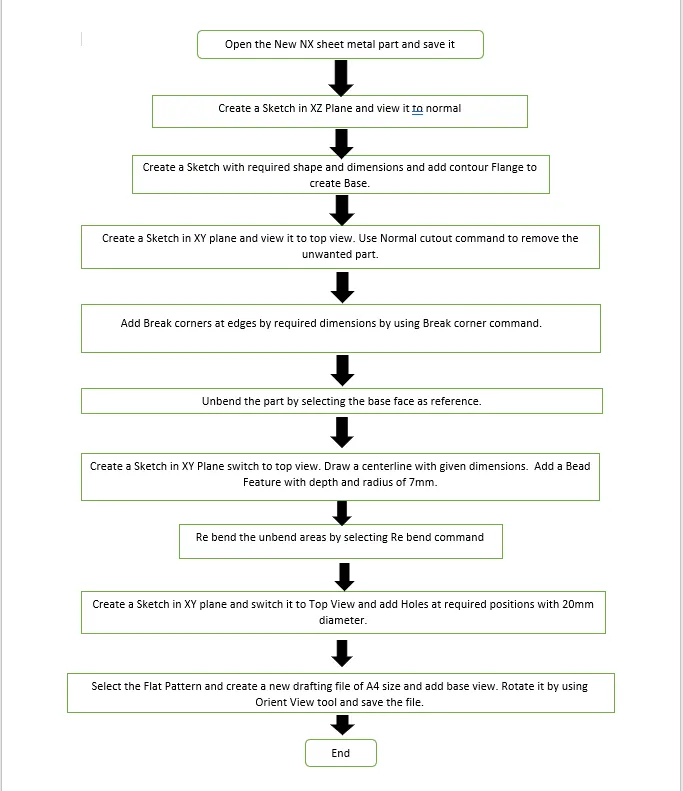

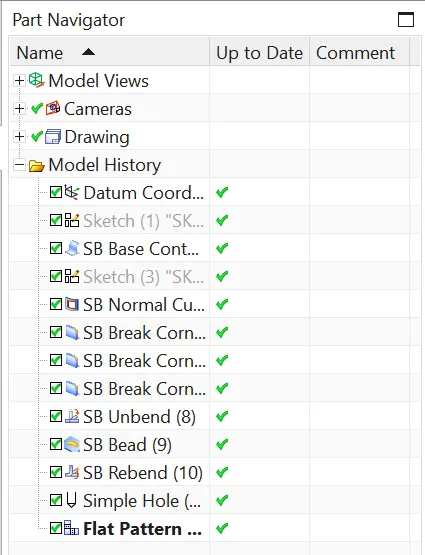

Design Methodology:

Description:

Sketch: It is basic comand to draw to dra 2d models

Contour Flange: This command is used to create a flange by extruding a sketch along a vector, or by sweeping sketch along an edge or chain of edges. NX adds bends automatically using the default bend radius value. To use different bend radius value, draw arcs in the section, or change the default bend radius value.

Normal Cutout: This command is used to remove the unwanted material w.r.t to the sketch.

Break Corner: This command is used to round or chamfer sharp corners of a tab or flange.

Unbend: This command is used to faltten the 3D model by selecting one stationary face.

Bead: This command is used to lift material along contour of a sketch that stimulates a stamping tool. Bead can also be created to stiffen shhet material.

Rebend: This command is used to rebend the flattern sheet material.

Hole: This command is used to create a different type of holes by selecting the screw size and fit.

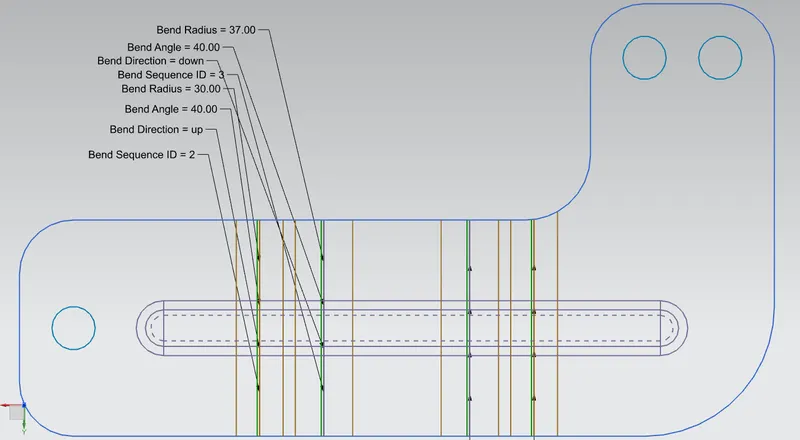

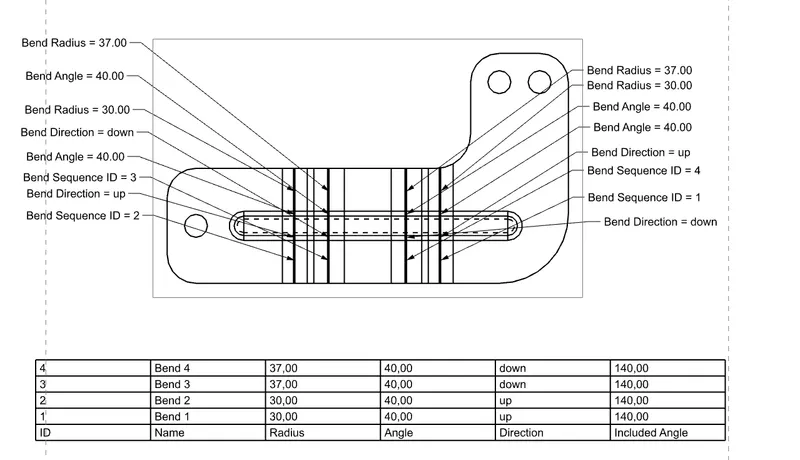

Flat Pattern: This command is used to create a 2D representation of a 3D sheetmetal Part.

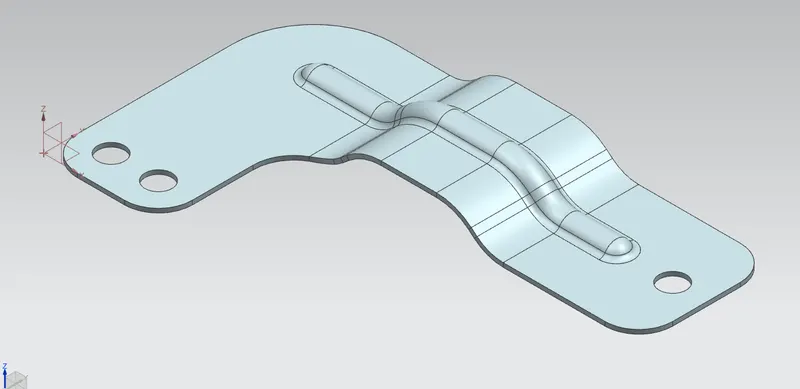

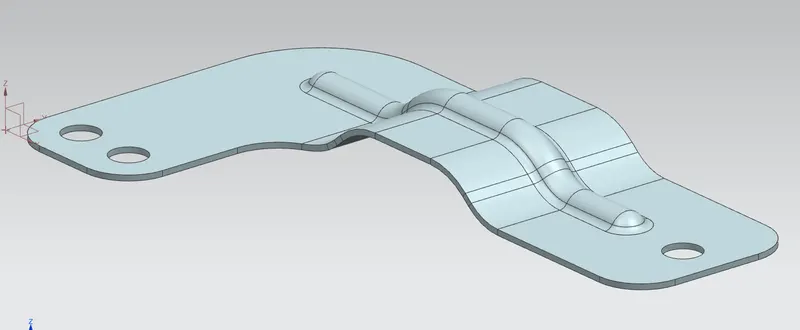

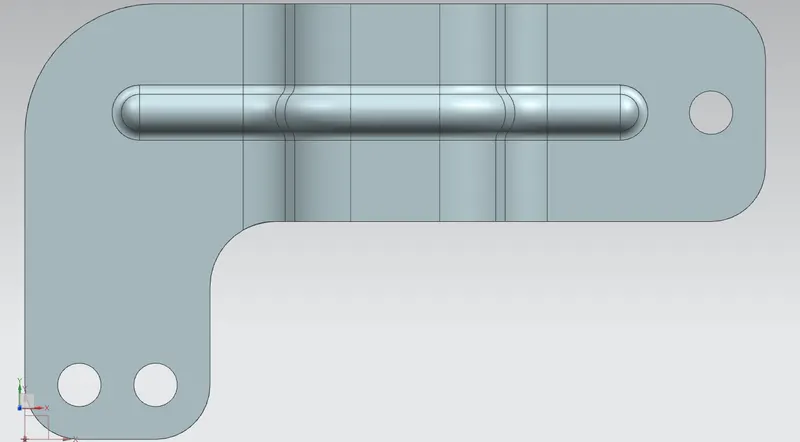

Model Images:

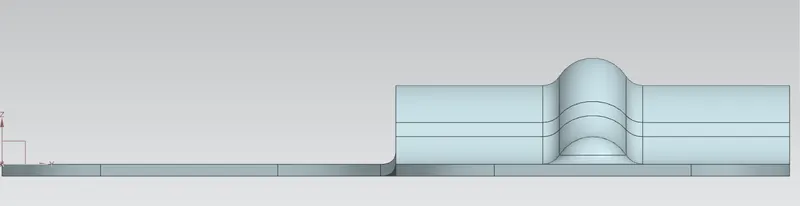

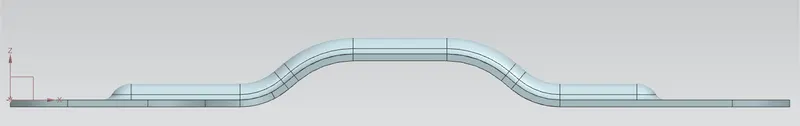

Front View
