Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

NX ODD ENCLOSURE

OBJECTIVE:- To make enclosure by the help of solid part or extrude

INTRODUCTION:- The enclosure is made by the help of wrap sheet metal to the extrude metal as shown following steps.

DESIGN METHODOLOGY:-

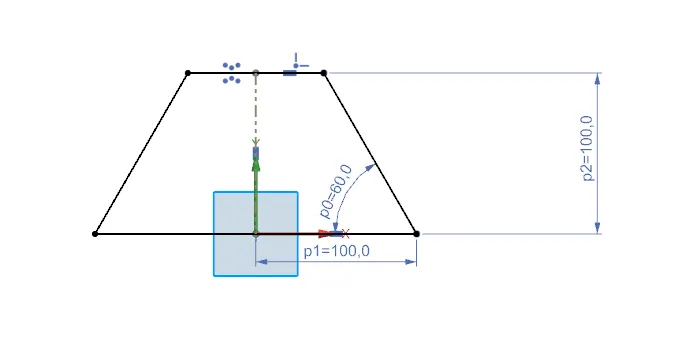

1. Make a sketch on a plane as shown below.

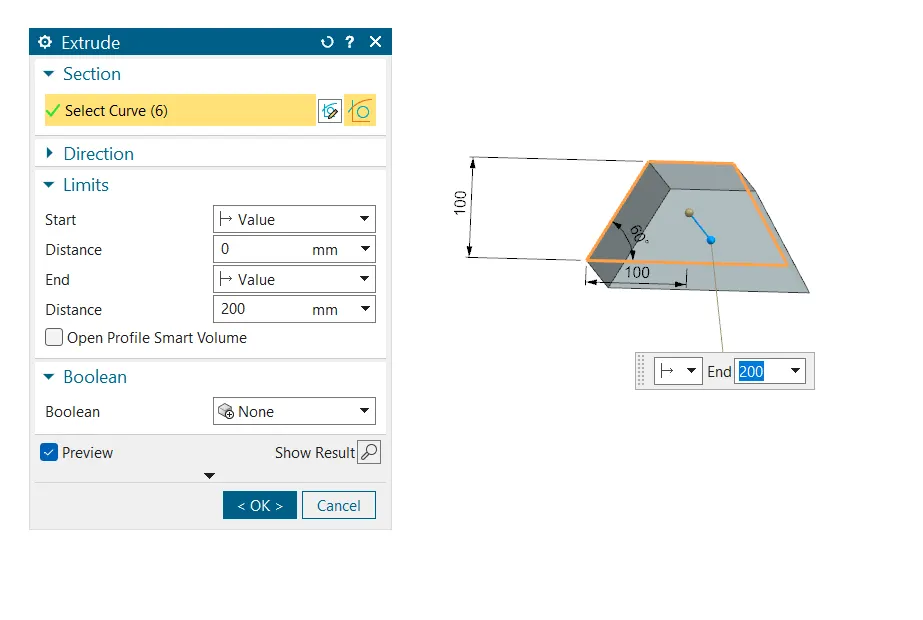

2. extrude _ Extrude it by setting a distance to 200 mm as shown below

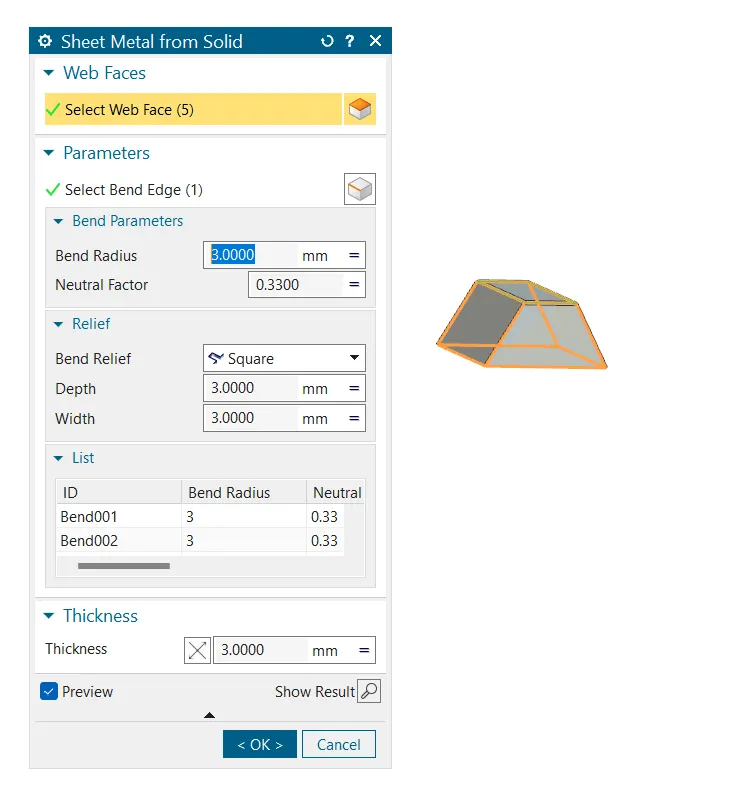

3. sheet metal from solid- Now select the web faces and select edge for edge blend as shown below

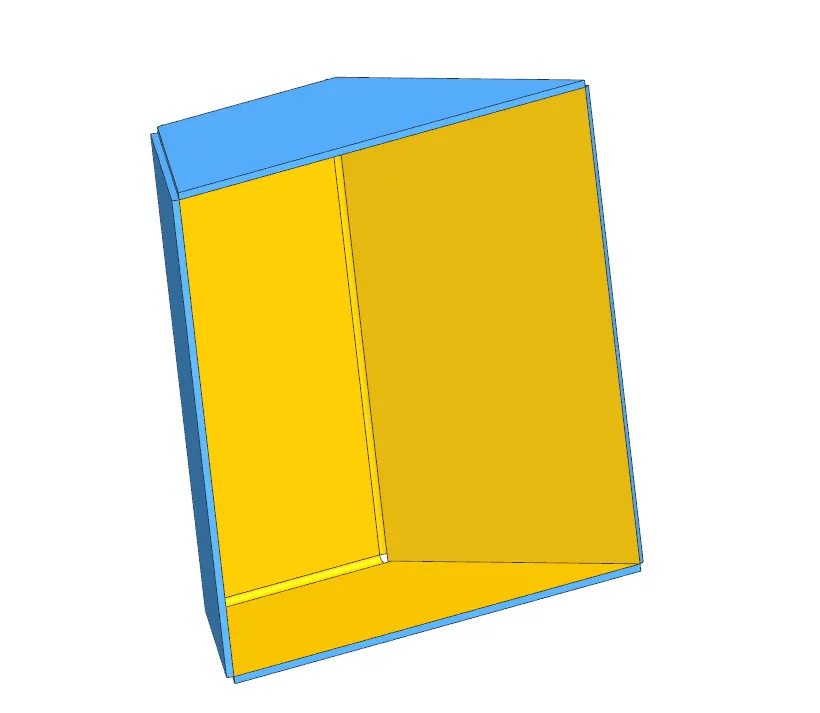

4.sheet metal will look like

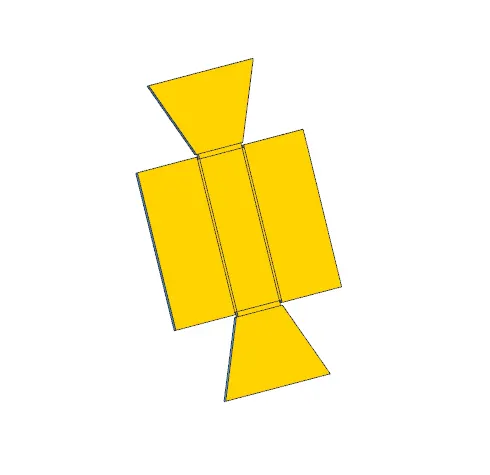

5.Unbend it - By selecting the edges the sheet metal unbend to a flat sheet as shown

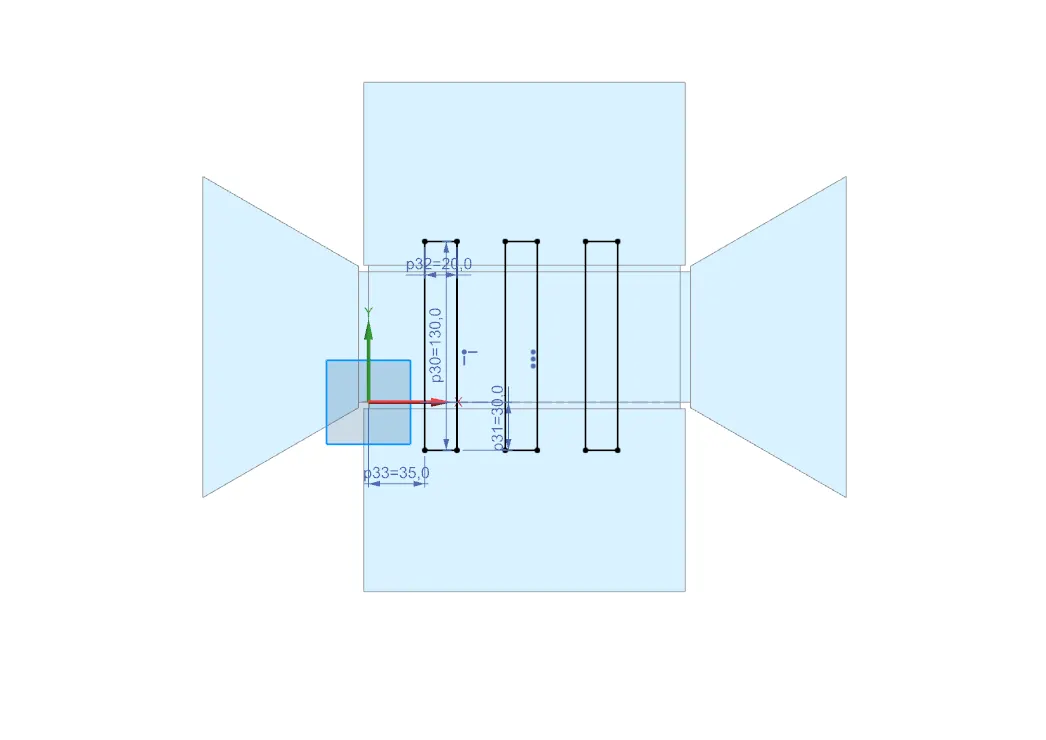

6.Make a sketch for dimple as shown below

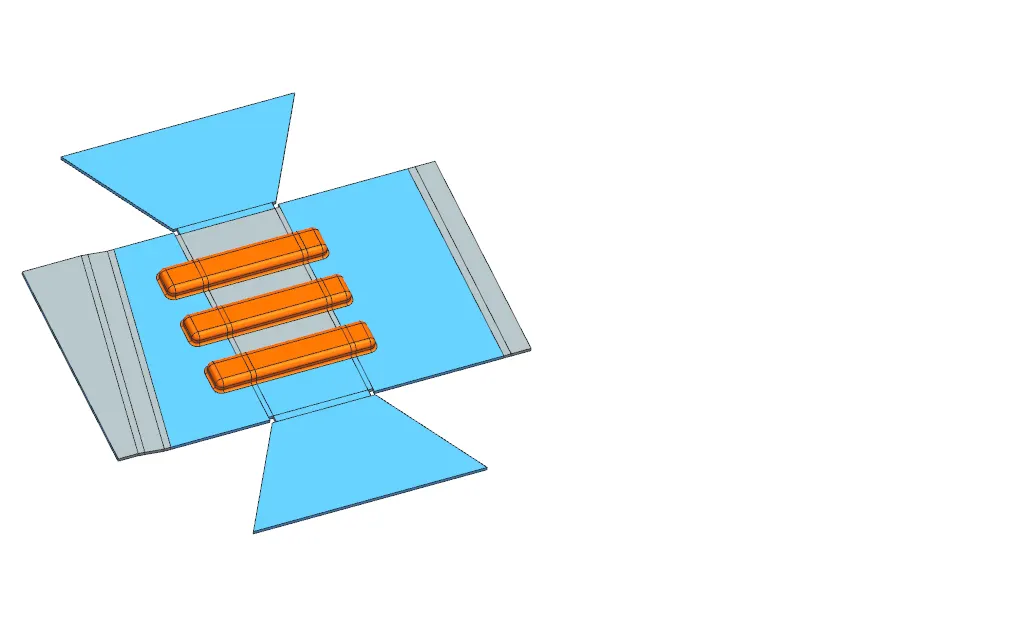

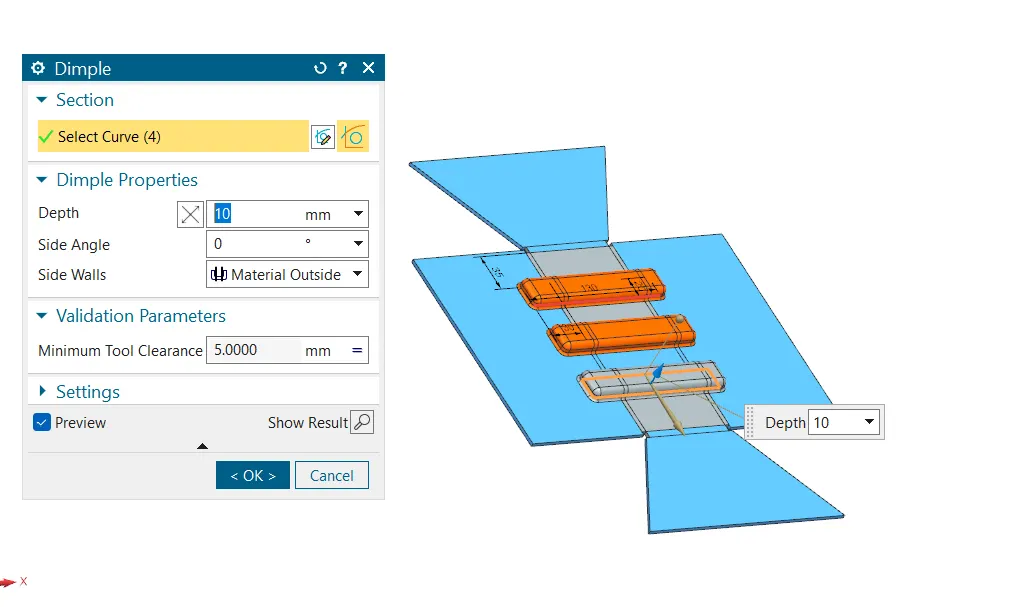

7. Dimple command _ Now to make a dimple we first to unbend and then sketch and choosing curve and depth 10 mm as shown

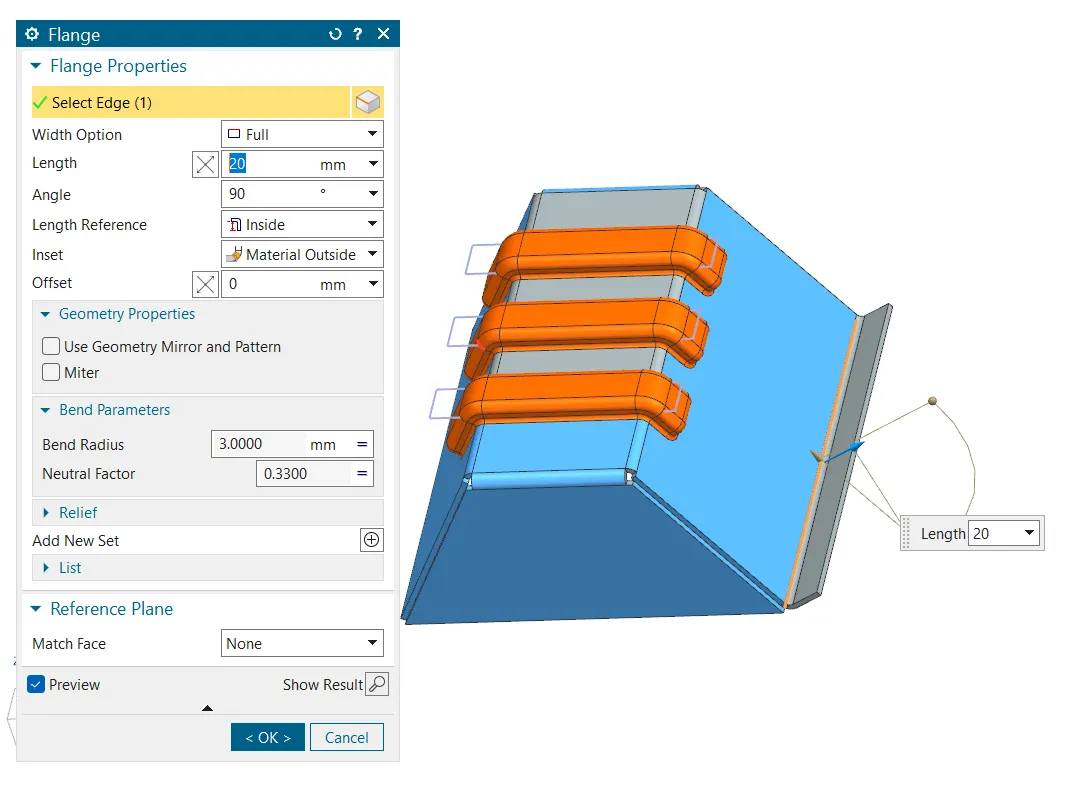

8. Flange- select edge and length to 20mm as shown

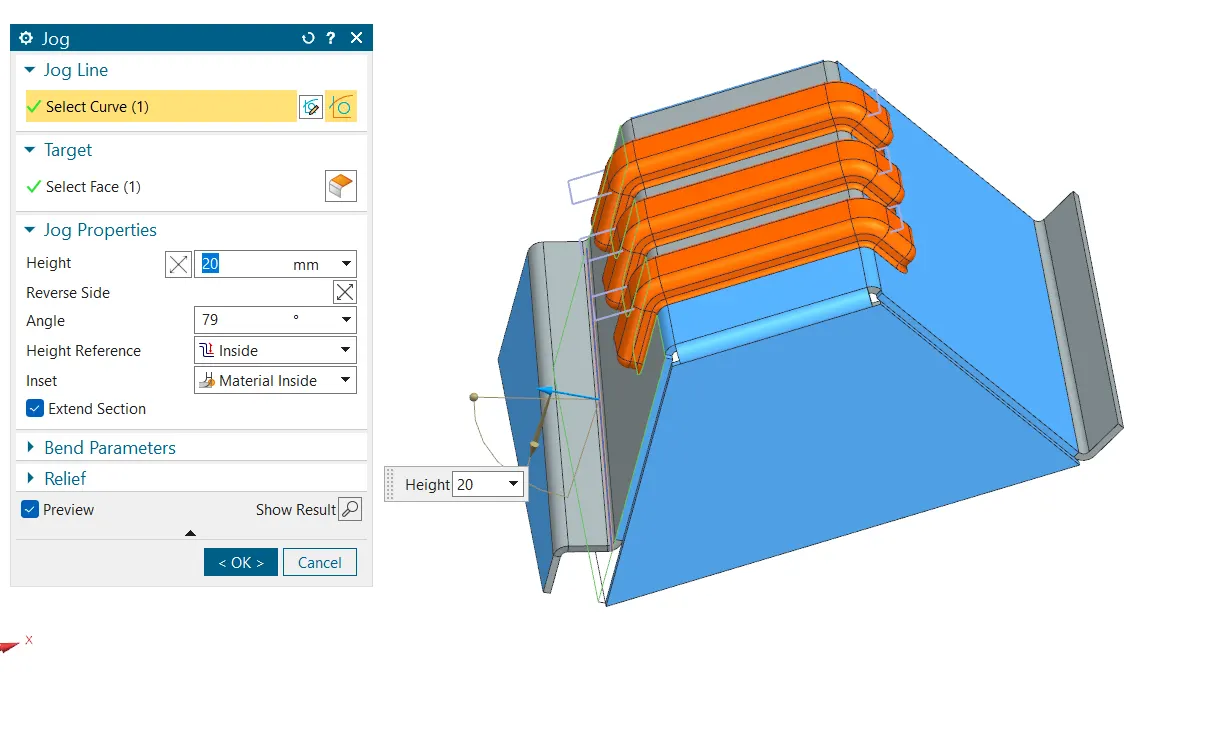

9. Jog-now make a sketch and select the sketch to make a jog of height 20 mm

10.Unbend it

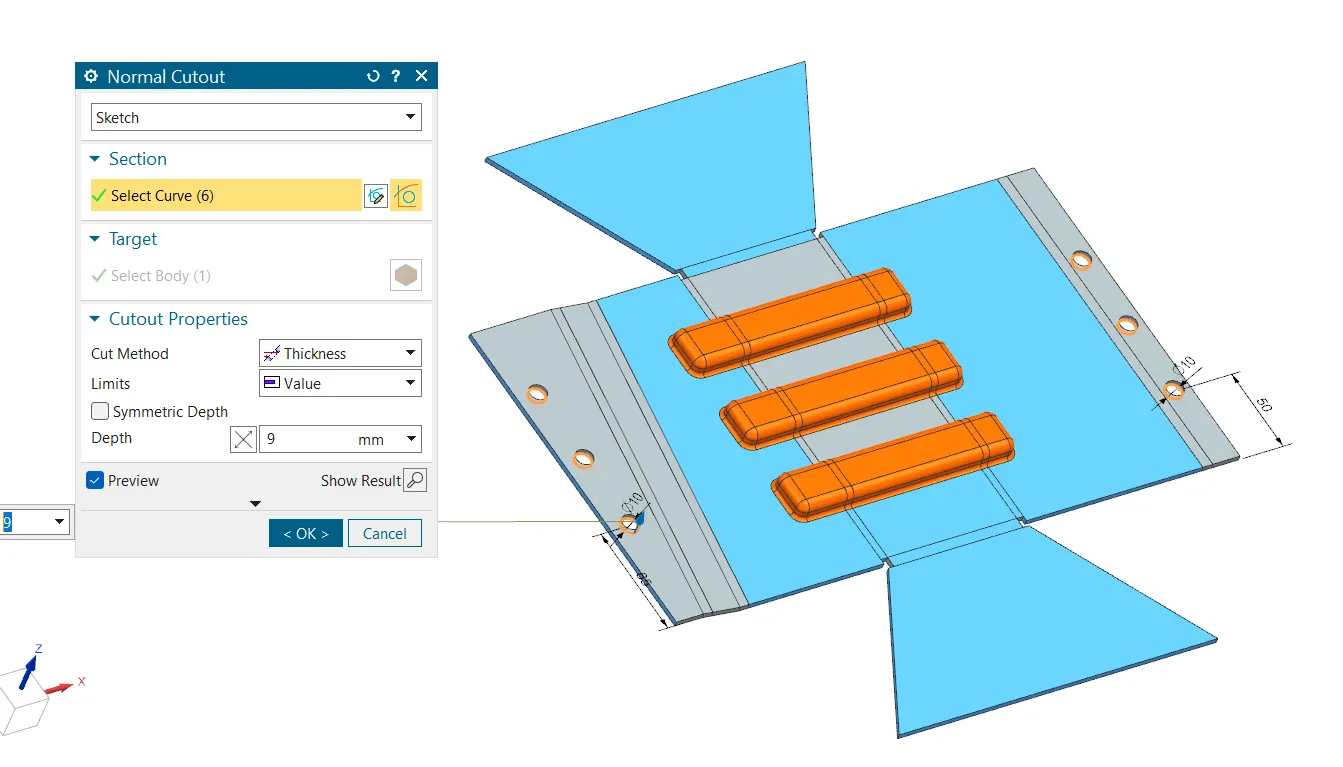

11. Normal cut out

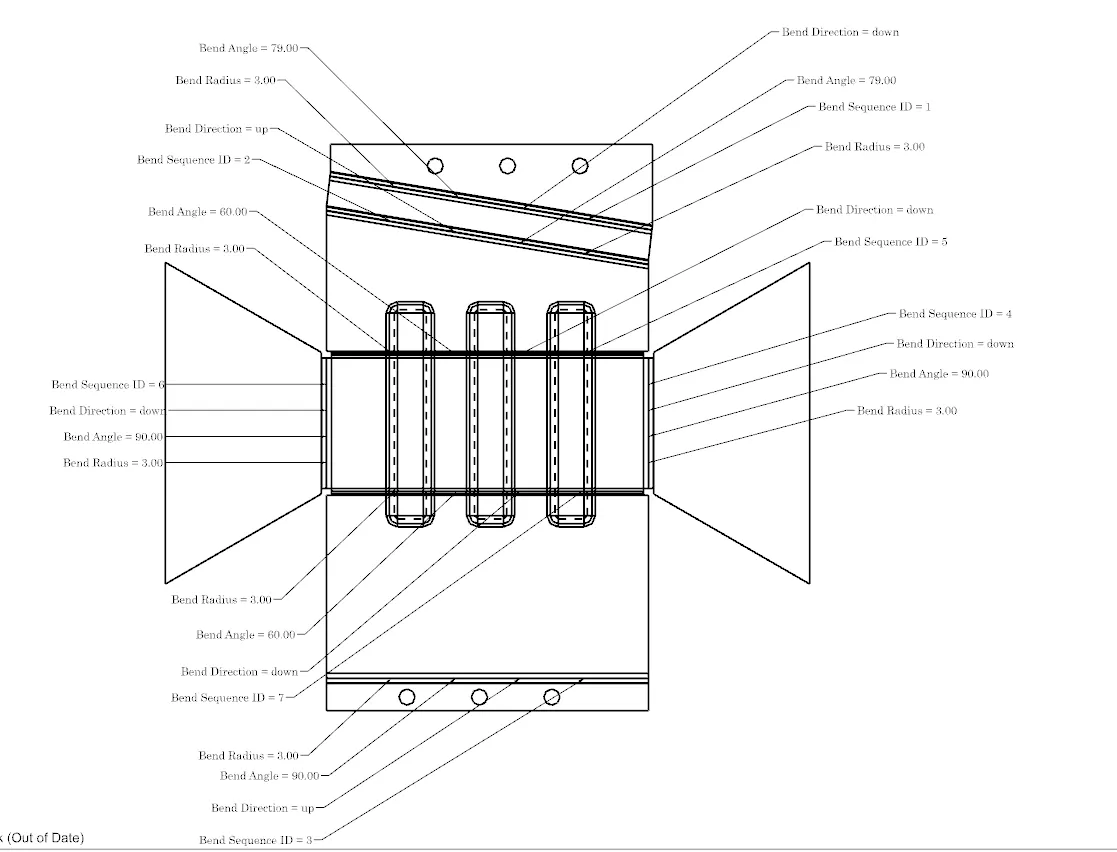

12. Flat pattern

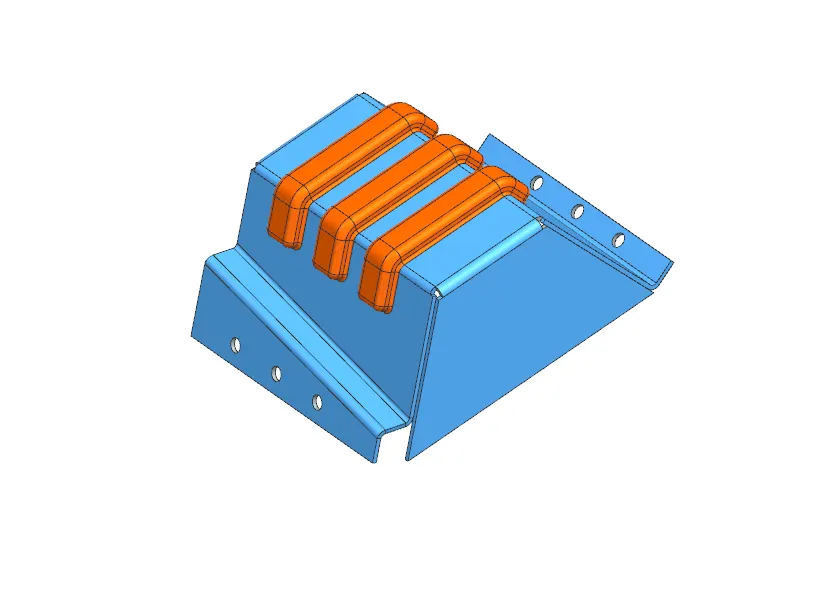

13.ISOMETRIC VIEW

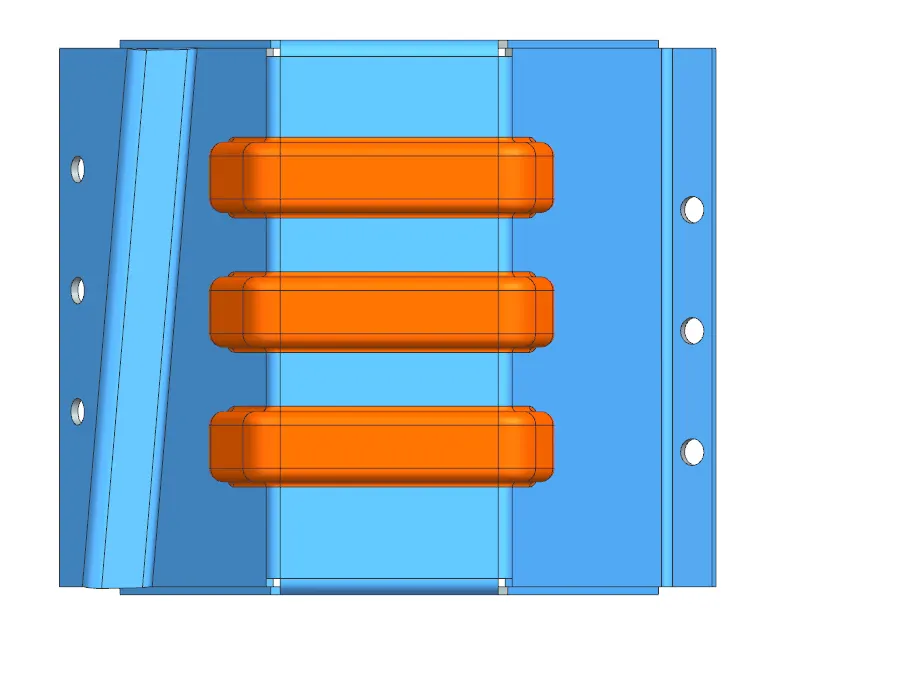

TOP VIEW

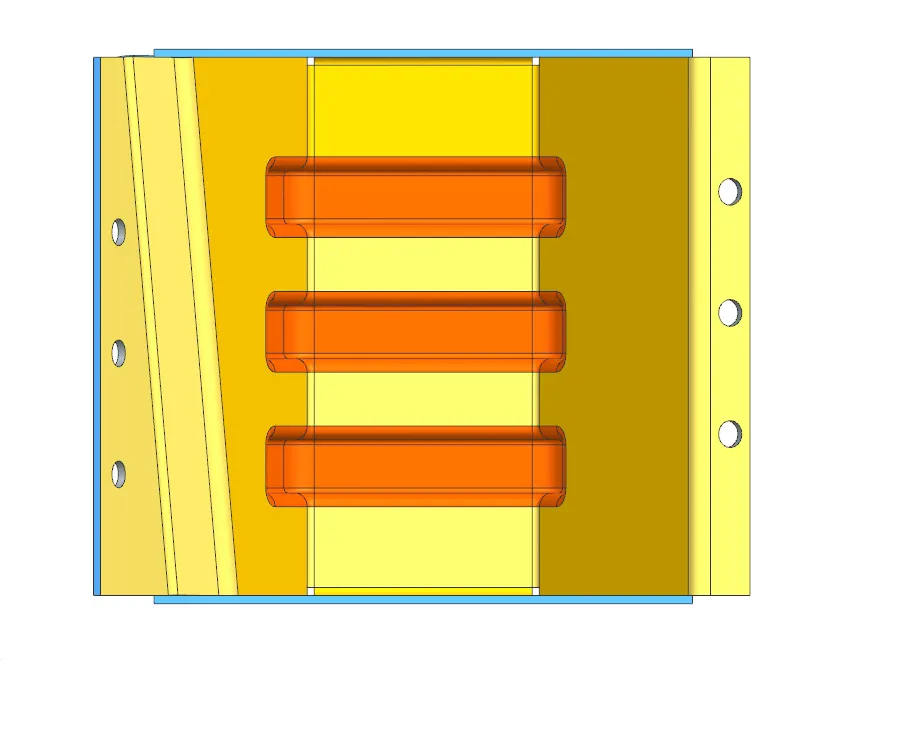

BOTTOM VIEW

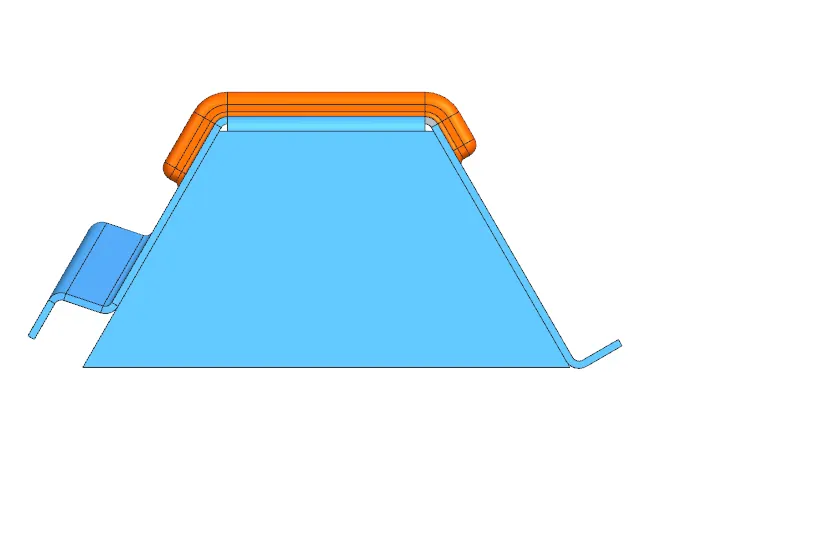

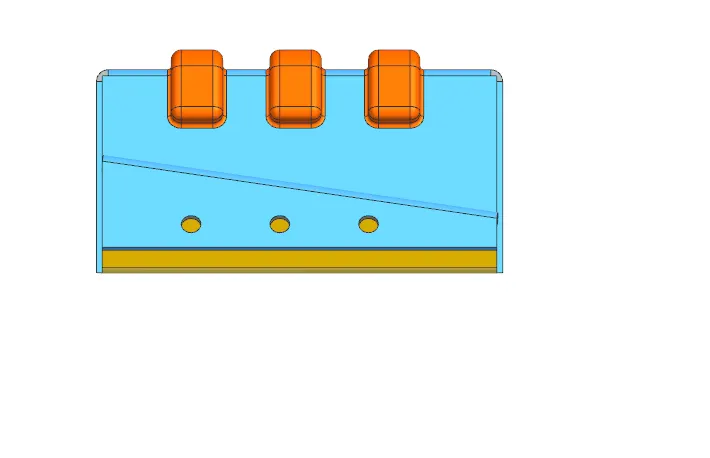

FRONT VIEW

SIDE VIEW

Conclusion- The sheet metal enclosure has been designed with meticulous attention to sheet metal design principles and considerations.
