Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

KKhushal Dwivedi16 May 2024

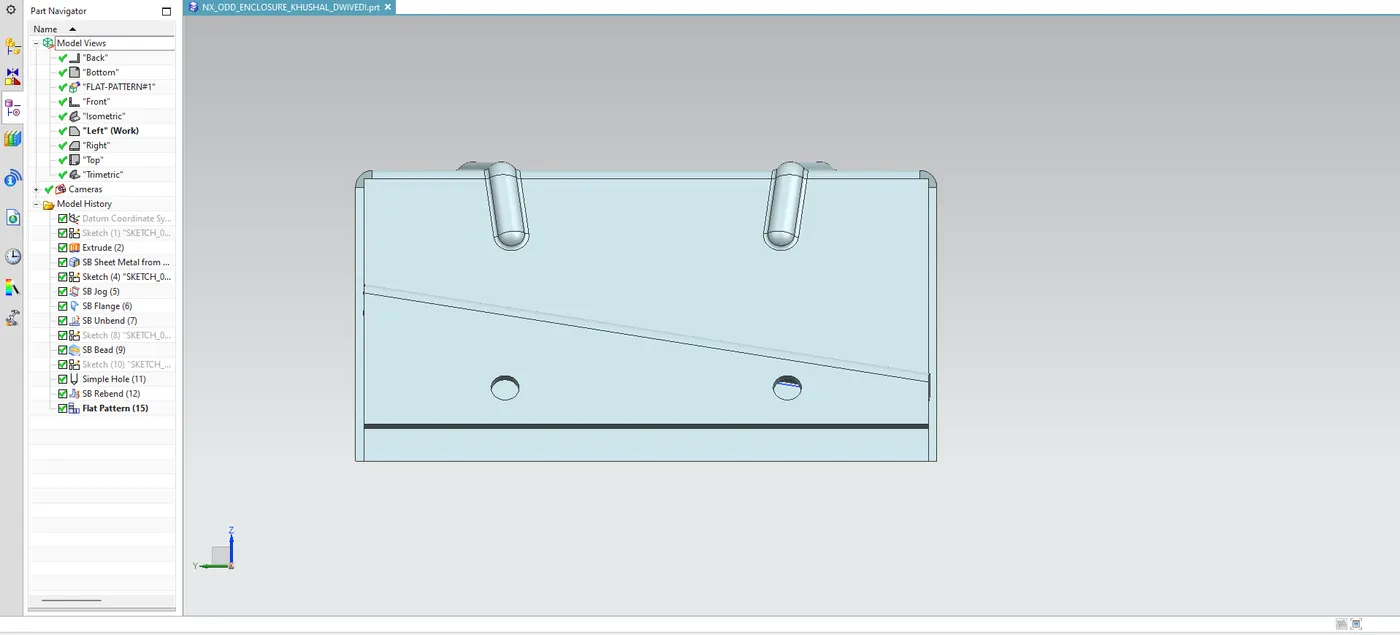

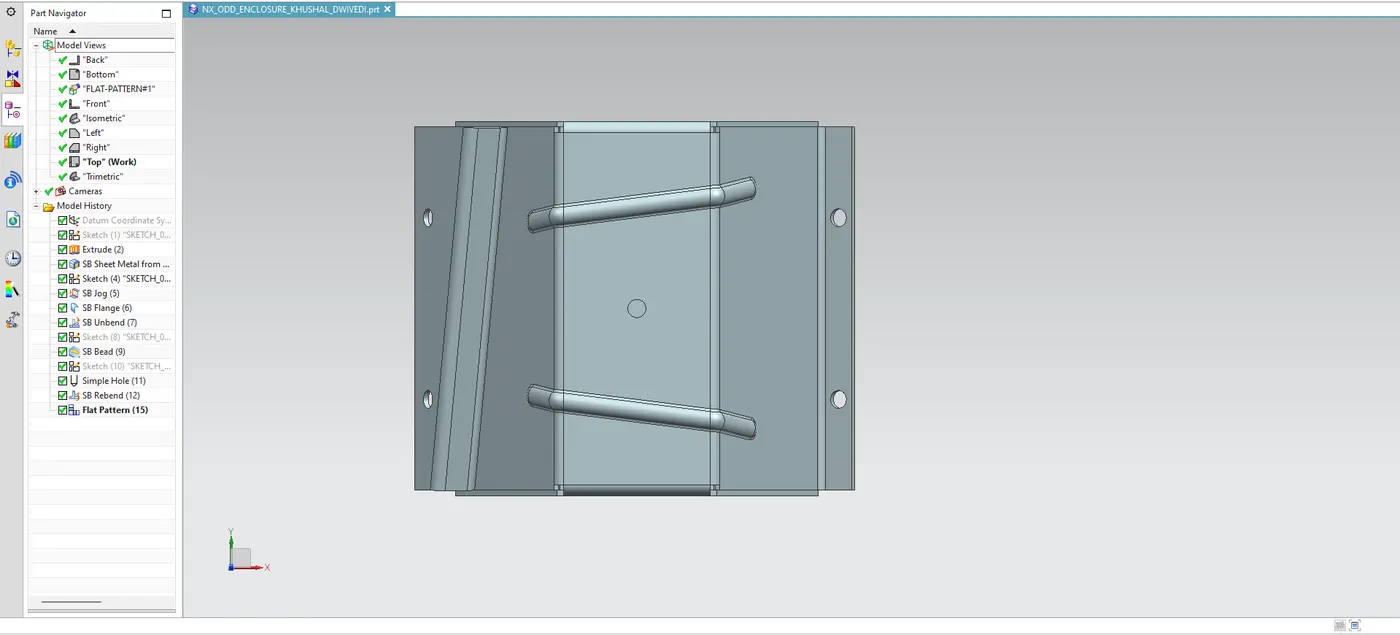

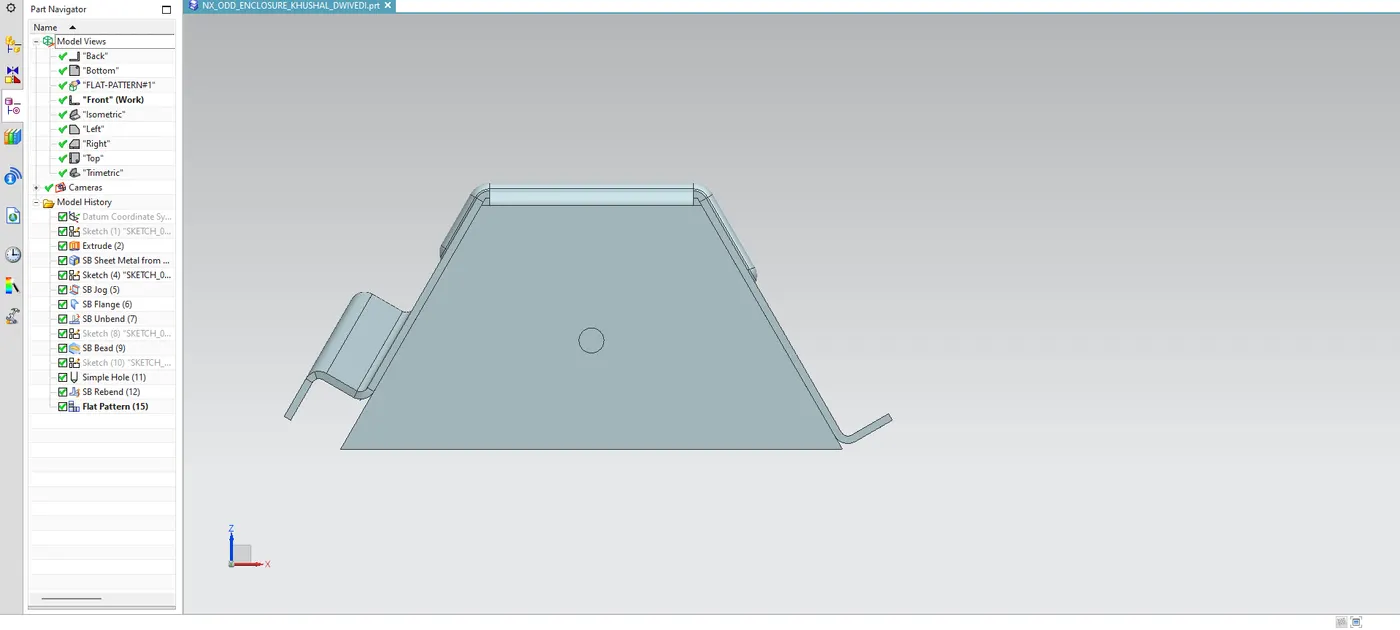

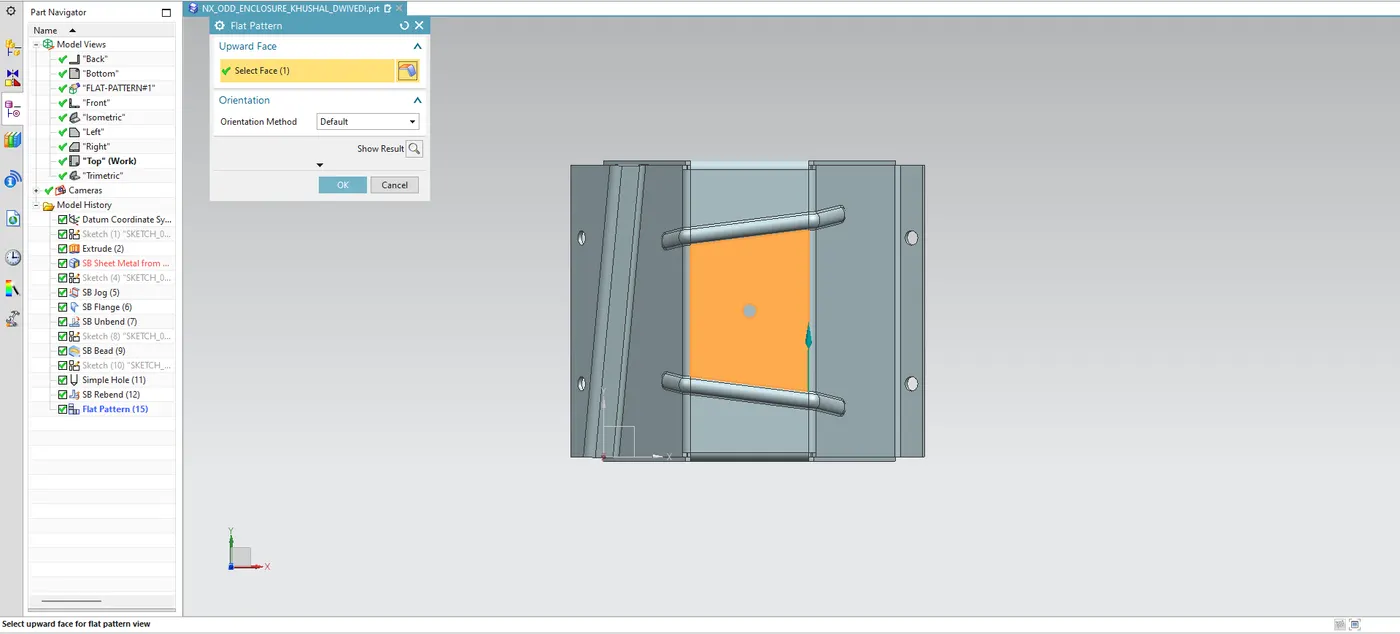

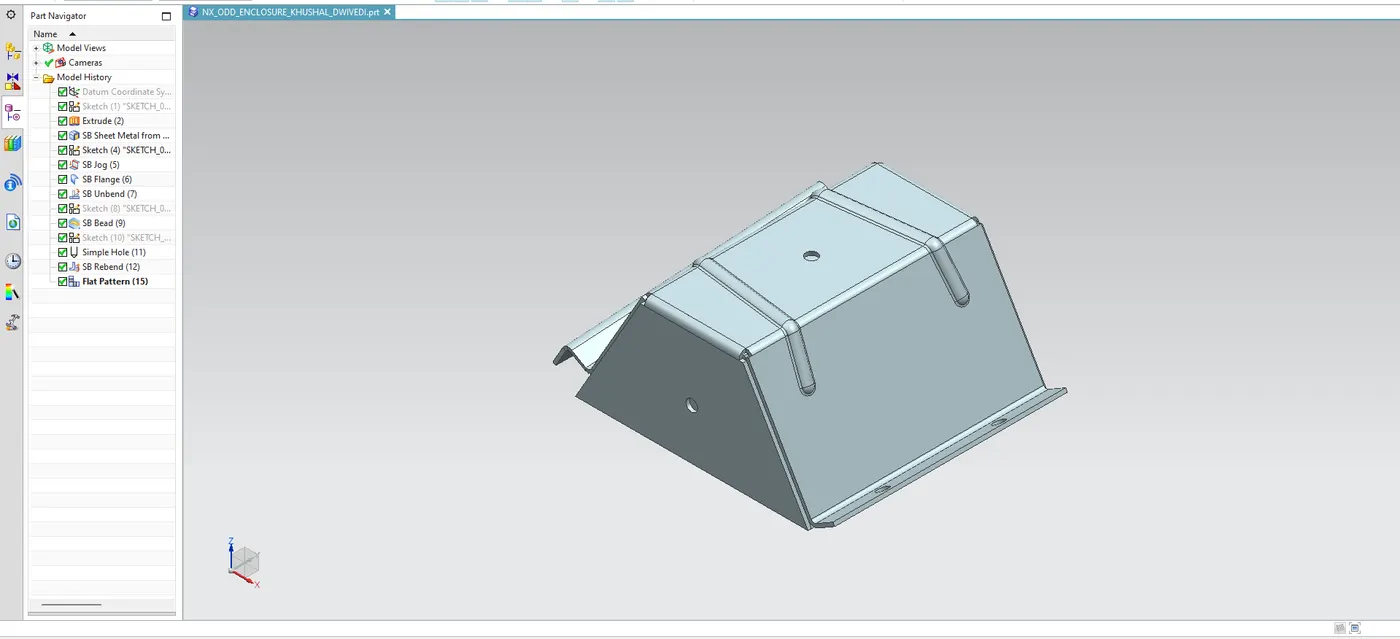

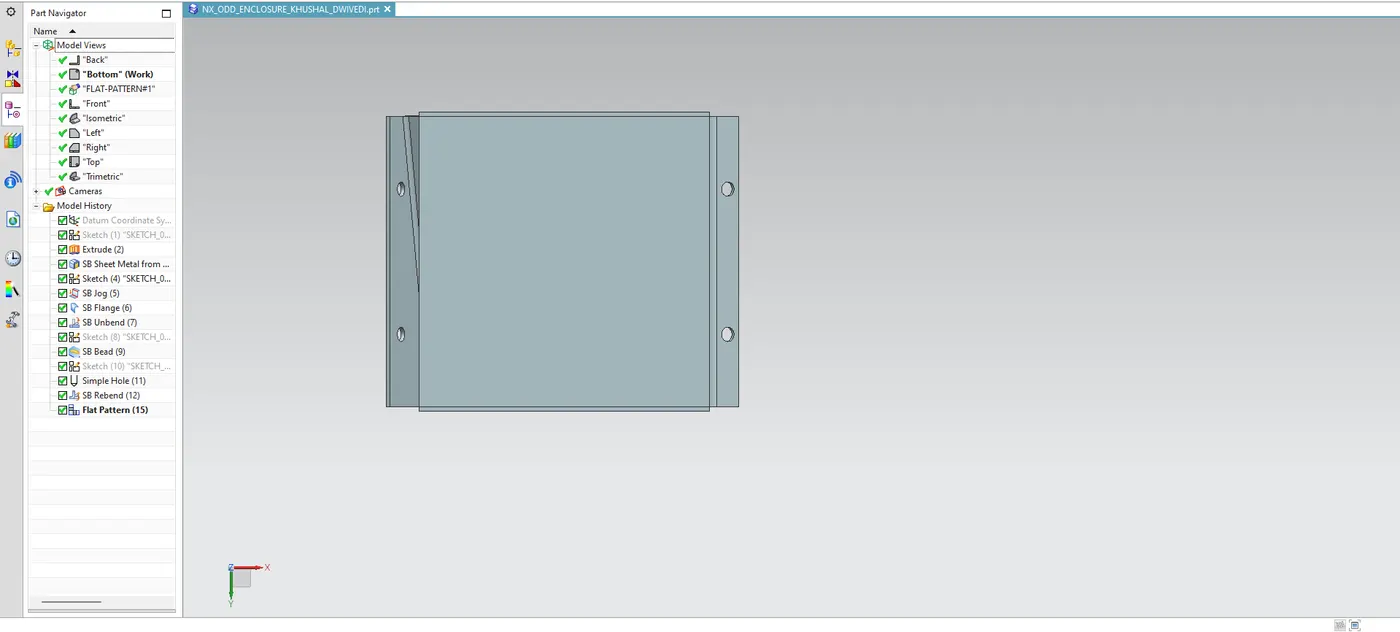

ODD SHAPED ENCLOSURE

1. INTRODUCTION:-

STARTNX12.0 AND CREATE A NEW SHEET METAL MODEL CALLED NX_ODD_ENCLOSURE_KHUSHAL_DWIVEDI.PRT

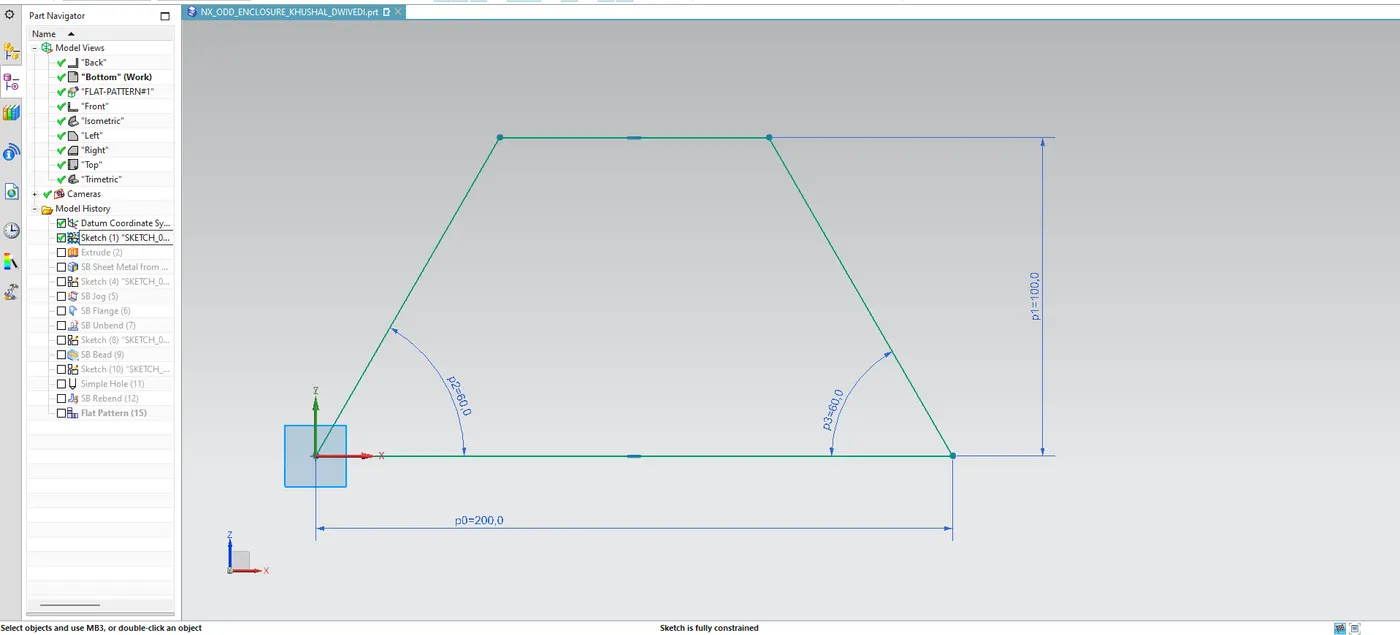

CREATE A SKETCH IN THE XY PLANE AND DRAW A LINE 200MM THEN CREATE TWO LINES GIVE 60DIG. ANGLE BETWEEN TWO LINES BOTH SIDE HIGHT OF THE BOTH LINES ARE 100MM
EXIT THE SKETCH MODE.

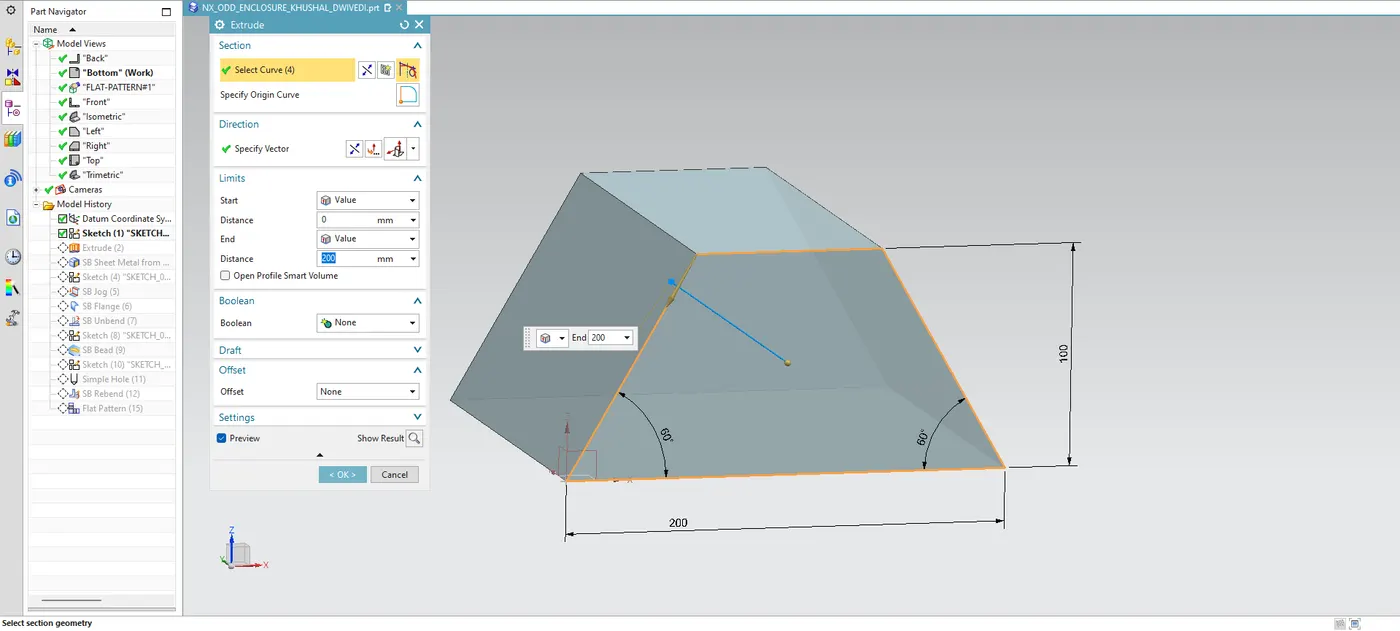

SELECT EXTRUDE FEATURE SELCET CURVE THEN GIVE DISTANCE OF 200MM.

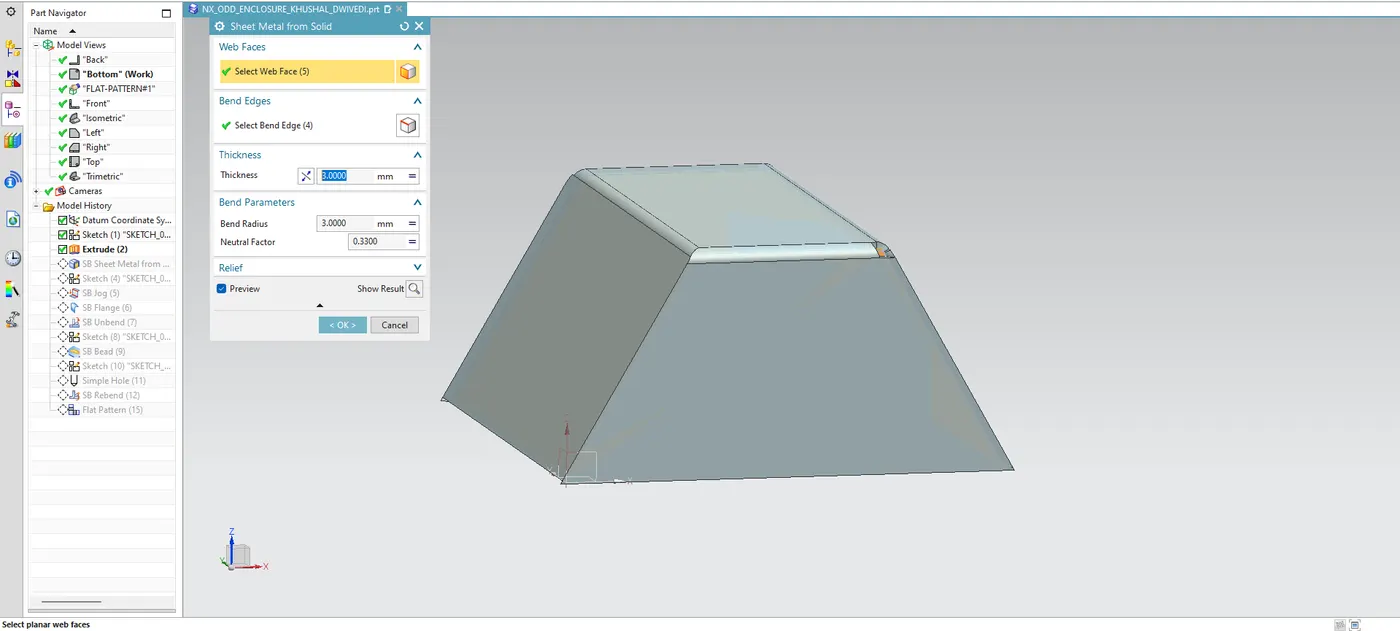

2.SHEET METAL FROM SOLID:-

SELECT SHEET METAL FROM SOLID FEATURE - SELECT WEB FACES & BEND EDGES- GIVE THICKNESS VALUE IS 3MM- BEND RADIUS & NEUTRAL FACTURE IS 0.3300 THEN OK

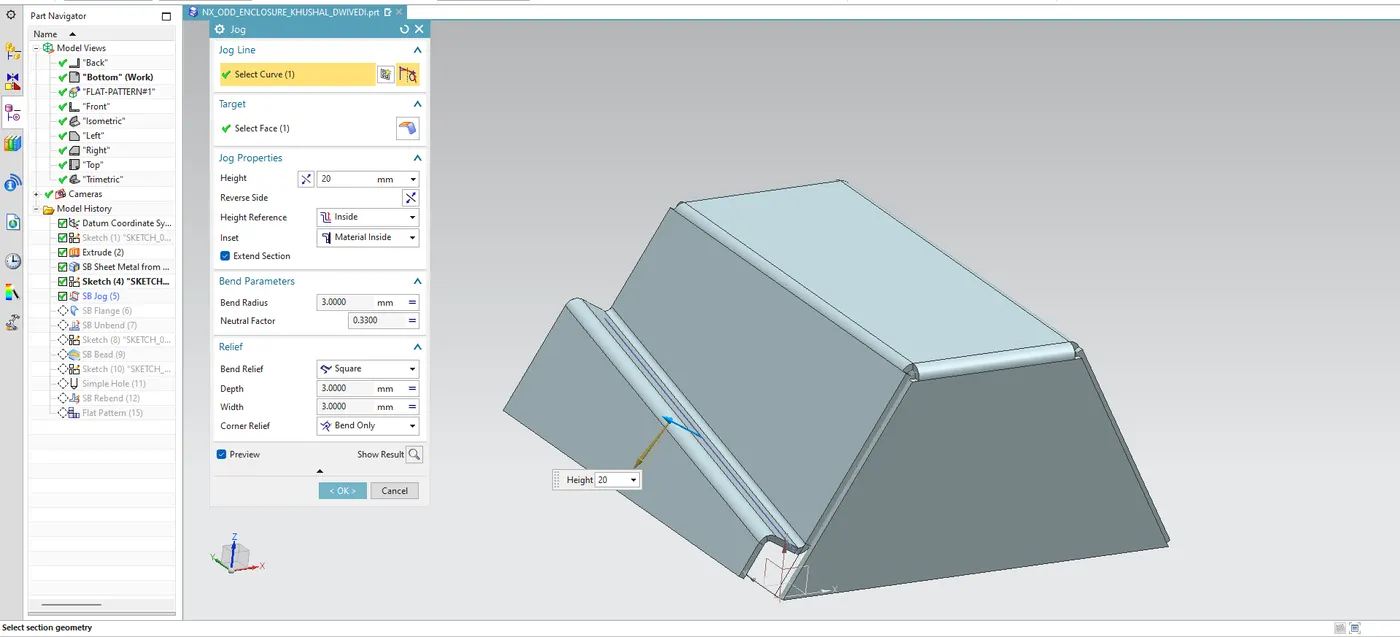

3.CREATE A J0G :-

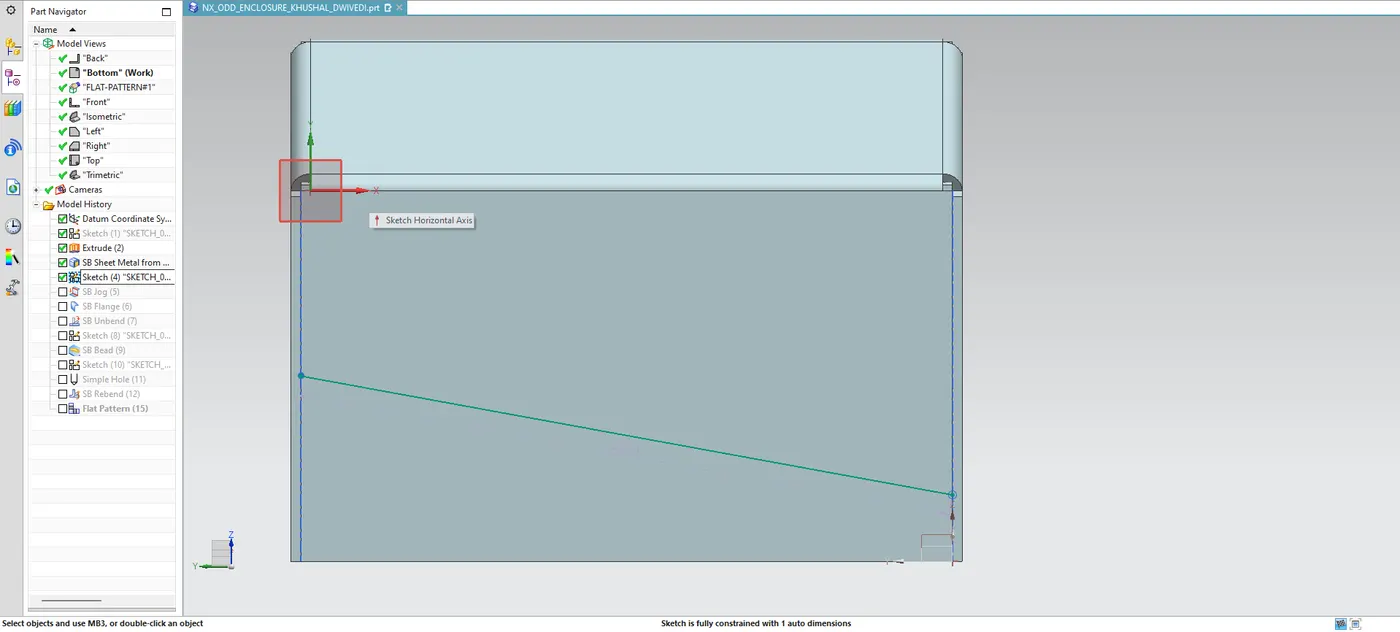

CREATE A LINE ON THE LEFT SIDE FACE OF THE PART THEN SELECT JOB FEATURE -SELECT JOG LINE- SELECT HEIGHT OF THE JOG IS 2OMM SELECT MATERIAL INSIDE -BEND RADIUS IS 3MM AND NEUTRAL FACTOR IS 0.3300 -RELIEF'S DEPTH & WIDTH IS 3MM THEN OK

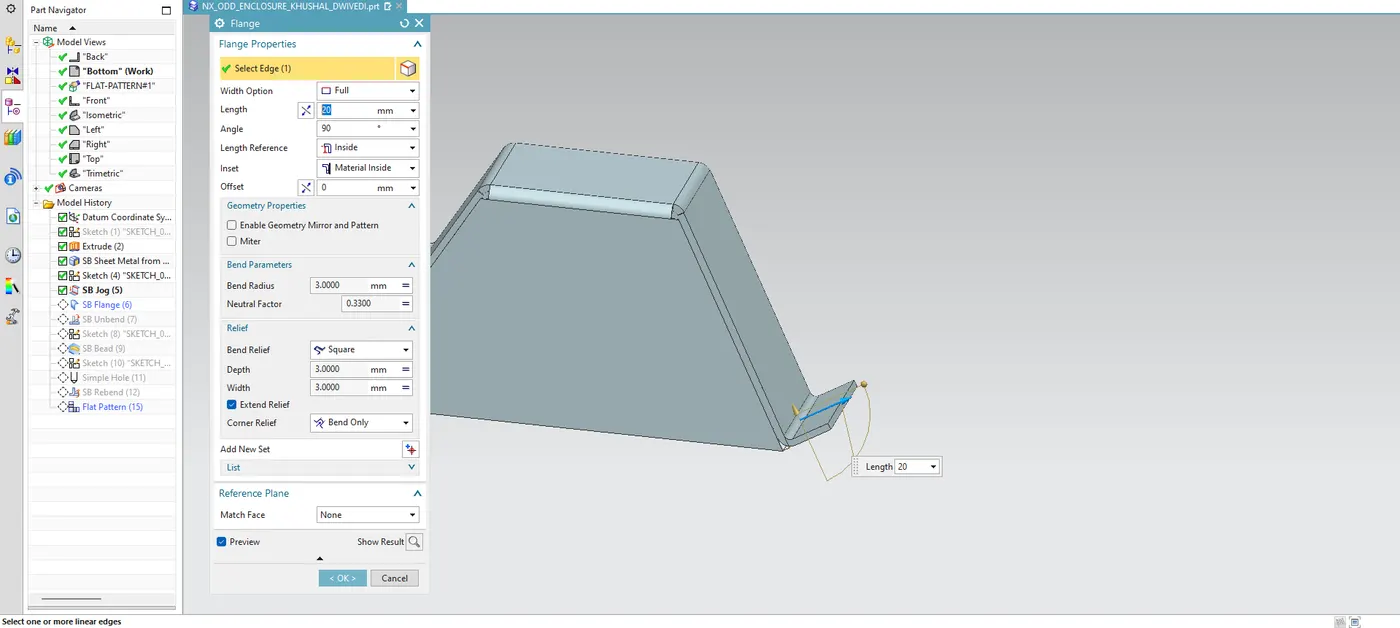

4.CREATE A FLANGE :-

SELECT A EDGE -FLANGE LENGTH IS 20MM & ANGLE IS 90DIG. SELECT MATERIAL INSIDE

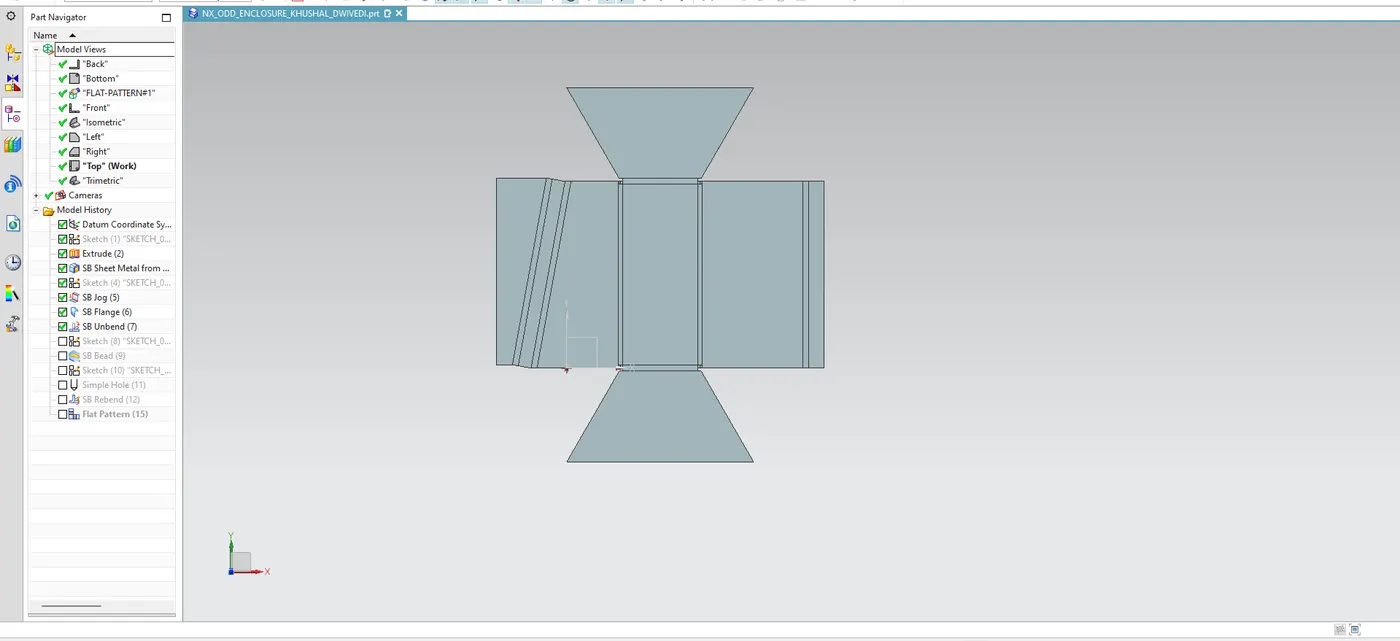

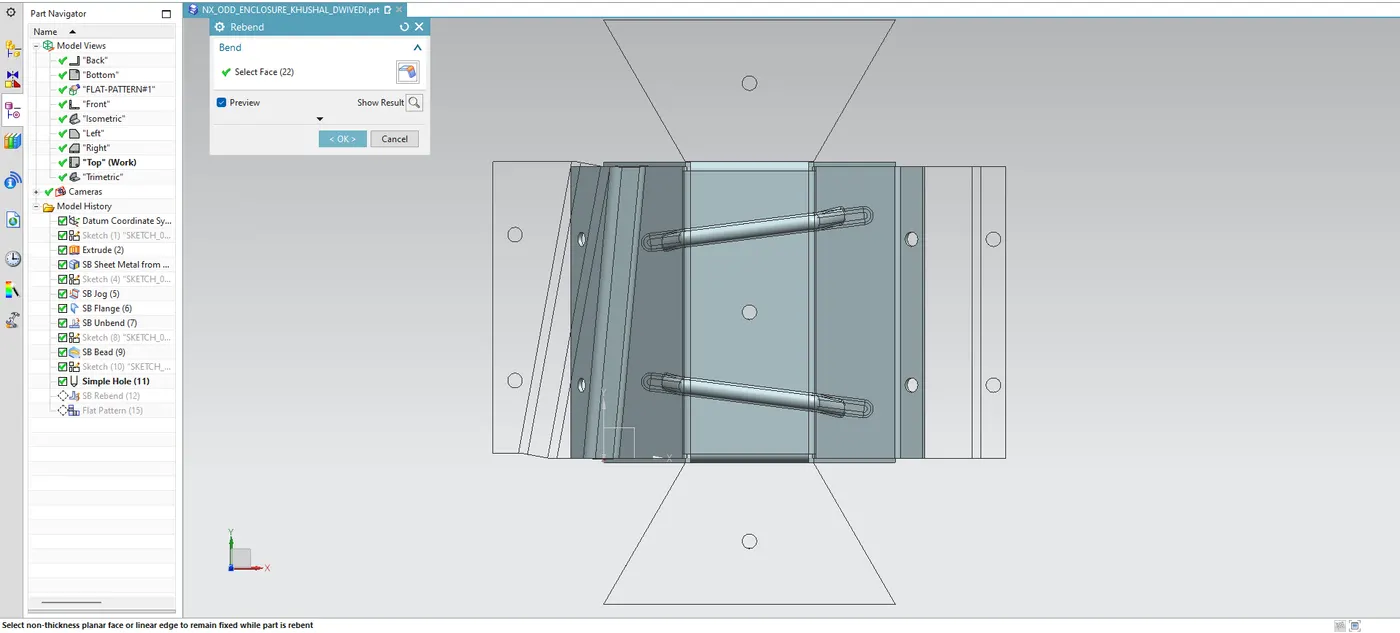

5. UNBEND :-

SELECT UNBEND FEATURE - SELECT STATIONARY FACE & BEND EDGE THEN OK

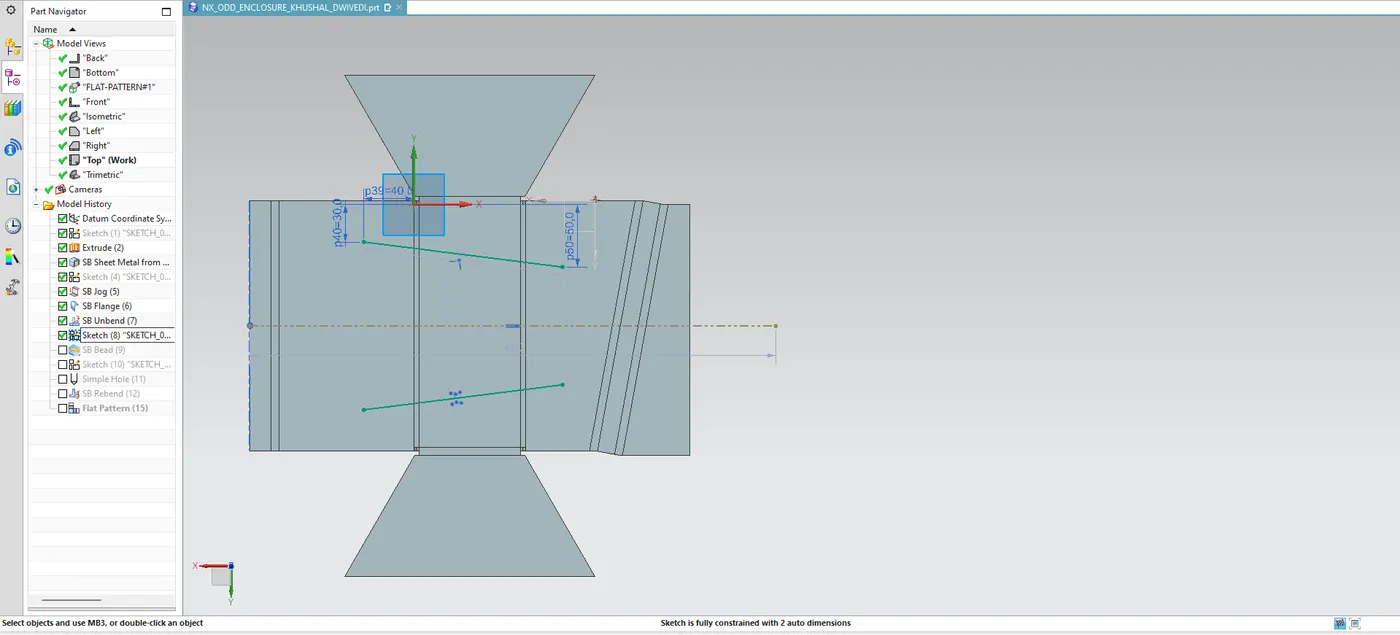

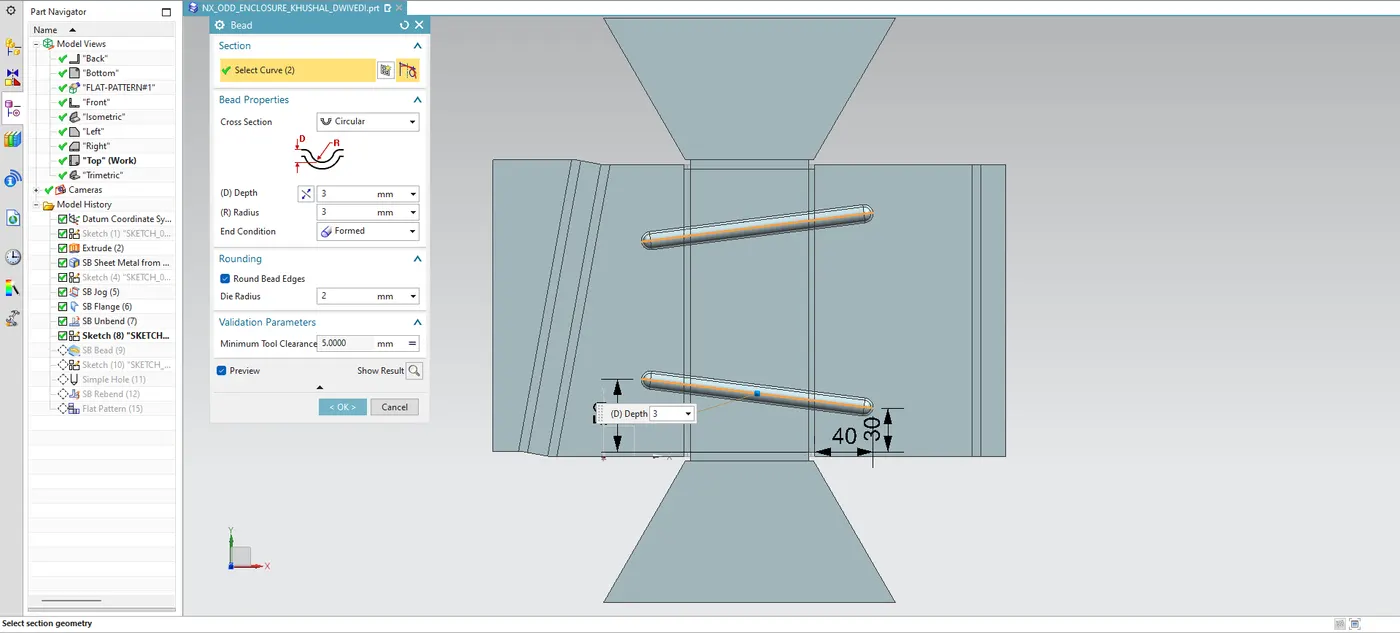

6.BEAD :-

DRAW A SIMPLE TWO LINES ON THE FACE .THEN SELECT BEAD FEATURE -SELECT CURVE - SELECT BEAD PROPERTIES SELECT CROSS SECTION IS CIRCULAR- 3MM DEPTH & 3MM RADIUS - DIA RADIUS IS 2MM -MINIMUM TOO CLEARANCE IS 5MM THEN OK

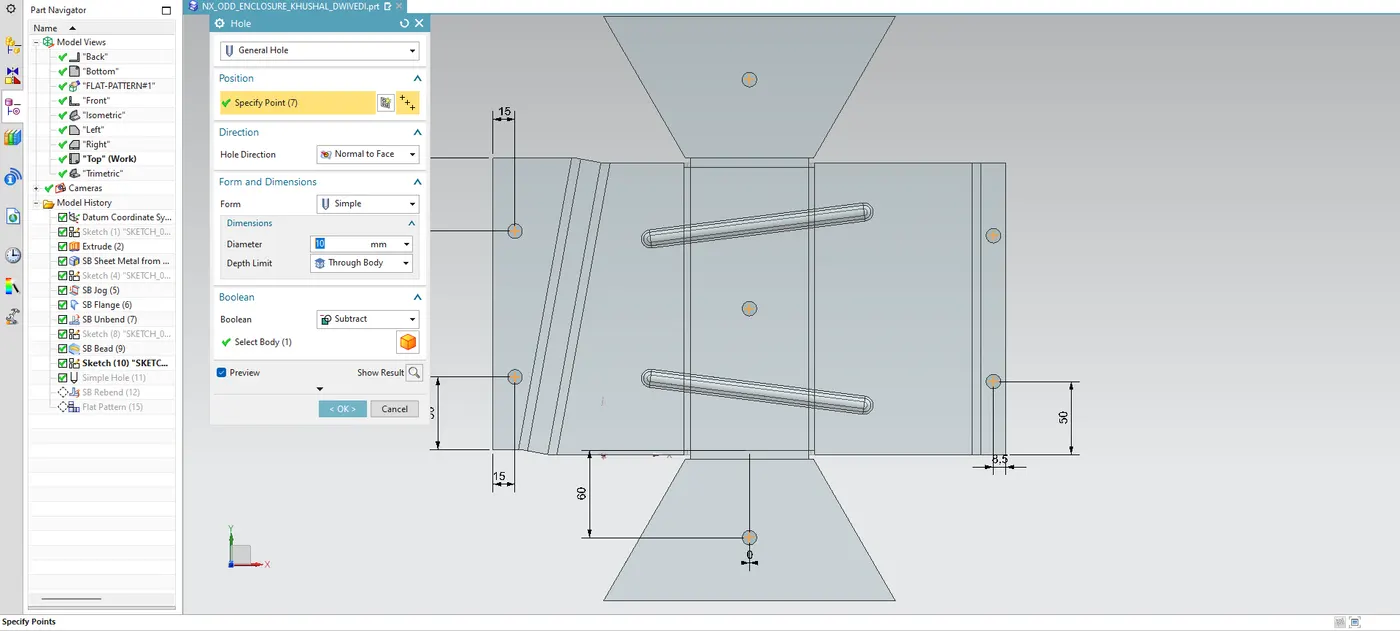

7. SIMPLE HOLE:-

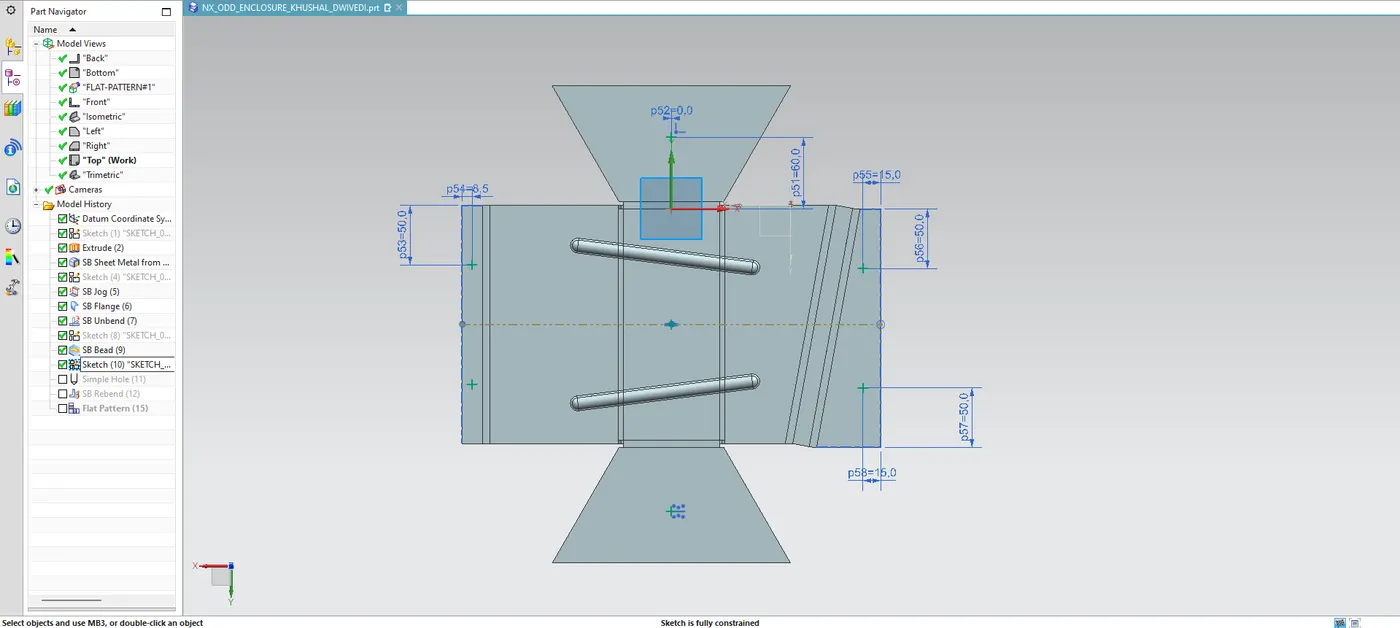

CREATE 7 POINTS ON THE SURFACE OF DEFERENT DIMENSIONS THEN SELECT SIMPLE HOLE FEATURE -SELECT GENERAL HOLE-SPECIFY POINTS -HOLE DIRECTION IS NORMAL TO FACE -FORM IS SIMPLE- DIAMETER IS 10MM- DEPTH LIMIT IS THROUGH BODY THEN OK
