Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Odd-Shaped Enclosure:-

OBJECTIVE:-

To design an odd-shaped Enclosure in NX cad as per the given dimensions.

Introduction:-

ENCLOSURE is a panel used to cover the body parts of a machine.

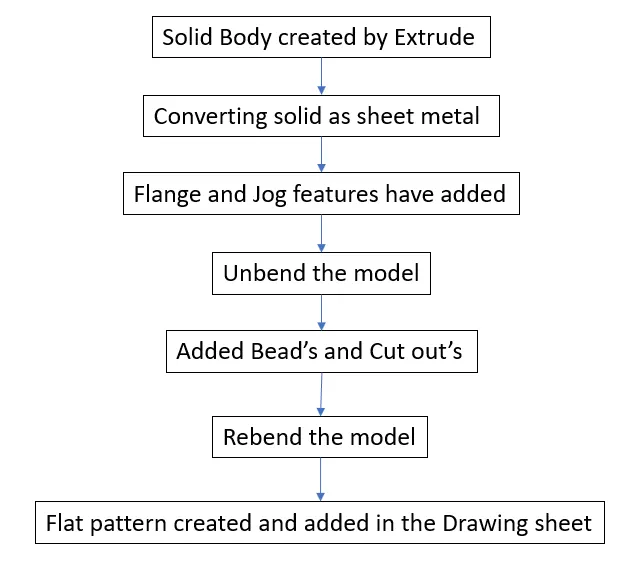

Design approach:-

Description:-

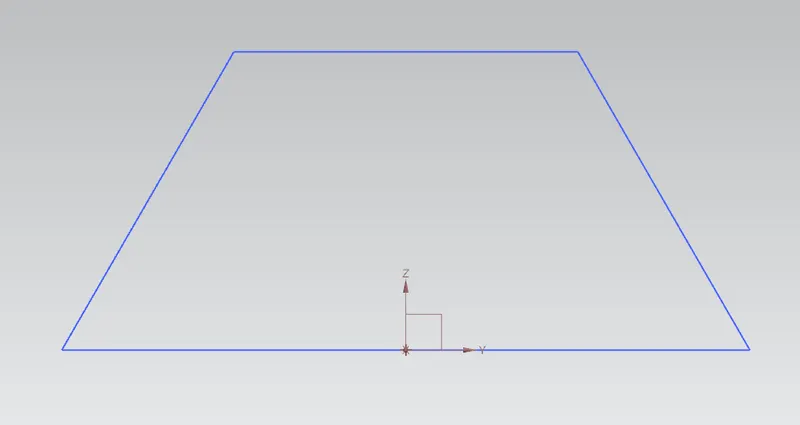

Sketch: Representing the geometry in two-dimensional (Wireframe).

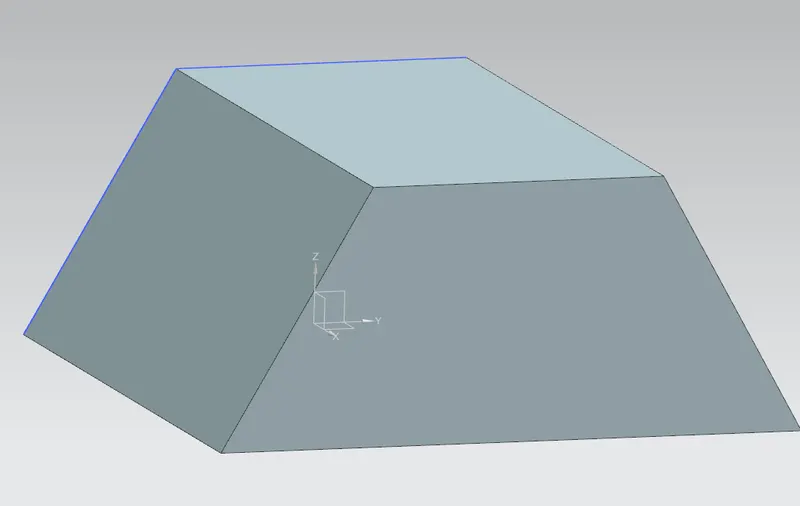

Extrude: Added solid body to required length with the sketch as a base.

Sheet metal from solid: All faces are selected to convert as sheet metal except the bottom face.

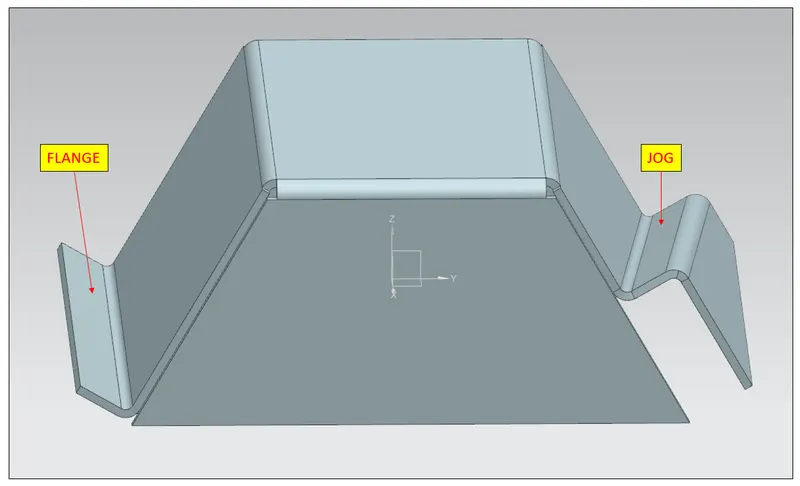

Flange: A flange is a feature consisting of a face with a bend that connects to an existing face.

Jog: The Jog tool adds material to a sheet metal part by creating two bends from a sketched line.

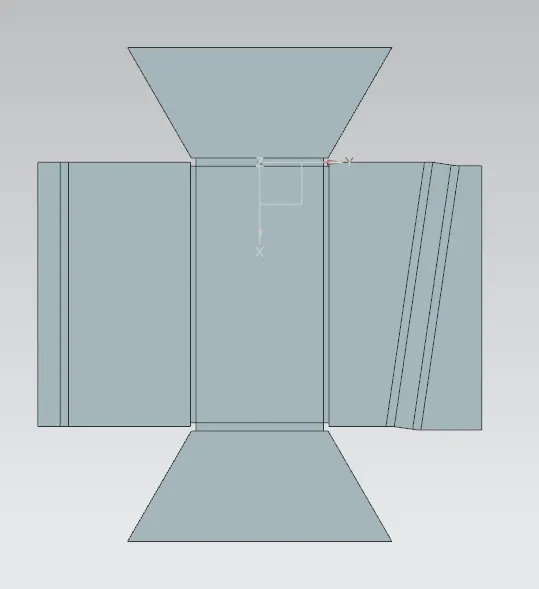

Unbend: Unfolding the bends.

Bead: An impression created to add strength.

Normal Cutout: With Sketch as base material is removed.

Rebend: Folding back the bends as before unbend feature.

Flat Pattern: This feature is added to add a view in dwg.

Snapshot:-

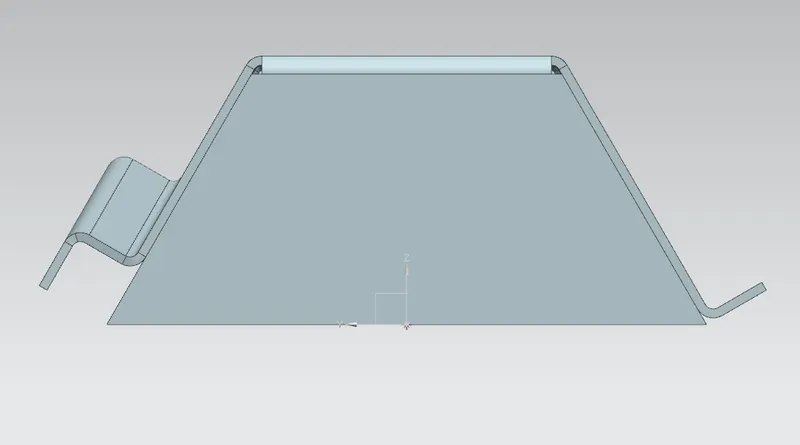

FRONT VIEW

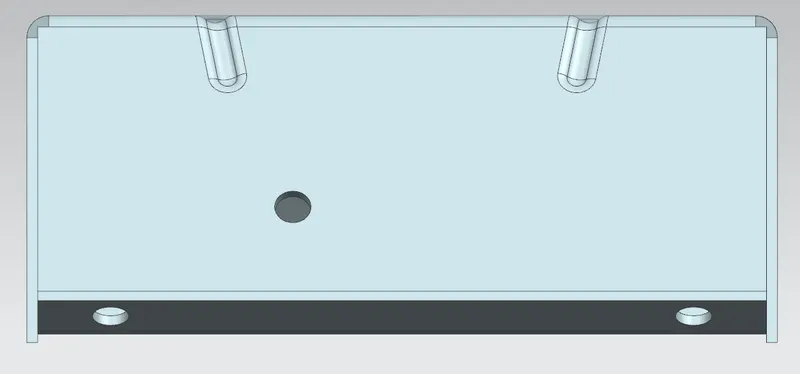

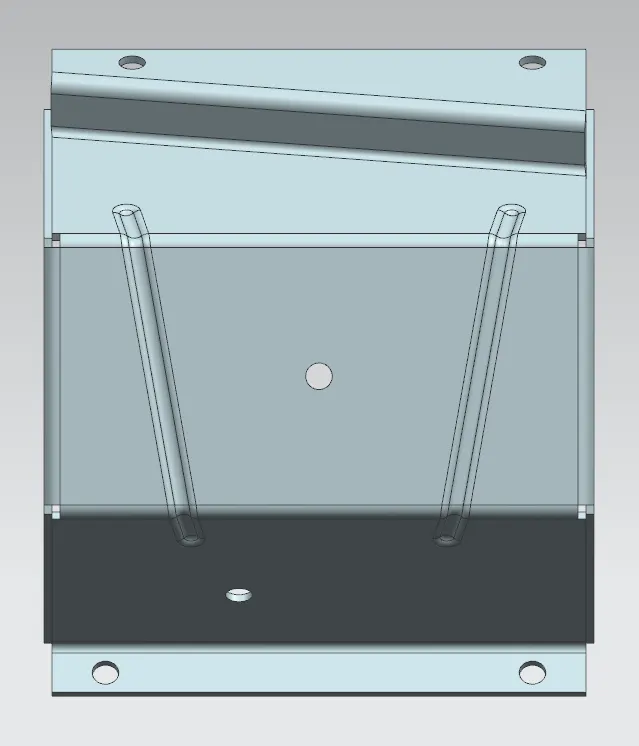

TOP VIEW

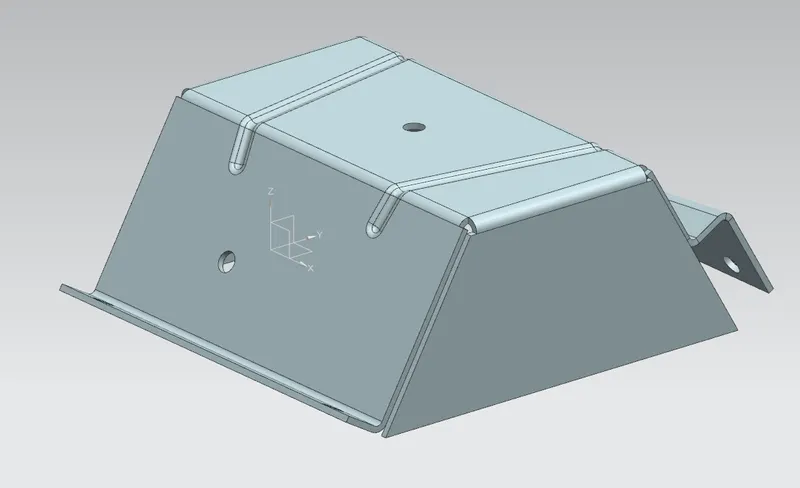

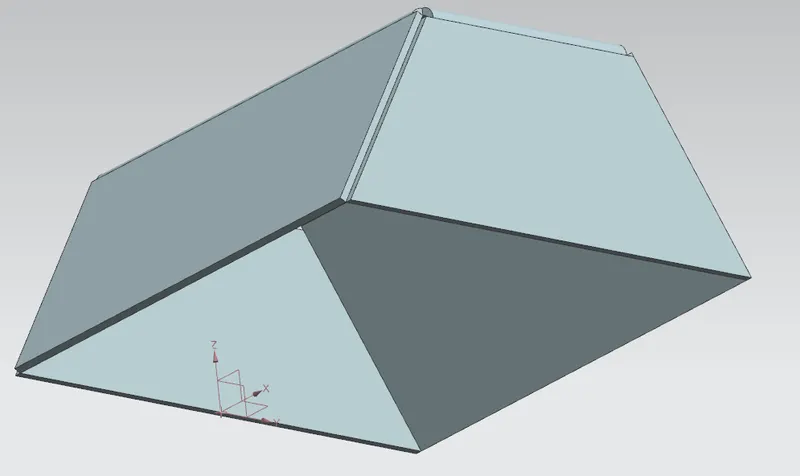

ISO VIEW

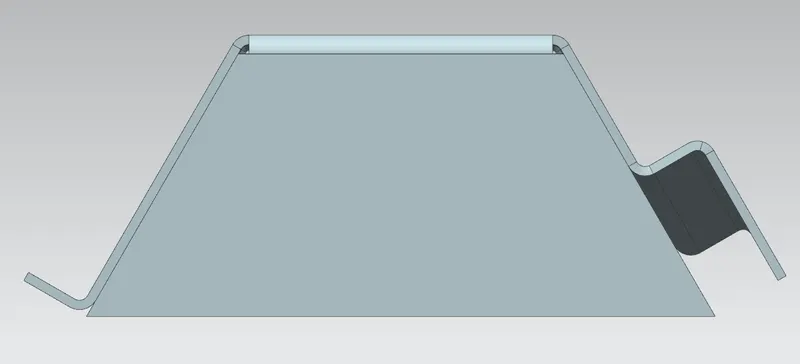

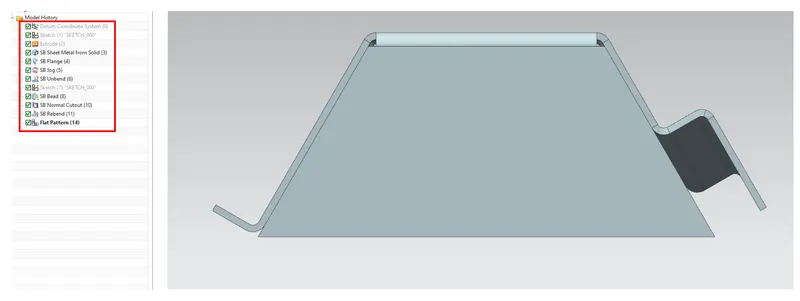

SIDE VIEW

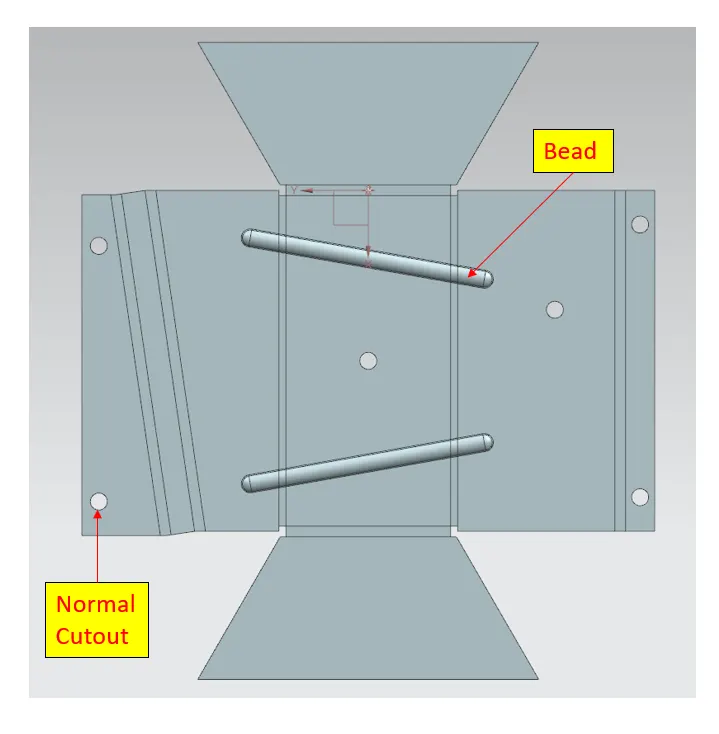

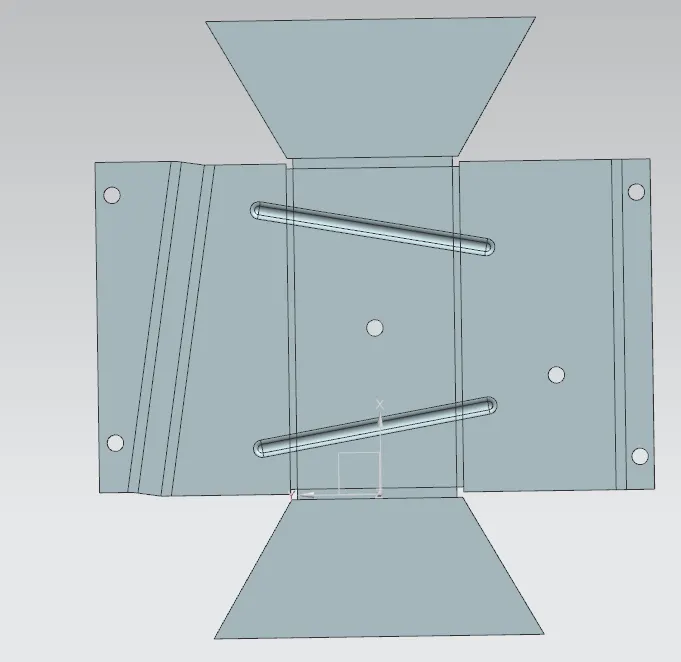

FLAT PATTERN

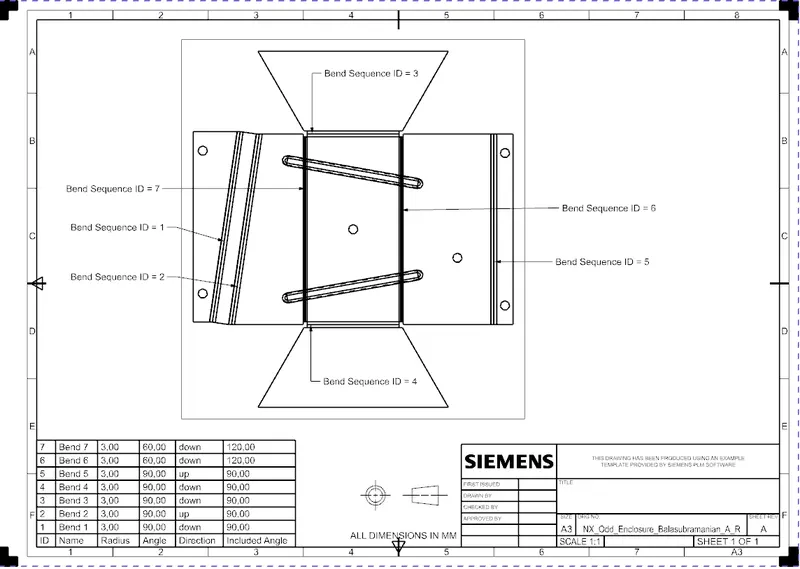

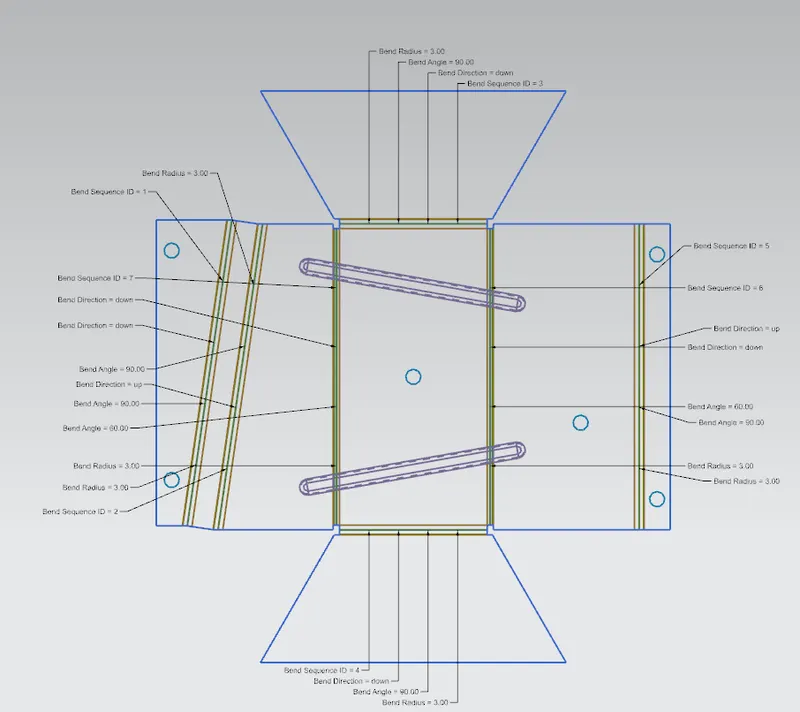

Drawing Sheet:-

Conclusion:-

Thus the project has been completed by designing the odd-shaped sheet metal Enclosure using the sheet metal application in Siemens NX and a drawing sheet was also created.
