Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Title : Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Objective : To design a Sheet Metal part for odd shapes.

Design Methodology :

Create a file

Create a skecth on a plane

Create a extrude of 200mm

wrap the solid body using sheetmetal from solid command

create a flange on one side

create a jog on another side

unbend the sheet metal

create two beads using sketch line

create holes as per Pdf - Hole position is not provided.

Rebend the sheet

Use flat pattern command to create flat pattern

Create drawing in drafting workbench.

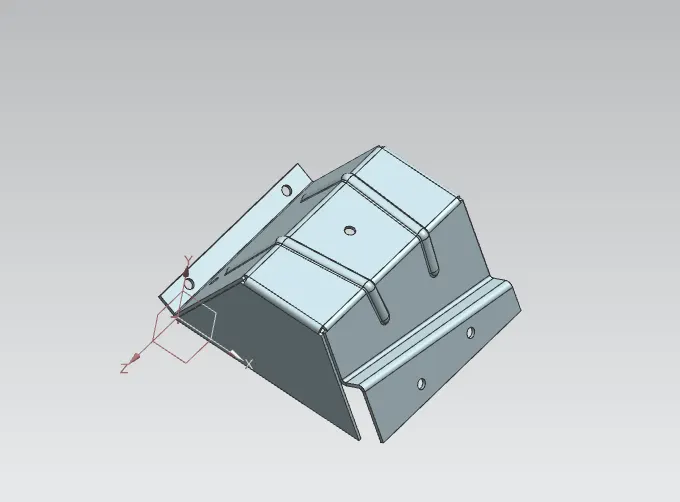

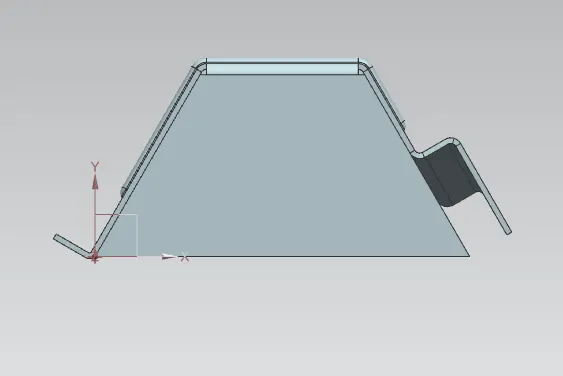

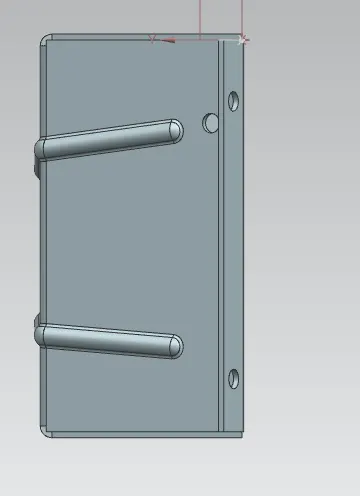

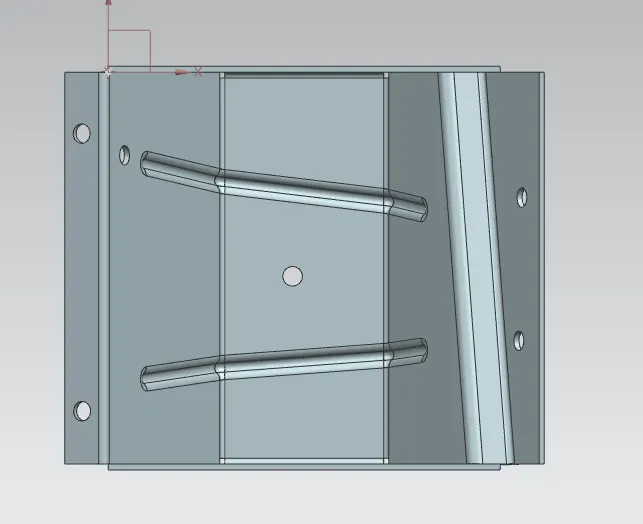

Images of the part.

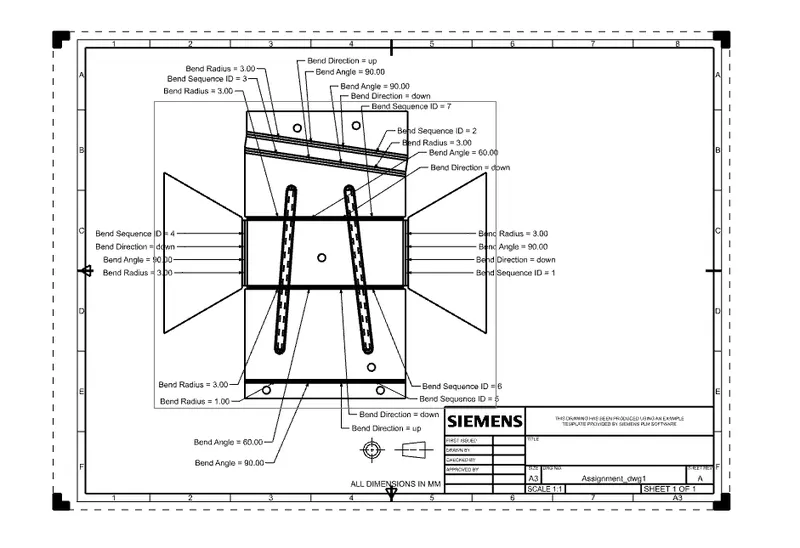

Drawing:

Drawing and Model is attached.
