Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure
Title : Design of odd shaped encloser using sheet metal of NX cad
Objective : the main objective of this challenge is to design odd encloser by convert solid body into sheet metal and then design it as per the instructions

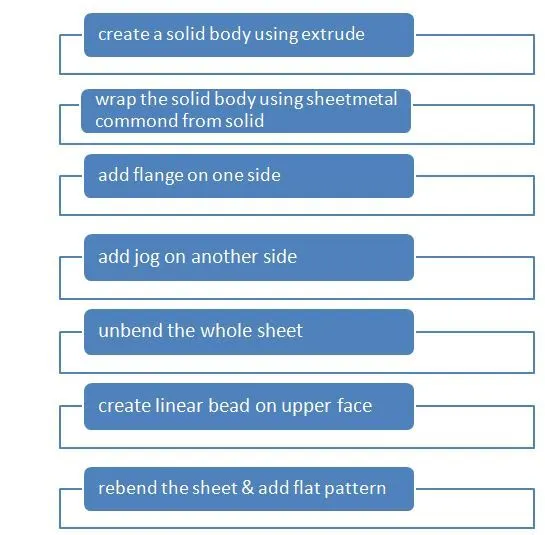

Design methodology
Discription
S-1 crete a solid body using extrude commond and then convert into sheet metal using sheetmetal from solid command.
S-2 unbend the whole sheet metal part and add flange on one side and jog on other side of the sheet metal.
S-3 then, make two linear bead of 5mm thick on upper most face and then unbend it.
S-4 finally add flat pattern commond to make the edge as flat.
views

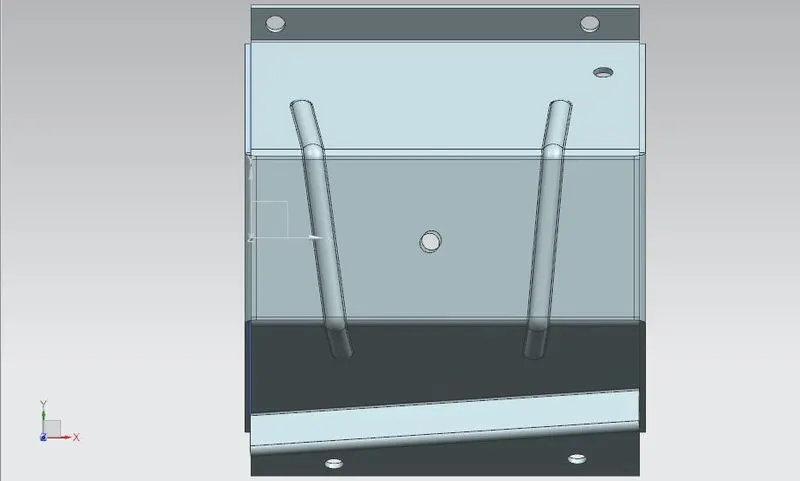

Top view

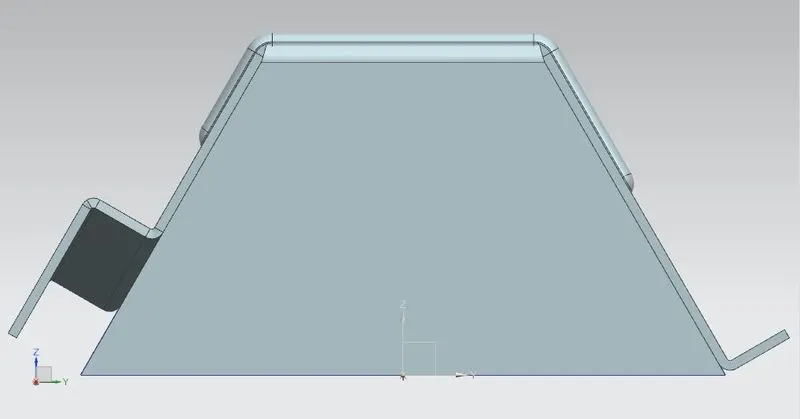

front view

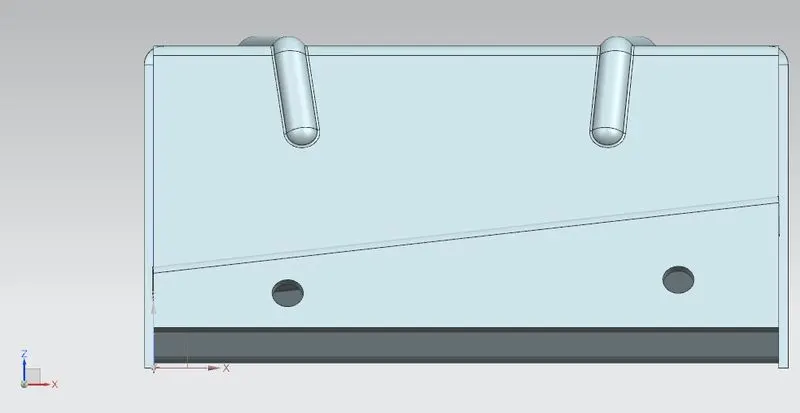

side view

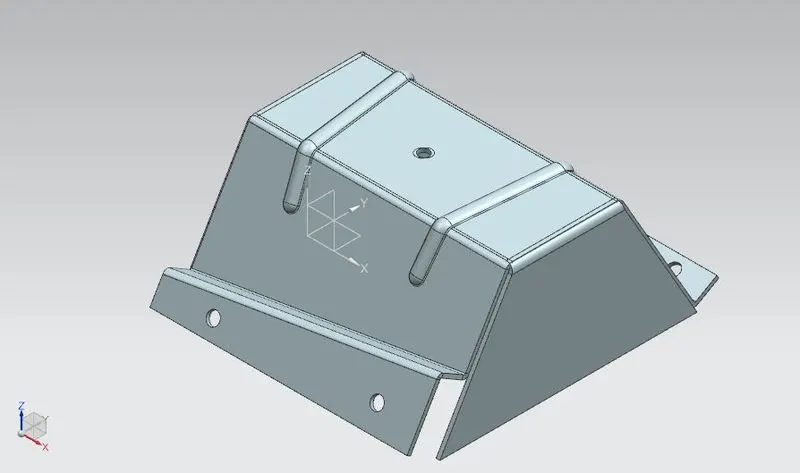

isometric view

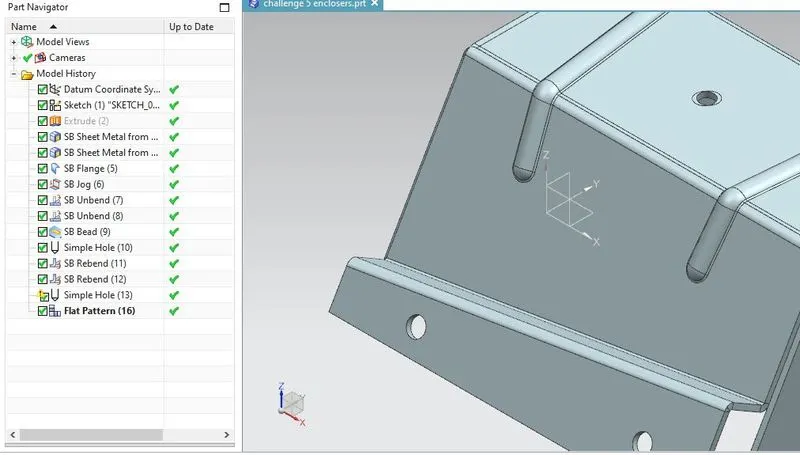

feature tree

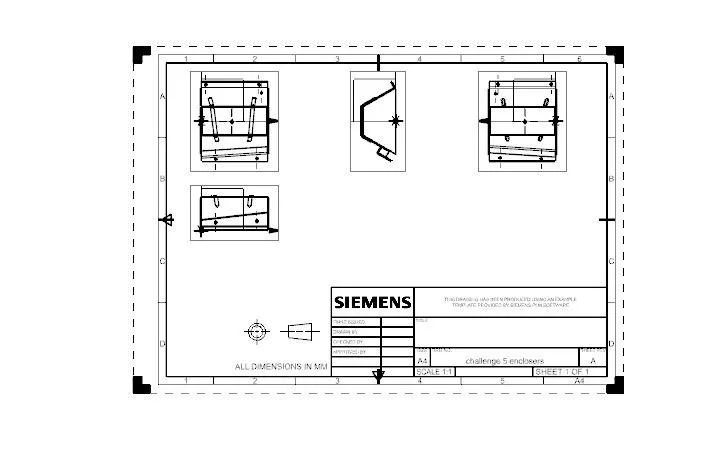

drawing heet
Conclusion
finally the enclosure is prepared using the instructed commands in NX cad
