1) Title Of The Project:

Advanced sheet metal design using NX CAD of Odd Shaped Enclousers.

2) Objective:

The main objective of this project is that we need to create the Odd enclousers of the metal part by understanding the different operations in NX CAD.

3) Introduction:

Sheet metal is a metal is formed by the flat and thin pieces of the industrial tools which are more powerful tools we used in the modern era of our commercial automotive industry.

Sheet metal is one of the fundamental form of metal frame work component which can be used to cut and bend into vareity of shapes and sizes of metal format.sheet metal is available in flat pieces and in a coiled strips of the component. The coils are formed by continous running of sheet metal through a roll slitter. The parts which are manufactured from the sheet metal application are maintaining a uniform thickness and flat surfaces throughout its process for the ideal results. There are many different sheet metals which can be made into with NX CAD application such as Aluminium, Brass and Steel and etc...

4) Design Methodology of Odd shaped Enclousers.

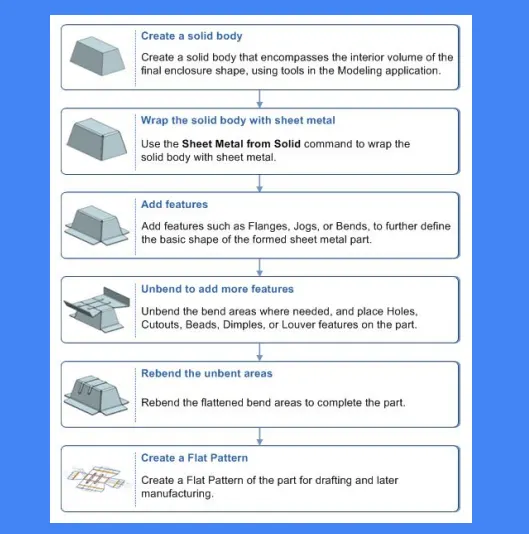

5) Description of the odd shaped enclousers:

Tools used to create the odd shaped enclouser component is as follows.

To create a solid body of the component we need to understand the design and diagram of the odd shaped component and make a sketch of it and provide the thickness to the created part of the component.

Flange is a command is used to provide a angular orientations for the created part with respect to the angle in which way we need to apply the shape for the sheet metal component.

Closed corner is a command is used to create or modify two flanges in one operation and to close the corner where two flanges will meet each other.

During the flatteing the corner and relief geometry are nade appropriate for a flat pattern.

Tab is a command is used to create it on any of the sheet metal application component and we will provide the thickness to the tab of minimum 3mm throughout its shape.

Unbend is a command is used to get the exact shape of the component so to create a part over the specific regions and falttens the bend materials into a specific place.

Hole is a command is used to create on the basis of circles have been created.

Bend is a command is used to lifts the material along the counter of the sketch that forrs a stamping tools.

Rebend is a coammand is used to restores the bend command and gives the proper shape of the sheet metal application of the part.

Flat Pattern is a command is used to creates the flattened pattern from the formed sheet metal tool application.

Views of the Odd Shaped Enclousers:

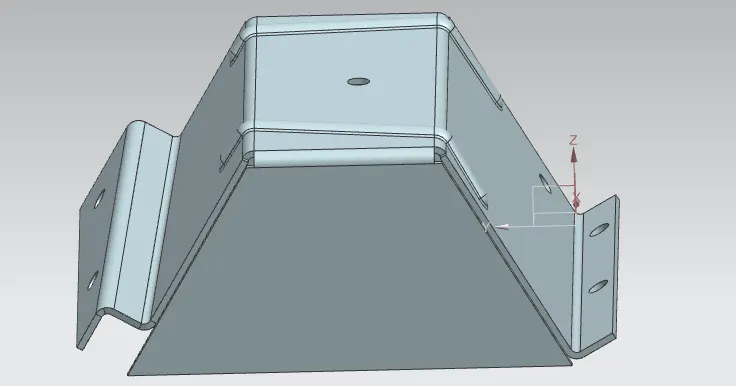

1) Trimetric view.

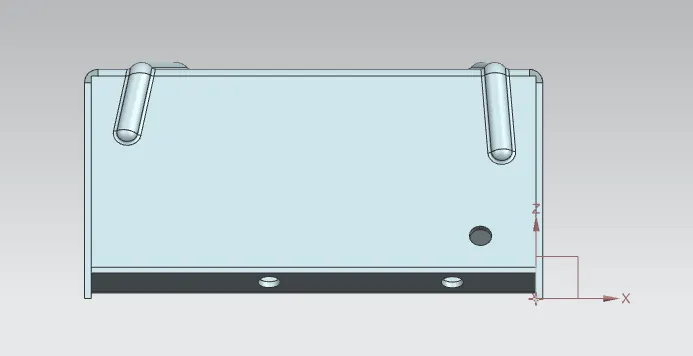

2) Left view.

3) Bottom view.

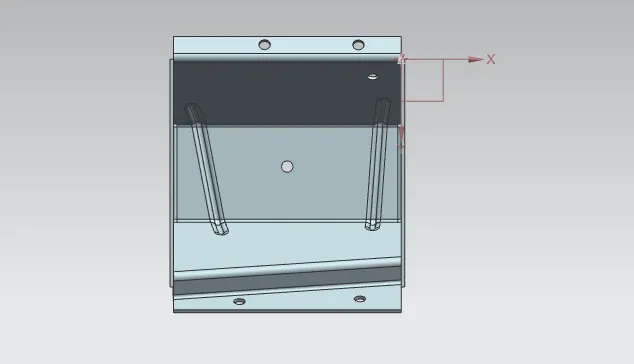

4) Front view.

Flat pattern component for the odd shaped enclousres are mentioned in the below figures and mentioned the dimensions according to it and properly maintained in the below figures.

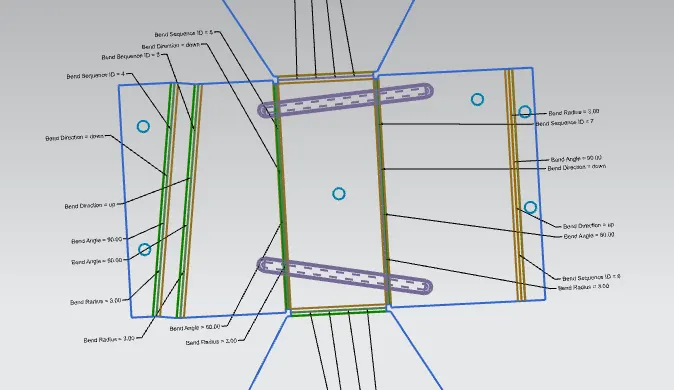

FLAT PATTERN OF ODD SHAPED ENCLOUSERS.

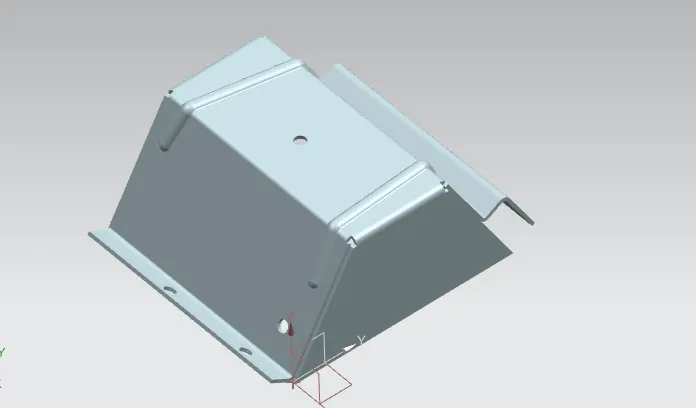

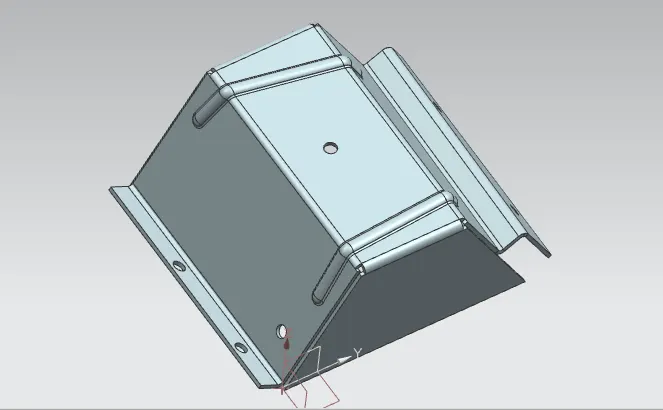

Shaded shape of the Odd shape Enclouser:

Sheet metal Enclousers:

It is used to resist the corrosion and provide electrical conductivity. This product is widely used for various industrial purposes.

Applications.

• Construction and Engineering industry.
• automobile industry.
• Pharmaceutical industry.
• Food and Beverages industry.

Features.

Study constructions.

Corrosion Resistance.

Precision made.

High strength and longer shelf life.

The enclousers are epoxy coated to ensure good quality.

Conclusion:

The designing of the odd shaped enclousres are made with the proper dimensioning method with the help of NX CAD tool application.
