BOX ASSEMBLY DESIGN

OBJECTIVE: TO DESIGN A BOX ASSEMBLY USING DESIGN TOOL SHEET METAL MODELING IN NX CAD

INTRODUCTION: Sheet metals are generally classified as metal sheets that have a thickness ranging from 0.4 mm to 6 mm. Different metals such as Steel, Aluminum, Copper, Brass, Nickel, Titanium can be made into sheets by rolling process. Sheet metals are widely used in industries such as aerospace, automotive, electronic appliance, construction, etc.

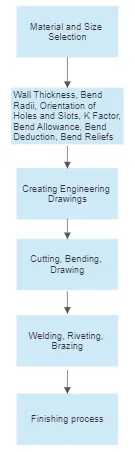

DESIGN METHODOLOGY:

DESCRIPTION:

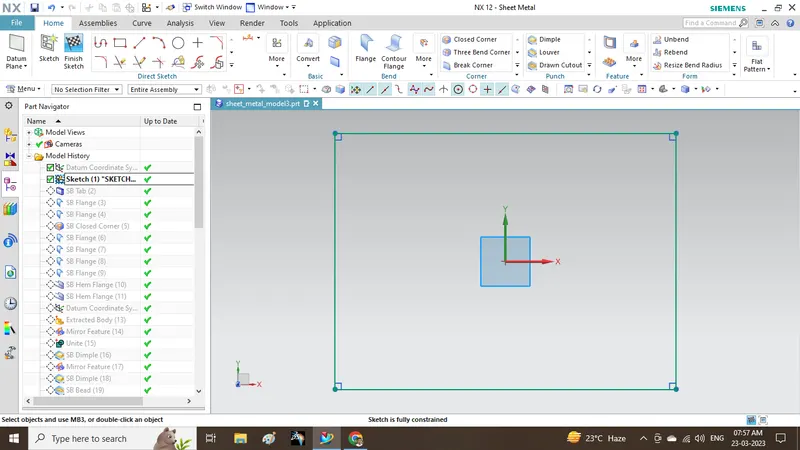

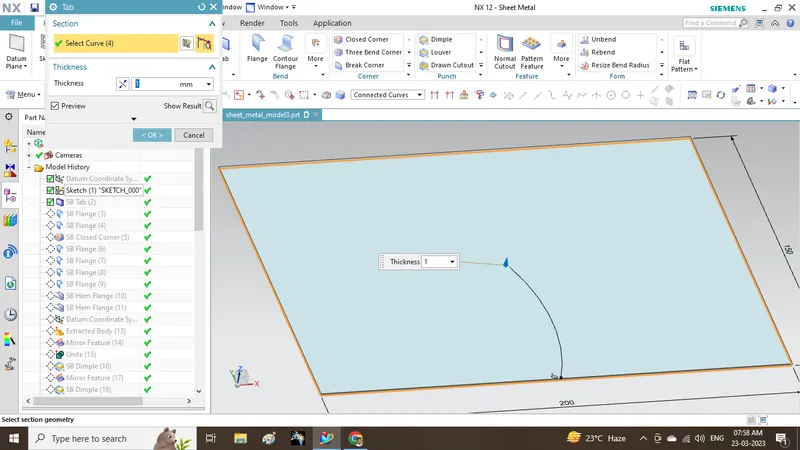

FIRST DRAW A SKETCH

THEN APPLY TAB COMMAND

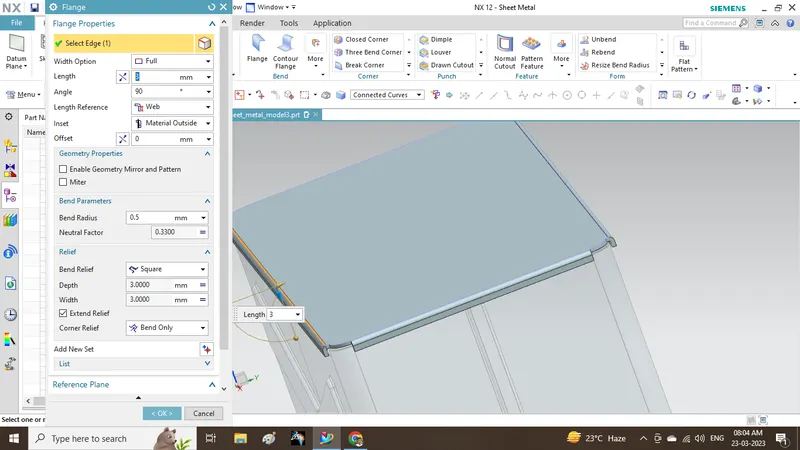

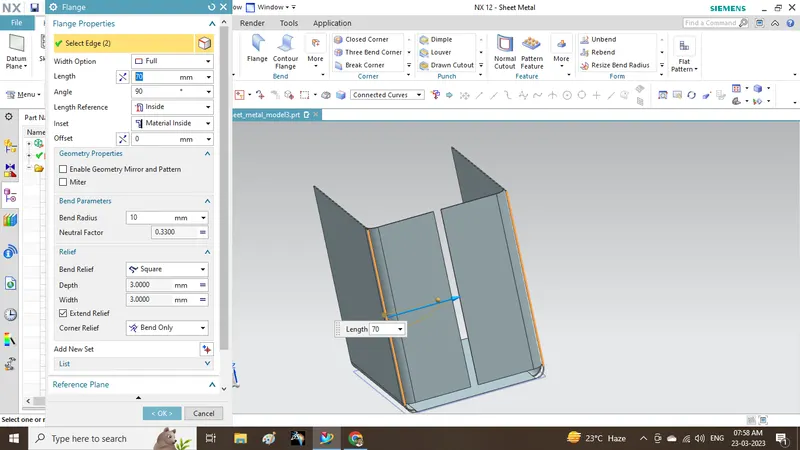

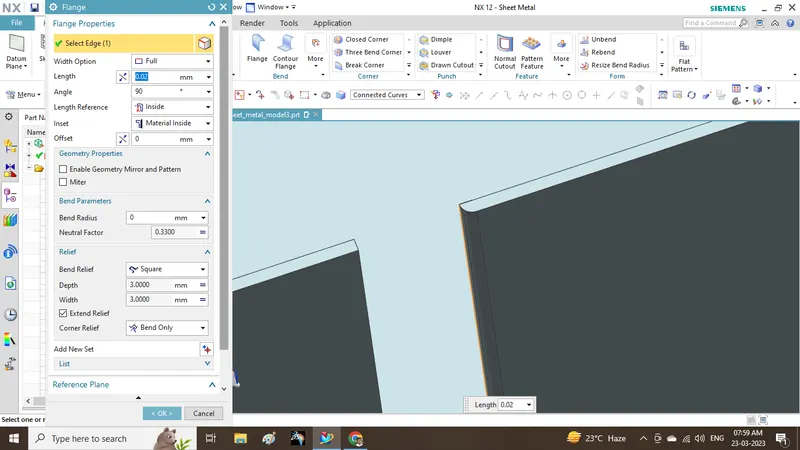

MAKE TWO FLANGES AS SHOWN BELOW

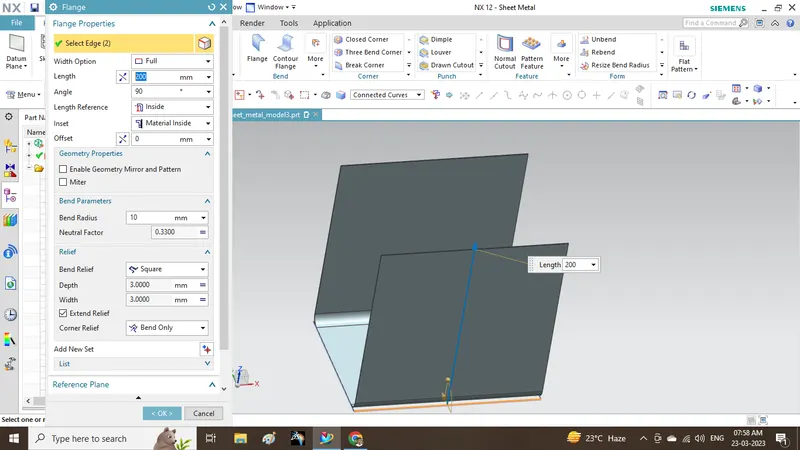

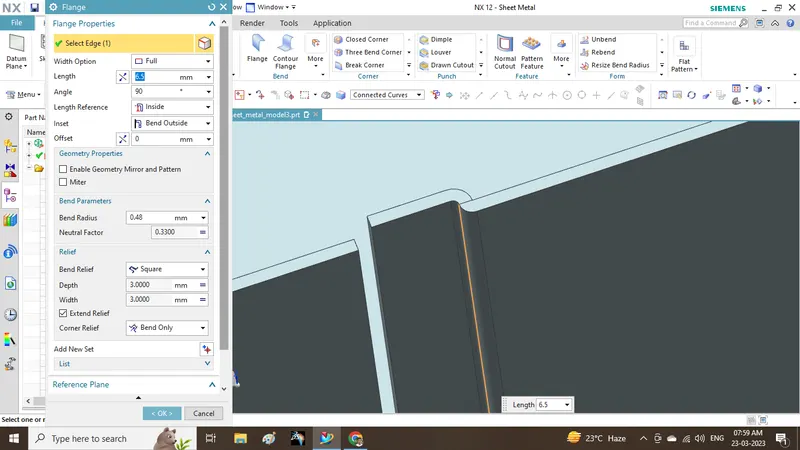

MAKE SIDE FLANGES AS SHOWN

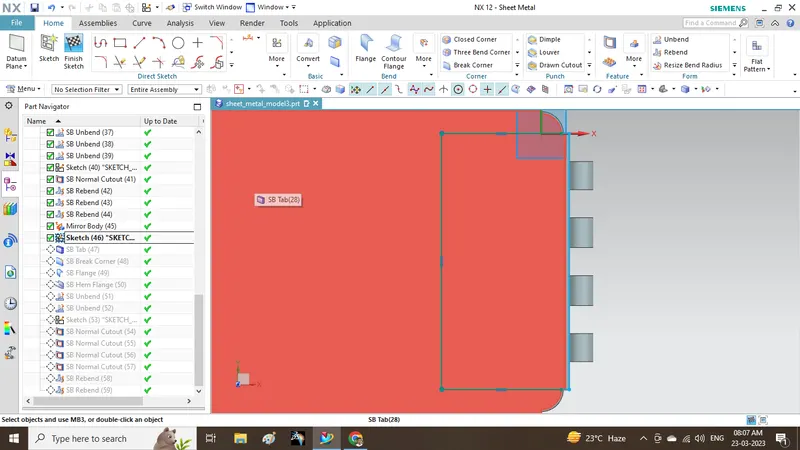

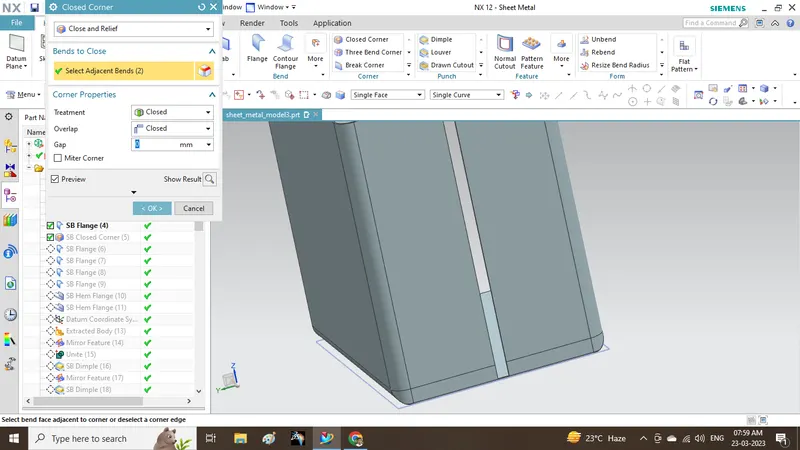

CREATE CLOSED CORNER AS SHOWN

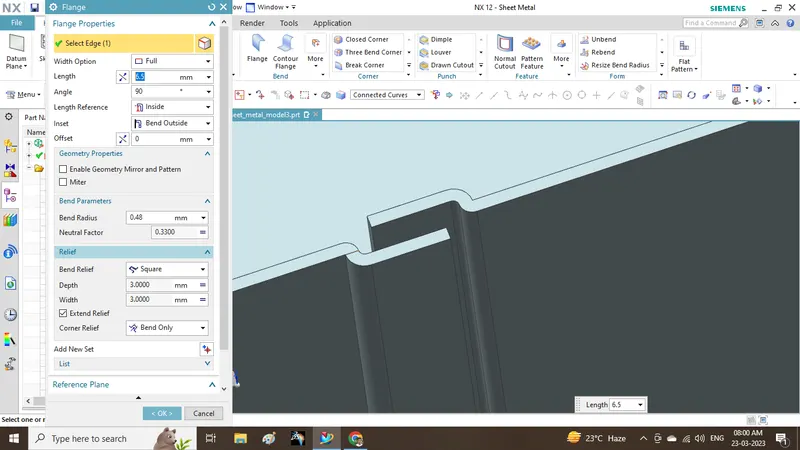

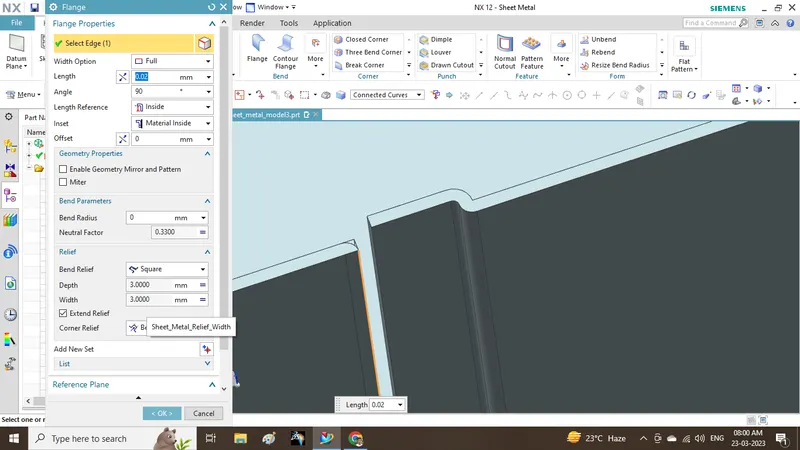

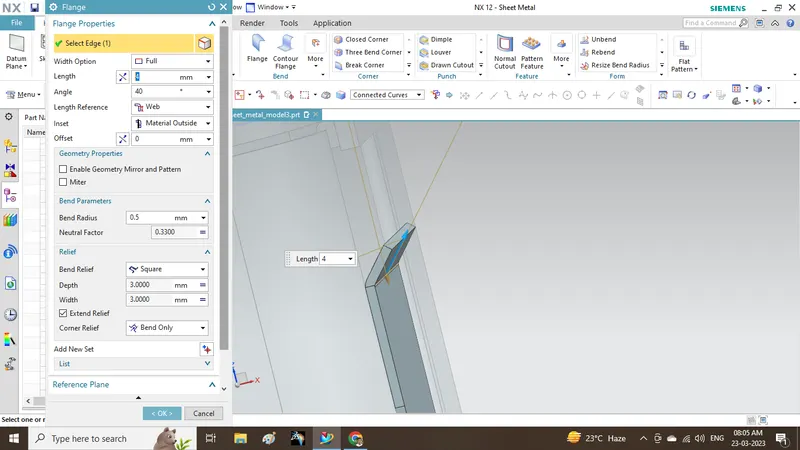

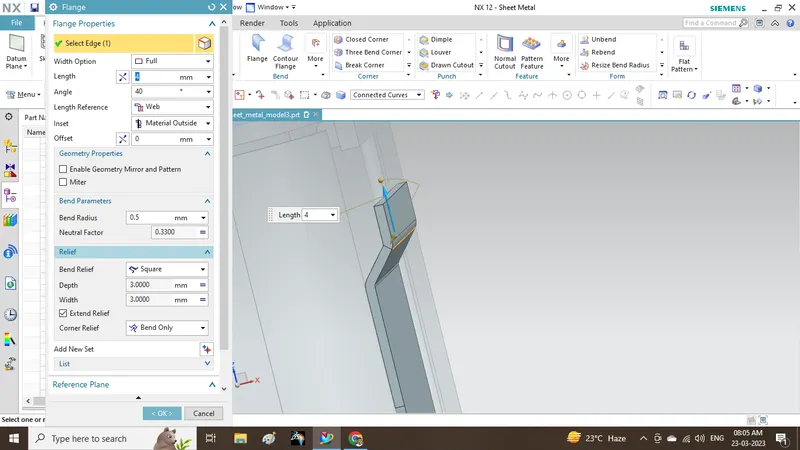

THEN CREATE FLANGES

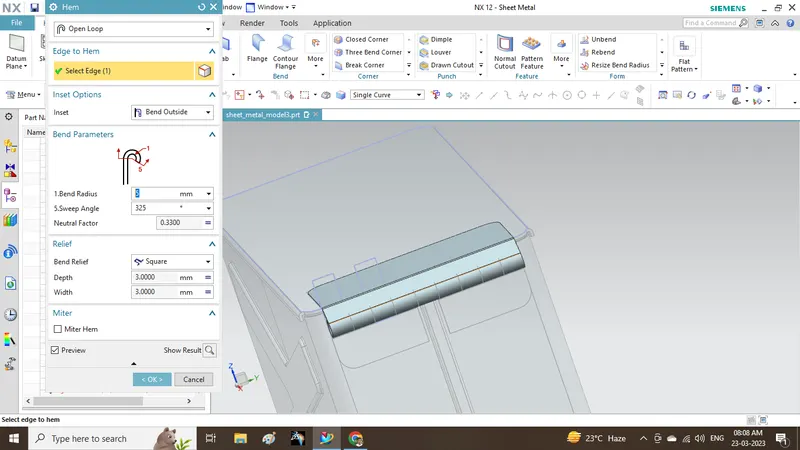

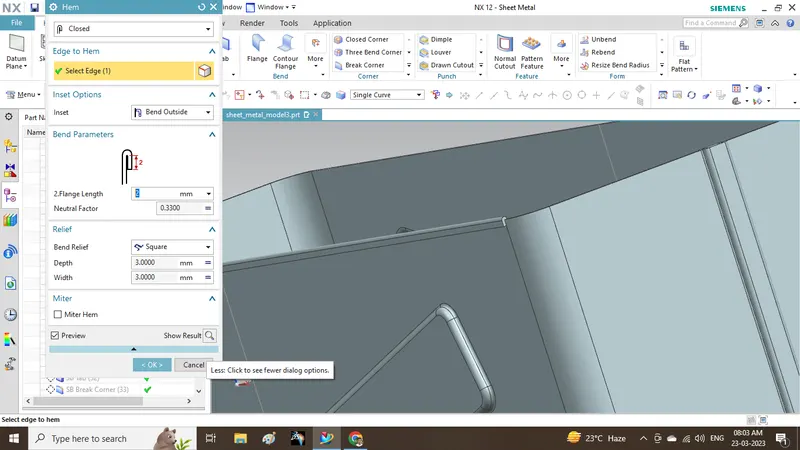

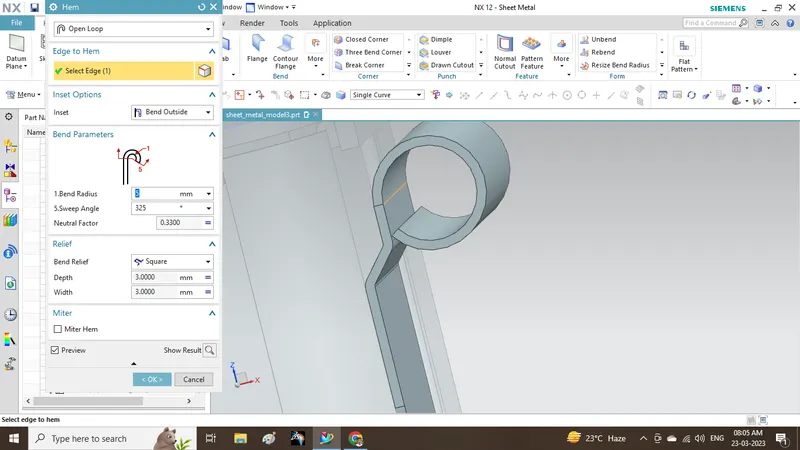

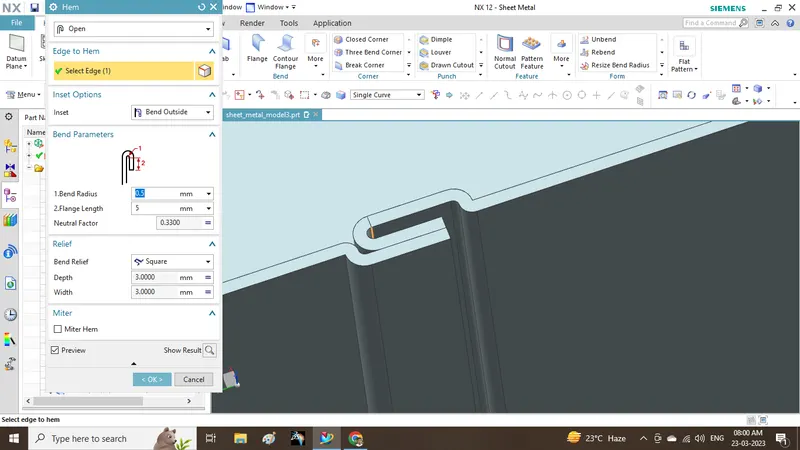

THEN CREATE HEM AS PER DIMENSIONS

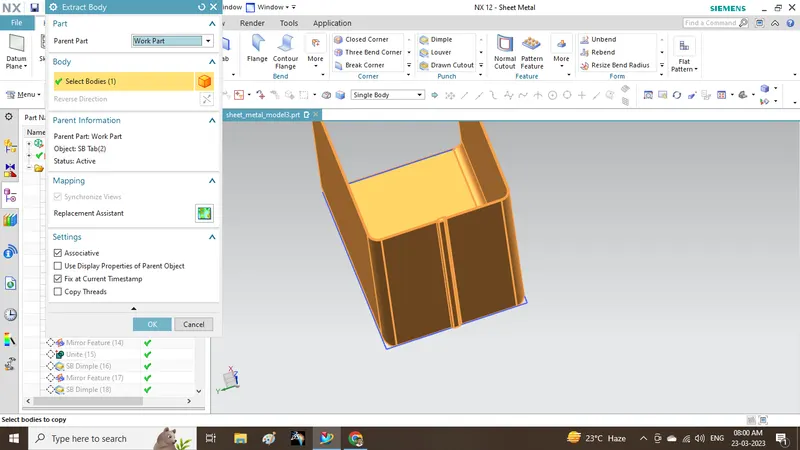

THEN EXTRACT BODY IN MODELING WORKBENCH

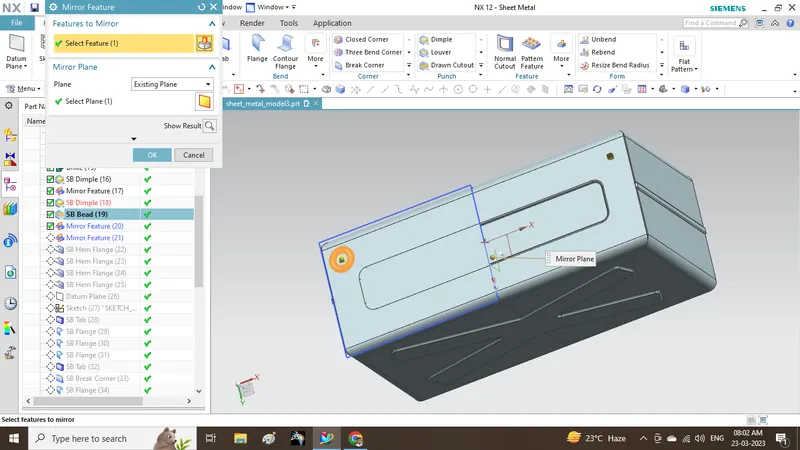

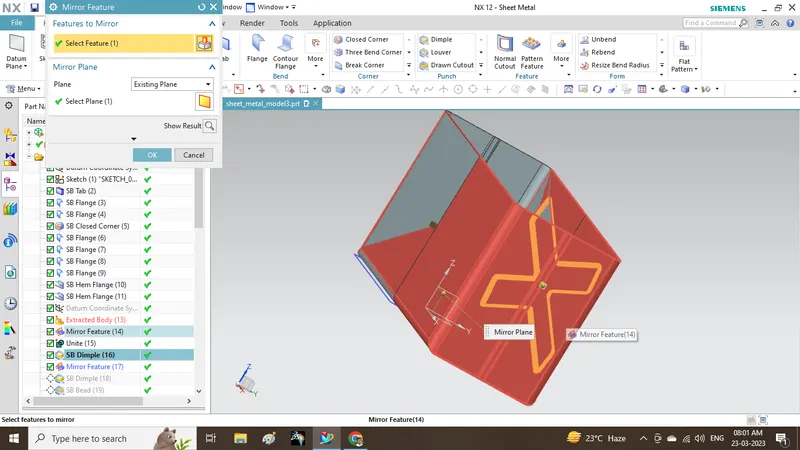

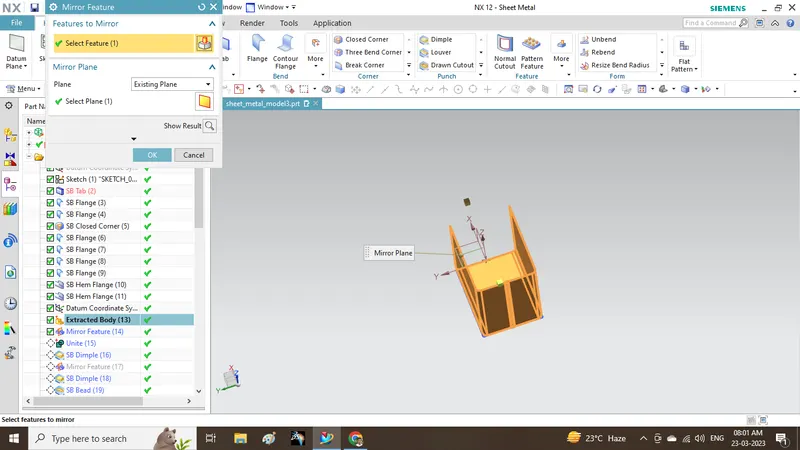

THEN MIRROR THE FEATURE

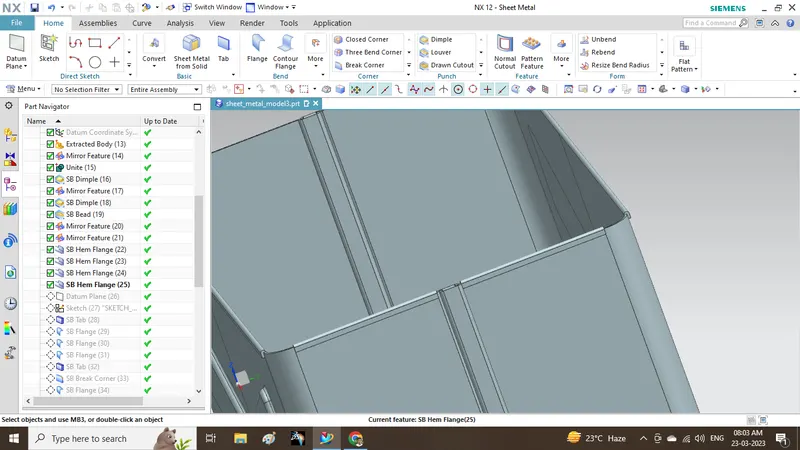

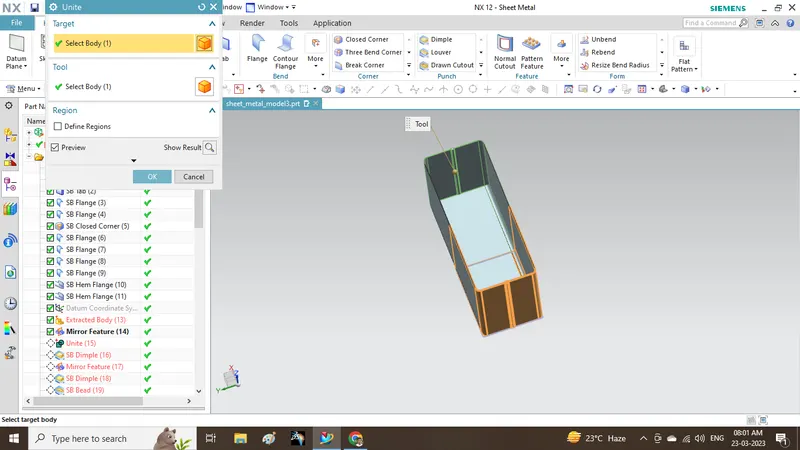

APPLY UNITE COMMAND

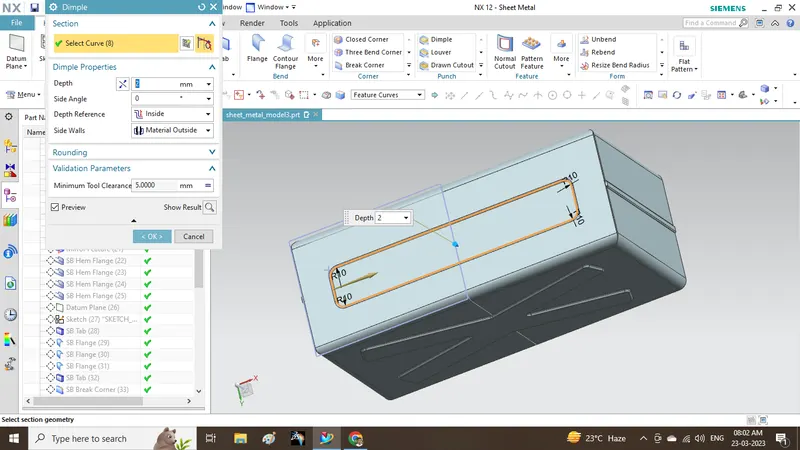

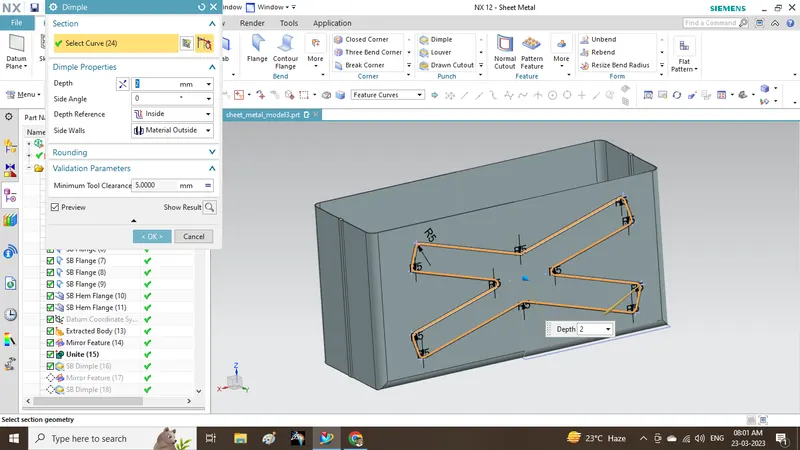

THEN DESIGN A DIMPLE ON BOX SIDE SURFACES

THEN ANOTHER DIMPLE AT BOTTOM

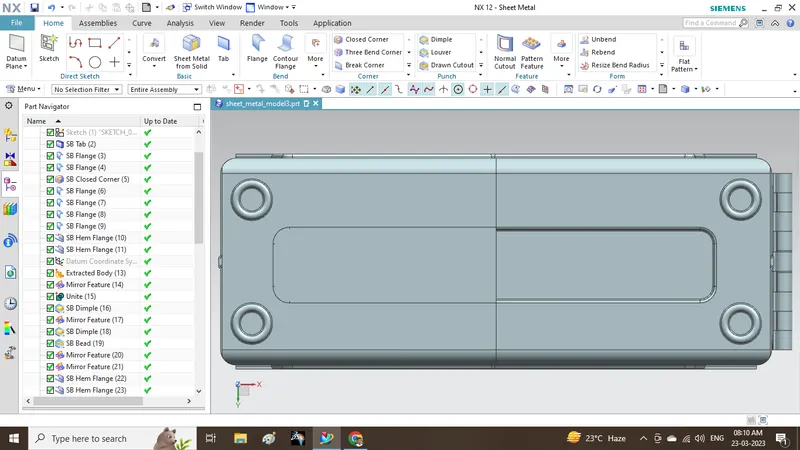

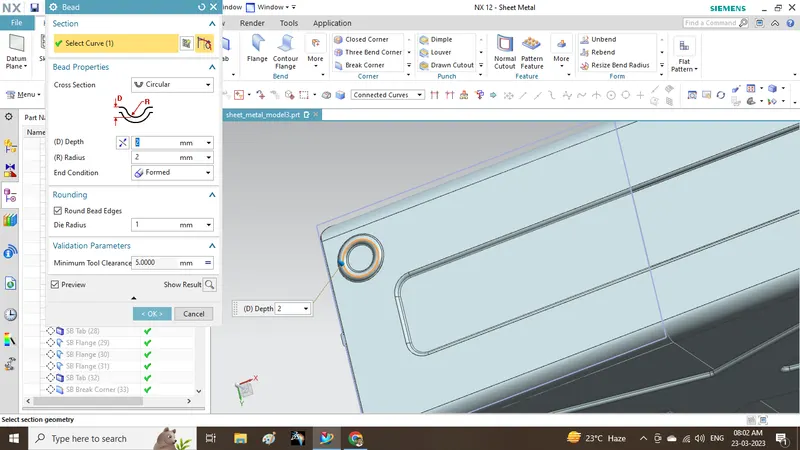

THEN APPLY CIRCULAR SHAPE BEADS AT BOTTOM

THEN DESIGN A HEM AT SIDE WALLS UPPER EDGE

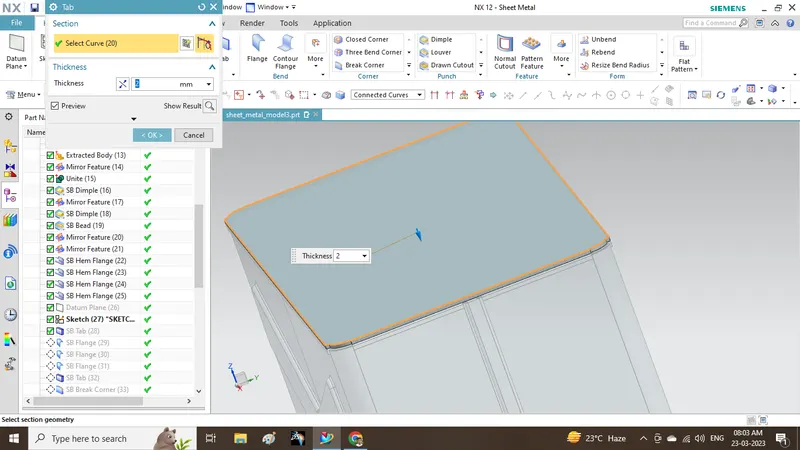

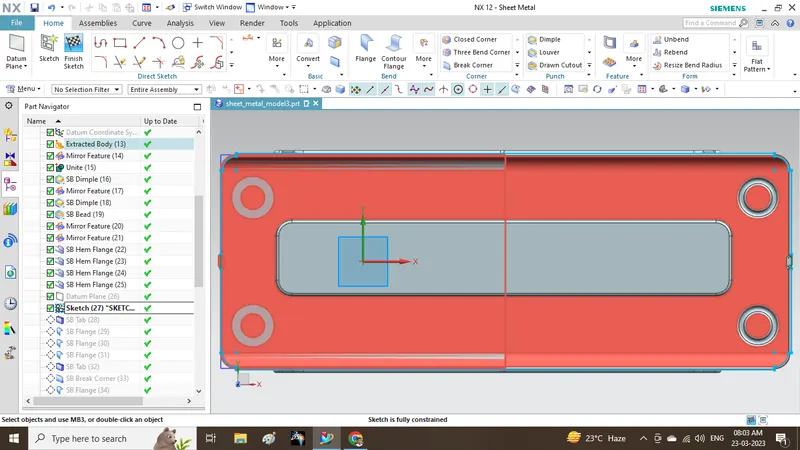

THEN DRAW A SKETCH TO DESIGN A CAP FOR BOX

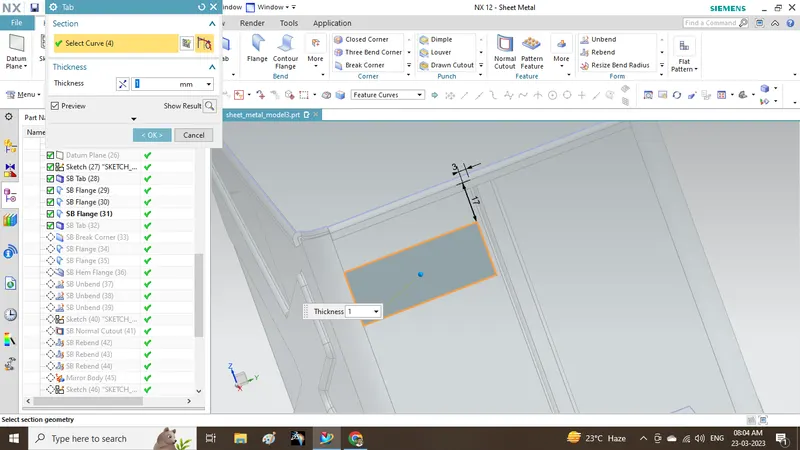

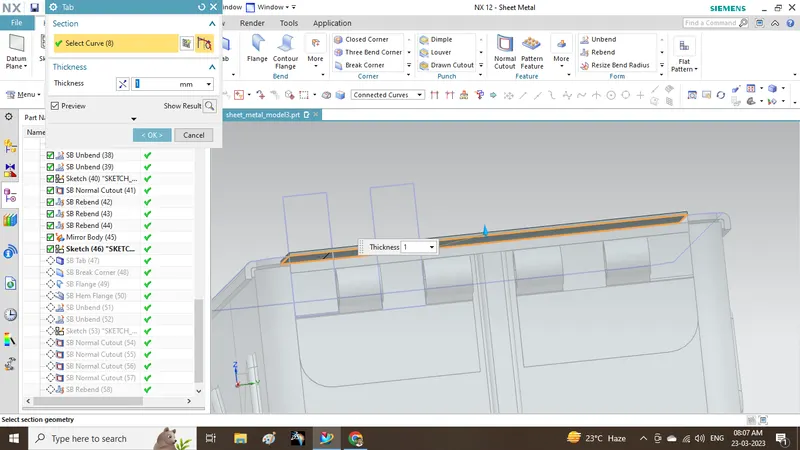

THEN APPLY TAB COMMAND

THEN MAKE SIDE FLANGES

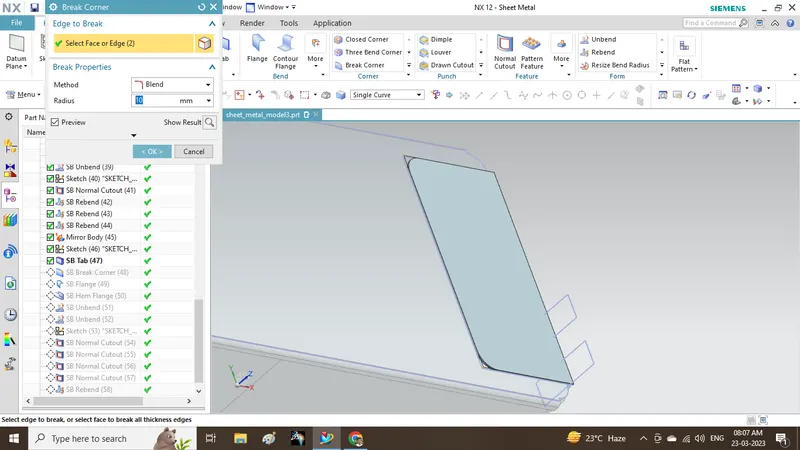

THEN MAKE TAB AND SIDE CORNER AS SHOWN

THEN MAKE FLANGES AS SHOWN

MAKE ONE HEM HERE

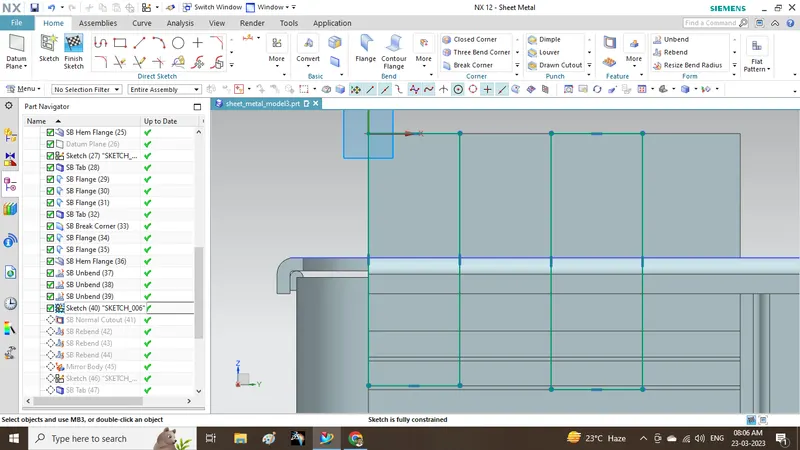

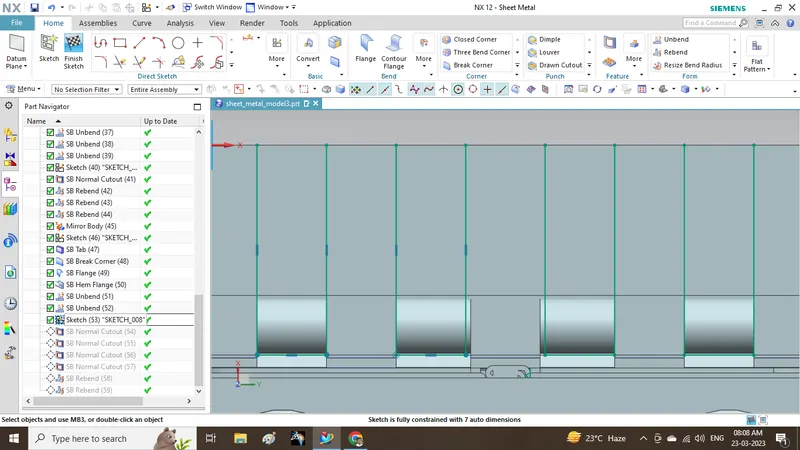

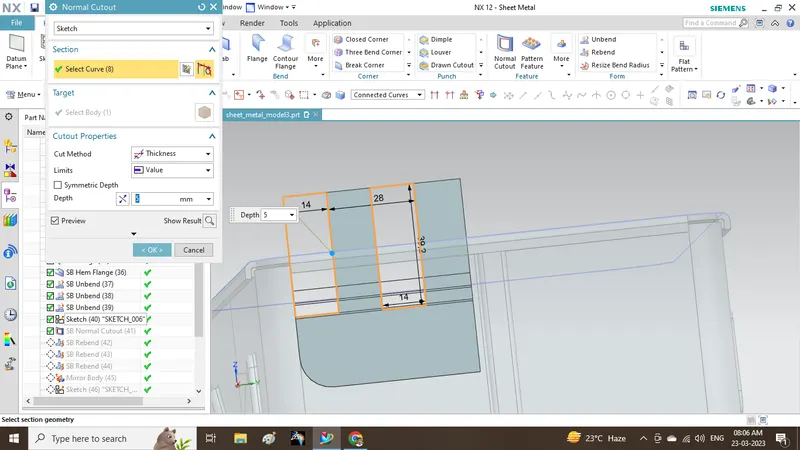

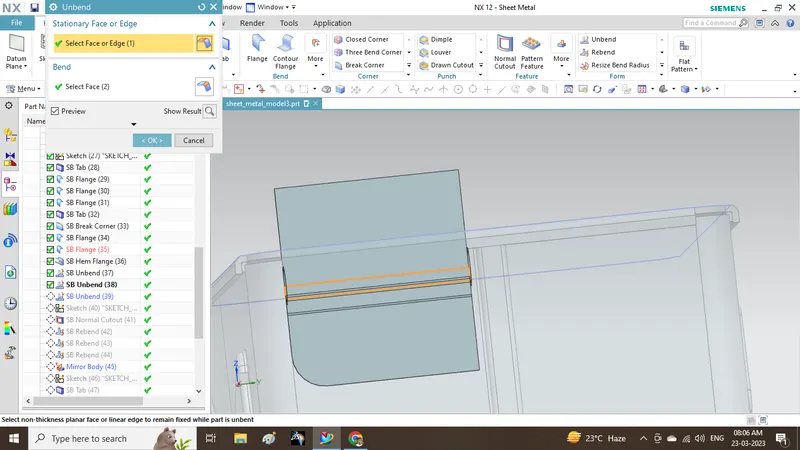

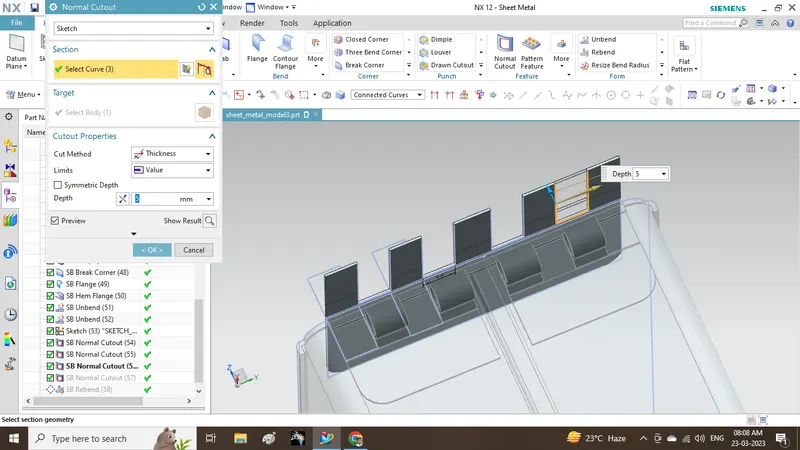

MAKE UNBEND HERE AND DRAW A SKETCH FOR CUT OUT

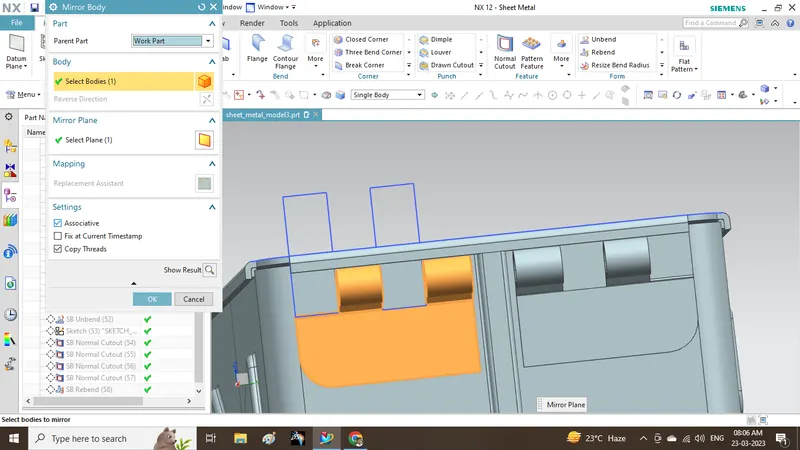

MIRROR THE FEATURE

THEN CREATE A TAB AND CREATE A FLANGE THEN ONE HEM

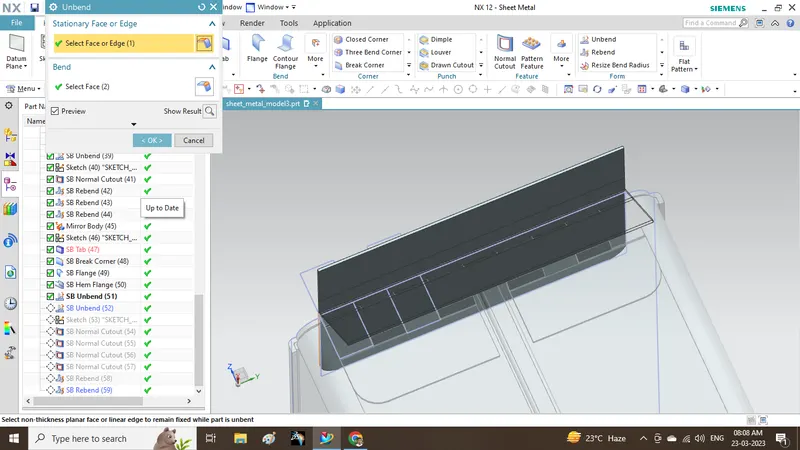

AFTER THAT UNBEND AND DRAW A SKETCH FOR CUTOUT

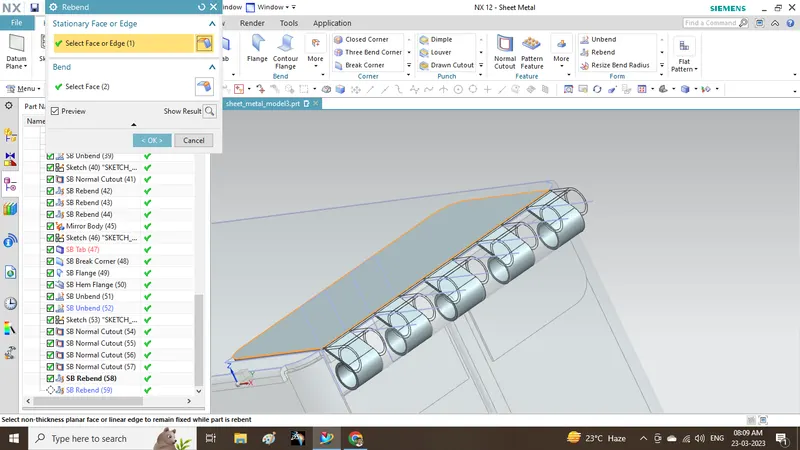

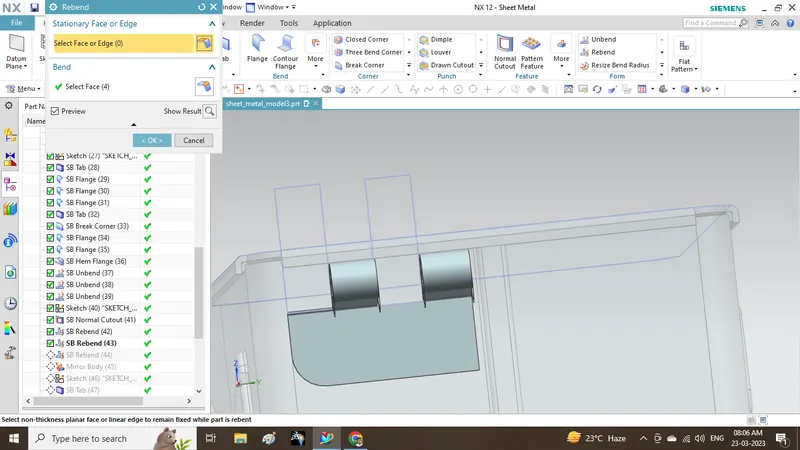

THEN REBEND THE SHEET

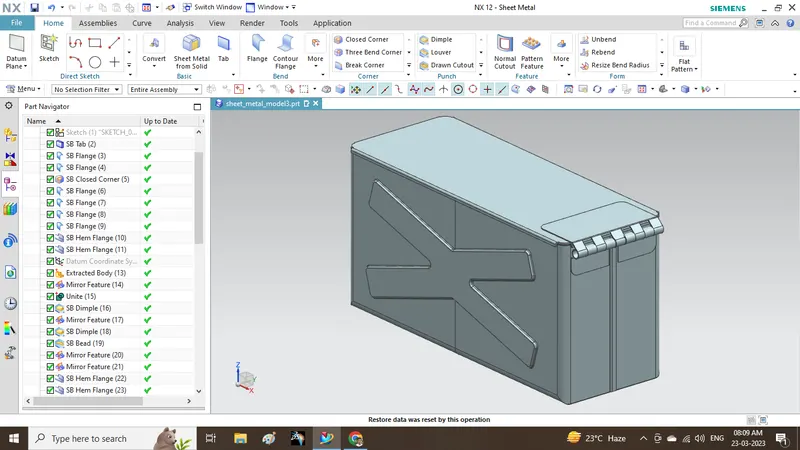

ISOMETRIC VIEW

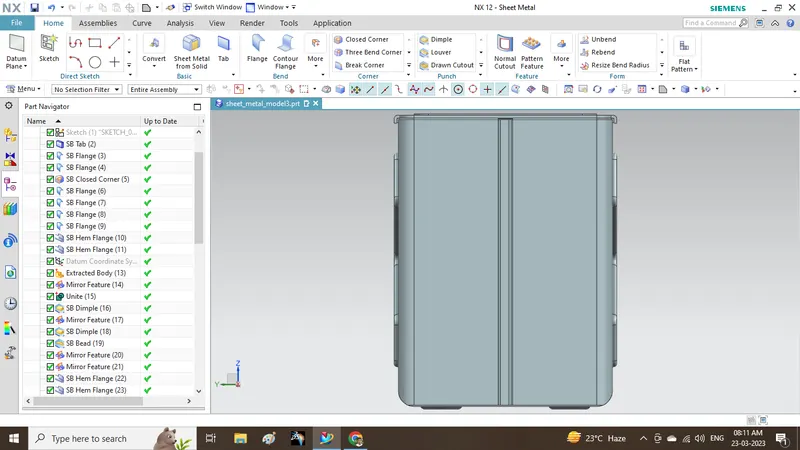

FRONT VIEW

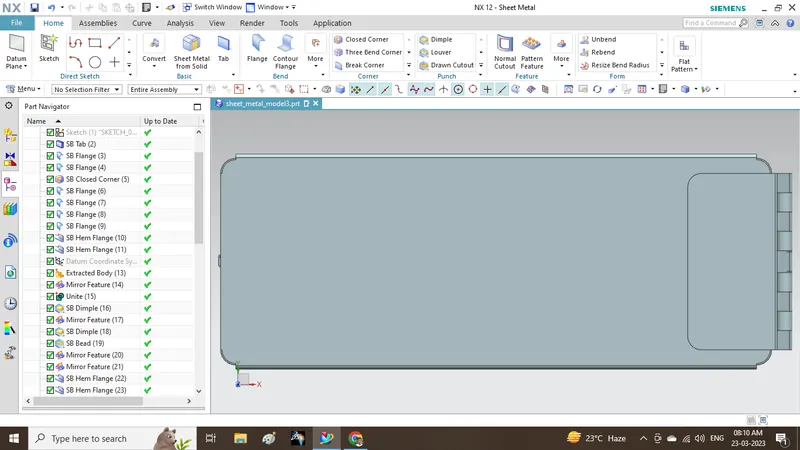

TOP VIEW

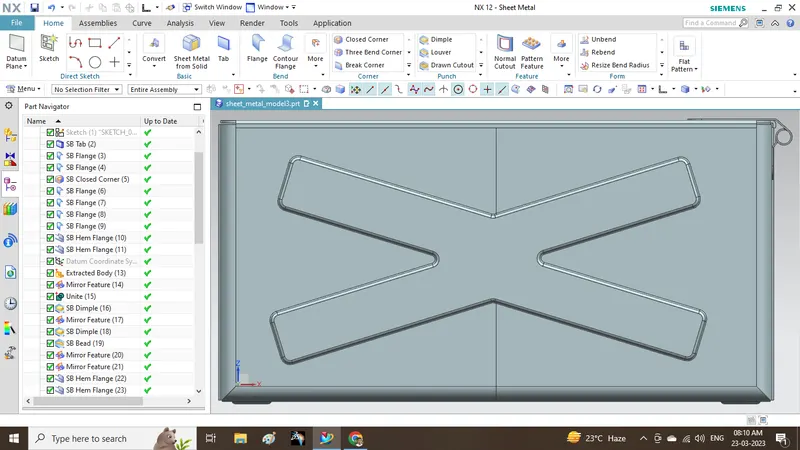

BOTTOM VIEW

LEFT SIDE VIEW

CONCLUSION: THEREBY SUCCESSFULLY COMPLETED THE DESIGN OF BOX ASSEMBLY
