Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

SSurya Kumar8 Mar 2023

AIM : Advanced sheet metal design using NX cad challenge 2 Box Assembly .
OBJECTIVE : To design a BOX Assembly using Siemens NX sheet metal application.
INTRODUCTION :
SHEET METAL is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metal working & it can be cut & and bent into a variety of shapes. Conties averyday objects are fabrication from sheet metal.
Applications : Aircraft bodies, automobile bodies, utensils used for domestic purpose, beverage cans. the sheetmetal application provides an environment for the design of sheetmetal parts used in machinarey , automotive, aerospace etc.
By using sheetmetal Application We can do :
Import, clean up, & a non-sheetmetal part to a valid sheetmetal part
Export lat pattern data of sheetmetal part to a valid sheetmetal part.

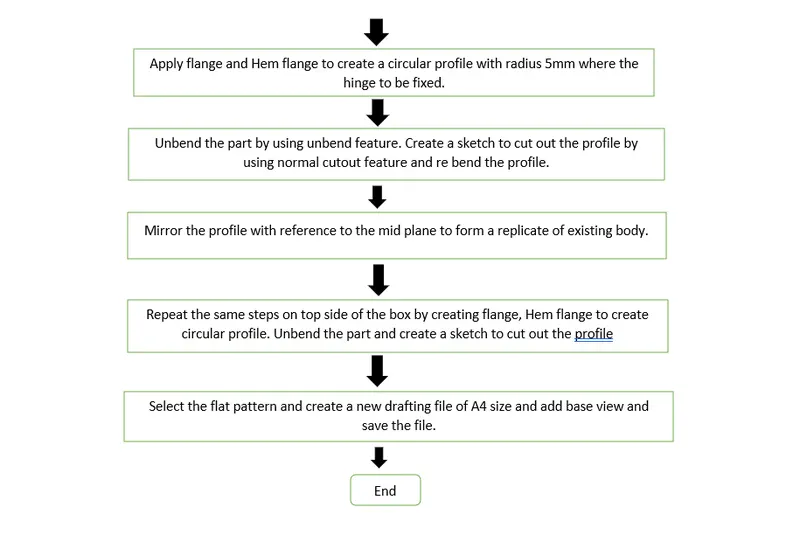

Design Methodology :

Description :
FEATURES USED :
SKETCH: It is basic command to draw to draw 2D models.
TAB : This command is used to create a base feature by extruding a sketch along vector by a thickness value or by adding material to exixting faces & bend regions of sheetmetal part.

CLOSED CORNER : This command is used to modify two flanges is one operation & to close
the corner where the two flanges meet .
HEM FLANGE : This command is used to modify an edge of a sheetmetal part by folding it on to itself for the purpose safe handling or to increase edge stiffness.
MIRROR BODY : This command is used to mirror the part w.r.t the required axis.
UNITE : This command is used to combine the two parts into one part .
DIMPLE : This command is used to lift an area of the model inside the sketch that stimulate a stamping tool.
MIRROR FEATURE : This command is used to mirror the required sketch to other side with reference to the axis.
UNBEND : This command is used to flatten the 3D model by selecting one stationary face.
REBEND : This command is used to rebend the flatern sheet material.
BEAD : This command is used to lift material along contour of a sketch that stimulates a stamping tool. Bead can also be created to stiffen sheet material.

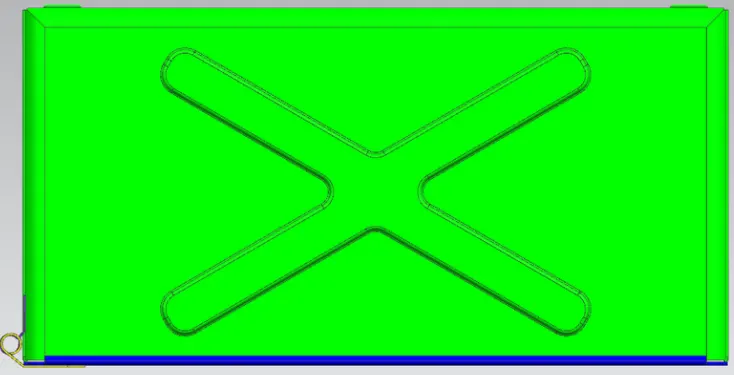

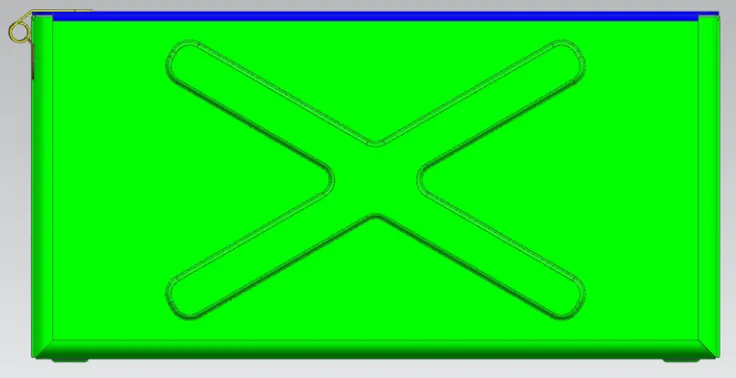

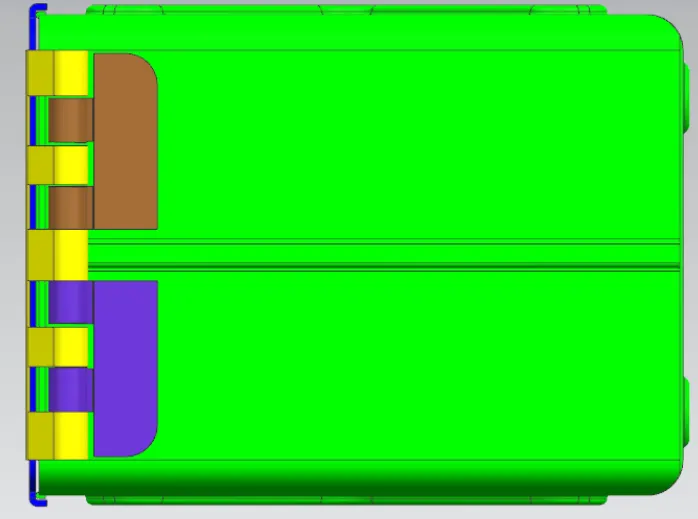

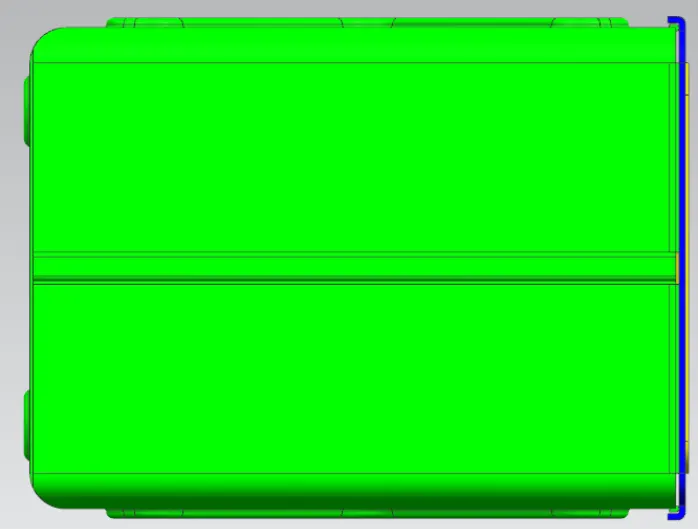

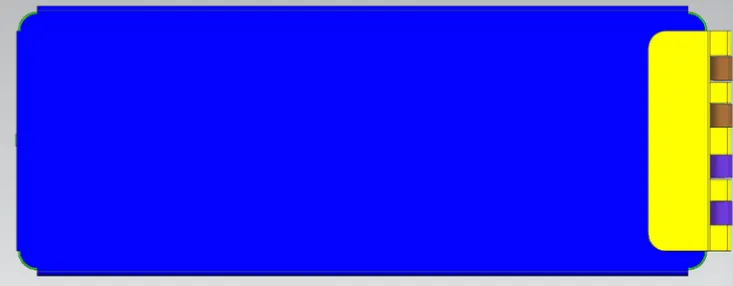

Image of BOX Assembly :

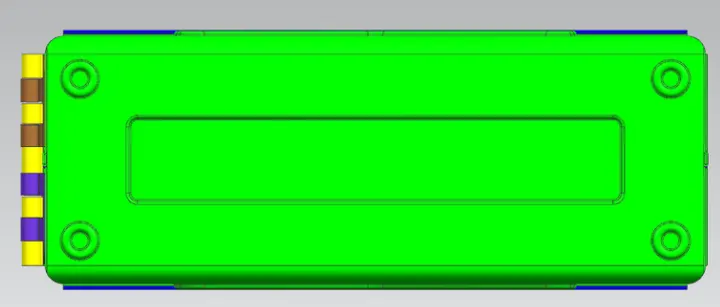

Front View :
