Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

Title of the Project: Box Assembly in advanced sheet metal design using NX CAD

Objective: To create Box Assembly in advanced sheet metal design using NX CAD

Introduction: Sheet metal which has various advantages like metal working, manufacturing and easy to work on operations such as bending,cutting during industrial process.Box assembly design has different parts to create a closed enclosure.

This project on Box Assembly has

1. Main box which has features like dimple,bred and Hem
2. Lid
3. Hinge

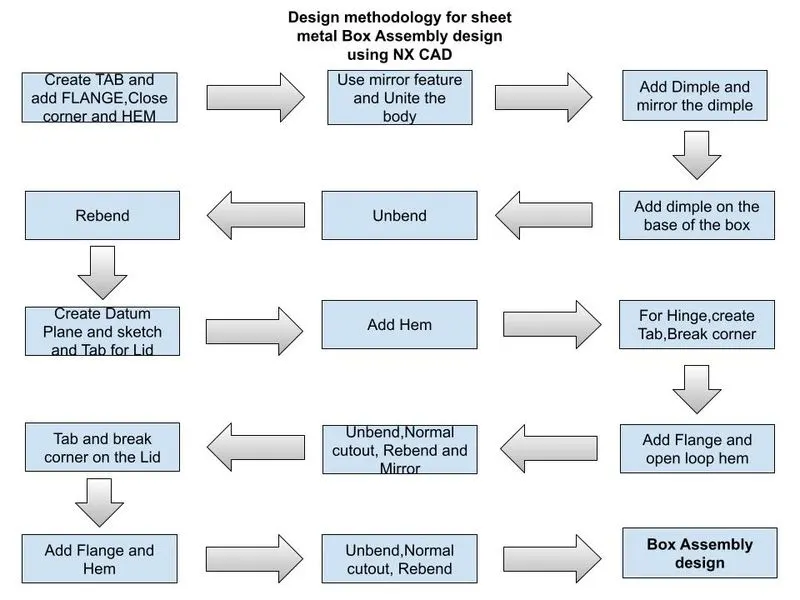

Design methodology / approach (To be explained with the help of Flowcharts only)

Description (Need to explain tools/ Features used while designing)

1. Main box:

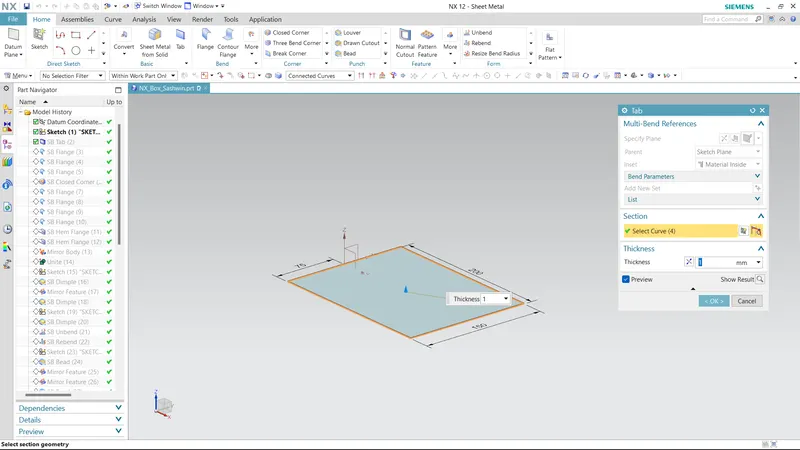

• Tab: Draw the sketch and add thickness of 1 mm

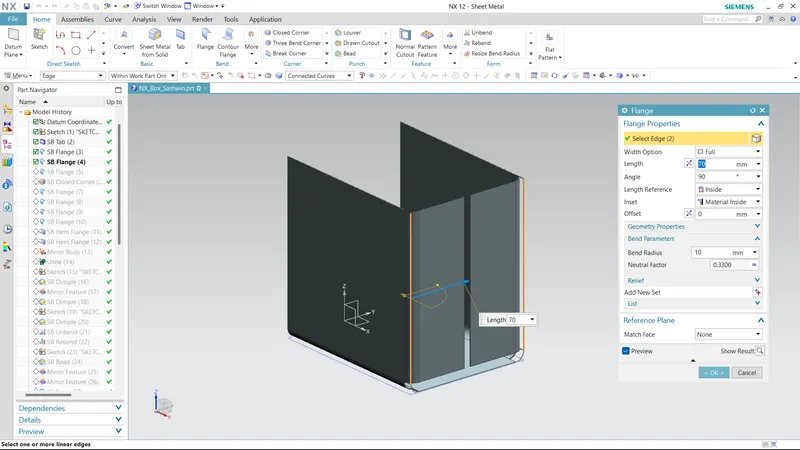

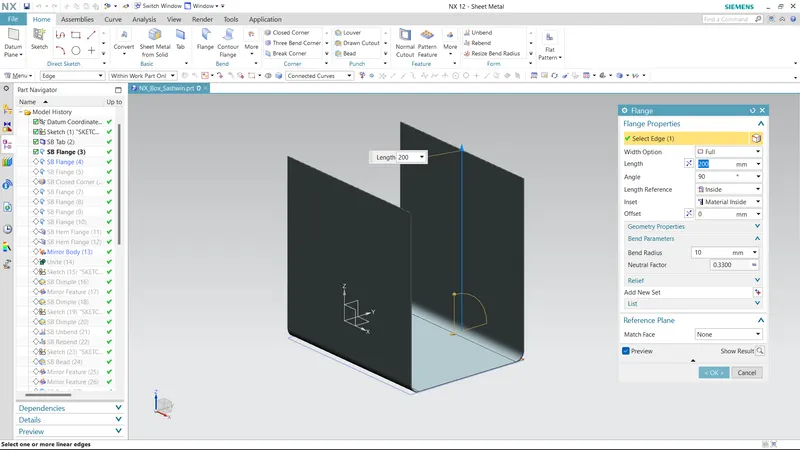

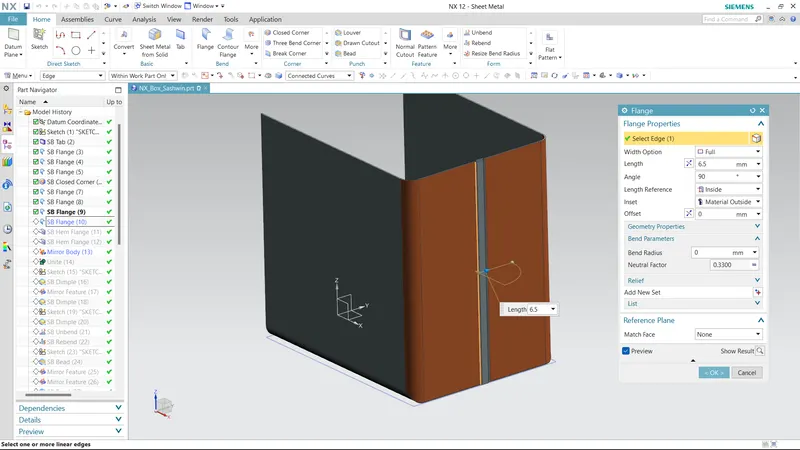

• Add flange: Flange with bend radius 10, angle 90 deg and length of 200 mm

* Flange with length 70 mm sides

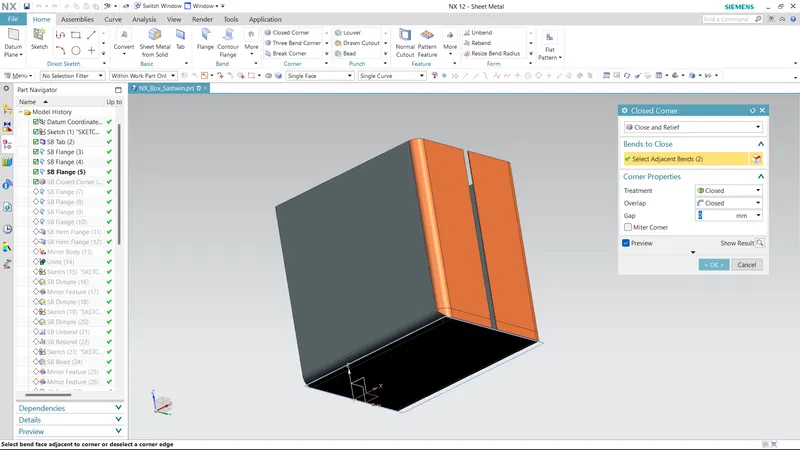

• Close corners: close and relief option used to close corner

• Add flange and hem

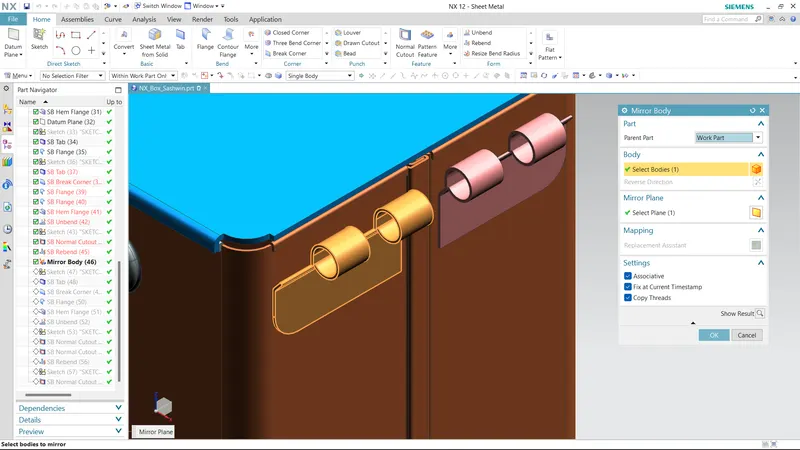

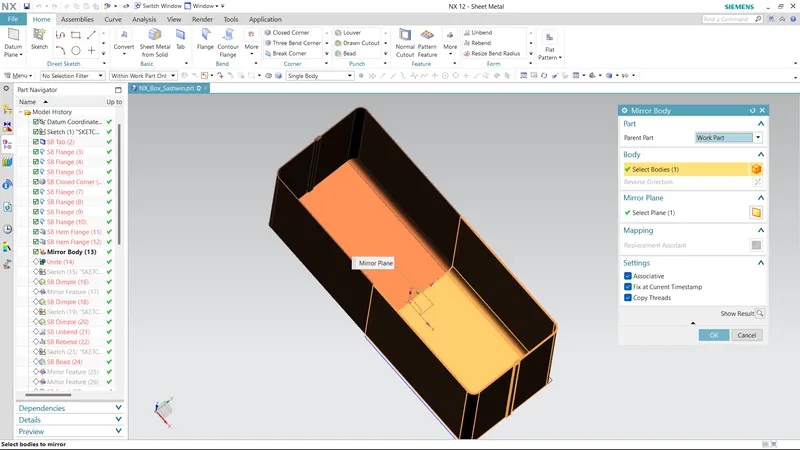

• Mirror body: Mirror the body using YZ Plane

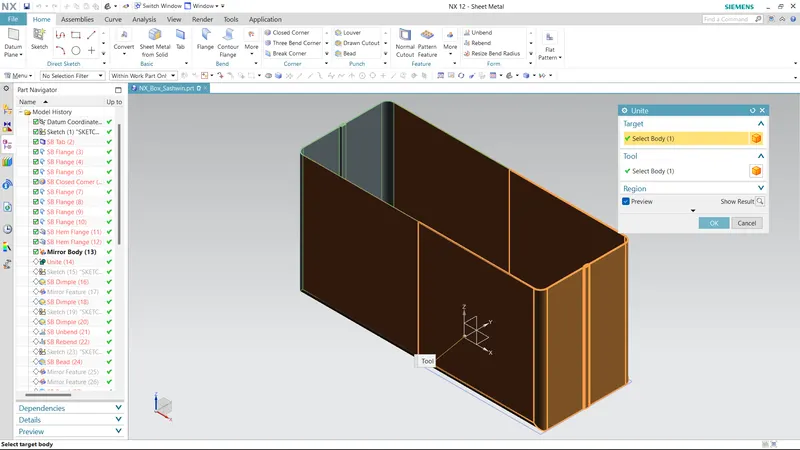

• Unite:It is used to combine the mirror body and the box

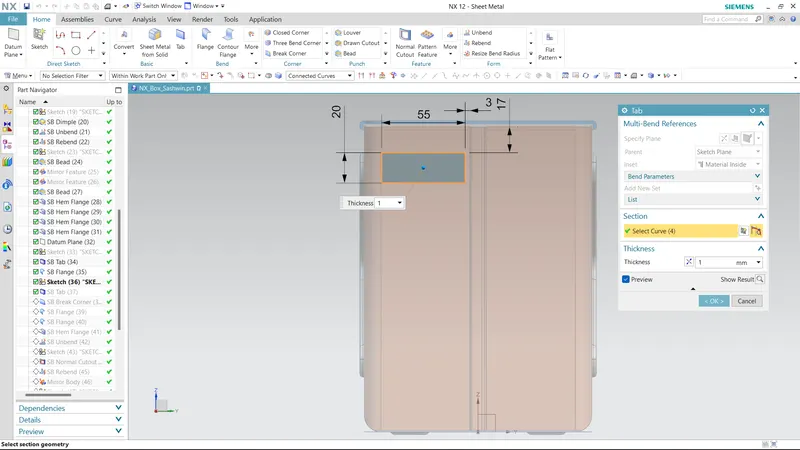

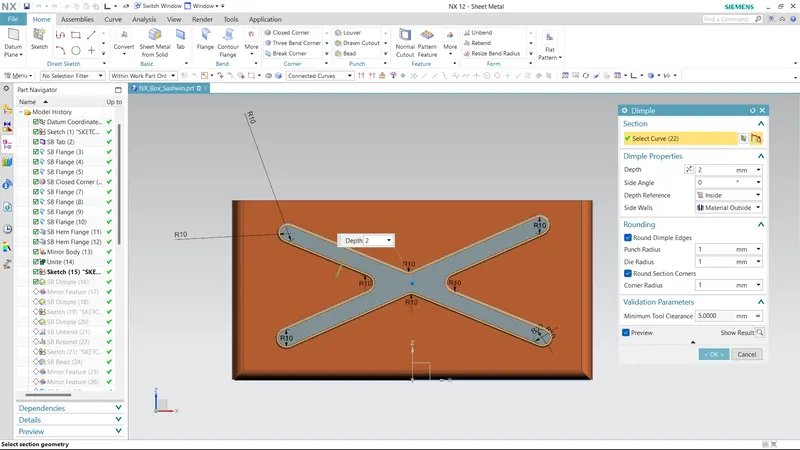

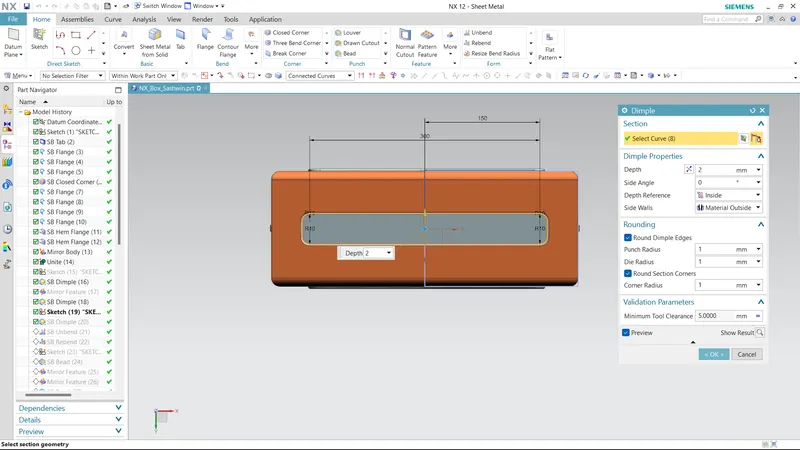

• Add dimple: sketch and use depth of 2 mm for the dimple

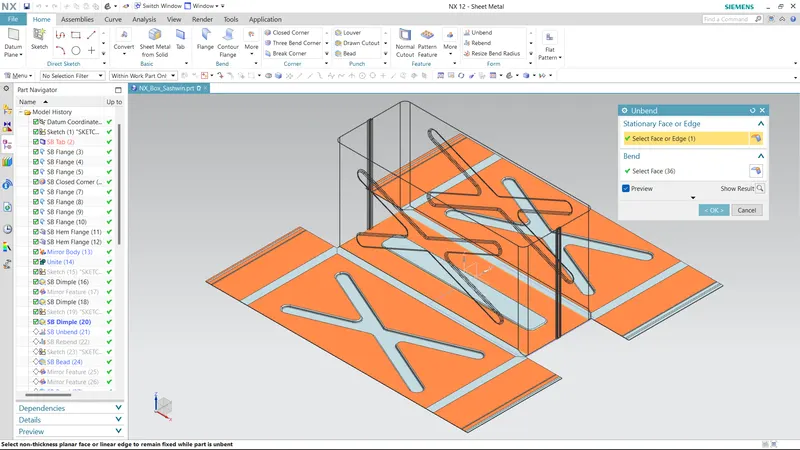

• Unbend

• Rebend

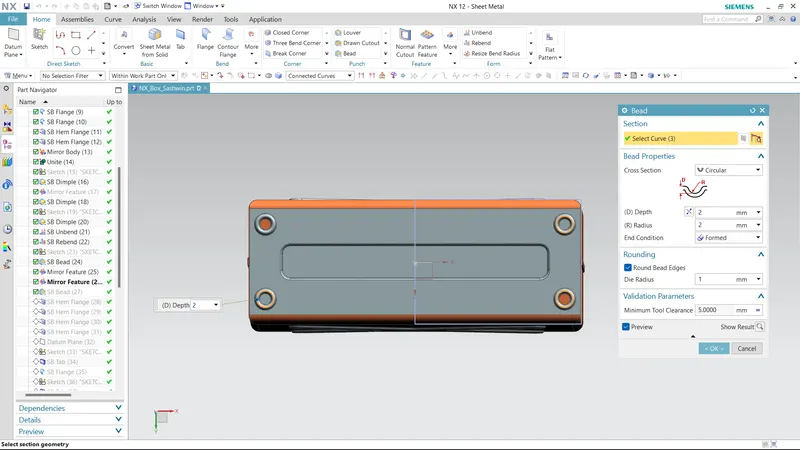

• Add bred: Depth and radius of 2mm and mirror the bred feature

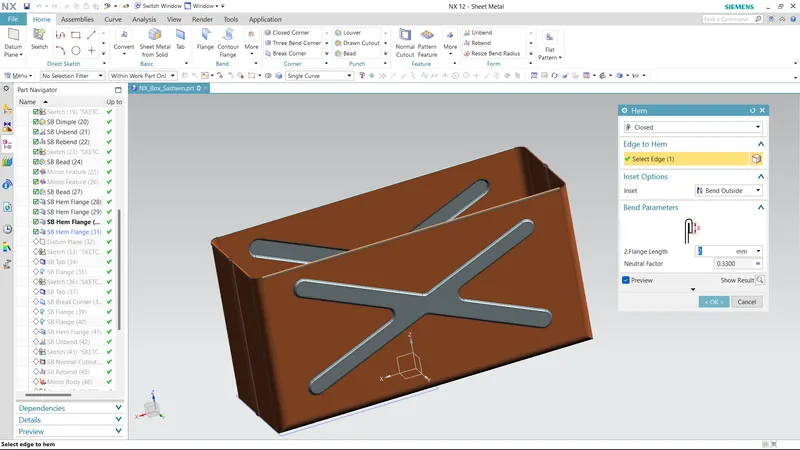

• Add hem:

2.Lid

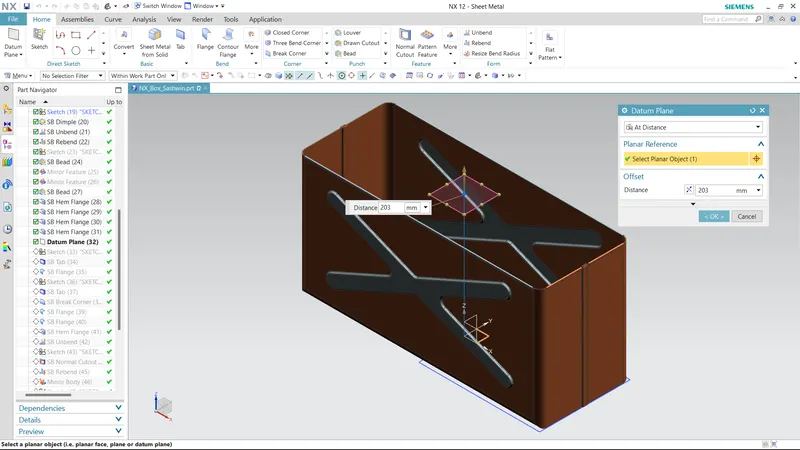

* Use Datum plane at a distance of 203 mm

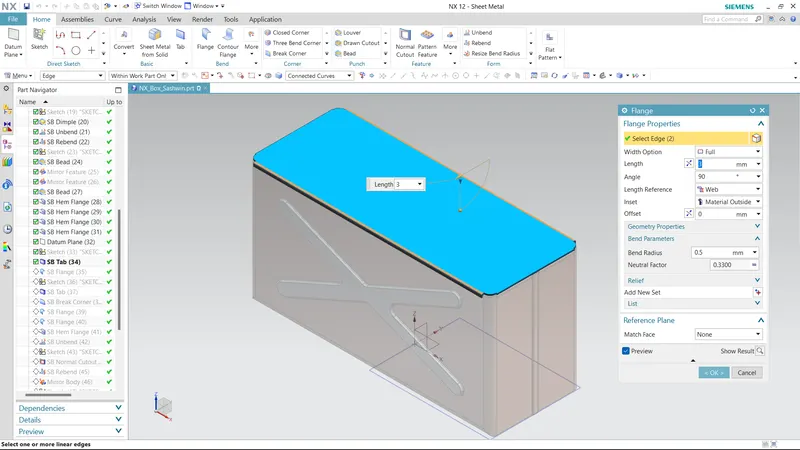

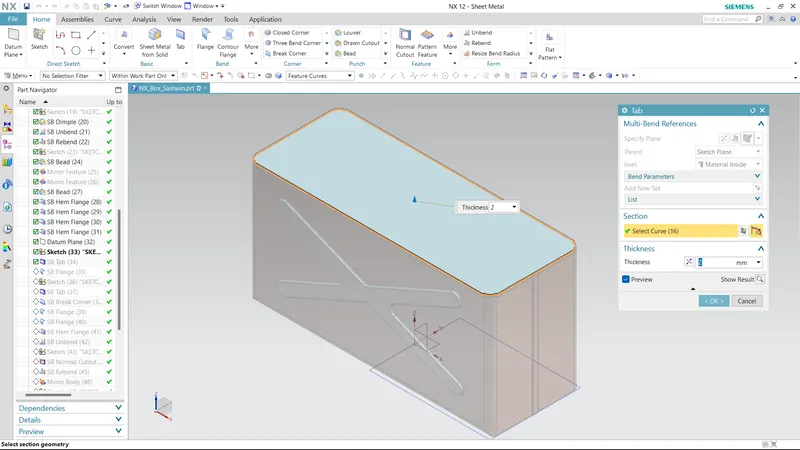

• Tab:Sketch and add tab thickness 2 mm

• Add flanges:It is added to the sides of the Lid component

3.Hinge

• Tab:Sketch and add tab thickness of 1 mm

• Break corner: This feature is used to create curve edges and 10 mm in radius is given

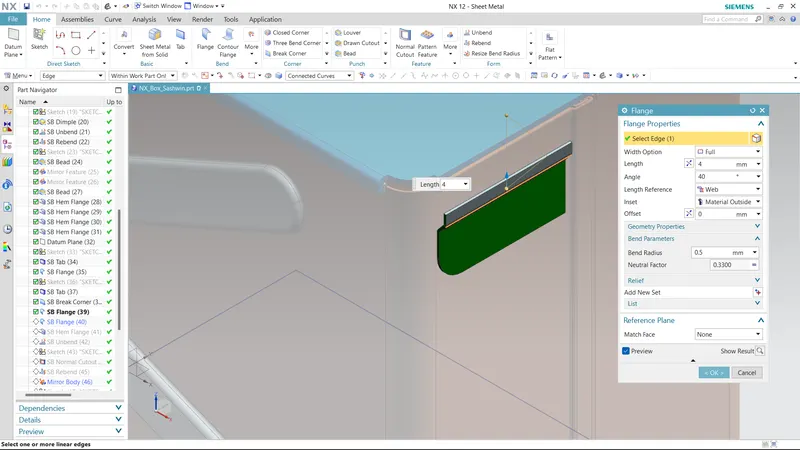

• Add flange:Flange with 40 deg and length 4 mm is given

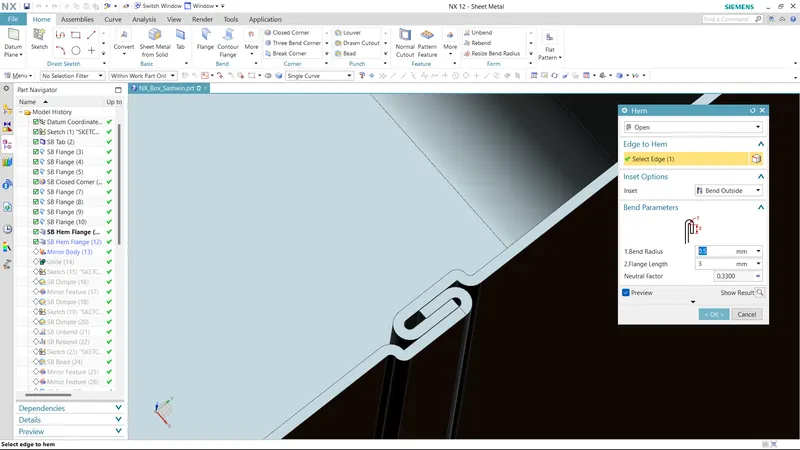

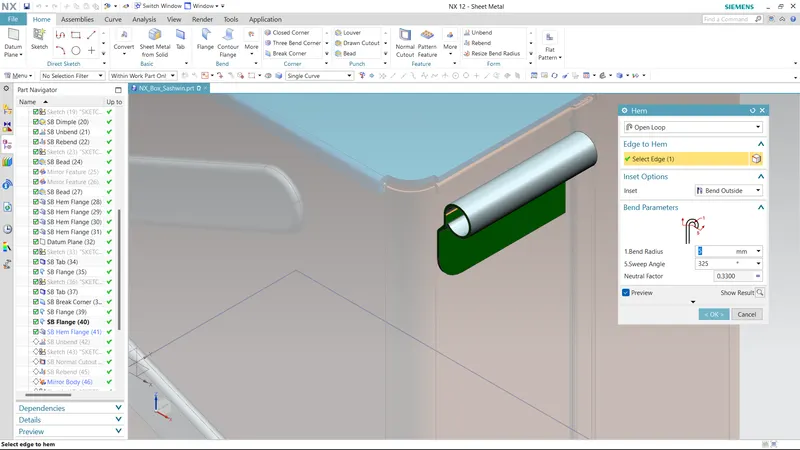

• Add open loop hem: Bend radius 5 mm and sweap angle 325 deg is given

• Unbend

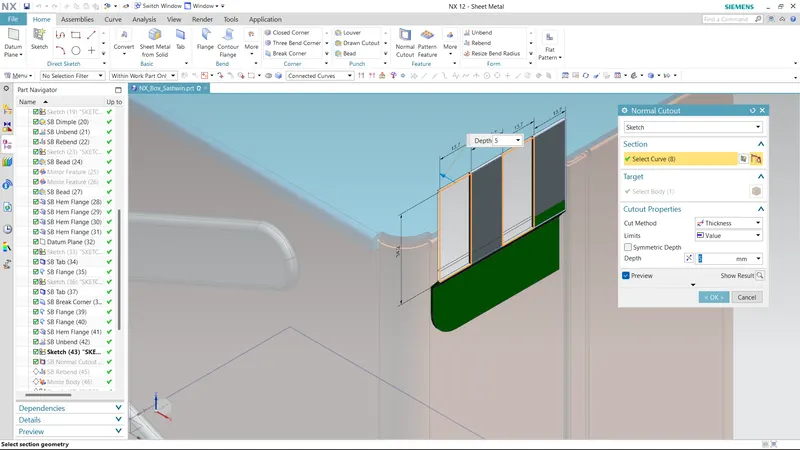

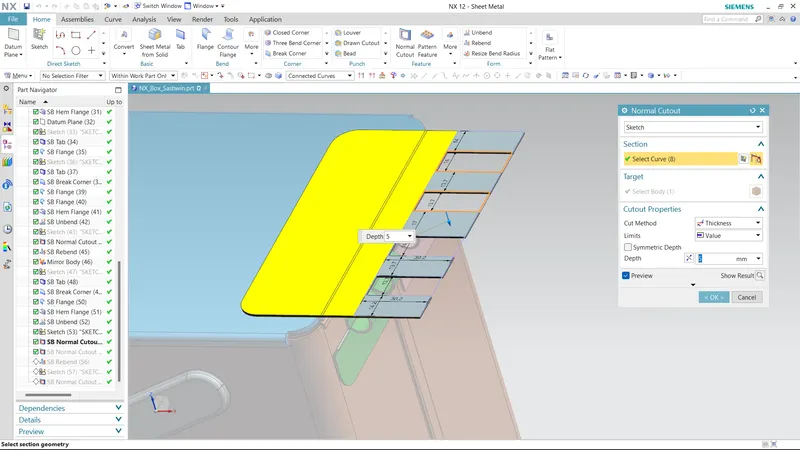

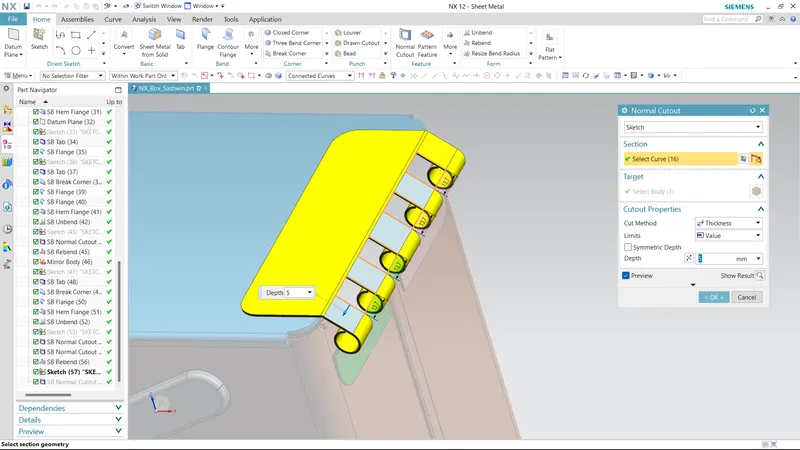

• Sketch and Normal cutout:Cutout having depth of 5mm

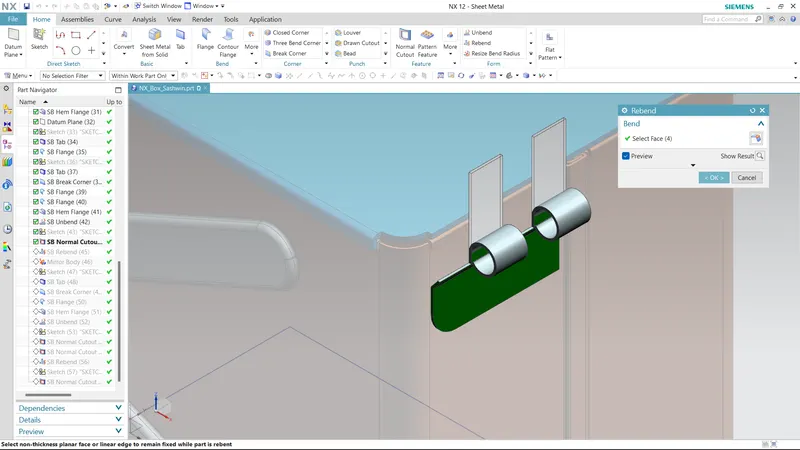

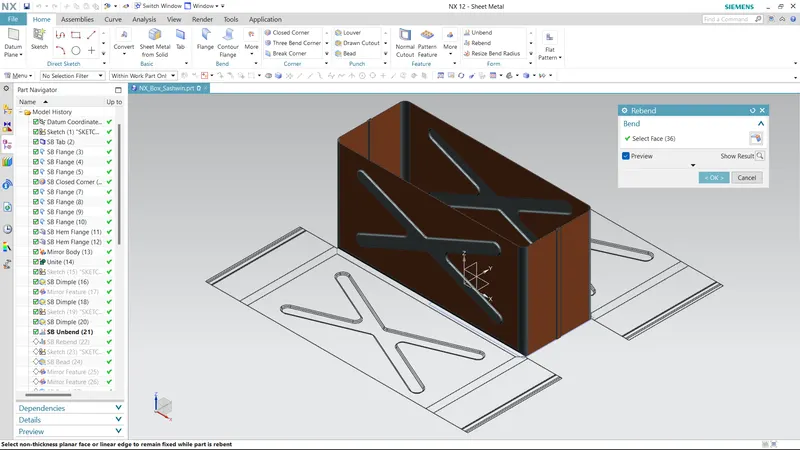

• Rebend:Rebend after normal cutout feature

• Mirror body: Mirror the body using XZ Plane

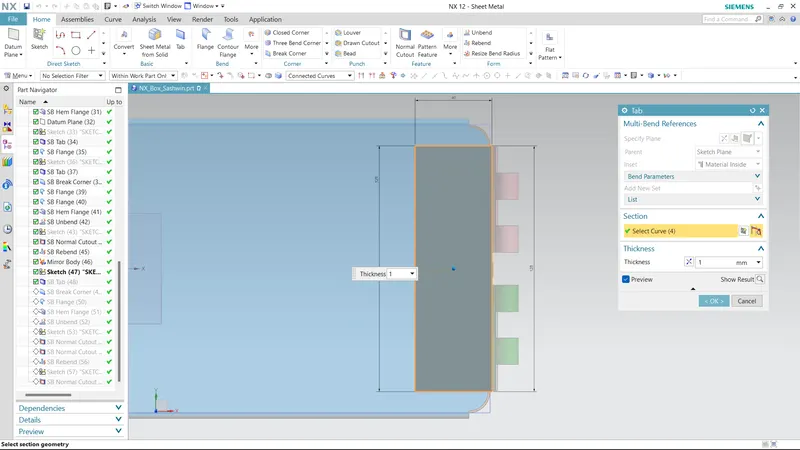

• Tab: Sketch and add thickness 1mm

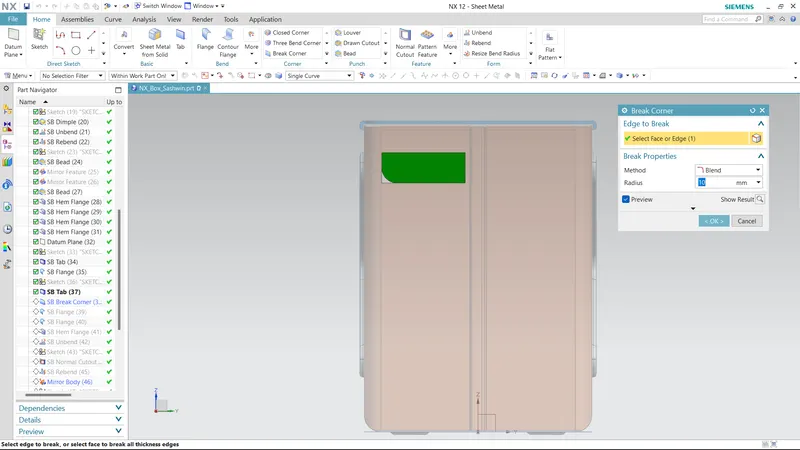

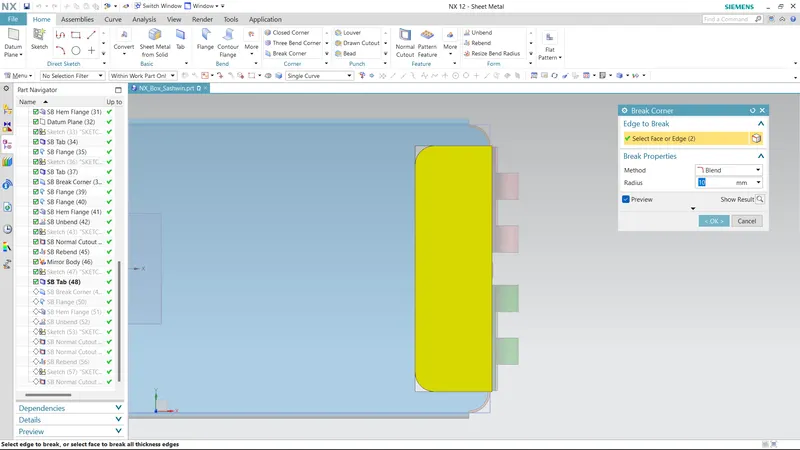

• Break corner: Break corner to curve the edges having radius 10mm

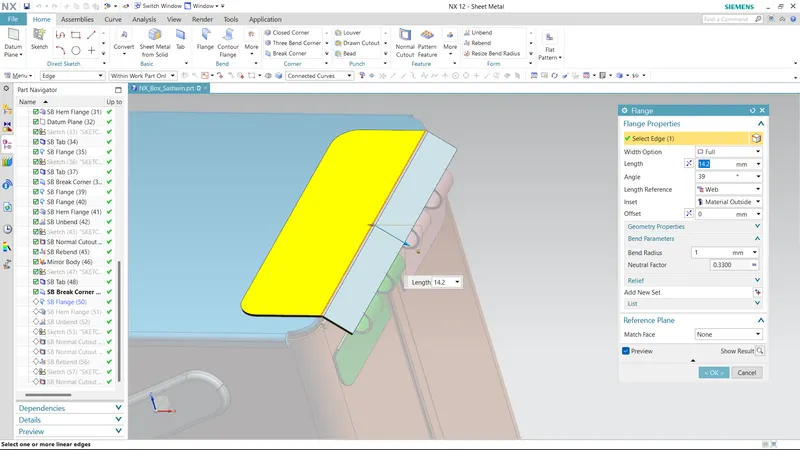

• Add flange:flange having bend radius 1 mm and length of 14.2 mm

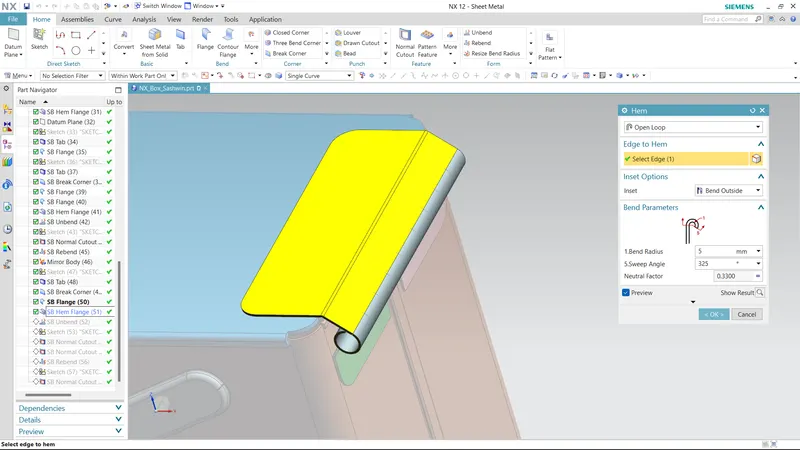

• Hem: Open loop type hem having Bend radius 5 mm and sweap angle 325 deg

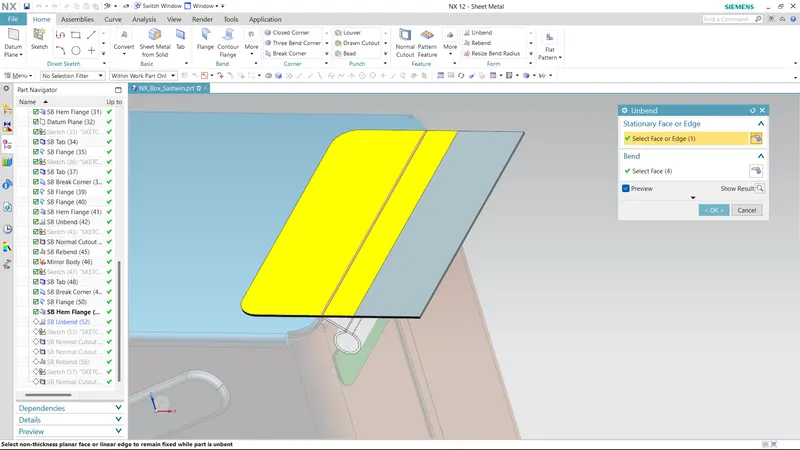

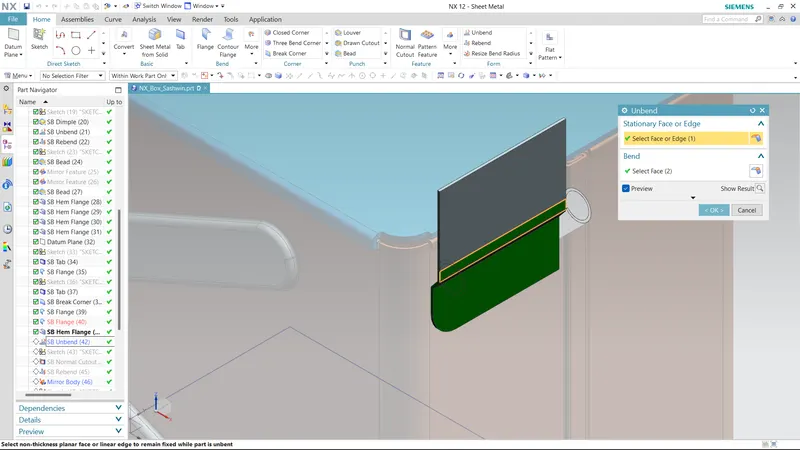

• Unbend:To sketch and cutout material

• Normal cutout:Remove material from the tab

• Rebend:To form the hem that was created

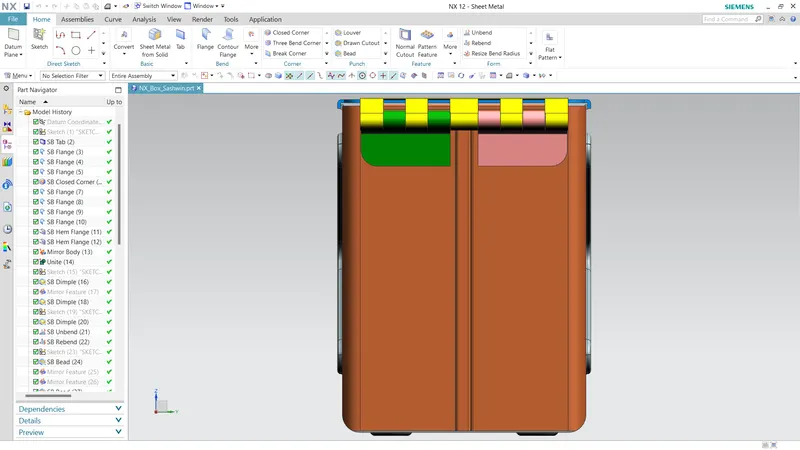

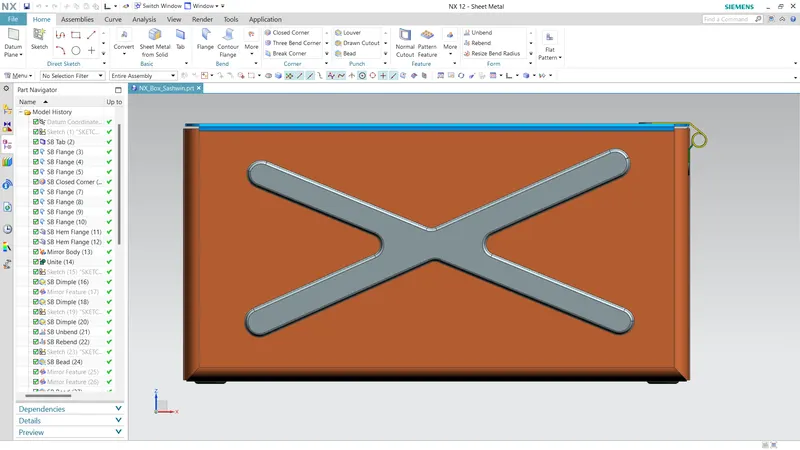

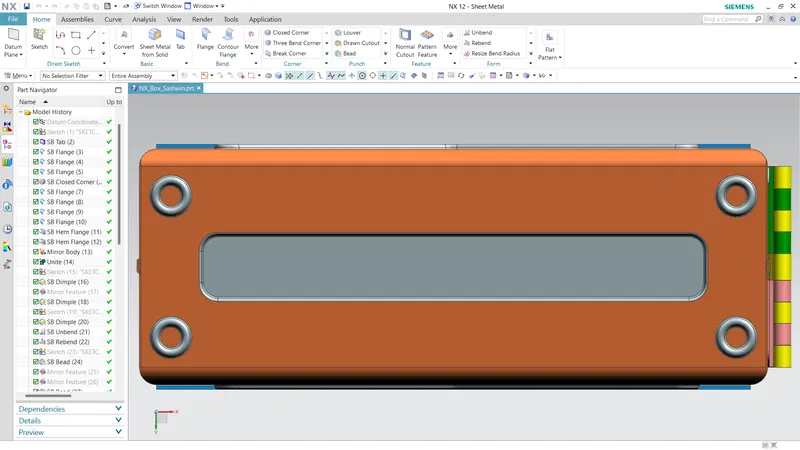

Screenshots of Model in various orientations

Front View

Side View

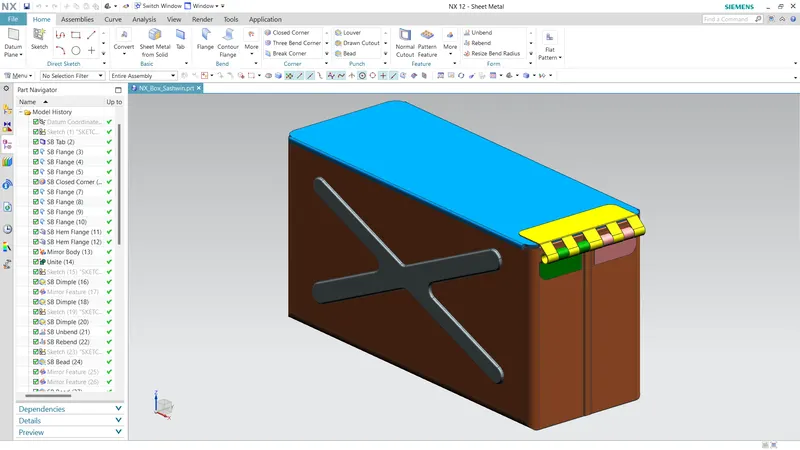

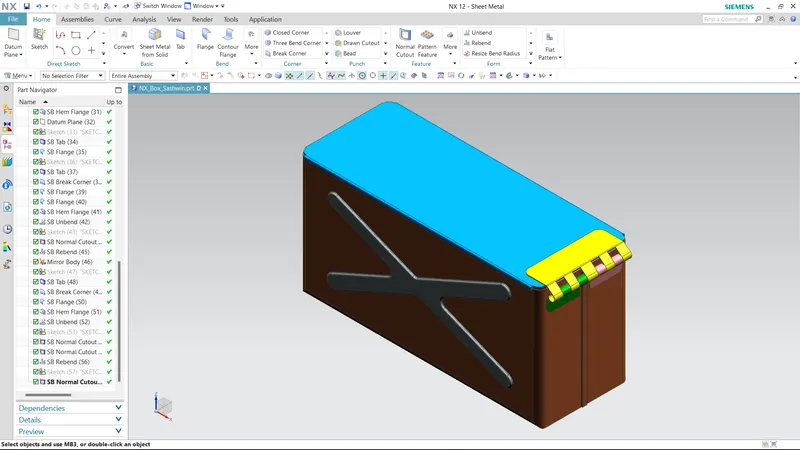

Isometric View

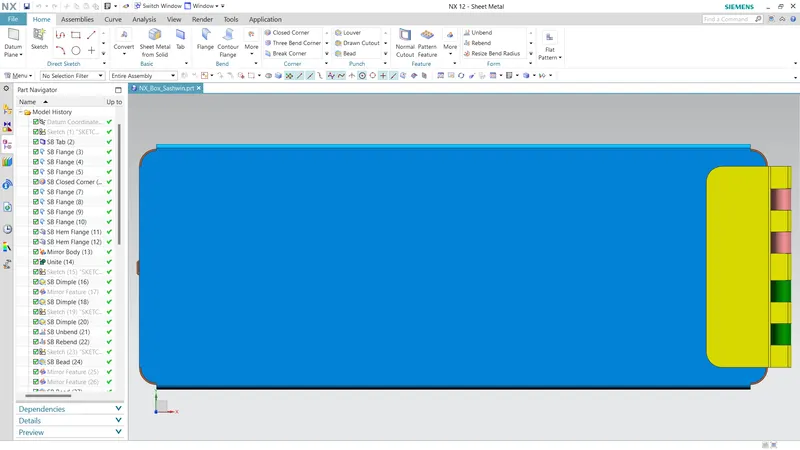

Top View

Bottom View

Trimetric View

Attach Detailed Drawing Sheet Image (If Required)

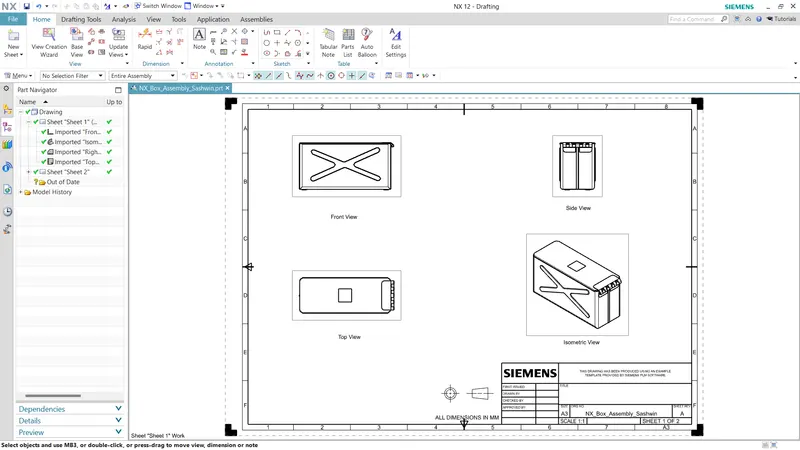

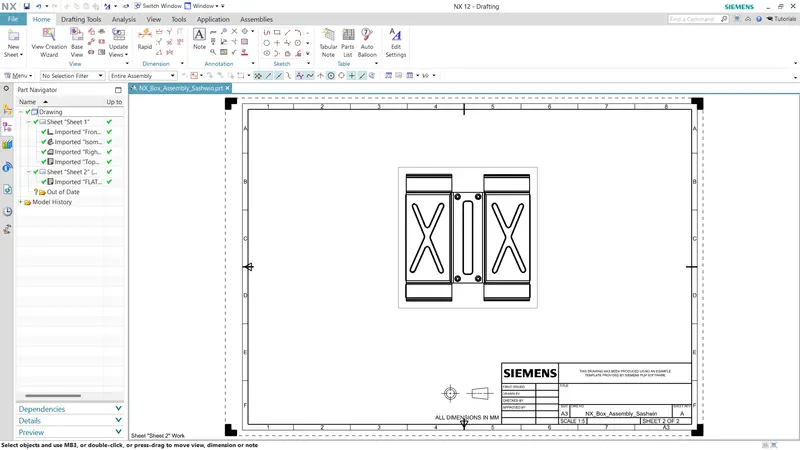

Sheet 1 contains Front view,Top view,Side view and Isometric view

Sheet 2 contains Flat pattern view

Conclusion

Box Assembly design in advanced sheet metal design using NX CAD is completed .

NOTE: The box assembly NX CAD file saved as "NX_Box_Assembly_Sashwin Mohan" with extension ".prt" is attached.

Thankyou.
