Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly
Title of project : Box assembly using sheet metal tool of NX12.
Objective : the main objective is to achieve the required box assembly by using the commonds in a proper way
Introduction : sheet metal design is a process of making external layers that are used as coatings for the car bodies and internal thin sheets of doors and etc.. and some how as per requirements we are using bends flanges and cutout to design clean and accurate. in this a trail should be adopoted to design sheetmetak for casing using NX 12. in general purpose we are using UNIGRAPHICS, SOLID WORKS and CAD/CAM/CAE also in the designing of sheets.
Design Methodology :
Discrition

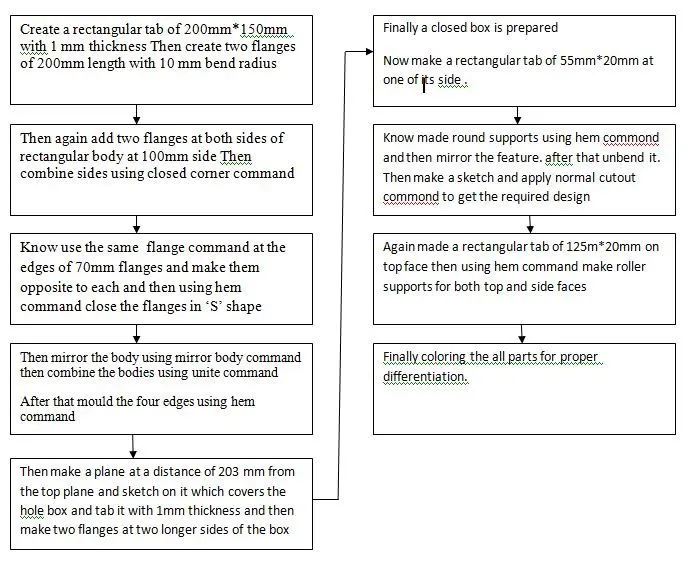

step-1 using tab command to make rectangular sheet of 1 mm thickness
step-2 flange command to make a rectangular box wallas with 10mm bend radius
step-3 again using flange command to combine the side walls
step-4 hem command is used to make thicken sides for avoiding the sharp corner
step-5 using tab and flange commands for preparing the cap for the box
step-6 finally using tab,flange and hem commoads for preparing the circular roller supports for box and cap connections

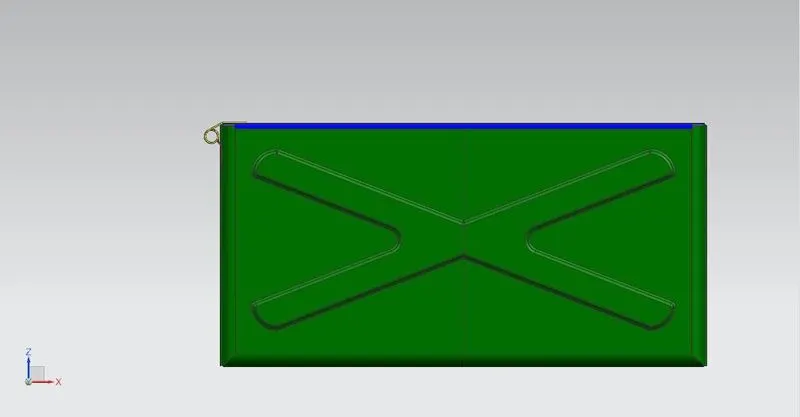

top view

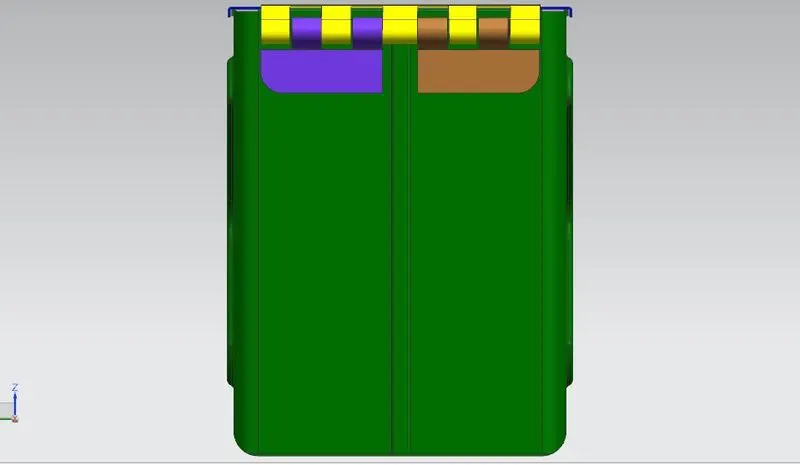

front view

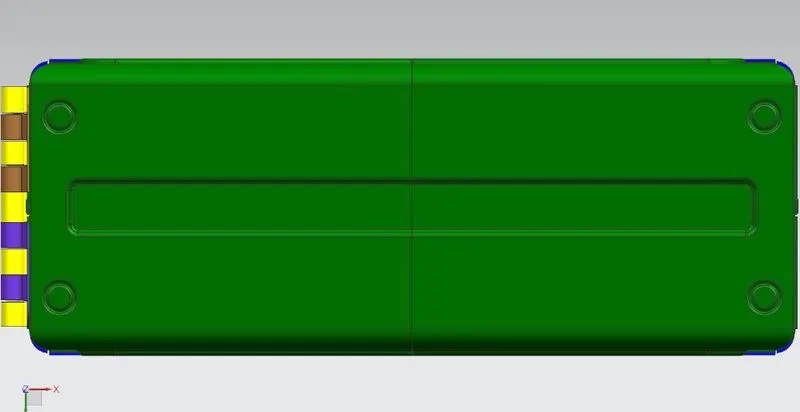

side view

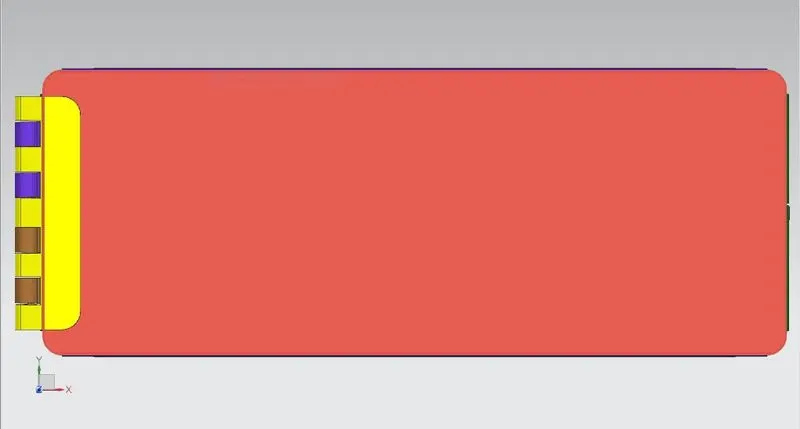

back view

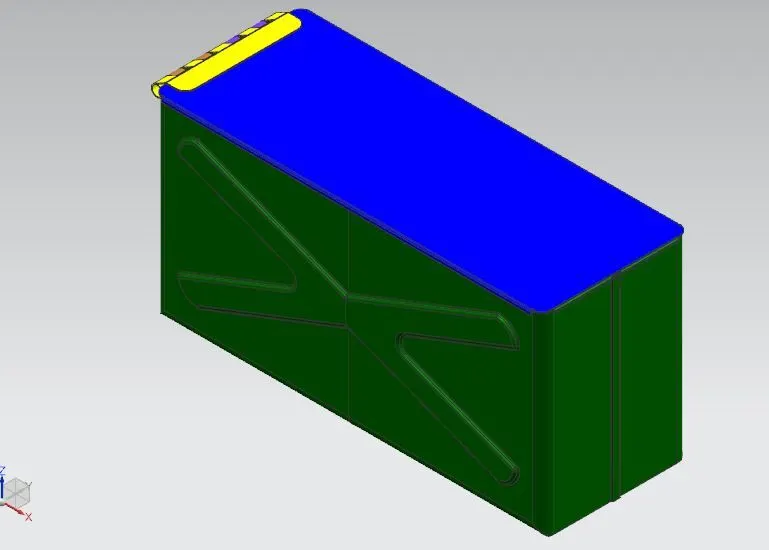

isometric view

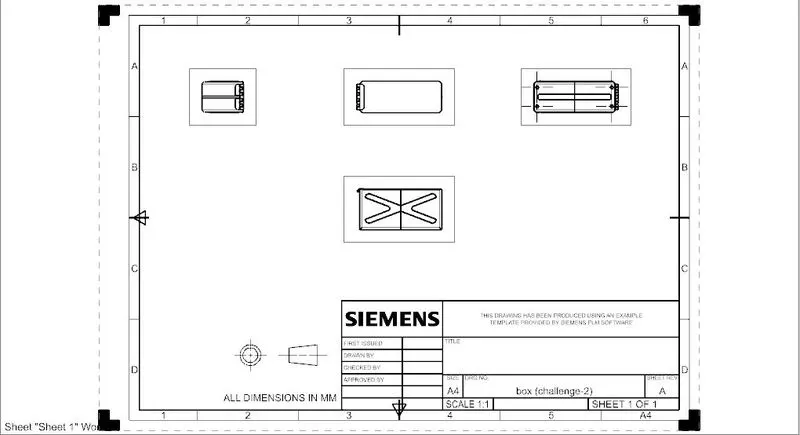

Drawing sheet
