Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Advanced sheet metal design using NX cad challenge 1 casing design
Title of the project: Advanced sheet metal design using NX cad.
Objective: to design a casing with the help of NX advance sheet metal.
Introduction:
NX sheet metal provides a set tool within the NX design environment allows for simple and fast design of sheet metal parts, dependent on their material and manufacturing process. NX sheet metal design software incorporates material and process information in sheet metal-specific modelling features: bends, flange, tabs, cutouts, bends, dimples, louvers, corner and edge treatments, patterns and other formable features.
We can also quickly convert solid models to sheet components and create sheet metal part that enclose other components.
NX sheet metal-specific features such as flanges, tabs, jobs, corner conditions, and drawn cutout & many more along with productivity enhancements such as-automatic bend reliefs.
So, in this project I am going to deign a casing by using sheet metal tools and commands.

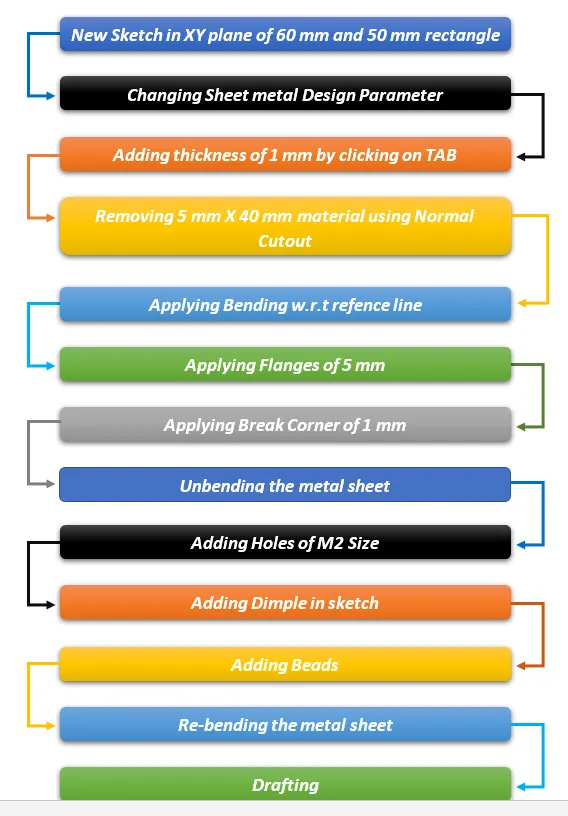

Design methodology/ approach
Description
The important tool which used during designing of casing are as follow:

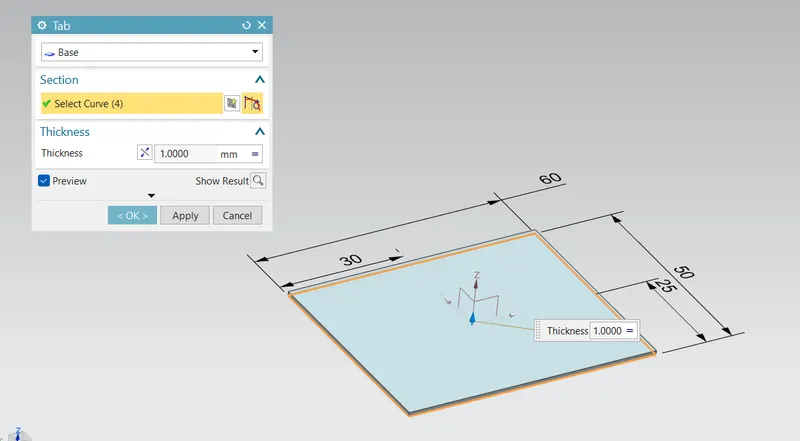

- TAB: creates a base feature by extruding a sketch along a vector by a thickness value or adds a material to a plane face.

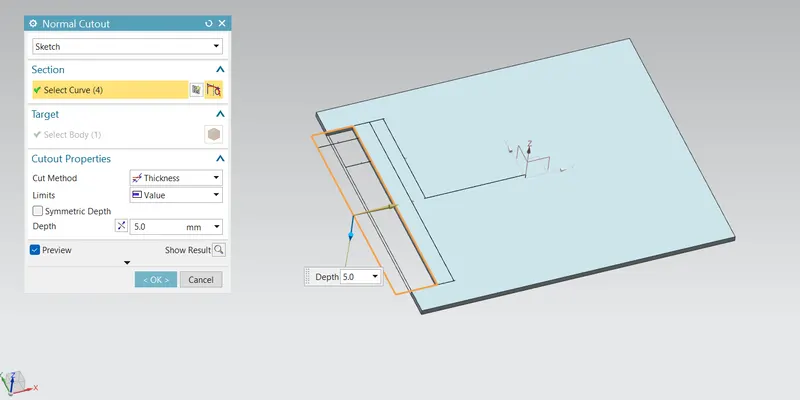

- Cutout: cuts the model perpendicular to the sketch.

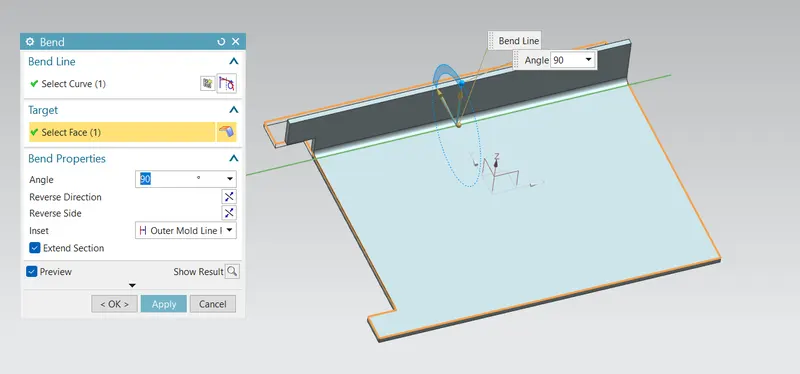

- Bend: modifies the model by bending material on one side of sketch line adding a bending between the two sides.

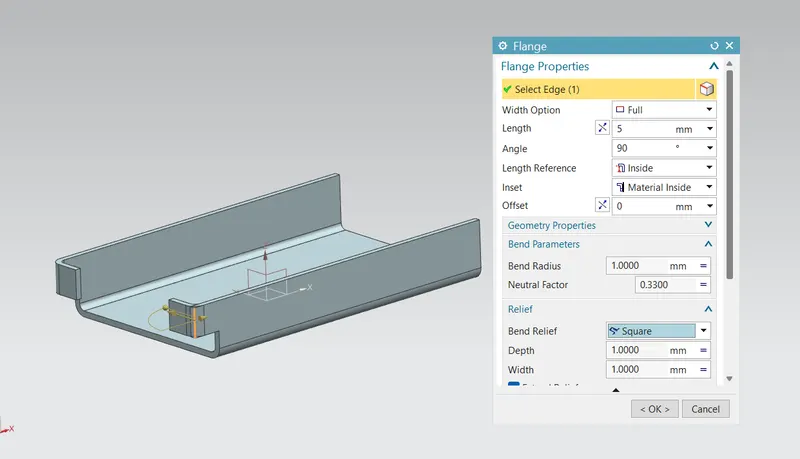

- Flange: adds a flange to an angle to a planner face and adds a bend between the two.

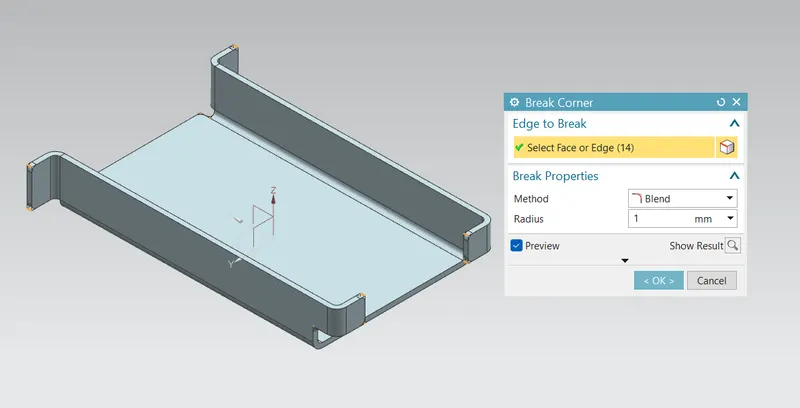

- Break corner: rounds a sharp corner

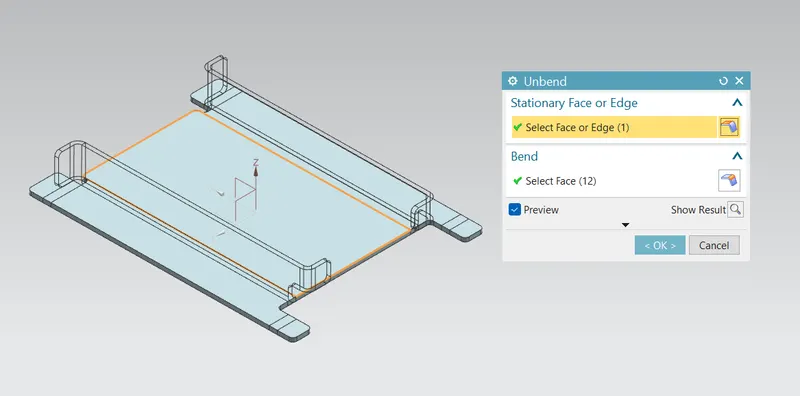

- Unbend: flattens a bend

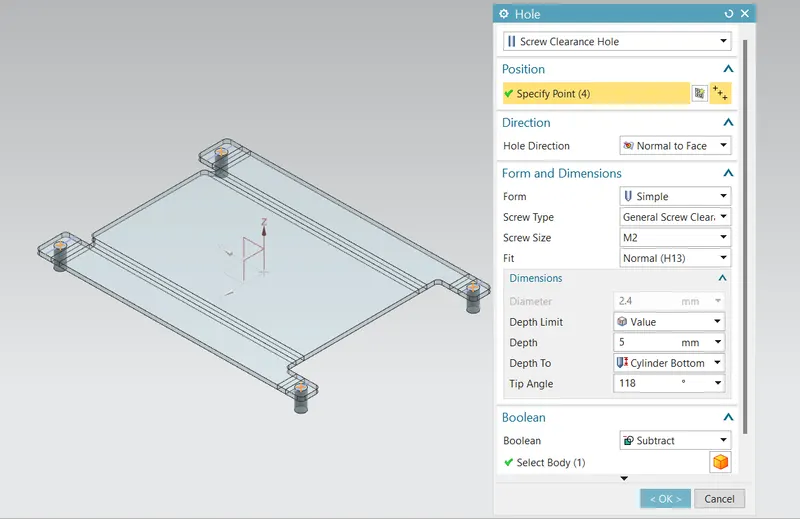

- Hole: hole command uses to create a hole on one or more solid bodies in a part or assembly with option for counterbored, countersunk, and threaded.

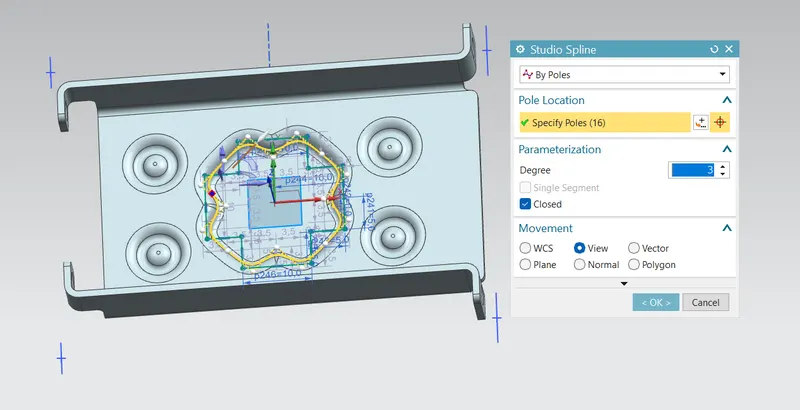

- Studio spline: creates spline through defined points. We can change positions of points or drag points while the command has been activated
- Move curve: we can move our sketch entities according to selected reference and reference points, which, makes moving sketch objects is very effective.

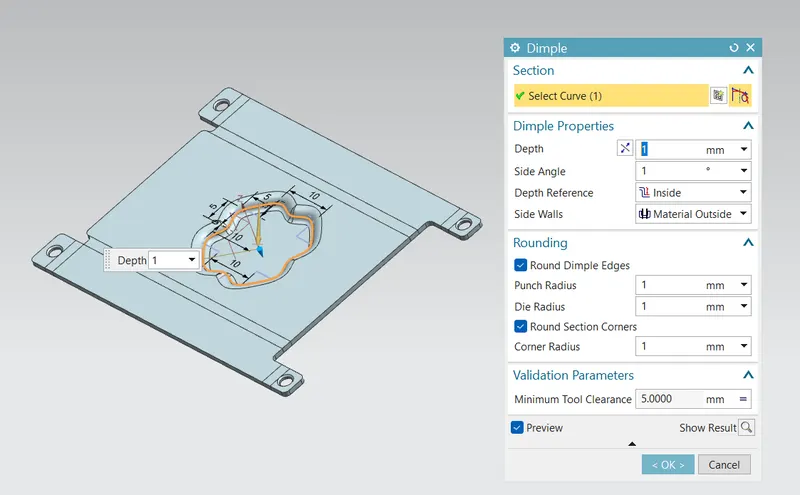

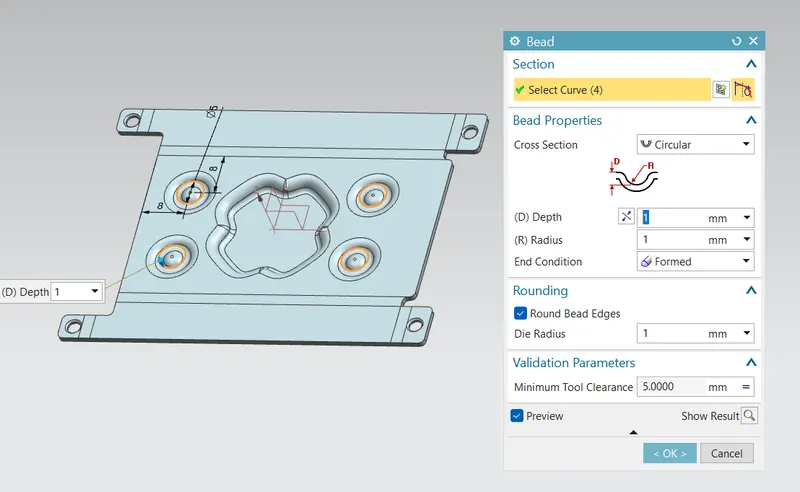

- Dimple: lifts an area of the model inside a sketch that simulates stamping a tool.
- Bend: lifts a material along a counter of sketch that simulates stamping a tool.

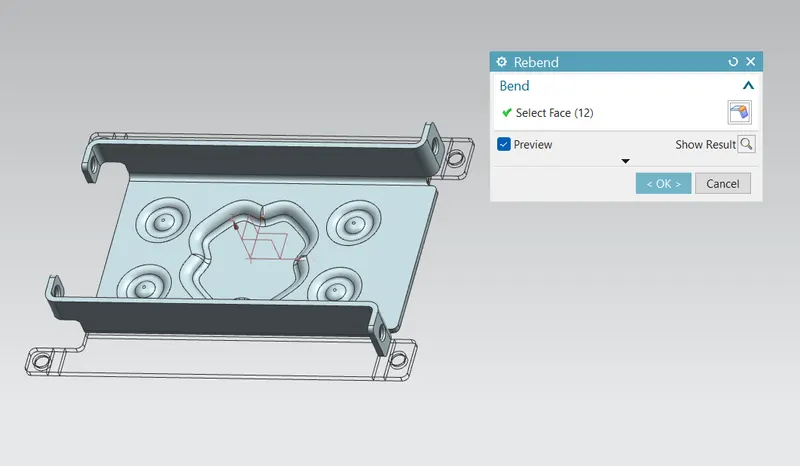

- rebend: restores a bend

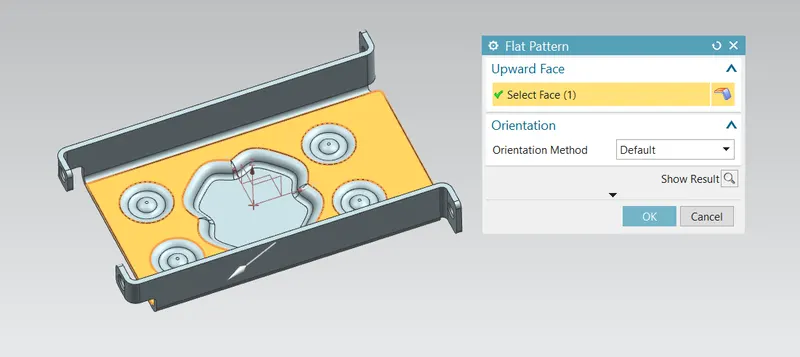

- flat pattern: creates flats pattern feature from the formed sheet metal part.
- Base view: used to create a material view on the sheet.
- Screenshots of model

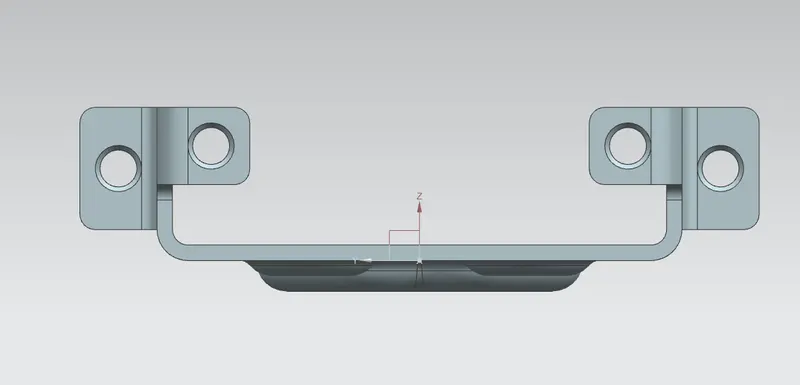

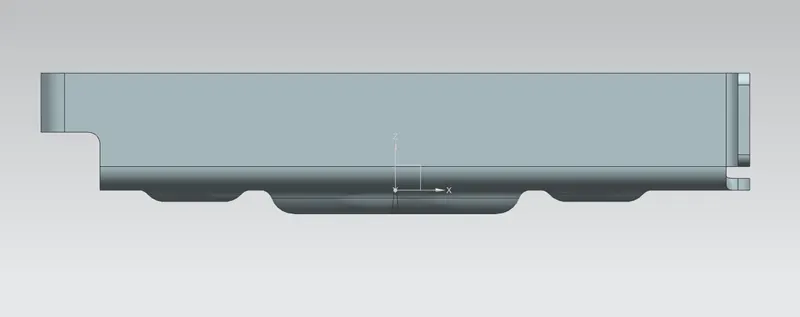

Front view
Side view

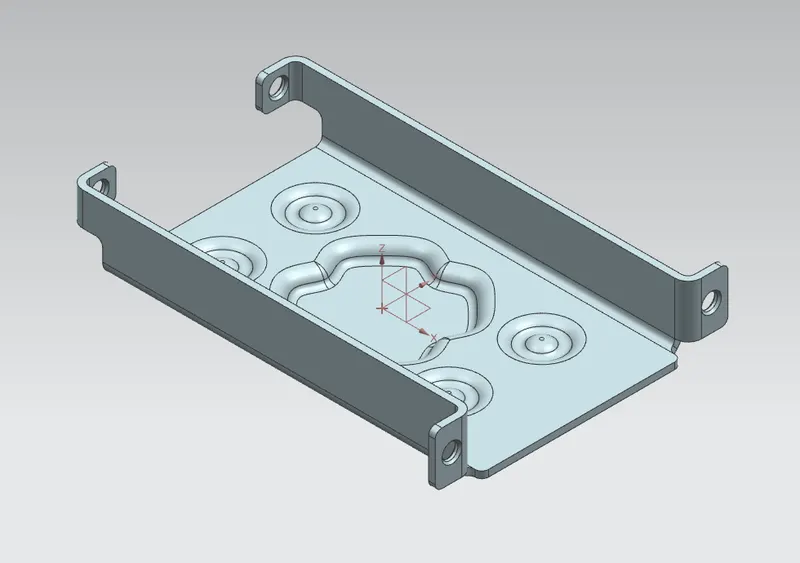

Isometric view

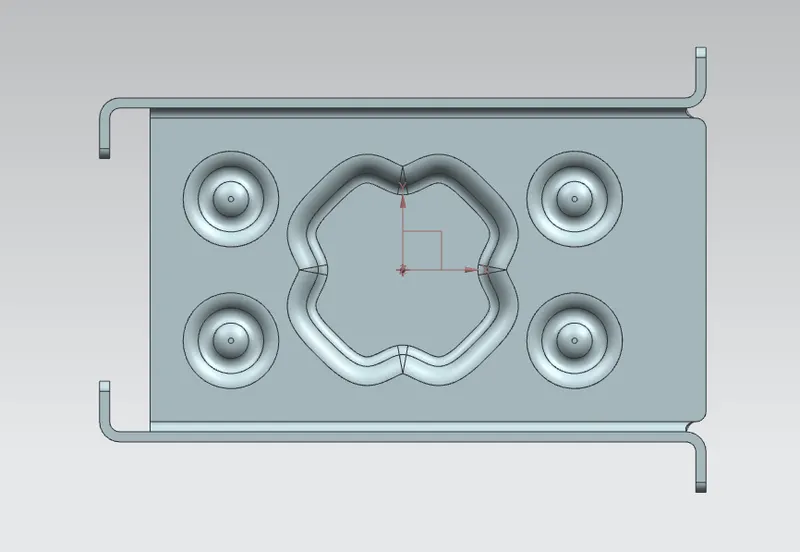

Top view

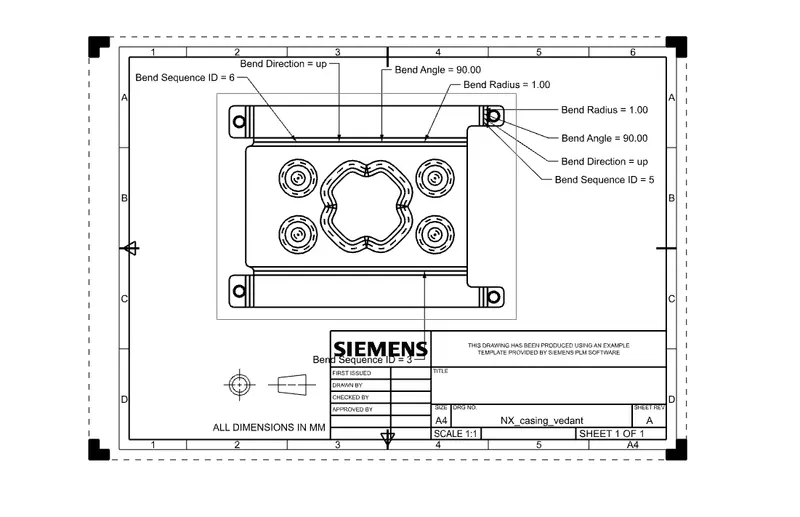

Attach detailed drawing sheet image

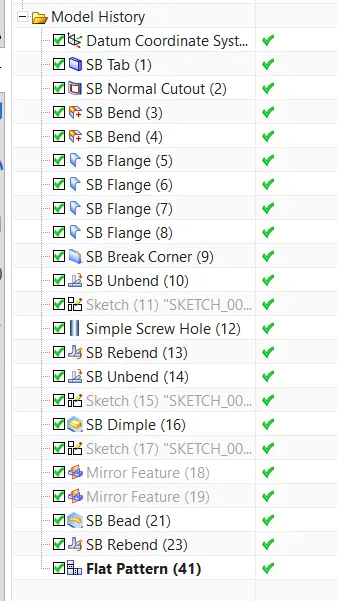

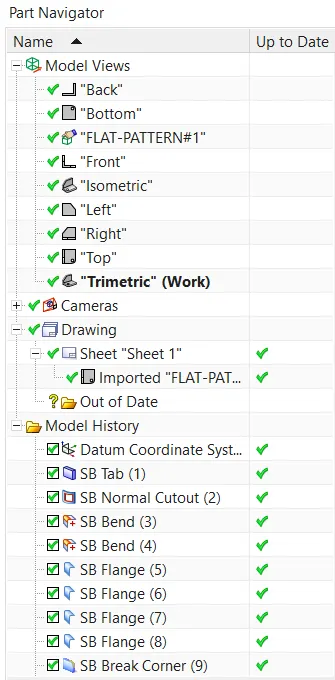

Part navigator
Conclusion
While designing a casing I have understand and learnt different tools such as tab, flange, dimple, bending, unbending and many more in sheet metal of NX.
