Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

NX_Casing_Harish Patil.

Design of Casing using NX sheet metal application.

Objective:
To design a Casing by using Siemens NX sheetmetal Application

Introduction:
NX Siemens contains a series of applications that support different workflows, such as creating parts, building an assembly, or producing a drawing. And NX Siemens sheetmetal application provides an environment
for the design of sheetmetal parts used in Machinery, Automotive industry and Aerospace etc.

Design Of Methodology:

Work flow to design a Casing.

• Sketch the 2D shape of the Casing.
• Construct the Base feature using tab.
• Add cut-out using normal cut-out feature.
• Add Bend ,Flange & Break Corner.
• Unbend the part and add other features such as dimple, hole and beads.
• Rebend the part after applying of required features
• Create flat pattern.
• Create a drawing sheet by using of drafting.

Description:

Tools used:

1. Sketch: Used to create a 2D sketch on the plane.
2. Line: Used to draw a line.


3. Rectangle: Used to draw a rectangle.


4. Studio Spline: Create a spline by selecting define point or poles & assigning slope or curvature constraints at defining points.


5. Circle: Used to draw a circle.


6. Point: Used to create a point in the sketch.

Features Used:

1. Tab: Use to create a base feature by extruding a sketch along a vector by thickness valve or by adding material to existing faces & bend regions of sheet metal part.


2. Normal Cutout: It is used to create the cutout to the material by projecting a sketch onto the model and then cutting perpendicular to the faces intersected by the projection.


3. Bend: It is used to bend the material by projecting a sketch on the model perpendicular to the faces intersected by the projection.


4. Flange: Use to add a flat flange at an angle to a planner face & add a bend b/w the two.


5. Break Corner: Use to round or chamfer sharp corners of a tab or flange.


6. Unbend: It is reverse of bend feature , used to add some more feature.


7. Hole: Use to create a hole in the body using standard valves.


8. Dimple: Use to lift an area of the model inside a sketch that simulates a stamping tool.


9. Bead: use to lift the material along the contour of a sketch that simulates a stamping tool.


10. Mirror: Use to mirror a feature or entirie body with the reference of plane.
11. Rebend: Use to gain the original position.


12. Flat Pattern: Used to create a flat pattern feature form the formed sheetmetal part.

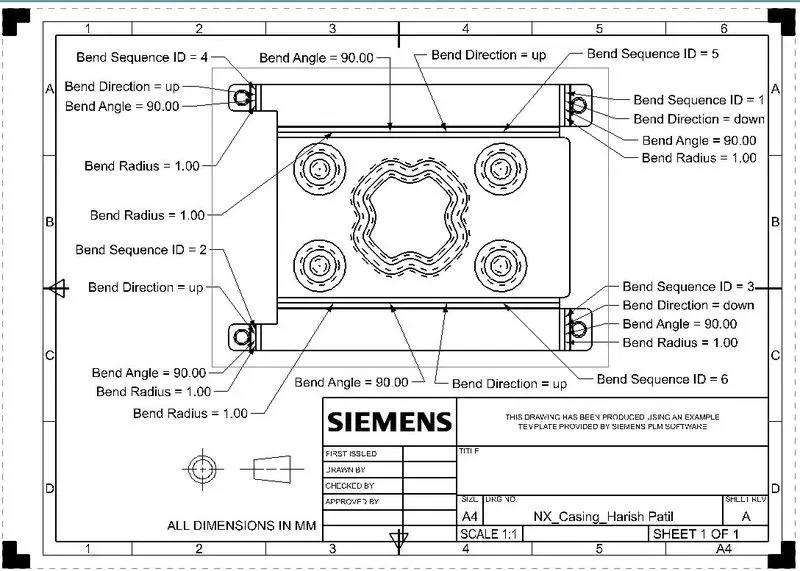

13. Base View: Creates the model based view on the drawing sheet.

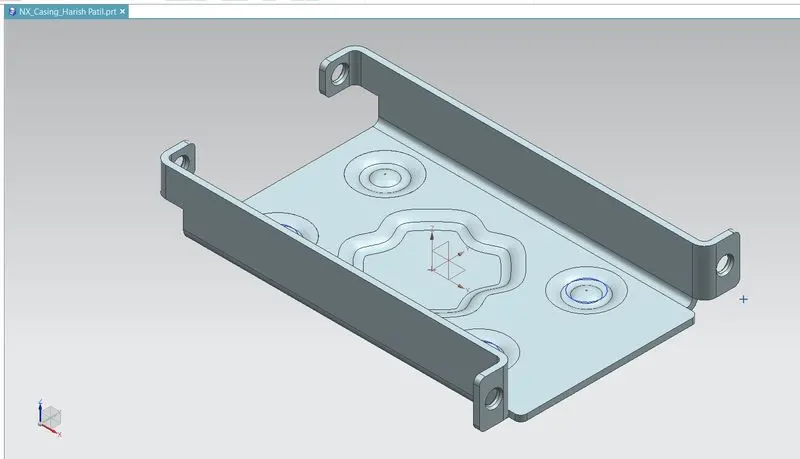

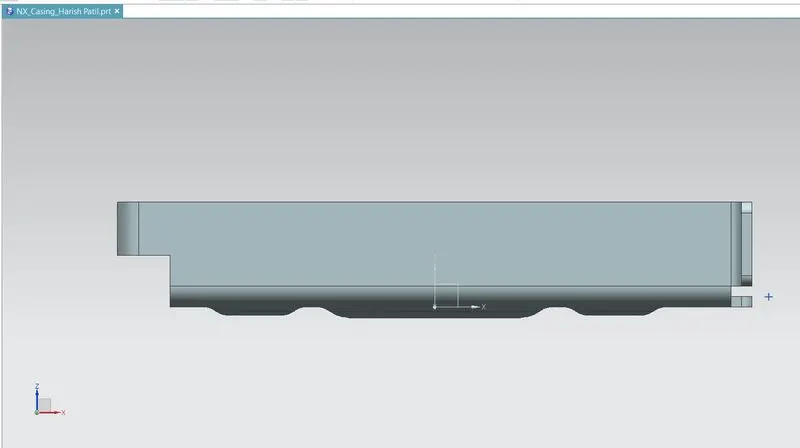

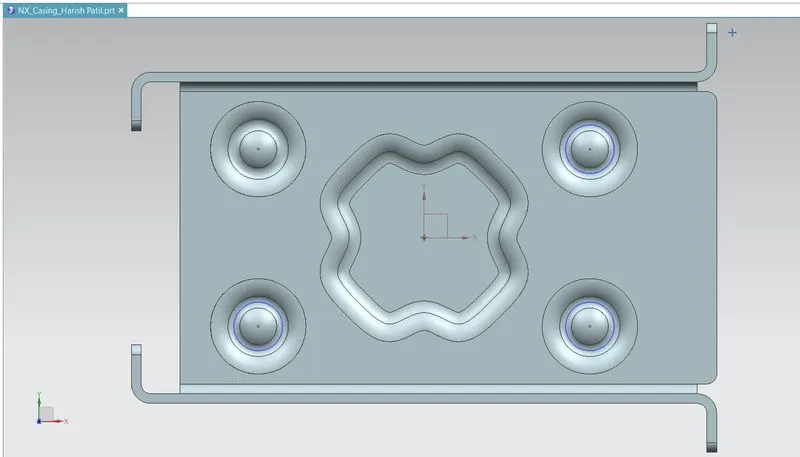

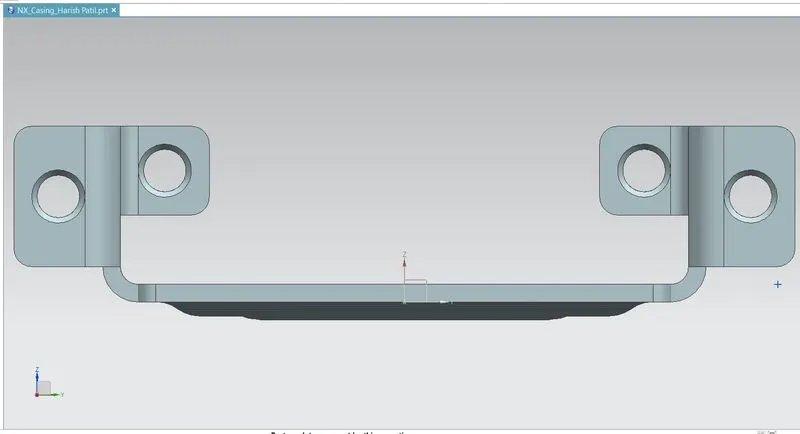

Images:

Conclusion :
Design casing using sheet metal in NX & view the drawing using drafting application.
