Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Title of the project: Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Objective: To design the given sheet metal part using NX cad.
Introduction: Sheet Metal Fabrication is the process of forming parts from a metal sheet by punching, cutting, stamping, and bending.
3D CAD files are converted into machine code, which controls a machine to precisely cut and form the sheets into the final part.

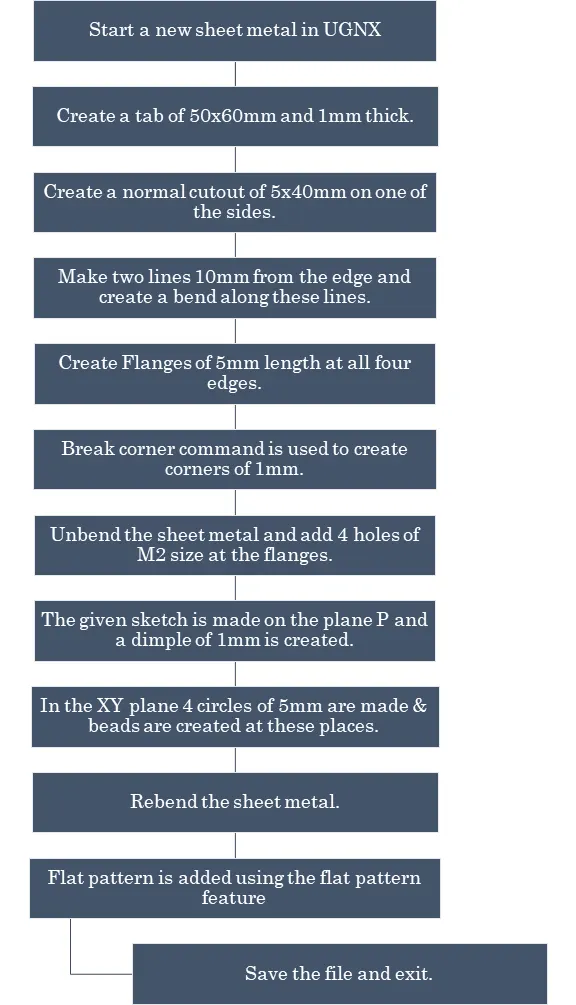

Design methodology / approach:
Description:
- Sketch: Used to make 2D designs and the basic structure of any 3D model.
- Tab: Used to make a base sheet metal shape on which further features are added.
- Flanges: Used as extended part of sheet metal.
- Bend: Used to create a bend of any angle along lines created on the base.
- Break corners: Used to create fillets at any of the corners.
- Dimple: Used to create a short extrusion/dimple on the face as per the sketch shape.
- Bead: Used to add strength to the sheet metal.

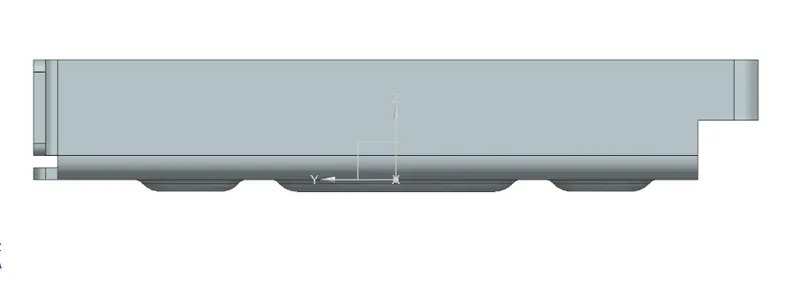

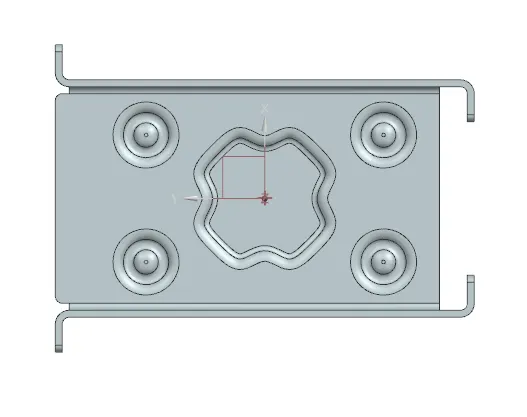

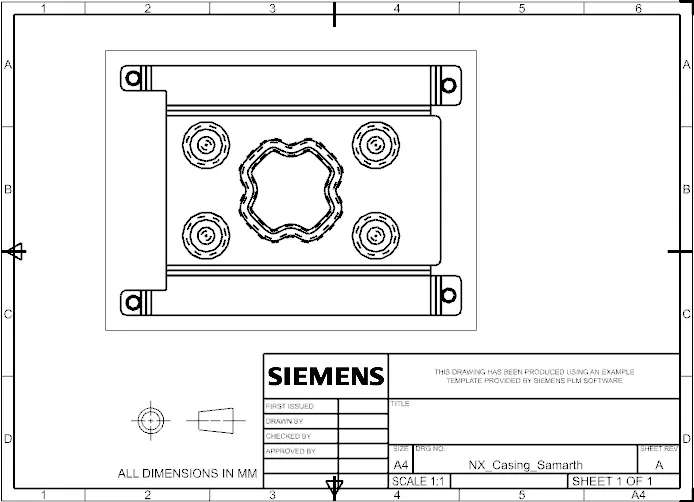

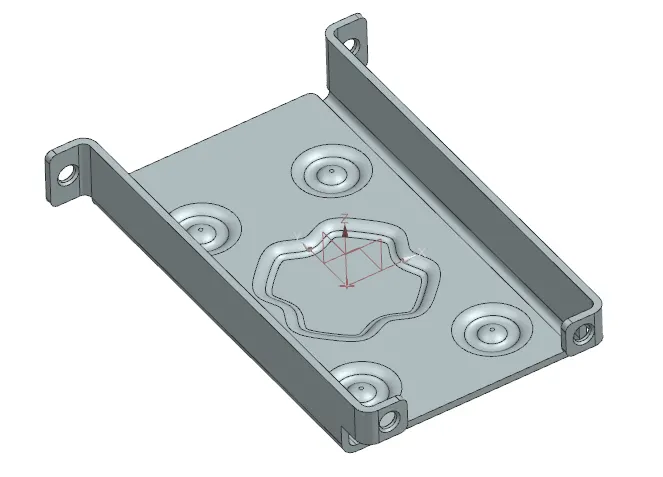

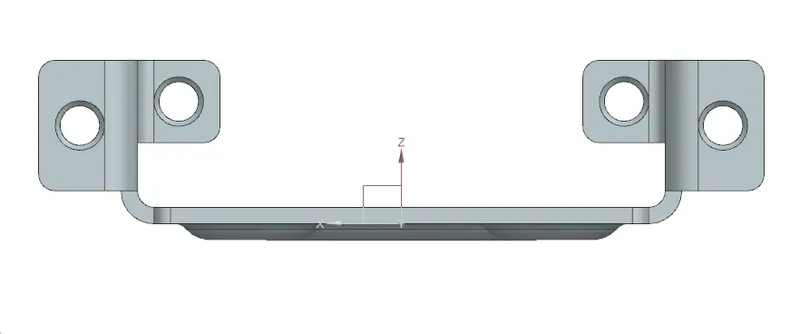

Conclusion: The given sheet metal part was successfully made in NX sheet metal using the respective features.
