Adams Assignments – Problem 4 – Steering geometry 2

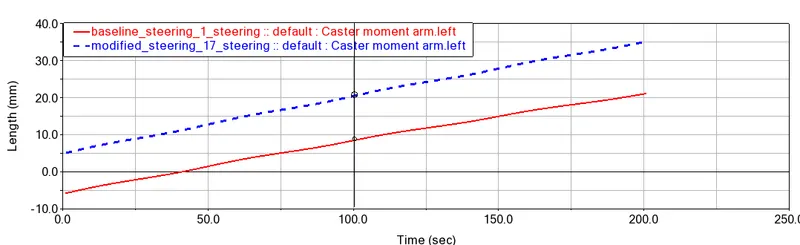

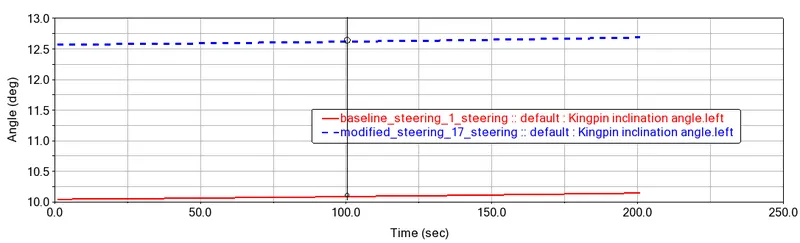

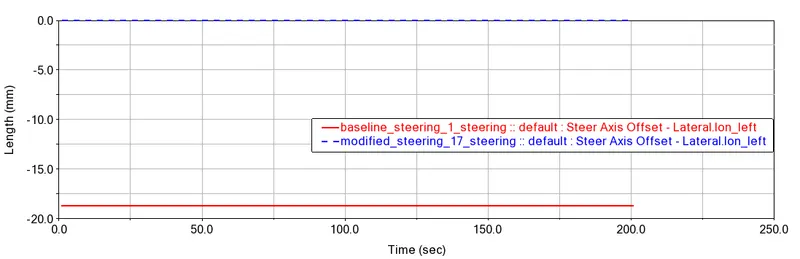

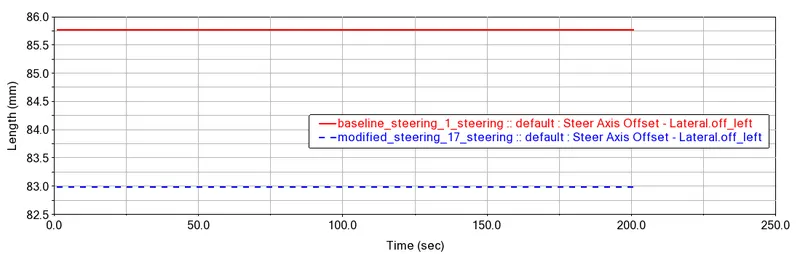

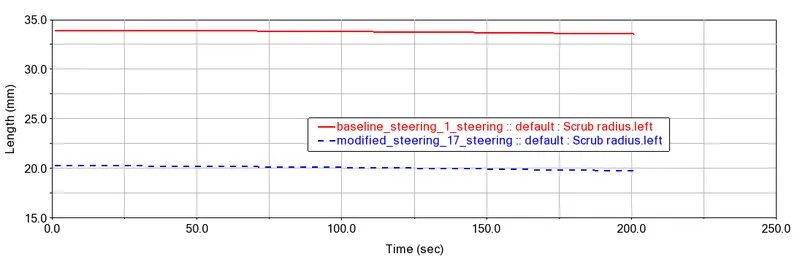

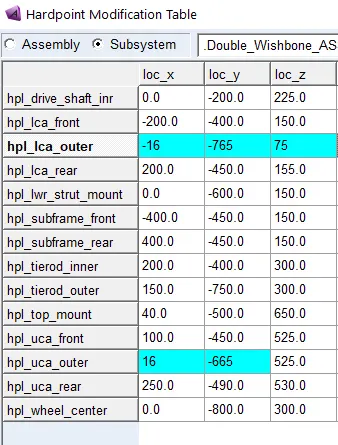

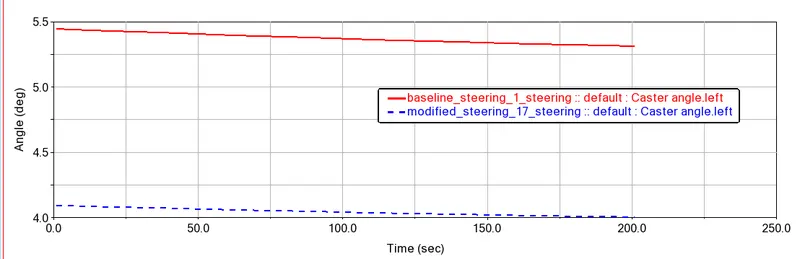

    Modifications:      Targets:   oCaster angle : ~4.00 deg Reached 4.17 oCaster moment arm : ~21.00 mm Reached 20,42 mm oKPI angle : ~13.00 deg Reached = 12.61 deg oSteer axis offset (resultant) : ~85.00 mm Reached 83 mm oSteer axis longitudinal offset : ~0.00 mm Reached 0 mm oScrub radius…
