Adams Car - Post Processing & Graphs

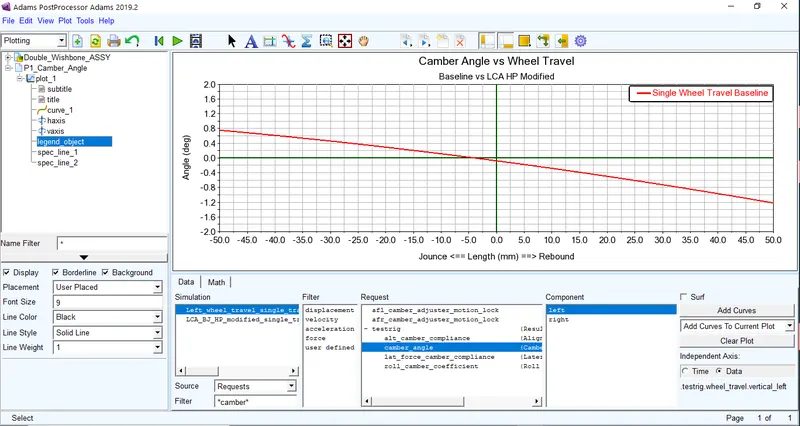

1.Graph styles, titles, labels

a single wheel travel simulation is run and in the post processor all the graph styles titles and labels are arranged.

2.Plot configuration files – export and import

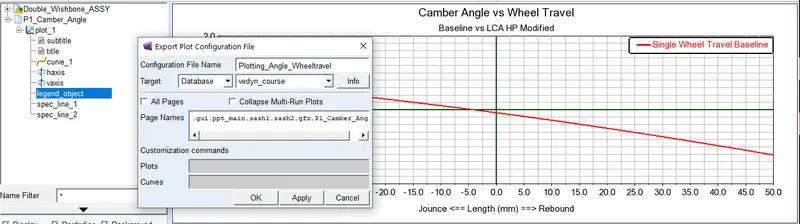

plot configurations file has been exported

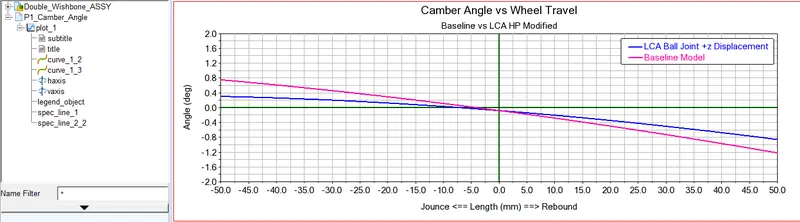

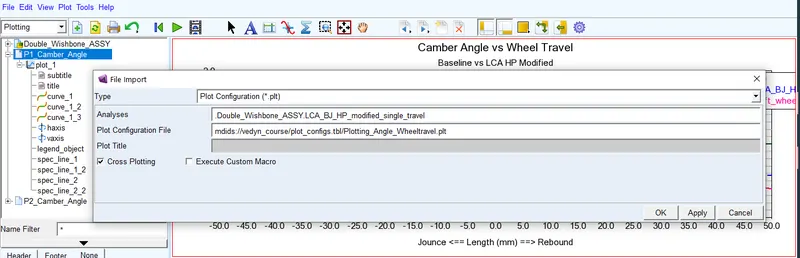

Same configuration is used to compare new simulation in which the lower control arm ball joint is moved upwards in z direction around 25 mm.

after changing the name of the curves there was not much left to arrange with the help of plot configurations.

3.Export numeric data

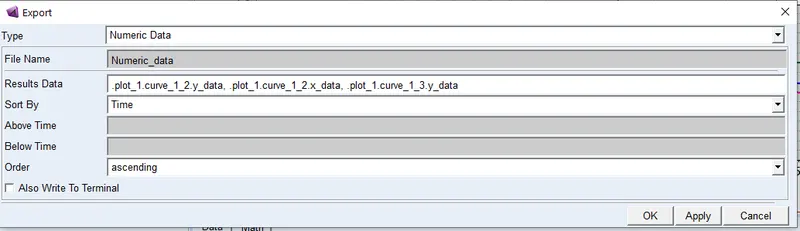

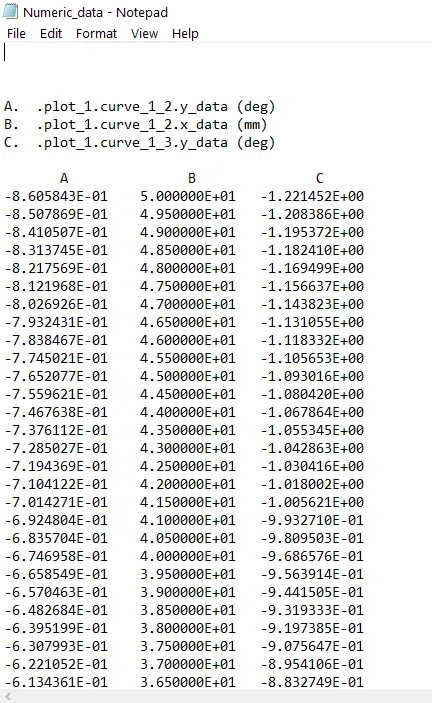

Numeric data for both camber angles are exported and added the extention .dat

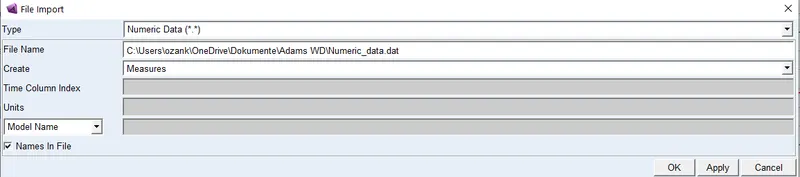

4.Import numeric data and plot

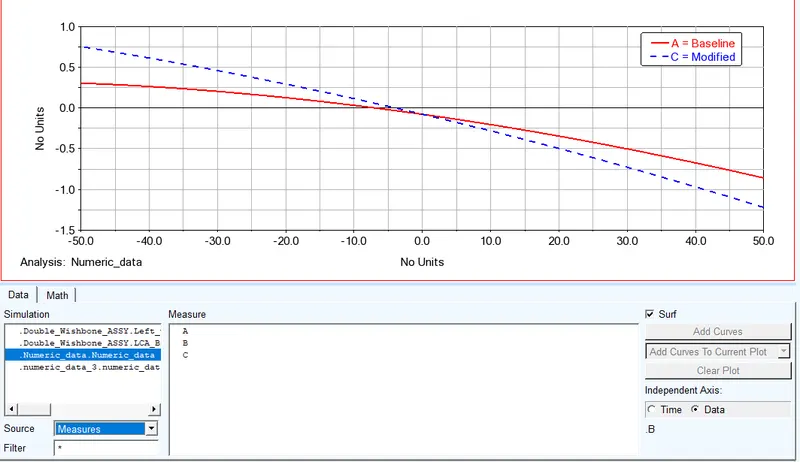

Used B as x data and plotted y data of both simulations after importing the data.

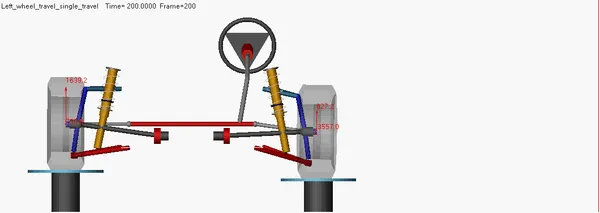

5.Animations, cameras and video export

In this part i loaded both the simulations into post processor.

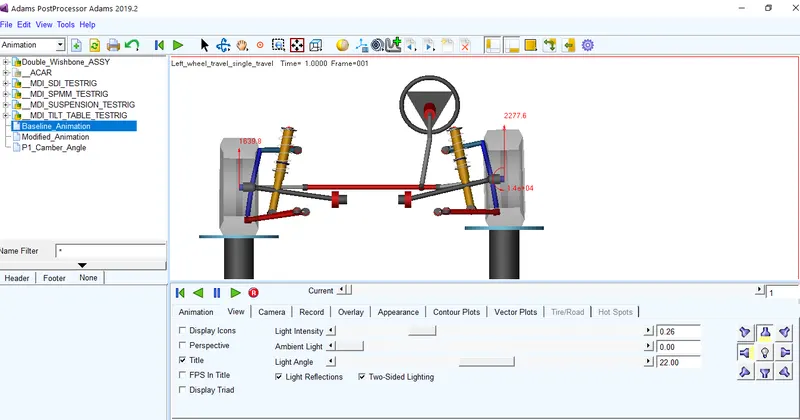

Baseline:

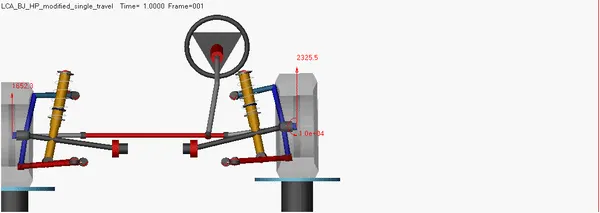

Modified:
