3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
AIM:
Model a Ceiling from the architecture tab above the walls at the first-floor level
PROCEDURE:
Creating a Ceiling of the First floor

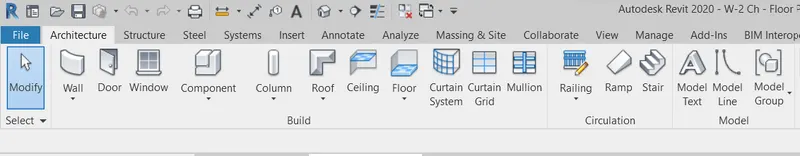

Select the Architecture toolbar
Select the Ceiling tool

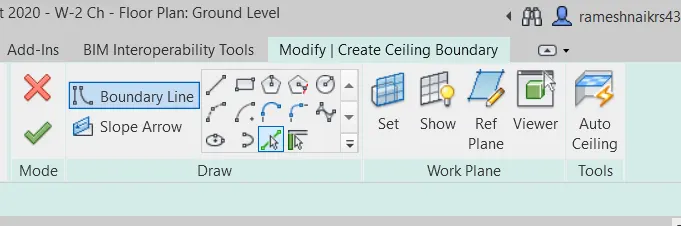

For creating the boundary lines of the ceiling
Select the Boundary line
Select the pick line in the Draw tool tab

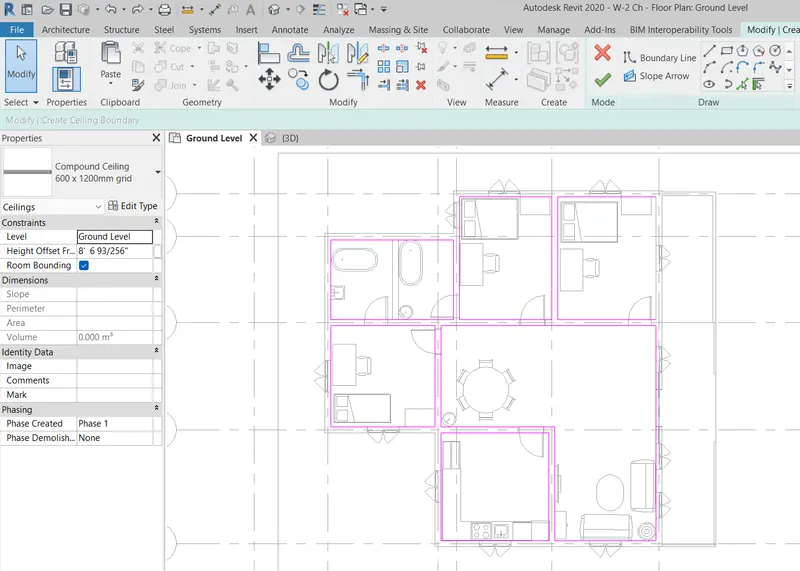

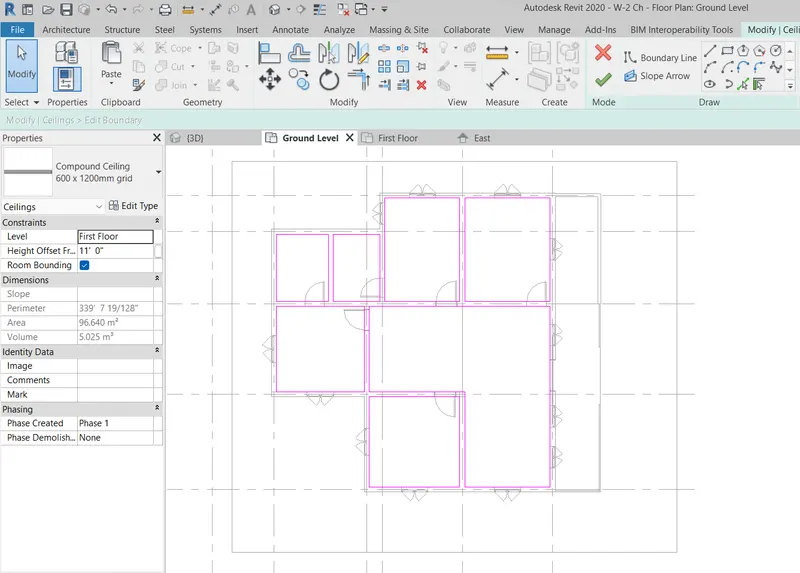

Select the internal boundary lines of rooms for creating the ceiling
Adjust the lines for creating the internal boundary of the ceiling
Pink lines are shows the Boundary lines of the ceiling
After finishing the Boundary lines
Click on the Tick mark in the mode tab
GROUND FLOOR CEILING FIRST FLOOR CEILING
Select the level of the ceiling in the properties tab
Enter the value of height offset from the level
Select the Apply on the properties
Click enter

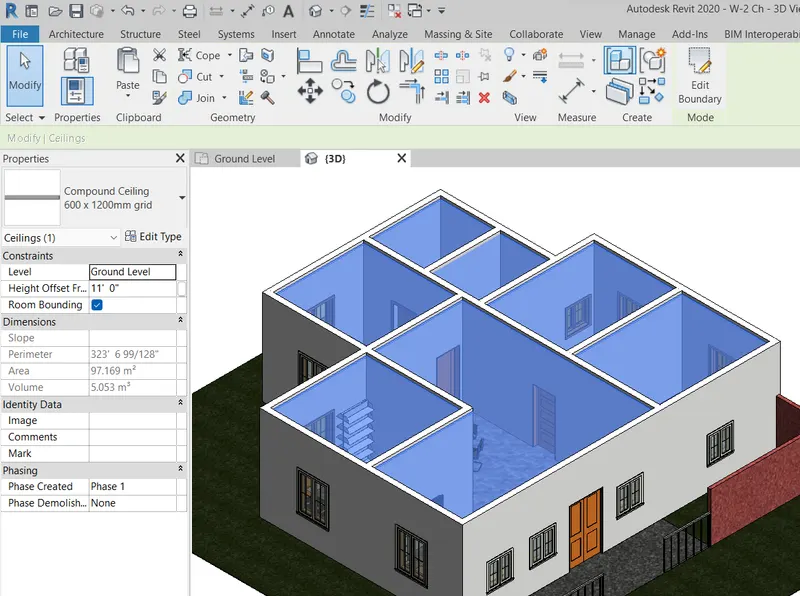

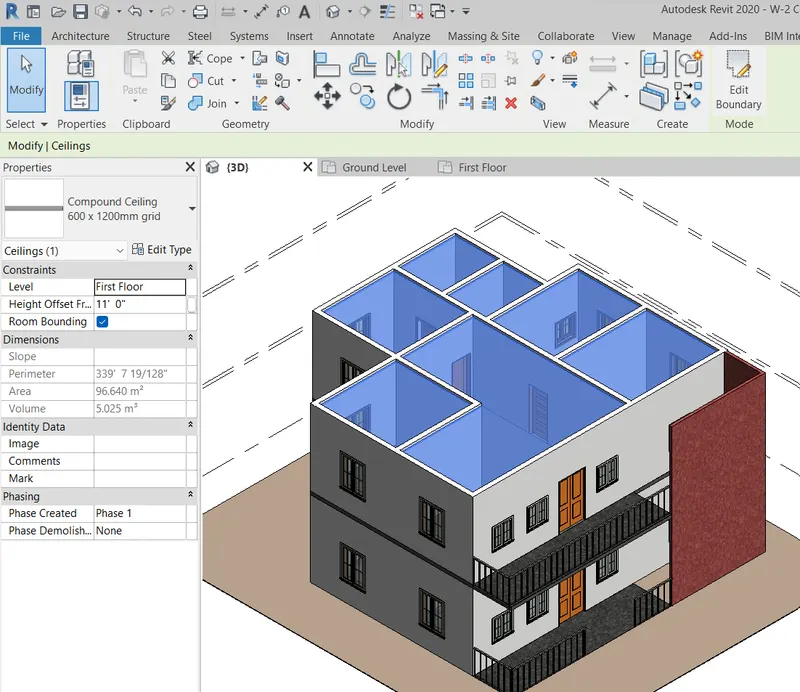

3D VIEW OF G.F CEILING 3D VIEW OF F.F CEILING
RESULT:
Created the Ceiling of the first floor by invoking the ceiling tool from the Architecture tab.

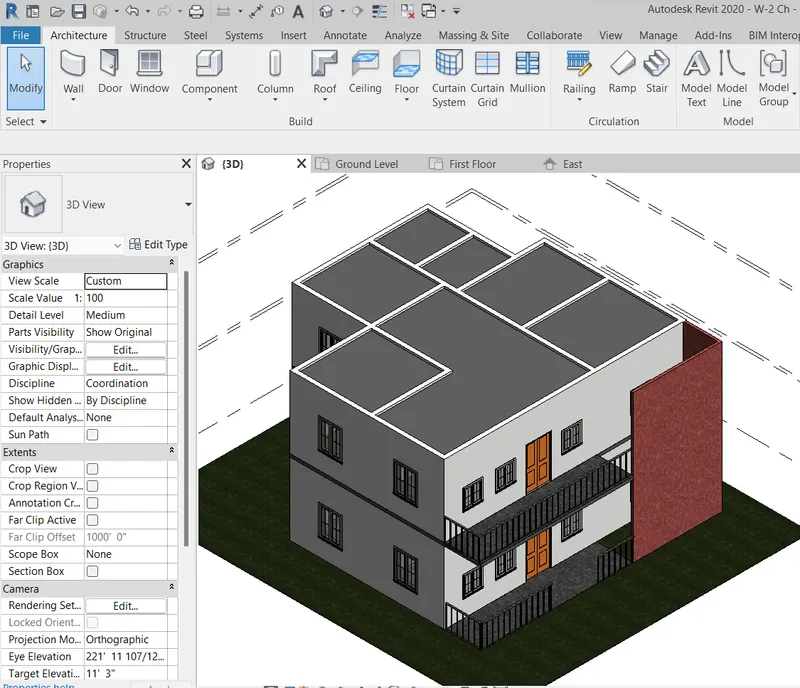

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
AIM:
Model a roof above the ceiling by selecting the footprints of the ceiling.
PROCEDURE:

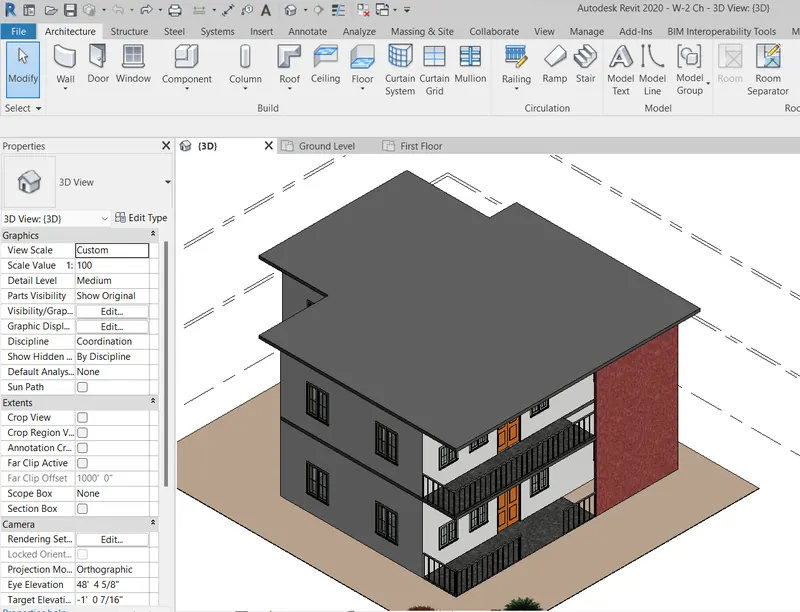

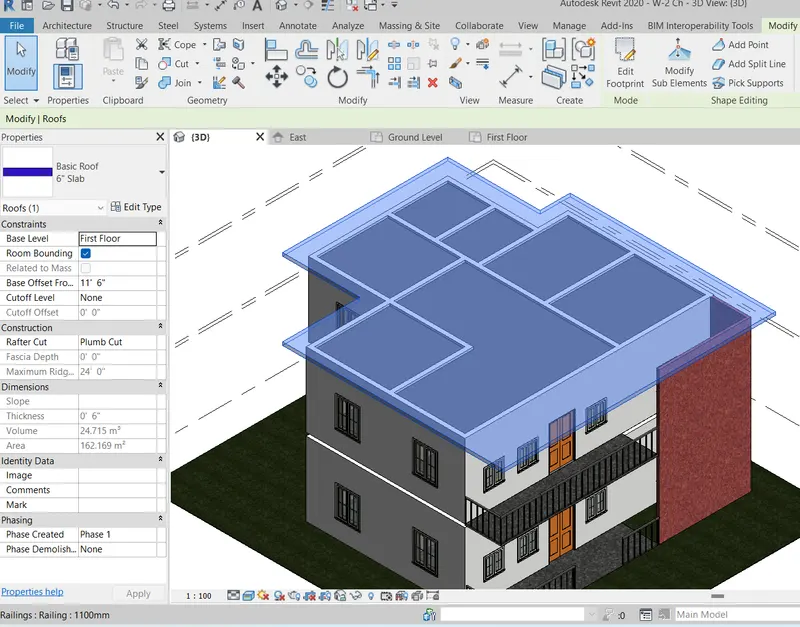

Creating the First floor Roof
Open the first-floor plan view
Select the Architecture toolbar
Select the Roof tool
Select the Roof by Footprint
Creates a roof using the building's footprint to define its boundaries.

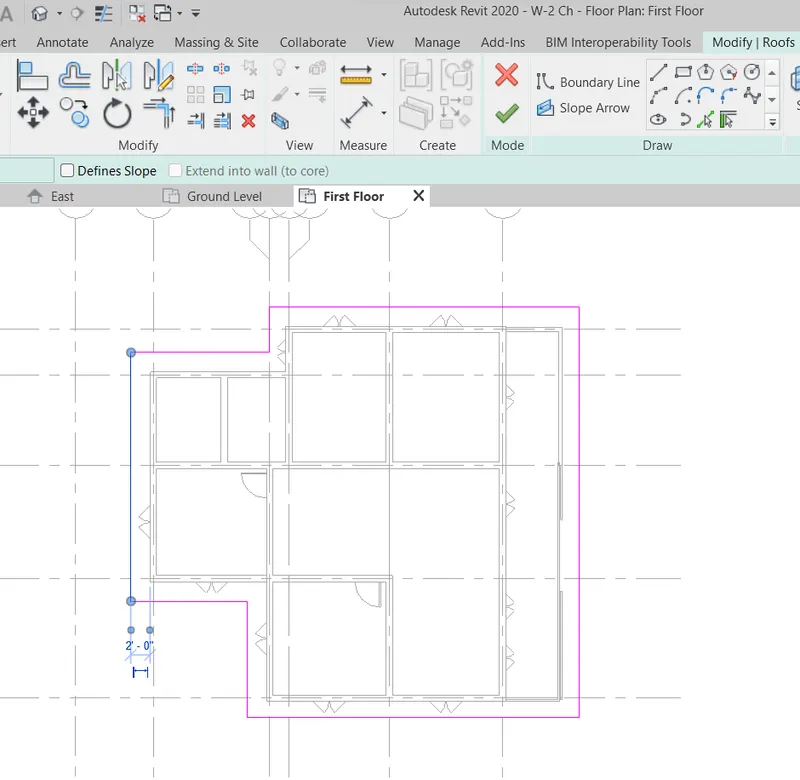

Creating the boundaries
Select the pick line tool from the Draw tool tab
Select the boundaries of the building
Offset 2feet distance the boundaries line for creating the slab projection
Select the level of the Roof in the properties tab
Enter the value of height offset from the level
Select the Apply on the properties
Click the Tick mark on the Mode tab
Press Enter>
RESULT:
Created the Roof of the First floor by using the Roof tool from the Architectural tab.
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building.
b. Structure plan must have details of only walls, floors, and columns
AIM:
create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans.
PROCEDURE:
Architecture plans:
Creating the Plan View
Select the View Tool Tab

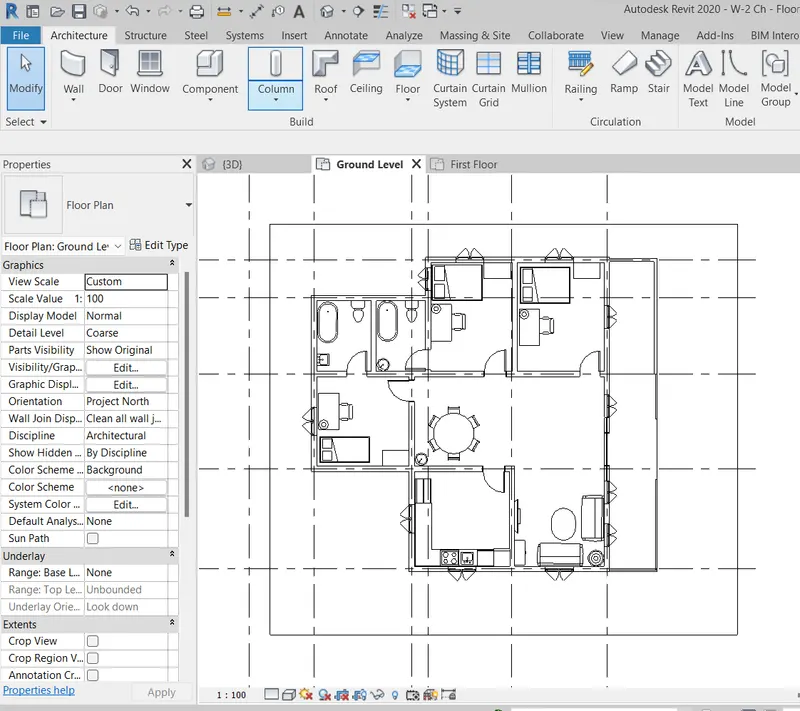

Select the ground floor view in Floor Plan from the Project Browser

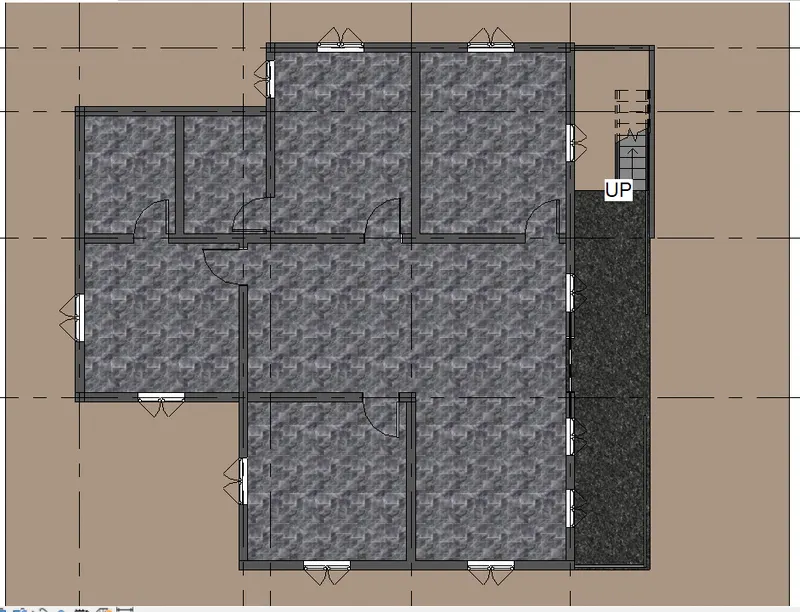

Ground Floor Architecture plan

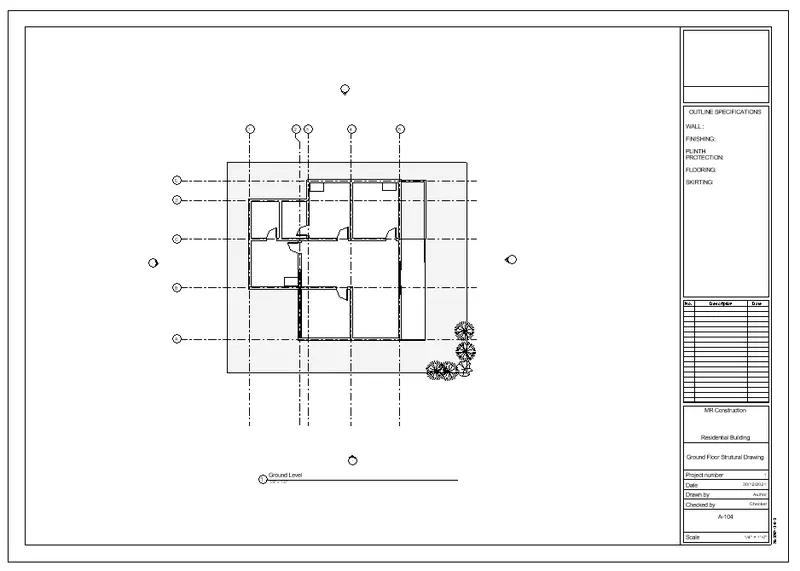

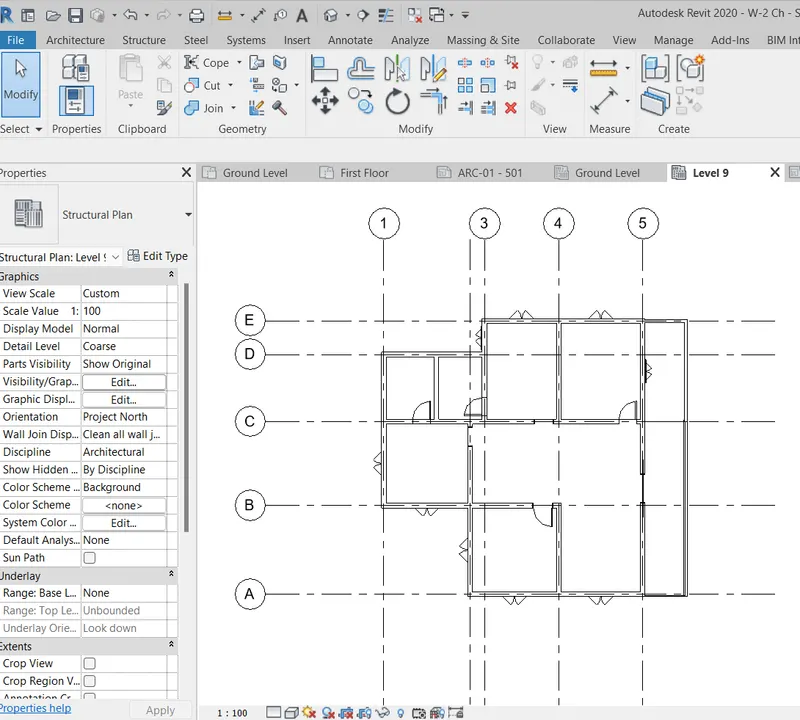

Structural plans:
Creating the Plan View
Select the View Tool Tab
Select the 'Plan View'
Select the Structural plan
Select the ground floor view in the Stucral plan from the Project Browser.

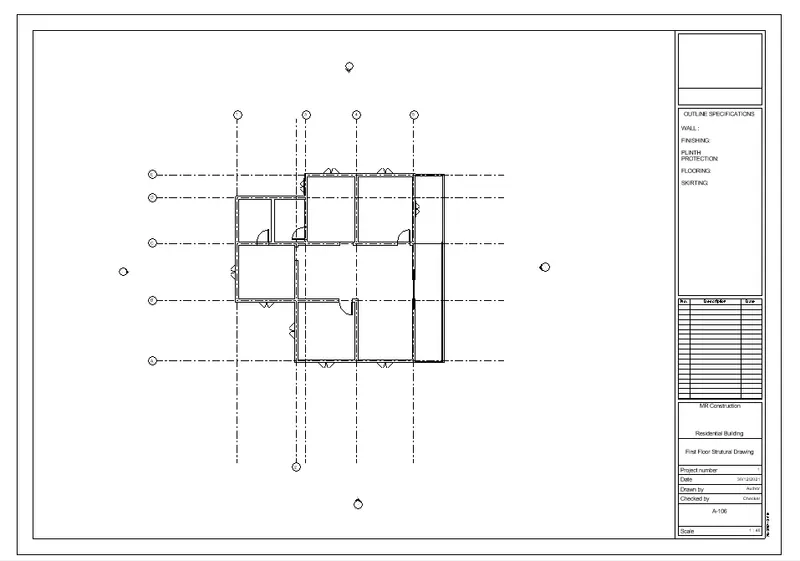

First Floor Structure plan
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM:
Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
PROCEDURE:
Annotate the Dimensions of the layout by invoking the Annotate toolbar.
Select the Annotate Tool Tab
Select the Aligned tool
Select the Grids to annotate.

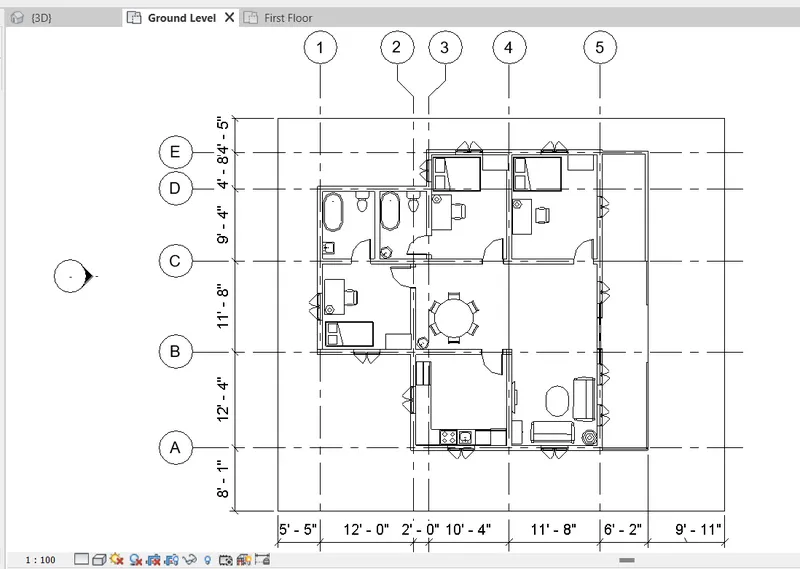

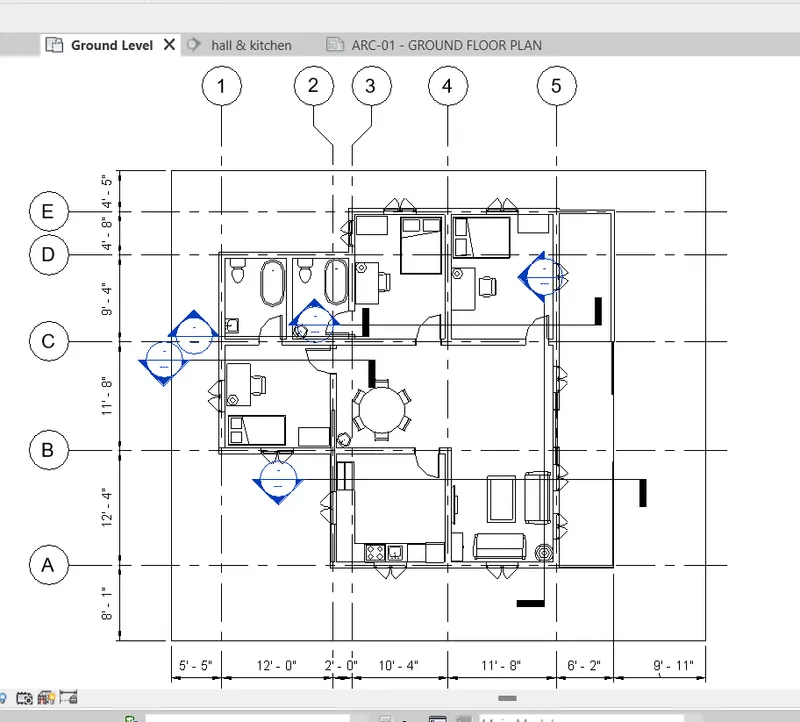

Architectural plan with Dimensions
RESULT:
Created the Project file with Annotating the Dimensions.

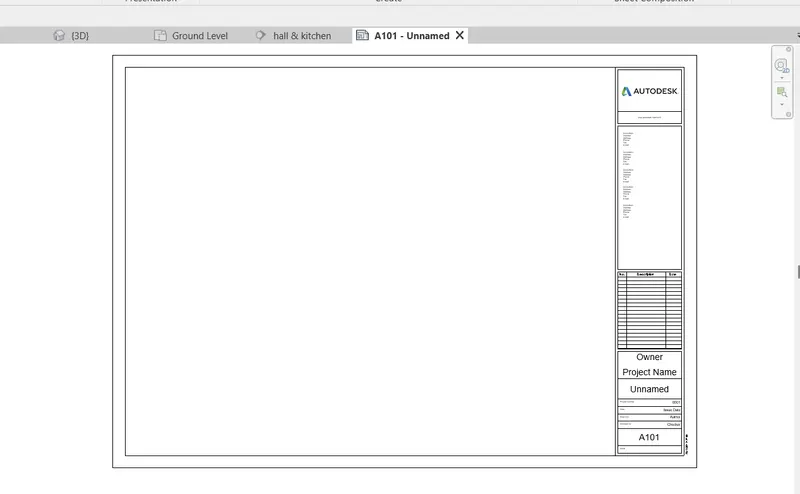

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
AIM:
To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
PROCEDURE:

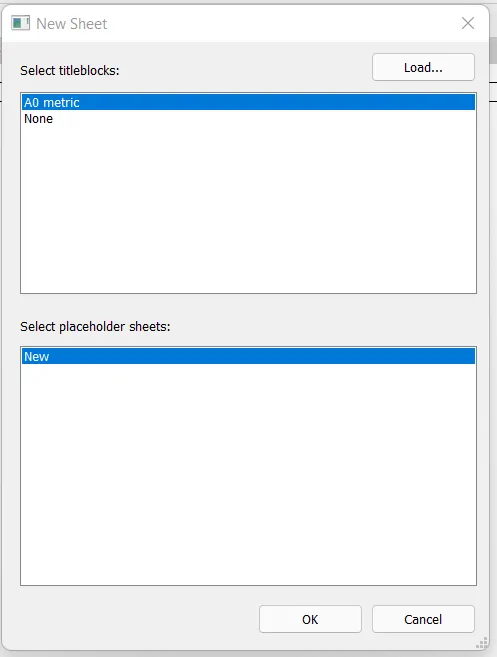

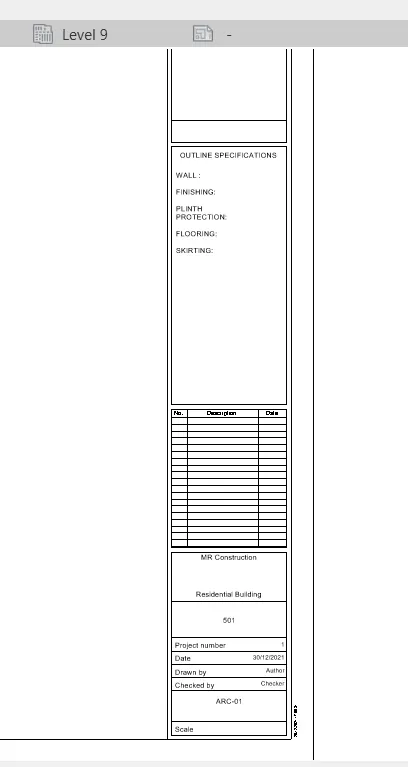

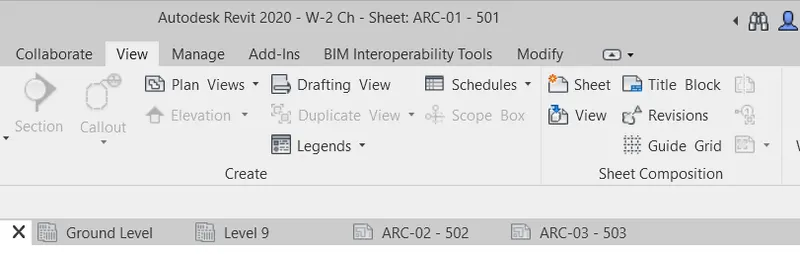

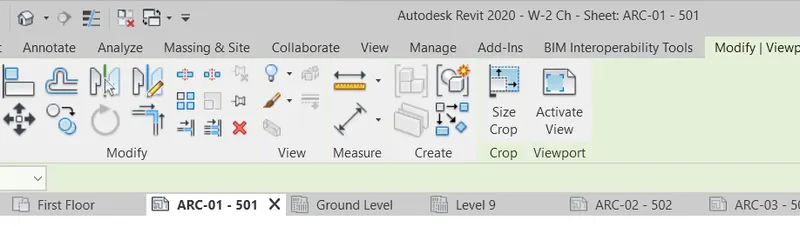

Creating the Sheet by invoking the sheet composition from the View Toolbar
select the Sheet tool
choose the Titleblocks in New Sheet or
Load the New Titleblock from the Template
insert into the Revit.
Editing the Parameters:
Select the Parameters and
Double click the word
Edit the Word as per our requirements
For editing the size of the Letters or words select the word and

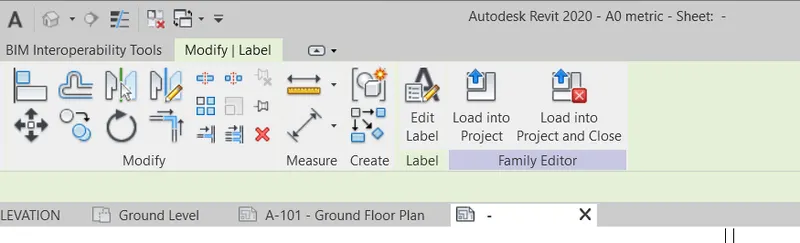

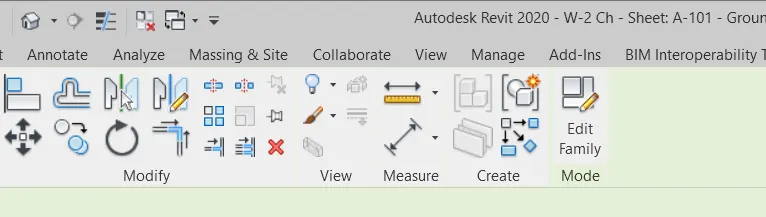

Select the Edit Family in the mode tab from the Ribbon
Select the word again

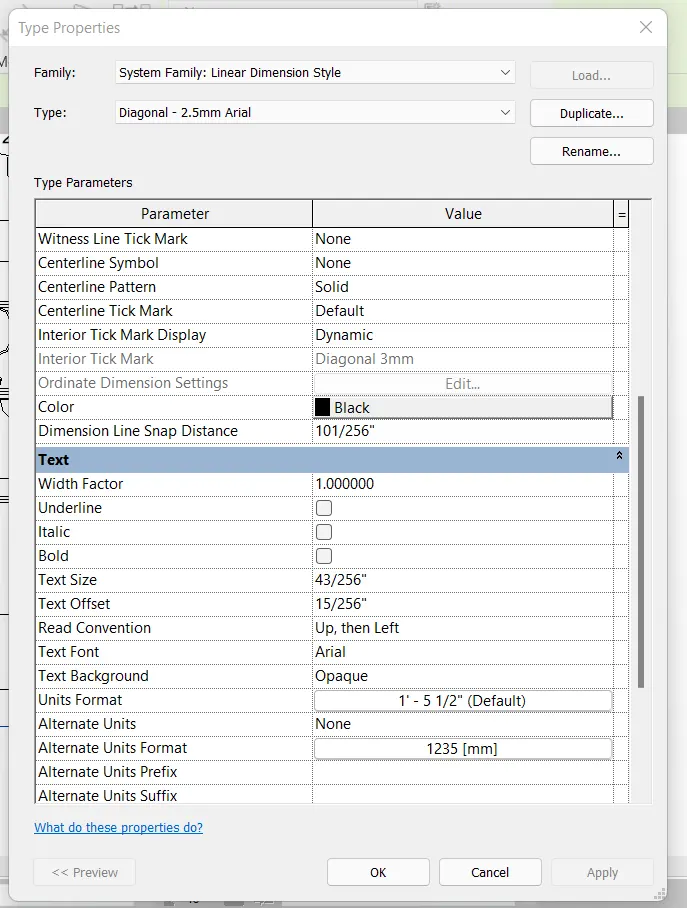

Select the Edit Type option from the Properties

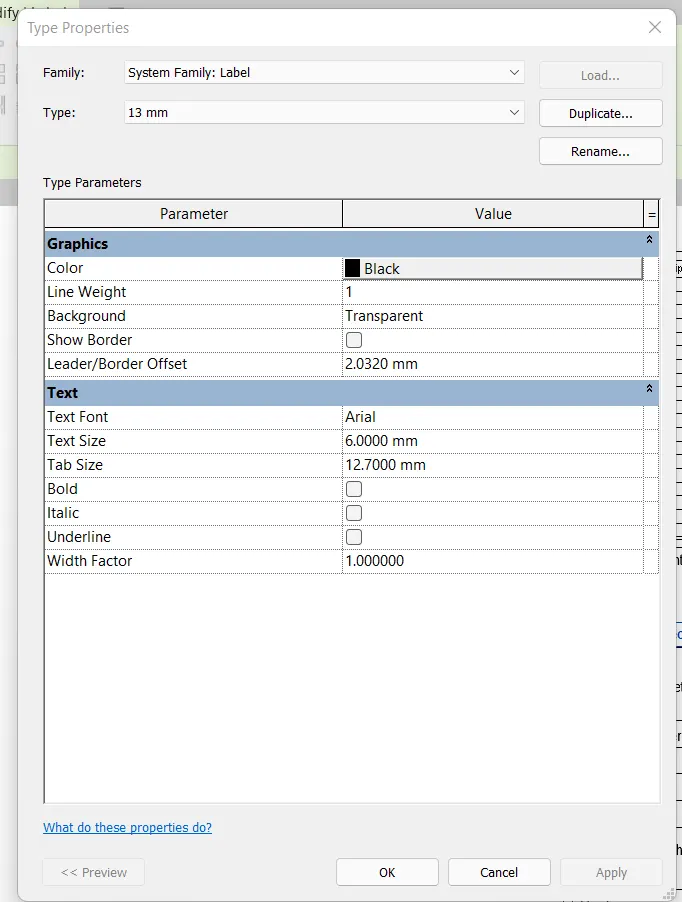

Type Property Dialogue box will appear and change the Font size
Click ok and click on load into project
RESULT:
Created a sheet template from the view tab and adjust the parameters as per requirements.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM:
Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
PROCEDURE:
Select the View Tool tab
Select the Elevation Tool
place the elevation symbol in Four directions
Double click on the Elevation Symbol and Elevation will be Open

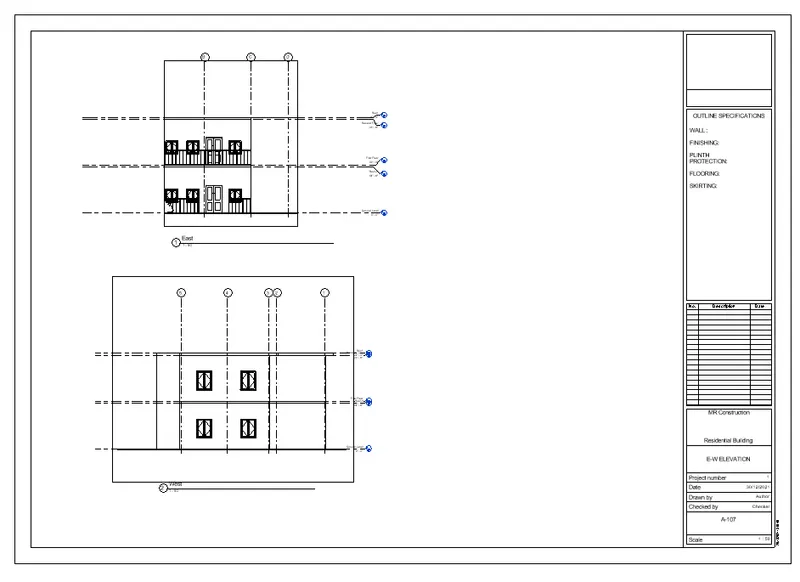

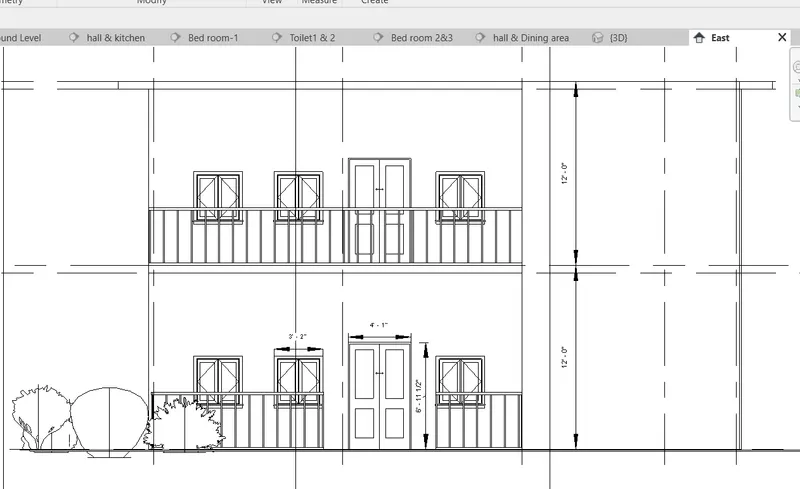

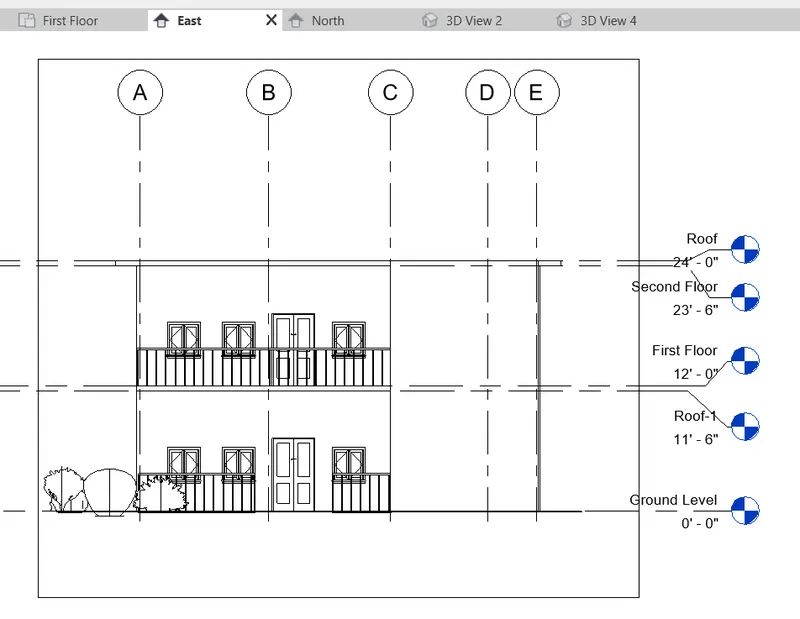

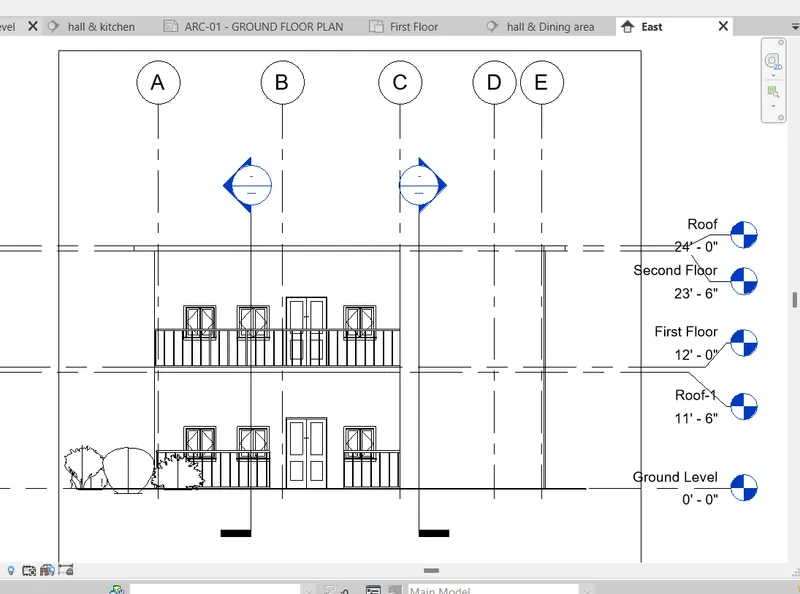

EAST SIDE ELEVATION

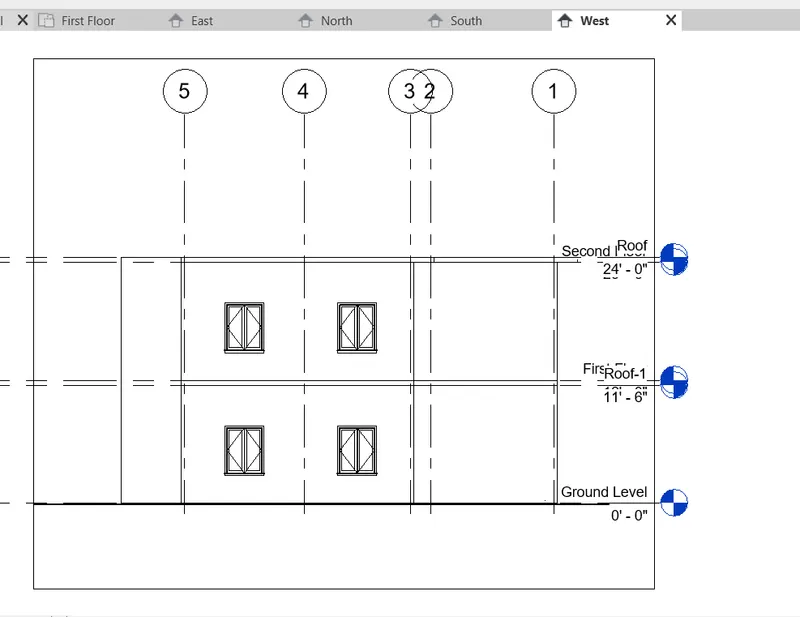

WEST SIDE ELEVATION

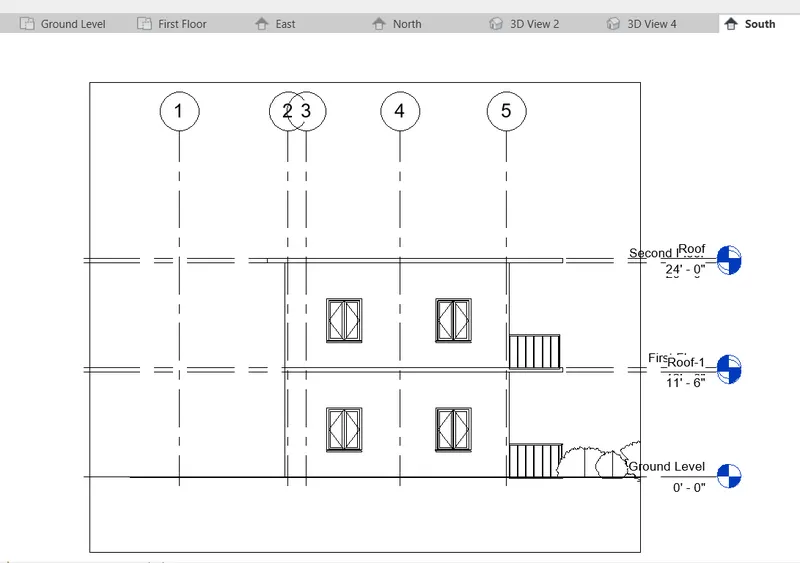

SOUTH SIDE ELEVATION

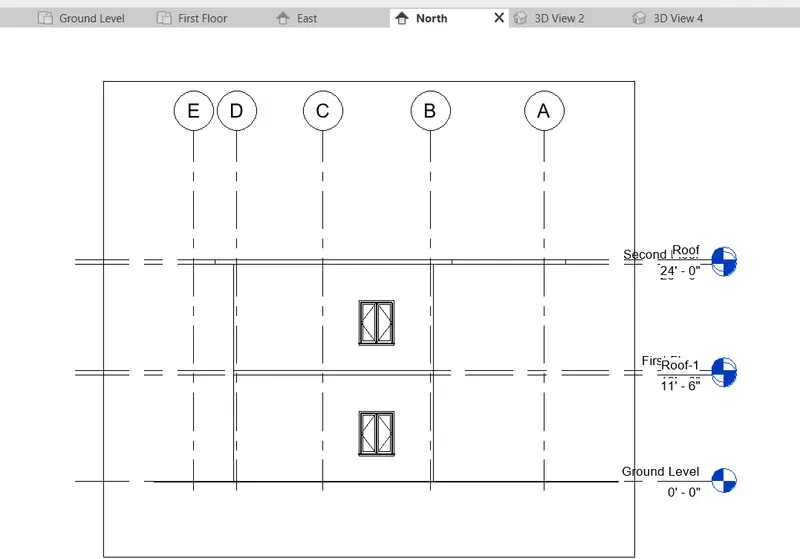

NORTH SIDE ELEVATION
RESULT:
Created the All Direction of Elevations by using the View tool tab.

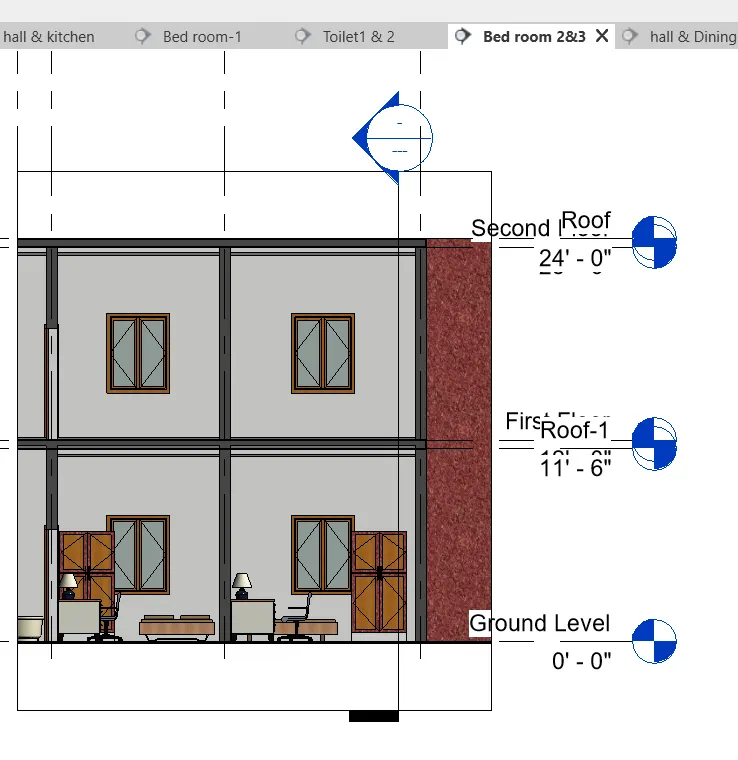

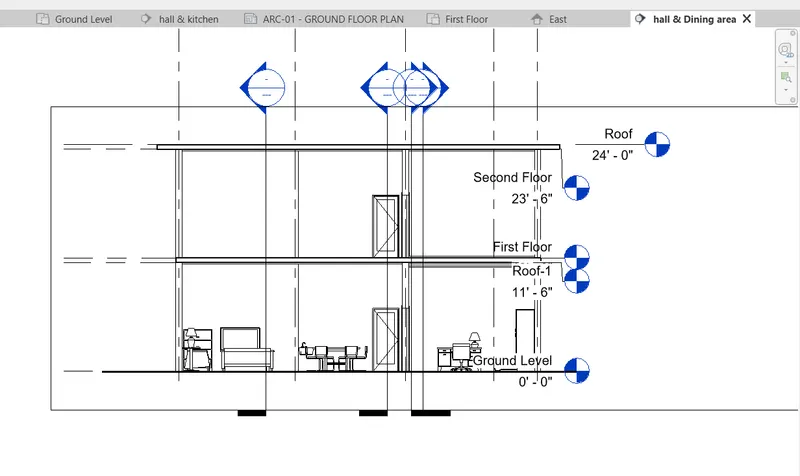

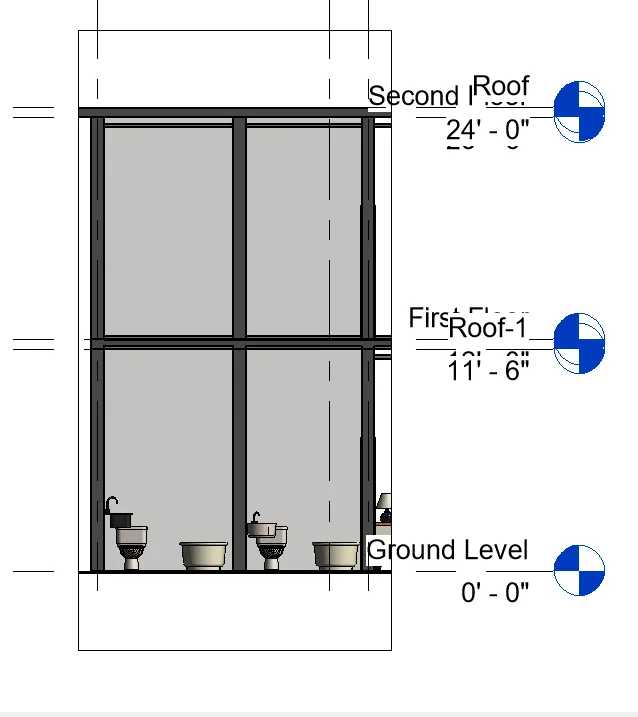

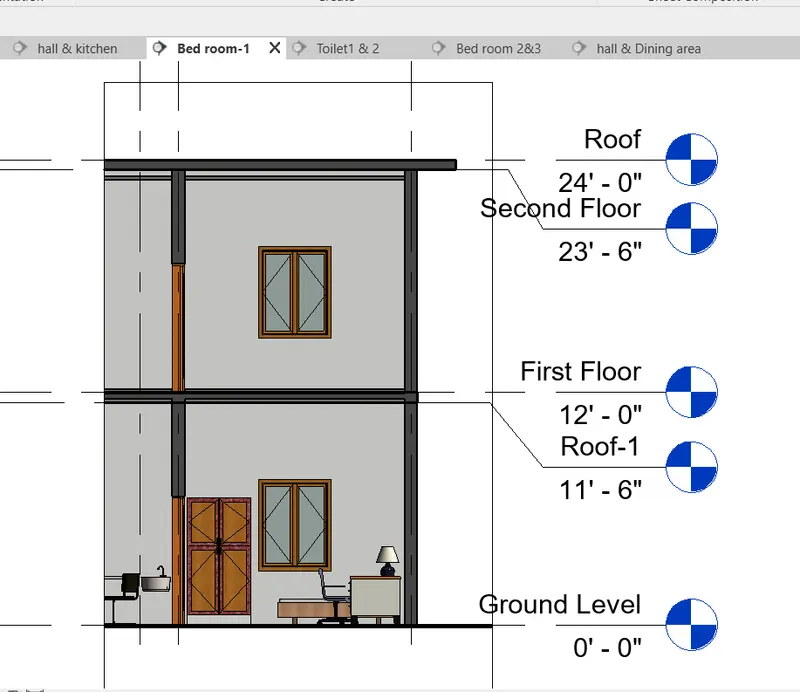

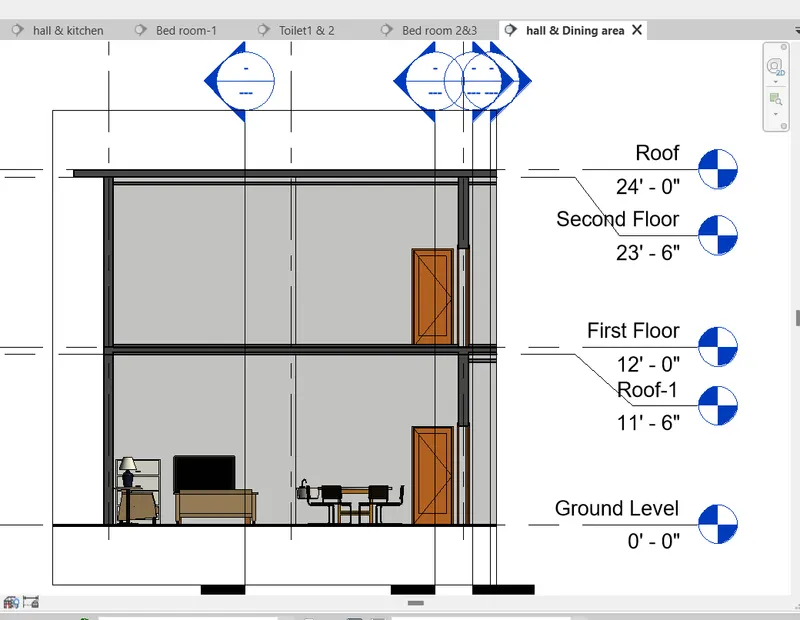

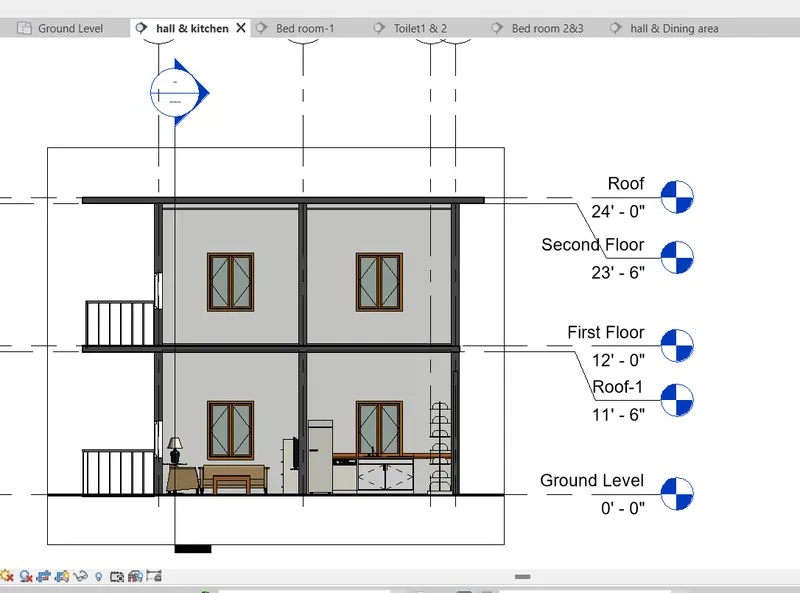

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM:
Produce section cut through each room either cutting across longitudinally or in a transverse direction
PROCEDURE:
Select the view tool tab
select the section tool

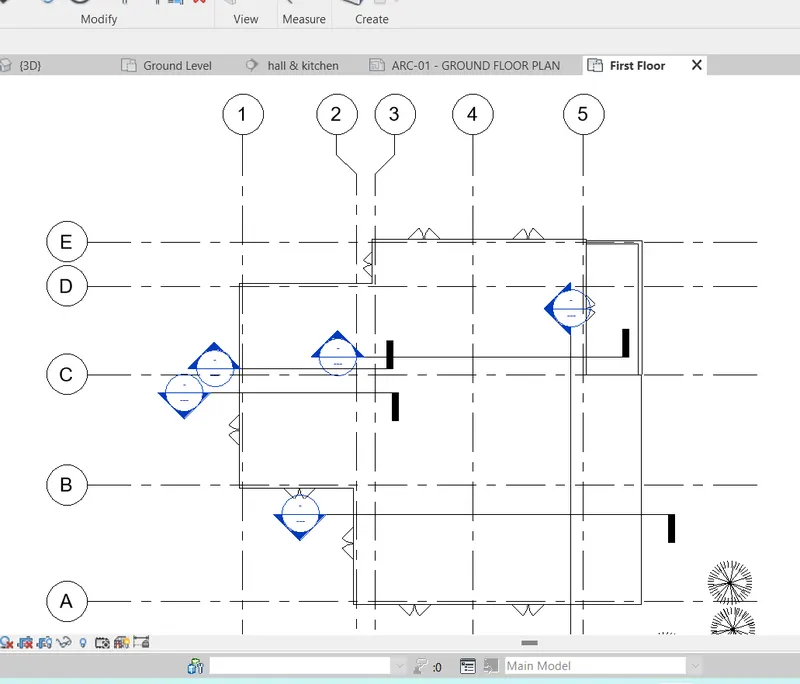

draw the section as per requirements.
RESULT:
Created the Section of the Layout.
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
AIM:
Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
PROCEDURE:
Select the floor view in the project browser
click the Ground floor plan
Select the Elevation in Project Browser
Select the Front side Elevation
Select the section of the layout.
RESULT:
Created the plan, Elevation, and Section of the layout.

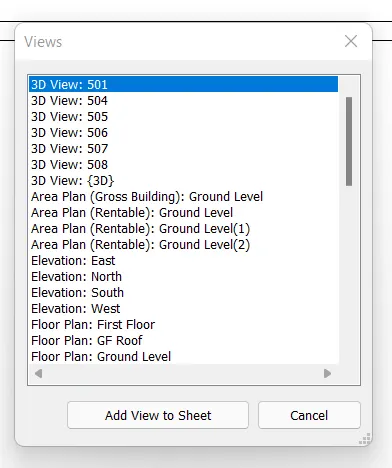

9) Using the sheet template produced create multiple sheets as follows

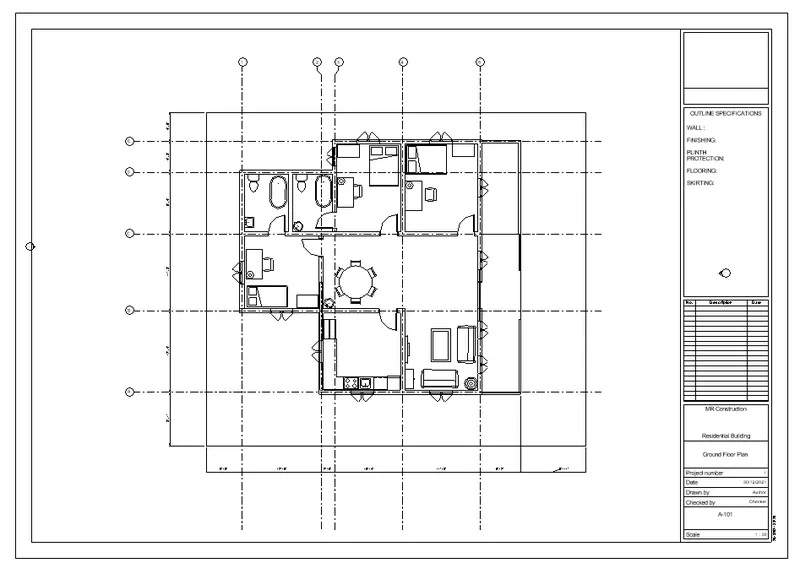

a. A 101- Ground Floor Architecture Plan

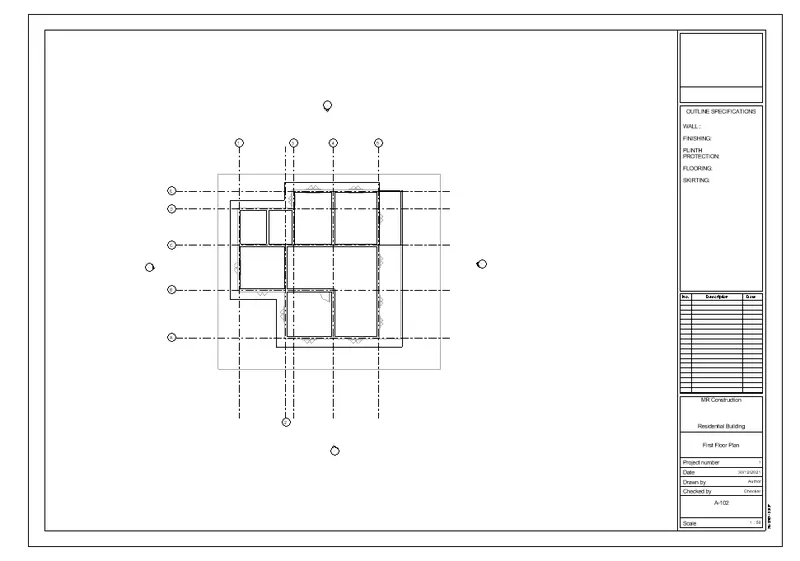

b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

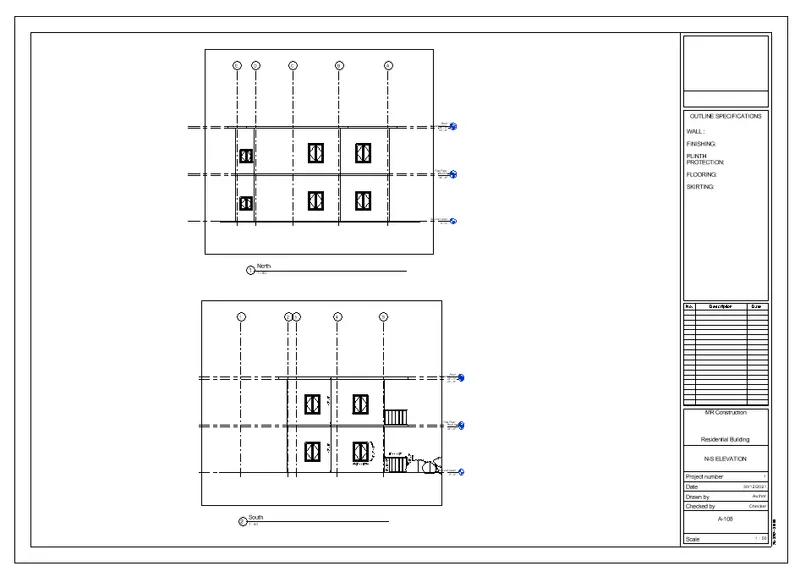

g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
AIM:
Using the sheet template produced create multiple sheets as follows
PROCEDURE:

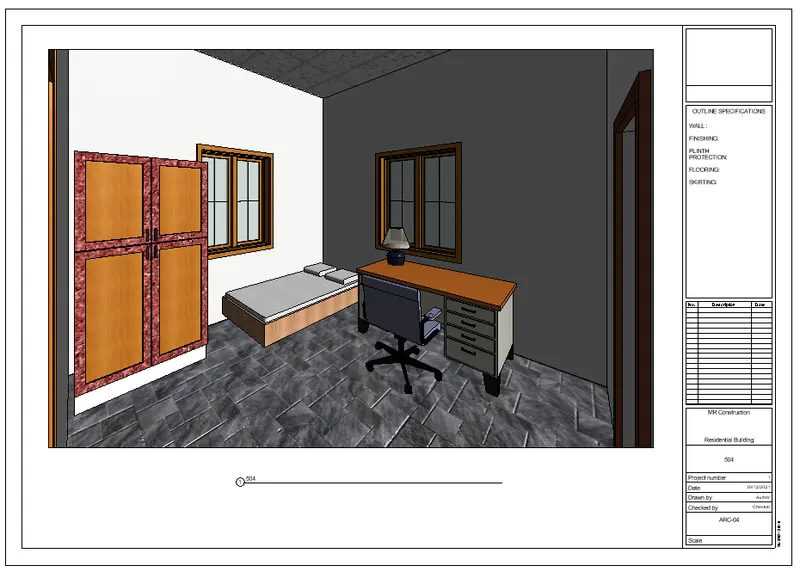

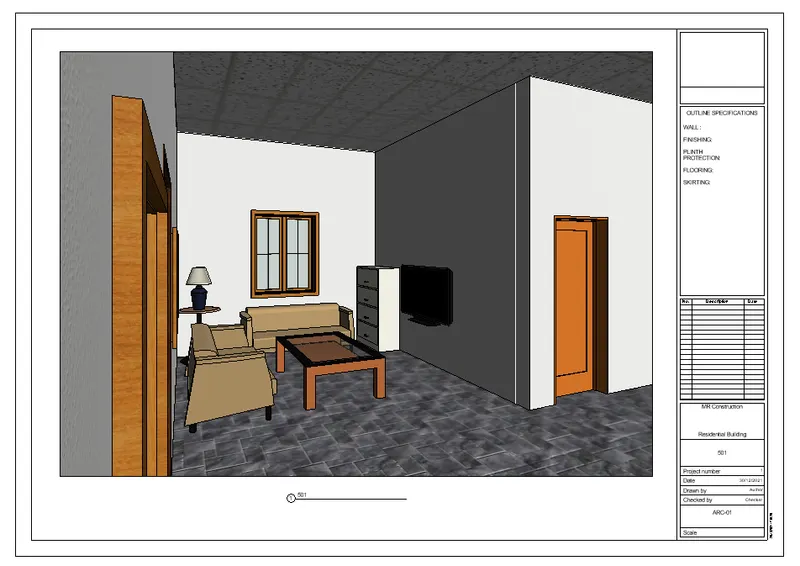

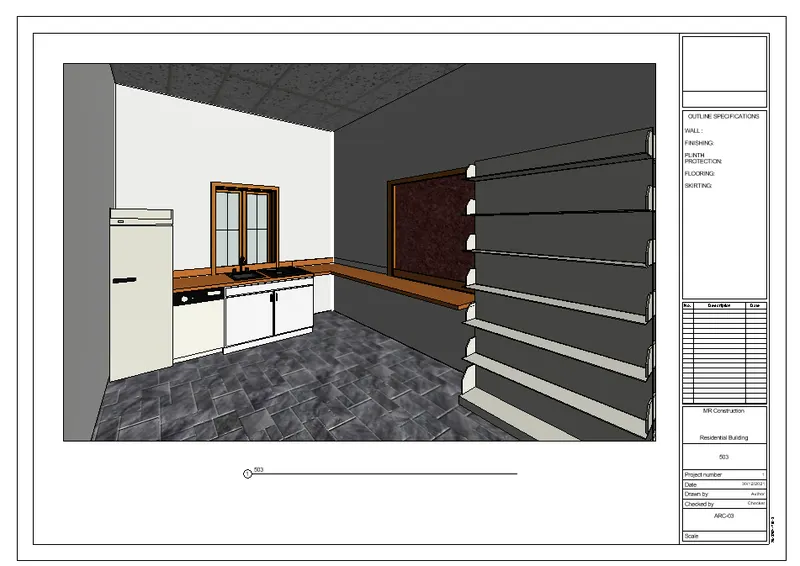

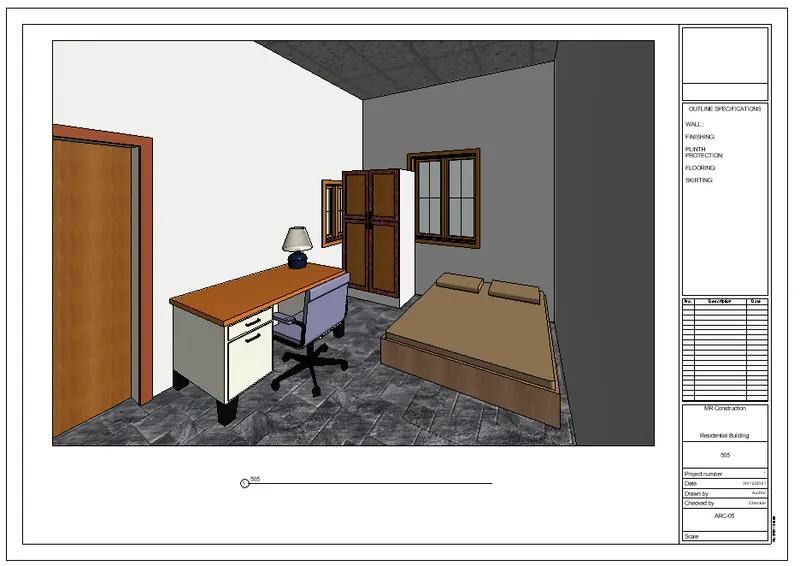

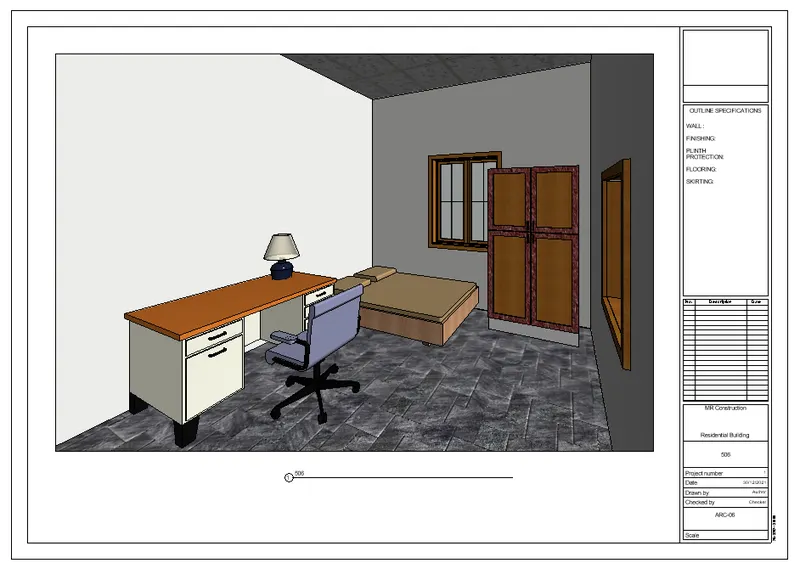

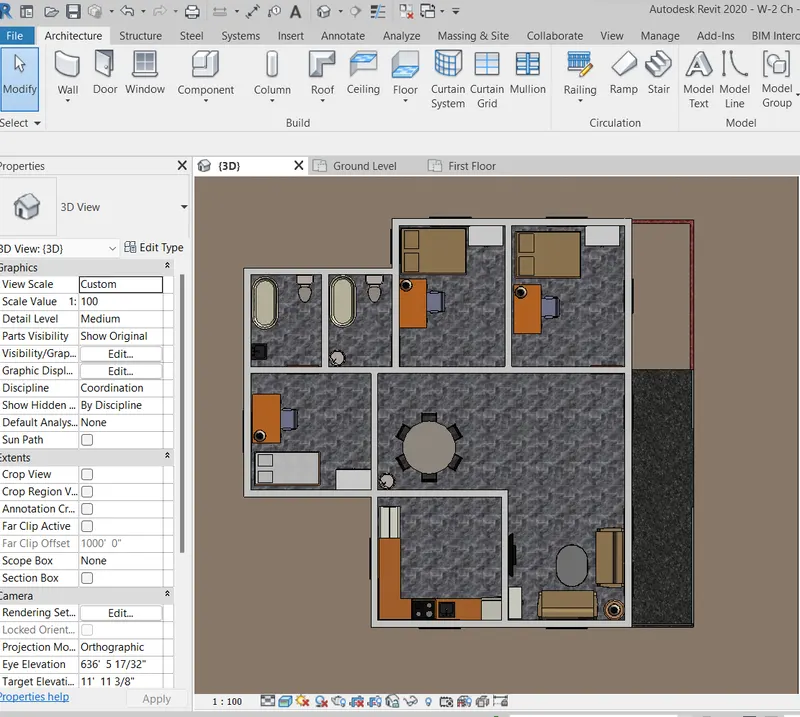

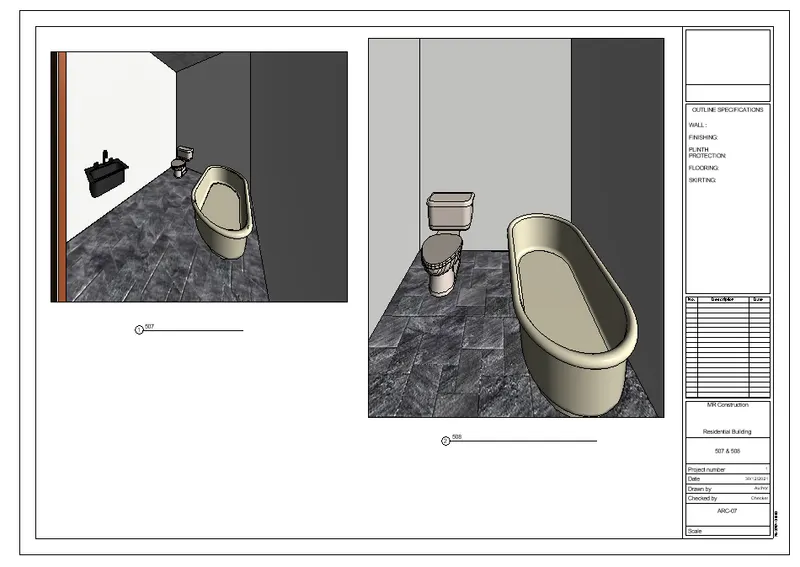

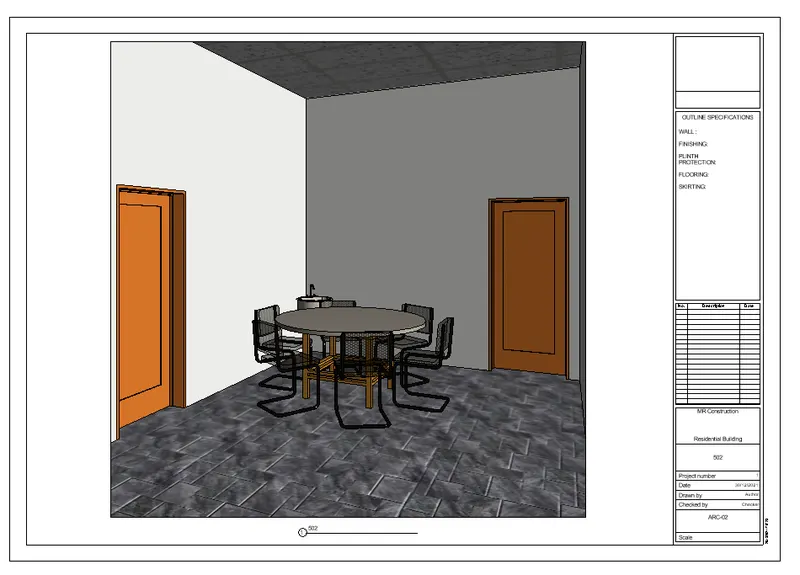

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM:
Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
PROCEDURE:
