3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

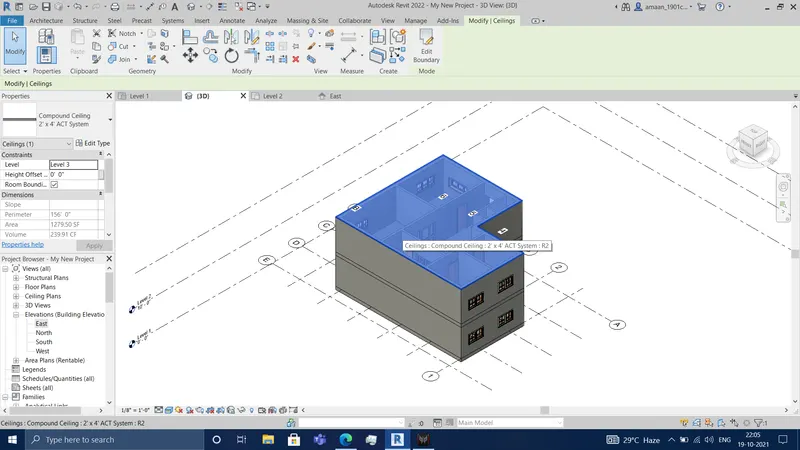

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Ans 1- AIM - to create a ceiling on 1st floor.
PRocedure - 1. go to architectural tab ,select ceiling
2. select boundary and create .
Result - i have created a ceiling on 1st floor.

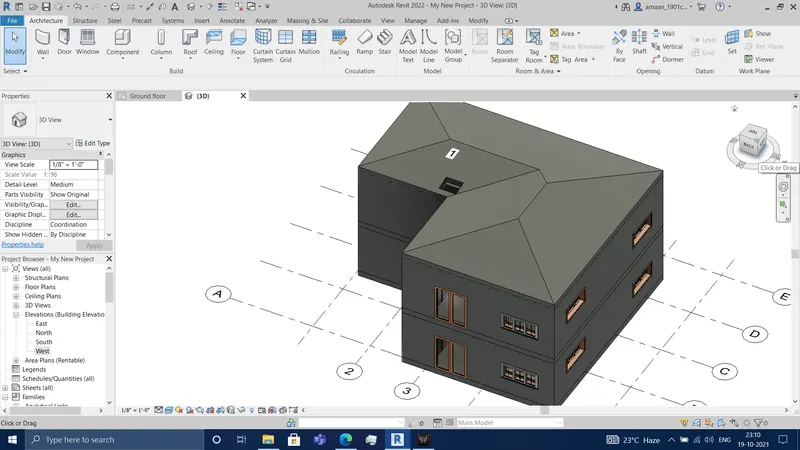

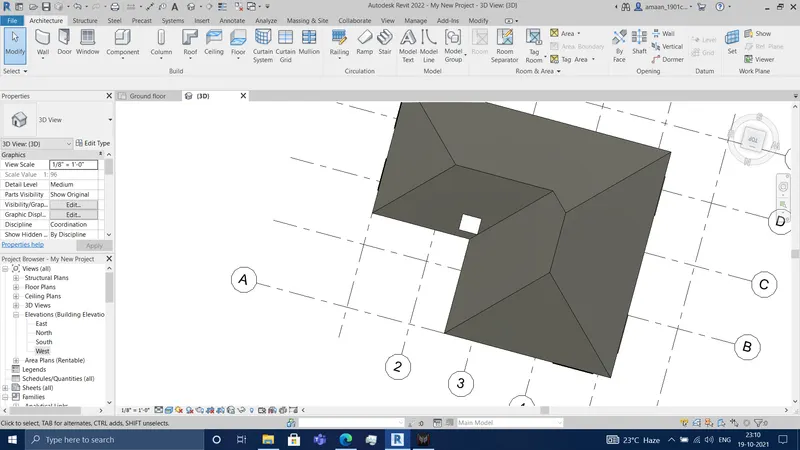

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Ans 2- AIM - to create roof over ceiling with slope 10 degree.
PRocedure - 1.go to architectural tab. select roof
2. select boundary, select level 3. and create

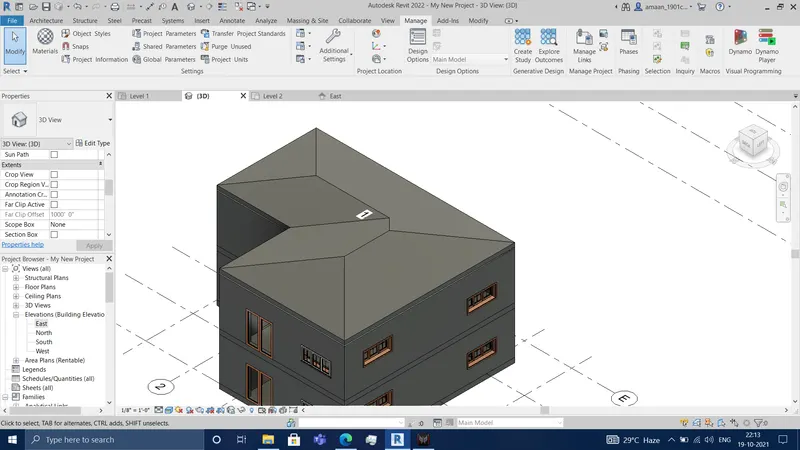

Result - i have created a roof above ceiling
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
Ans 3- AIM - to create plan views for ground floor and 1st floor .
PRocedure - 1. go to views tab select floor plans create for level 1 and level 2

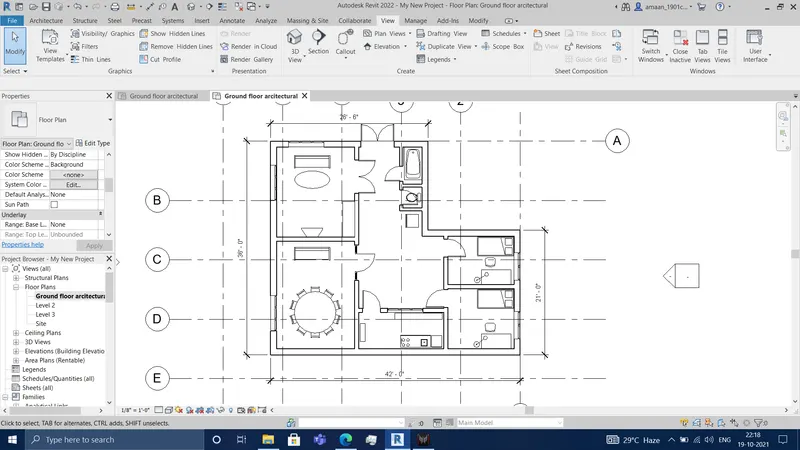

architectural view for ground floor

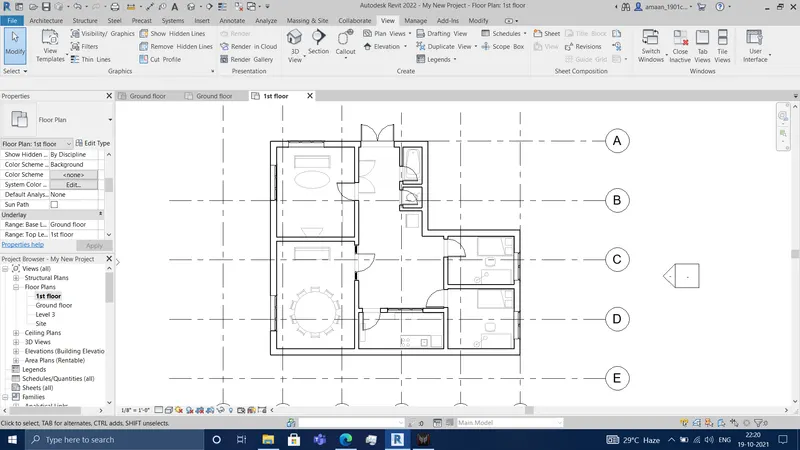

architectural vie for 1st floor

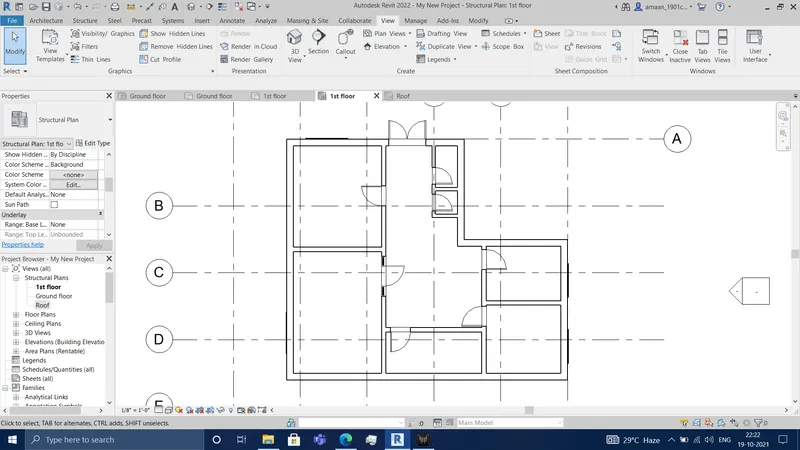

2. now from view tab select structural option and create views for both levels

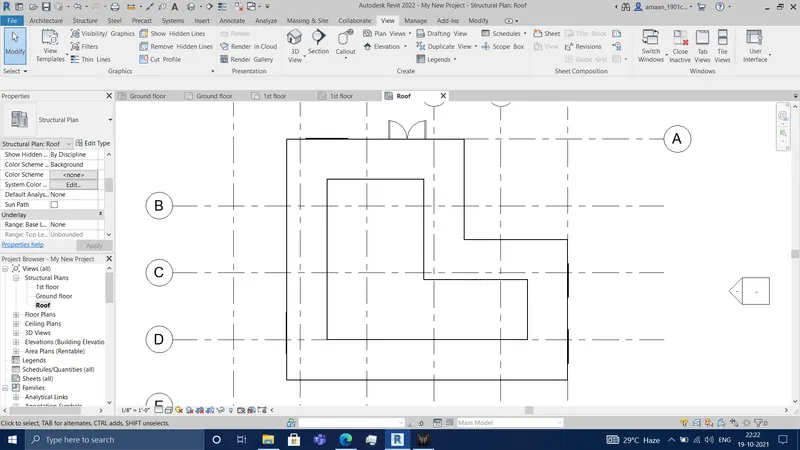

structural view for roof
Result - i have created plan views for both levels structural and arcitectural.

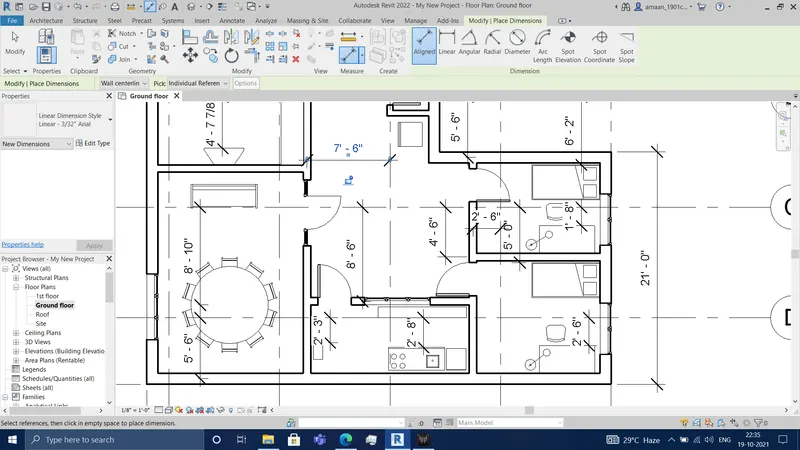

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

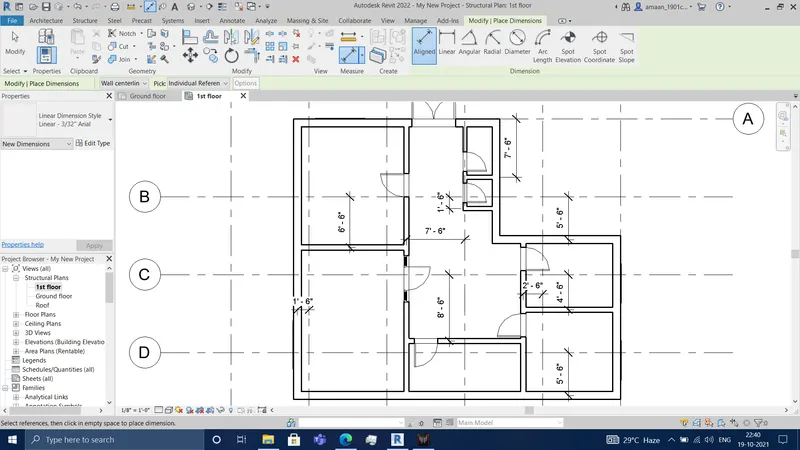

Ans 4- AIM - to create dimensions in the drawing.
PRocedure - 1. Go to annotate tab,
select aligned dimensions and place all dimensions with reference to closest grid.
2. go to structural plan and go to annotate tab and apply all aligned dimentions.
Result - i have created all appropriate dimantions of the layout.

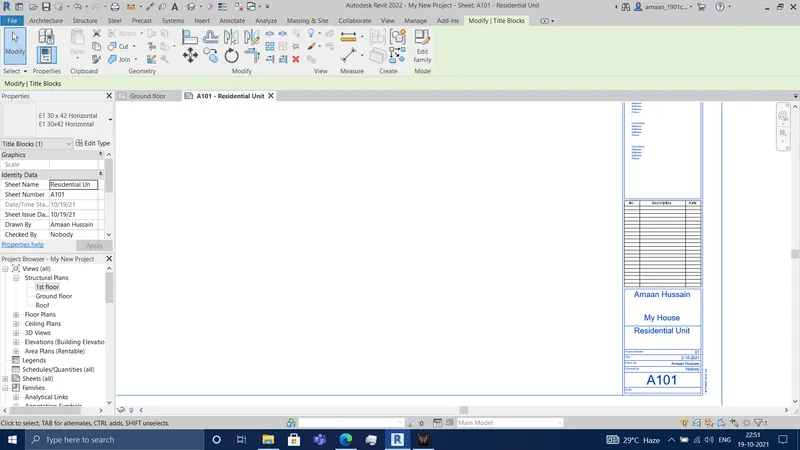

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Ans 5- AIM - to create a sheet template and add parameters.
PRocedure - 1.go to view tab, select sheet
2. edit all parameters according to need.
Result - i have created sheet and added parameters.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Ans 6- AIM - to create views from all directions.
PRocedure - 1.go to view tab and create 4 views from all directions.

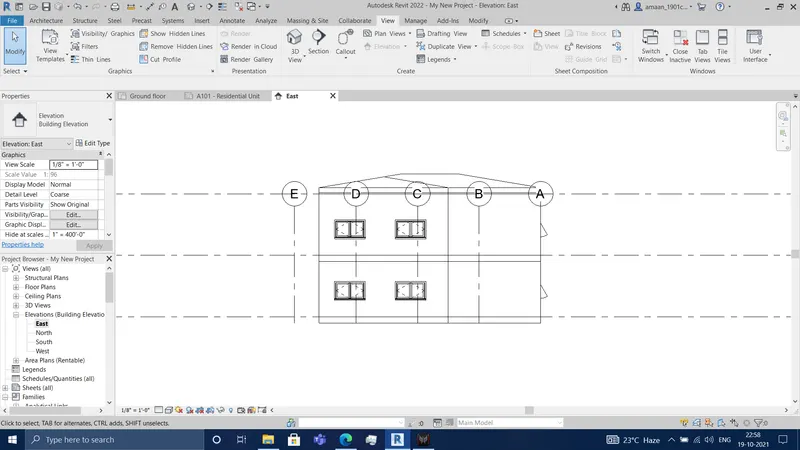

east view

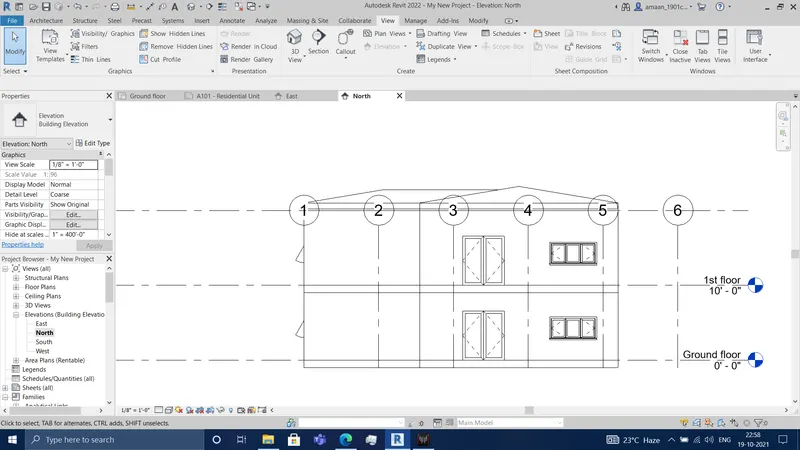

north view

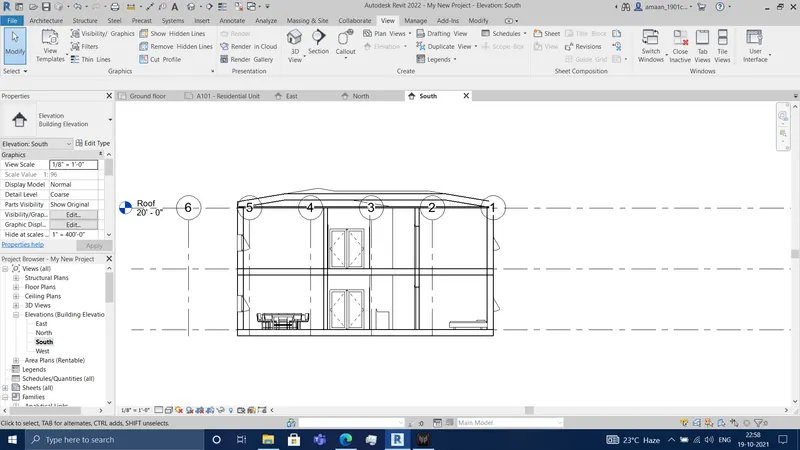

south view

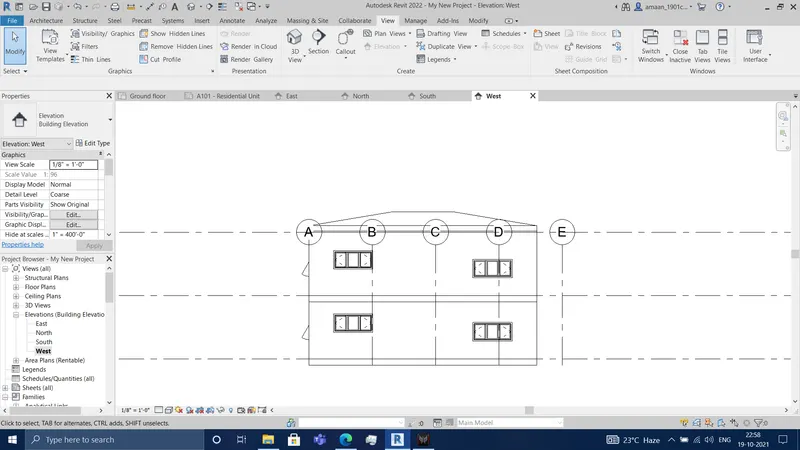

west view
Result - i have created views from all directions.
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
Ans 7- AIM - to create an opening throughout the section.
PRocedure - 1. go to architectural tab, select opening, shaft and place it
2. apply top and bottom constraints.
Result - I have created an opening throughout the section.

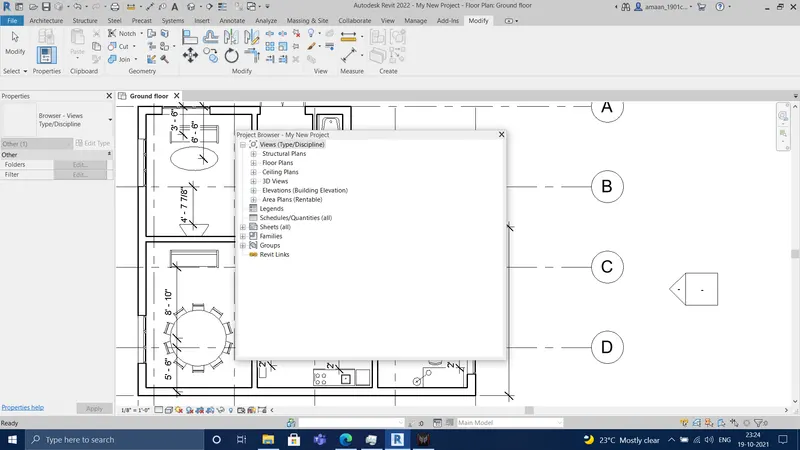

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Ans 8- AIM - to classify all the views accordingly.
PRocedure - 1.go to properties palate, and arrange and name all views in proper catagories.
Result - i have classified all the views accordingly

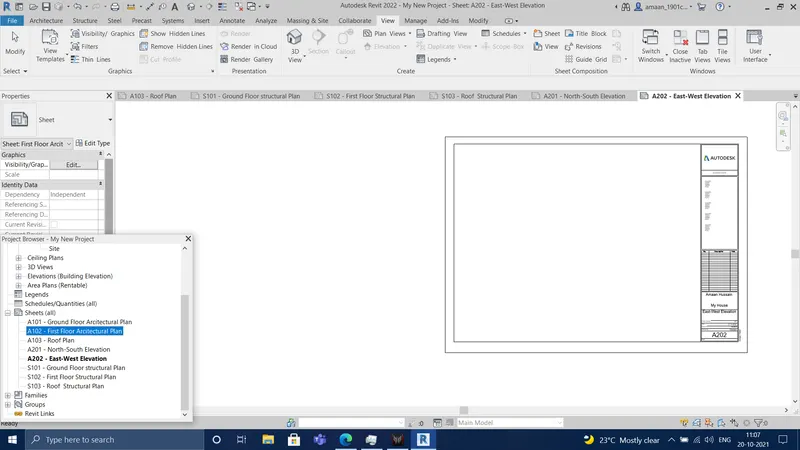

9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
Ans 9- AIM - to create a set of seets .

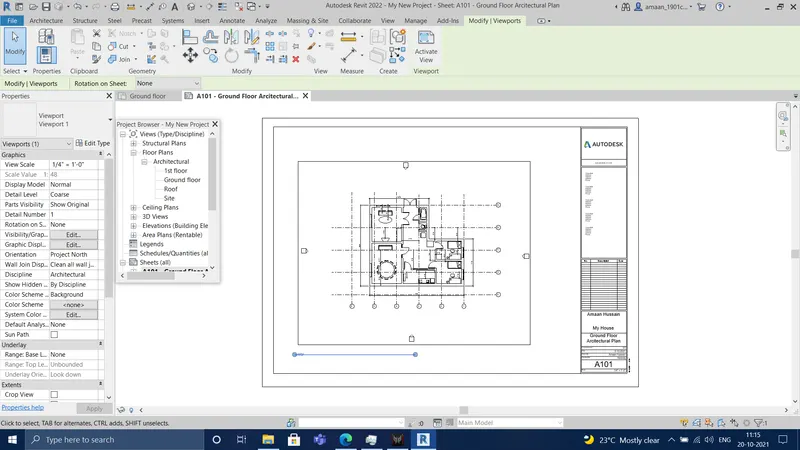

PRocedure - 1.GO to View tab create a sheet name it appropriately.
2 similarly create multiple sheets for all views.
Result - i have created various sheets.
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Ans 10- AIM - to create camera views on each room.
PRocedure - 1. go to view , create sheet name and number it as given.
2. insert view in the sheet, and size it accordingly.

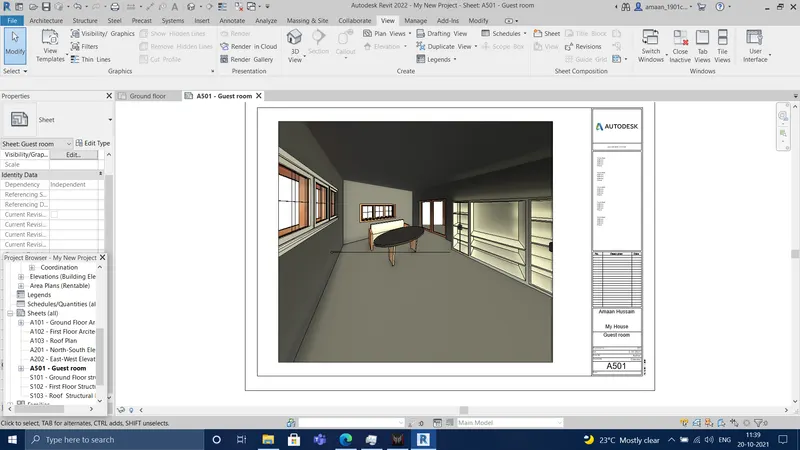

guest room
3. repeat process for each room.

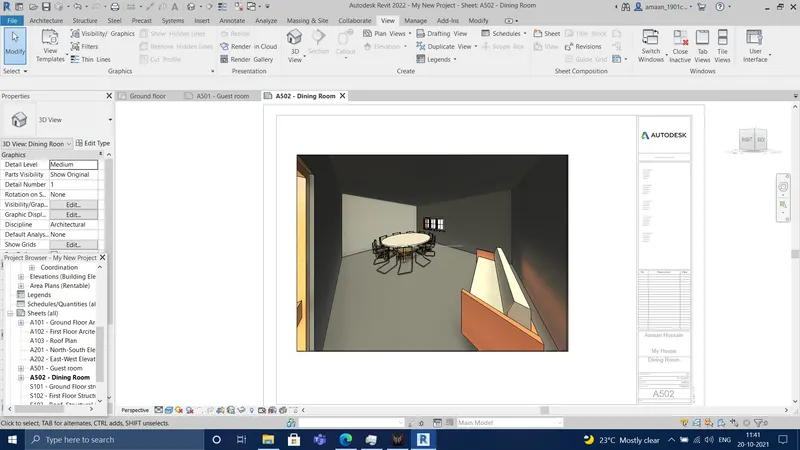

dining room

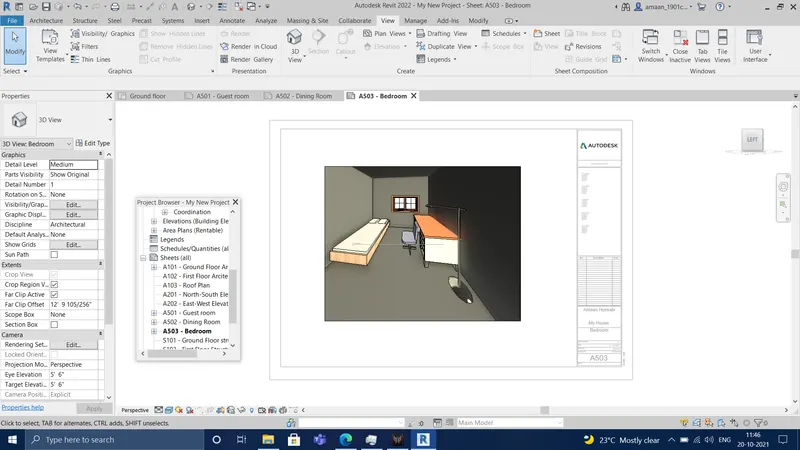

bedroom
Result - i have created camera views of all rooms.
