3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
Answer:

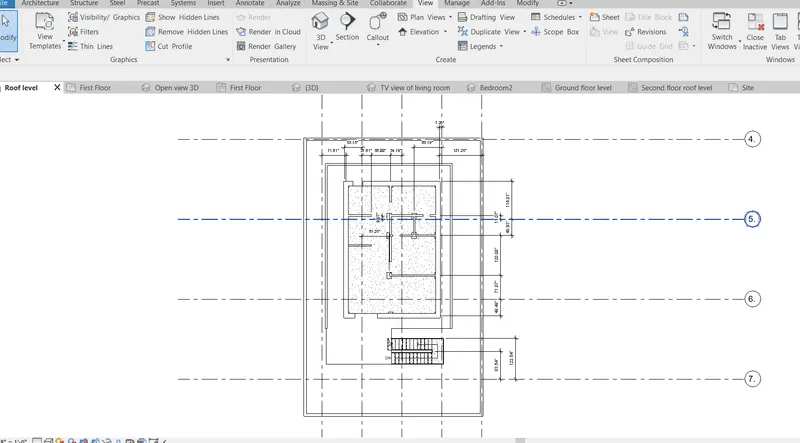

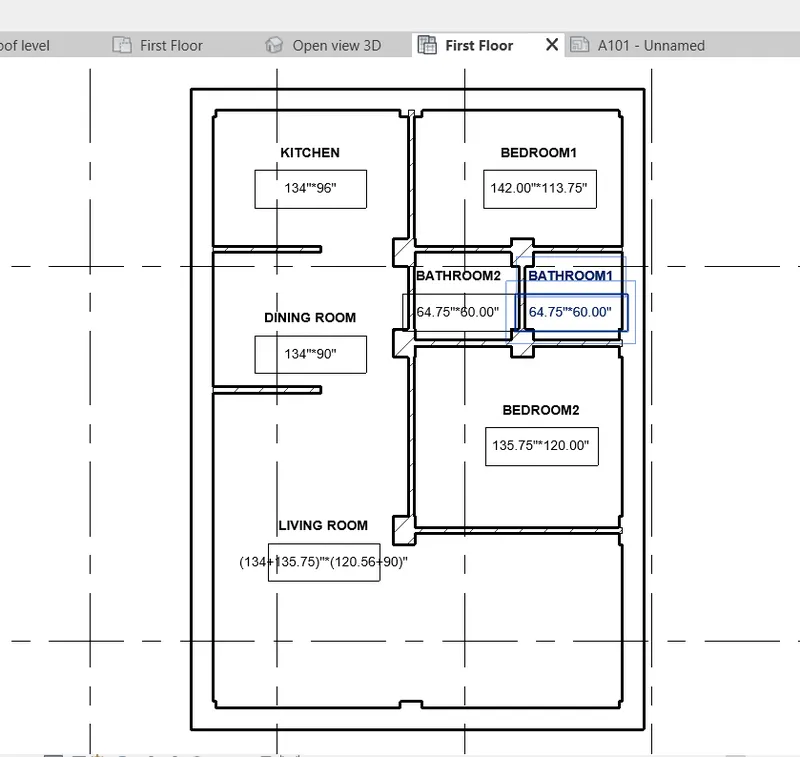

PLAN VIEW OF CEILING

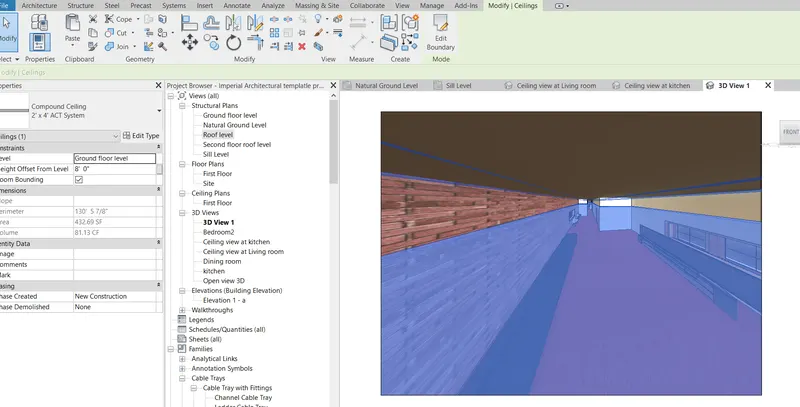

CEILING VIEW AT KITCHEN & DINING

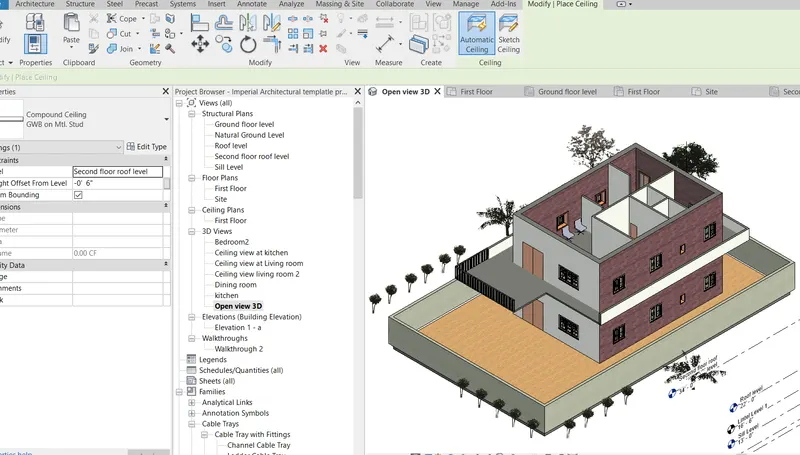

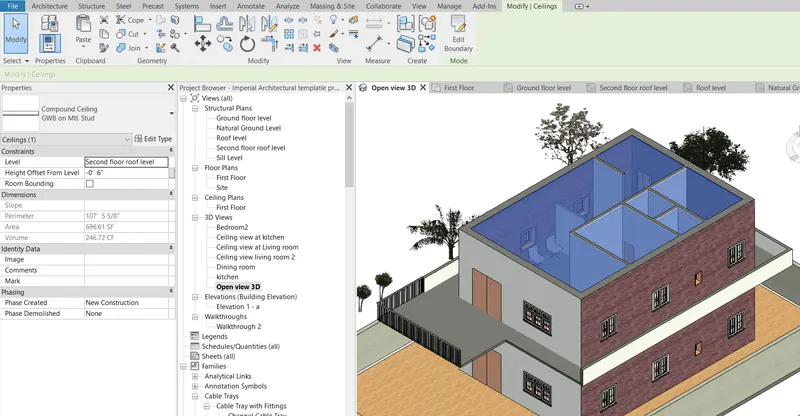

CEILING VIEW FROM ROOF IN 3D

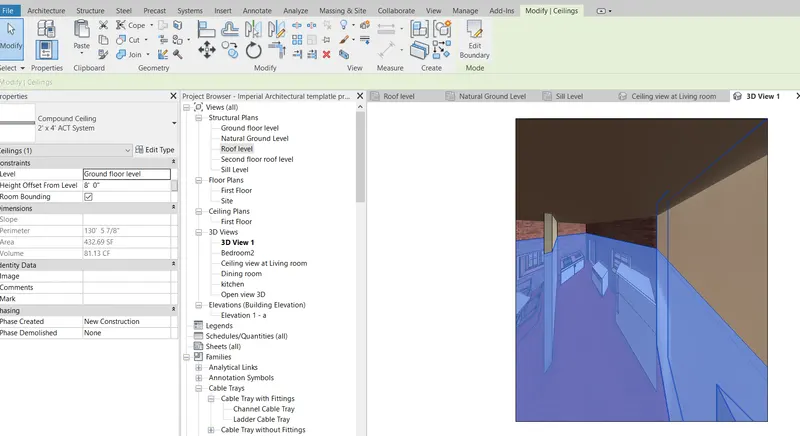

CEILING VIEW AT LIVING ROOM

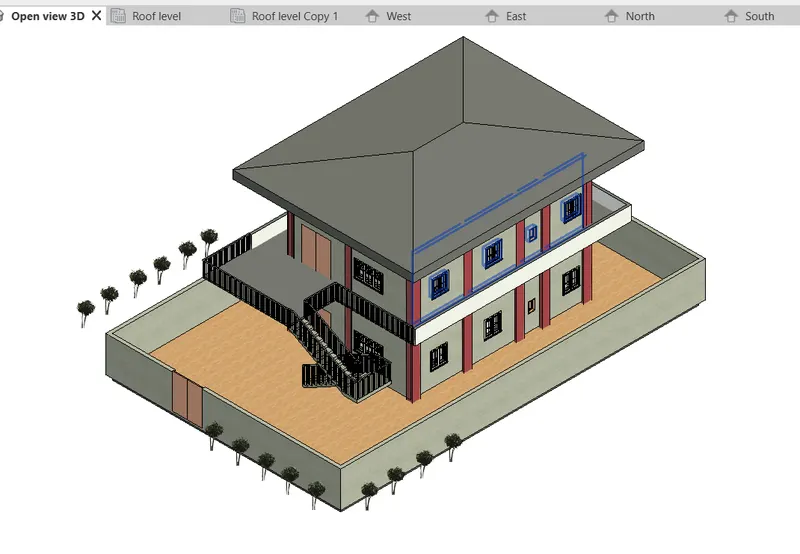

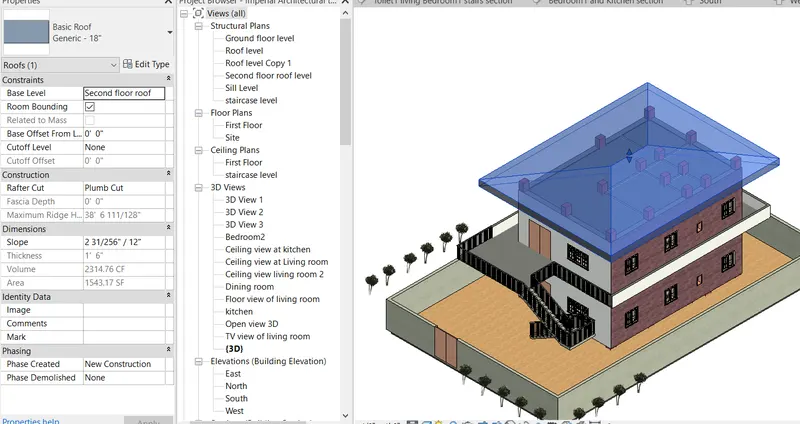

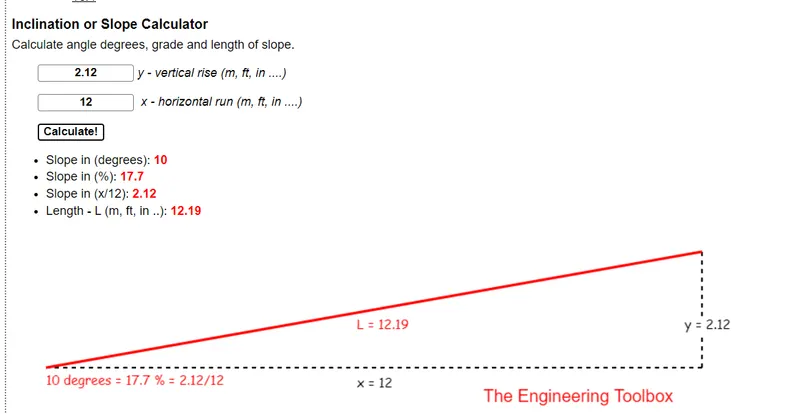

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Answer:

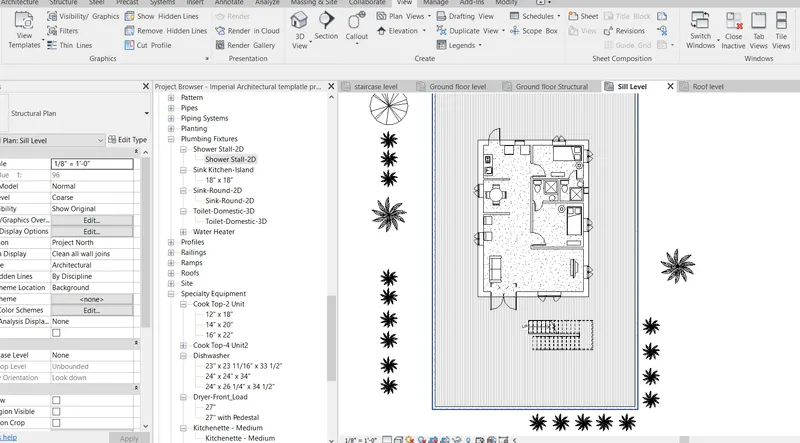

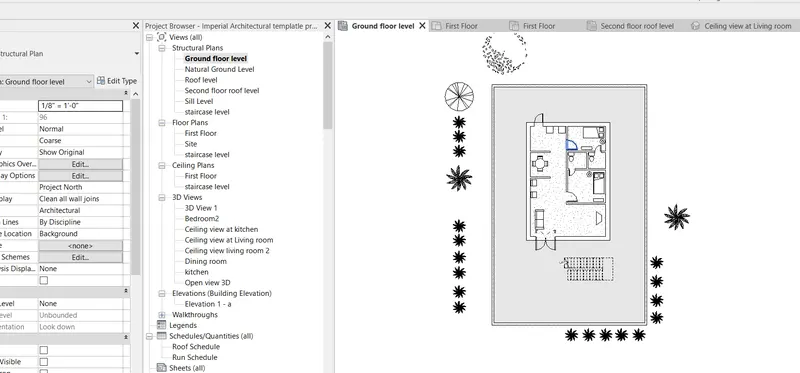

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
Answer:

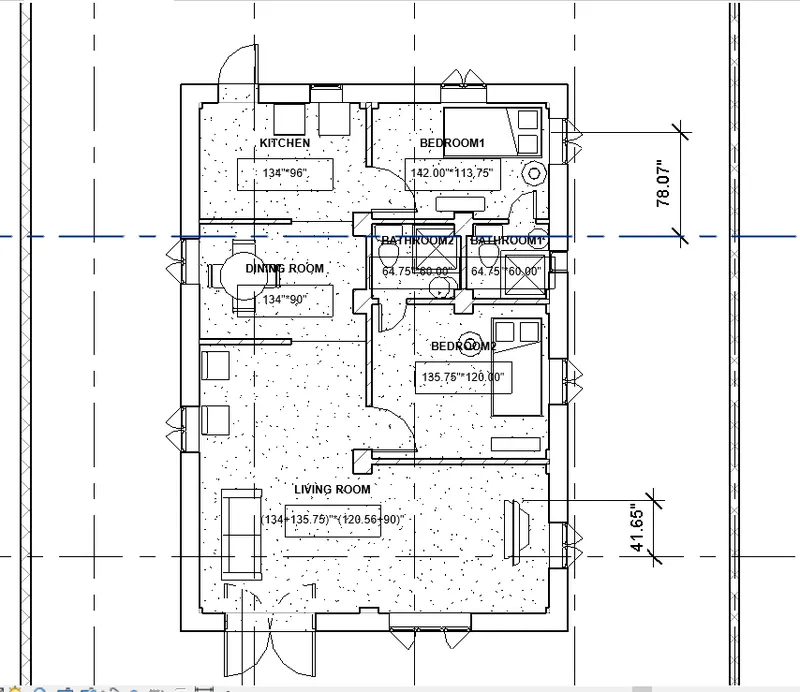

a. Architecture plan have walls, floors, and all the components placed within the building

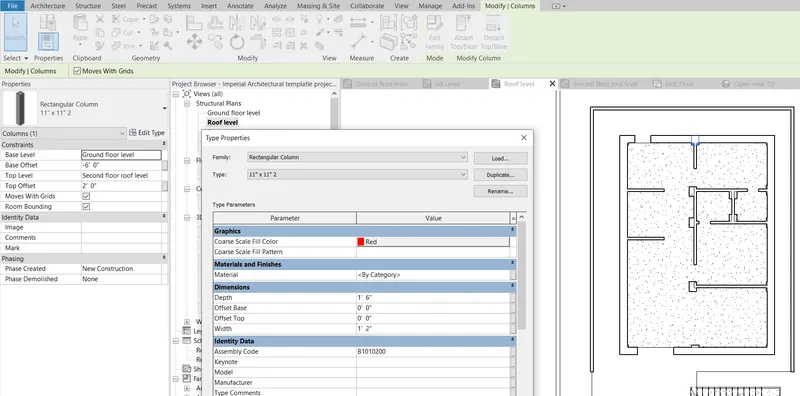

b. Structure plan have details of only walls, floors, and columns

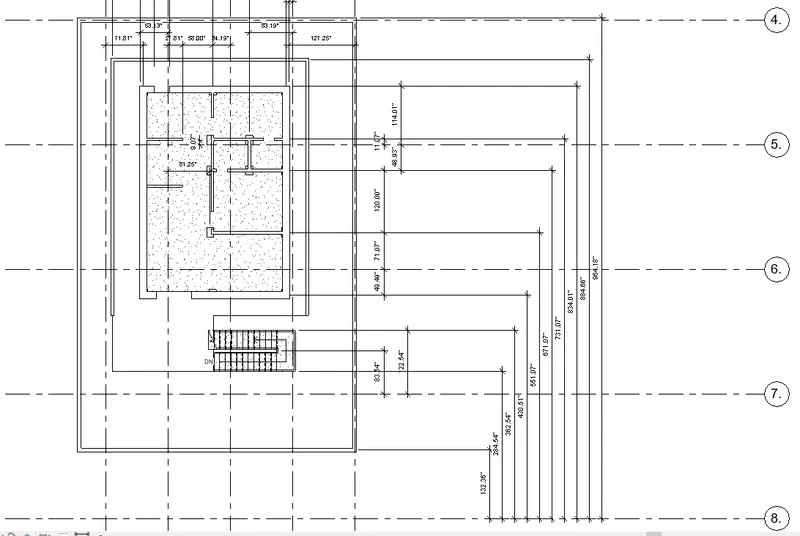

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
Answer:

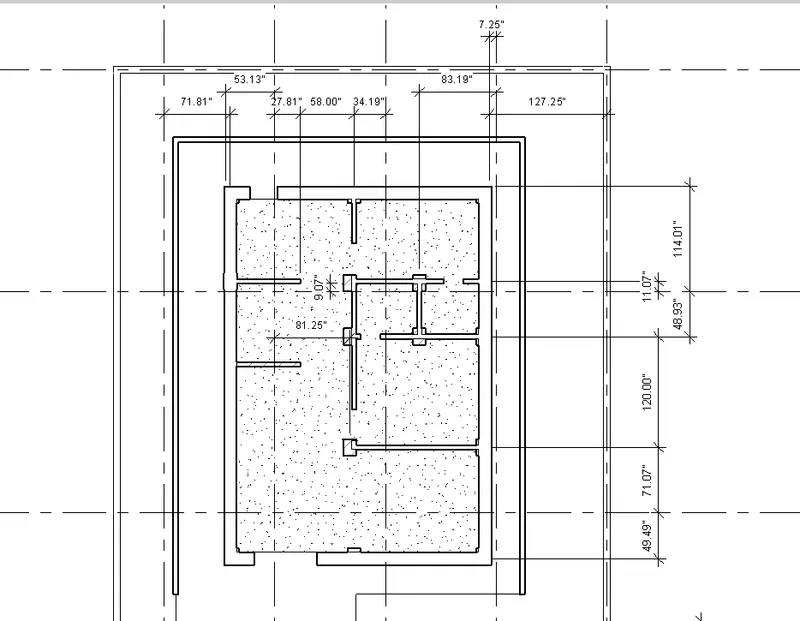

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions for architecture plans

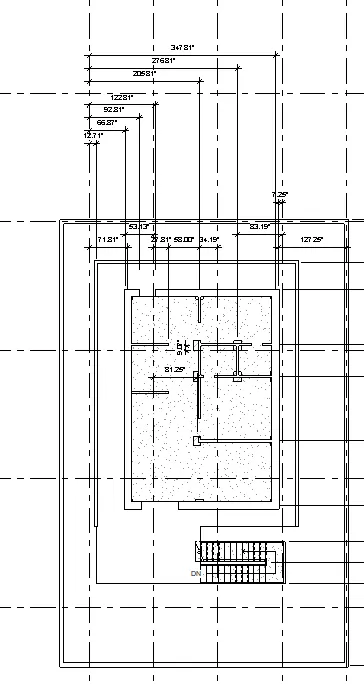

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

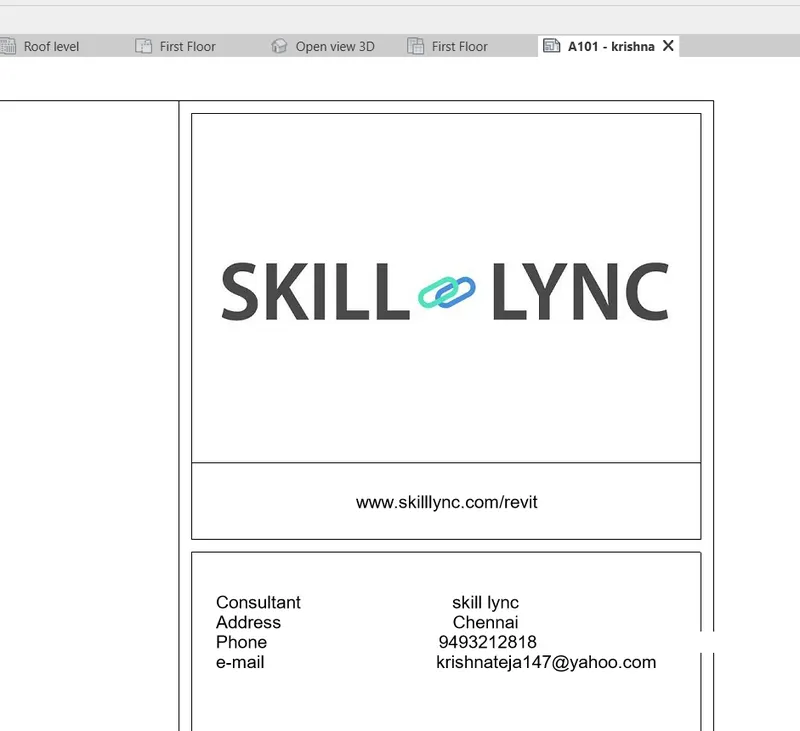

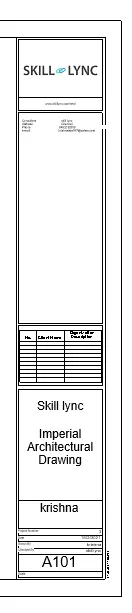

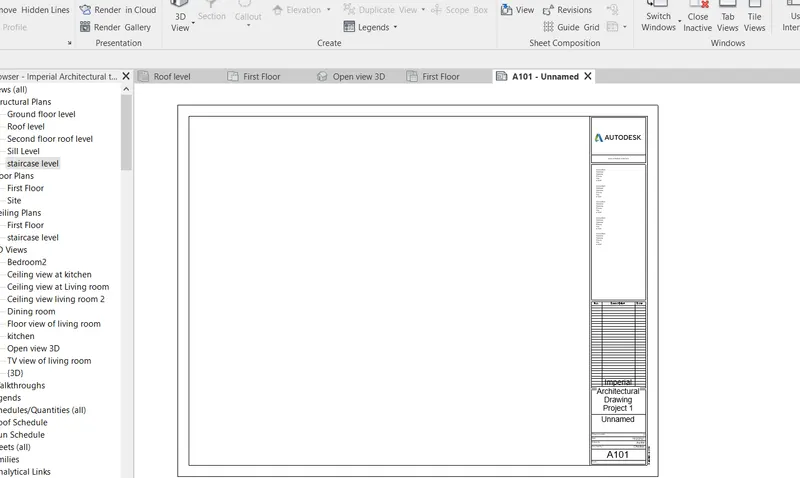

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Answer:

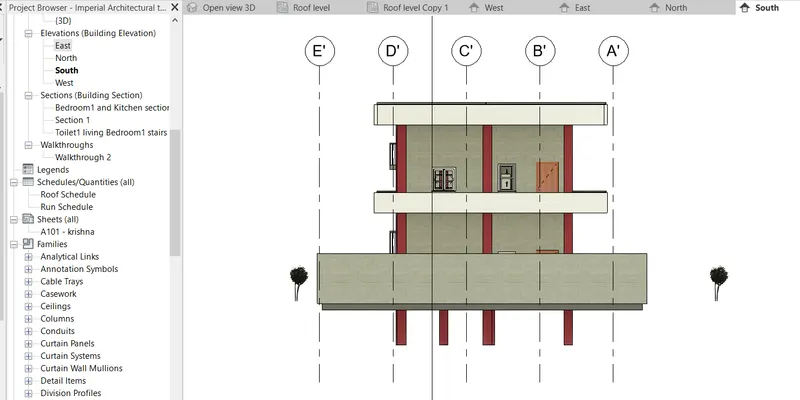

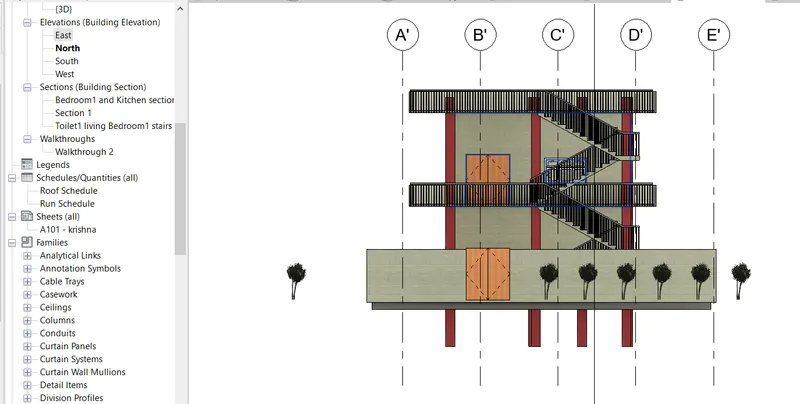

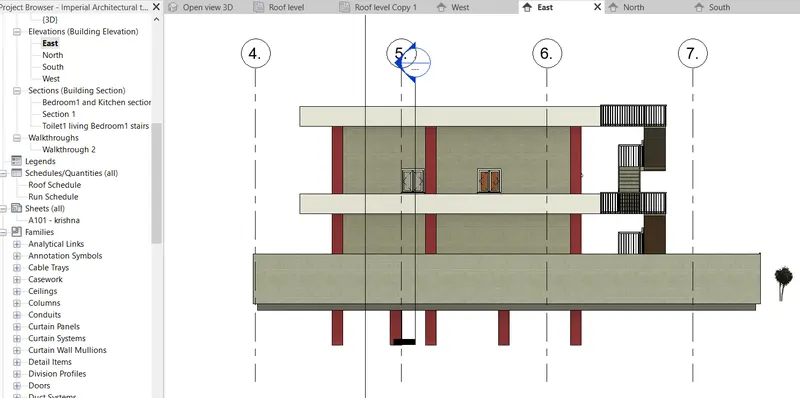

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Answer:
EAST
NORTH
SOUTH

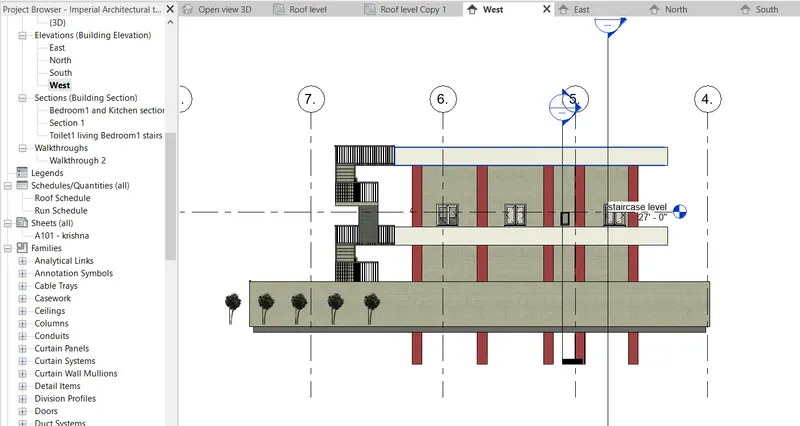

WEST

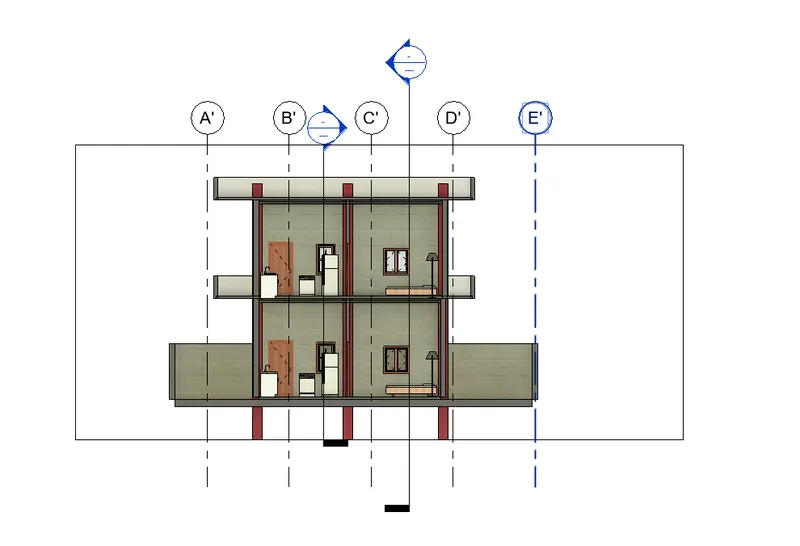

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
Answer:

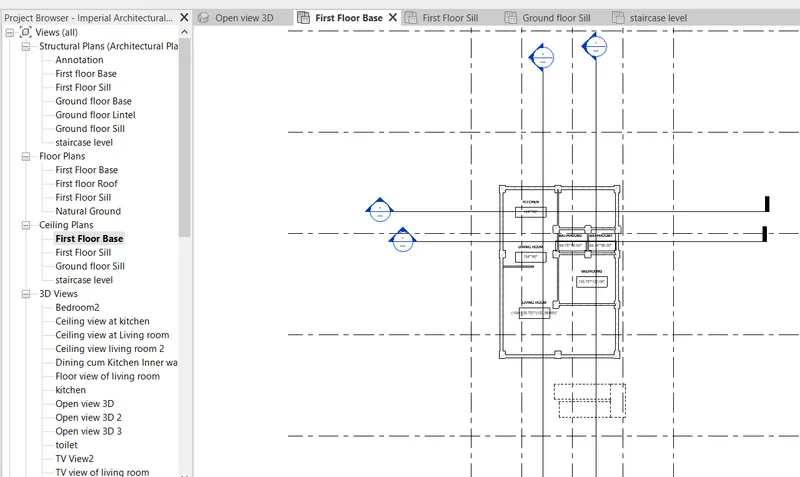

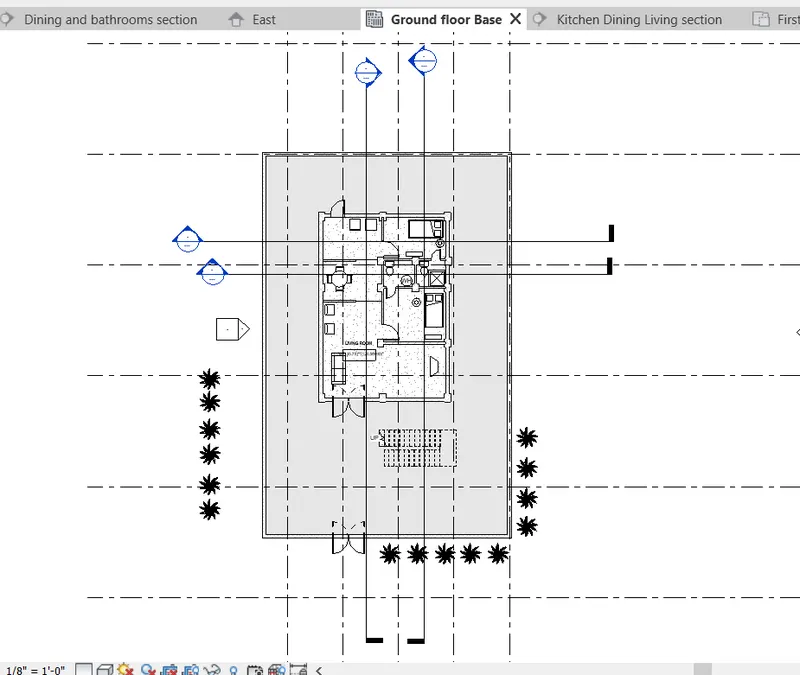

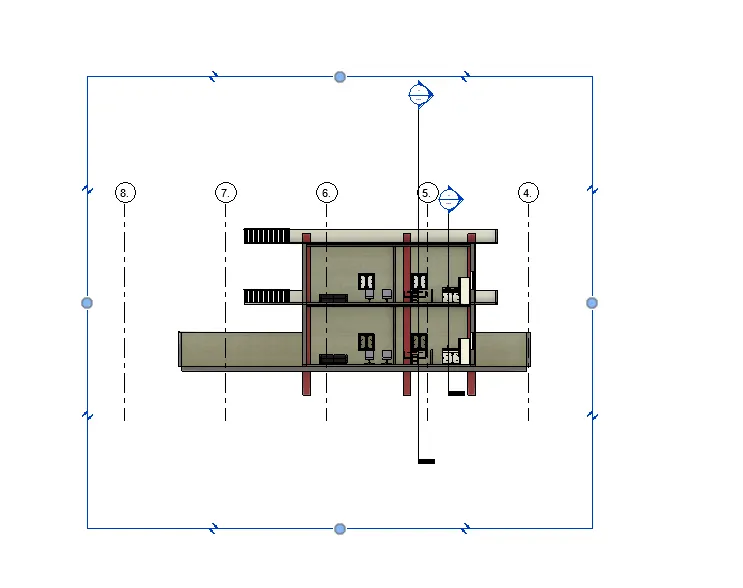

Section views in PLAN

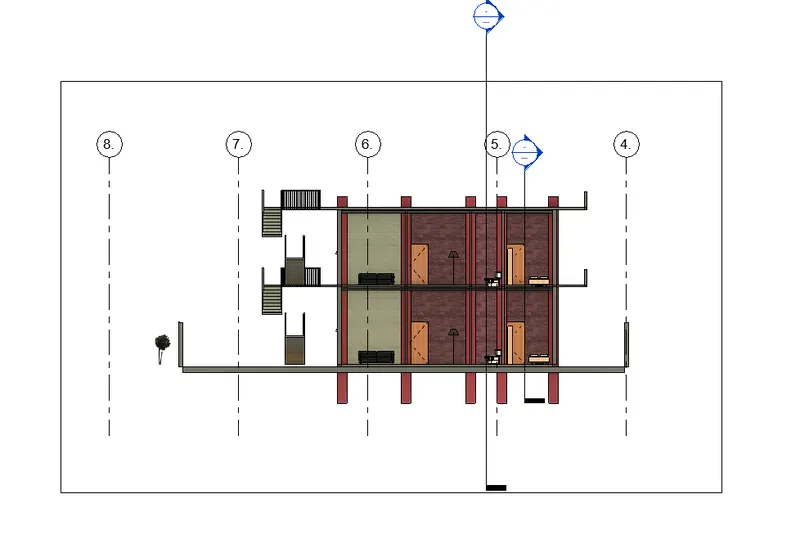

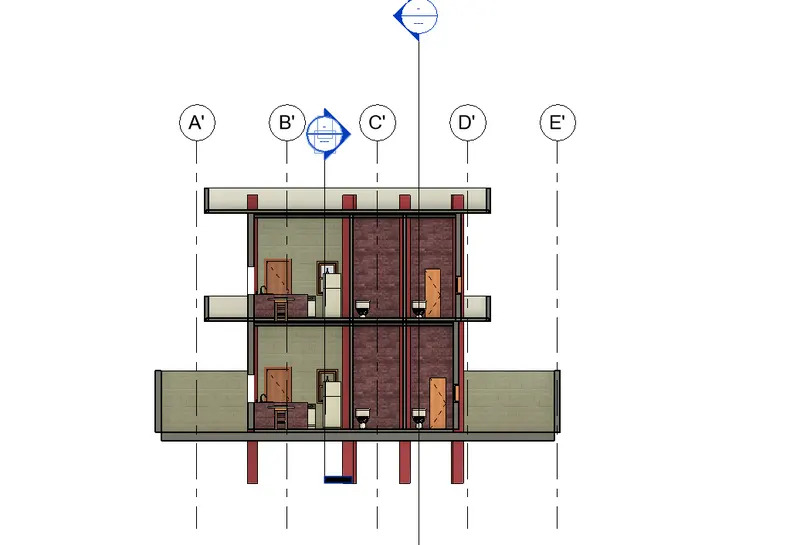

Section through Bedroom1 and Kitchen (Transverse)
Section through Dining and Bathrooms (Transverse)

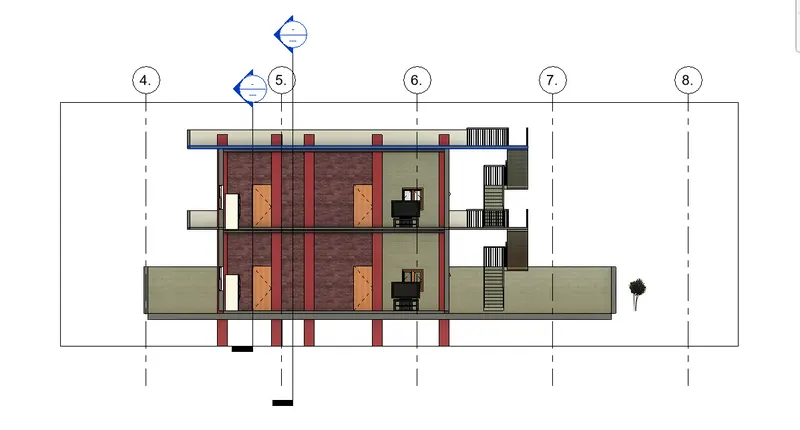

Section through Kitchen Dining Living (Lonitudinal)
Section through Kitchen Dining Living in the other side (Lonitudinal)
Section through Toilet1 Living Bedroom (Lonitudinal)

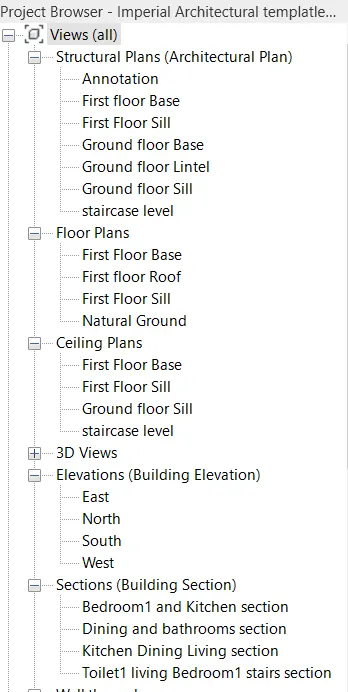

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Answer:
9) Using the sheet template produced create multiple sheets as follows
Answer:

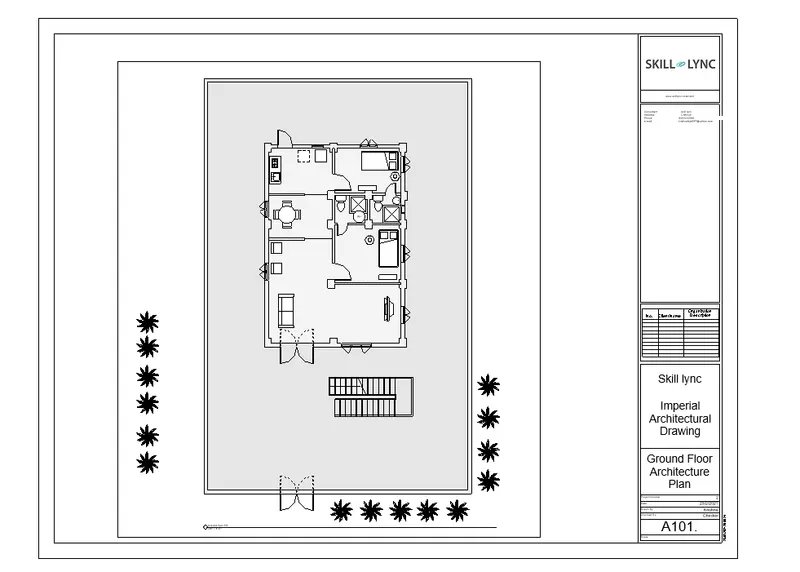

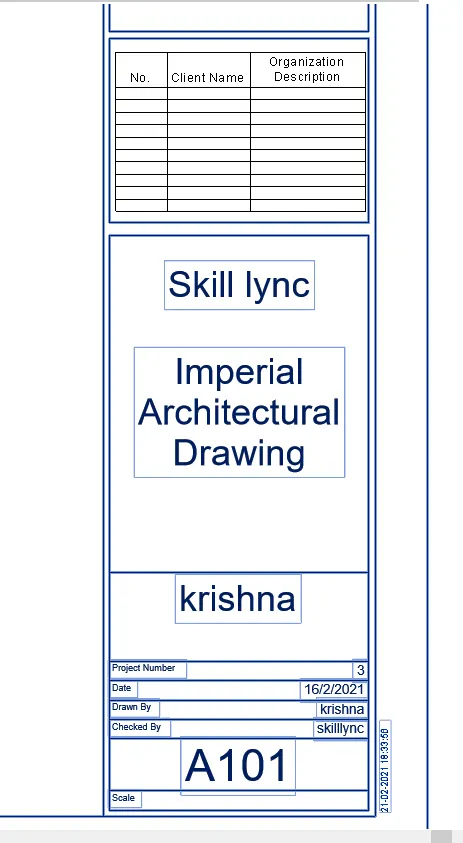

a. A 101- Ground Floor Architecture Plan

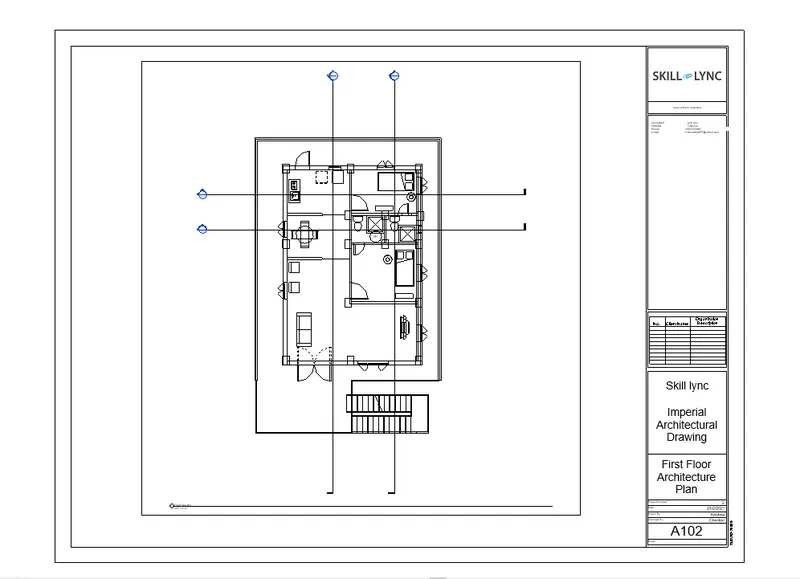

b. A 102- First Floor Architecture Plan

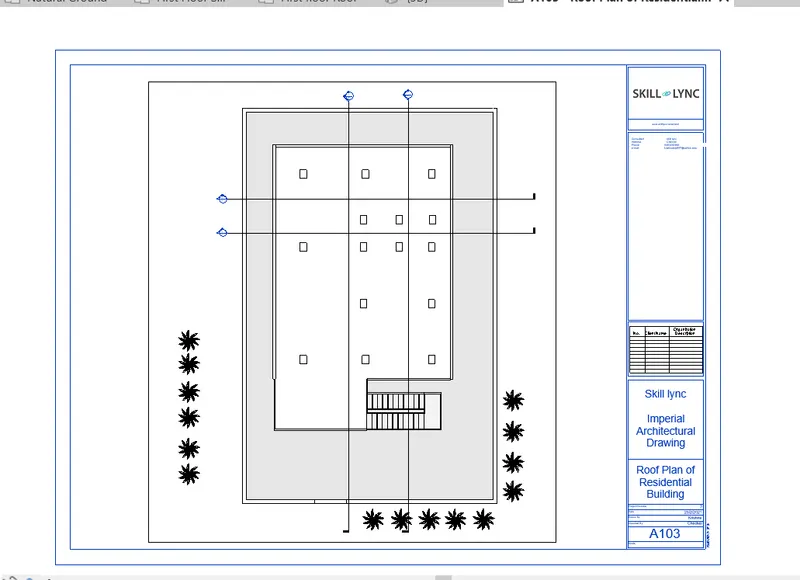

c. A 103- Roof Plan

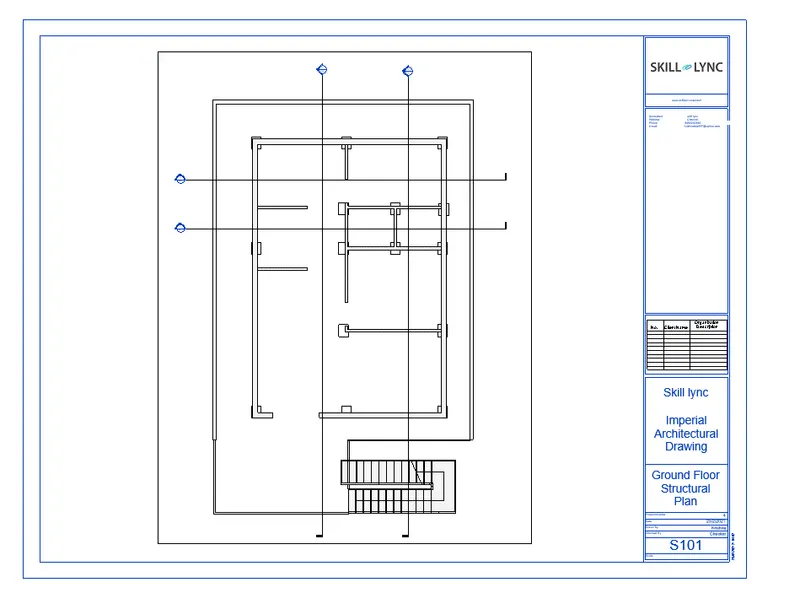

d. S 101- Ground Floor Structural Plan
e. S 101 &102 ( Both are same) - First Floor Structural Plan

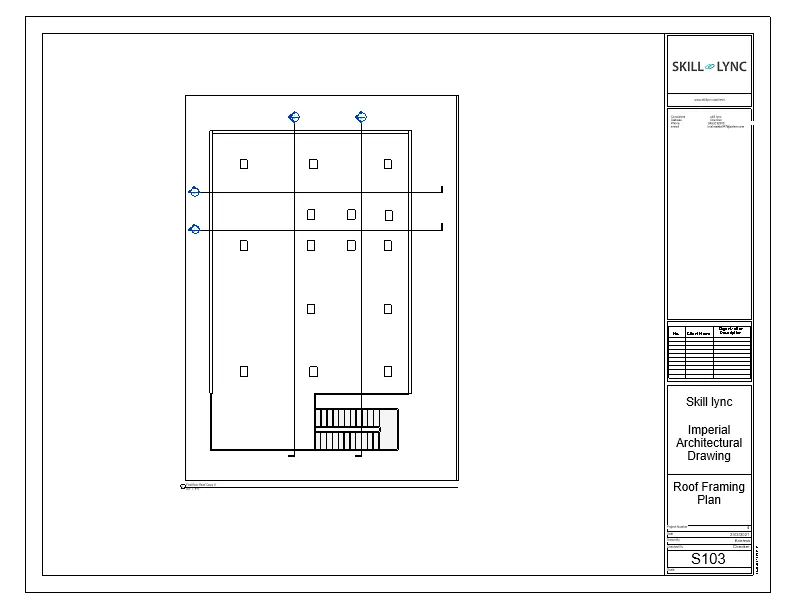

f. S 103- Roof Framing Plan

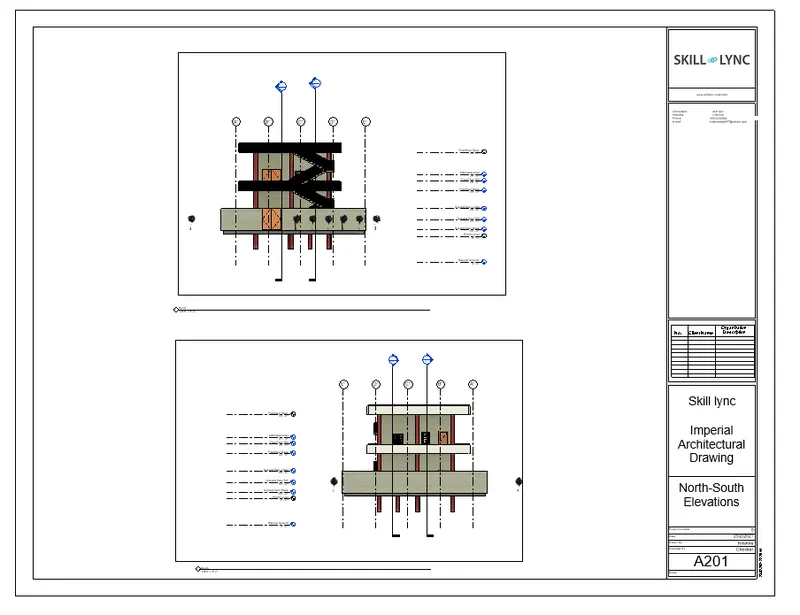

g. A-201- North-South Elevations

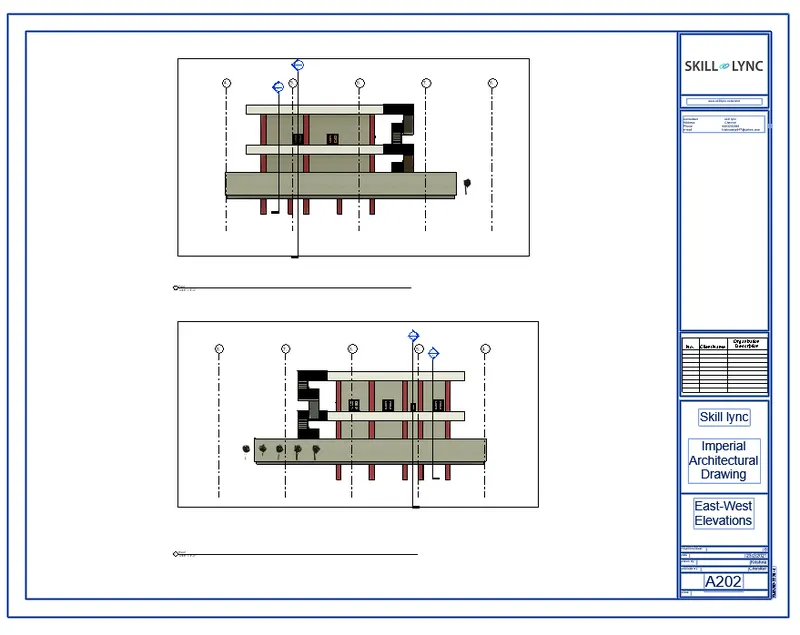

h. A-202- East-West Elevations

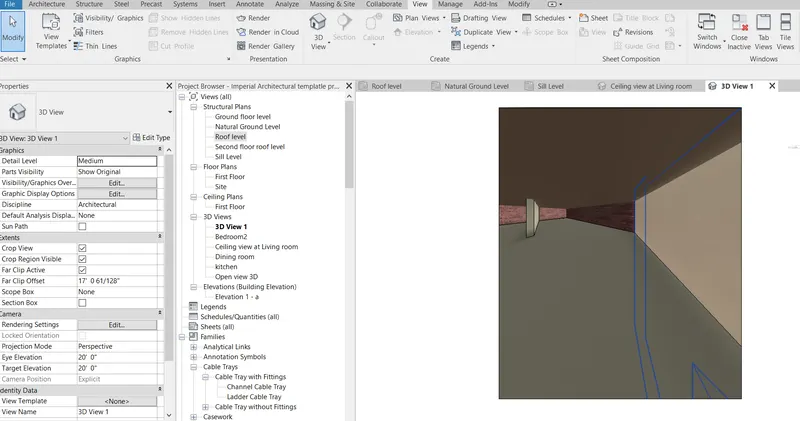

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Answer:

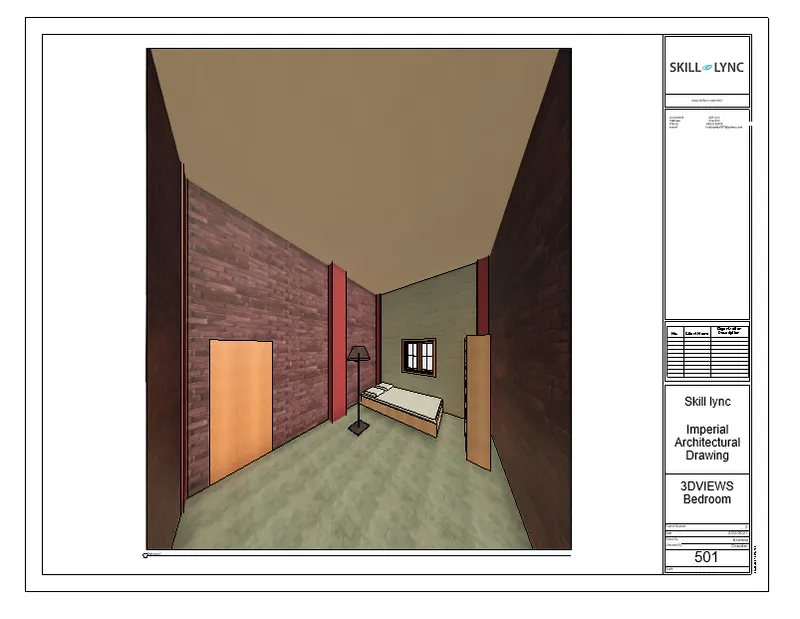

501
3D VIEWS
Bedroom2

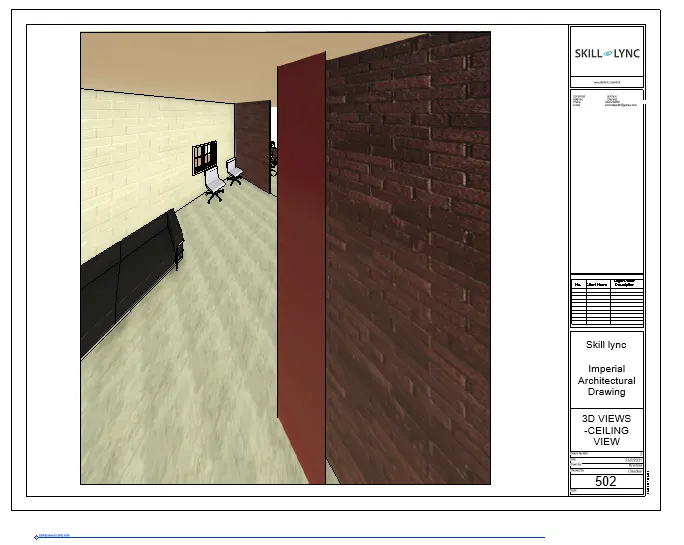

502
3D VIEWS
Ceiling view

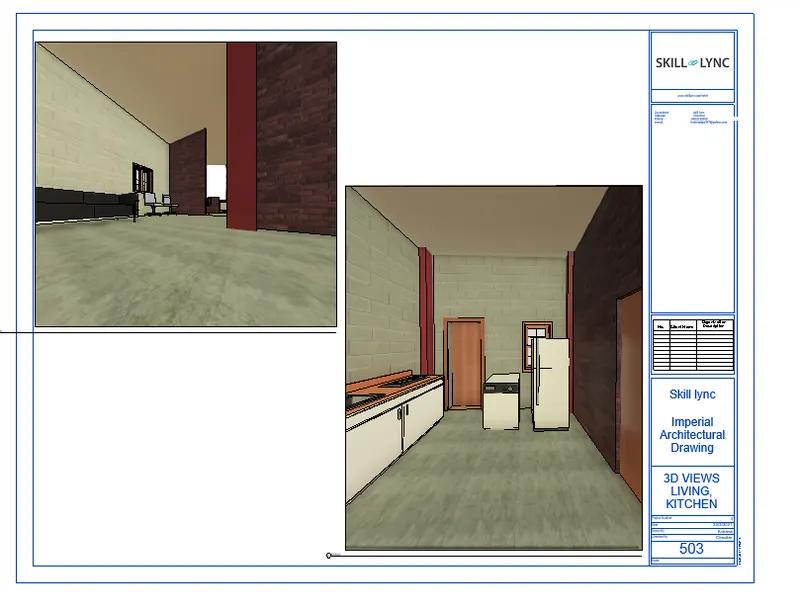

503
3D VIEWS
Living room Floor & Kitchen view

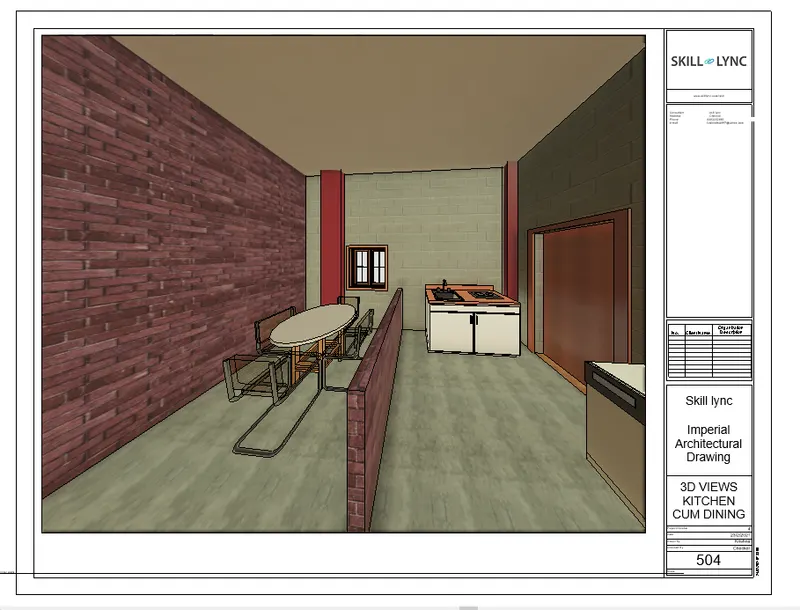

504
3D VIEWS
Dining cum Kitchen

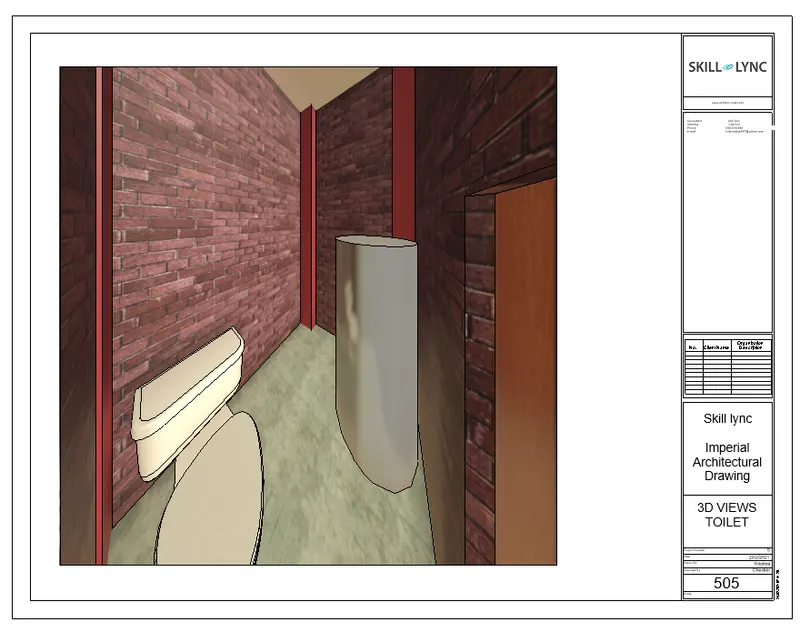

505
3D VIEWS
Toilet

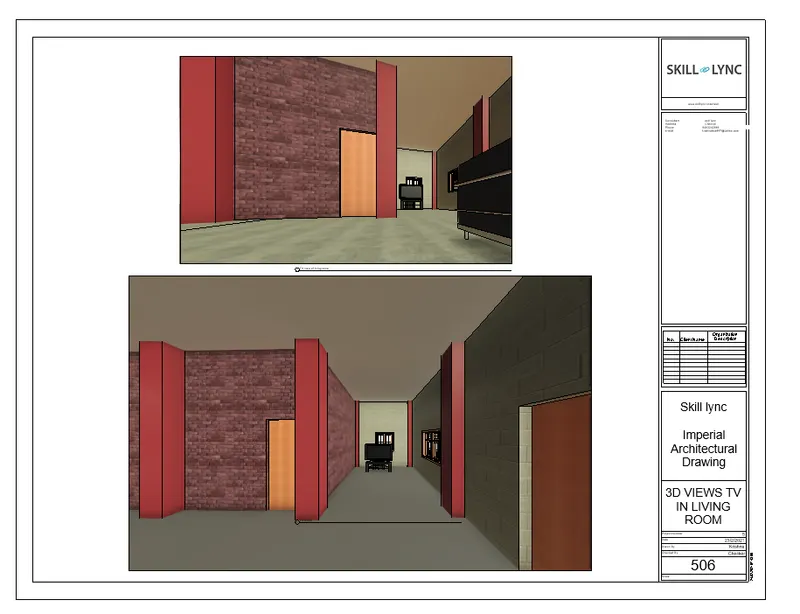

506
3D VIEWS
TV view in Living Room

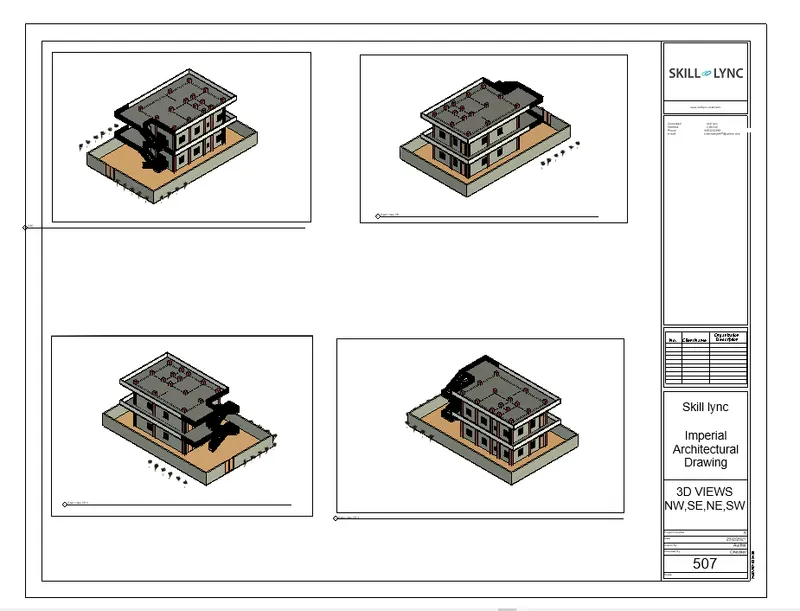

507
3D VIEWS
NORTH WEST
SOUTH EAST
NORTH EAST
SOUTH WEST
