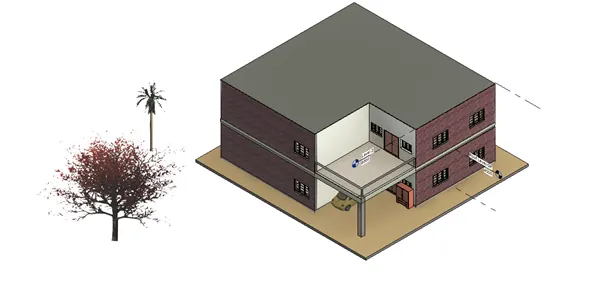

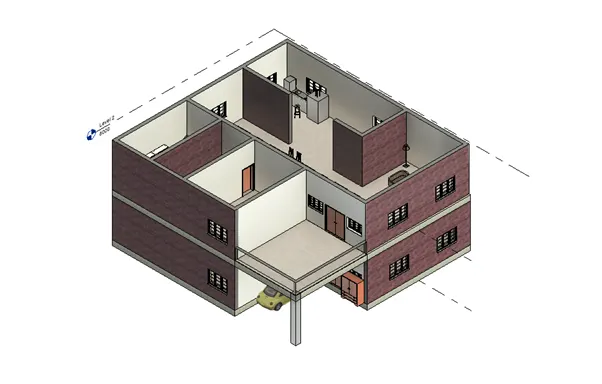

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1.

Aim: -

• To Model a Celling From Architecture Tab Above the Walls at First Floor Level

Procedure: -

• Open the New Project
•

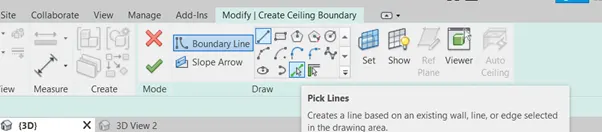

• Go to Architectural Tab and Select the Celling then Select Sketch Celling and Then Select Pick Line Option and Choose the Boundary Walls
•
•

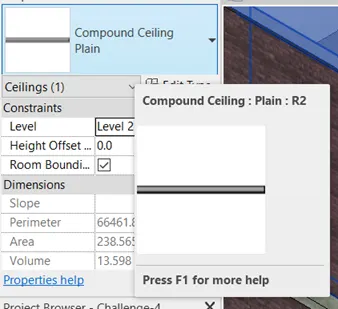

• Select the Celling Type as Compound Plain Celling Plain Press Enter
•

Result: -

•

2.

Aim: -

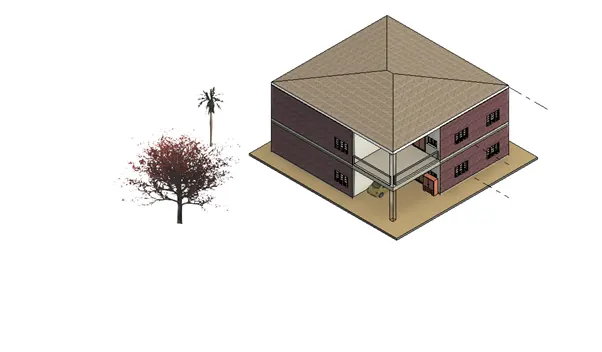

• Model a roof above the ceiling by selecting the footprints of the ceiling

Procedure: -

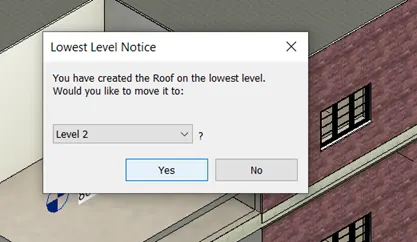

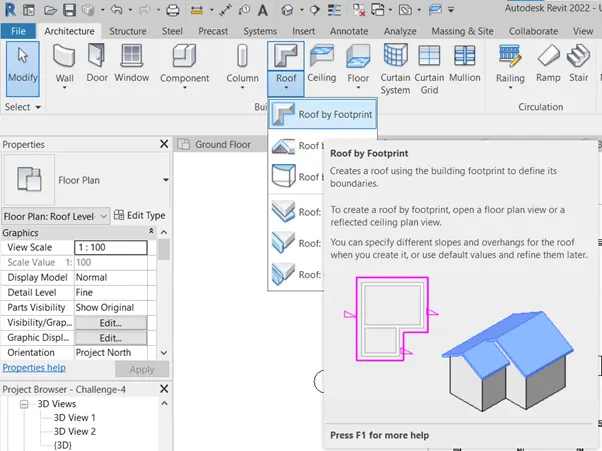

• Go to Architectural tab and Select the Roof -Roof By Footprint Option and then Pick Desired Boundary Lines Press Ok
•
•

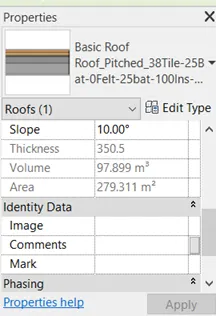

• Select the Type of Roof as Per As Our Choice is selected
•

Result: -

•

3.A.

Aim: -

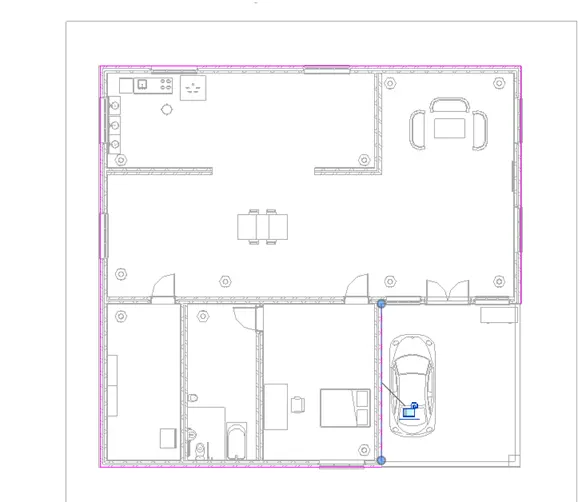

• Architecture plan must have walls, floors, and all the components placed within the building

Procedure: -

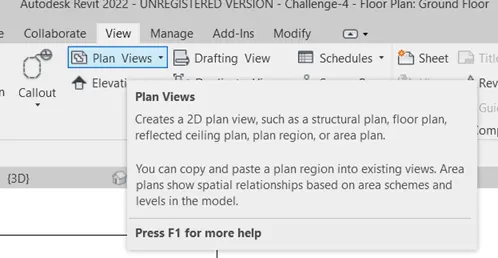

• Go to View tab and Select the Plan Views Tab
•

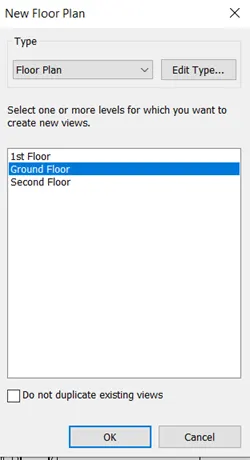

• Select the Floor Plan Option
•

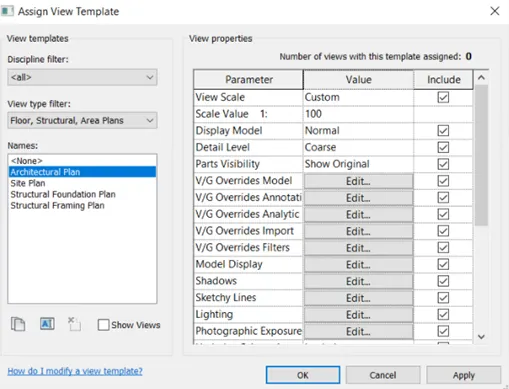

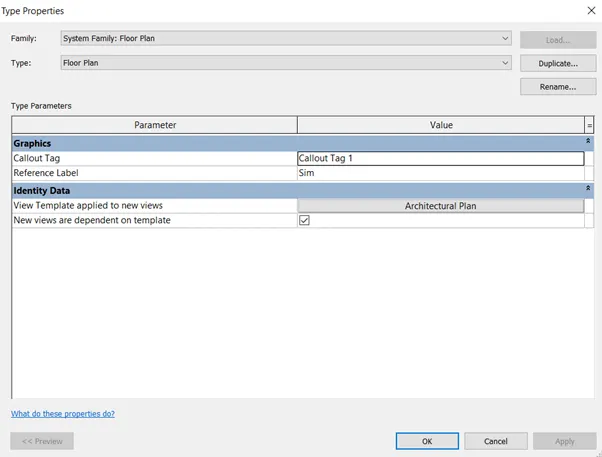

• Go to edit Type and Click Architectural Plan
•
•
•
• Repeat the Same Procedure For 1^st Floor Plan
•

Result: -

• GF Plan
•
• 1^st Floor Plan
•

3.B.

Aim: -

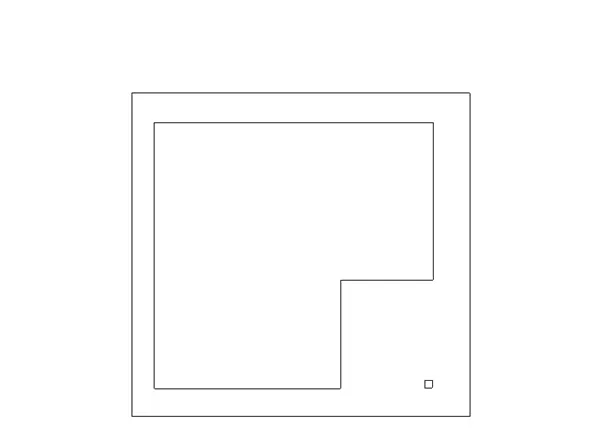

• Architecture plan must have details of only walls, floors, and columns: -

Procedure: -

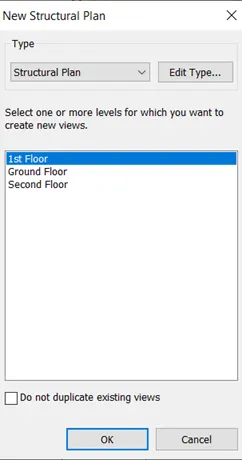

• Go to View tab > View Plan> Structural Plan
•
• Repeat the Same procedure as above
• Repeat the same Procedure for First Floor

Result: -

• Ground Floor
•
• First Floor
•

4.A

Aim: -

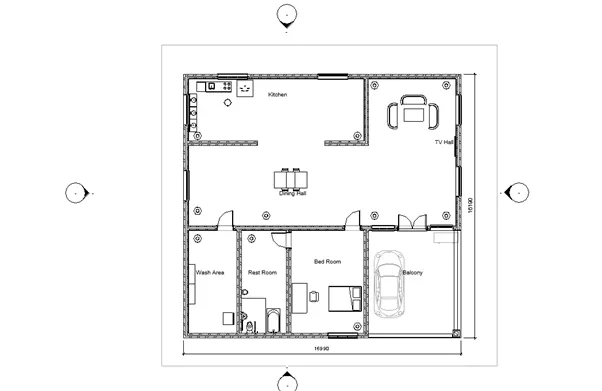

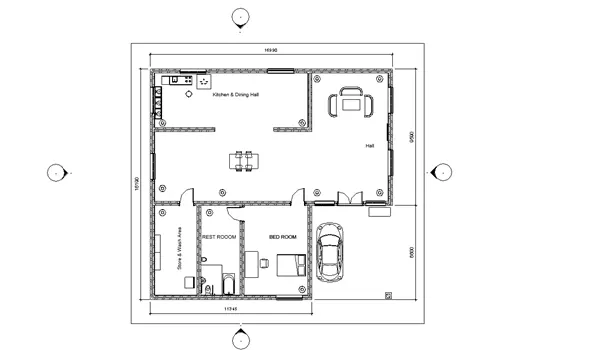

• To Give the Dimensions and Grid Lines to Project

Procedure: -

• Go To Annotate Tool Bar Linear Dimensions
• Go to Architectural tab & tag Rooms
•
• Go to 1^st Floor Repeat the same Procedure
•

Result: -

• Ground Floor
•
• First Floor
•

4.B

Aim: -

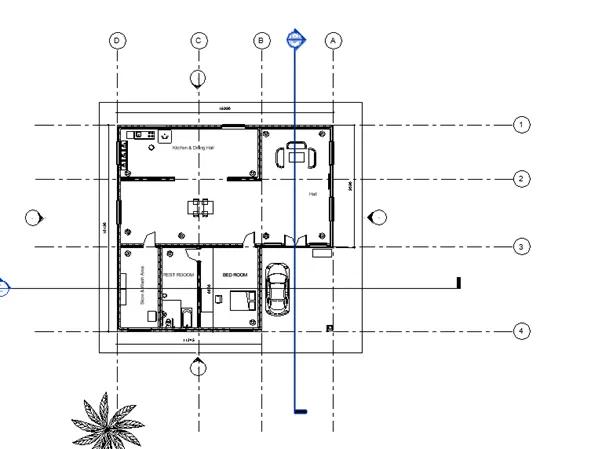

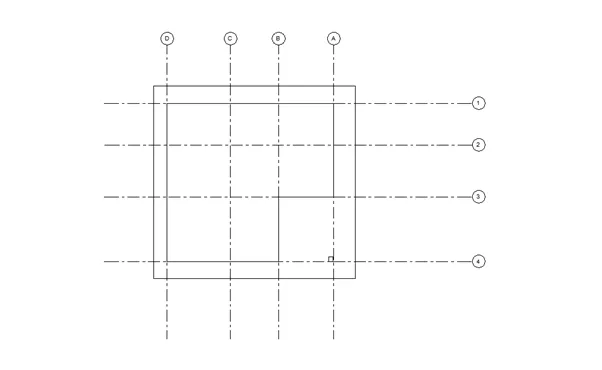

• The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Procedure: -

• Go To Structural Plan From last Done

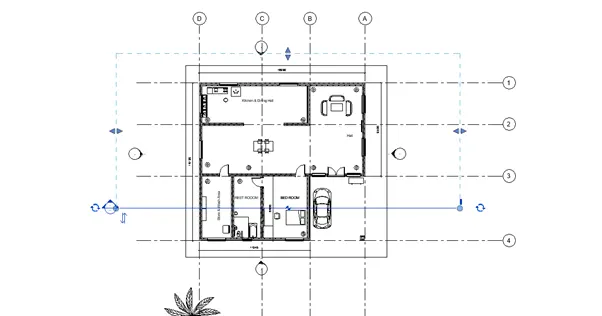

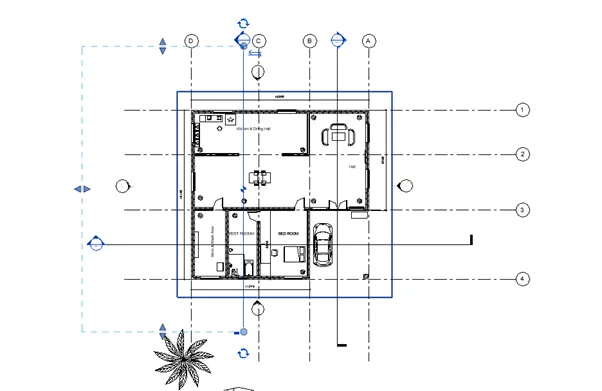

• Then Go to Architectural tab >n grids > Draw Grids along the Walls .

Result: -

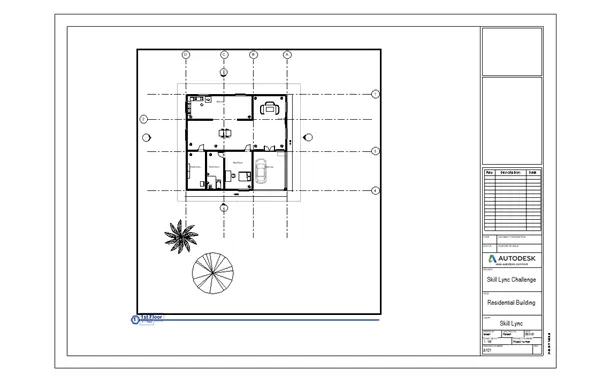

• Ground Floor
•
• First Floor
•

5.

Aim: -

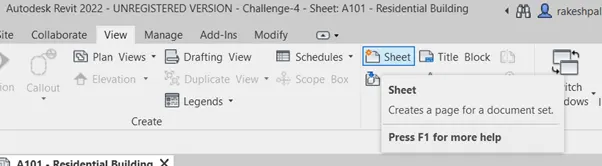

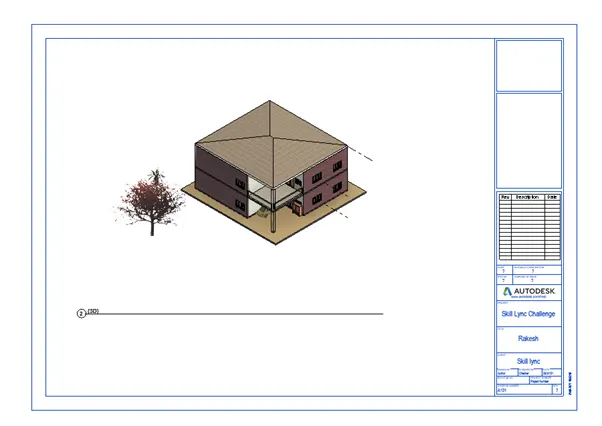

• Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Procedure: -

• Go to View Tab, select a sheet template, Add View
•
•

Result: -

•
•
•

6.

Aim: -

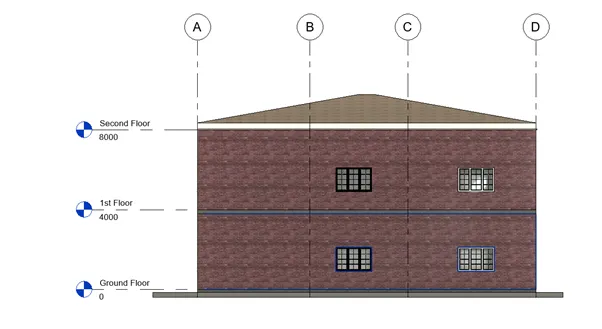

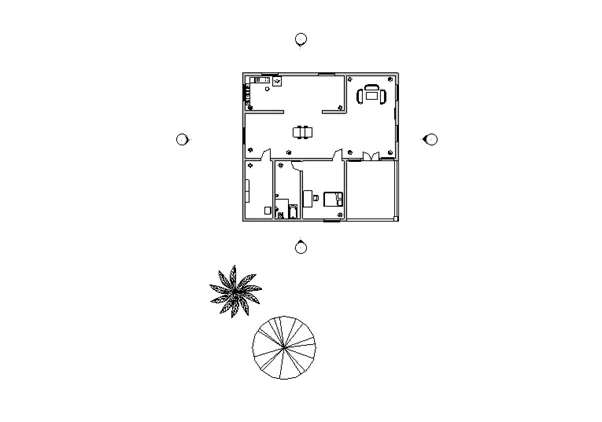

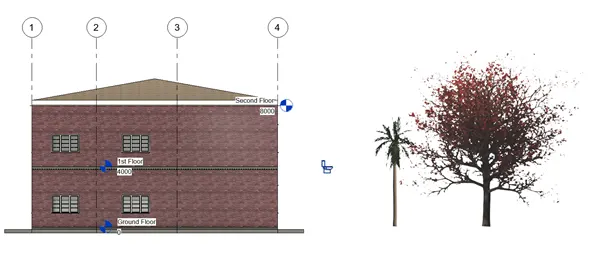

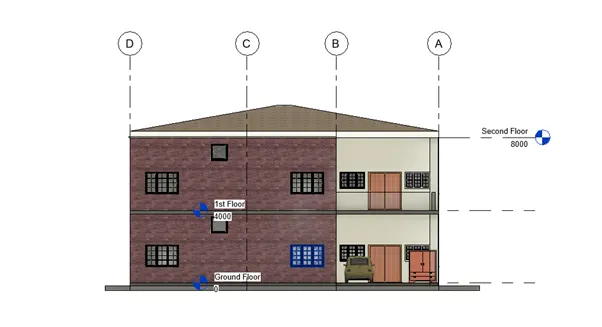

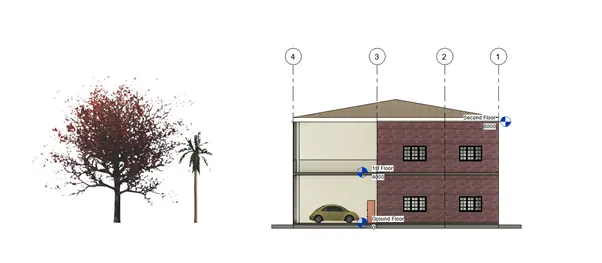

• Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Procedure: -

• Go to elevation tab > East> North> South> West Press Enter

Result: -

• East View
•
• North View
•
• South View
•
• West View
•

7.

Aim: -

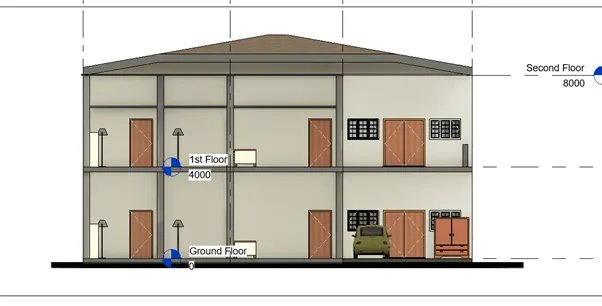

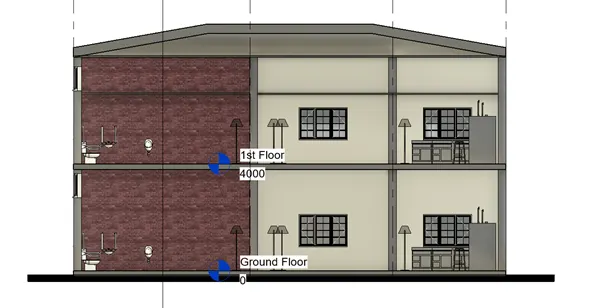

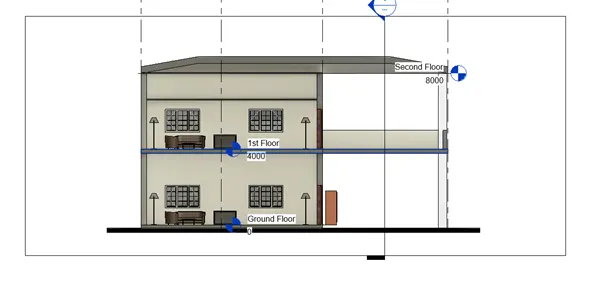

• Produce section cut through each room either cutting across longitudinally or in a transverse direction

Procedure: -

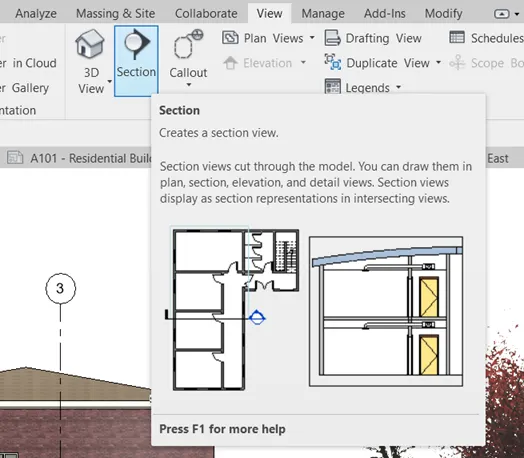

• Go to View tab> Section View
•
•
• Section the Required View
•

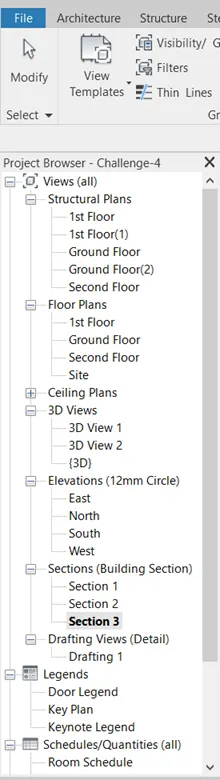

• In the Project Browser Go to Section and Select View
•
• Repeat the Same Procedure For Required sections

Result: -

• Section-1
•
•
• Section 2
•
•
• Section 3
•
•

8.

Aim: -

• Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Procedure: -

• Go to view tab Select the property Browser
•

Result: -

9.

Aim: -

• Using the sheet template produced create multiple sheets as follows
• Procedure: -

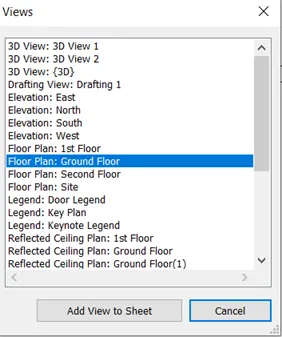

• Go to View tab Select Sheet Template > Add View

•
•

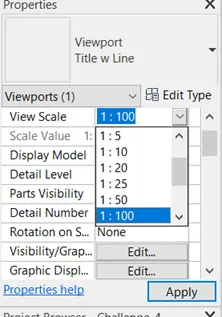

• Adjust View Scale as Suitable From the Property Browser
•
• Repeat the Same Procedure for all the Elements

Result; -

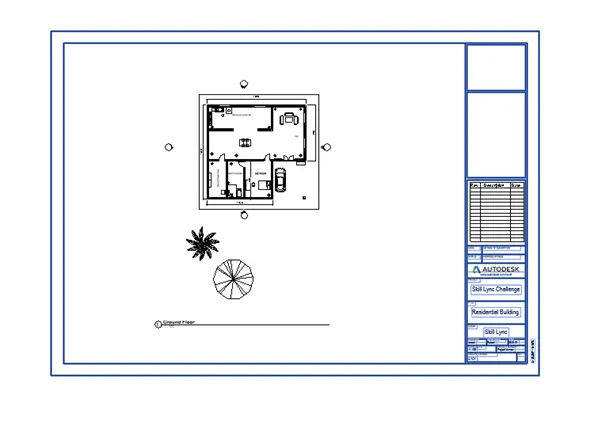

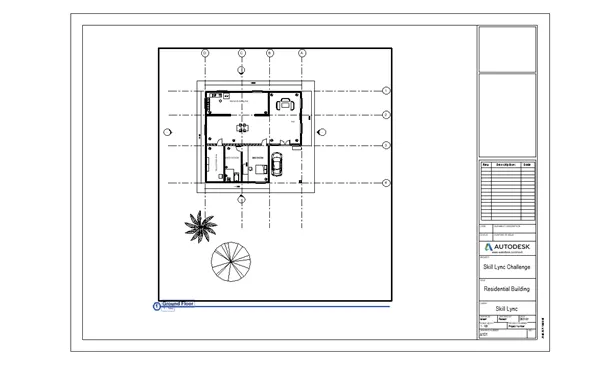

• A 101- Ground Floor Architecture Plan
•

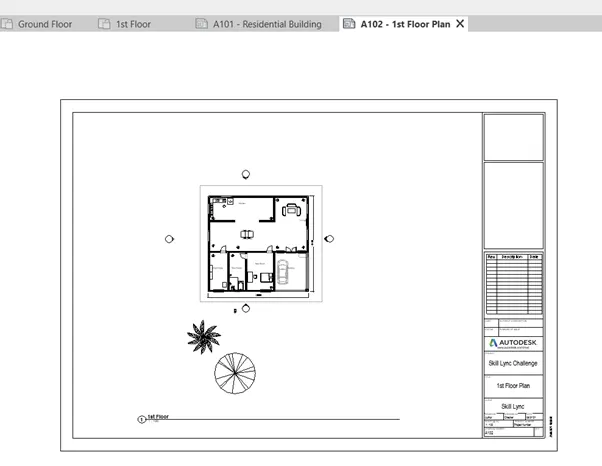

• A 102- First Floor Architecture Plan
•

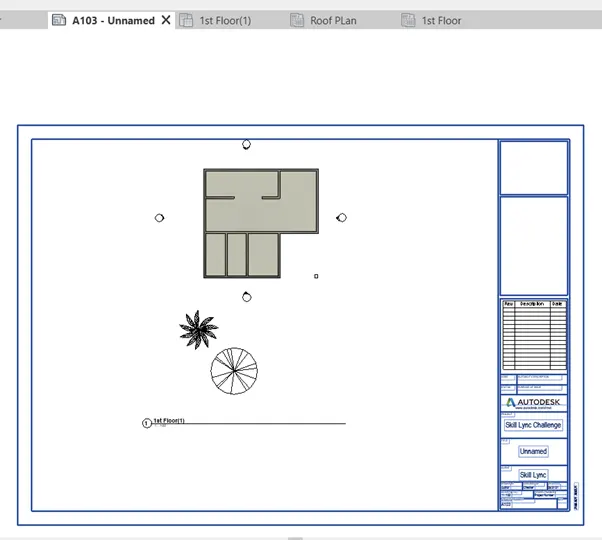

• A 103- Roof Plan
•

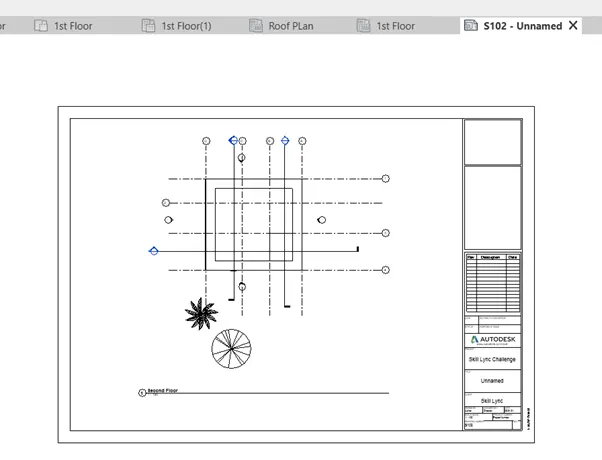

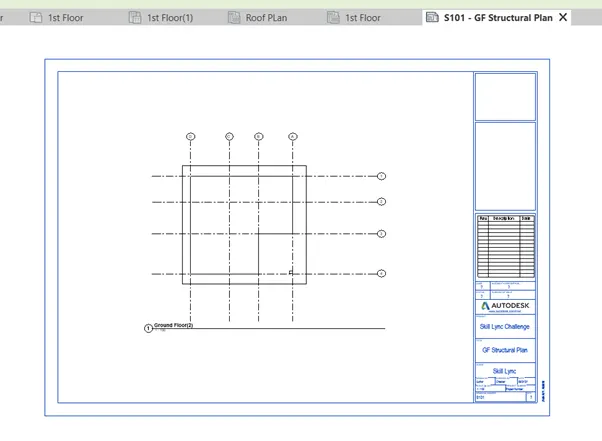

• S 101- Ground Floor Structural Plan
•
• e.S 102- First Floor Structural Plan
•

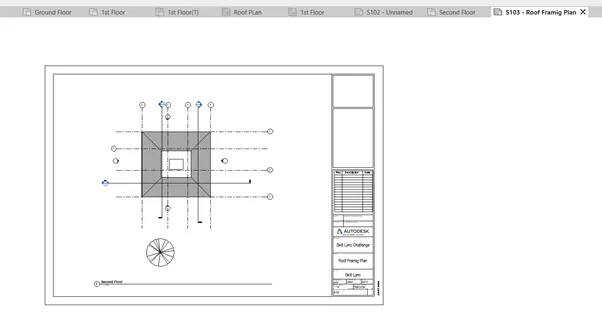

• f.S 103- Roof Framing Plan
•

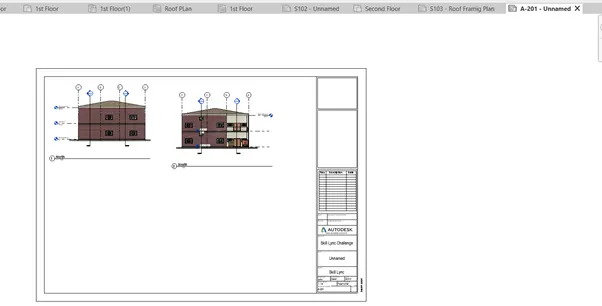

• g.A-201- North-South Elevation
•

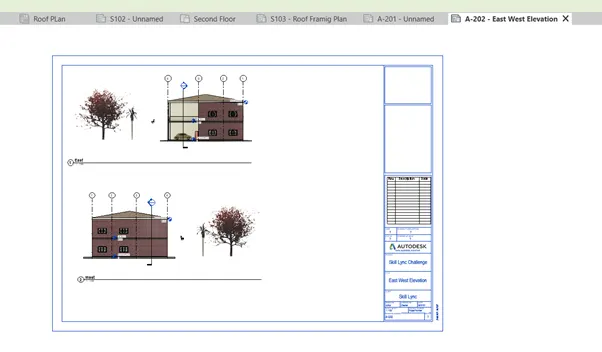

• h.A-202- East-West Elevations
•

10.

Aim: -

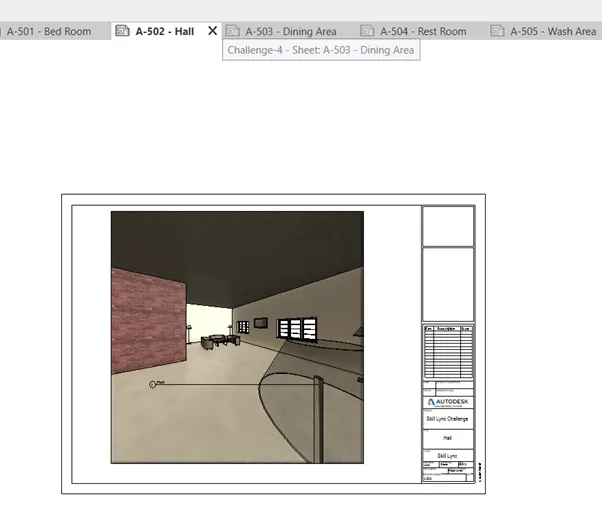

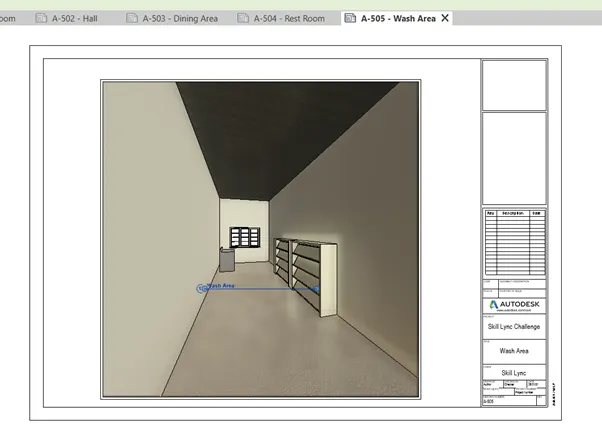

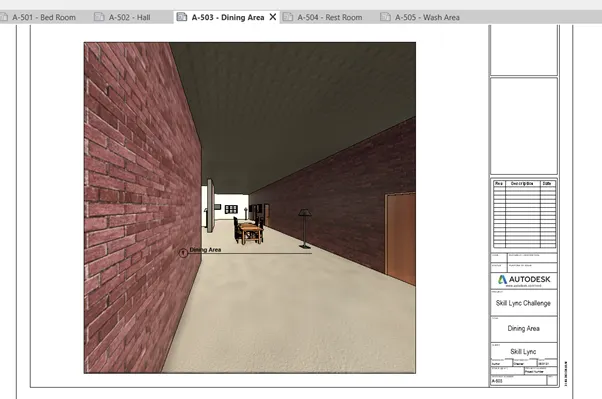

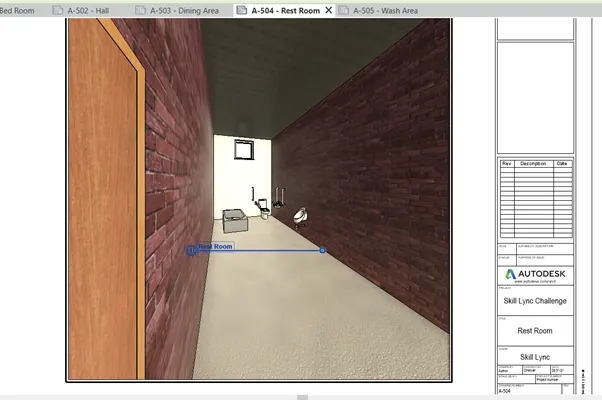

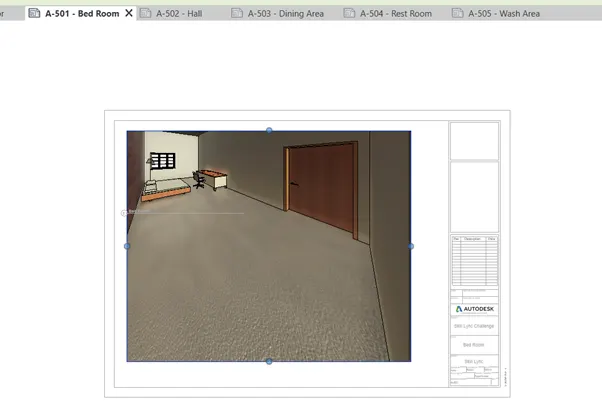

• Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Procedure: -

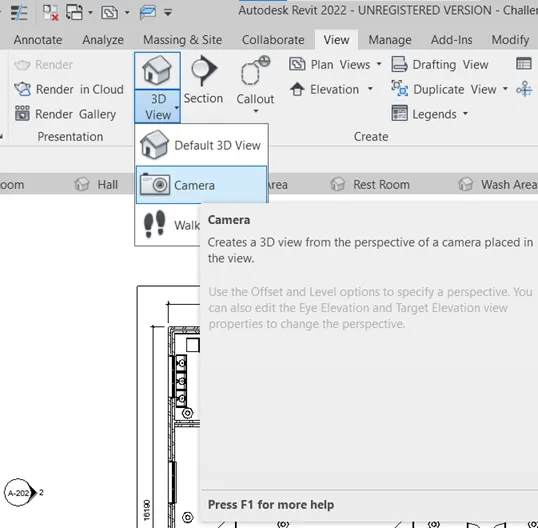

• Go To View Tab> Camera> Place the Camera in Desired View

Result: -

•
•
•
•
•
