3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
AIM: To Model a Ceiling from the architecture tab above the walls at the first-floor level.
PROCEDURE:
1. Open the project from challenge 3
2. click on the ceiling tool in the ribbon
3. click on the Sketch ceiling ribbon
4. Opt for either option line or pick line
5. Now Draw the line from the outer edge of the exterior wall
6. Click on the Right symbol on the ribbon
RESULT:

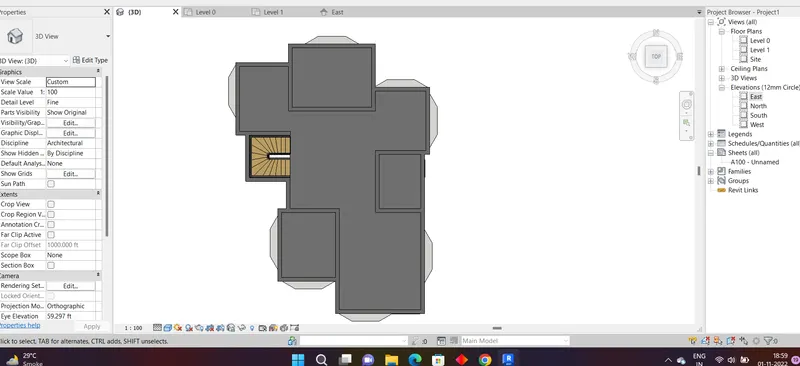

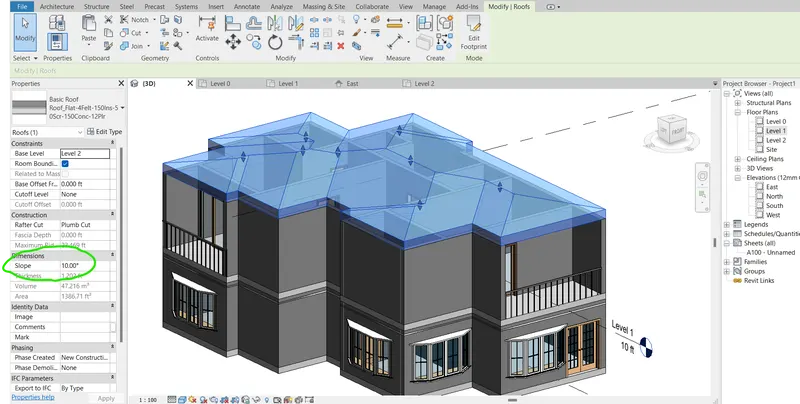

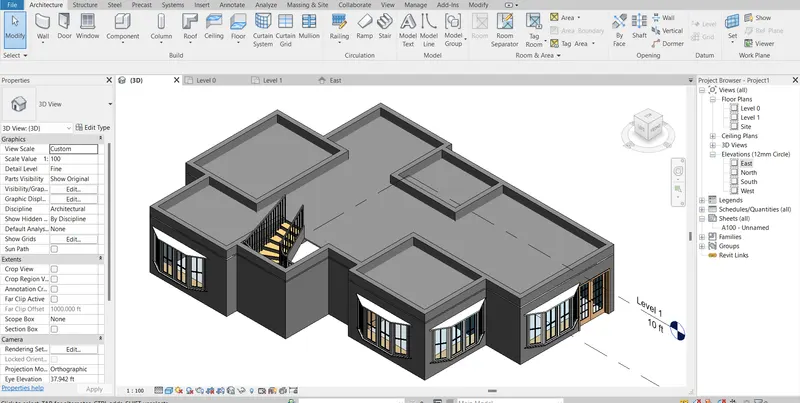

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
AIM: To create a roof above the ceiling by selecting the footprints of the ceiling
PROCEDURE:
1. Click on the Roof in the ribbon
2. Opt for either option line or pick line
3. Now draw the line on the outer edge of the exterior wall
4. Click on the Right symbol on the ribbon tab
RESULT :
3) Using the file saved from weeks 2 to 4, create plan views for the ground-floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
AIM: To Using the file saved from weeks 2 to 4, create plan views for the ground-floor level and first-floor level including all the walls, floors, and components. Separate them into architectural and structural plans
PROCEDURE:
1. Click on the View tab in the ribbon
2. Now click on Plane view
3. And in that opt for Floor plane and structure plane
4. Floor plan for Architecture plan
5. And second for the structural plan
RESULT :

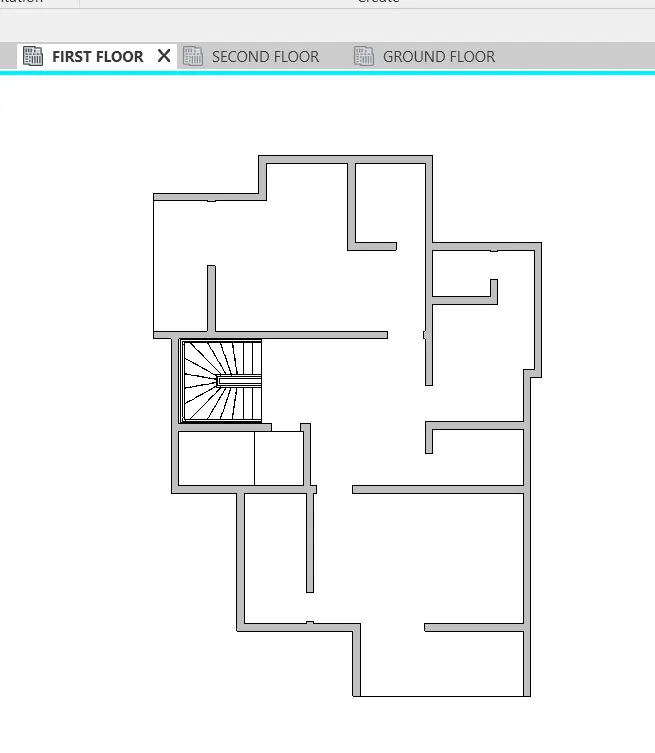

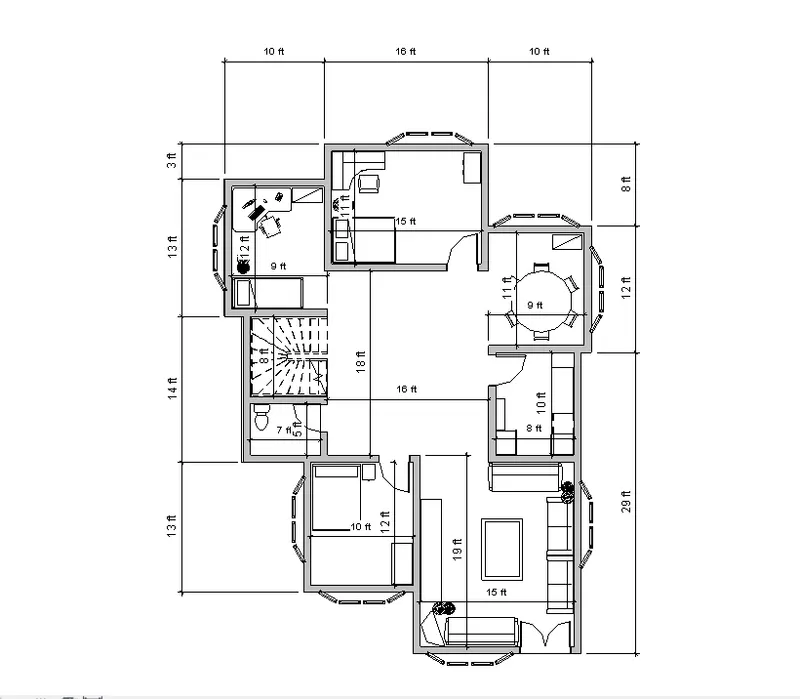

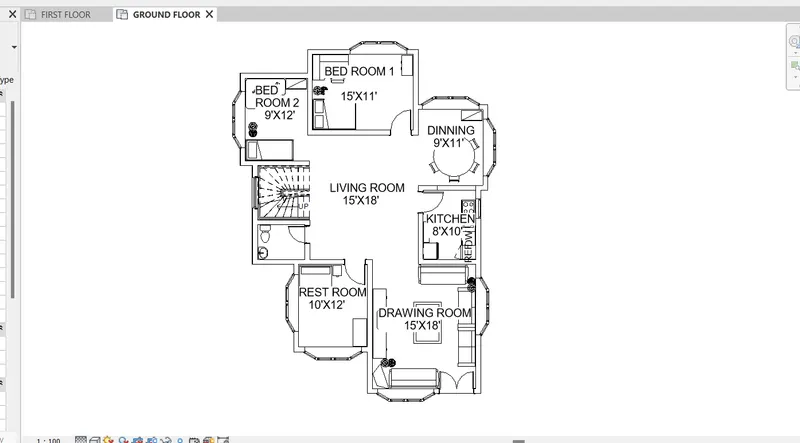

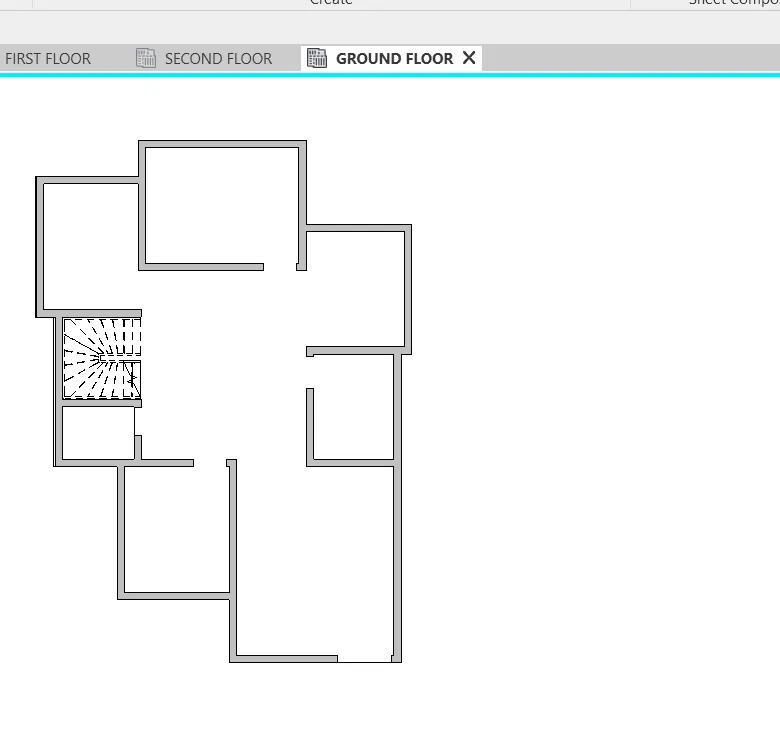

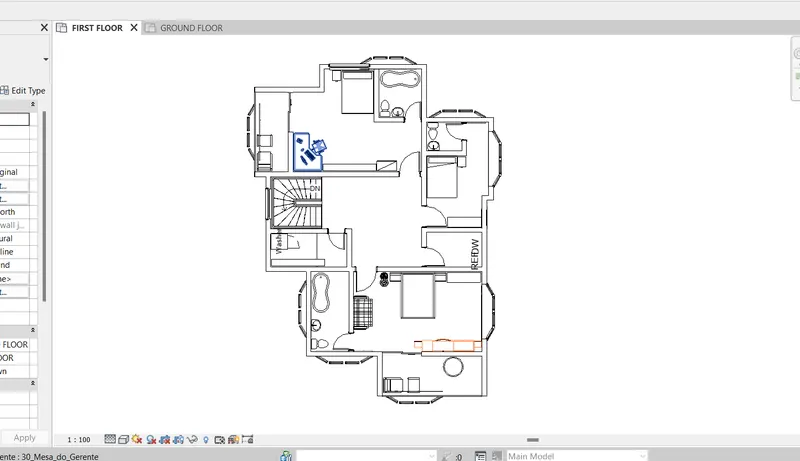

1. ARCHITECTURAL DRAWING :
2. STRUCTURAL DRAWING :
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings in relation to grids. Overall dimensions are sufficient for architectural plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM: To provide Annotation to Architecture and structural plan
PROCEDURE:
1. Click on the Annotated tab in the ribbon
2. opt liner command to determine the dimension for both Architecture and structural plan
RESULT:

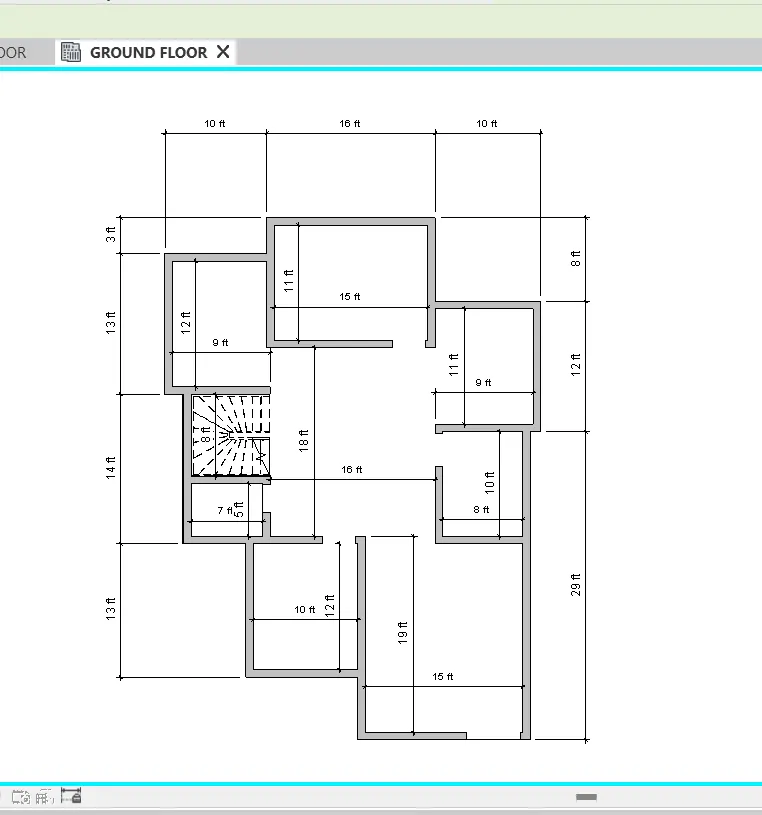

STRUCTURAL PLAN :
ARCHITECTURE PLAN :
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM: To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
PROCEDURE:
1. In the ribbon go to the view tab
2. select the sheet option
3. opt for an appropriate sheet required
4. For this instance ita an A2 metric
RESULT:
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM: To Use the elevation tab to create the elevation views, looking at your building from East, North, South, and West
PROCEDURE :
1. Go into view in the ribbon
2. select view
3. Orient it as per the direction for four directions EAST, WEST, NORTH, AND SOUTH.
RESULT:

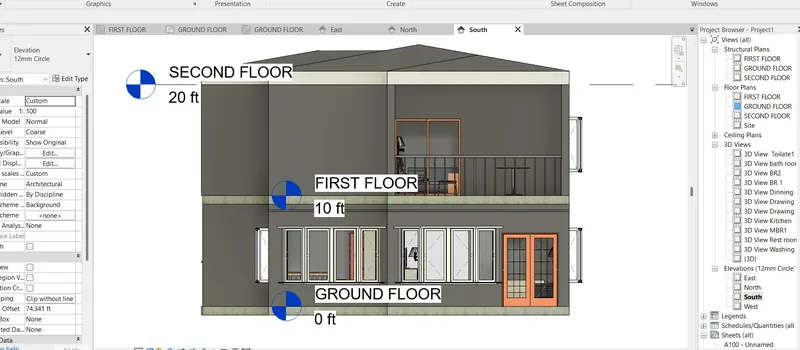

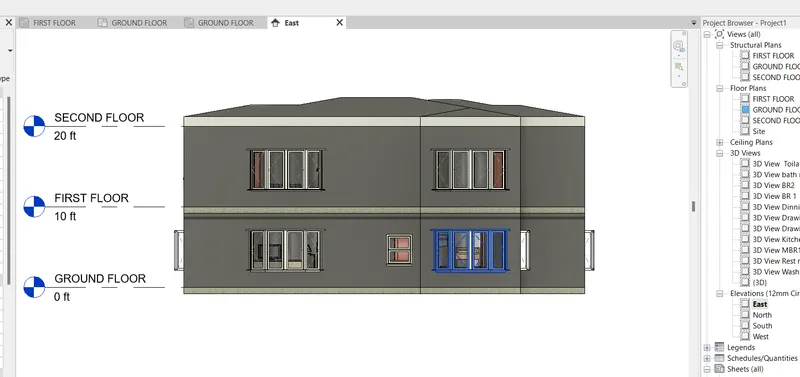

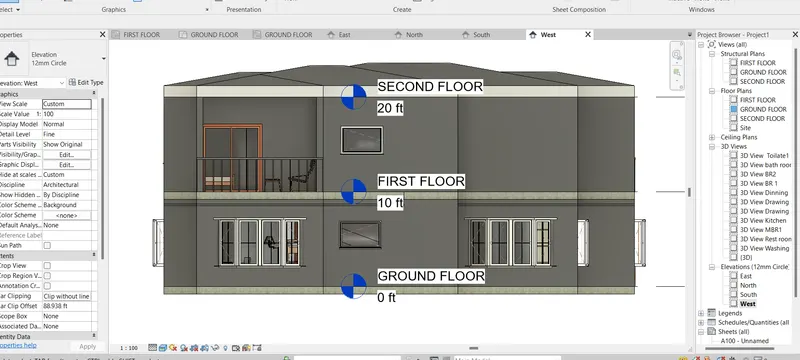

EAST VIEW:

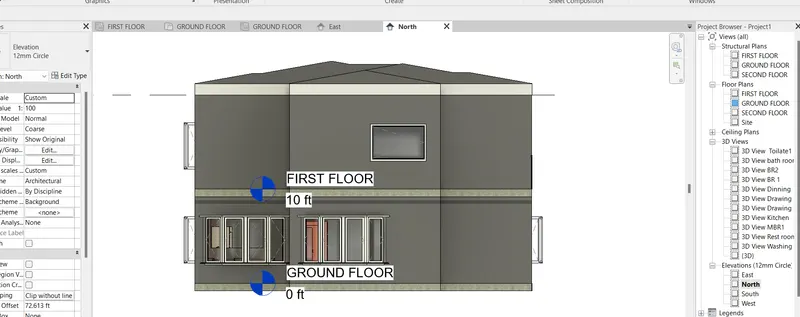

NORTH VIEW:
SPUTH VIEW:
WEST VIEW:
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM: To Produce a section cut through each room either cutting across longitudinally or in a transverse direction
PROCEDURE:
1. In the ribbon go to the view tab
2. select the section option and draw the longitudinal and transverse section
3. After creating a section file if needed
RESULT:

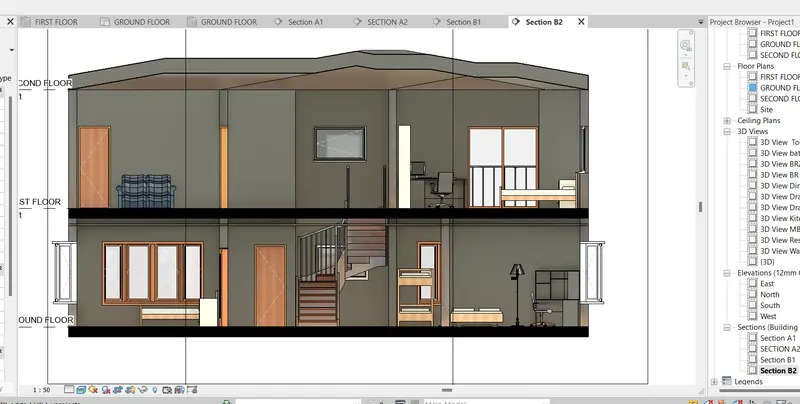

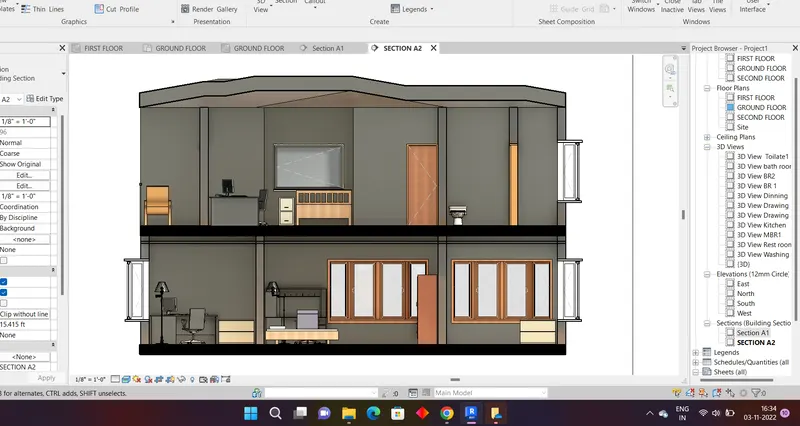

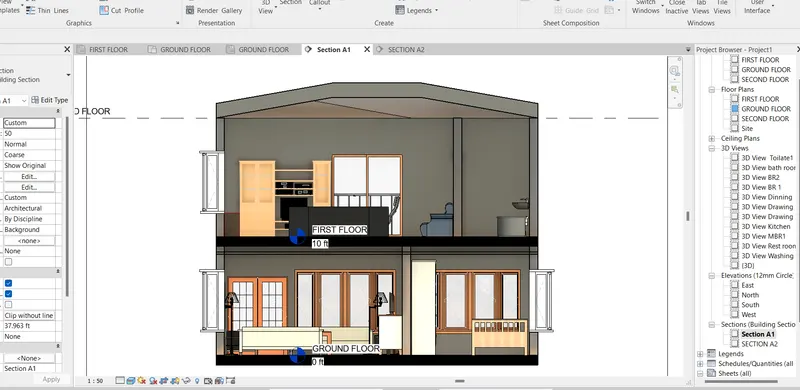

SECTION A1:
SECTION A2:

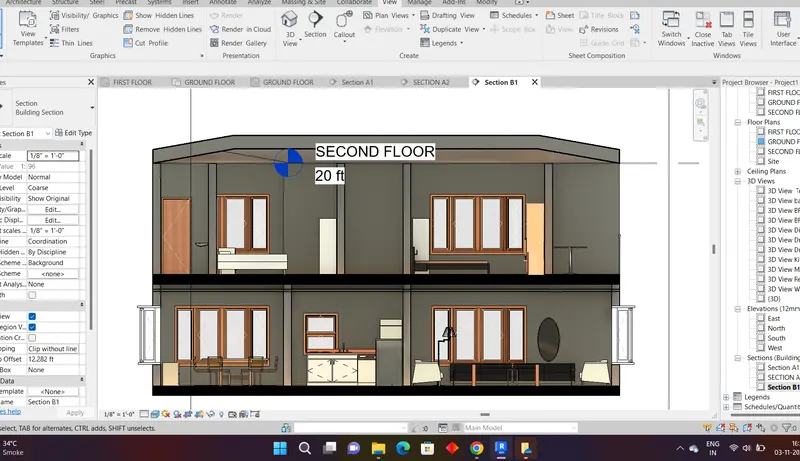

SECTION B1:
SECTION B2:

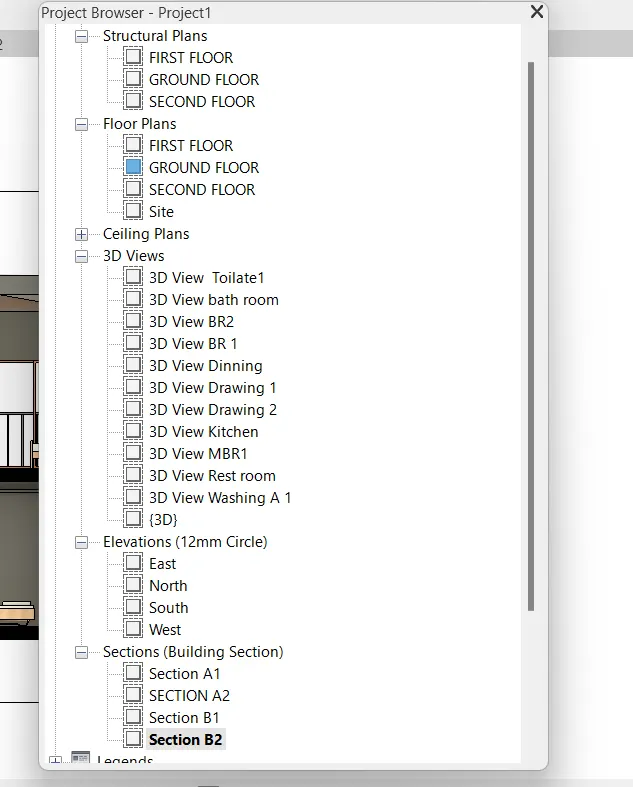

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using the Properties browser
AIM: To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using the Properties browser
RESULT:
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

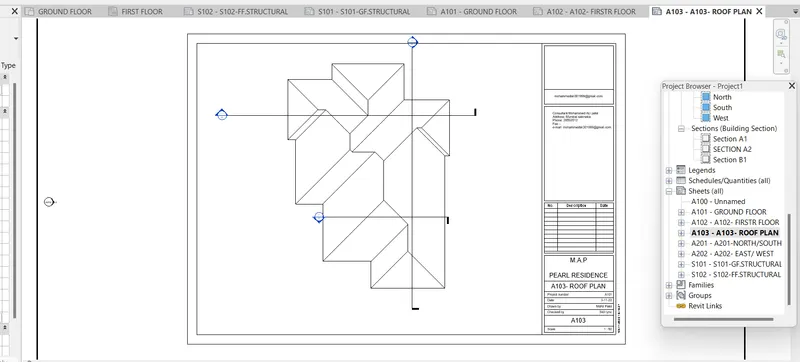

c. A 103- Roof Plan

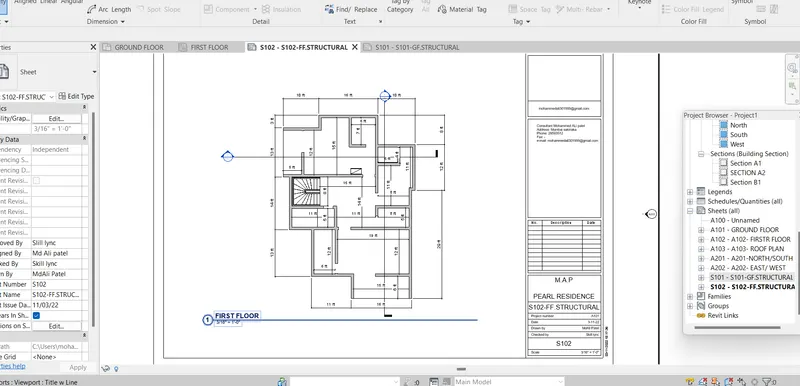

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

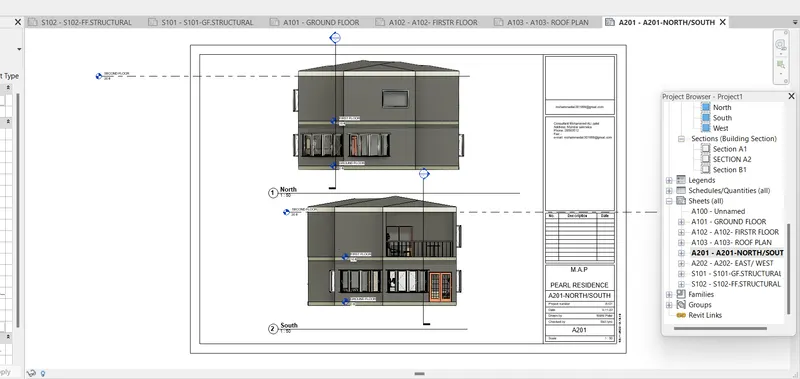

g. A-201- North-South Elevations
h. A-202- East-West Elevations

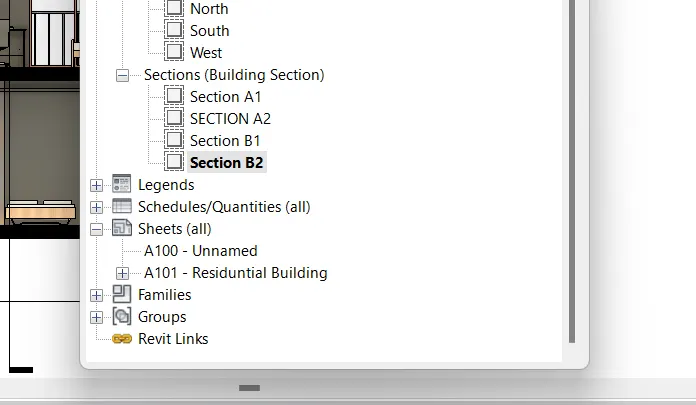

Add additional sheets based on the sections created in your Revit file
AIM: To Using the sheet template produced create multiple sheets as follows
RESULT:

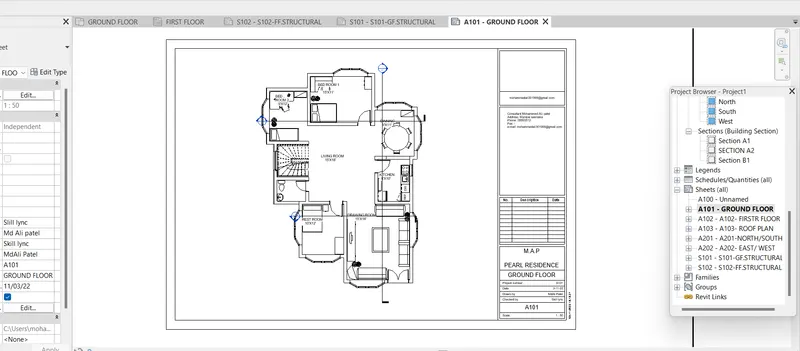

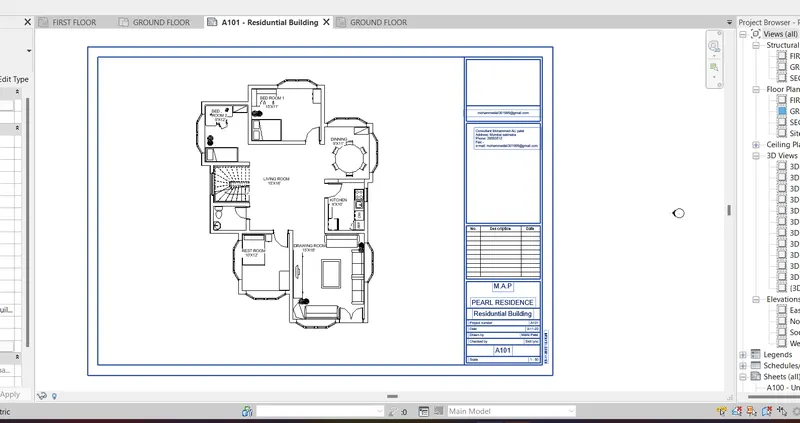

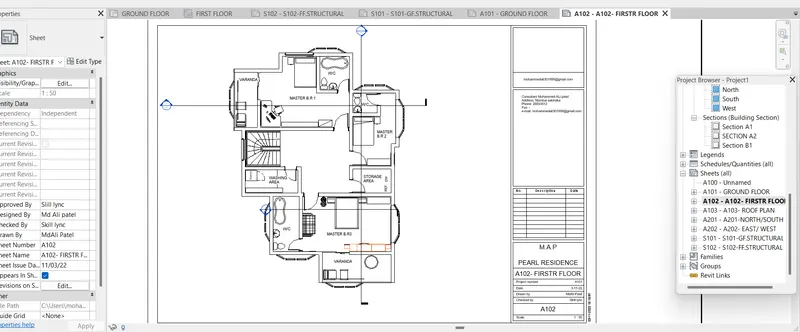

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan

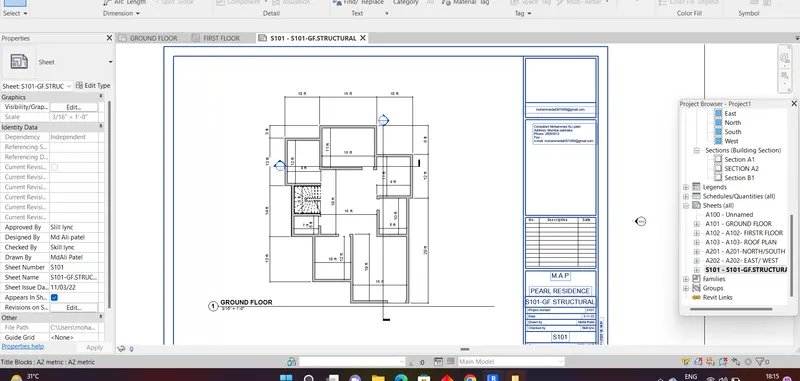

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
F. A-201- North-South Elevations

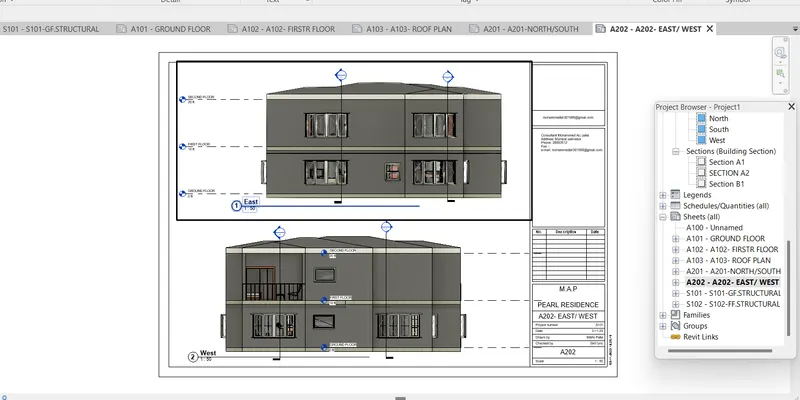

G. A-202- East-West Elevations
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM: To Create a 3d view for the Bedroom, living room, and dining room
PROCEDURE :
1. Go to the view tab
2. Select the camera option and orient it in the particular place in the room from where you can see everything
RESULT:

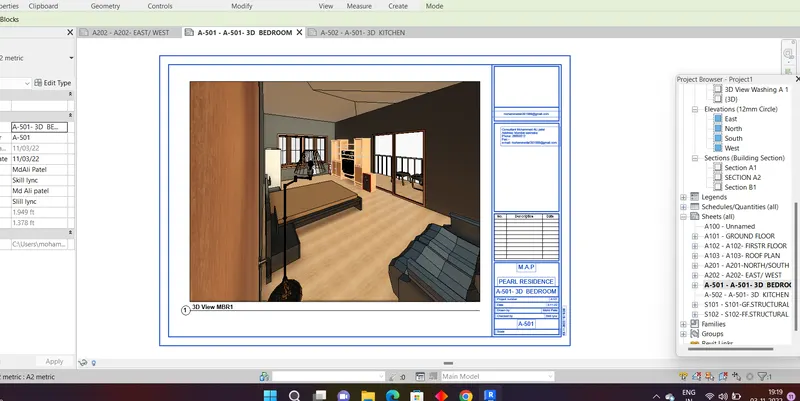

BEDROOM 3D VIEW:

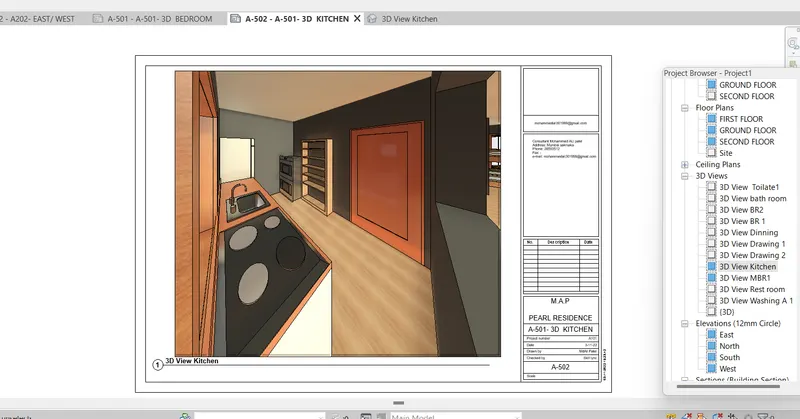

KITCHEN 3D VIEW:

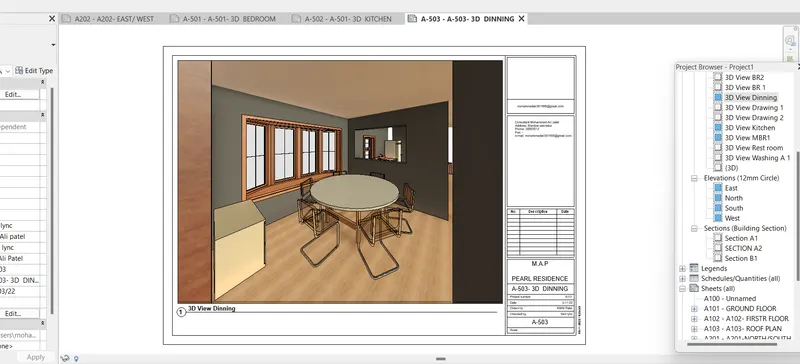

DINNING 3D VIEW:

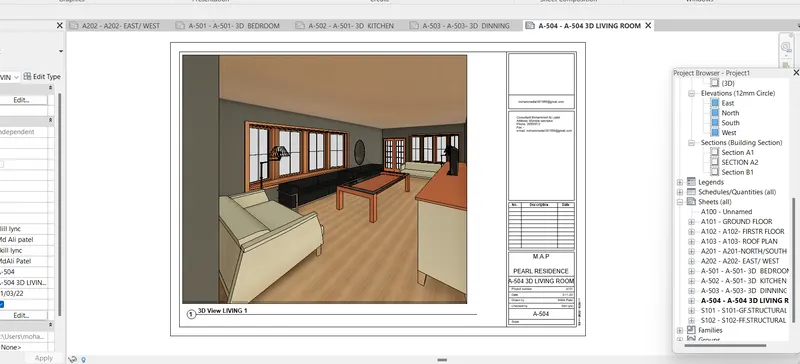

LIVING ROOM 3D VIEW:
