3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

SSai Vihari26 Oct 2022

AIM: Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

INTRODUCTION: Revit is an advanced software used in creating plans, this software is used by multi-disciplinary streams like civl engineering, architectural, mechanical engineering, electrical engineering. Using revit 3d plans can be made perfectly with nice visuals.

PROCEDURE:

1. Revit software is opened by double click on the software.

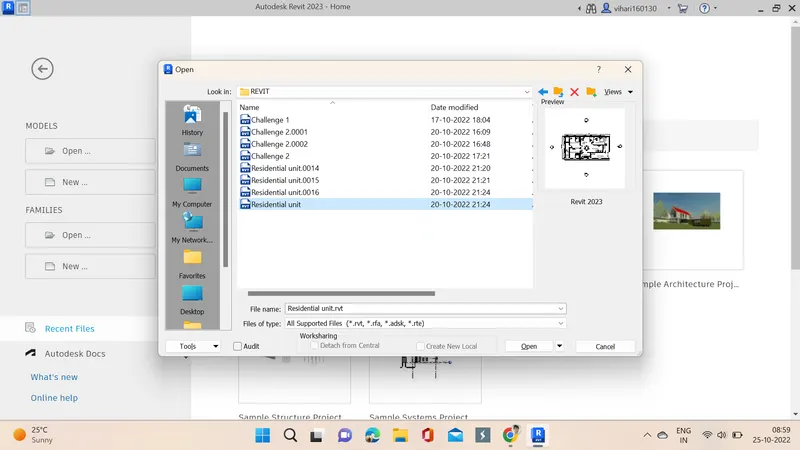

2. Week 3 model is opened from the open files tab.

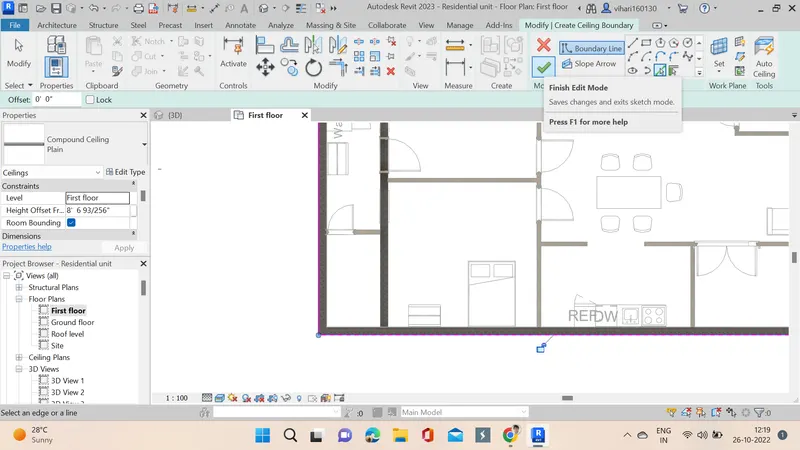

3. From architectural tab ceiling is selected and then sketch ceiling option is selected.

4. Now pick lines are selected to pick outer lines to draw the ceiling for the floor.

5. Edit option is used from the property to design ceiling of our wish according to our plan.

6. 3D view is pressed to open and check how ceiling is placed.

RESULT: Using REVIT software ceiling is created for the residential unit.

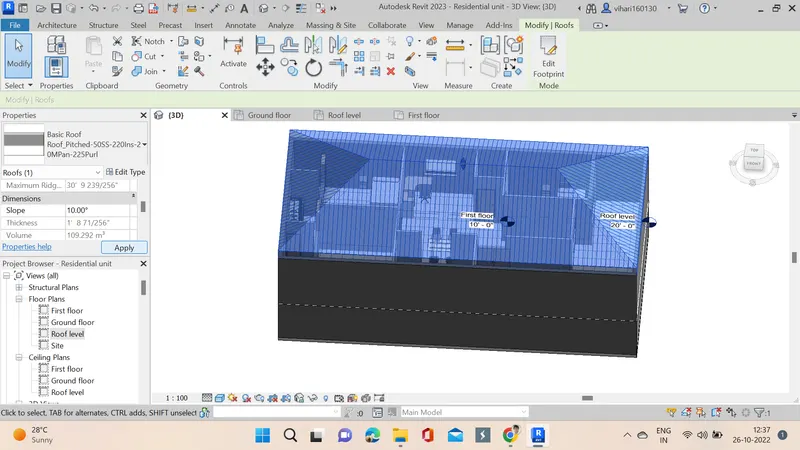

AIM: To model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

PROCEDURE:

1. Revit software is opened by double click on the software.

2. Week 3 model is opened from the open files tab.

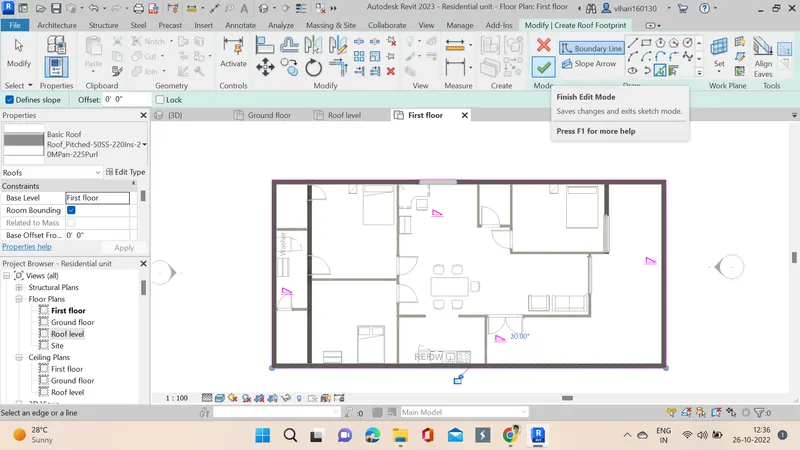

3. Go to the architectural tab, click on roof and in that roof by footprints is selected.

4. In that pick lines option is selected and the outer walls are selected.

5. From edit option in properties necessary changes for the required roof are made.

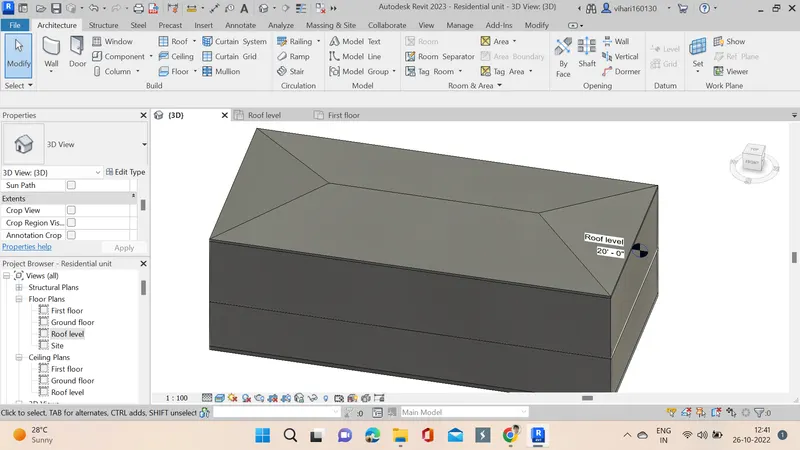

6. The final output of the residential building with roof from 3D view.

RESULT: Using REVIT software roof is created for the residential unit.

AIM: Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

PROCEDURE:

1. Revit software is opened by double click on the software.

2. Week 2 model is opened from the open files tab.

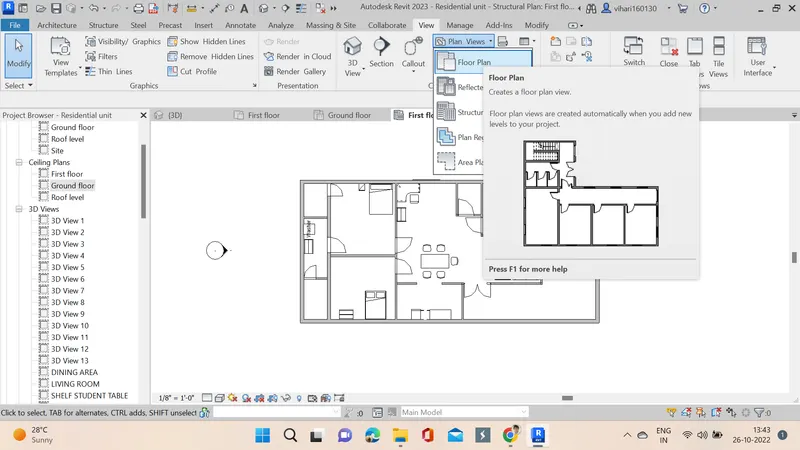

3. Go to view tab and plan view is selected to see the plans

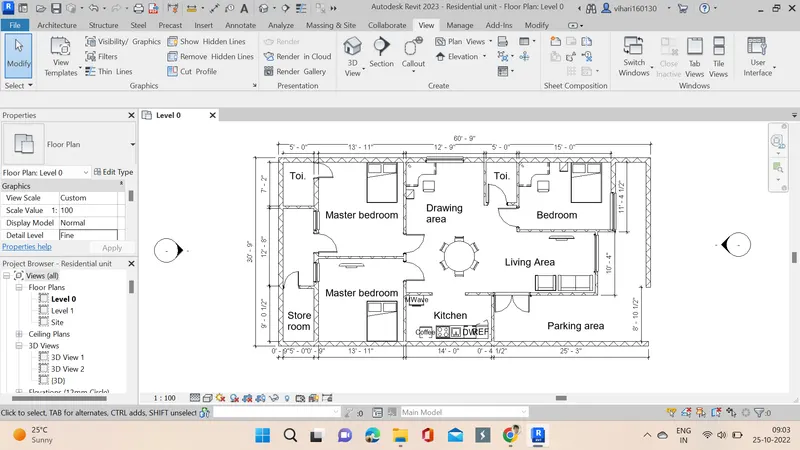

4. The below showing architectural plan contains all the elements.

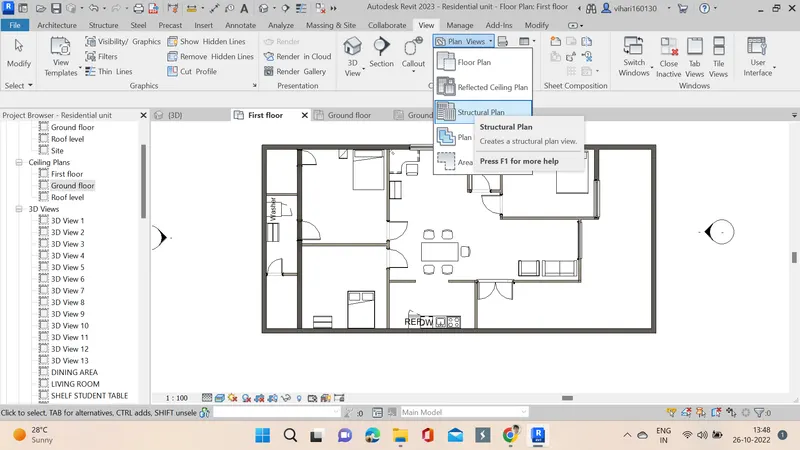

5. The same process is repeated but structural plan is selected for the different floor levels.

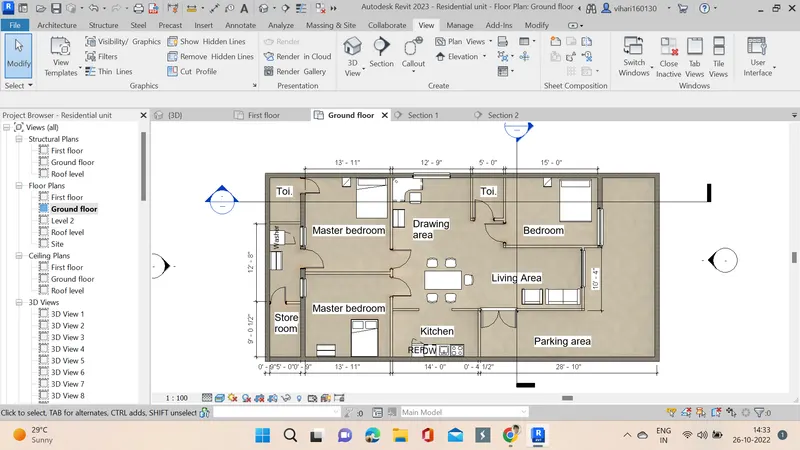

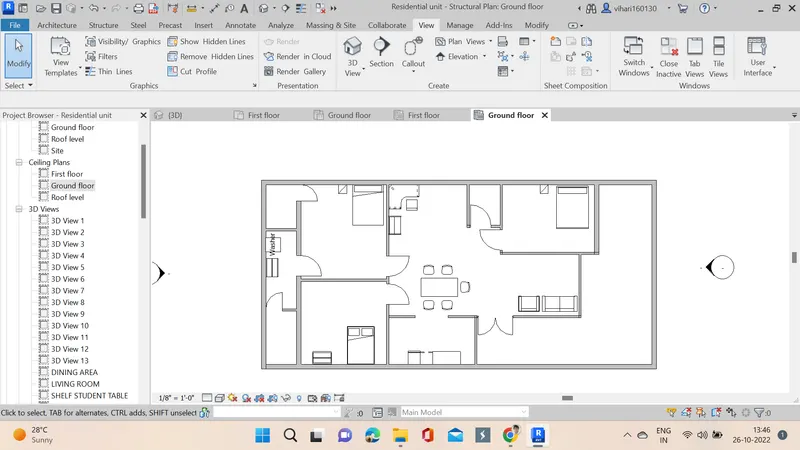

a. Showing ground floor plan

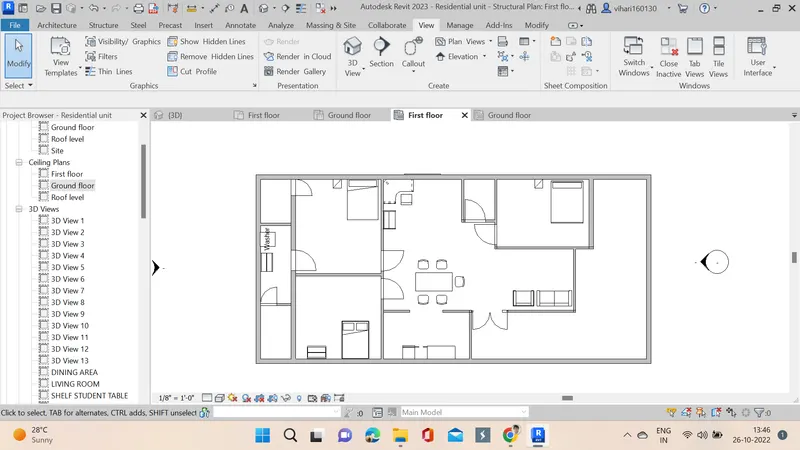

b. Showing first floor plan

RESULT: Using REVIT software architectural and structural plans are created.

AIM: Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

PROCEDURE:

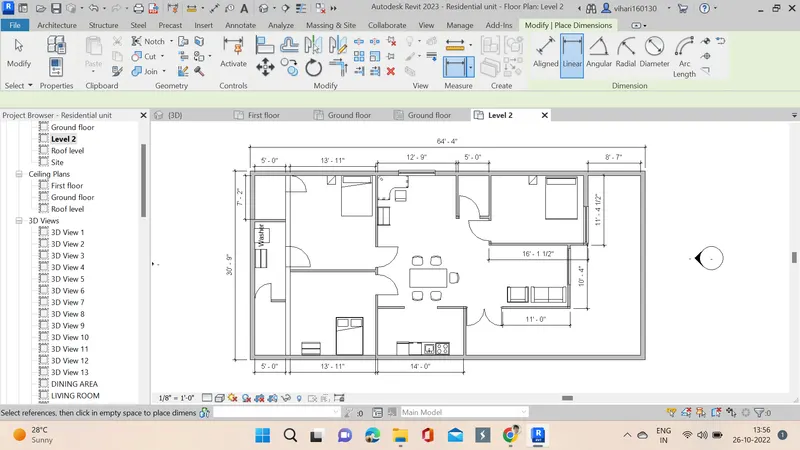

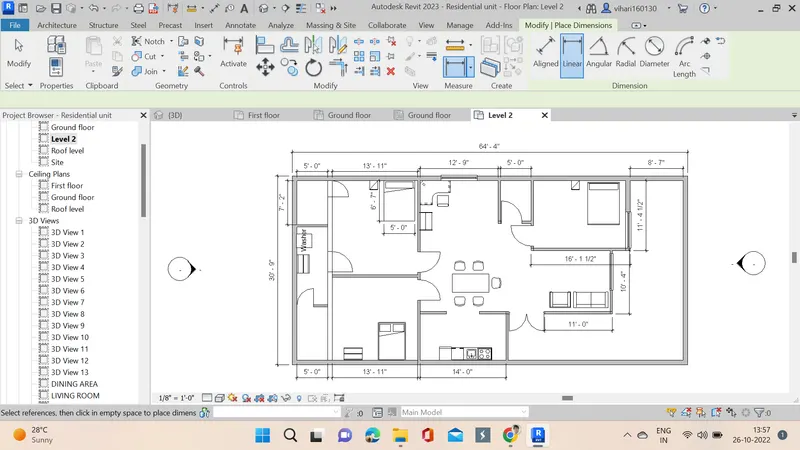

By using the view option plans are specifed for each of them now annotate tab is clicked, and then dimensions are specified for each of the plans like architectural and structural plans.

RESULT: Using REVIT software dimensions of the architectural and structural plans are specified.

AIM: To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

PROCEDURE:

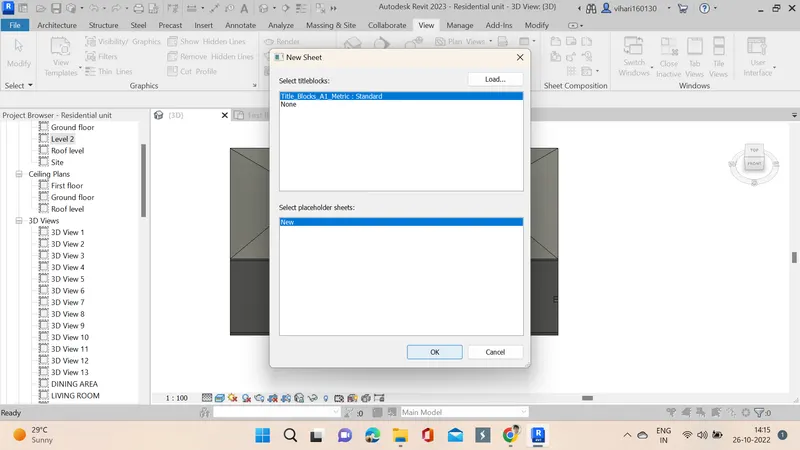

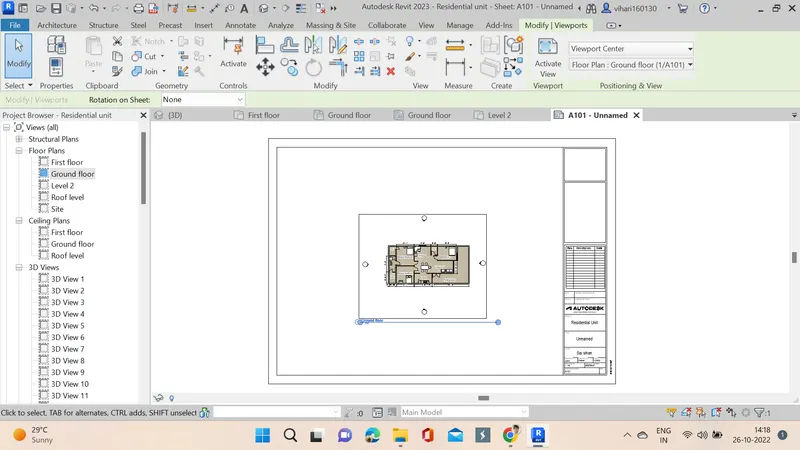

For the residential building we need to provide them in sheet for that we need to go to view tab and select sheet and create and then required floor is placed by simply dragging it into the sheet.

RESULT: Using REVIT software a sheet is created for the residential building.

AIM: Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

PROCEDURE:

Going to elevation view to the left corner we need to click on the east, west, north, south views are created.

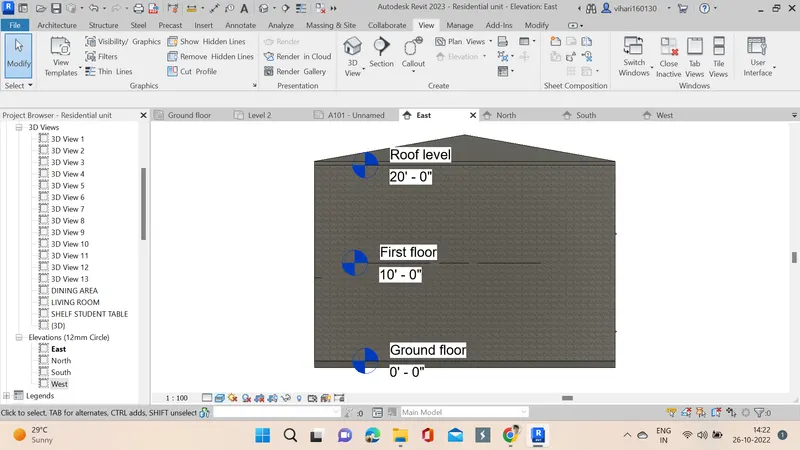

EAST VIEW:

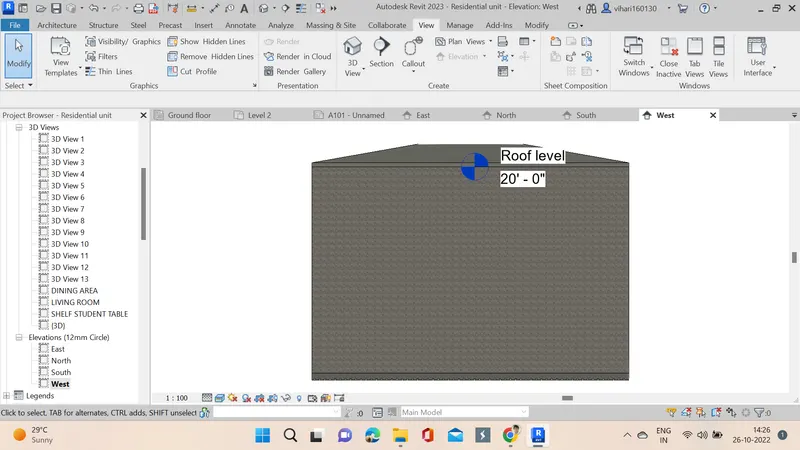

WEST VIEW:

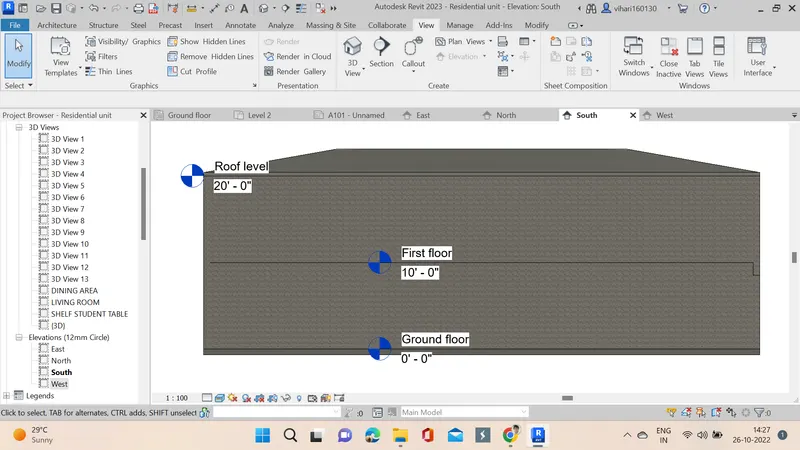

SOUTH VIEW:

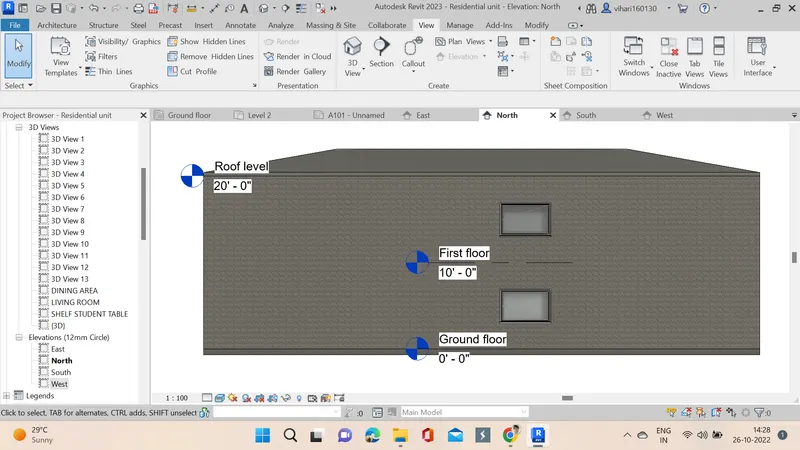

NORTH VIEW:

RESULT: Using REVIT software elevation views east, west, north and south are created for the residential building.

AIM: To produce section cut through each room either cutting across longitudinally or in a transverse direction

PROCEDURE:

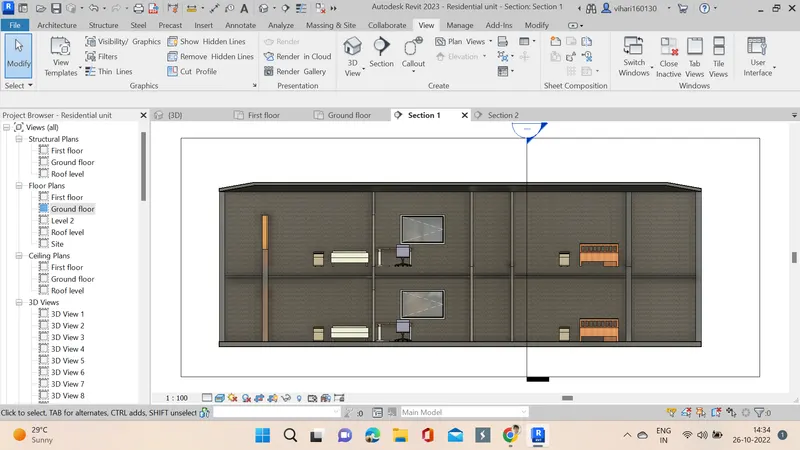

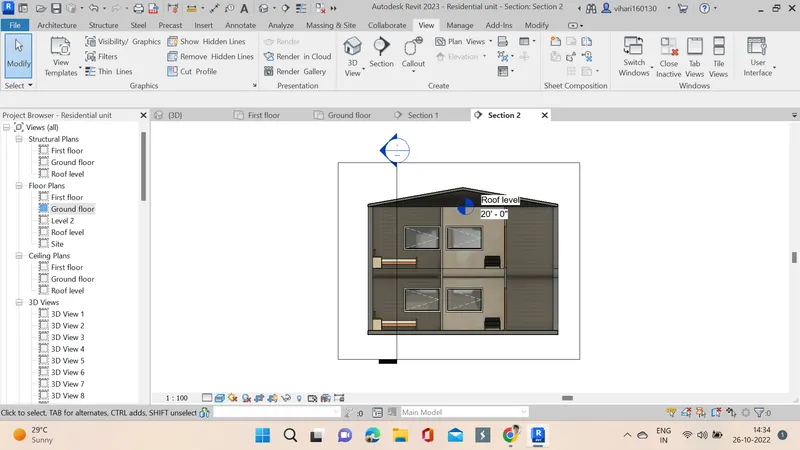

To produce sections we need to go to the view and select section and draw sections as per the requirement, these can be seen by double clicking that section. Two sections one longitudinally and transversw direction are created which are shown below.

RESULT: Sections are created for the residential building using the REVIT software.

AIM: To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

PROCEDURE:

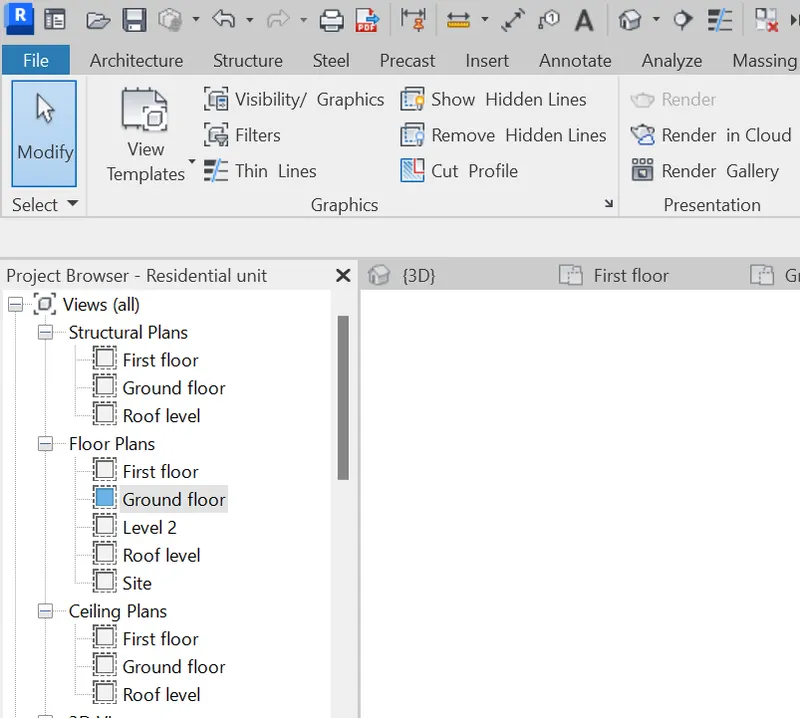

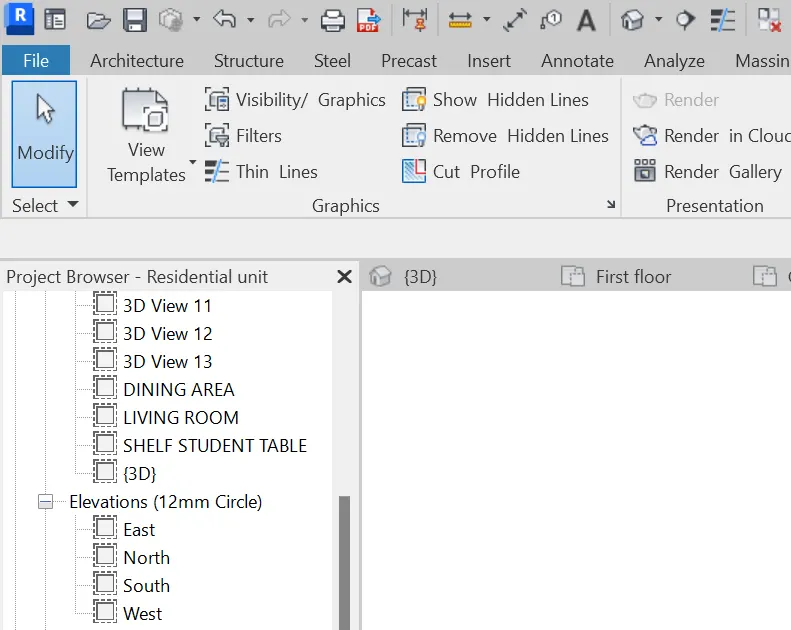

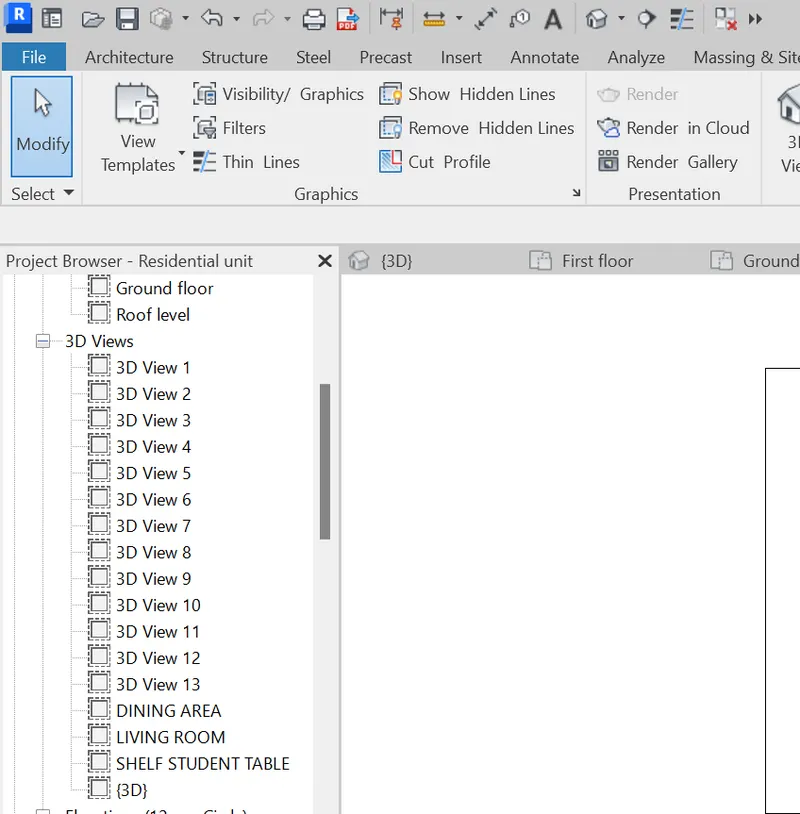

To classify the views we need to go to the project browser and click on views to open, then by clicking on the + icon we can drop down all the necessary views like structural plan views, floor plan views, ceiling plan views, 3D views, elevation views.

RESULT: Using revit software the views in different aspects are specified.

AIM: Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

PROCEDURE:

Now sheets are produced or created as above done for each of the views. Go to view tab click on sheet and create new sheet.

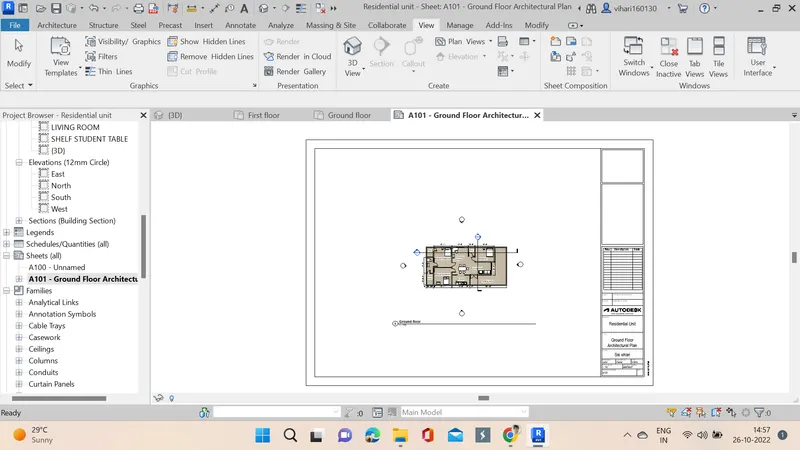

1. A101 - Ground Floor Architecture Plan

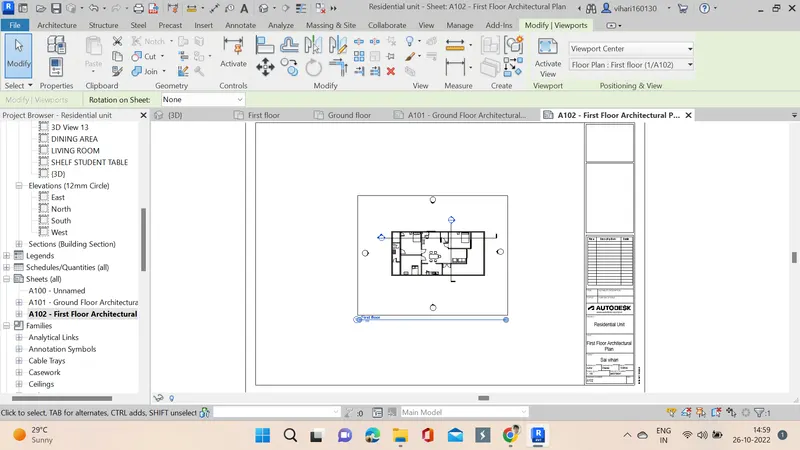

2. A102 - First Floor Architecture Plan

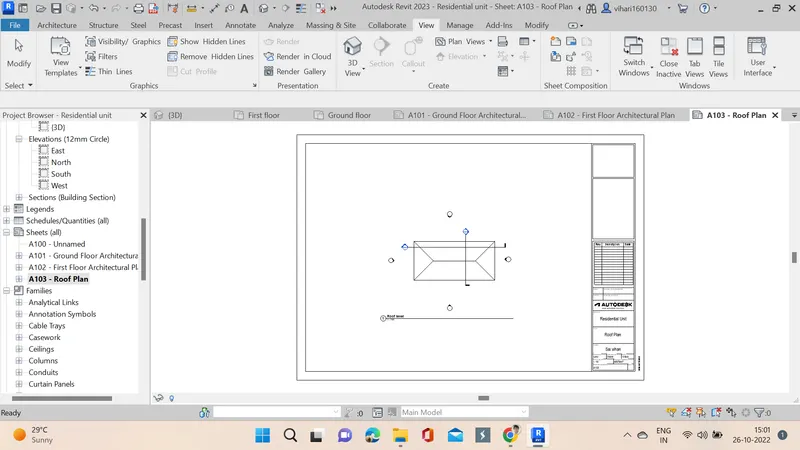

3. A103 - Roof Plan

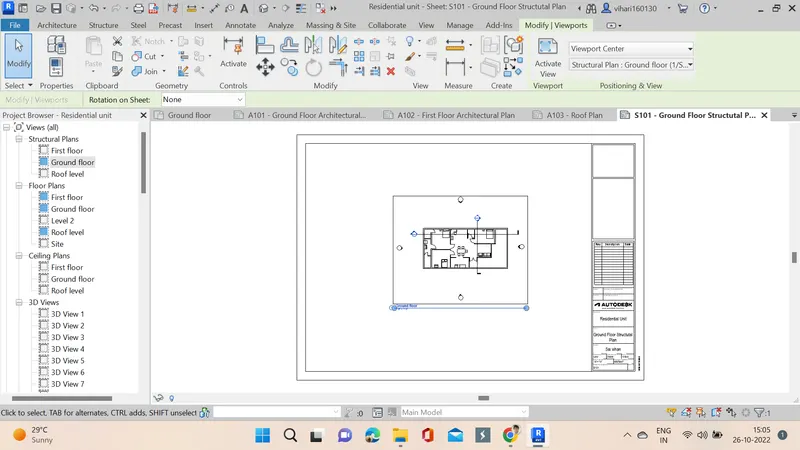

4. S101 - Ground Floor Structural Plan

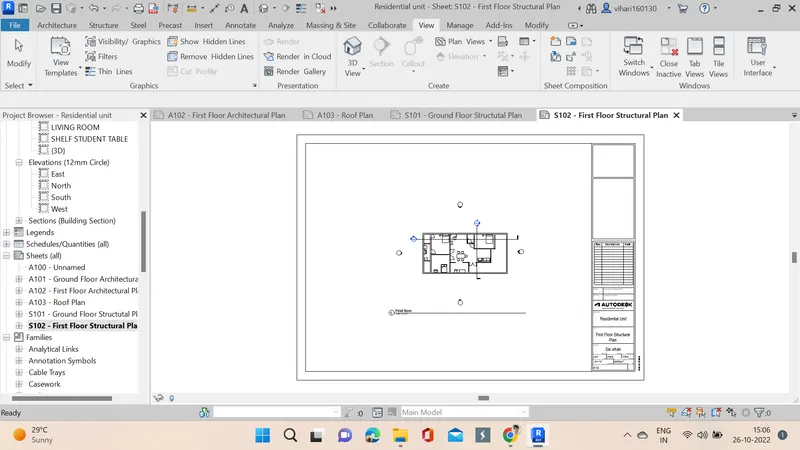

5. S102 - First Floor Structural Plan

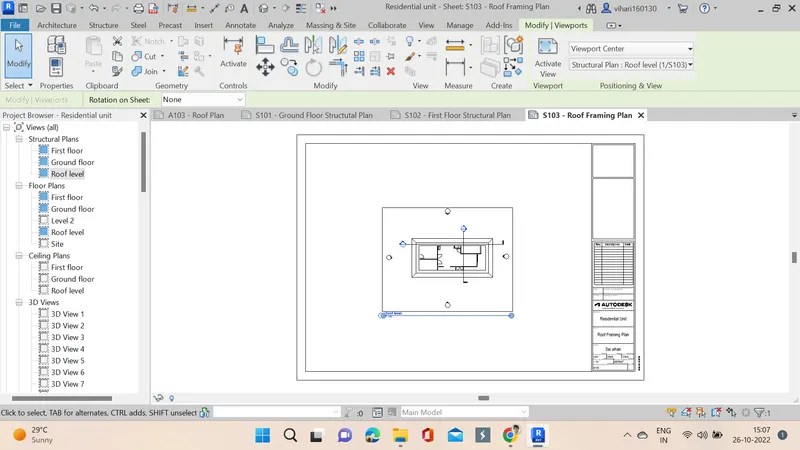

6. S103 - Roof Framing Plan

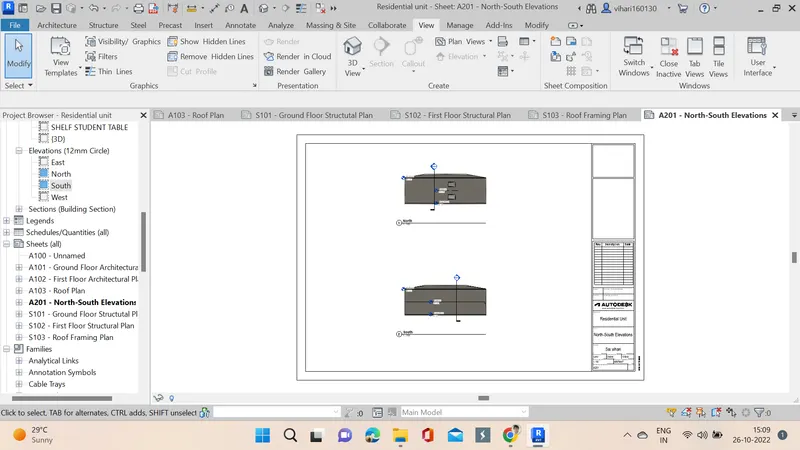

7. A201 - North-South Elevations

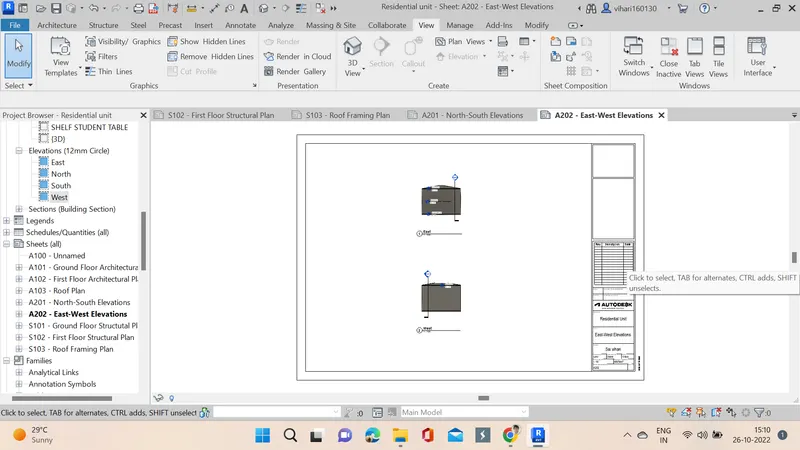

8. A202 - East-West Elevations

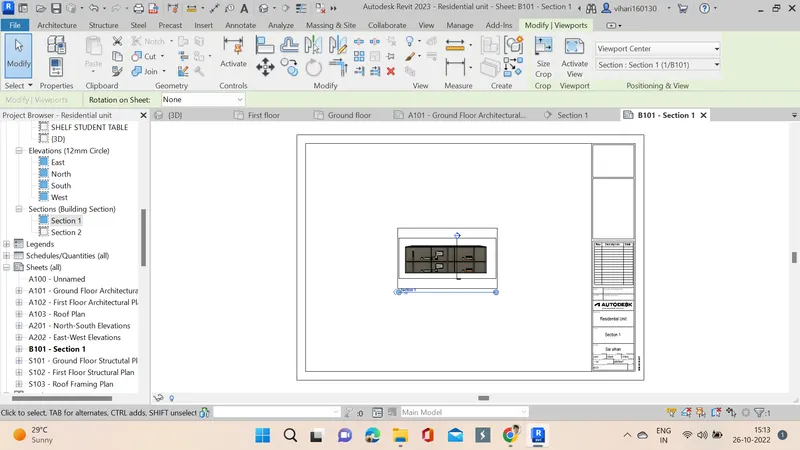

9. B101 - Section 1

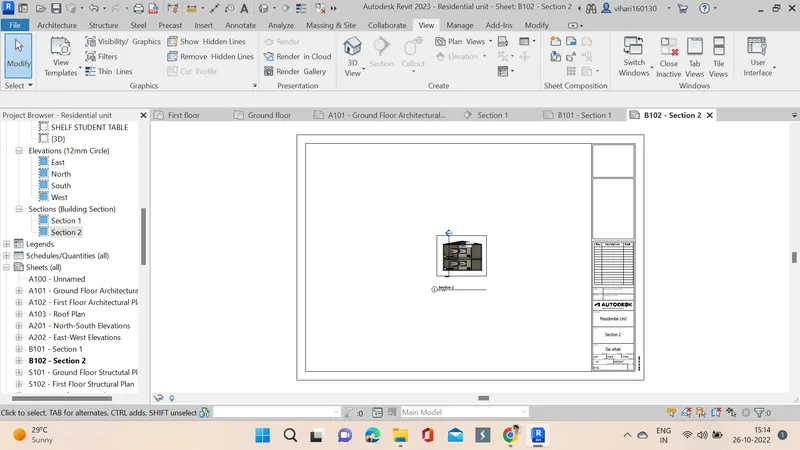

10. B102 - Section 2

RESULT: Using REVIT software sheets for each and every section, plan views,elevated views are created.

AIM: To create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

PROCEDURE:

Now sheets are produced or created as above done for each of the views. Go to view tab click on sheet and create new sheet. In this new sheets camera view is created.

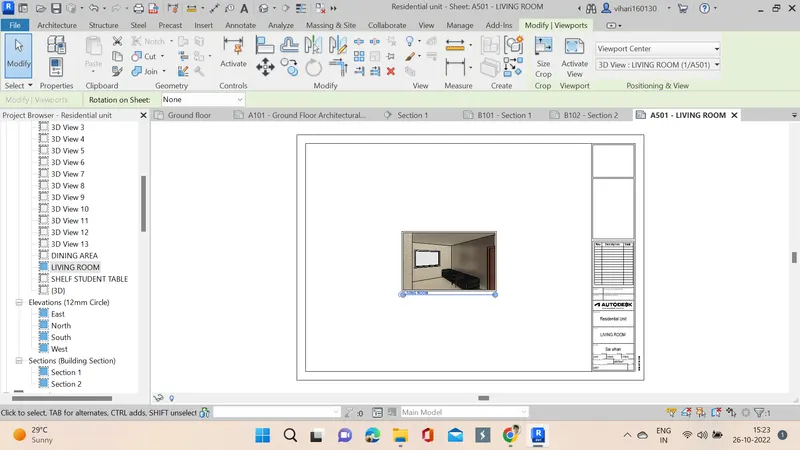

1. A501 - LIVING ROOM

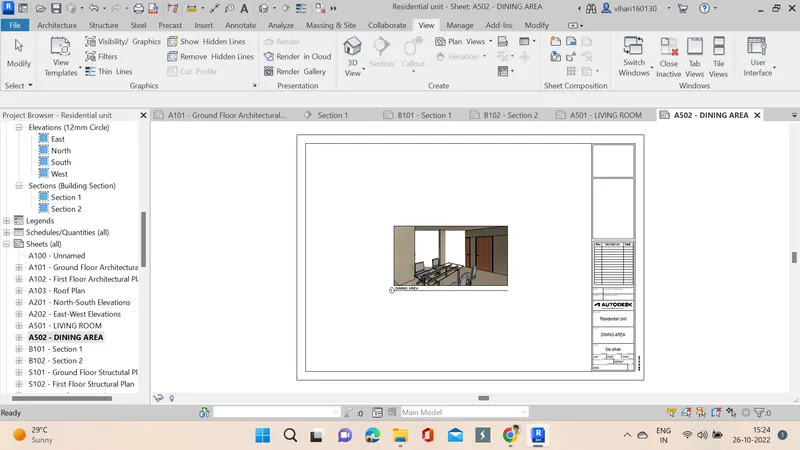

2. A502 - DINING AREA

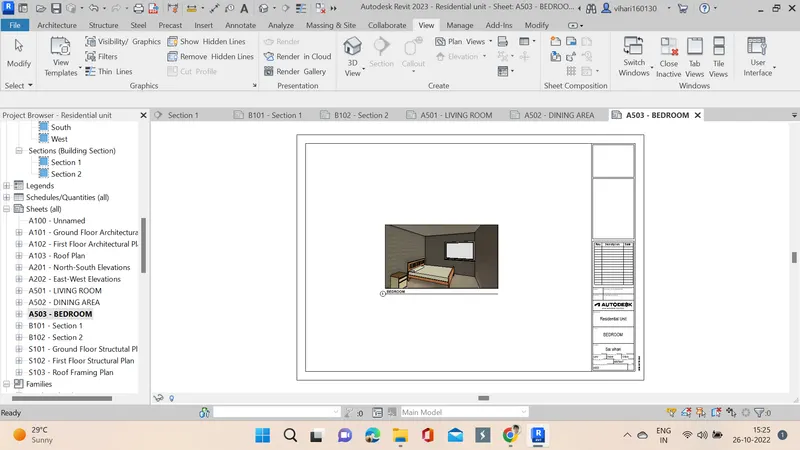

3. A503 - BEDROOM

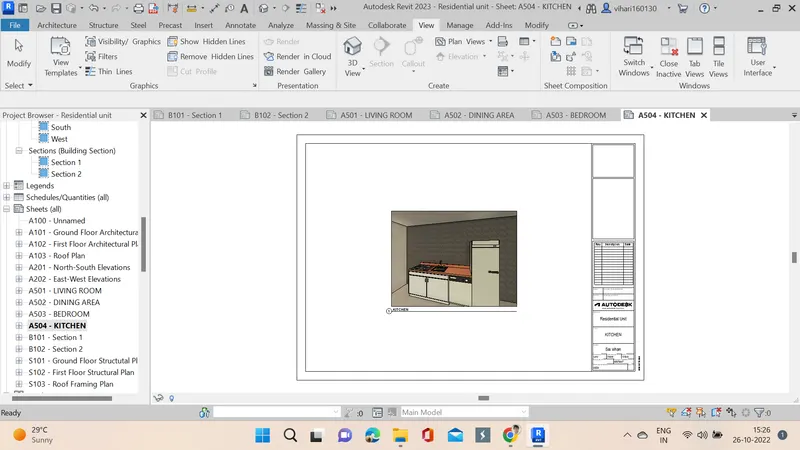

4. A504 - KITCHEN

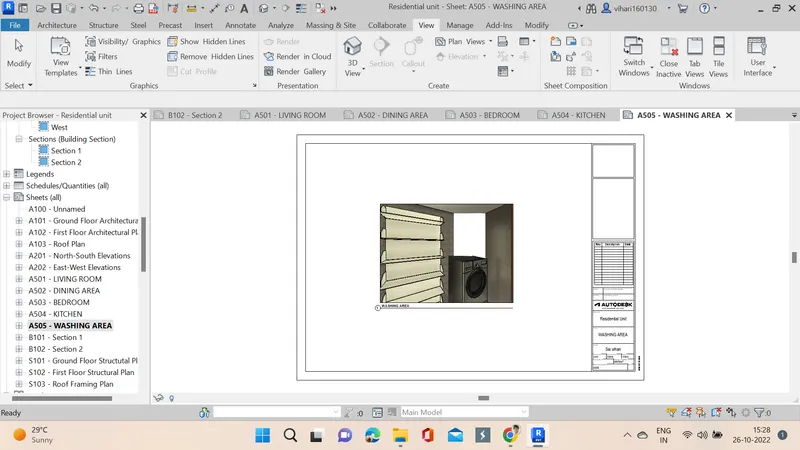

5. A505 - WASHING AREA

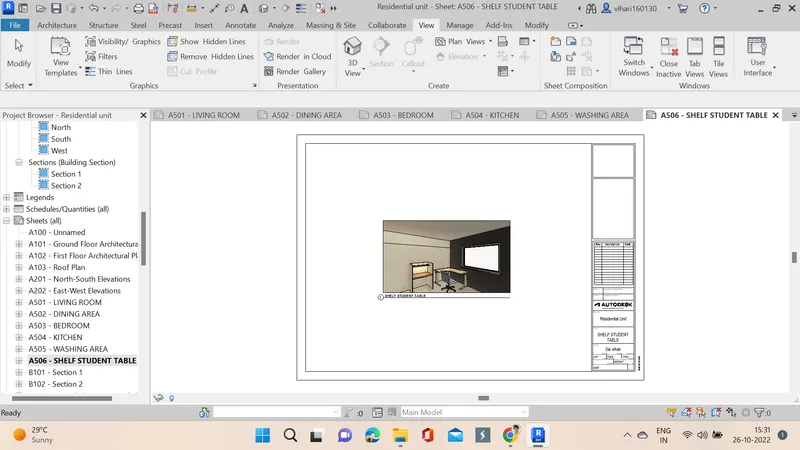

6. A506 - SHELF STUDY TABLE

RESULT: Sheets are produced to show case the 3d views by using camera view using REVIT software.
