3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

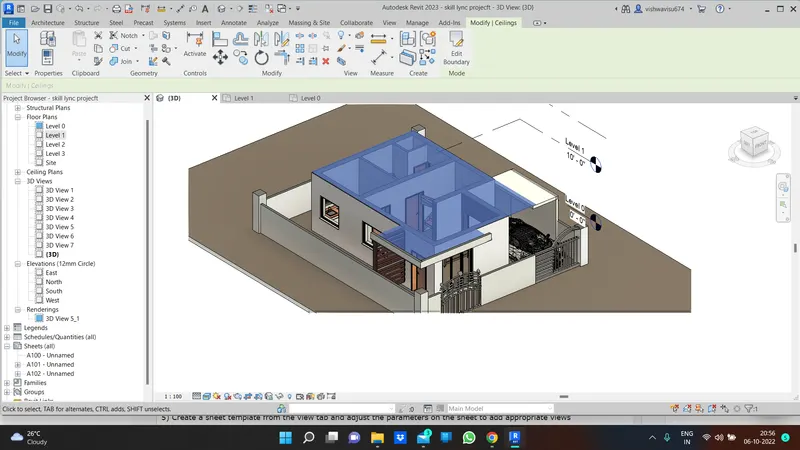

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

aim:
to create ceiling in the existing week 3 project in architectuire tab
procedure:
im gonna make the ceiing for the resident first i open the arch tab click the ceiling we got some modify option to make the ceiling in the first floor level.

result:

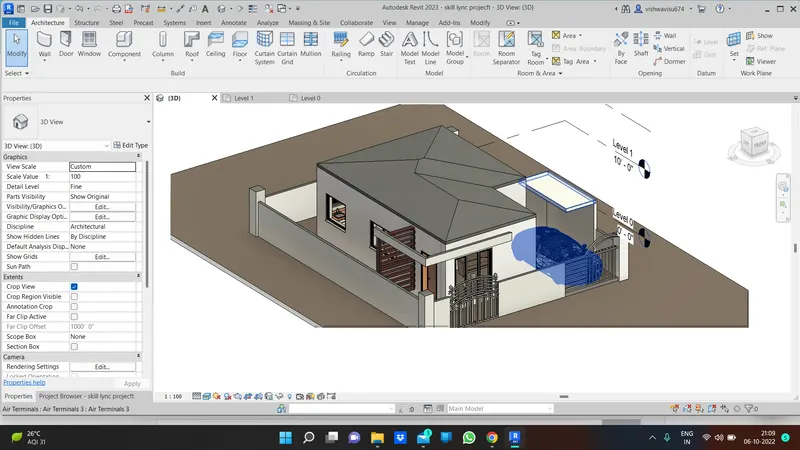

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

ans:
to create the roof with 10 degree slope

procedure:
in arch tab click im click the roof command to create the roo in level 1and take 10 degree of slope to make the roof sloped

result:

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

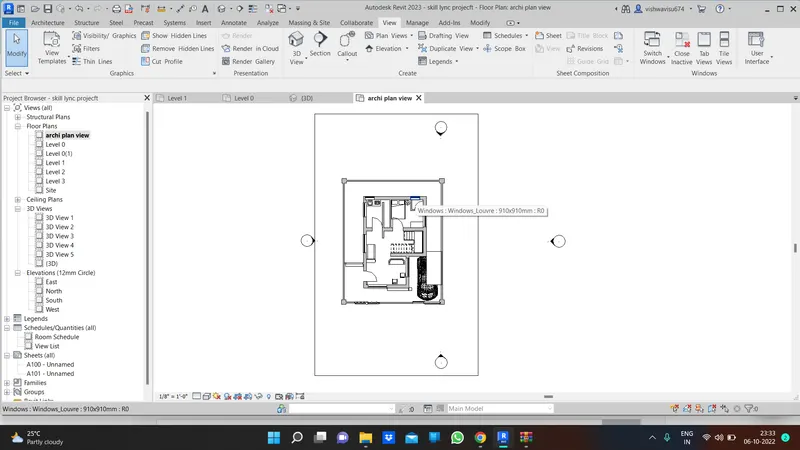

a. Architecture plan must have walls, floors, and all the components placed within the building

aim: To create plan view of the architecture .

procedure :
in view tab click plan view to get the archi plan view
in archi we could see walls window doors etc..

result:

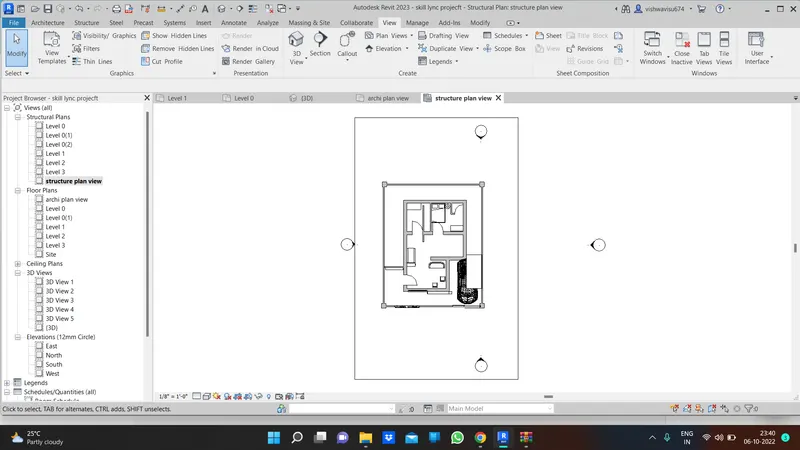

b. Structure plan must have details of only walls, floors, and columns

aim:
to create the strucure plan view

procedure:
in view tab click plan view to get the structure plan view
in archi we could see walls ,colums , beam like sructure elements etc..
result:

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

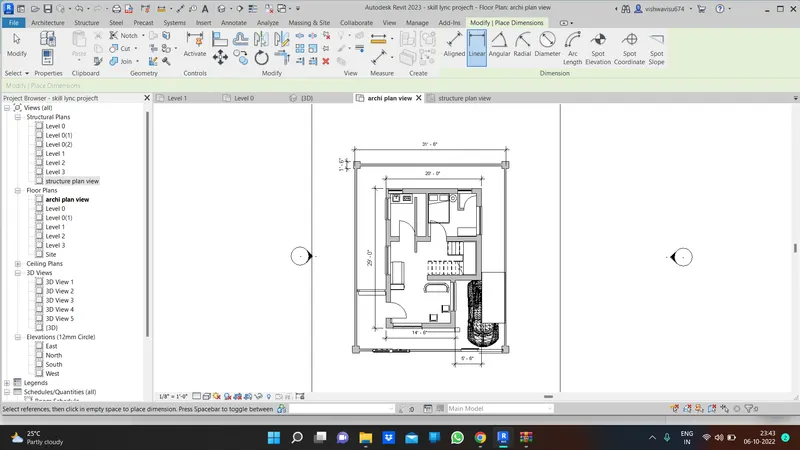

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
ans:
aim:
annotate the archi plan view building

procedure:
open annotate take linear to measure dim in archi view
reesult:

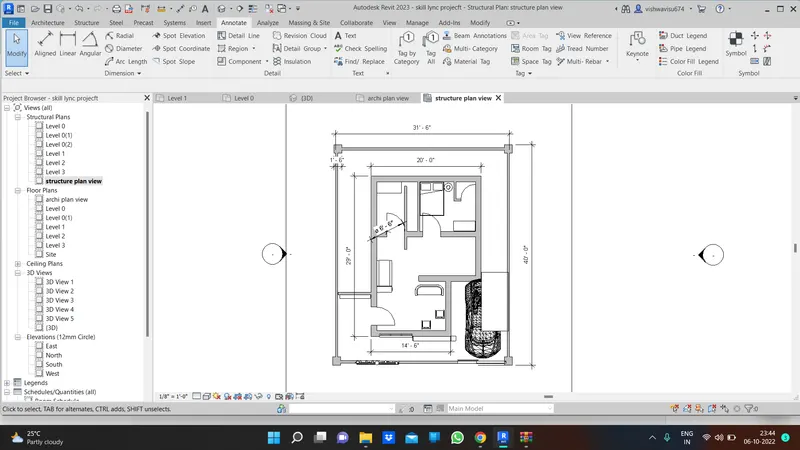

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
aim:
annotate the structure plan view building

procedure:
open annotate take linear to measure dim of str plan view

result:

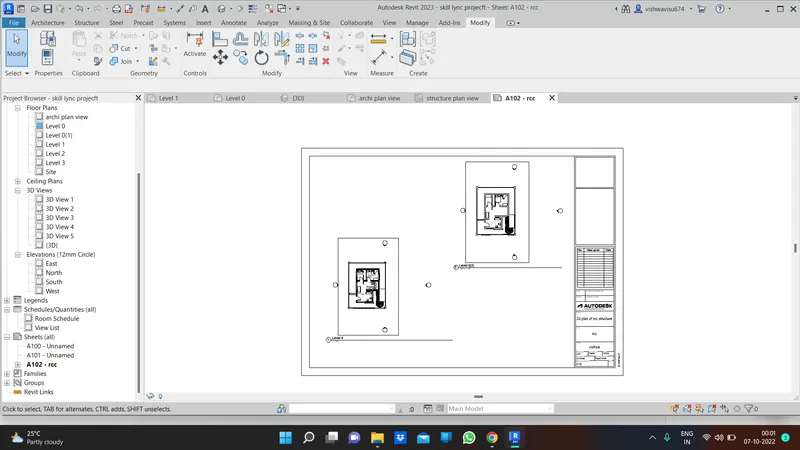

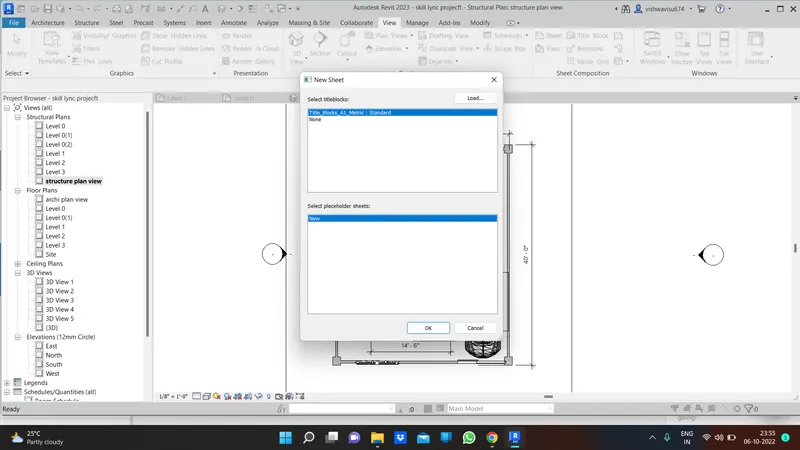

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
ans:
aim:
Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

procedure:
to open view and select sheets to open the new sheets and the parameters has edited and insert the appropriate view in the sheets ..

result:

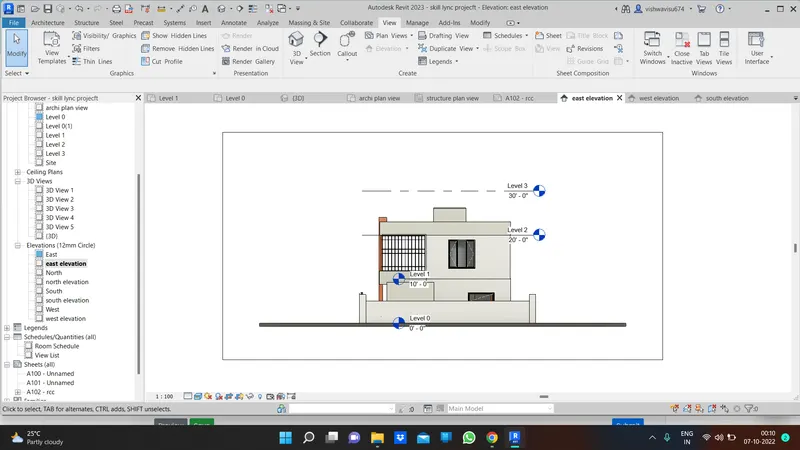

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

ans:
aim:
Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

procedure:
im just create the elevation of the building using elevatiuon tab un below result i been attach the east west north south elevation


result:

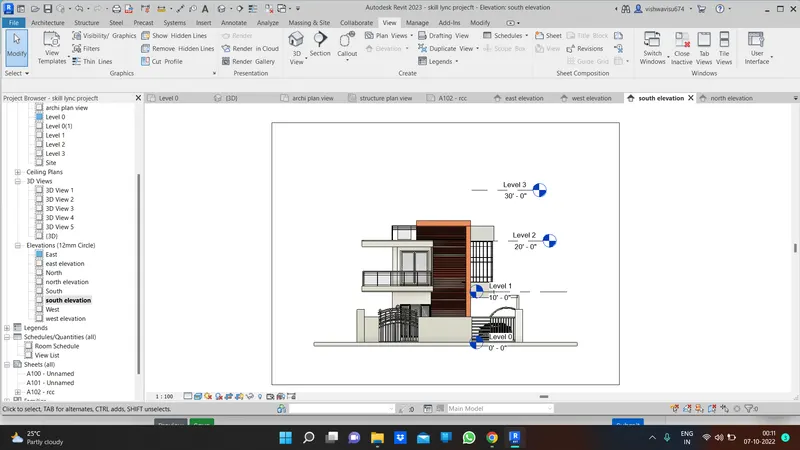

SOUTH

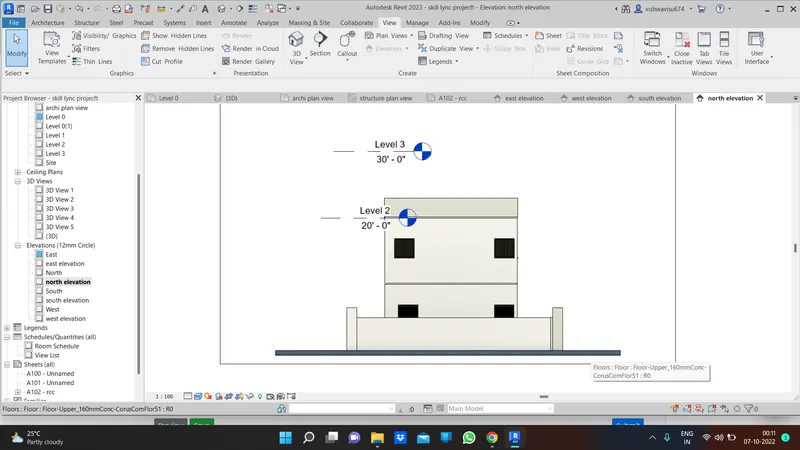

NORTH

EAST

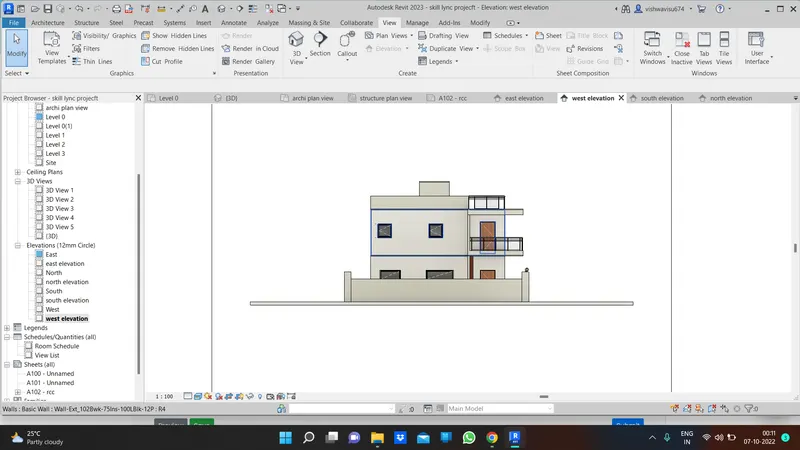

WEST

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
ans:
aim:
Produce section cut through each room either cutting across longitudinally or in a transverse direction
procedure:
use section opt to cut either kitchen and bedroom in my assumption
i cut the kitchen as transvere direction
the cut the bedroom as longitudinal direction
result :

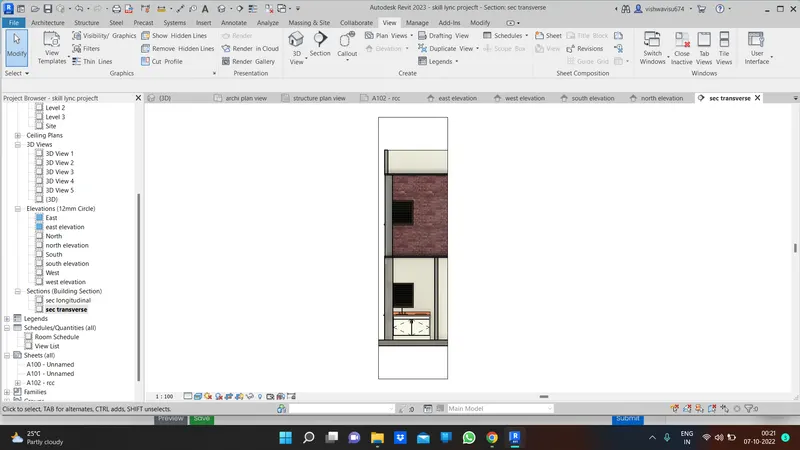

sec transverse

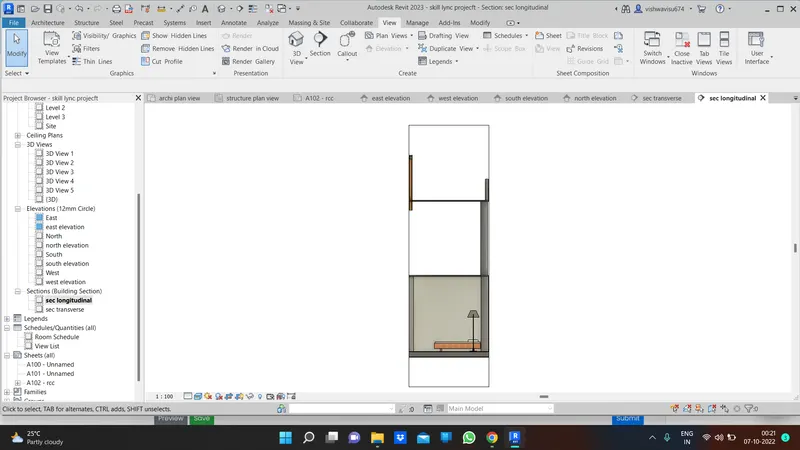

sec longitudinal

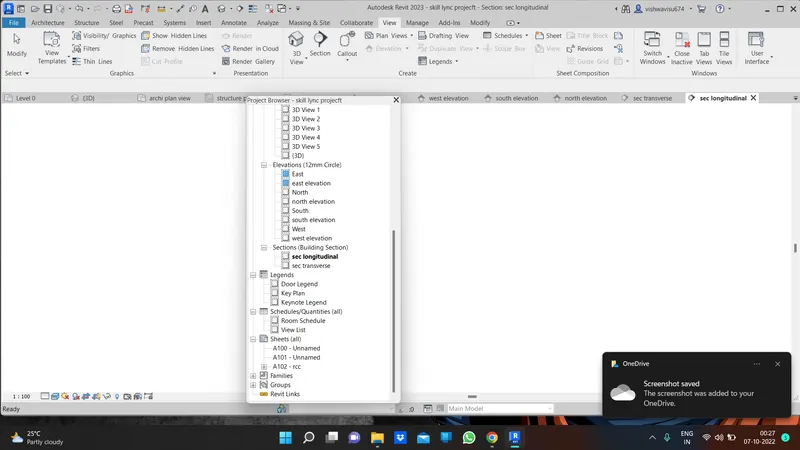

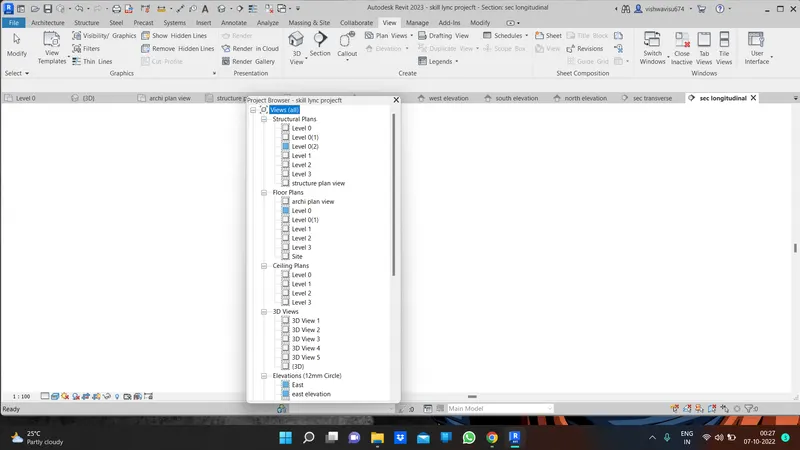

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
ans :
pic:

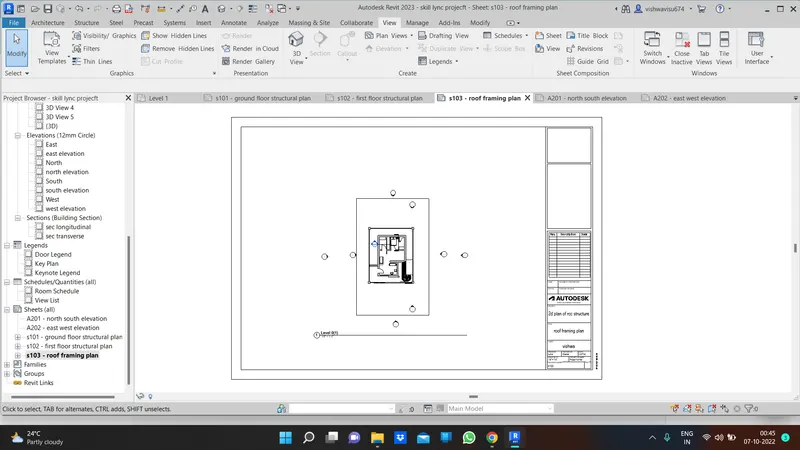

9) Using the sheet template produced create multiple sheets as follows

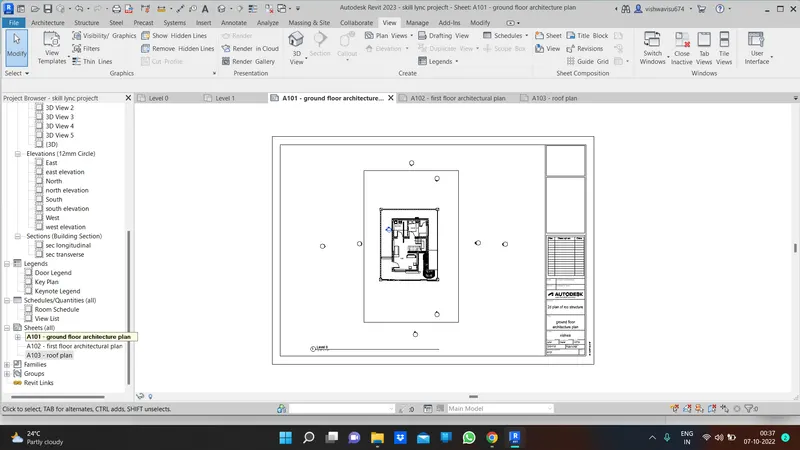

a. A 101- Ground Floor Architecture Plan

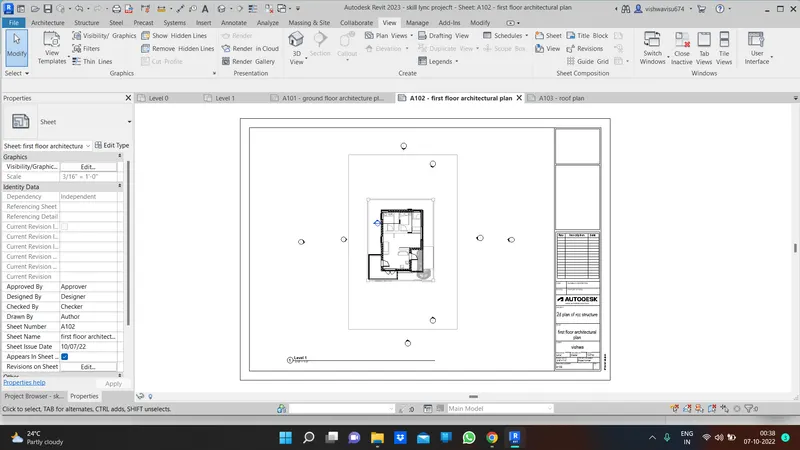

b. A 102- First Floor Architecture Plan

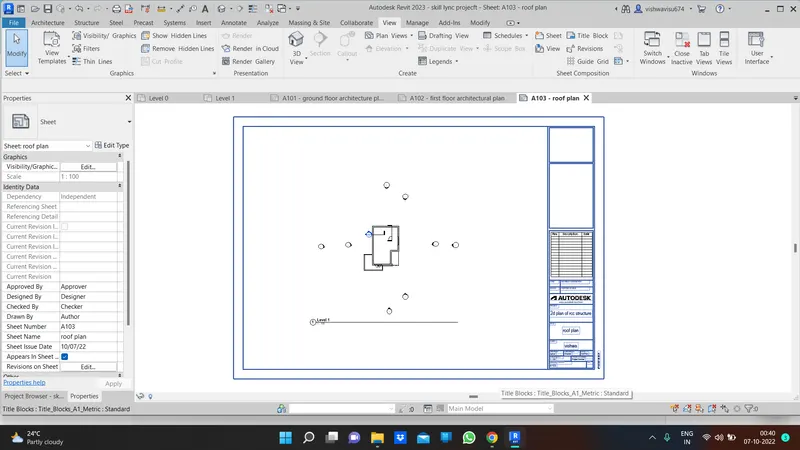

c. A 103- Roof Plan

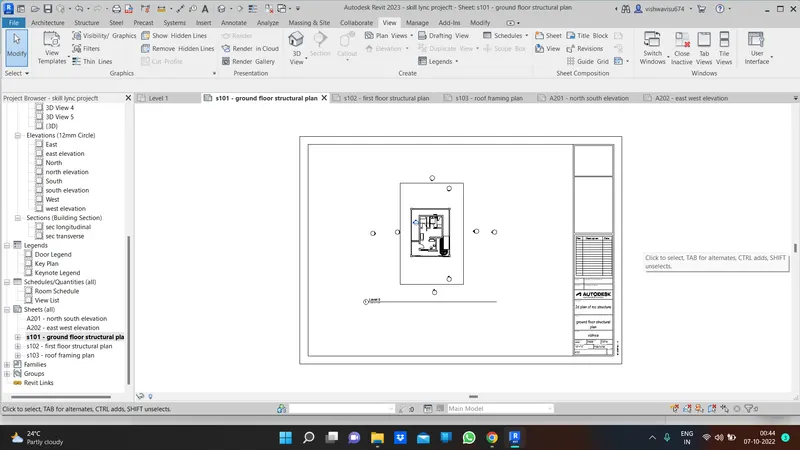

d. S 101- Ground Floor Structural Plan

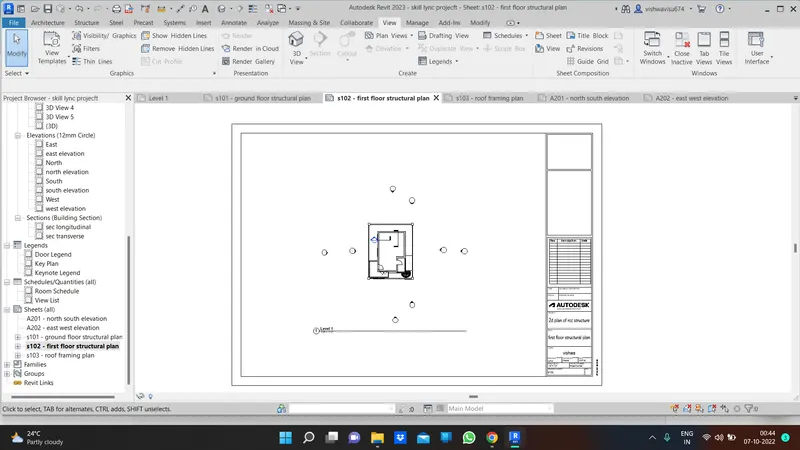

e. S 102- First Floor Structural Plan

f. S 103- Roof Framing Plan

g. A-201- North-South Elevations

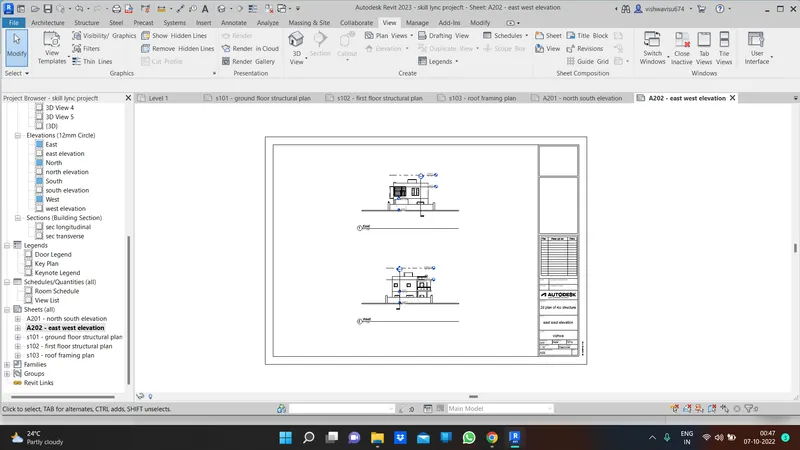

h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

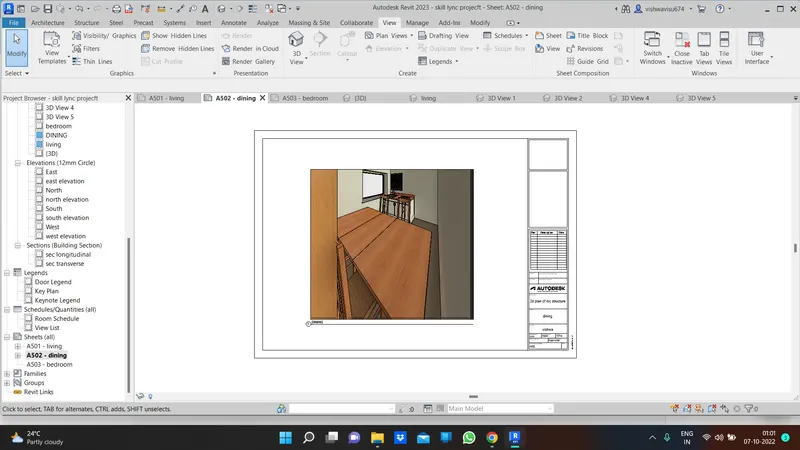

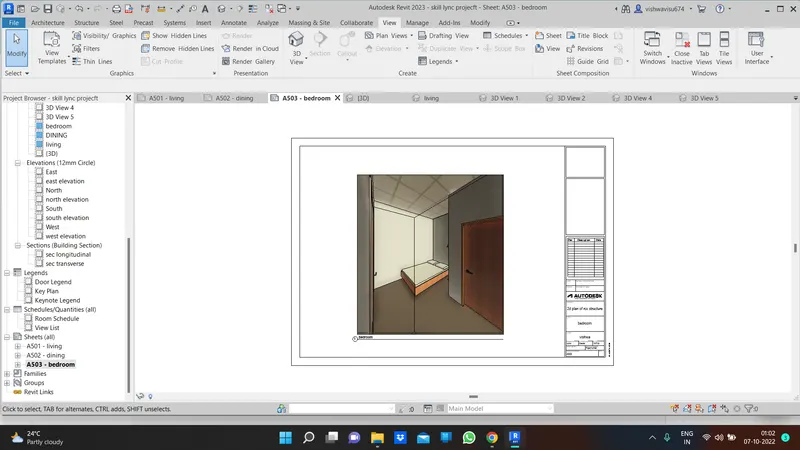

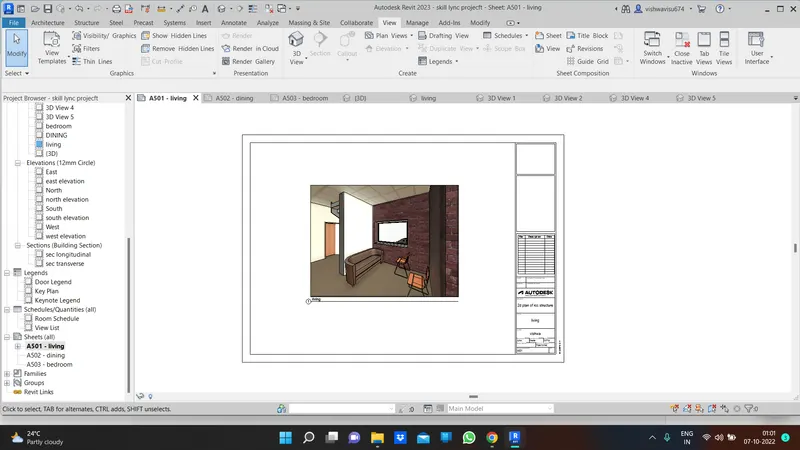

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting

aim:
Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting

procedure:
FIRST MAKE THE SHEETS WITH APPROPRIATE NAMES AND THE GO TO EXISTING FLOOR PLAN 2D SET THE CAMERA ANGLE AND MAKE THAT AS LIVING , DINING BEDROOM AFTER FINISH THIS WE WOULD INSERT THIS INTO SHEETS





result:
