3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1. ANS

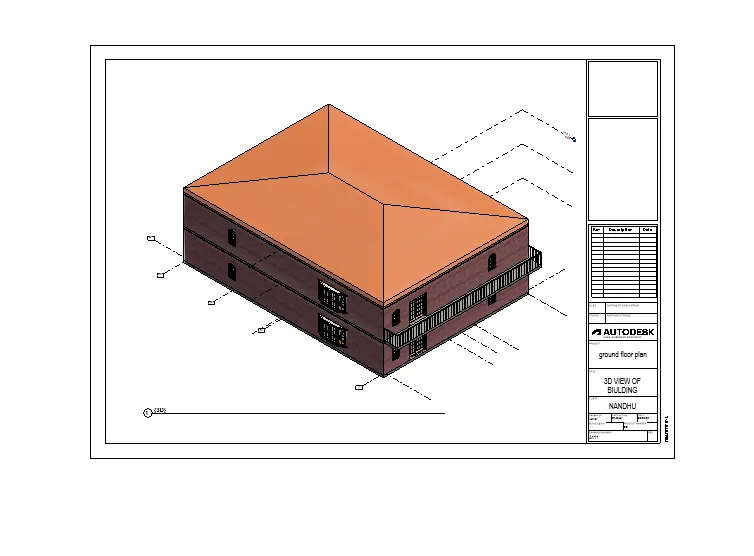

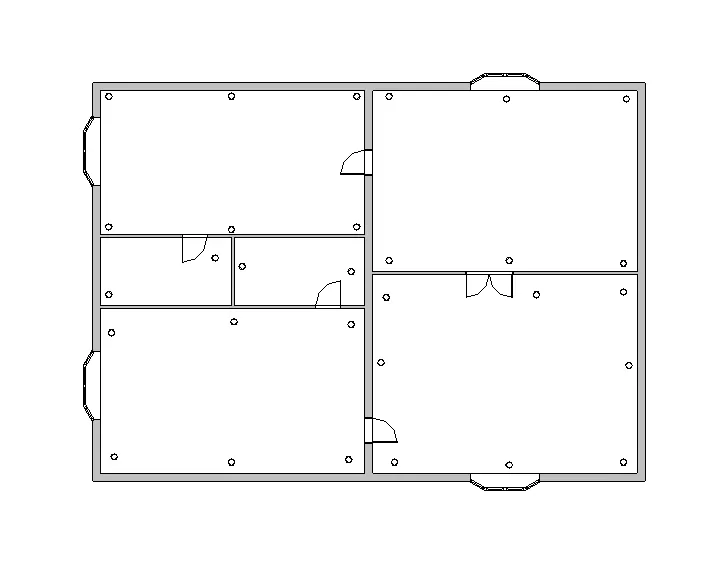

AIM: creating the celling in first floor level
procedure:
select the weak 3 challenge saved file and open
select the celling on first floor level of wall is drawn by the pickup lines
and edit the material as per requirement
after place the celling added the celling rounded type lights
result:
2.ANS
AIM: Creating Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
procedure:

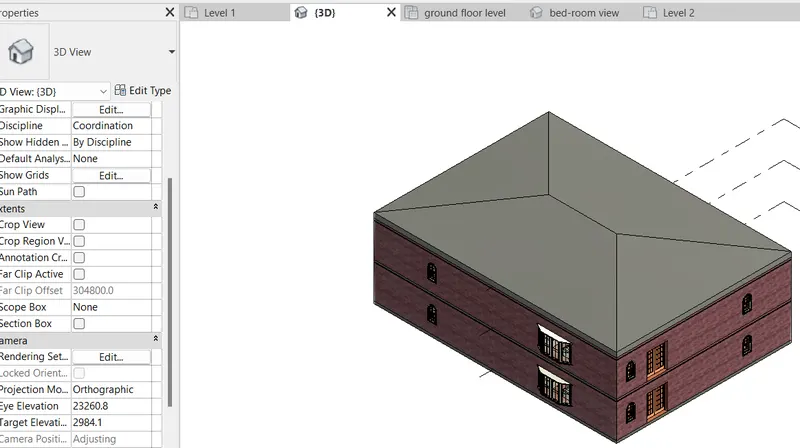

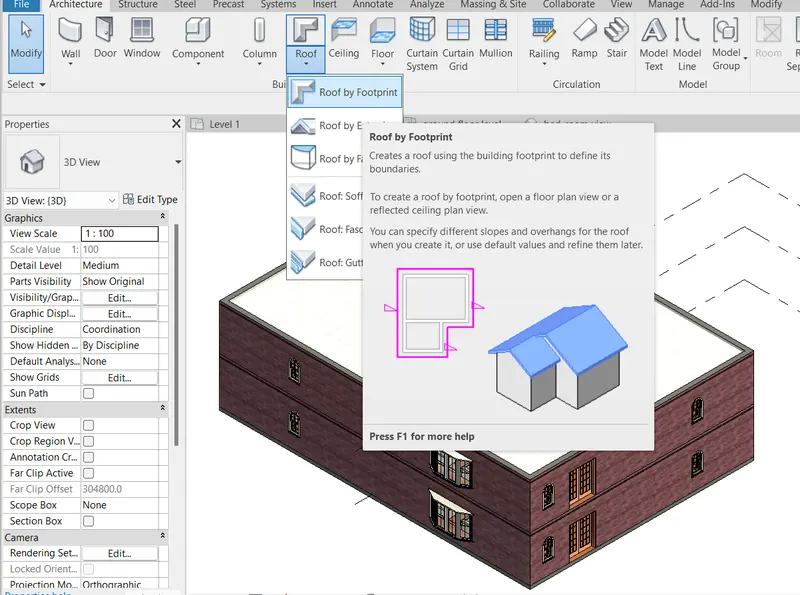

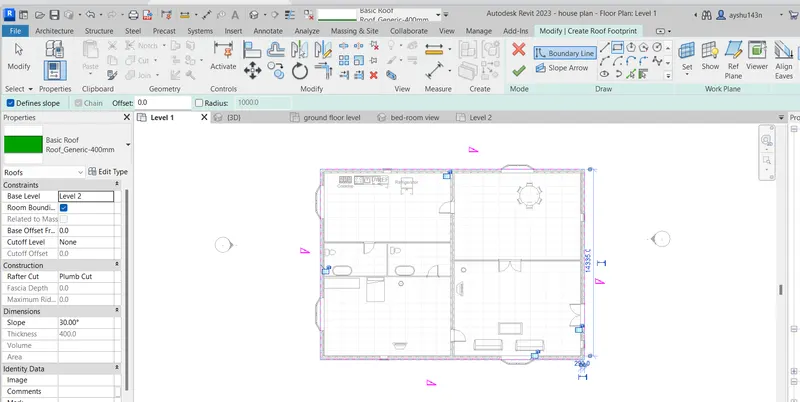

select the architecture tab in roof ana select the roof by footprint
select the boundary condition is rectangle and draw in property browser slope is set 10degress
3. ANS
AIM: Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans
PROCEDURE:

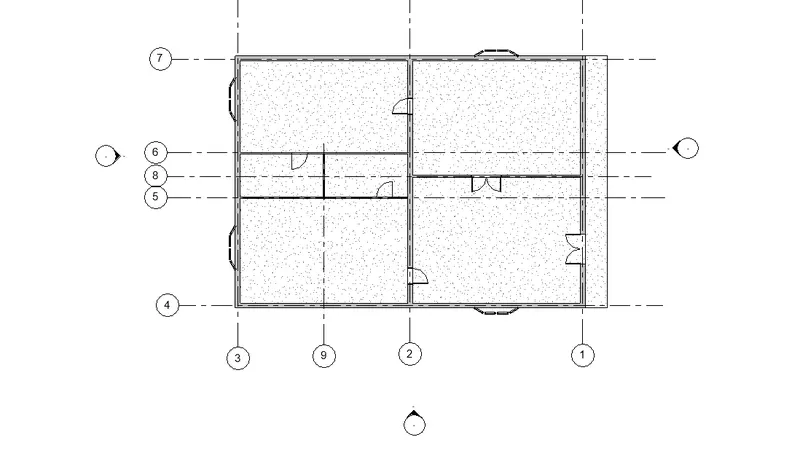

select the view tab and in plan-views select the structural plan as ground floor and first floor
4.ANS
AIM:
PROCEDURE:

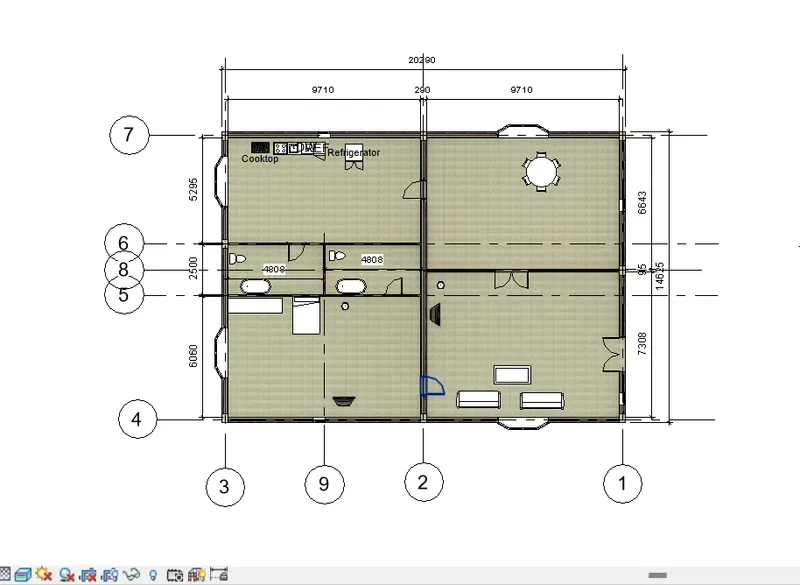

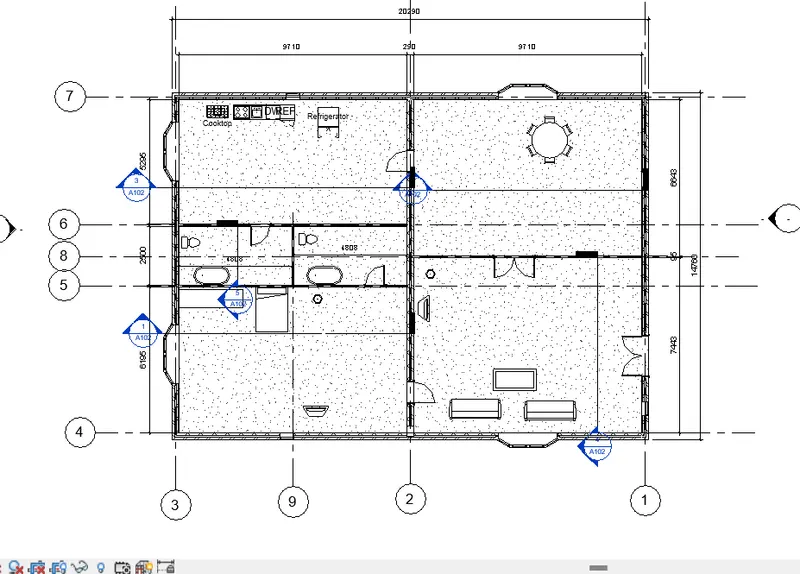

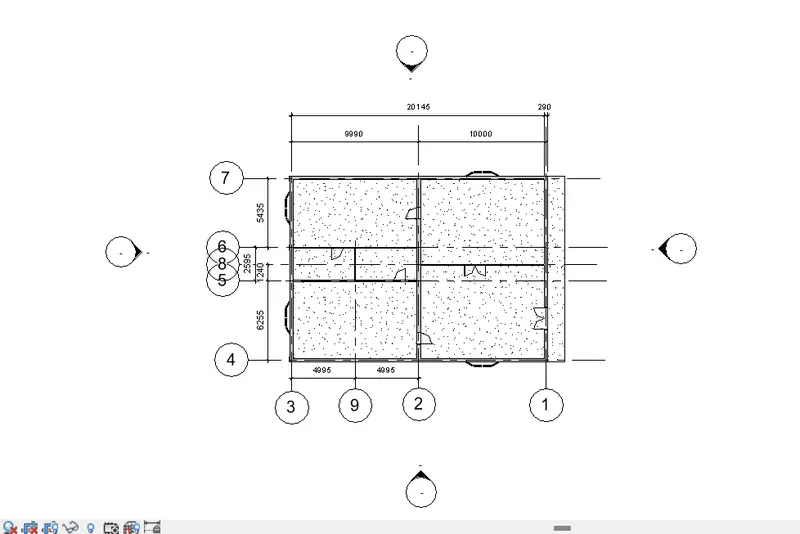

Select the Dim linear or aligned in the annotate tab and given dimensions each grid to grid
structural plan
architecture plan
5. ANS
AIM: Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
procedure:
select the view tab and select the create the new sheet and drag the ground floor plan of architecture
6. ANS
AIM: Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
PROCEDURE:
select the elevation and place the north, south, east, west direction clicks the view and after creating the new sheet drag to the elevation views
7.ANS

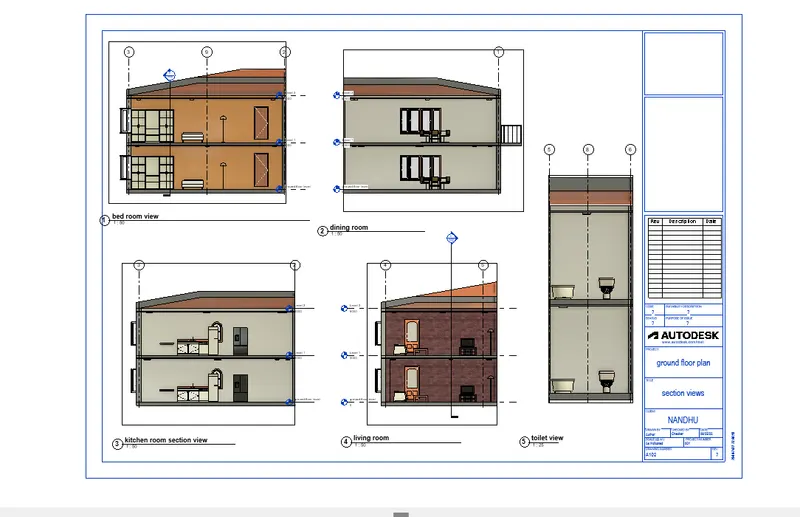

AIM: Produce section cut through each room either cutting across longitudinally or in a transverse direction
PROCEDURE:
Select the section create view and draw the longitudinally and traverse direction as requirements
select view tab and create the new sheet and place the all cutting creating section views
]
8.ans

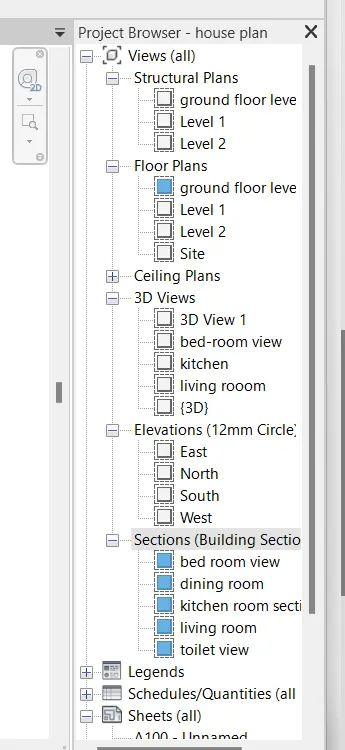

AIM: Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
9.ANS
AIM:
Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit fil
PROCEDURE:

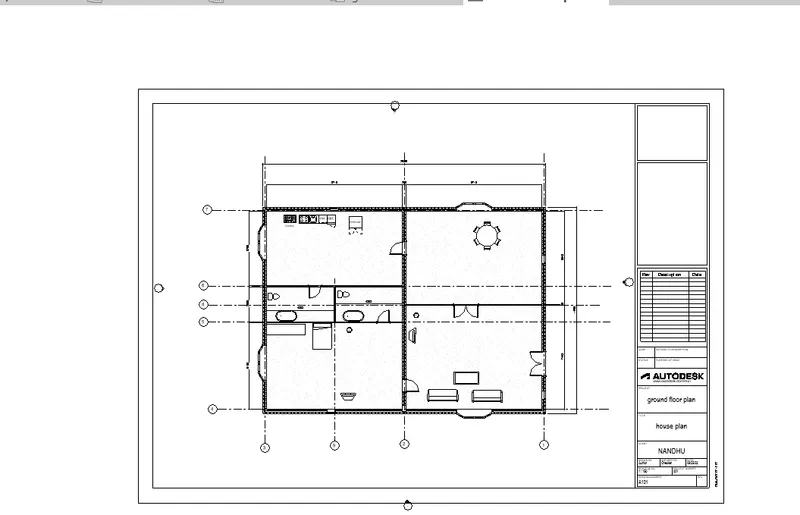

GROUND FLOOR PLAN A-101

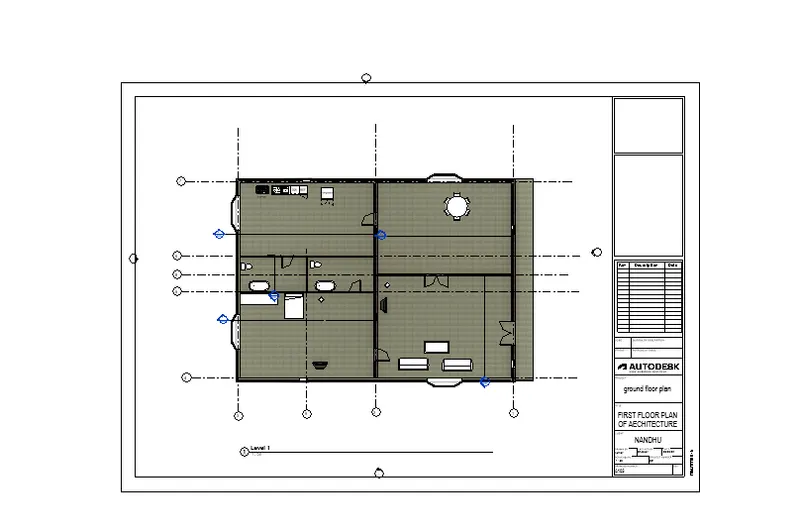

FIRST FLOOR PLAN OF ARCHITECTURE

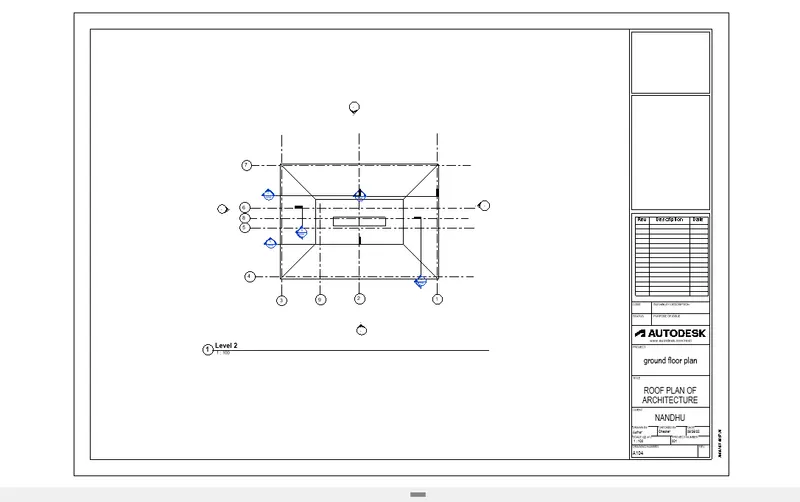

ROOF PLAN OF ARCHITECTURE

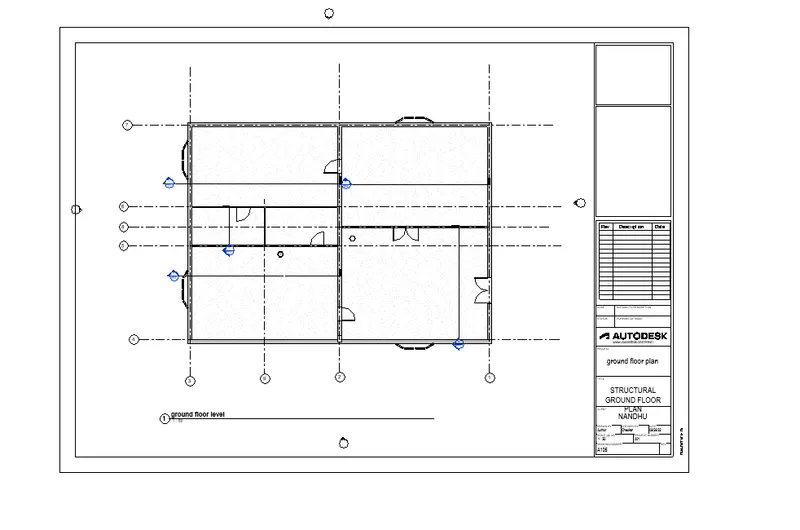

STRUCTURAL GROUND FLOOR

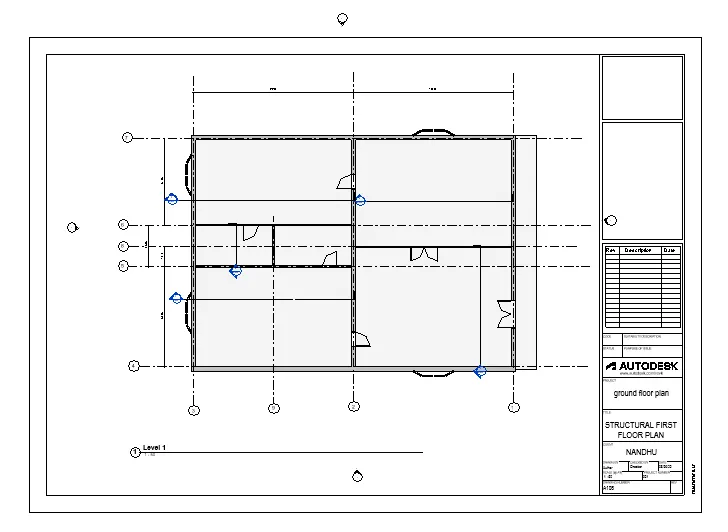

STRUCTURAL FIRST FLOOR PLAN

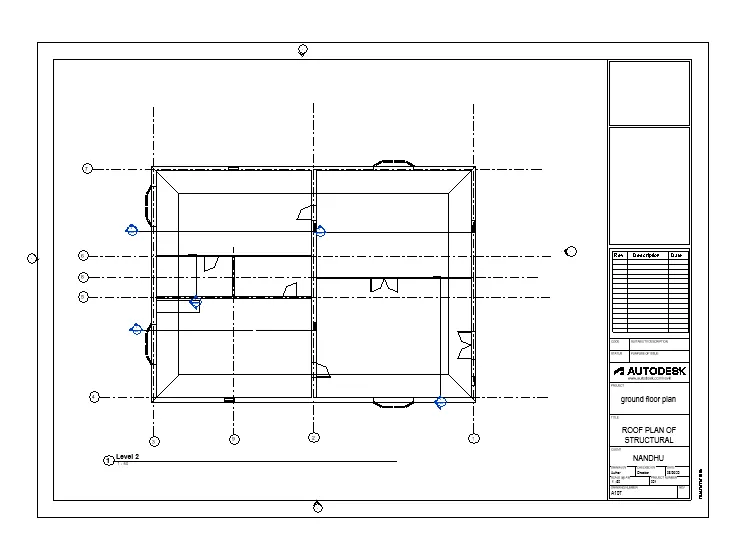

STRUCTURAL ROOF PALN

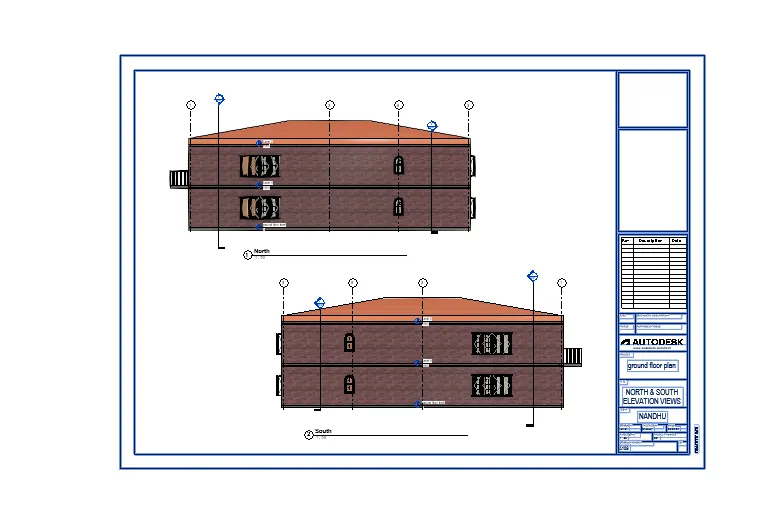

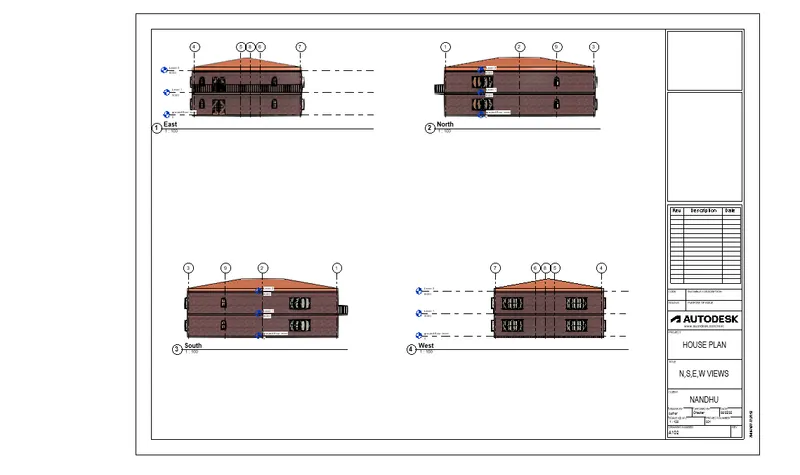

NORTH & SOUTH ELEVATION VIEWS

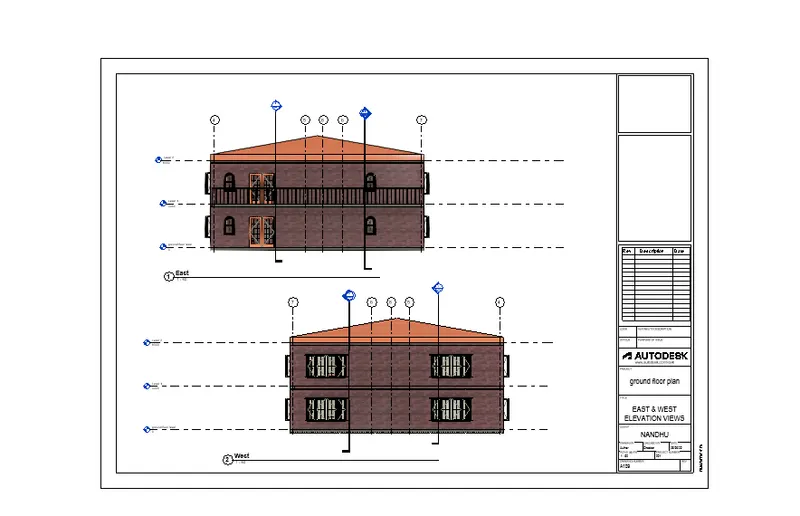

EAST & WEST ELEVATION
10.ANS

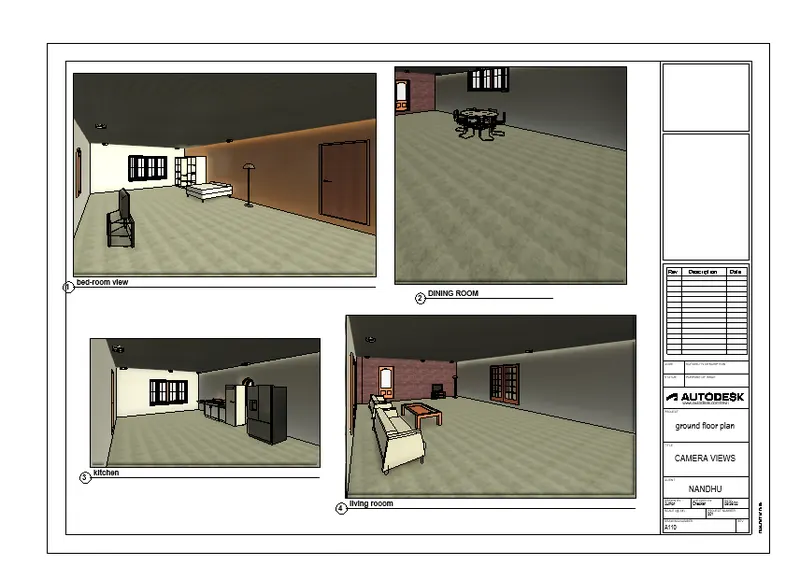

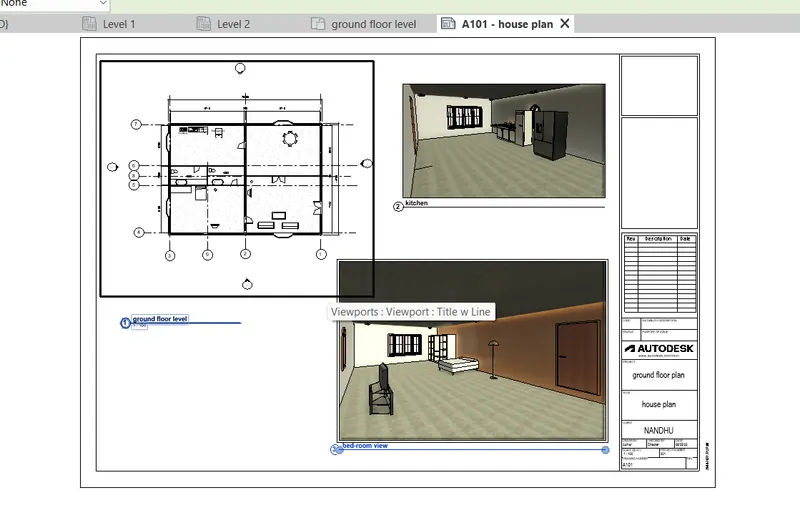

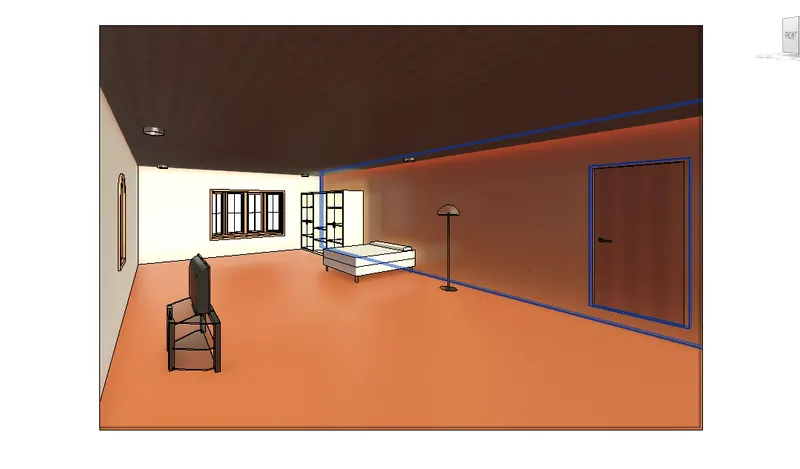

AIM: Create a camera-specific view or a 3D view in each room (living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503... n) to place the 3D view images. Produce the sheets as a part of project drafting
PROCEDURE:
