Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

AIM: To draw a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCAD

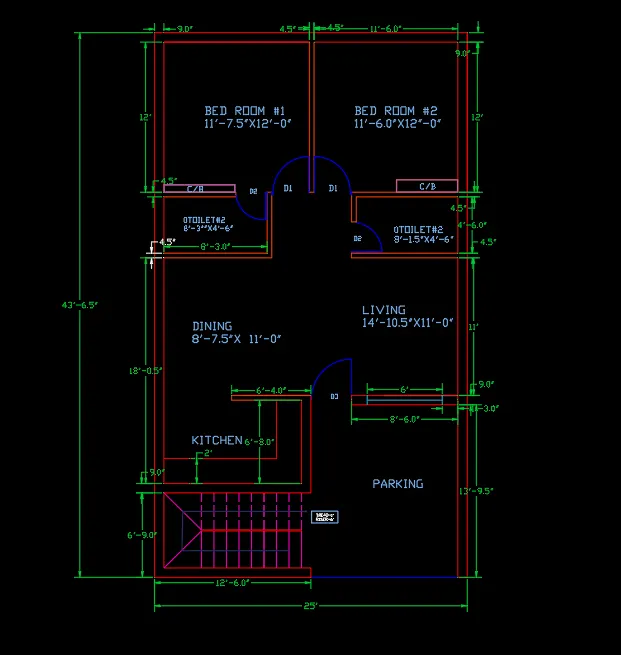

1.ANS

select the construction line vertical and horizontal

offset 9"

offset 6'9"

offset 9"

offset 6'8"

offset 4.5"

offset 11'0"

offset4.5"

offset 4'6"

offset 4.5"

offset 12'

offset 9"

trim

fillet radius 0 each corner is selected

offset 11'5"

offset 4.5"

offset11'6"

offset 9"

construction line vertical taken

offset 12'

offset 4.5"

offset 4'6"

offset 11'

offset9"

trim

offset distance 6'4"

trim

offset 6'3" and 8'1.5" distance

trim

door 1 offset distance is 3'

trim

• door 2 offset 2'6"distance and trim
• cupboards select rectangle specify the corner point draw the rectangle offset of rectangle is 0.1"
• copy the cupboard and paste the bed room#2
• door3 offset 8'-6"distance and trim
• window offset 1'3" and 6' distance and select the line command take mid-point and draw the line
• stair case: offset 3' distance and offset 1' is given the 9 steps
• text the bed room#1, bed room#2, kitchen, dining, living, etc. scale size is increased
• layer properties create the new layer wall and color is red, interior wall color is index color 20 staircase, window, door etc. colors are given and select one by one given the layer colors to identify the elements.

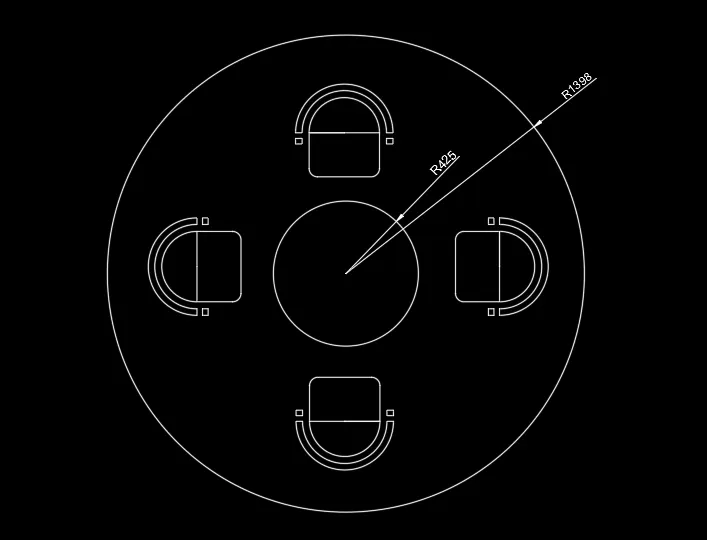

2.ANS

select the circle radius of 425 and select the circle radius of 1398

select circle diameter 400mm and select the line draw middle point of circle trim

select the rectangle draw the dimensions of 300x400mm

offset distance 2

select the object and copy and rotate the object

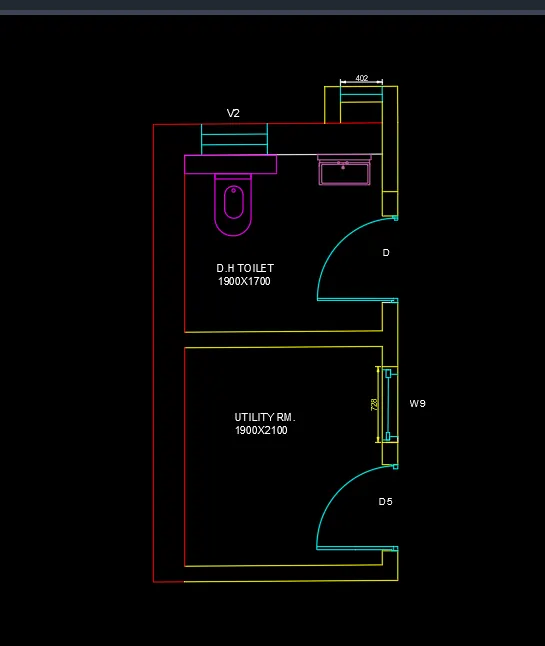

3.ANS

select the construction line one vertical and one horizontal

offset distance300mm and 150mm

offset distance 2100mm

offset distance 150 mm

offset 1700mm

offset 300mm

offset 1900 mm

offset 150mm

trim

window:

select line command draw the line offset 728mm

select line and node mid-point draw a line

ventilator:

select line draw line and offset 631mm and select line mid-point line is drawn

door:

select line command and draw line offset 828mm

select line and draw offset is 832mm

select line and draw and select the circle draw and trim

sink:

draw rectangle and select 2-point arc draw and

text:

select text and type words and using scale increase or decrease the size text

layers:

select new layers and give colors to identify the walls, windows etc. and select walls and given layer similarly continue
