3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1)

AIM:

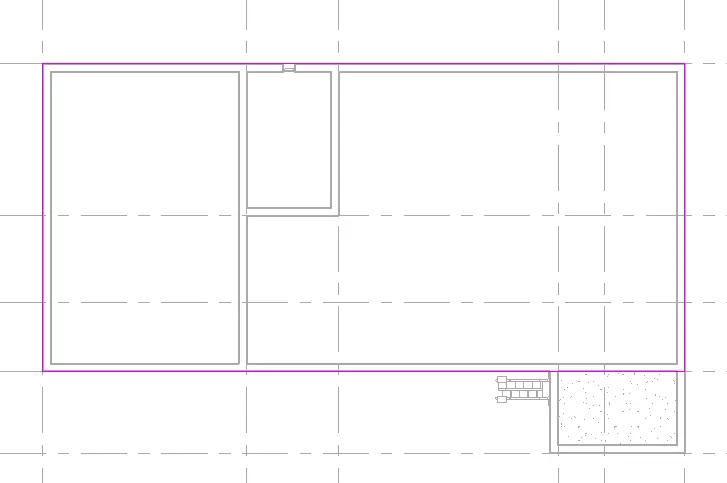

• To model a Ceiling from the architecture tab above the walls at the first-floor level on the model saved from week 3.

PROCEDURE:

• In Revit select File-> Open-> Project and open the project saved from week 3.
• To model the ceiling on the first floor select Ceiling Plans-> First floor.
• In the Architecture tab select Ceiling-> Sketch ceiling, in the Draw panel select Line icon.
• Draw the required outline of the ceiling.

FINAL RESULT:

The required Architectural ceiling has been modeled in the first floor level on the Week 3 model using Revit.

2)

AIM:

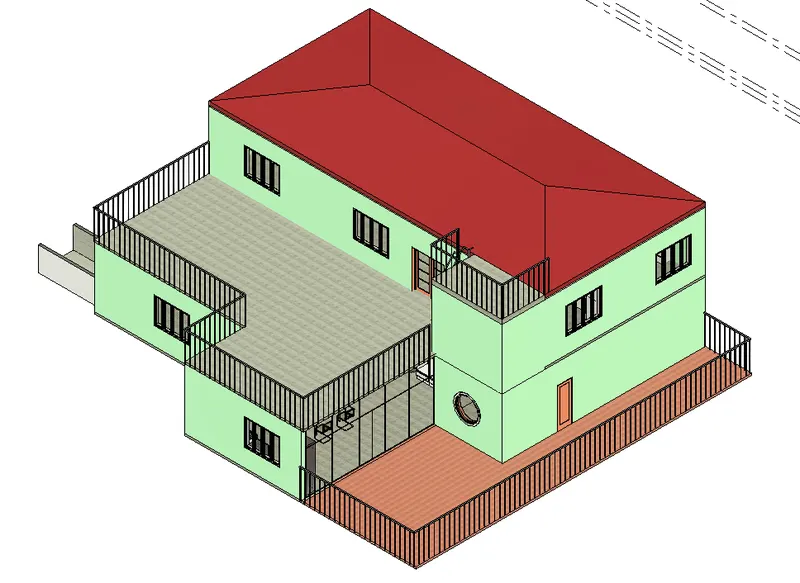

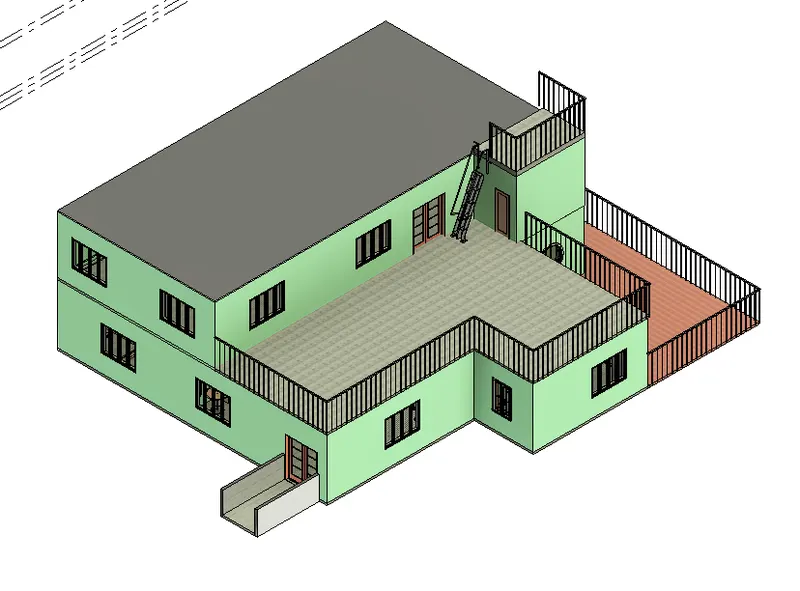

• To model a roof above the ceiling by selecting the footprints of the ceiling.
• To adjust the roof slope to 10 degrees.

PROCEDURE:

• Set First floor plan as current view from Project browser.
• Select Architecture tab -> Roof -> Roof by footprint.
• In the Draw panel select rectangle option and draw the footprint of required roof.
• In the Property browser select Edit type to edit the roof as per requirement.
• In the property browser unnder Dimensions tab select slope and change to 10 degrees.

FINAL RESULT:

The required roof has been created by selecting foorprint of the ceiling with a 10 degree slope in the week 3 model.

3)

AIM:

• To create plan views for ground floor level and first-floor level including all the walls, floors, and components.
• To separate them to architecture and structural plans.

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns.

PROCEDURE:

STEP 1:

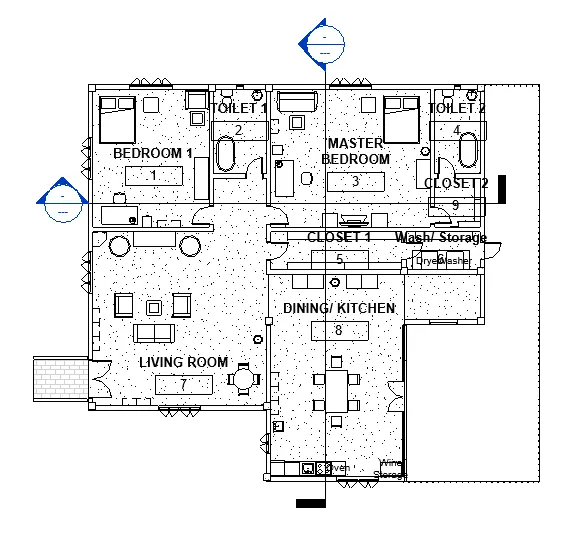

Architectural Plans:

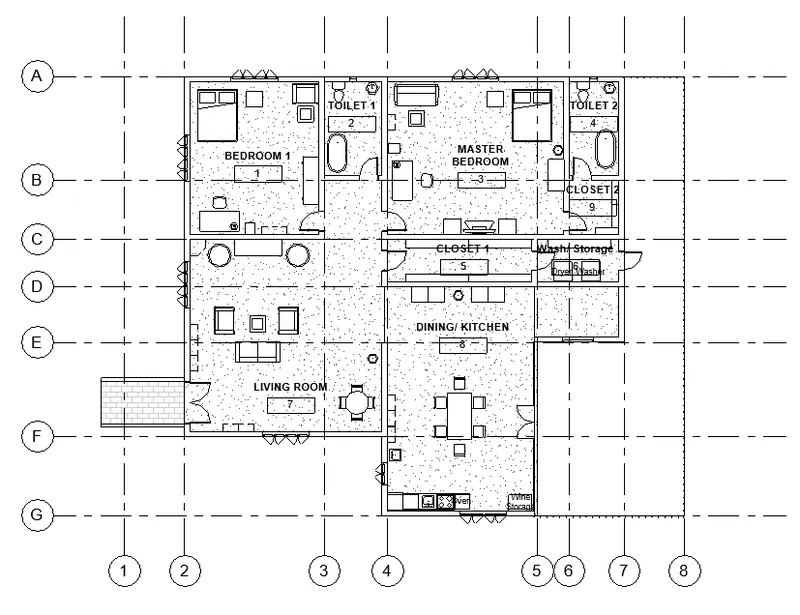

• In the Project select Project Browser-> Floor plans-> Ground floor.
• The Architectural plan of the Ground floor is deisplayed.

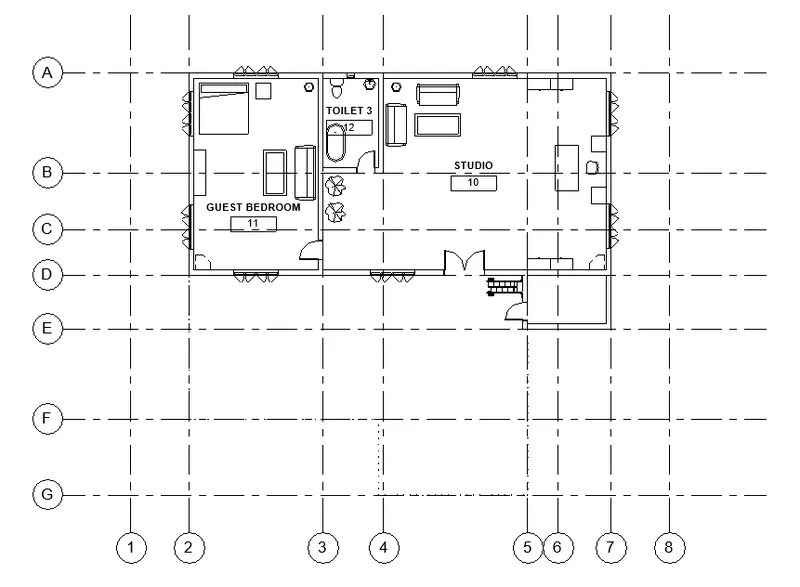

• Select Project browser-> Floor plans-> First floor.
• The First floor architectural plan is displayed.

STEP 2:

Structural Plans:

• Go to View -> Plan views-> Structural plans.

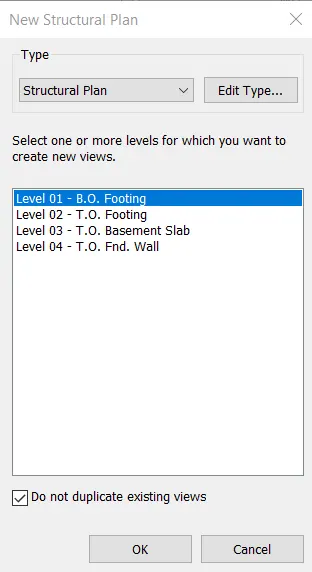

• In the dialogue box select the level for which new structural plan has to be created.

• If a structural plan has already been created it can be found in the Property Browser-> Structural Plans.
• Go to Property browser-> Structural plans-> Ground floor to open the Ground floor structural plan.

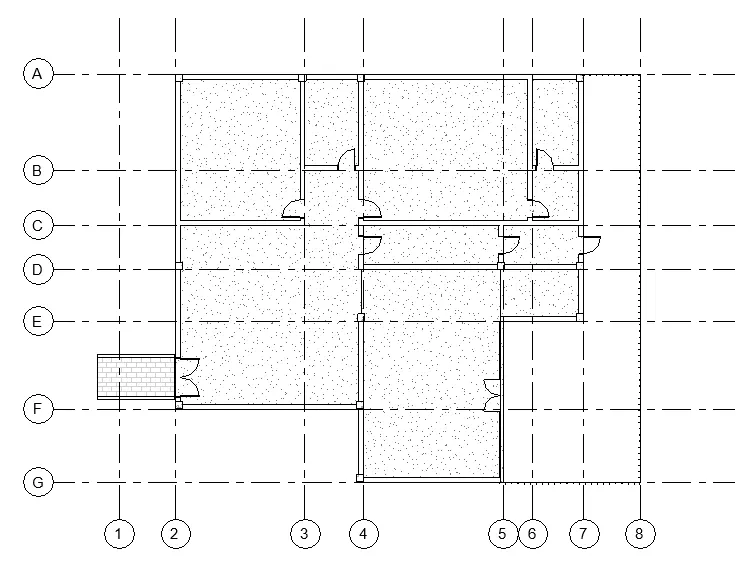

• Ground floor structural plan is displayed.

• Go to Property browser-> Structural plans-> First floor to open the First floor structural plan.

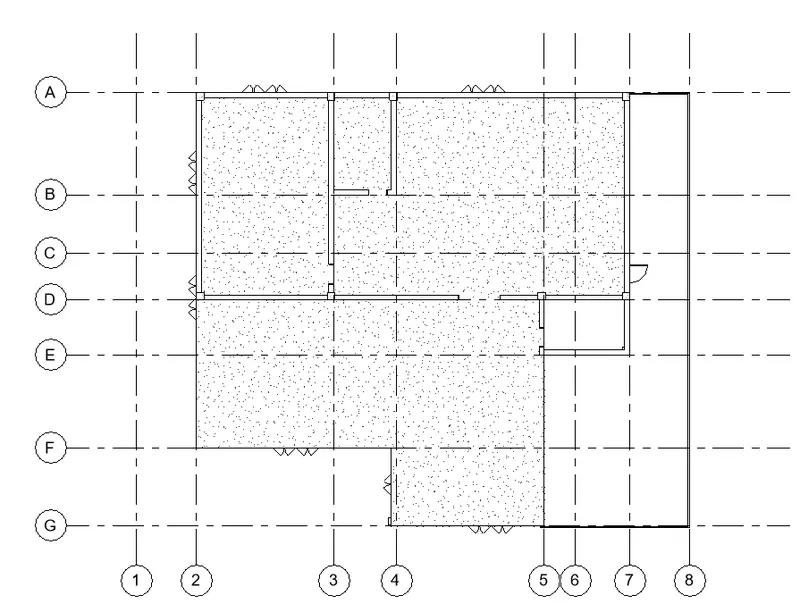

• First floor structural plan is displayed.

FINAL RESULT:

The Architectural and Structural plans plans of First floor level and Ground floor level have been created succesfully.

4)

AIM:

• To use annotate toolbar and add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

PROCEDURE:

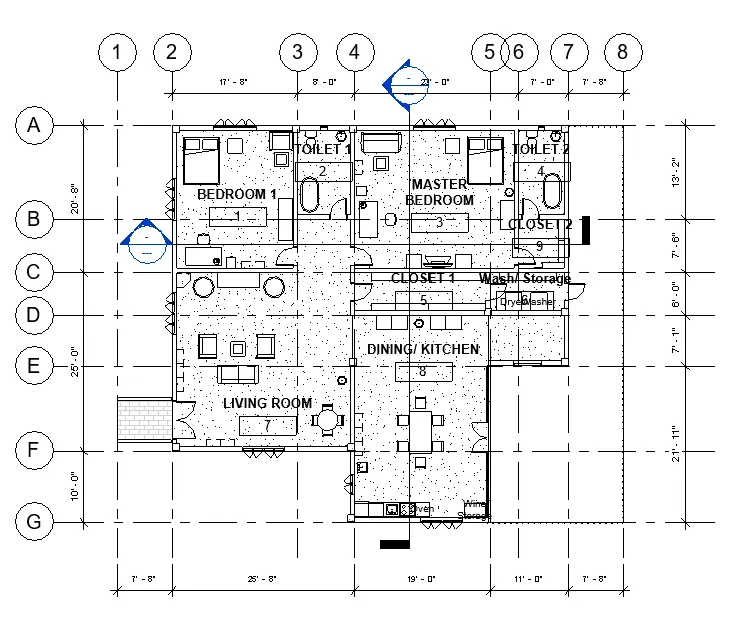

• Open the ground floor plan from Project Browser-> FLoor plans-> Ground floor.
• Open Annotate toolbar and select Aligned dimensions icon.
• Select the longitudinal and transverse grids and add dimensions with reference to them.

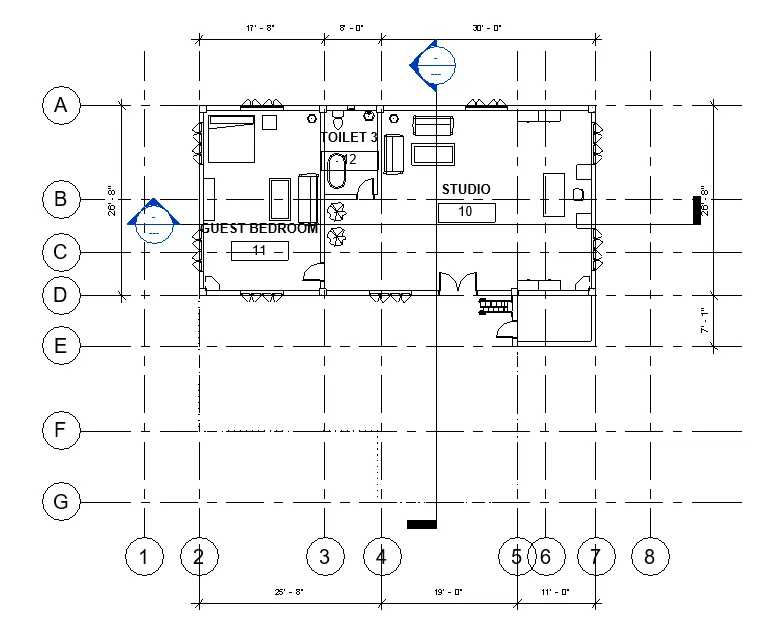

• Open the First floor plan from Project Browser-> Floor plans-> First floor.
• Open Annotate toolbar and select Aligned dimensions icon.
• Select the longitudinal and transverse grids and add dimensions with reference to them.

FINAL RESULT:

Using annotate toolbar dimensions were added to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

5)

AIM:

• To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

PROCEDURE:

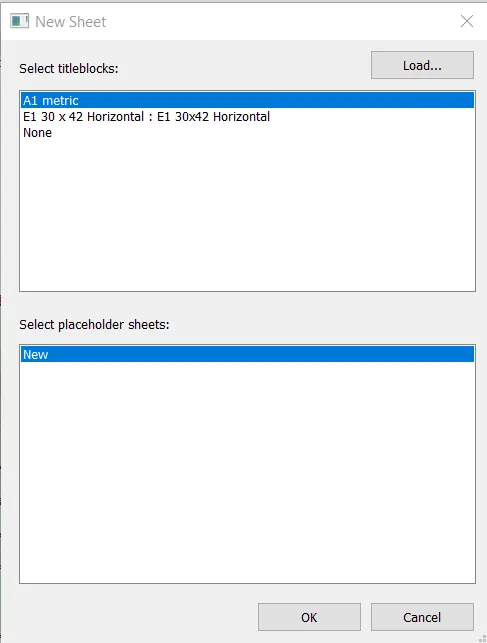

• To create a new sheet Select View-> Sheet.
• Select Load and load required sheet from Revit library.
• Select it and click OK.

• To add views to thee sheet drag them from the Project browser and place it on the sheet.
• To scale or edit the views as per requirement select the Viewport and it can be editted from the Property browser.

• The Project information can be editted by clicking on it in the Sheet or from Manage-> Project Information.

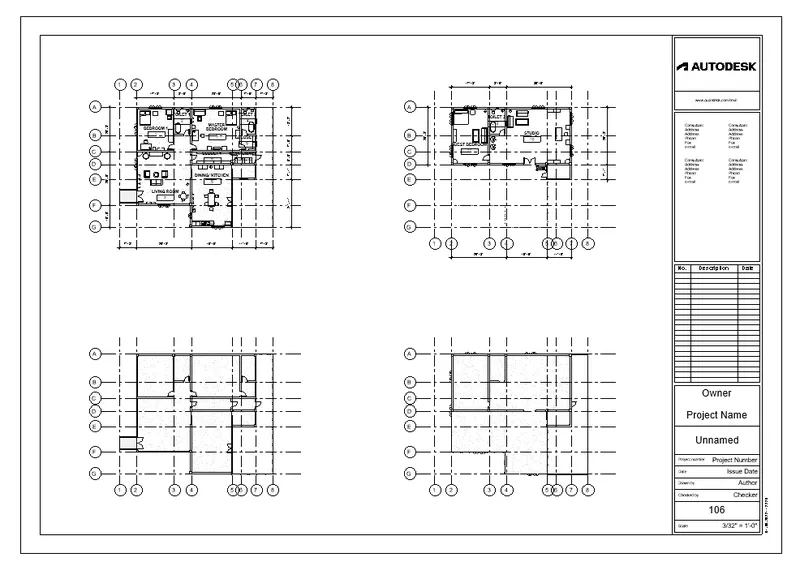

FINAL RESULT:

The sheet template is created and editted to add appropriate views.

6)

AIM:

• To create the elevation views, looking at the building from East, North, South, and West using Elevation Tab.

PROCEDURE:

STEP 1:

• Open Ground FLoor plan view from Project browser.
• Select View tab-> Elevations-> Elevations and place the marker on the North, East, West and South directions of the building.

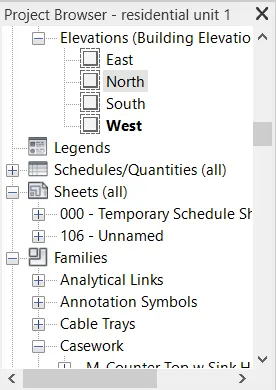

• Go to Project Browser and rename the views created to North, East, West and South respectively.

STEP 2:

• Select the views from the Project browser to open and get the Elevation view for all directions.

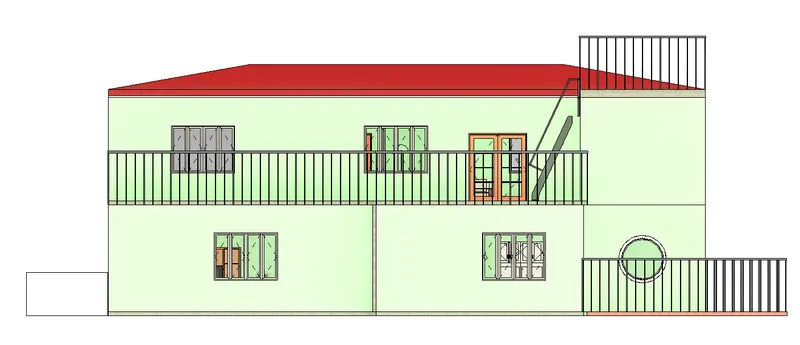

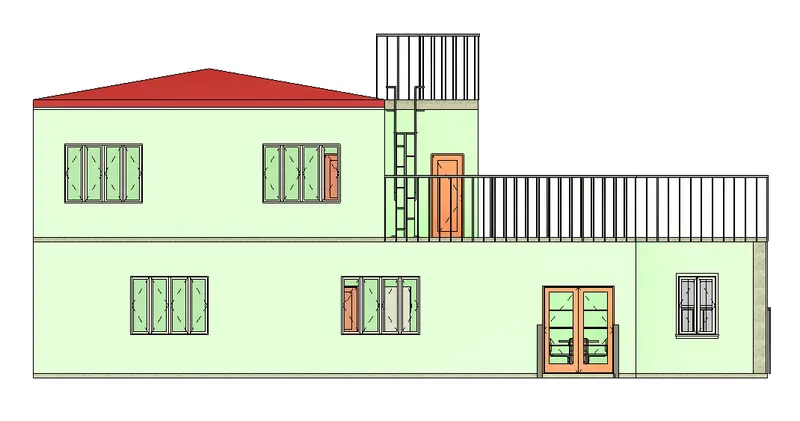

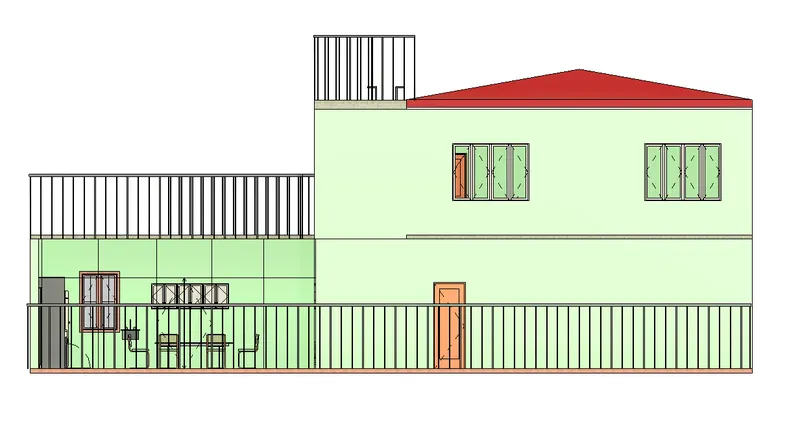

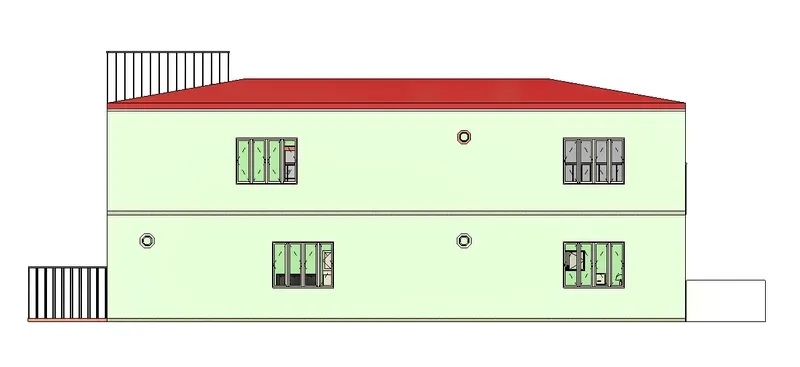

NORTH:

EAST:

WEST:

SOUTH:

FINAL RESULT:

The elevation views, looking at the building from East, North, South, and West were created using Elevation Tab.

7)

AIM:

• To produce section cut through each room either cutting across longitudinally or in a transverse direction.

PROCEDURE:

• To create section view of the model select View tab-> Section and a line is drawn to define the required sectional view.
• A sectional line is drawn both longitudinally and transversely as required.

• Once the Section line is defined it is saved as Section views and can be accessed from the Project browser.

• To view the Sections created open they are opened by selecting them from Property browser.
• The created sections are displayed below.

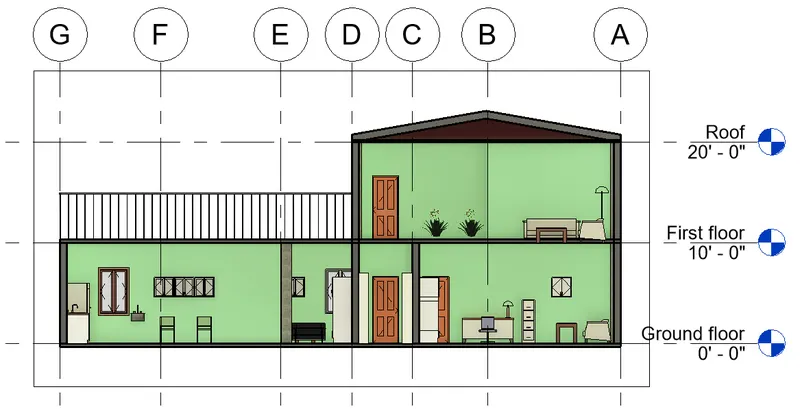

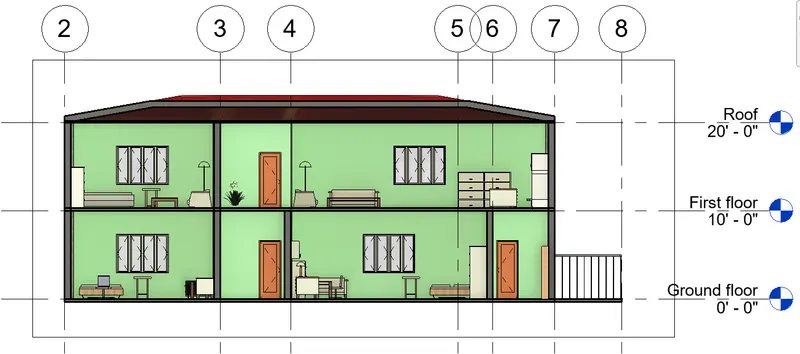

Transverse section:

Longitudinal Section:

FINAL RESULT:

Section views cutting through each room in longitudinal and transverse directions have been produced and displayed succesfully.

8)

AIM:

• To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

PROCEDURE:

PLAN VIEWS:

• In the Property browser select FLoor plans and open Ground floor plan.
• The Ground floor plan is displayed.

• In the Property browser select FLoor plans and open FIrst floor plan.
• The First floor plan is displayed.

ELEVATION VIEWS:

• To open ELevation views go to Property Browser-> Elevations and select the required elevation that needs to be displayed.
• Elevations that have been created from all four directions are opened and displayed.

NORTH:

EAST:

WEST:

SOUTH:

SECTION VIEWS:

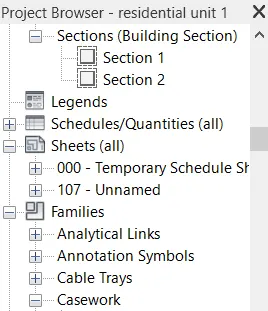

• To open the Section views created go to Property Browser-> Sections and select the required section to be displayed.
• Both the created sections are opened and displayed below.

Transverse section:

Longitudinal Section:

FINAL RESULT:

Plan Views, Section Views, and Elevation views are classified using Property browser.

9)

AIM:

• To use the sheet template produced and create multiple sheets as follows
  a. A 101- Ground Floor Architecture Plan
  b. A 102- First Floor Architecture Plan
  c. A 103- Roof Plan
  d. S 101- Ground Floor Structural Plan
  e. S 102- First Floor Structural Plan
  f. S 103- Roof Framing Plan
  g. A-201- North-South Elevations
  h. A-202- East-West Elevations.

PROCEDURE:

STEP 1:

• Open the sheet created from View tab -> Sheet.
• When the shee is opened drag and place Ground Floor plan from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as A 101 Ground Floor Architectural plan, the change will reflect on the sheet.

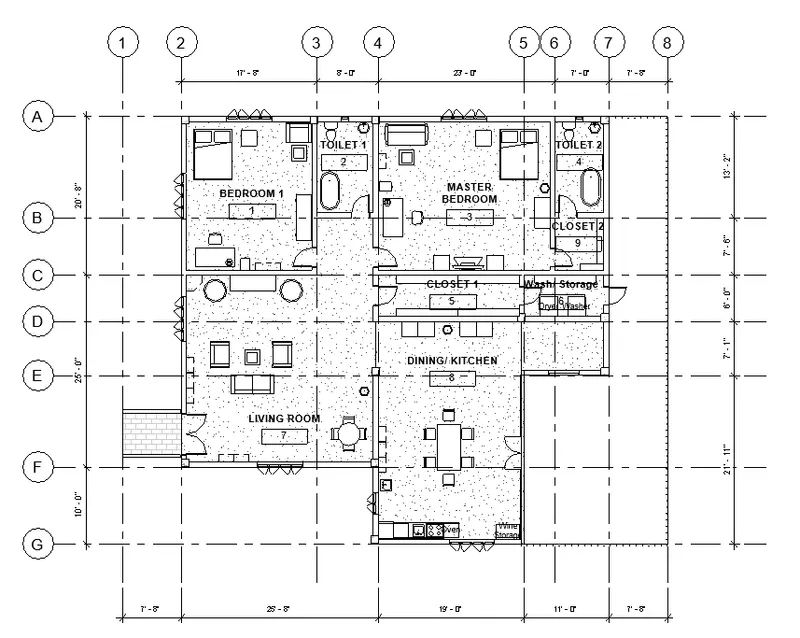

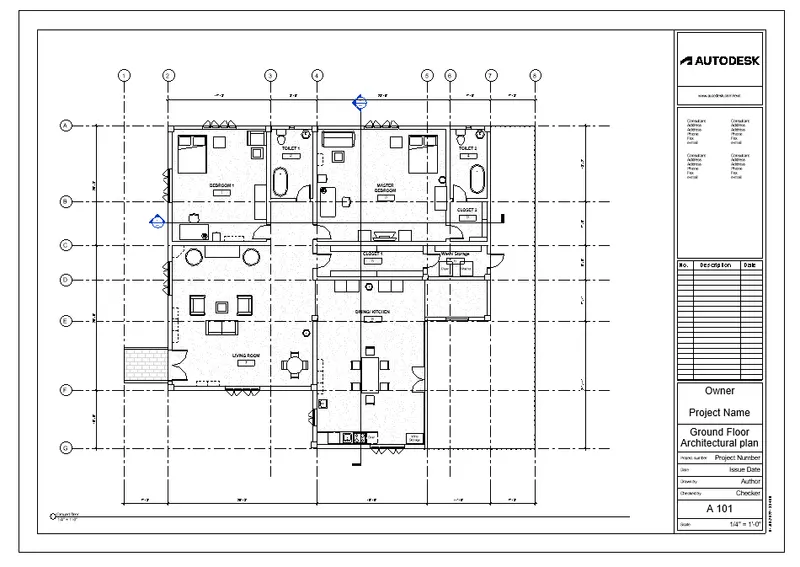

A 101 GROUND FLOOR ARCHITECTURAL PLAN

STEP 2:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place First floor architectural plan from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as A 102 First floor architectural plan, the change will reflect on the sheet.

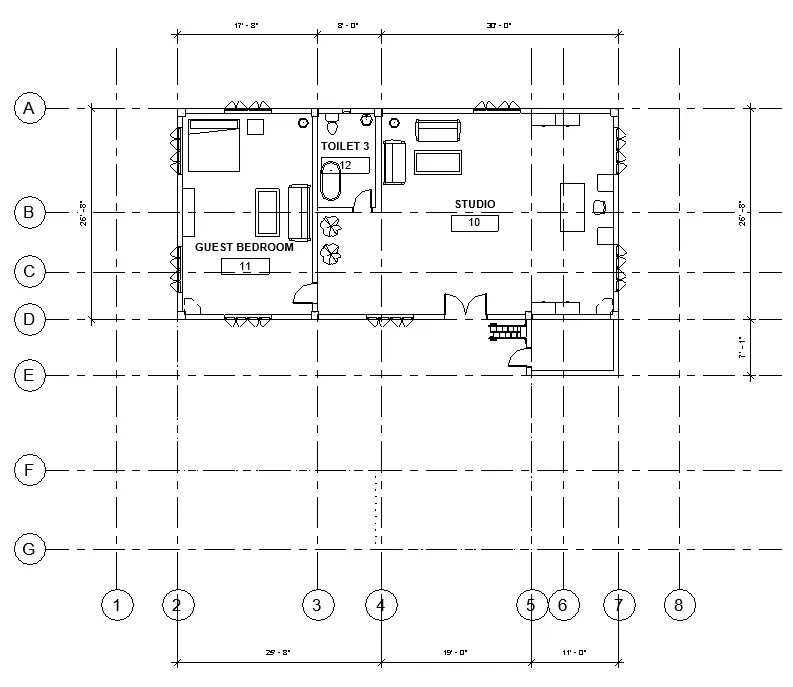

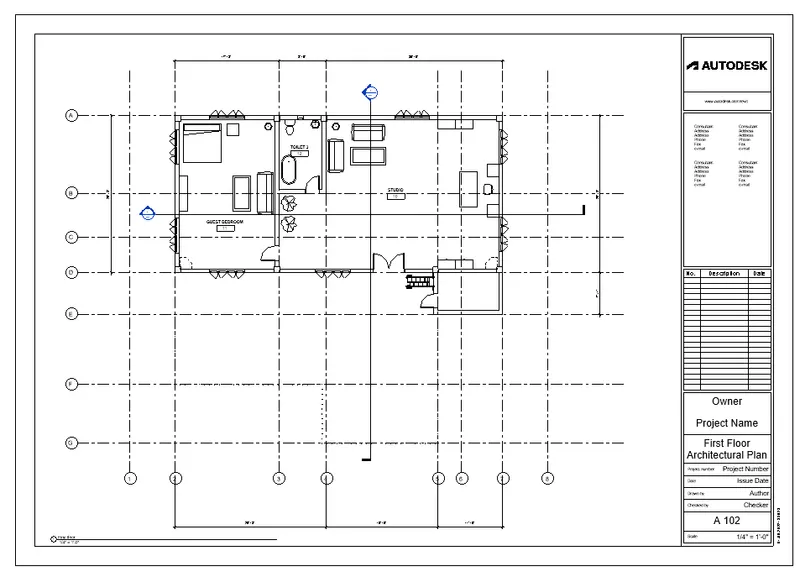

A 102 FIRST FLOOR ARCHITECTURAL PLAN:

STEP 3:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place Roof plan from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as A 103 Roofl plan, the change will reflect on the sheet.

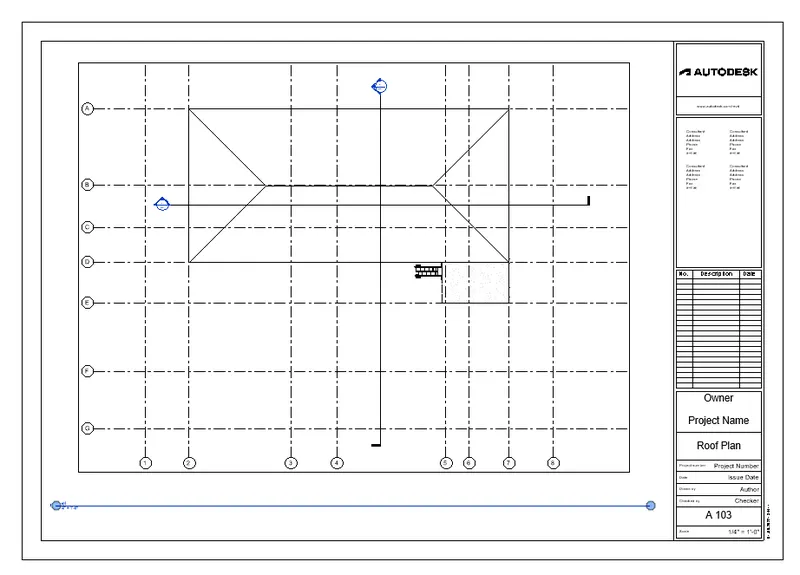

A 103 ROOF PLAN:

STEP 4:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place Ground floor Structural plan from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as S 101 Ground Floor Structural plan, the change will reflect on the sheet.

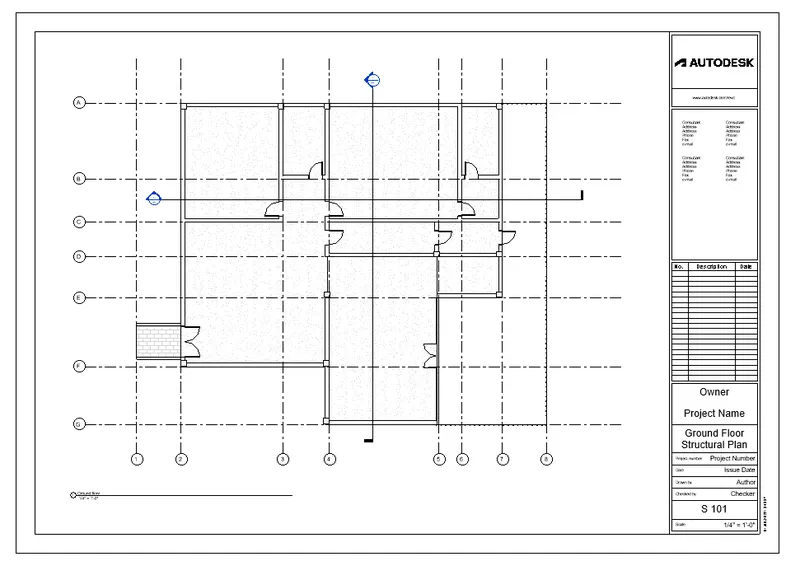

S 101 GROUND FLOOR STRUCTURAL PLAN:

STEP 5:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place First floor Structural plan from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as S 102 First Floor Structural plan, the change will reflect on the sheet.

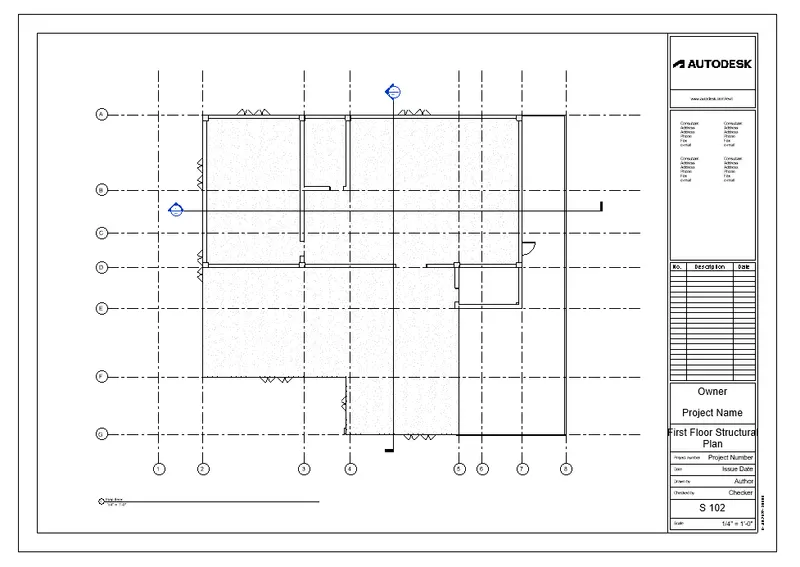

S 102 FIRST FLOOR STRUCTURAL PLAN:

STEP 6:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place Roof Structural plan from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as S 103 Roof Framing plan, the change will reflect on the sheet.

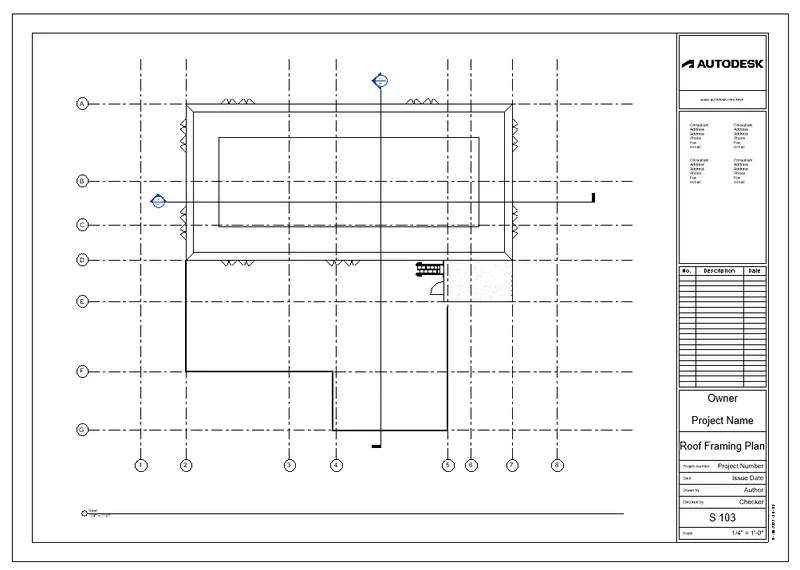

S 103 ROOF FRAMING PLAN:

STEP 7:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place North and South Elevations from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as A 201 North-South Elevations, the change will reflect on the sheet.

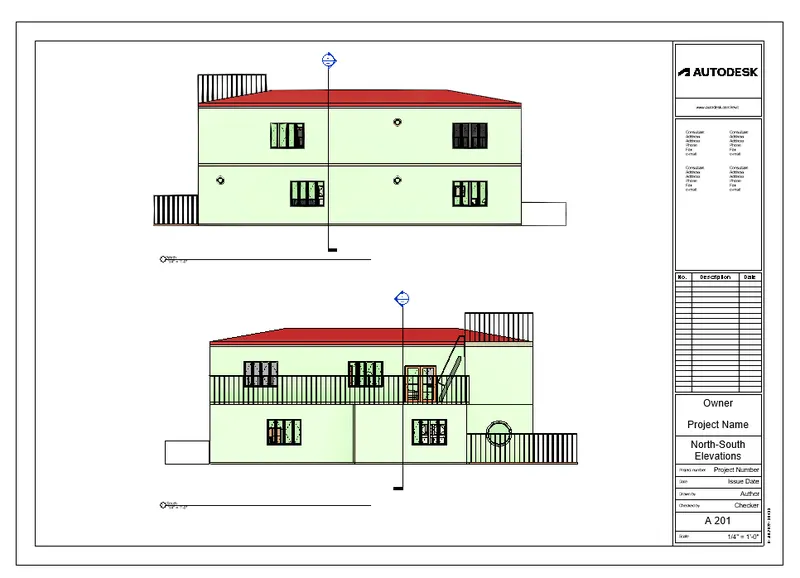

A 201 NORTH SOUTH ELEVATIONS:

STEP 8:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place East and West Elevations from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as A 202 East-West Elevations, the change will reflect on the sheet.

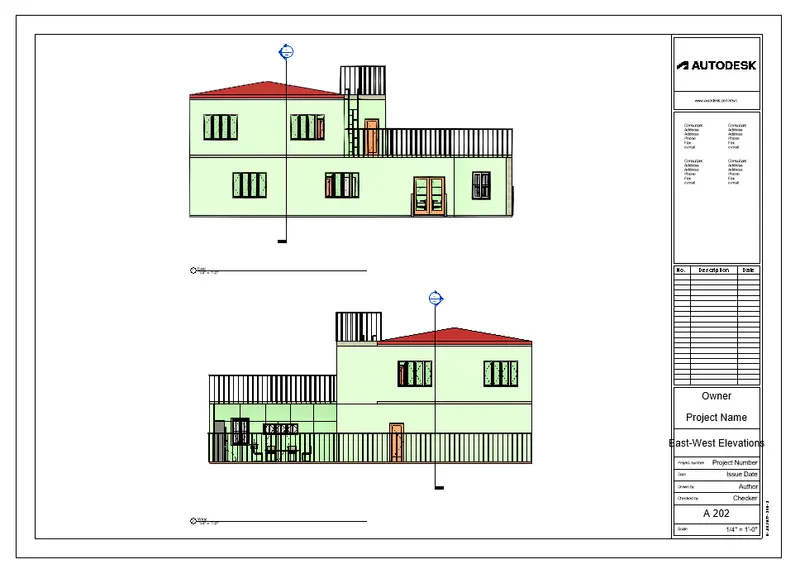

A 202 EAST-WEST ELEVATIONS:

STEP 9:

• Open the sheet created from View tab -> Sheet.
• When the sheet is opened drag and place Section 1 and 2from Project browser onto the sheet.
• Scale the view appropriately.
• Rename the view as A 301 Section Views, the change will reflect on the sheet.

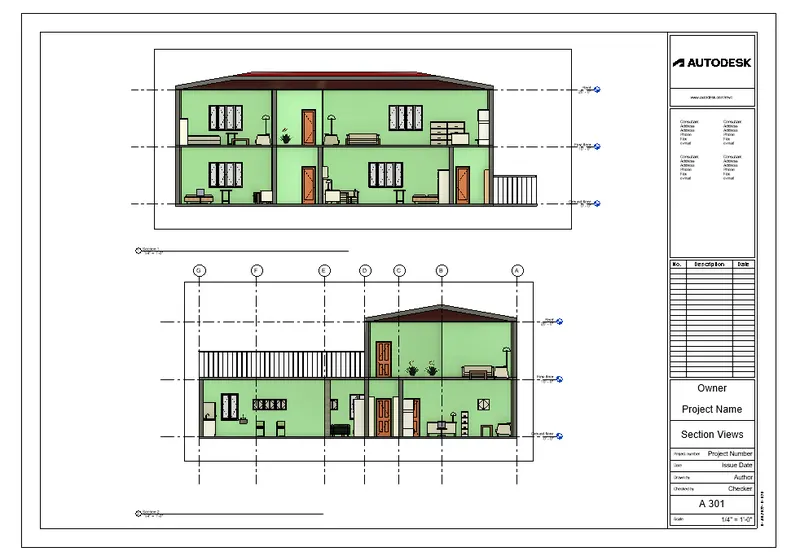

A 301 SECTION VIEWS:

FINAL RESULT:

The required sheets including the plan, elevation and section views were created succesfully.

10)

AIM:

• To Create a camera-specific view or a 3D view in each room and create new set of sheets.

PROCEDURE:

• Open new sheet created from View tab -> Sheet.
• Load A4 metric sheet from Revit library.
• Drag and paste the required 3D views created of each room from Project Browser-> 3D views.
• Rename each sheet as per required by double clicking on the name in the sheet.

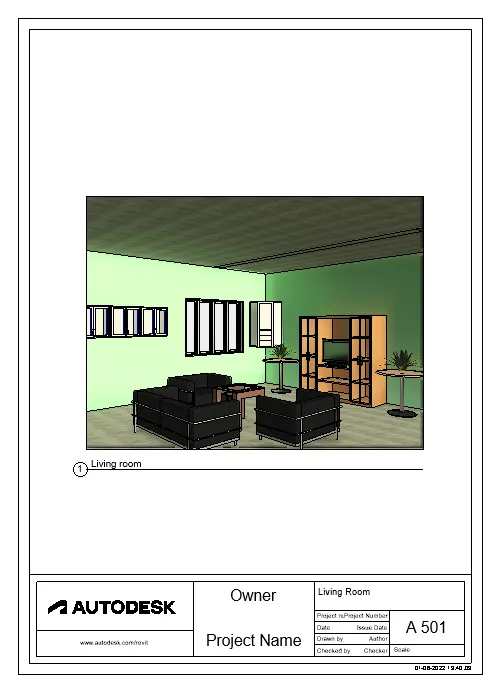

LIVING ROOM:

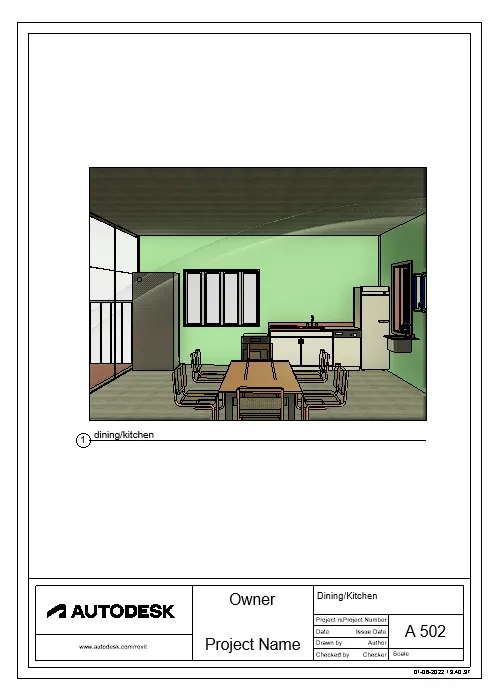

DINING/ KITCHEN:

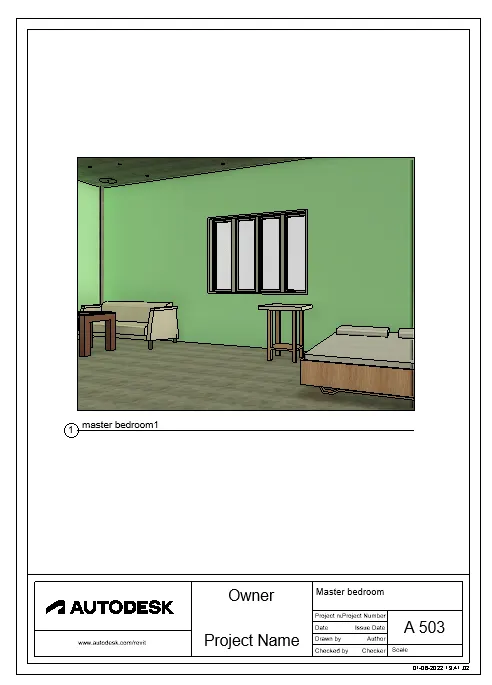

MASTER BEDROOM:

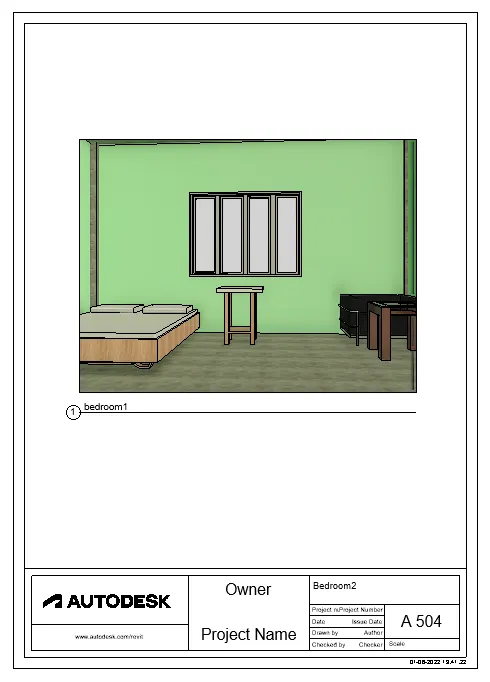

BEDROOM 2:

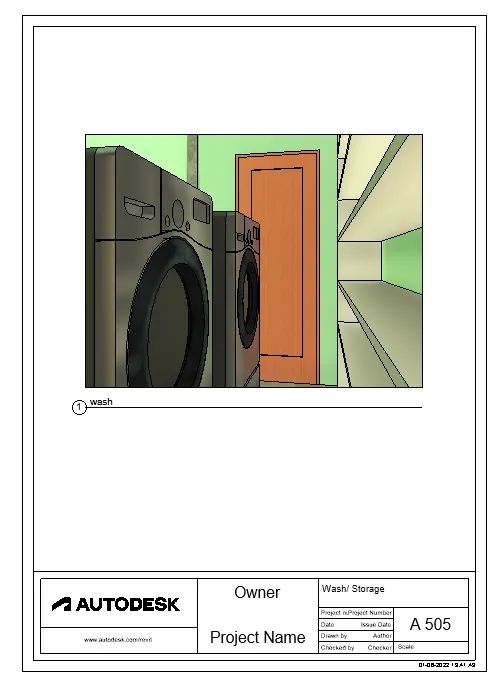

WASH:

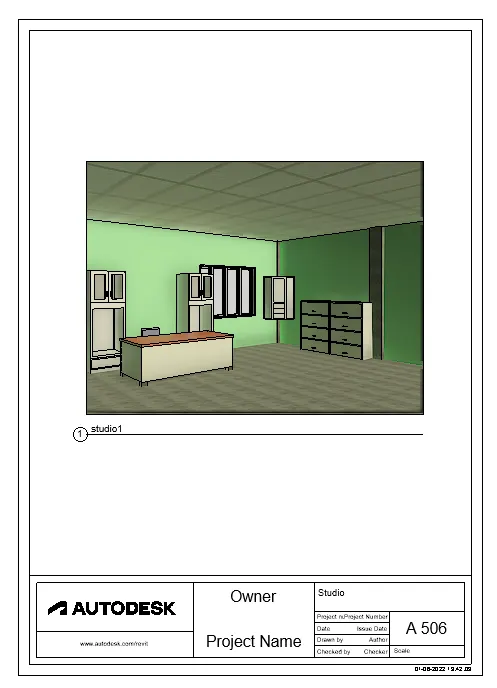

STUDIO:

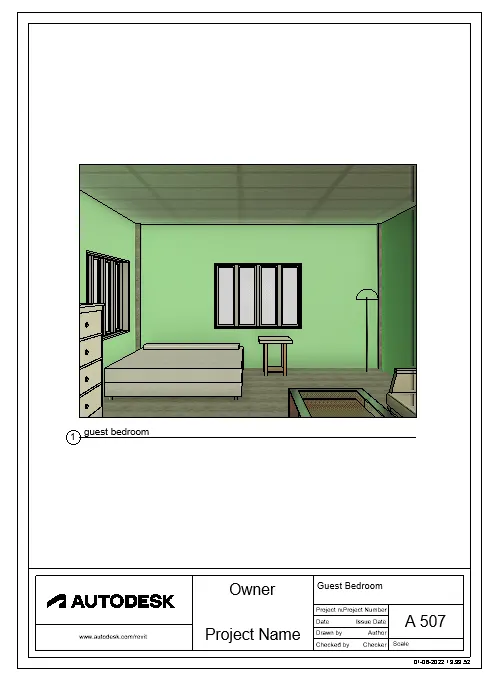

GUEST BEDROOM:

FINAL RESULT:

3D views of each rooms were created and added into sheets succesfully.
