3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q 1) Based on the project saved from Week 3, proceeds from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

Aim:- To model a Ceiling from the architecture tab above the walls at the first-floor level.

Tools:-

1. Project Browser> ceiling plan
2. Architecture > ceiling > sketch ceiling>boundary>line

Procedure:-

1. first, open our week 3 project file.
2. To model the ceiling for the first floor go to Project Browser> ceiling plan>First Floor
3. now, go to architecture > ceiling > sketch ceiling>boundary> line

Result:-

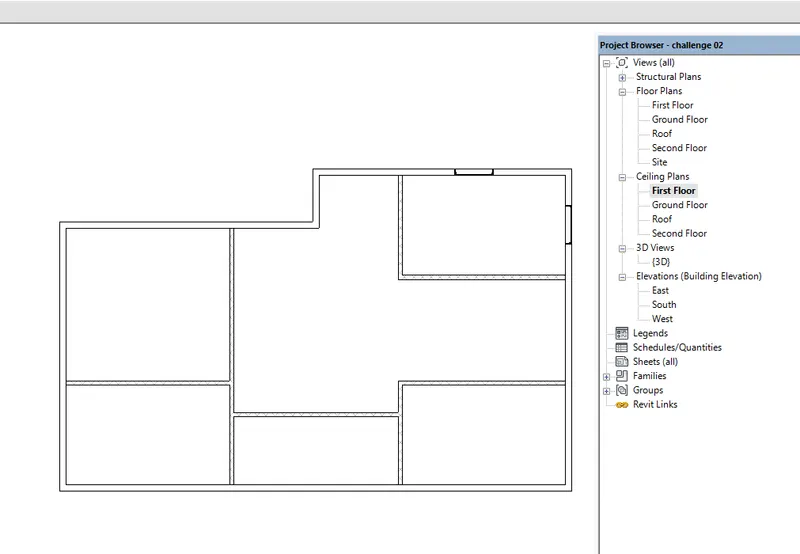

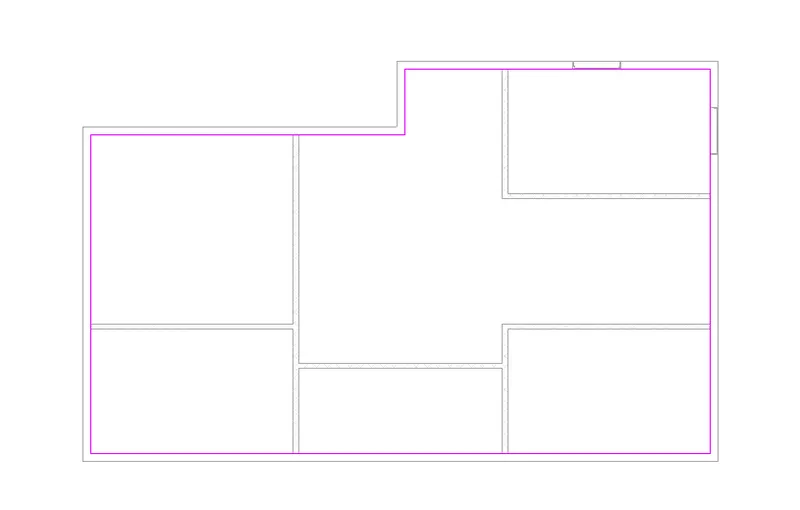

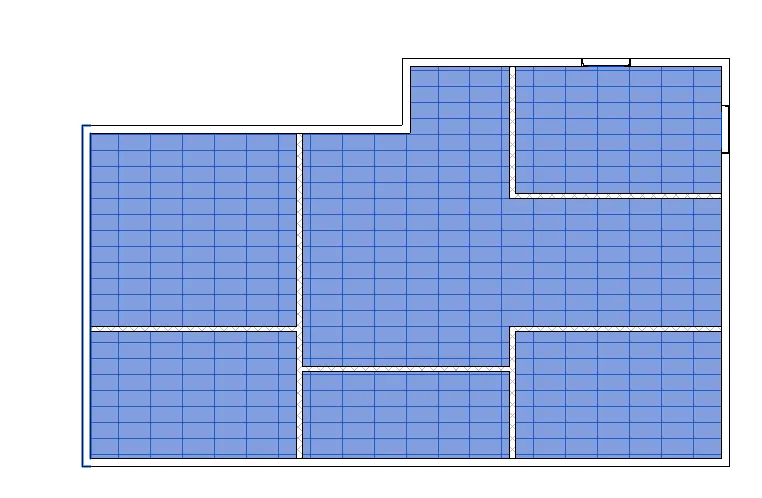

1. ceiling plan:-

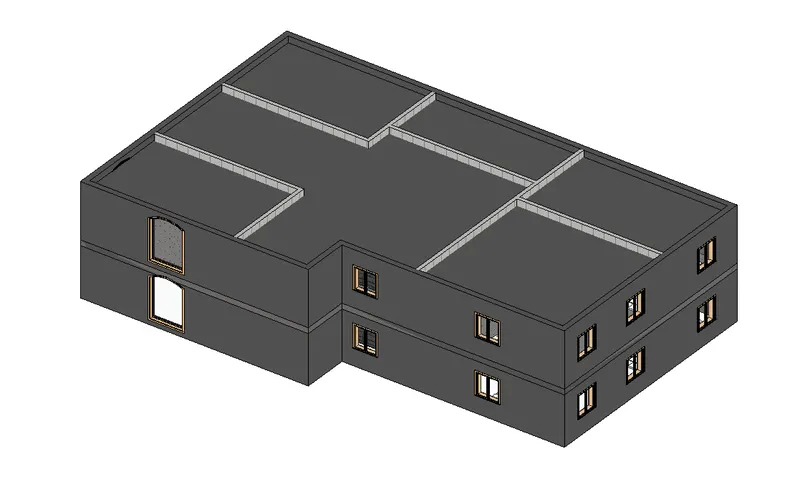

2. 3D view:-

Q 2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

Aim:- To Model a roof above the ceiling by selecting the footprints of the ceiling. And adjust the roof slope to 10 degrees.

Tools:-

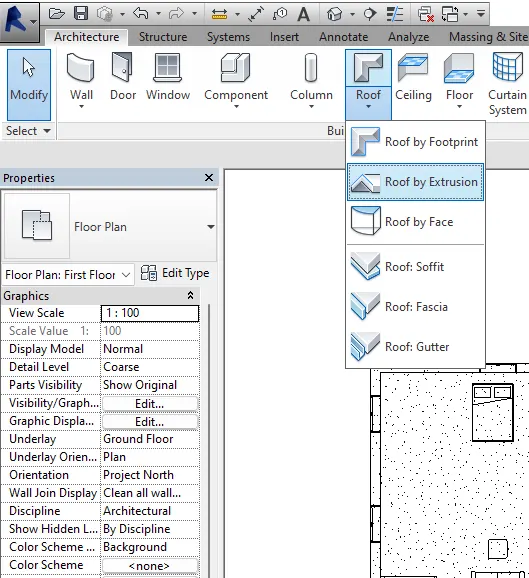

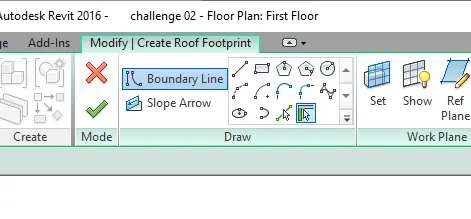

1. architecture > roof > roof by footprint >boundaryline > pick line
2. property browser> slope

Procedure:-

1. To model, a roof go to architecture > roof > roof by footprint >boundaryline > pick line .
2. now select the desired line.

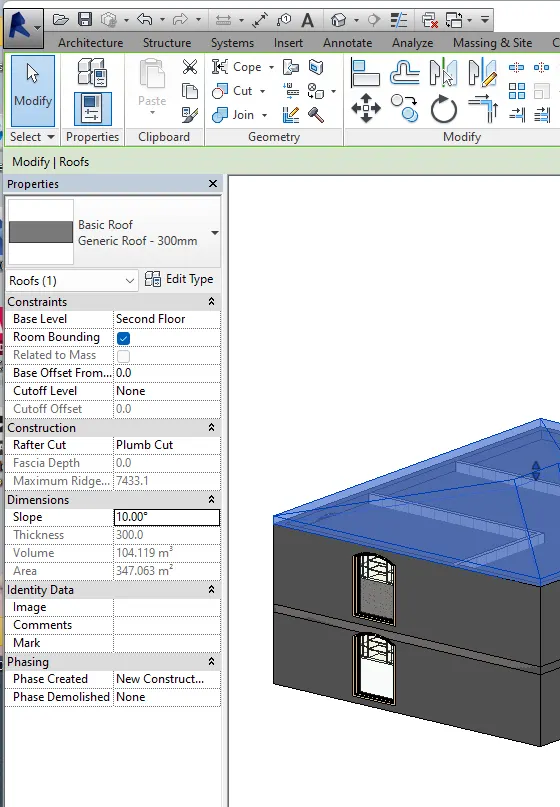

3. To adjust the slope of the roof, first select the roof and go to property browser> slope (10 degrees).

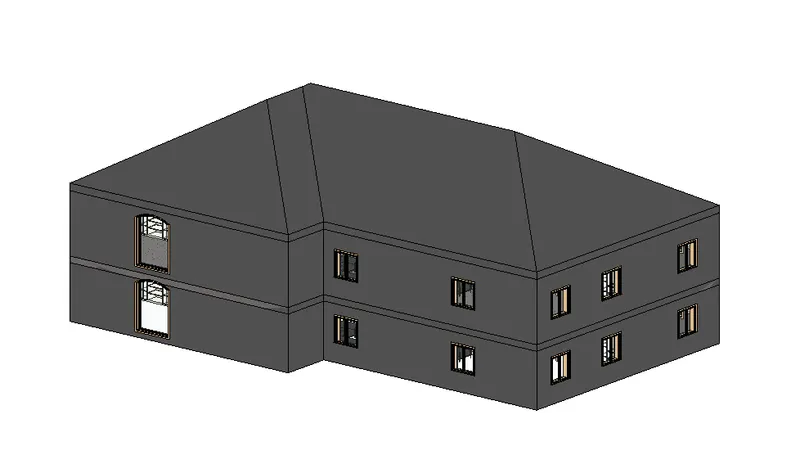

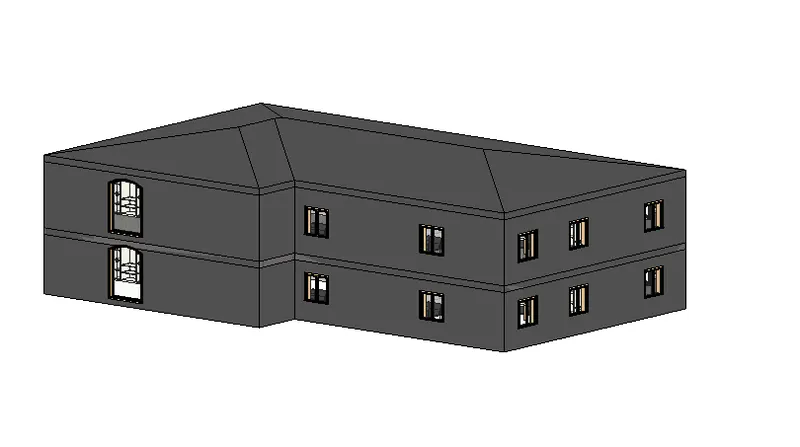

Result:-

Q 3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them into
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building

Aim:- To create an Architecture plan must have walls, floors, and all the components placed within the building.

Procedure:-

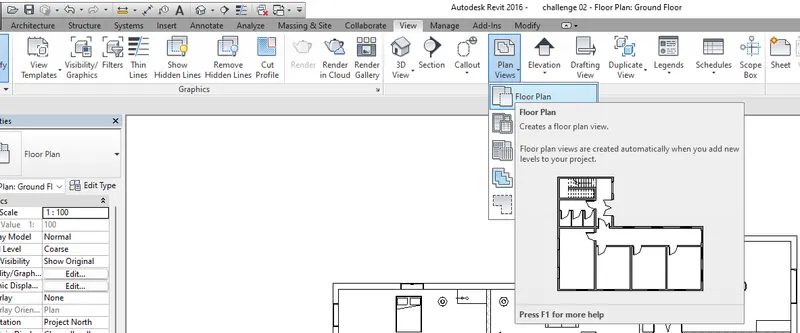

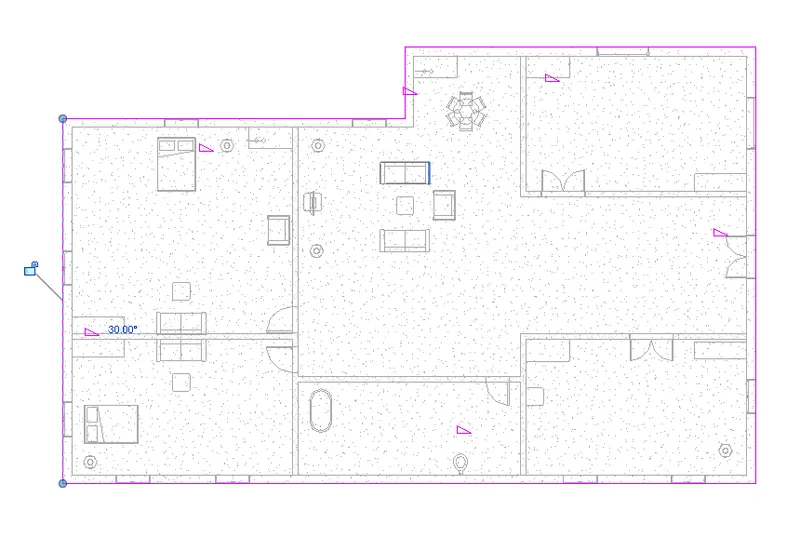

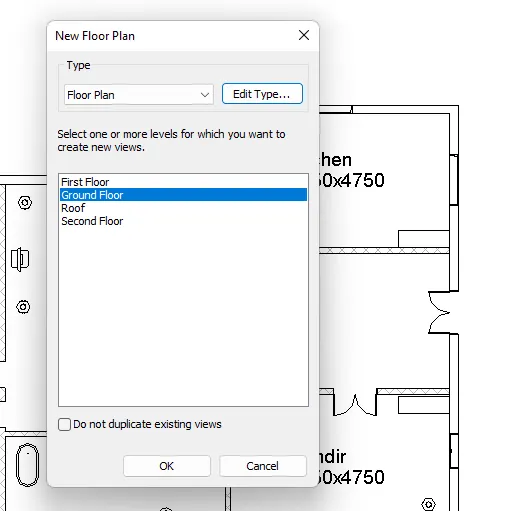

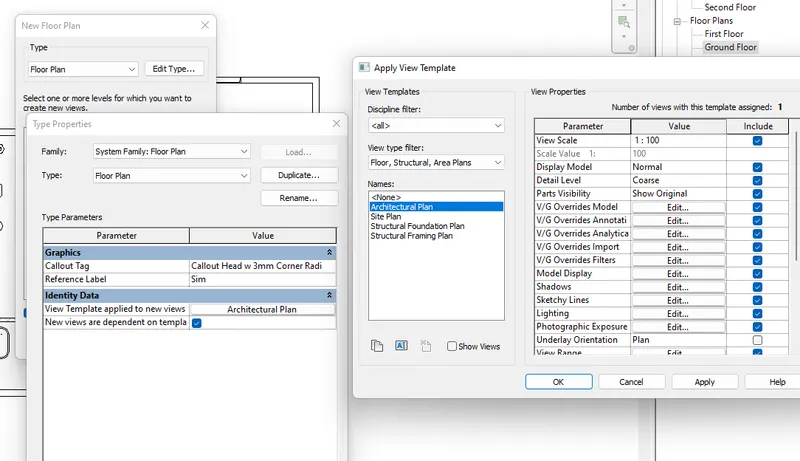

1. To see the Architecture plan first go to View>plan Views> floor plan
2. Go to edit type and select Architecture plan
3. Follow the same for the Ground floor and the first floor.

Result:-

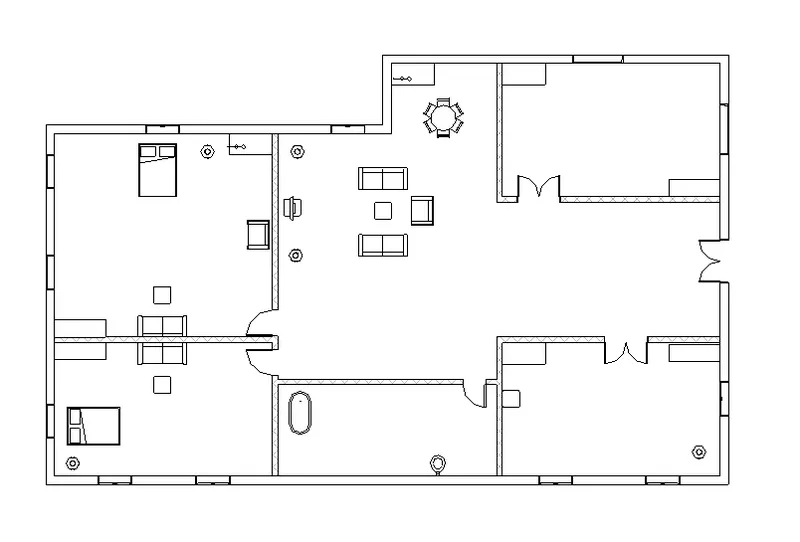

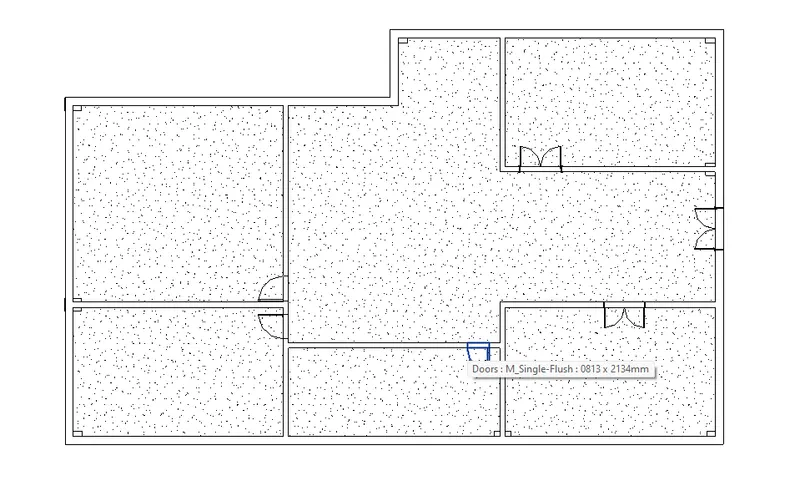

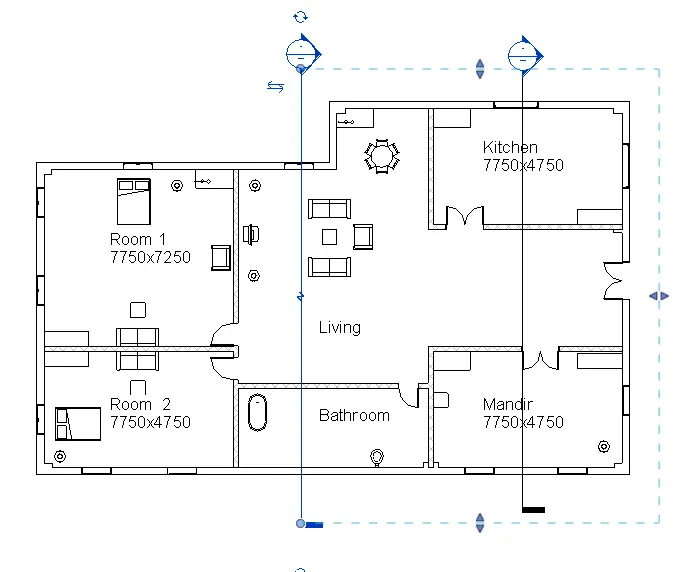

a. Ground Floor:-

b. First Floor:-

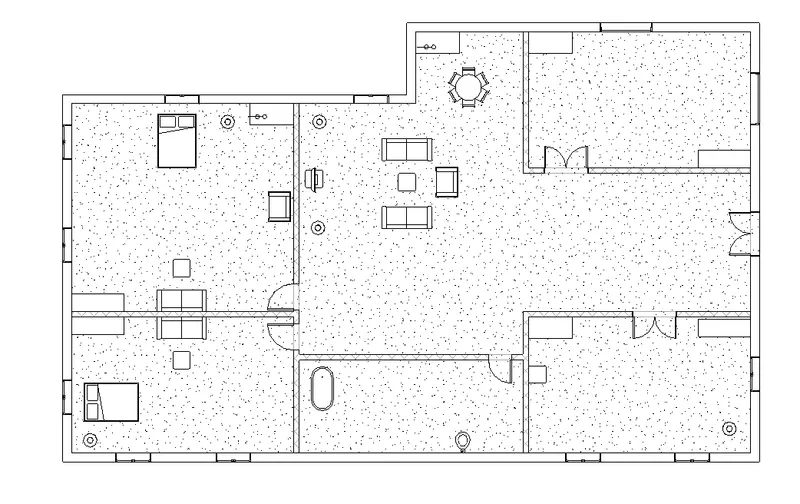

b. The structure plan must have details of only walls, floors, and columns

Aim:- To create a structured plan must have details of only walls, floors, and columns

Procedure:-

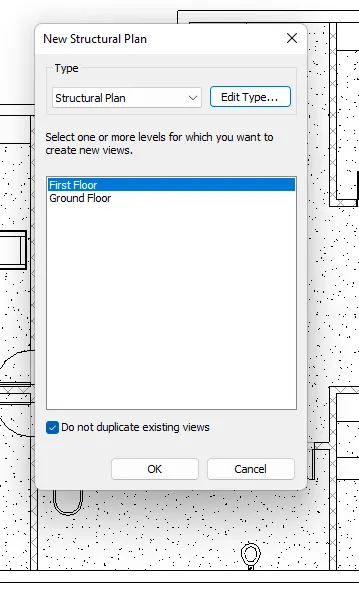

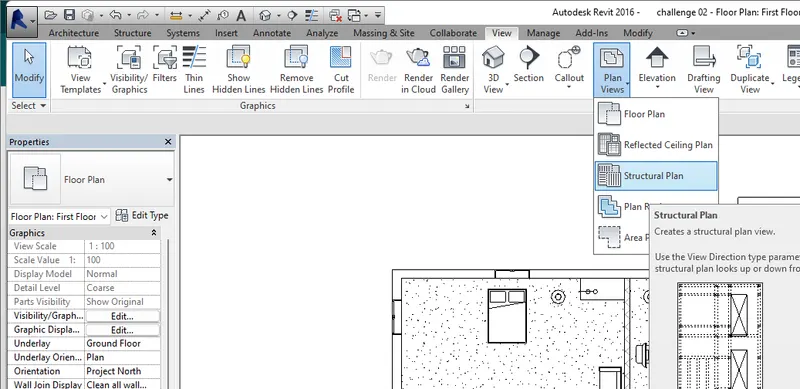

1. To see the structural plan first go to View>plan Views> structural plan
2. Now we can select the floor for the structural plan

Result:-

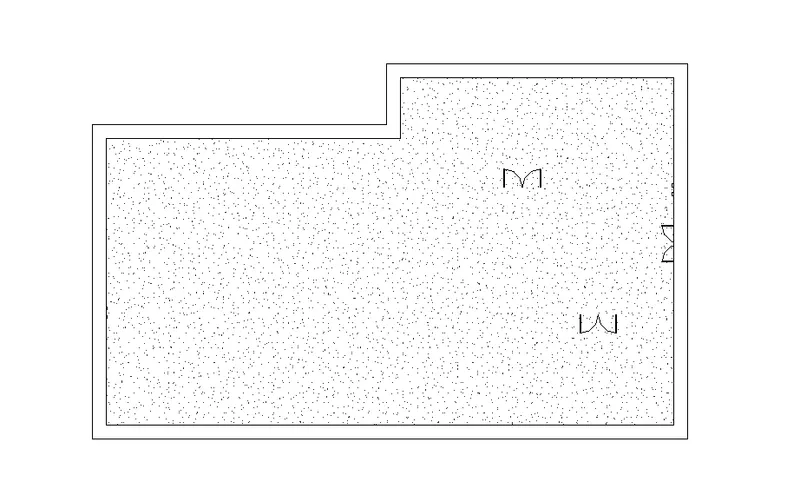

a. Ground Floor:-

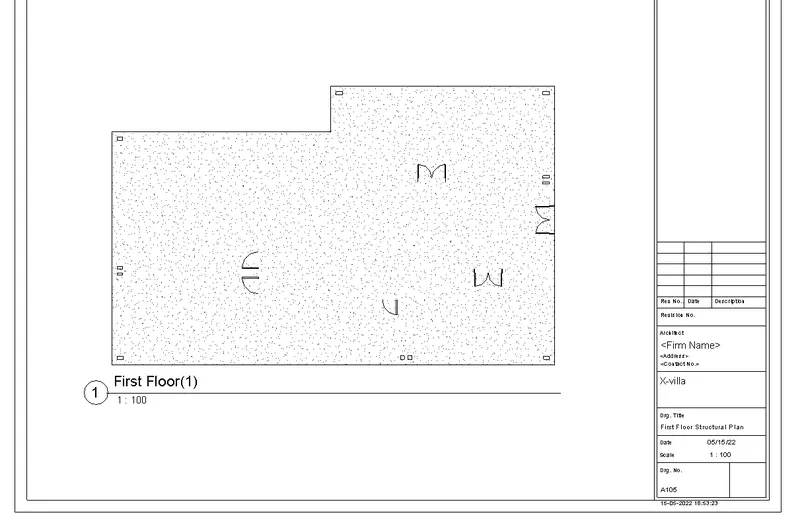

b. First Floor:-

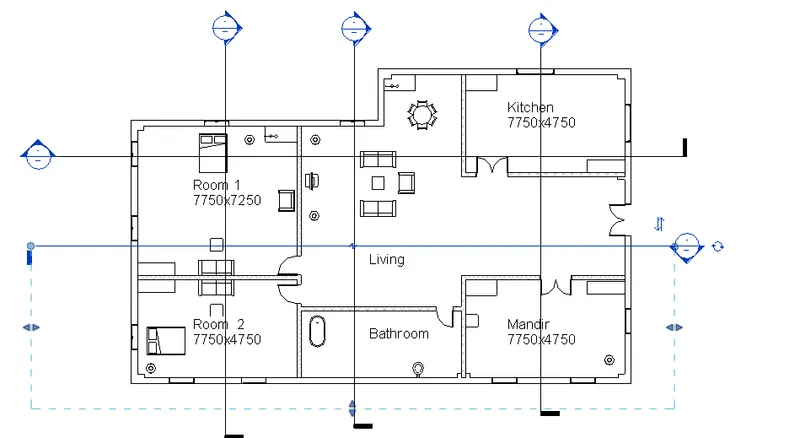

Q 4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings in relation to grids. Overall dimensions are sufficient for architecture plans

Aim:- To give dimensions and gridlines in the architecture plan

Procedure:-

• go to architecture plan

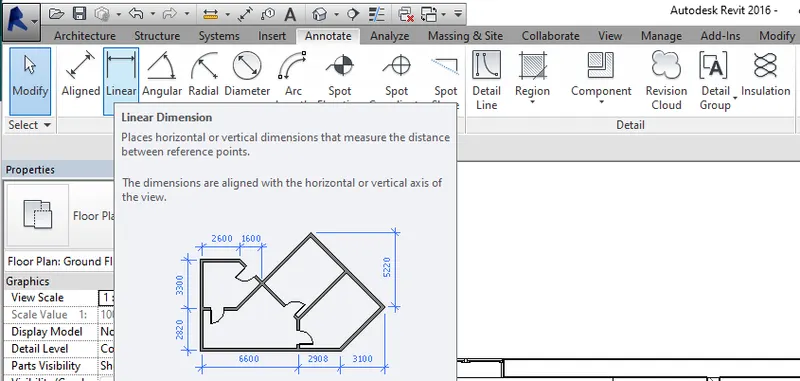

• go to annotate> linear dimension
•

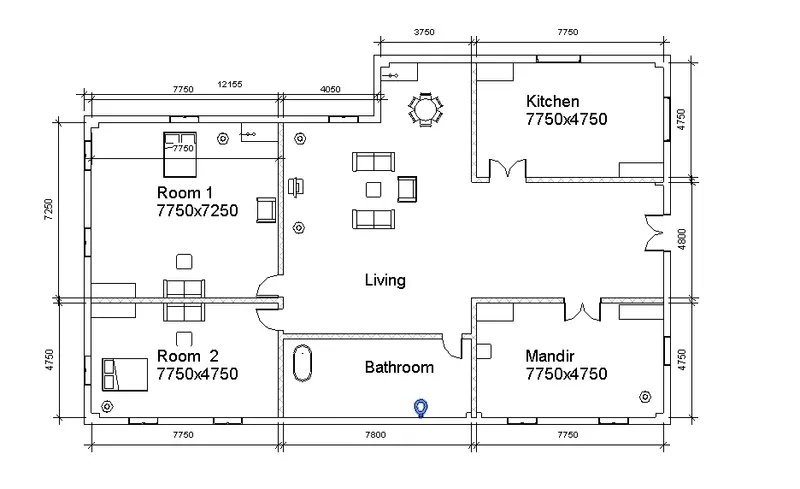

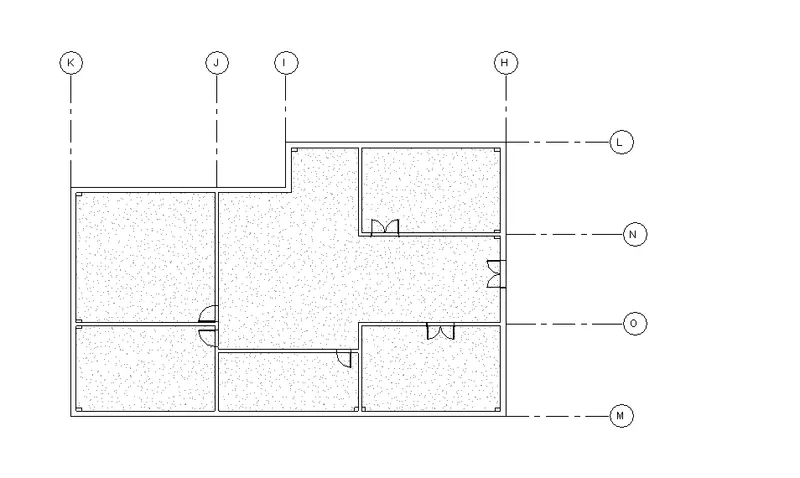

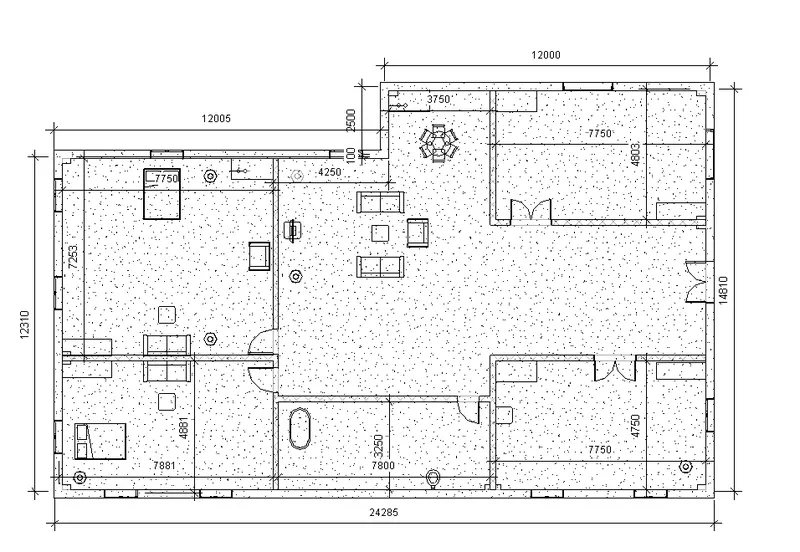

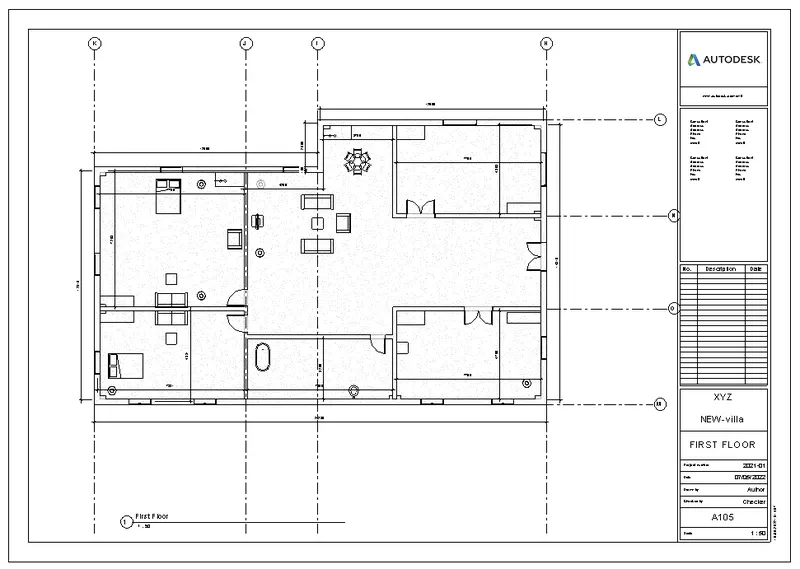

Result:- ground floor

first floor

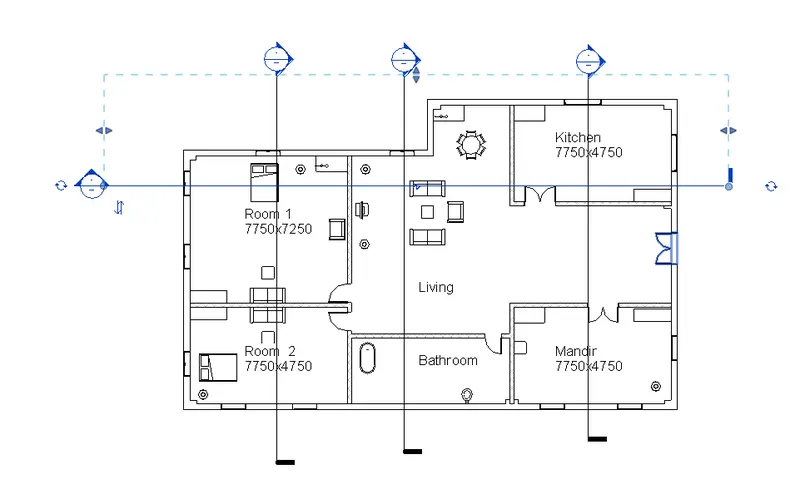

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Aim:- To give dimensions and gridlines in the structural plan

Procedure:-

1. go to the structural plan

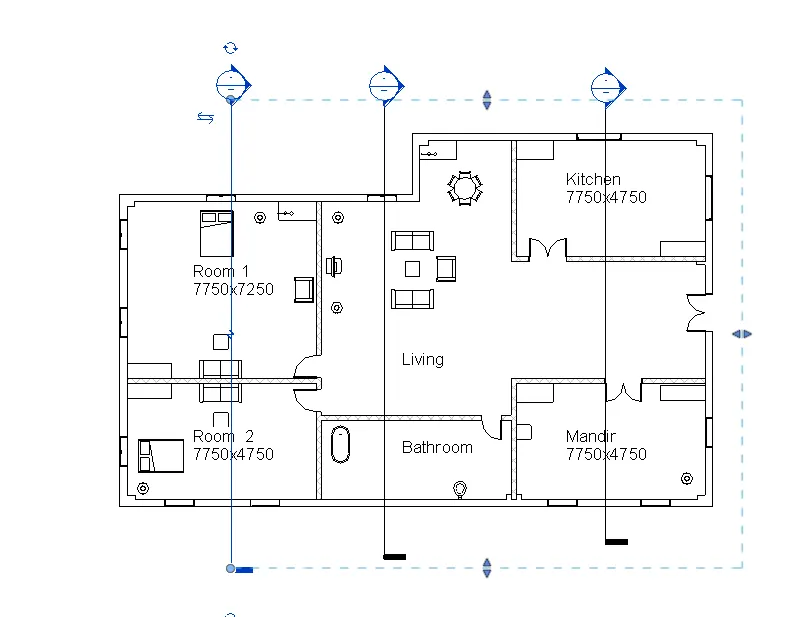

2. after that to draw the grid line go to architectural tab> grids (now draw the grids line)

Result:-

ground floor:-

Q 5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

Aim:- To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

Procedure:-

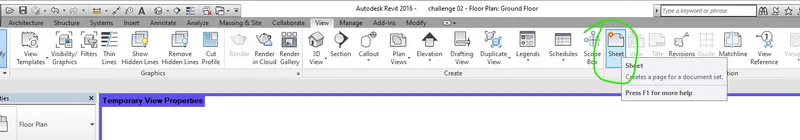

• Go to view>sheet > select paper> add views in sheet
• now, adjust the parameters on the sheet.
•

Result:-

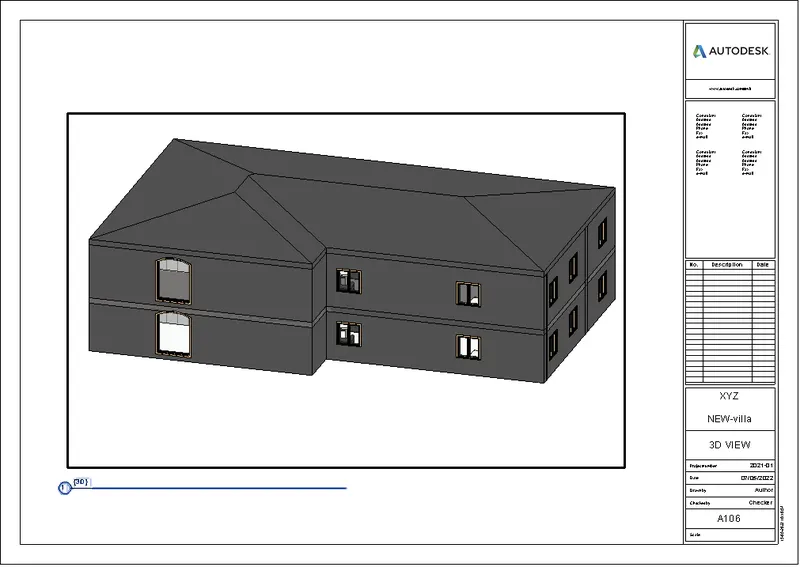

1. GROUND FLOOR
2. FIRST FLOOR
3. 3D VIEW

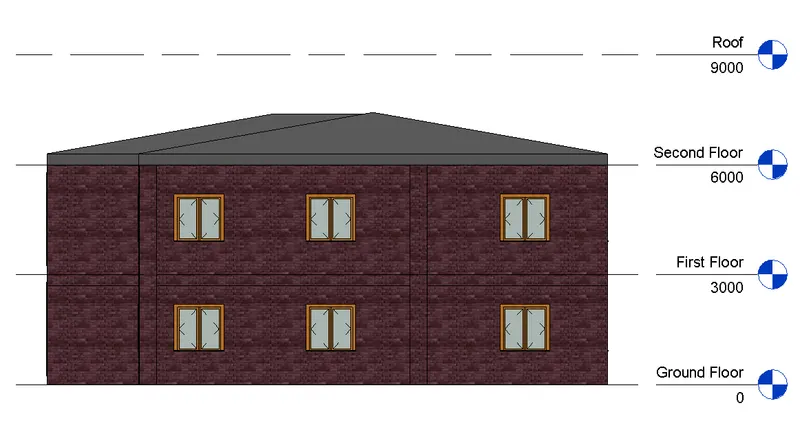

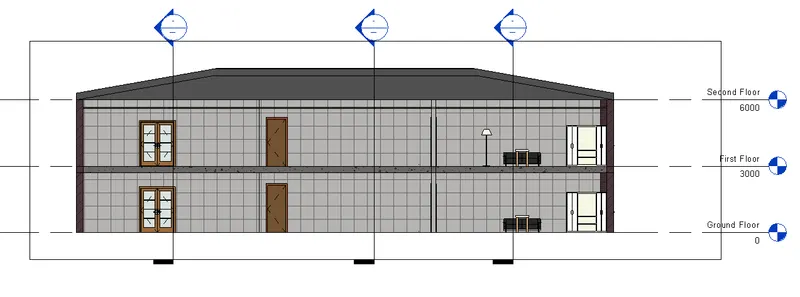

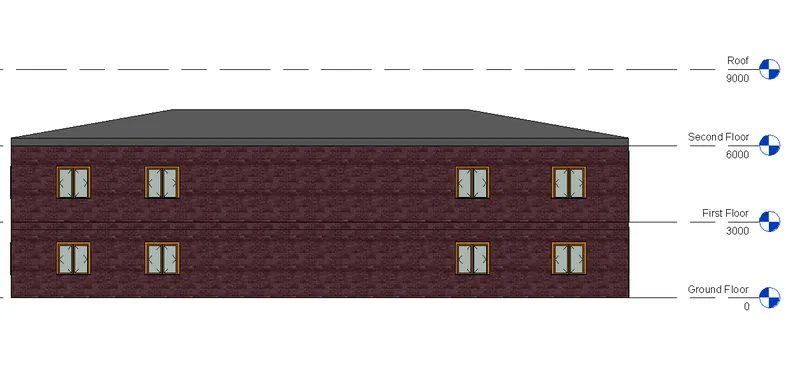

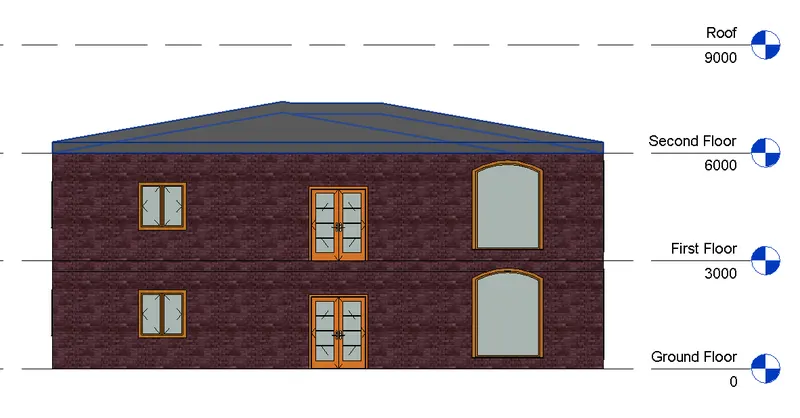

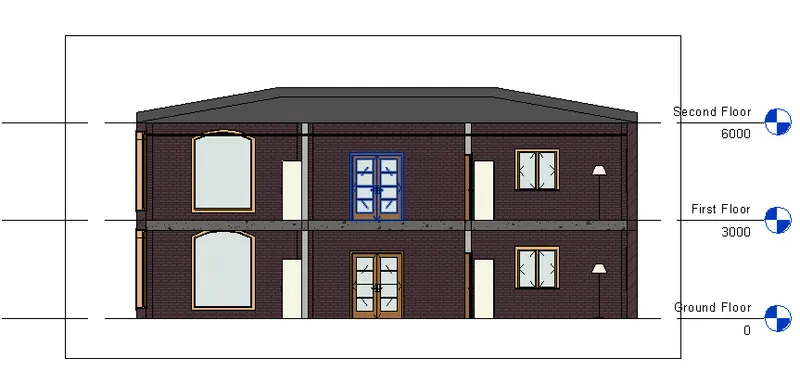

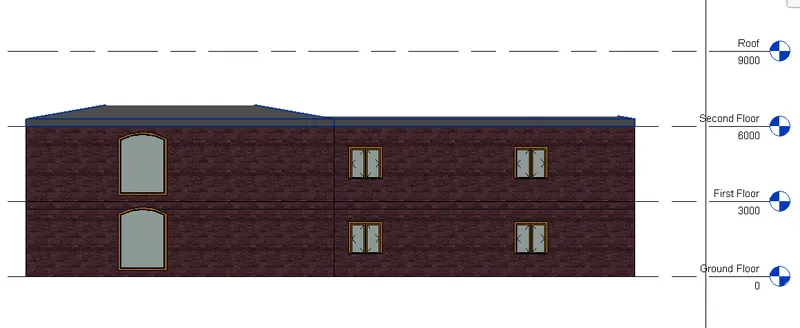

Q 6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Aim:- To create the elevation views, looking at your building from East, North, South, and West

Procedure:-

1. Project browser> elevation> east, west, north, south

Result:-

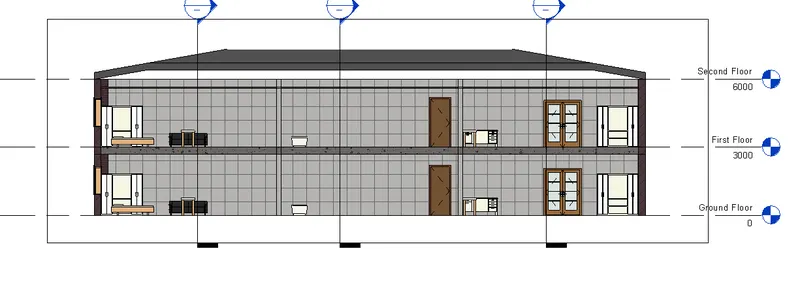

1. East
2. West
3. North
4. South

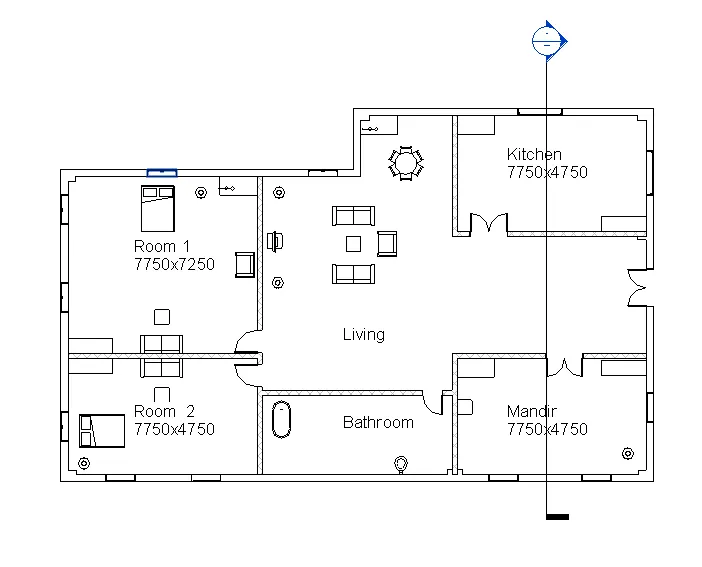

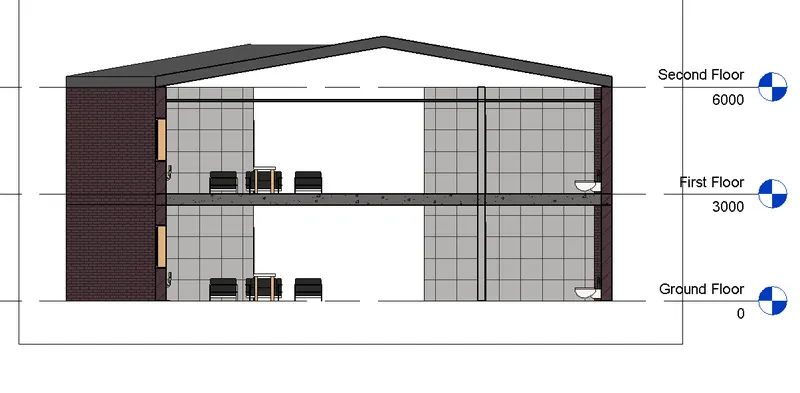

Q 7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.

Aim:- To produce section cut through each room.

Procedure:-

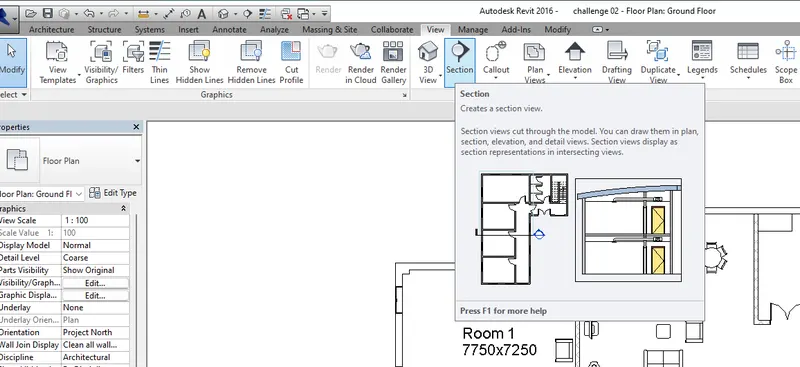

1. view> section

Result:-

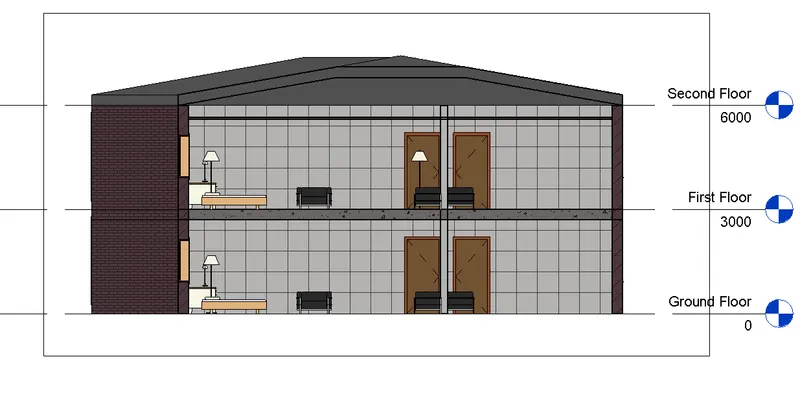

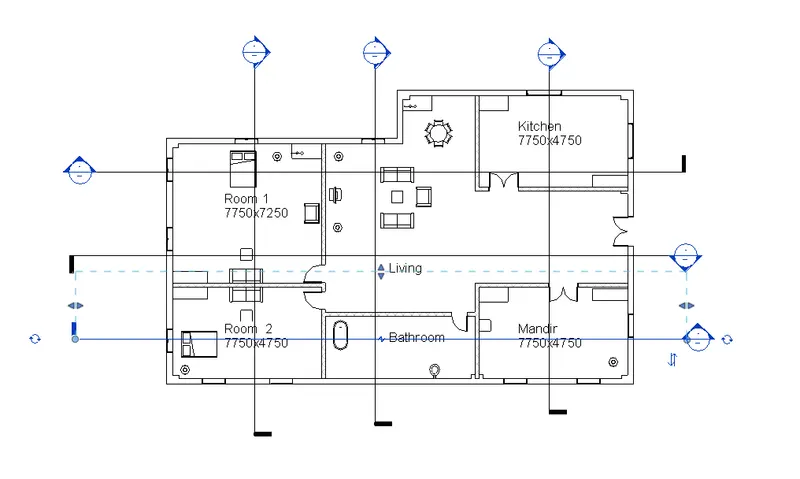

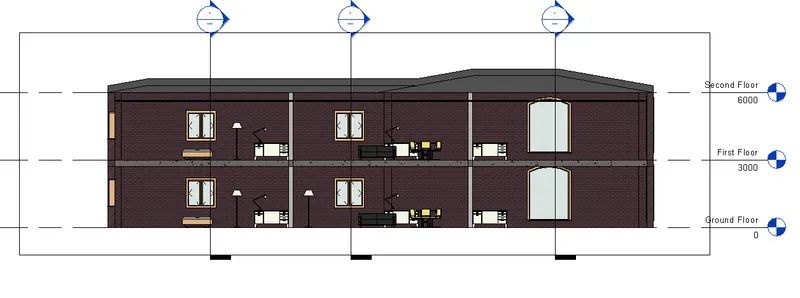

1. Section 01:-
2. Section 02:-
3. Section 03:-
4. Section 04:-
5. Section 05:-
6. Section 06:-

Q 8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using the Properties browser.

Aim:- To classify the views, Plan Views, Section Views, and Elevation views.

Procedure:-

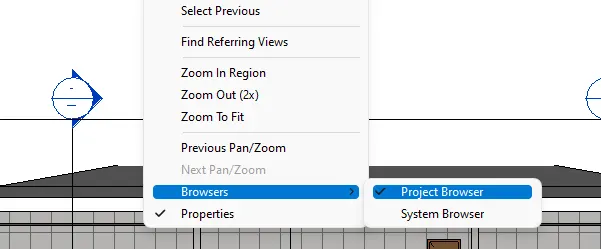

• browser>project browsers
•

Result:-

1. Structural Plan
2. Floor Plan
3. Ceiling Plan
4. 3D views
5. Elevations
6. Section

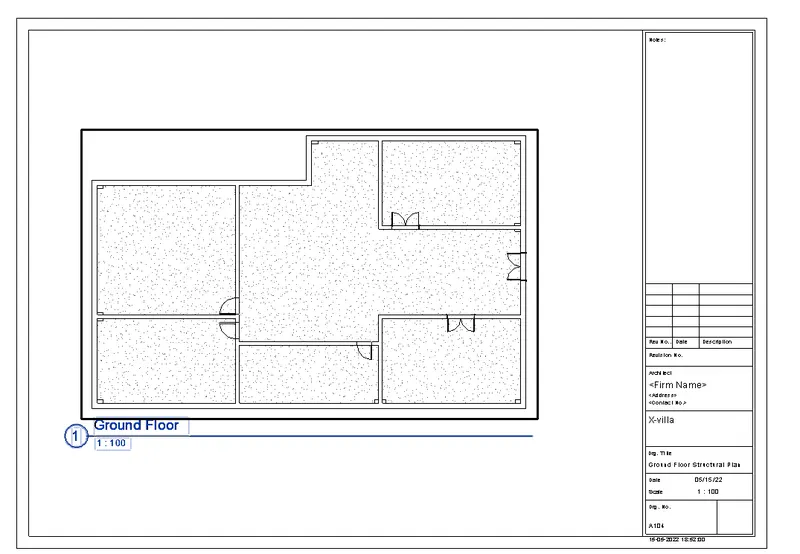

Q 9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations

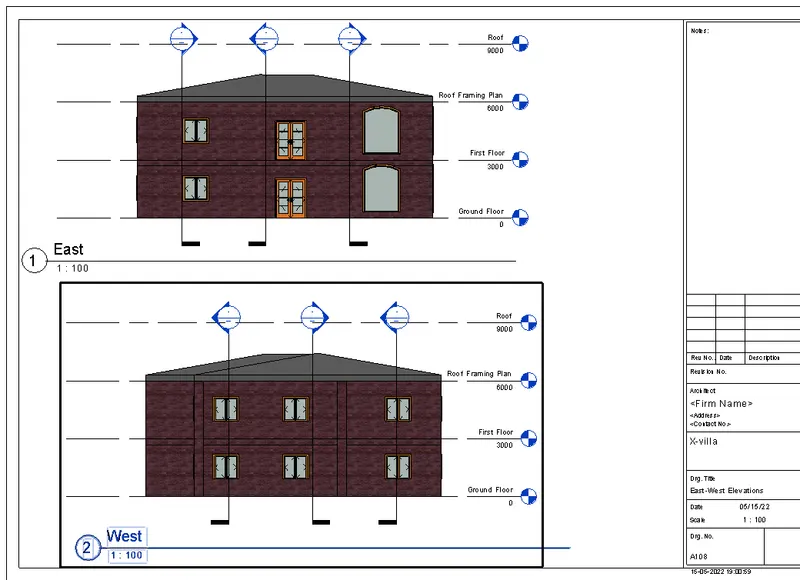

h. A-202- East-West Elevations

Aim:- To create multiple sheet template

Procedure:-

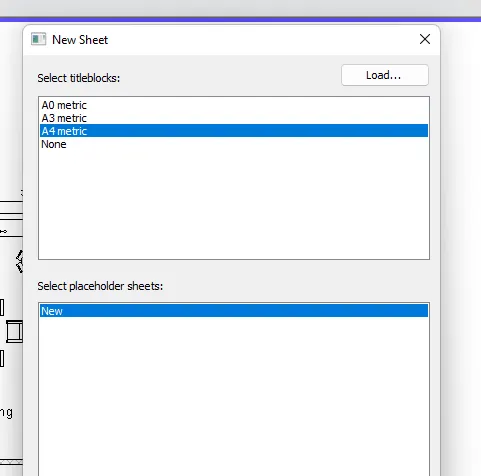

• Go to view>sheet > select paper> add views in sheet
• now, adjust the parameters on the sheet.

Result:-

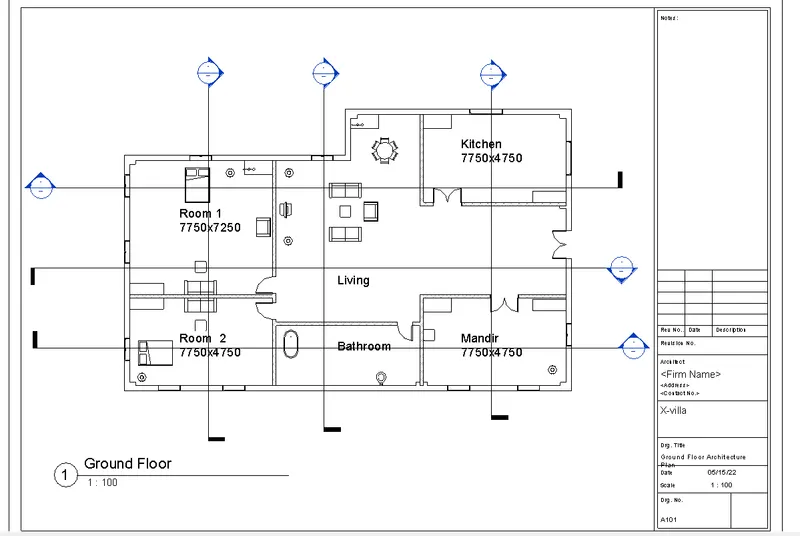

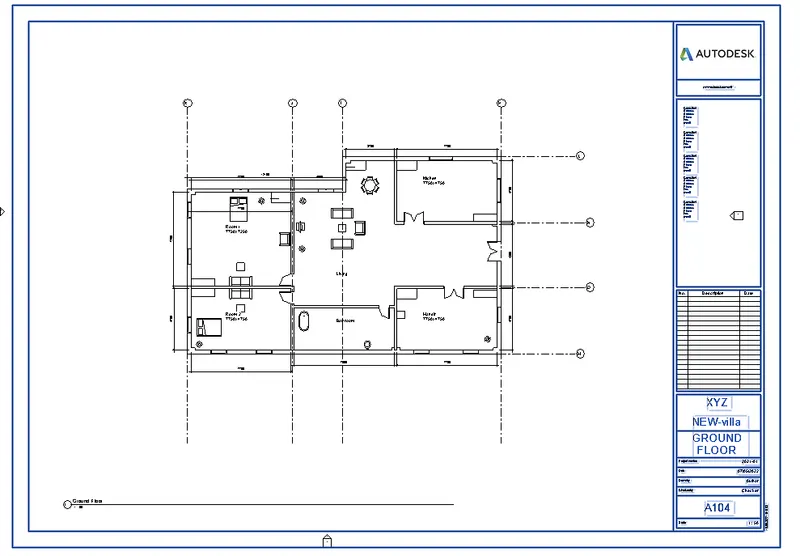

a. A 101- Ground Floor Architecture Plan:-

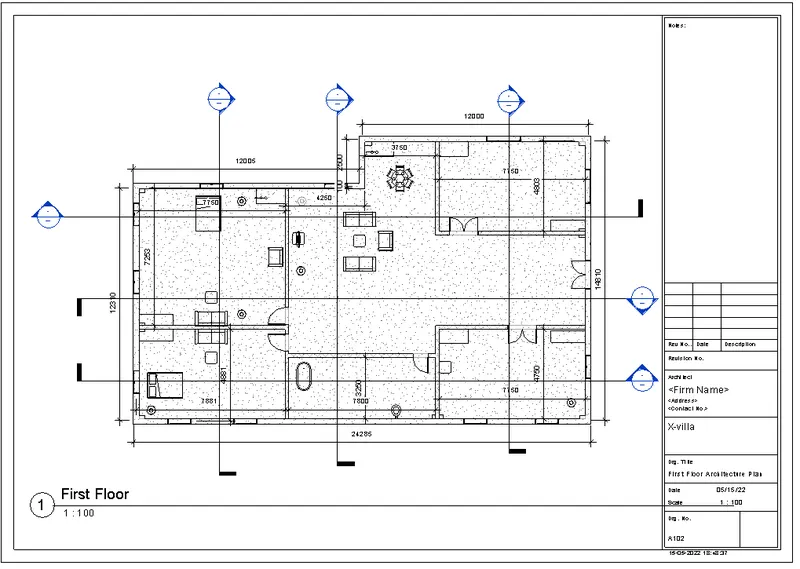

b. A 102- First Floor Architecture Plan:-

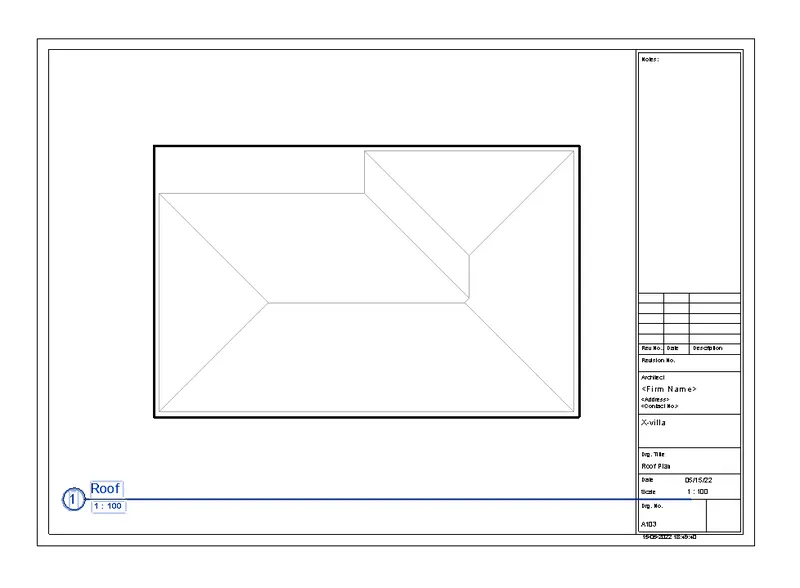

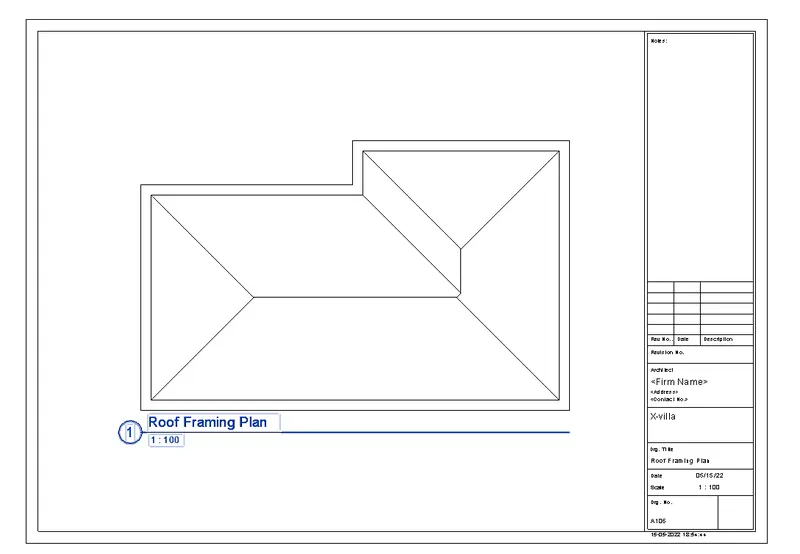

c. A 103- Roof Plan:-
d. S 101- Ground Floor Structural Plan:-
e. S 102- First Floor Structural Plan:-
f. S 103- Roof Framing Plan:-

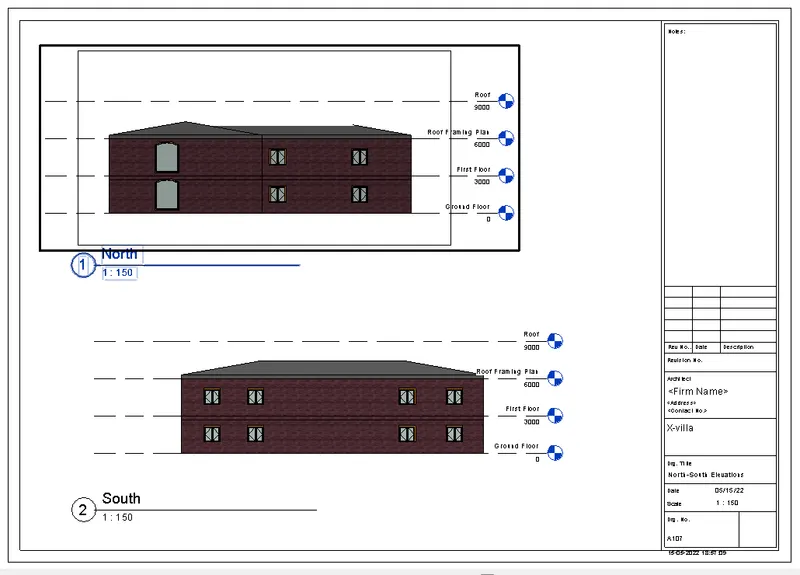

g. A-201- North-South Elevations:-
h. A-202- East-West Elevations:-

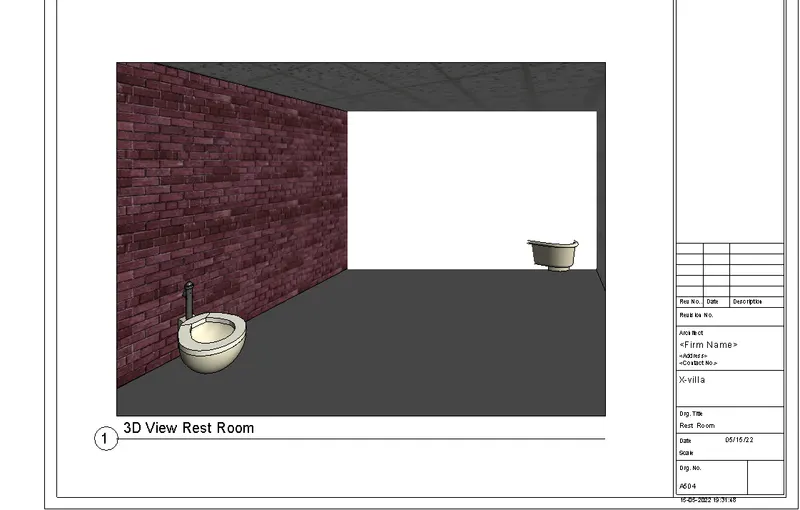

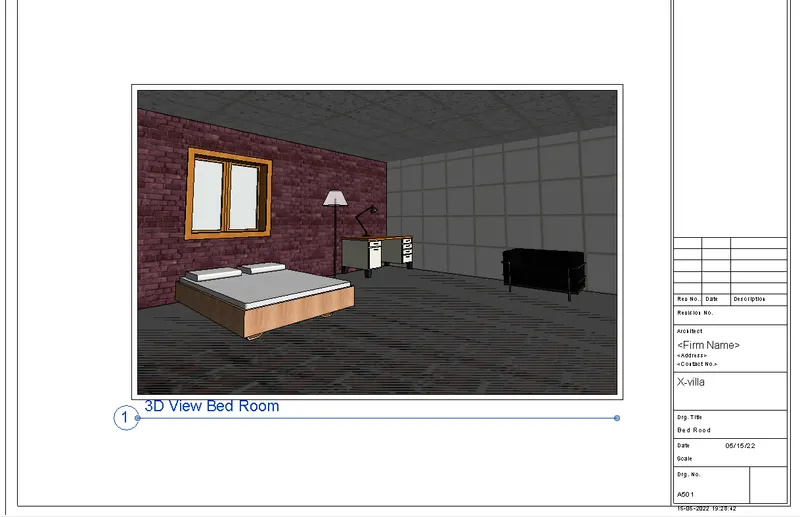

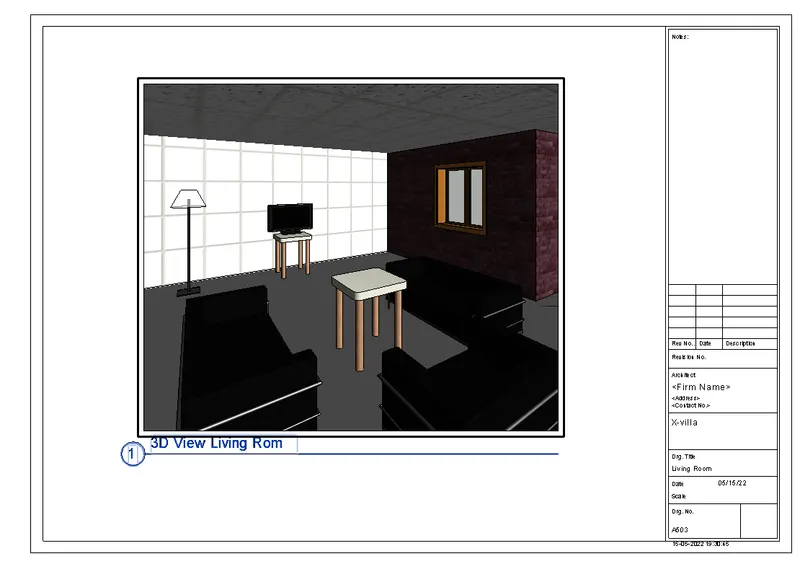

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Aim:- To create a camera-specific view or a 3D view in each room.

Procedure:-

• Go to view>camera> place the camera as the desired place
• now, adjust the parameters on the sheet.

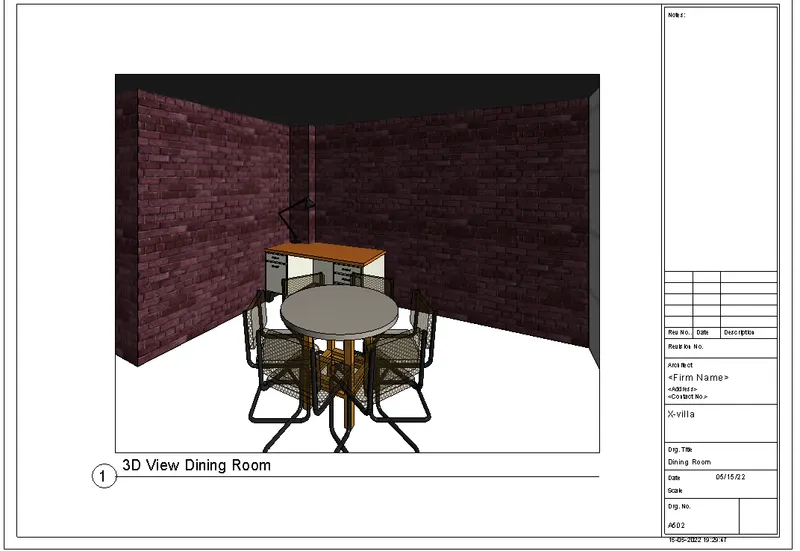

Result:-
