Challenge

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

MMuralidharan K11 May 2022

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

AIM:

To create layout, walls, floors, ceilings, roof, place some components in each rooms, doors and windows in appropriate places, provide annotations, create sheets, sectional views, 3D views, Elevations and plan views. Also, explain the procedure step by step and obtain the result.

INTRODUCTION:

Revit is a BIM (Building Information Modelling) software to drive efficiency and accuracy across the project lifecycle, from conceptual design, visualisation and analysis to fabrication and construction.

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit Software
Open the project saved from week 3.
To insert a ceiling, go to Architecture tab.
Choose the Ceiling icon and a Modify ribbon tab will open.
Now, select the Draw or Pick lines option to insert the boundary conditions for the ceiling.
After Sketching the boundary lines for the ceiling, close the edit option.
Now, the Ceiling is inserted in the drawing.

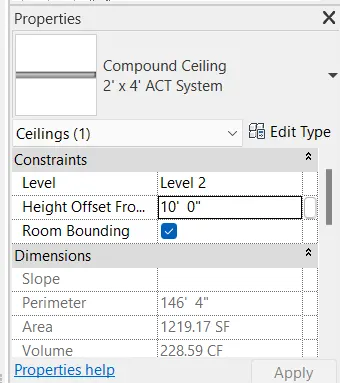

Check the Properties window for the ceiling type and changes can be done in the edit type.

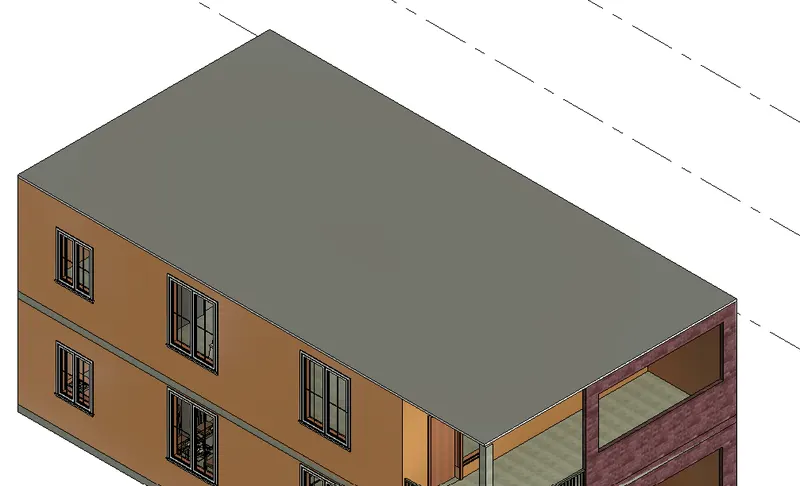

The following images shows the Ceiling inserted for the top floor.

RESULT:

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Working on the same drawing and on continuation from the previous question/step, as ceiling is already created from the previous step.
In the next step, to create a roof above the ceiling.
Go to Architectural tab and select the Roof icon to choose Roof on Footprint.
Now, a Modify ribbon tab will open and using Draw or Pick lines option, select the Roof Boundaries to insert the roof in the drawing.
After Sketching the boundary lines for the Roof, close the edit option.
Now, the Roof is inserted in the drawing.
As per the given condition, the slope should be 10 degrees in the Roof.

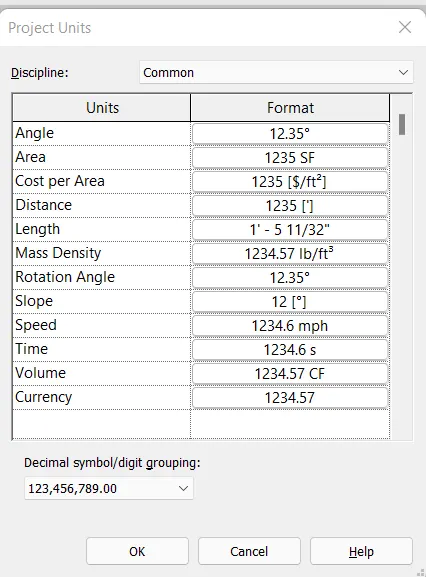

So, type UN (units) command, select the slope option and change the units to degrees.
Now, select the Roof created and go to properties browser.
Change the slope to 10 degrees as per the condition.

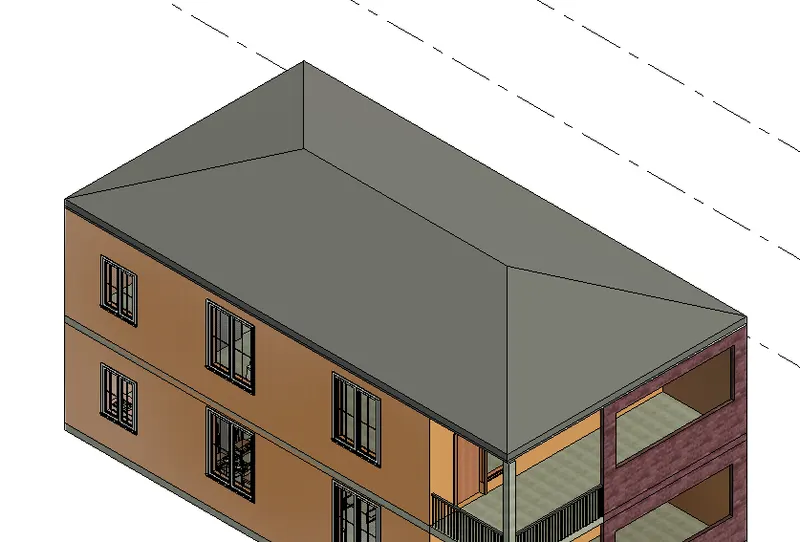

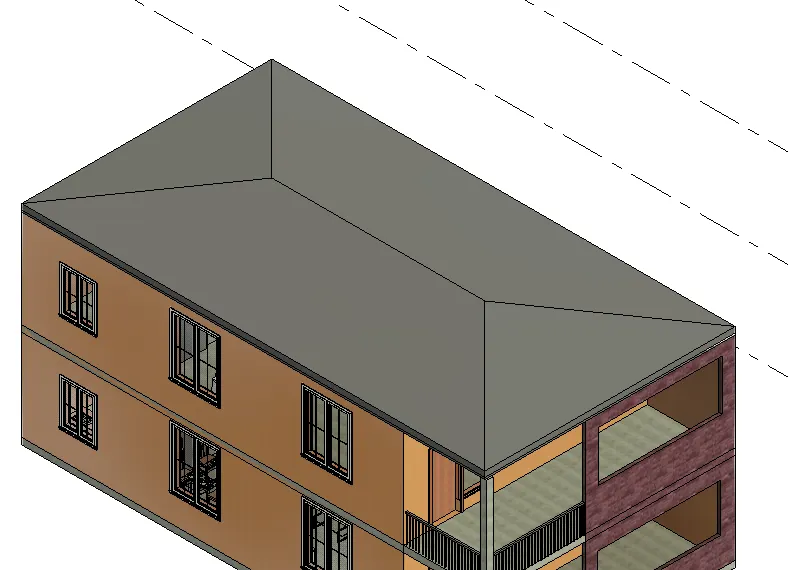

The Following images shows the roof inserted in the top floor.

RESULT:

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
Now, select the first floor plan and choose realistic view.
Type VG (visual graphics), set the filter list to Architectural and check all the components.

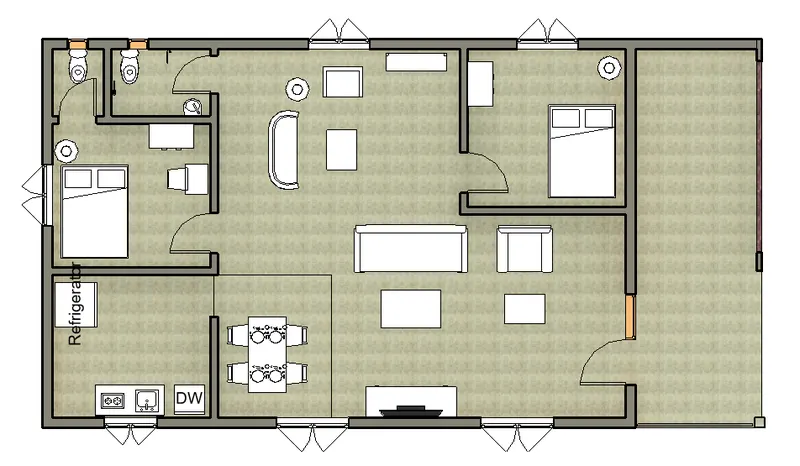

The following image shows Architectural plan for the first floor.

Now, to get the Structural plan of the ground floor.
Go to View tab and select plan views to choose the structural plan.
After choosing it, a dialogue box will open to select the level.
Now, select the ground floor in that diagolue box.
And, a Ground Floor structural plan will be created.

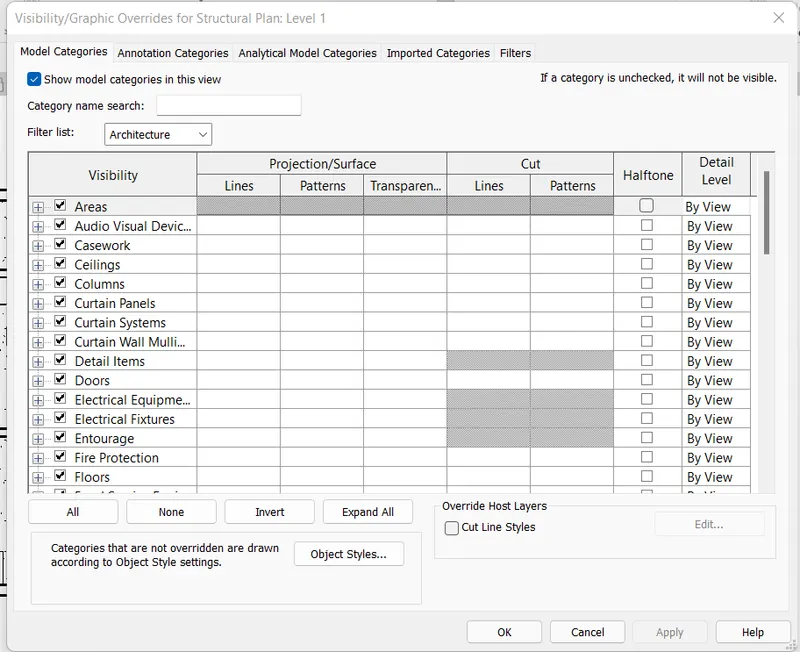

Now, go to VG (visual graphics), uncheck all the components in the strcutural list expect the structural components like walls, floors and columns.

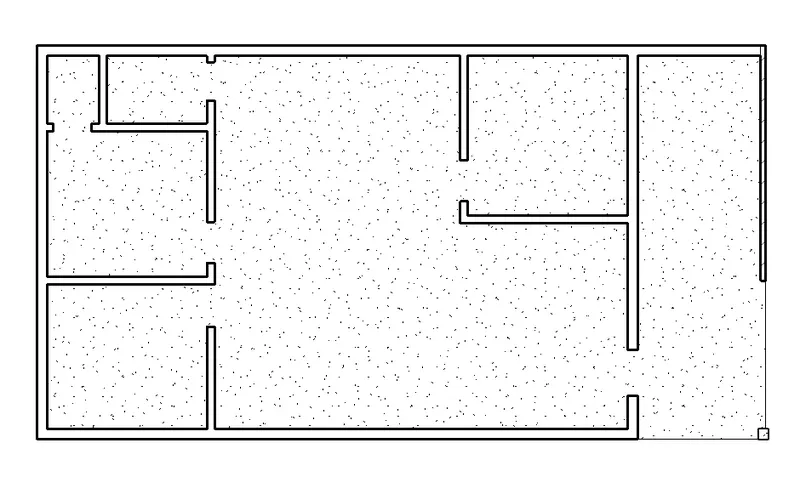

The following image shows the Structural plan of the Ground floor.

RESULT:

ARCHITECTURAL PLAN

STRUCTURAL PLAN

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
Now, select the first floor plan and choose realistic view.
Go to Annotate Toolbar and choose Aligned option for annotation.
Now, select the boundaries, walls and rooms for annotations.
Carefully, select the ends and mark the dimensions.

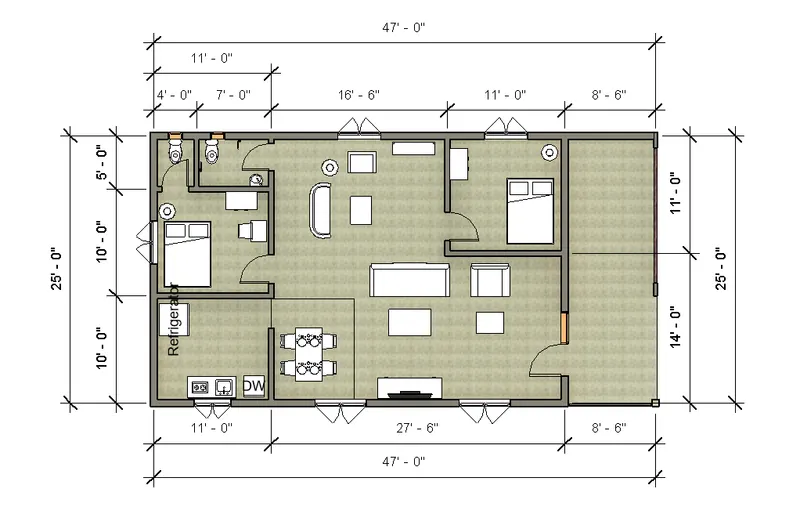

The following image shows the dimensions marked for the architectural plan.

Now, Open the structural plan created and repeat the same procedure.
Go to annotate toolbar and select aligned option for annotation.
Carefully, select the ends and mark the dimensions.

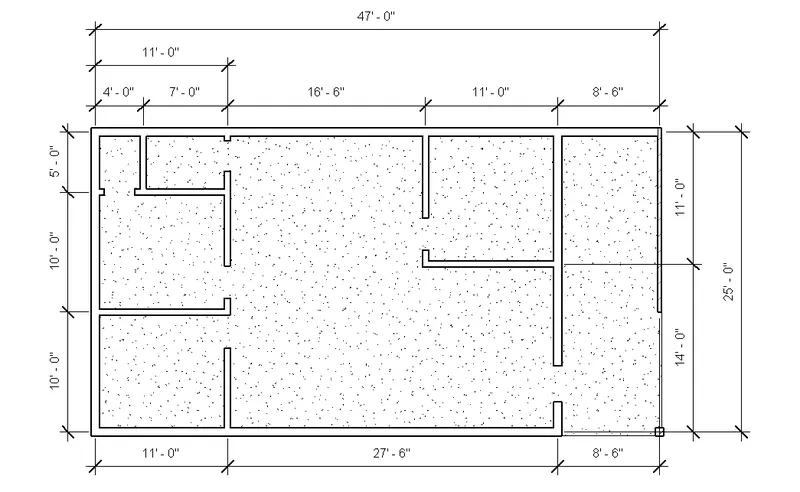

The following image shows the dimensions marked for the Structural plan.

RESULT:

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
Go to the View tab and select Sheet option.
A tab will open and select the type of sheet which is wanted.
The selected sheet will appear on the screen as shown below.

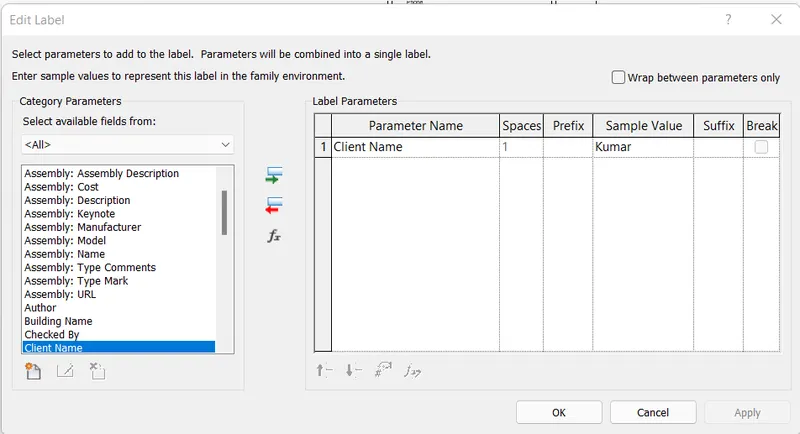

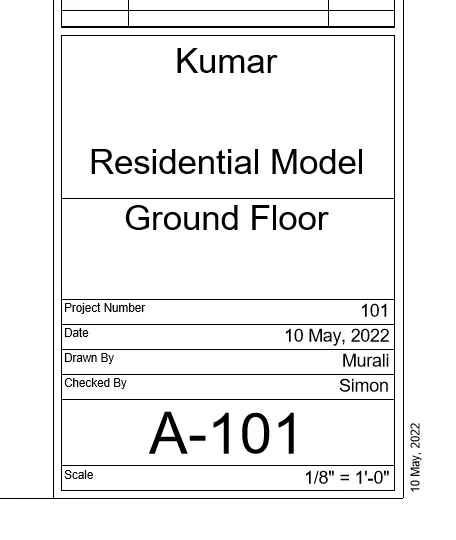

Now, edit the parameters in the sheet. Mention the Client Name, Architect name, Project name, date etc...

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

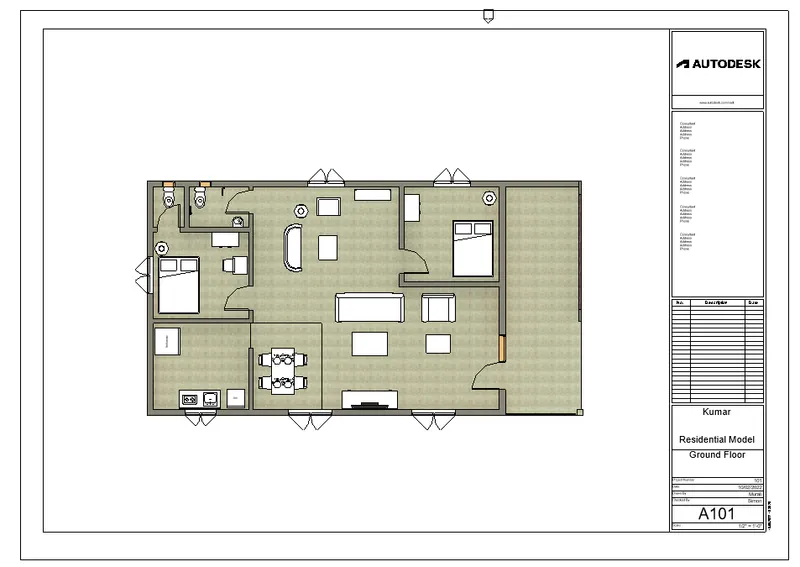

The following image shows the Architectural Floor plan in the sheet.

RESULT:

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
In order to create Elevation views, Go to the View tab and select elevations.
An elevation icon will appear and place it each directions.
Therefore, east, west, north and south elevations will be created.

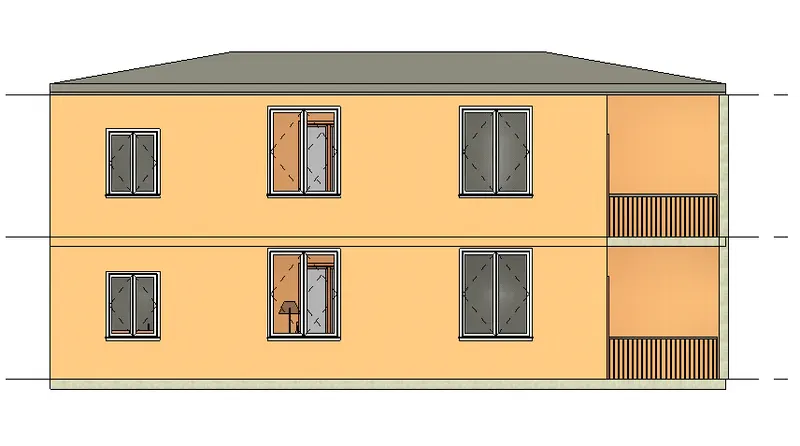

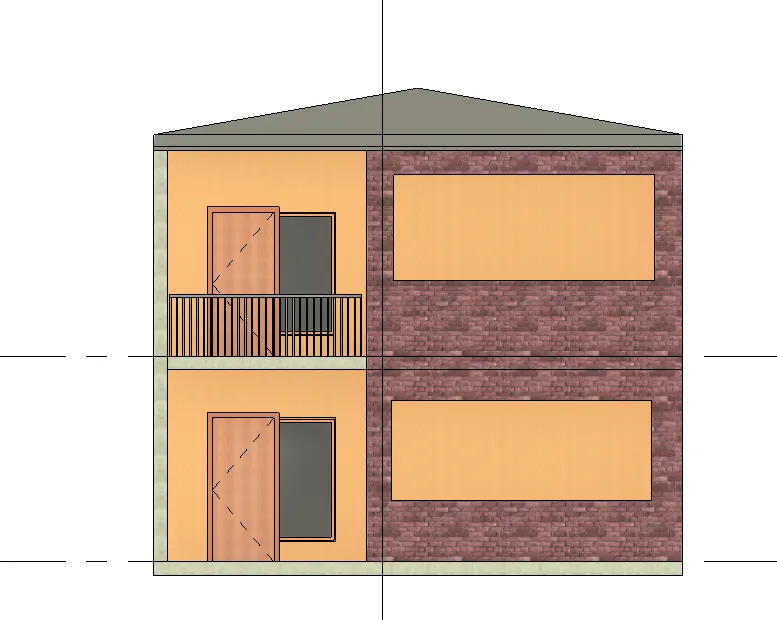

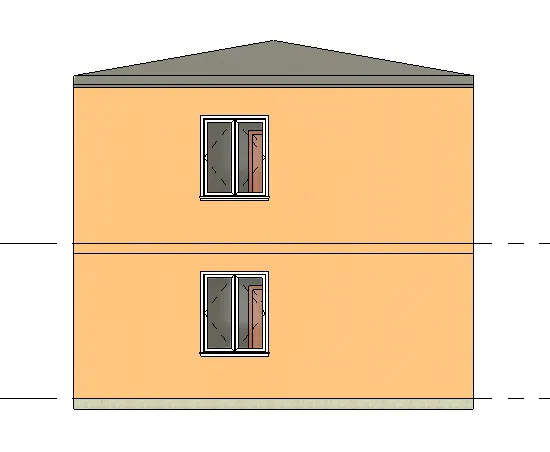

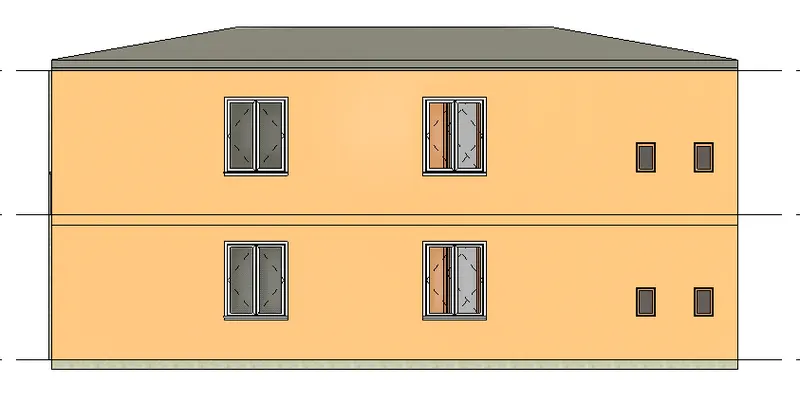

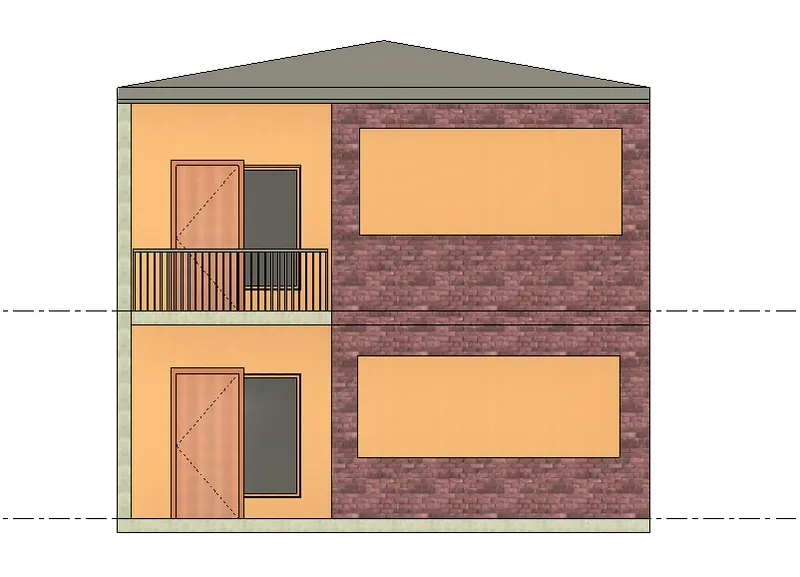

The following images shows the Building elevations created.

RESULT:

Elevation Views from East, West, North and South.

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
In order to create Section views, Go to the View tab and select Sections.
Now, a section cut icon will appear and cut through the model to create sectional views.

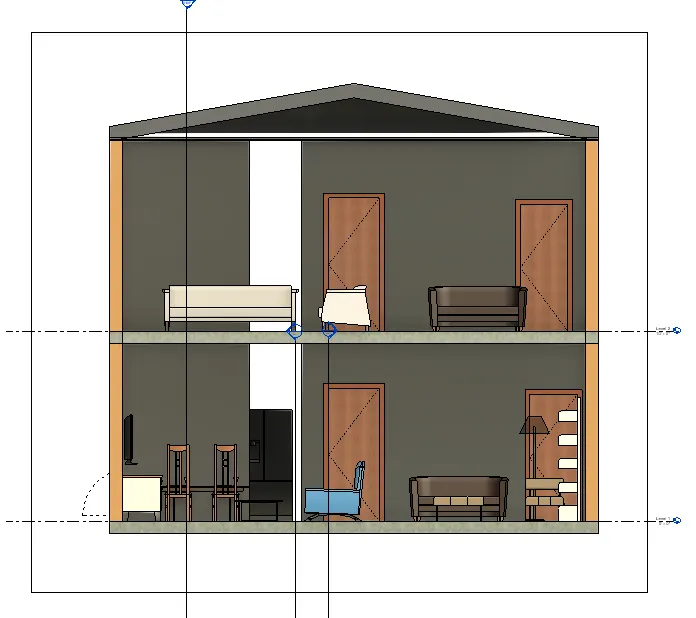

Here, I have created an Longitudinal and lateral Sectional cut to provide detailed view of Living room.

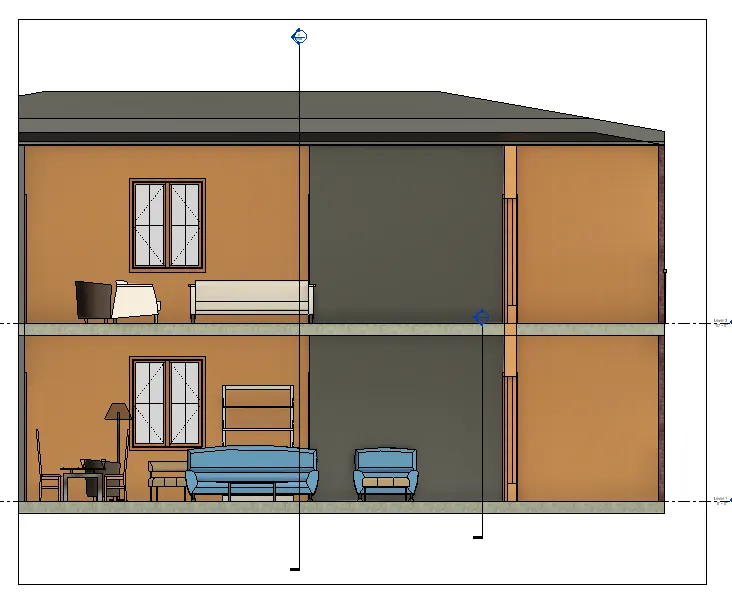

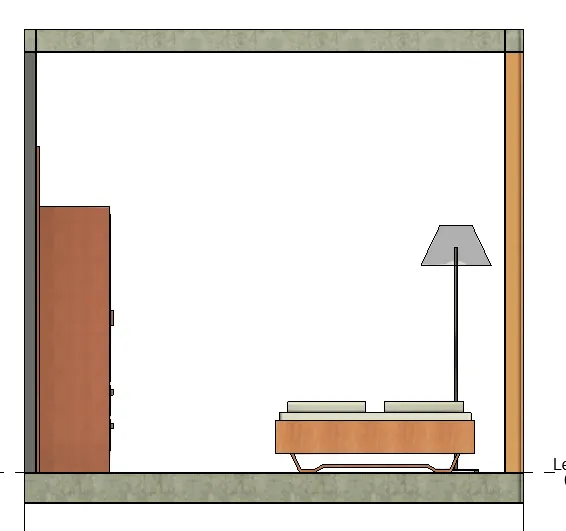

Sectional View of Living room.

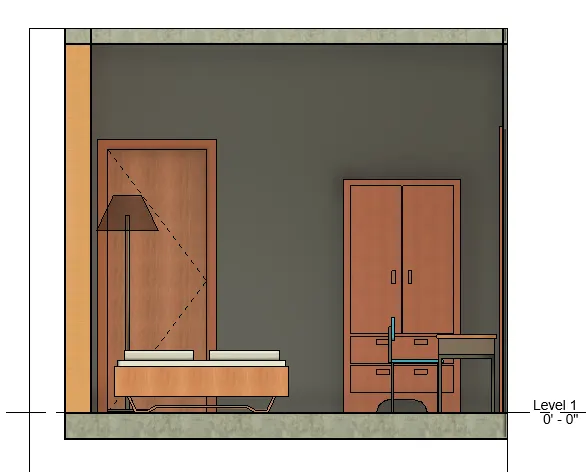

Sectional View of Master Bedroom.

Sectional View of 2nd Bedroom.

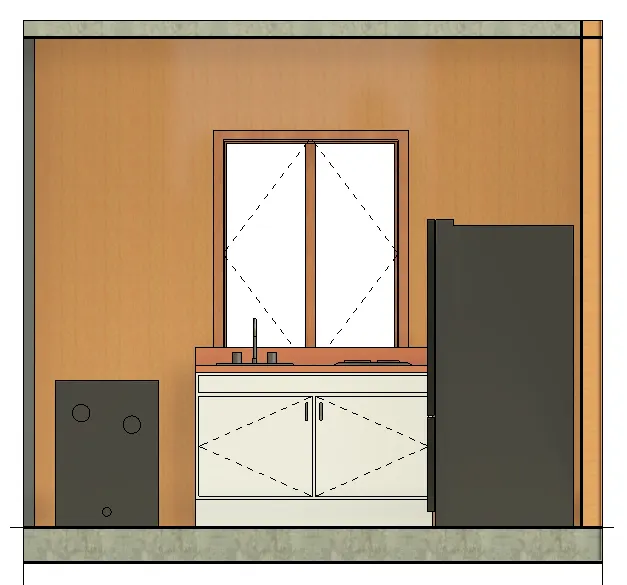

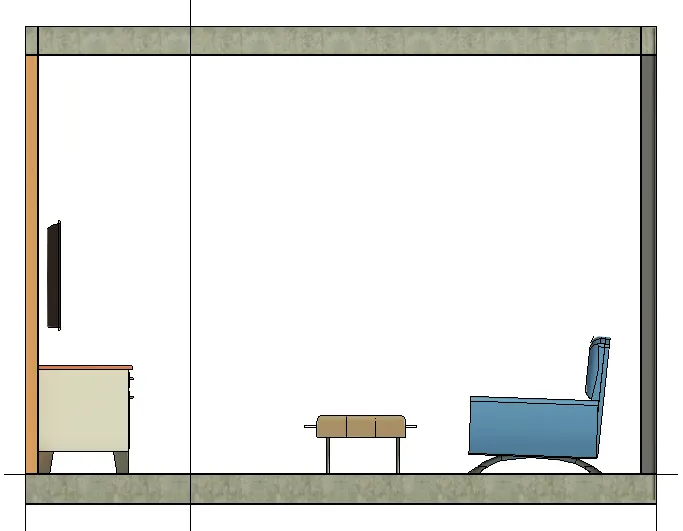

Sectional View of Kitchen.

Another Sectional view of Living room from East.

RESULT:

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
In this challenge, I have created Multiple Floor plans , Structural plans, Ceiling plans, 3D views, elevations and sections.

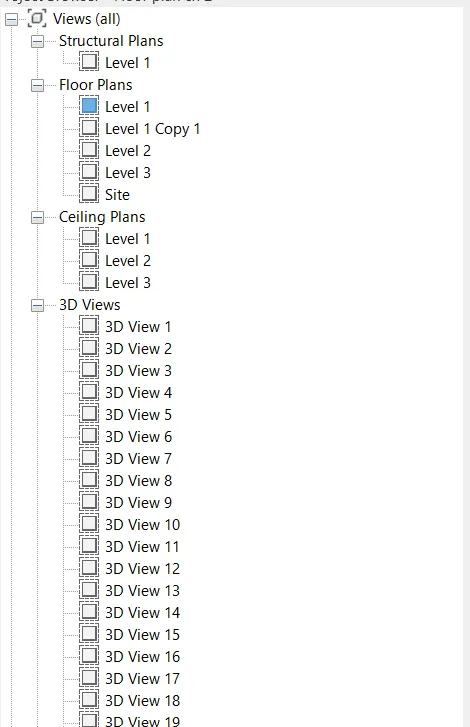

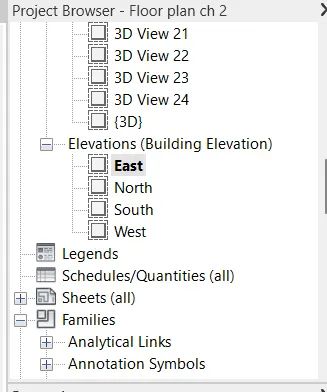

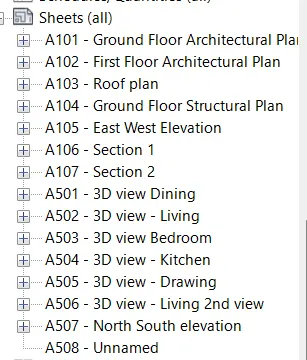

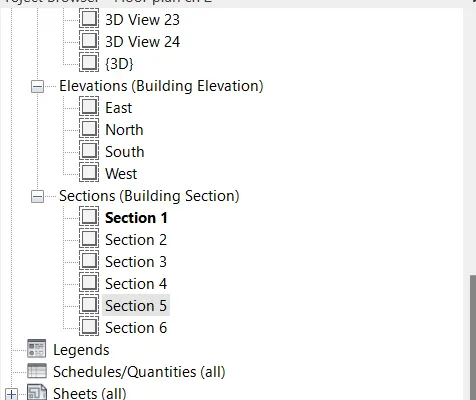

In the Project Browser window all the categories created are listed as shown below.

RESULT:

9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
Go to the View tab and select Sheet option.
A tab will open and select the type of sheet which is wanted.

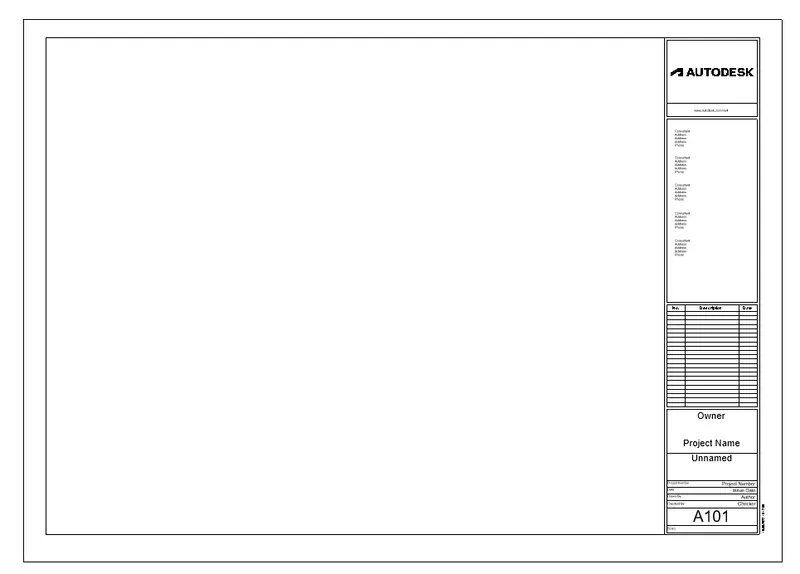

The selected sheet will appear on the screen as shown below.

Now, edit the parameters in the sheet. Mention the Client Name, Architect name, Project name, date etc...
In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

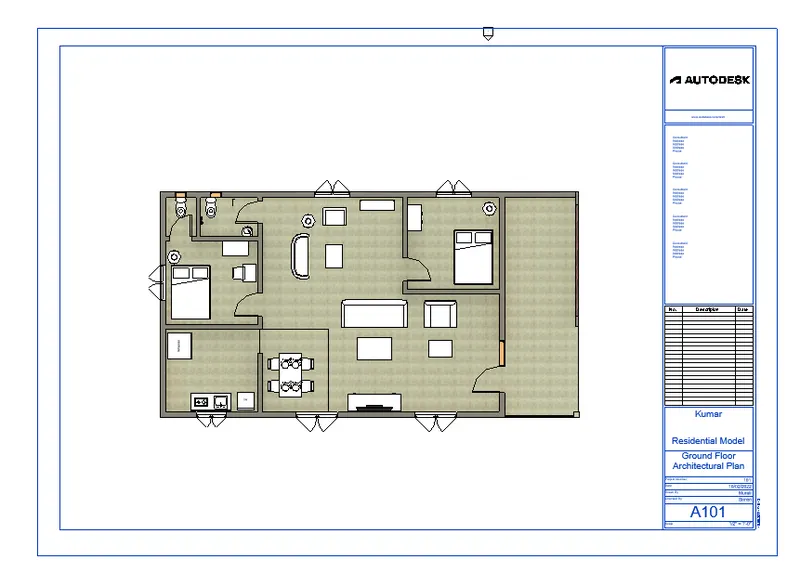

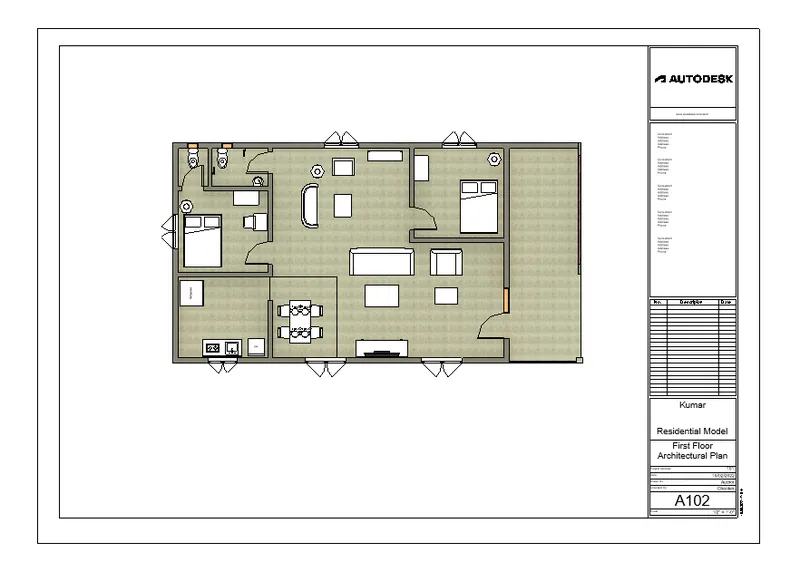

The following image shows the Architectural Floor plan in the sheet.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.
The following image shows Second Floor plan in the sheet A102.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

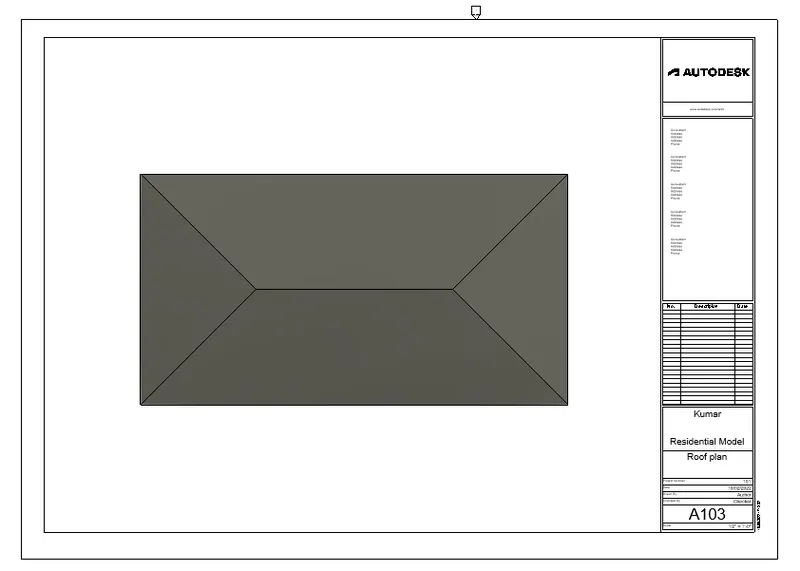

The following image shows the Roof plan in the sheet A103.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

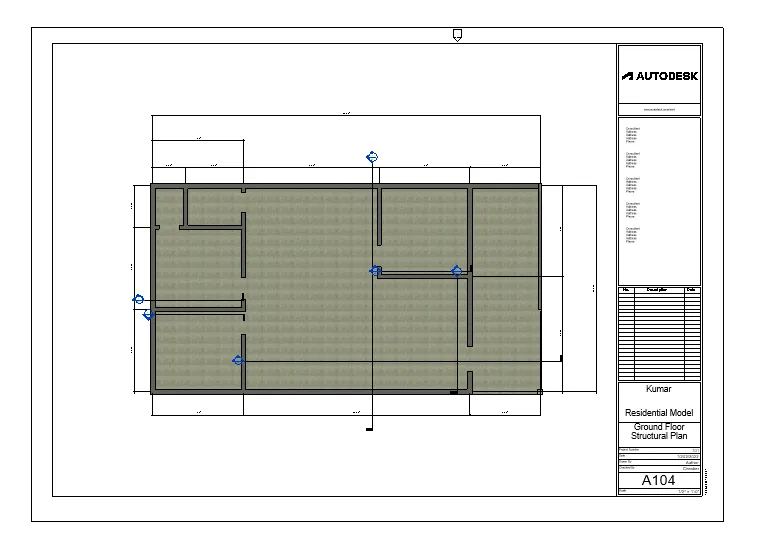

The following image shows the Ground Floor Structural PLan in the sheet A104.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

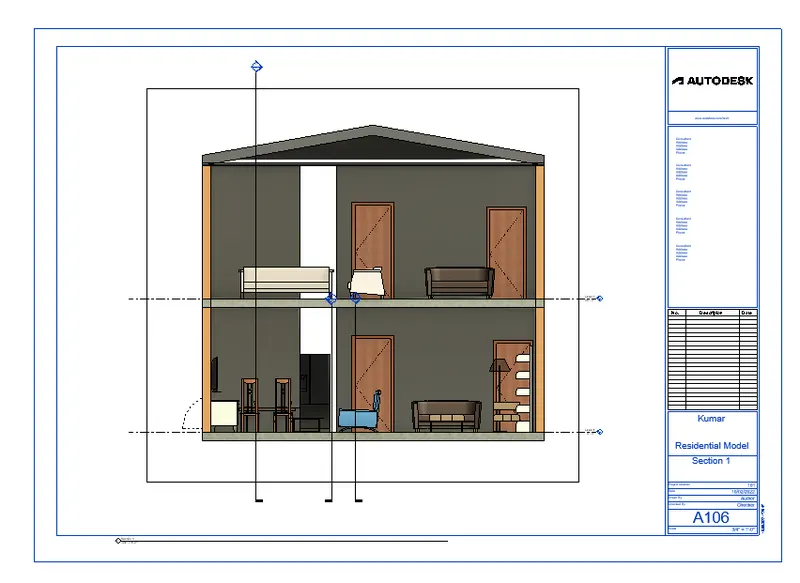

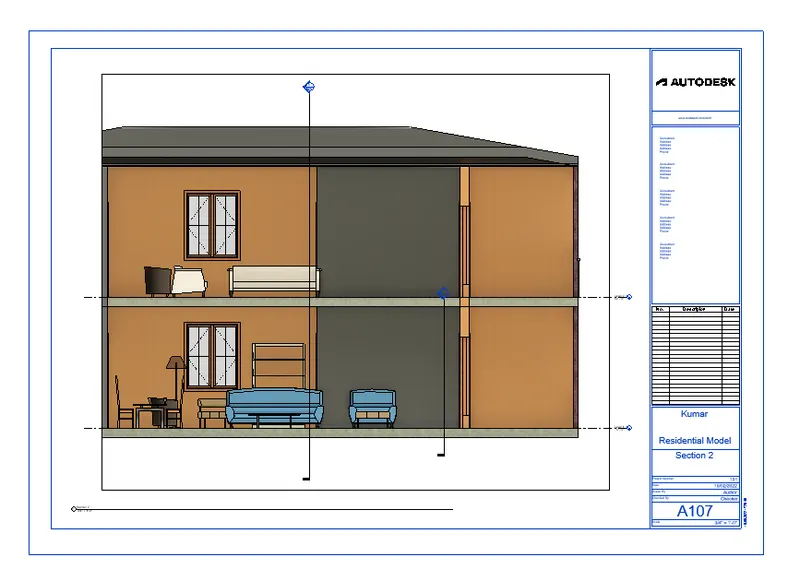

The following image shows the Transverse Section of Living Room in the sheet A106.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.
The following image shows the Longitudinal Section of Living Room in the sheet A107.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

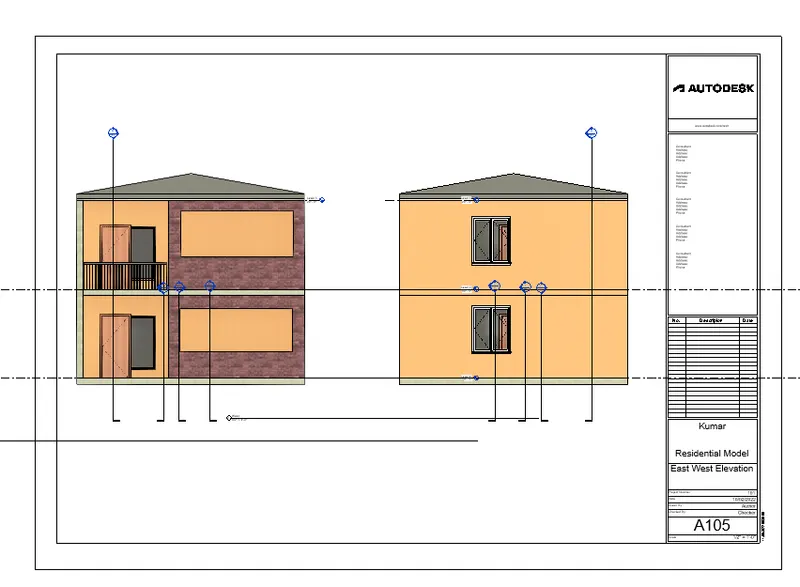

The following image shows the East-West Elevation of the building in the sheet A105.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

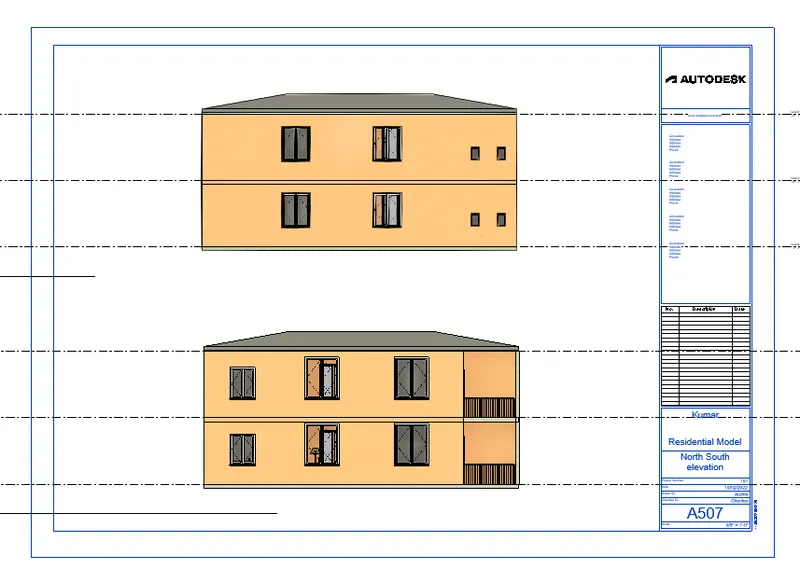

The following image shows the North-South Elevation of the building in the sheet A507.

RESULT:

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

AIM:

INTRODUCTION:

Begin modelling in 3D with accuracy and precision.

Automatically update floor plans, elevations and sections as your model develops.

PROCEDURE:

Open the Revit software and open the model house created in the previous challenge.
In order to create a camera specific view, Go to View tab and select camera in the 3D option.
A camera icon will appear, now place the camera and direct the view angle as wanted.

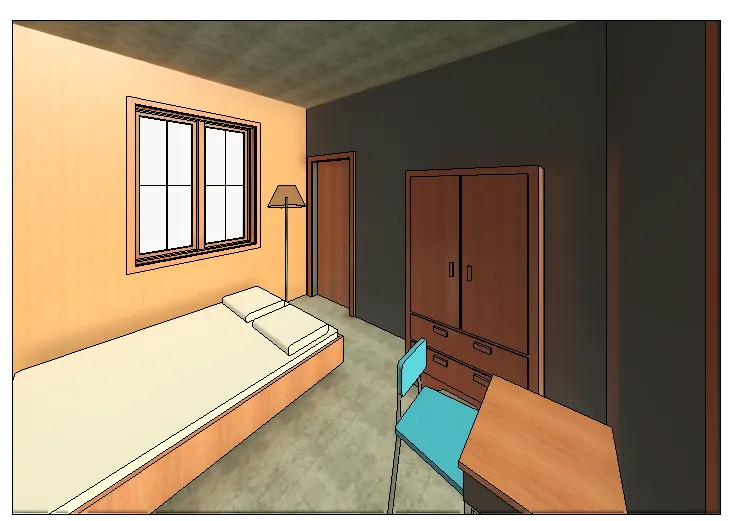

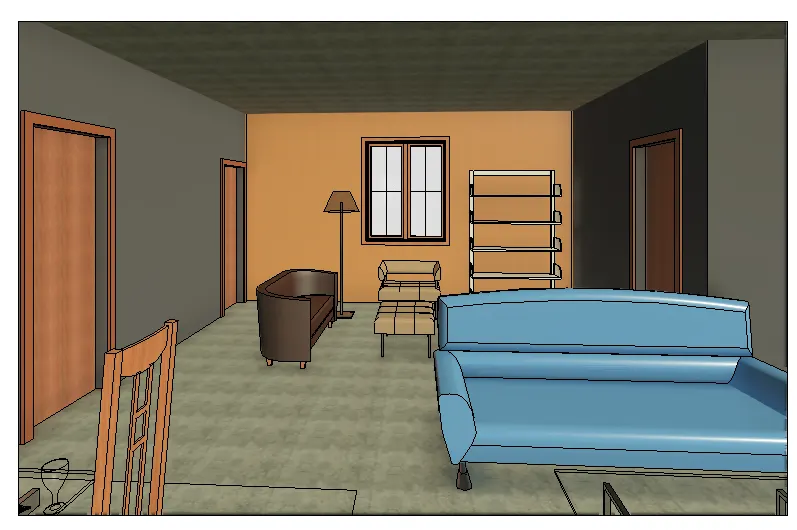

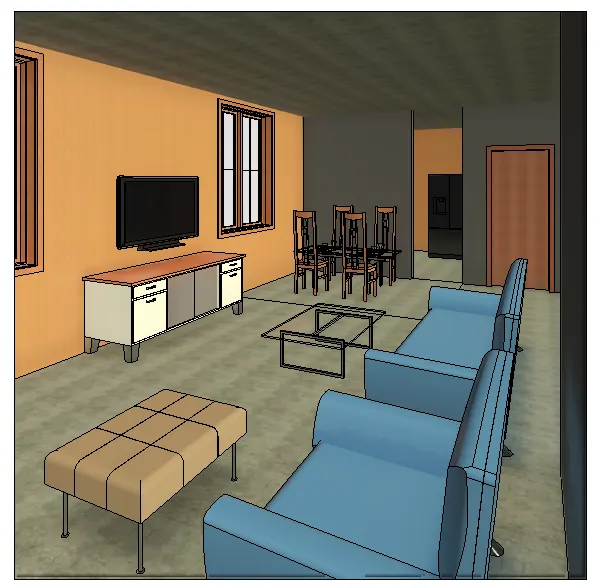

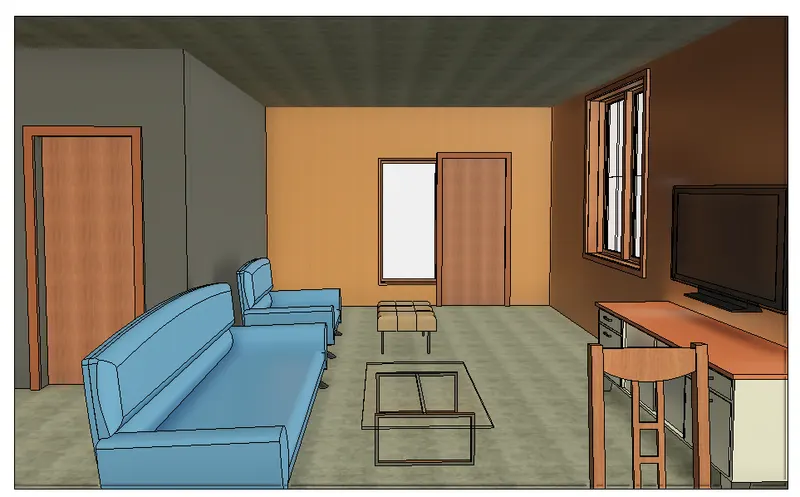

Some of the 3D camera views created are shown below.

To create Sheets,
Go to the View tab and select Sheet option.
A tab will open and select the type of sheet which is wanted.
The selected sheet will appear on the screen as shown below.

Now, edit the parameters in the sheet. Mention the Client Name, Architect name, Project name, date etc...
In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

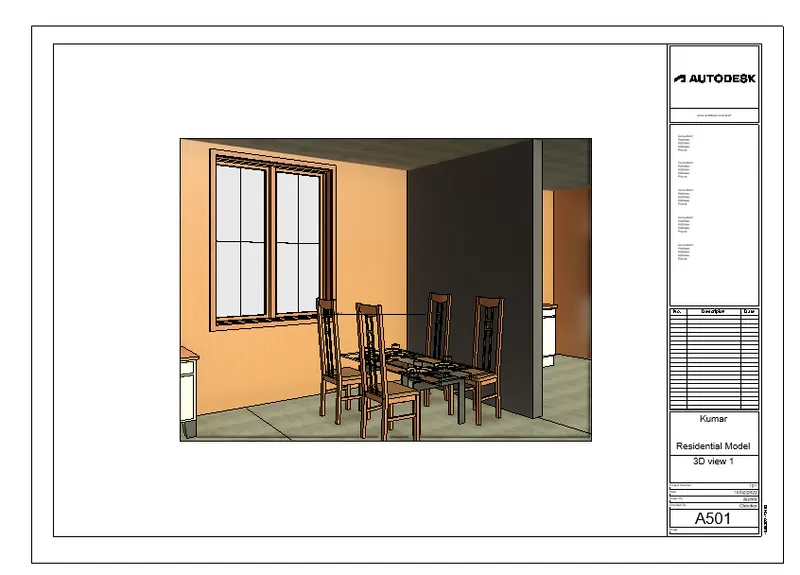

The following image shows the 3D view of Dining space in the sheet A501.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

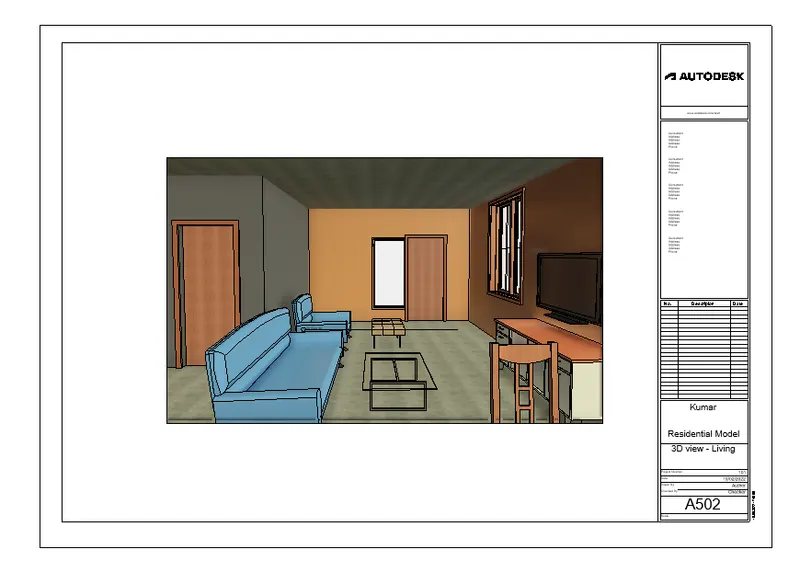

The following image shows the 3D view of Living space in the sheet A502.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

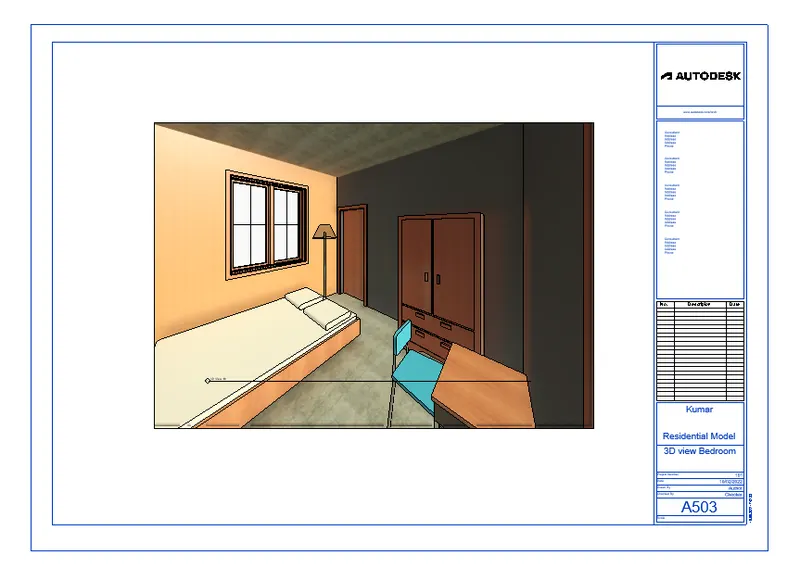

The following image shows the 3D view of Bedroom in the sheet A503.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

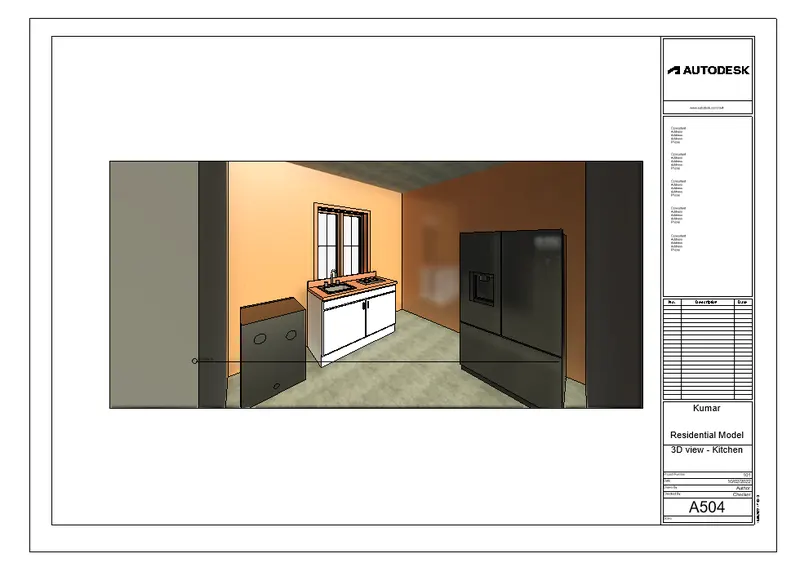

The following image shows the 3D view of Kitchen room in the sheet A504.

In order to insert any view in the sheet, Simply Drag the file from the projects browser and place it in the sheet and adjust the scale accordingly.

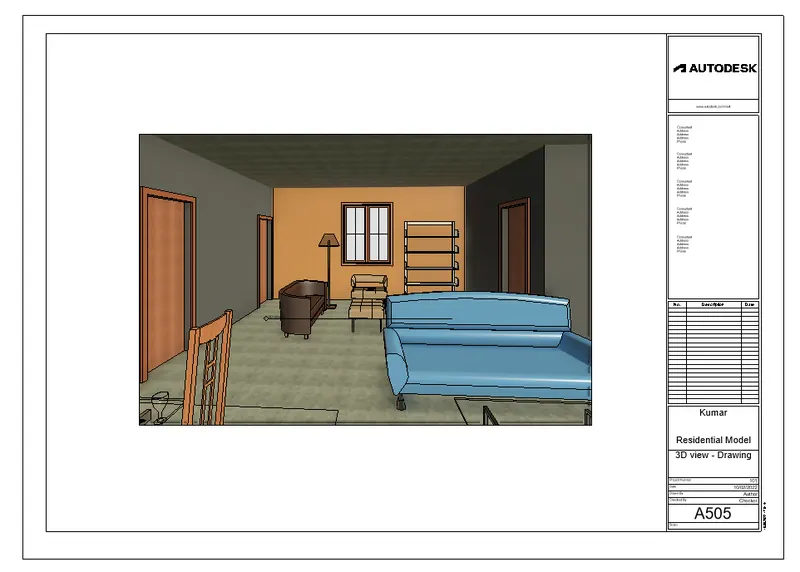

The following image shows the 3D view of Drawing room in the sheet A505.

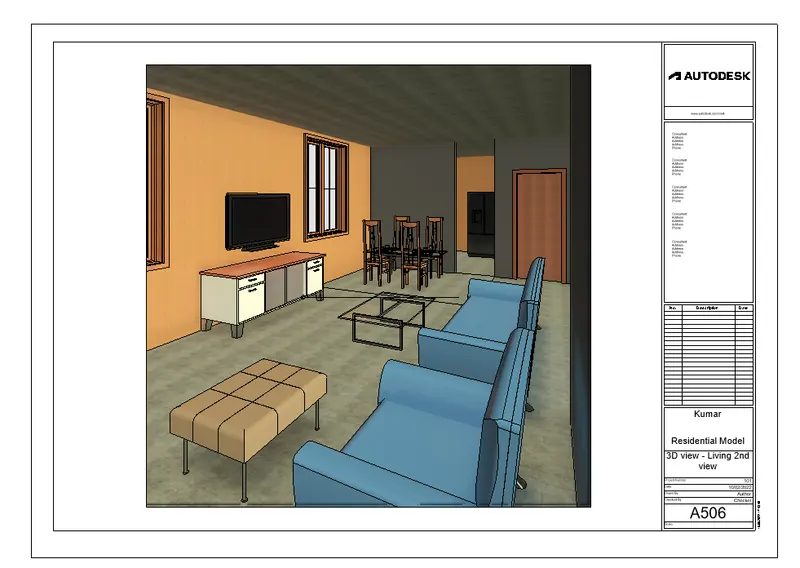

Another 3D view of Living Room in the Sheet 506.

RESULT:

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
