3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

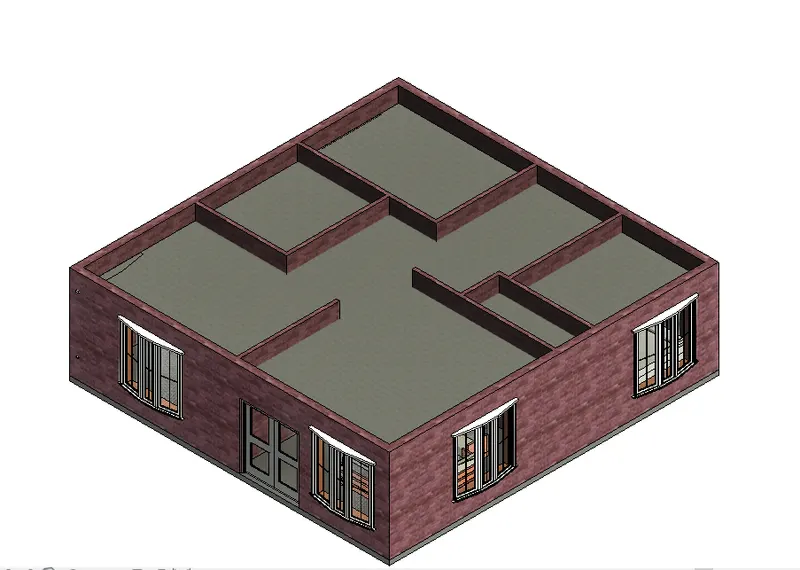

1:-AIM:- Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

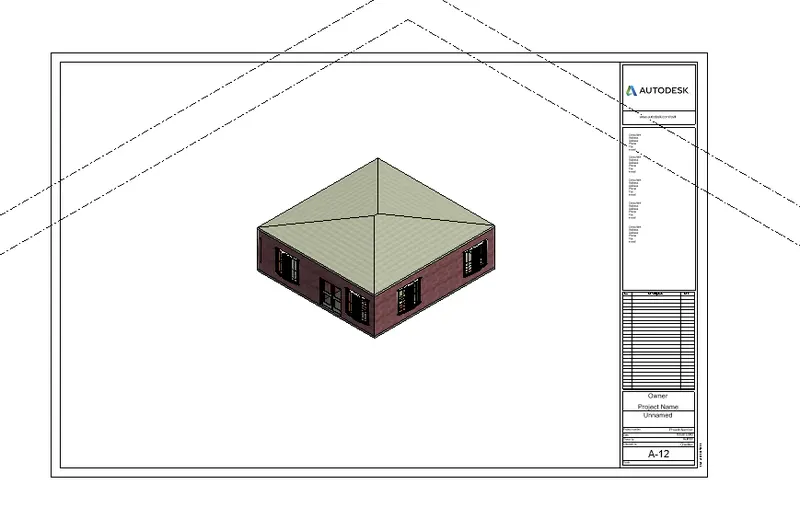

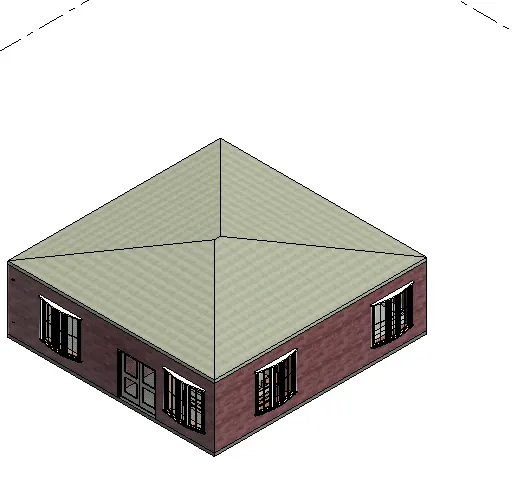

2:-AIM:-Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

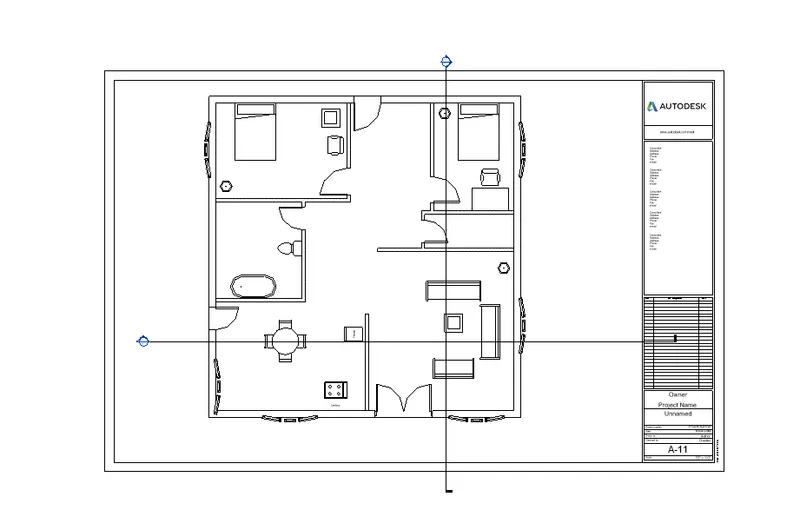

3:-AIM:-Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

AIM:-Architecture plan must have walls, floors, and all the components placed within the building

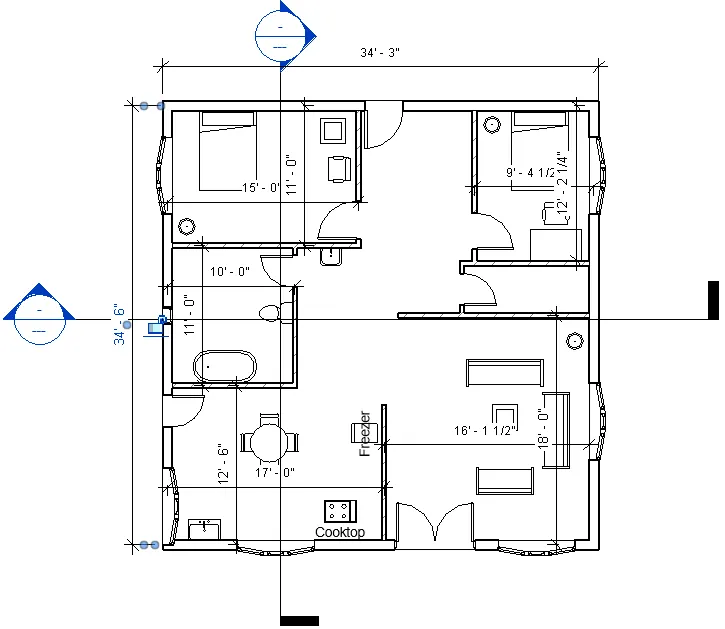

4:-AIMUsing annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

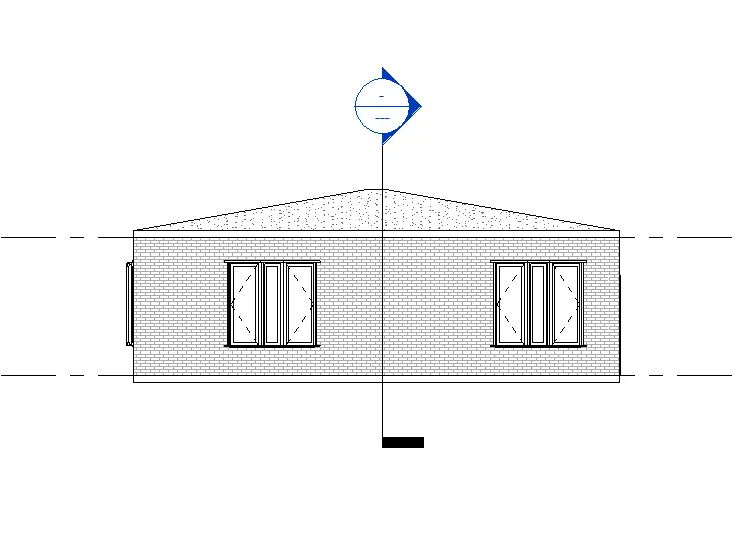

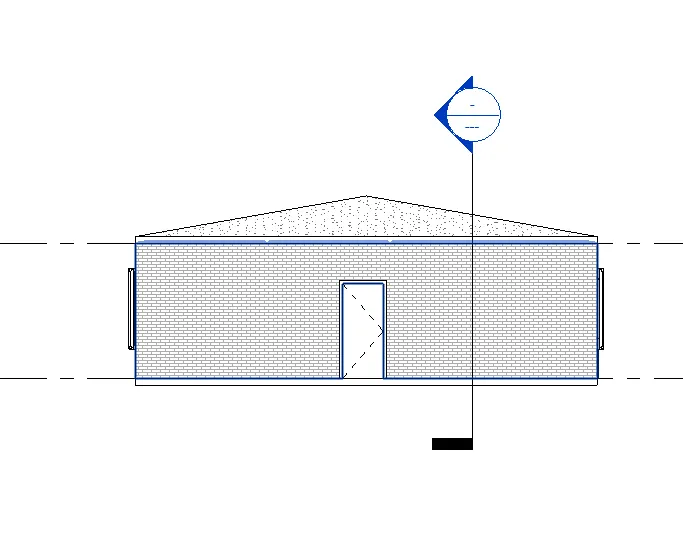

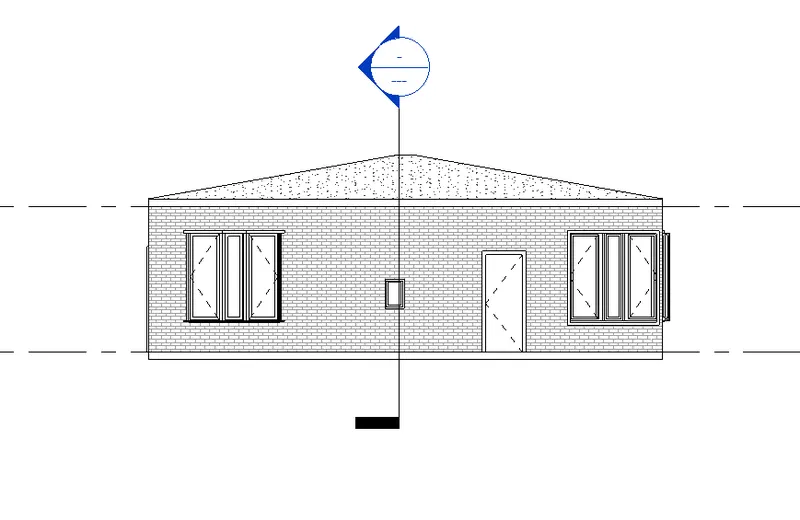

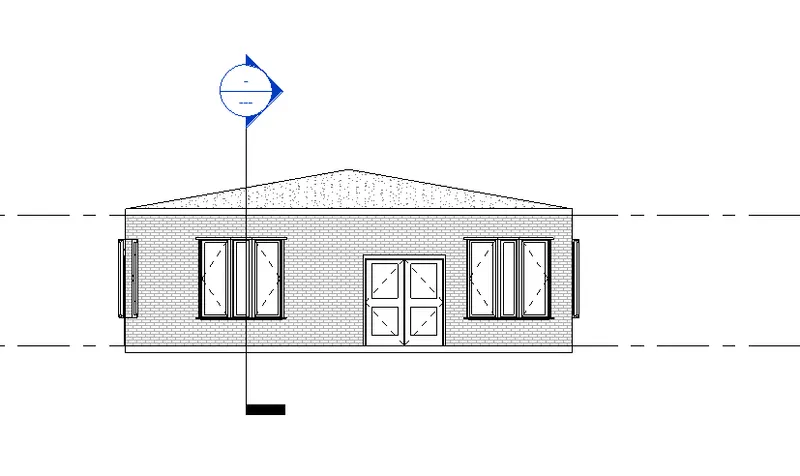

5:-AIM:-Using the elevation tab create the elevation views, looking at your building from East, North, South, and WeST

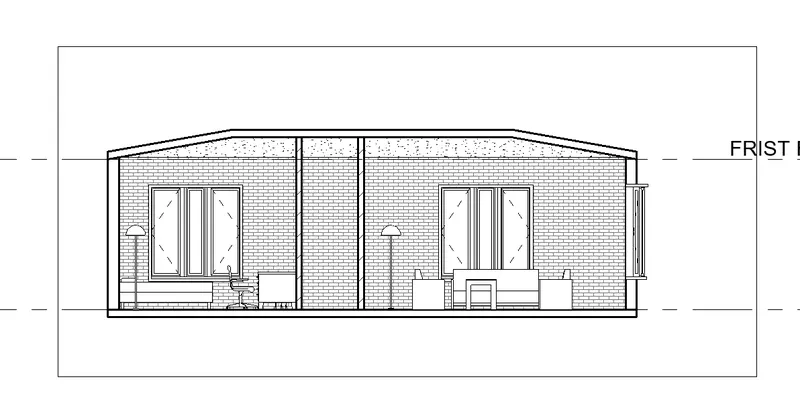

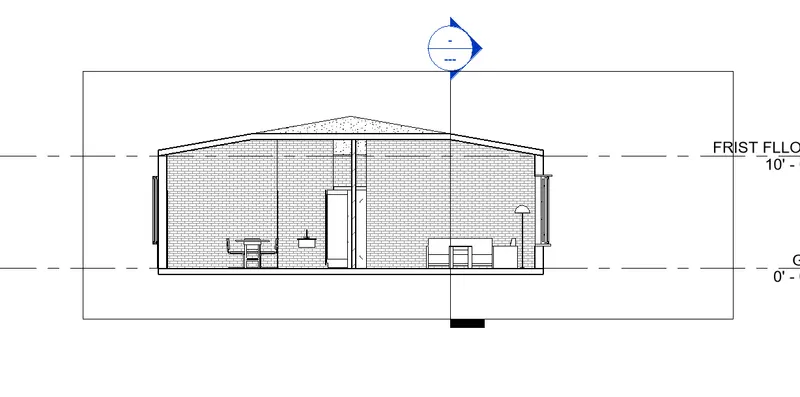

AIM:- Produce section cut through each room either cutting across longitudinally or in a transverse direction

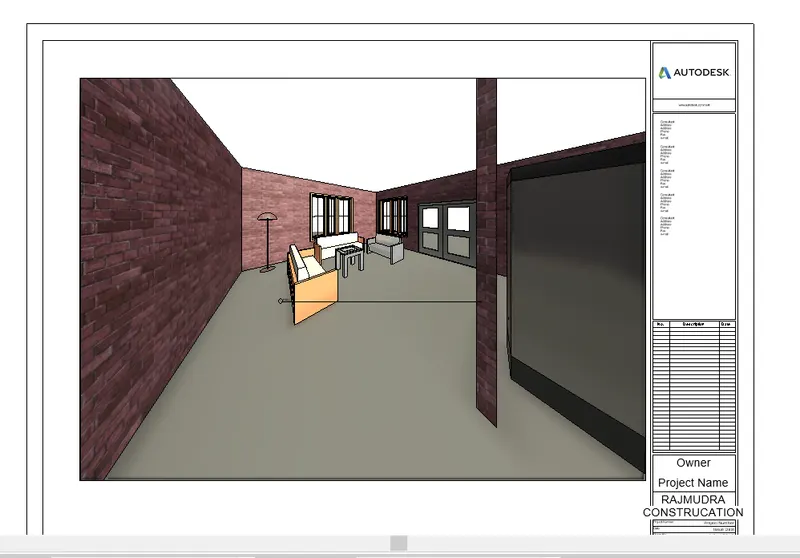

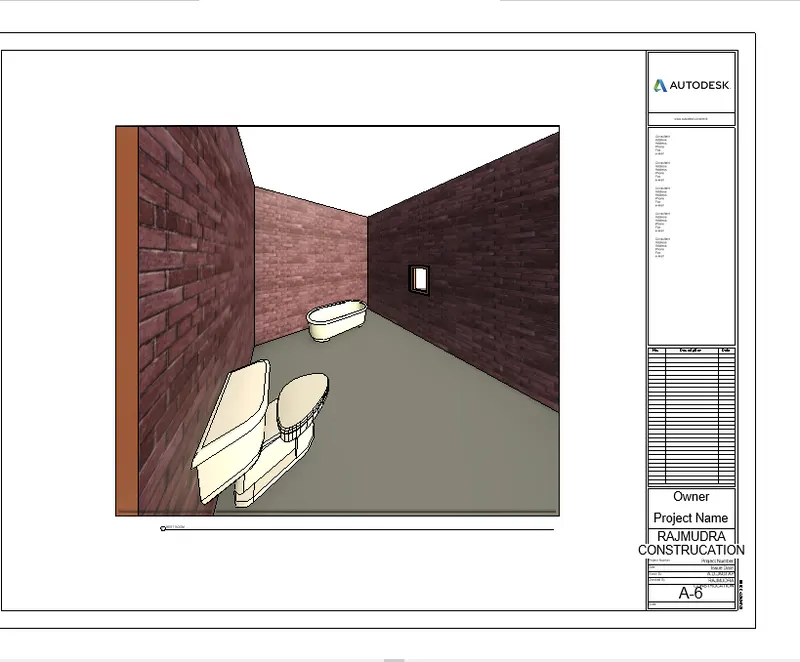

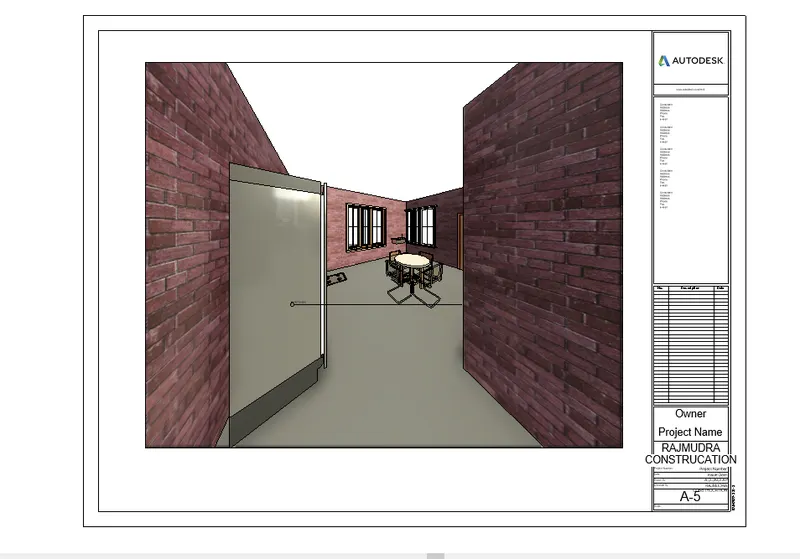

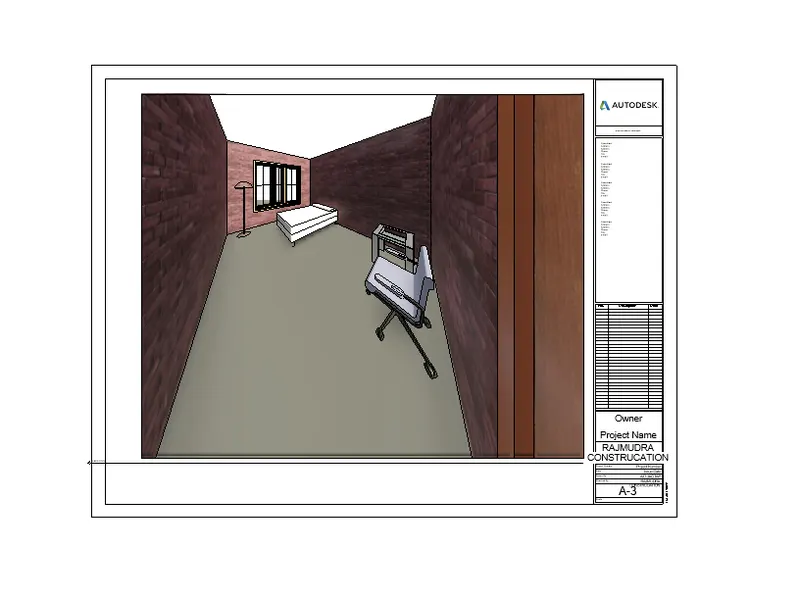

AIM:-Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

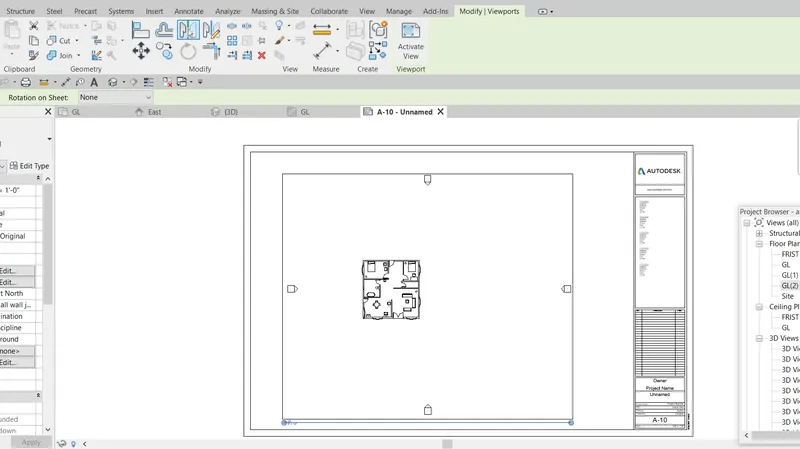

AIM:-Using the sheet template produced create multiple sheets as follows
