3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

QUE-1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

ANS-1

AIM:- TO CREATE CEILING FROM THE ARCHITECTURE TAB AT THE FIRST FLOOR.

PROSEDURE:-

• to create a ceiling first open last project we did in last week.

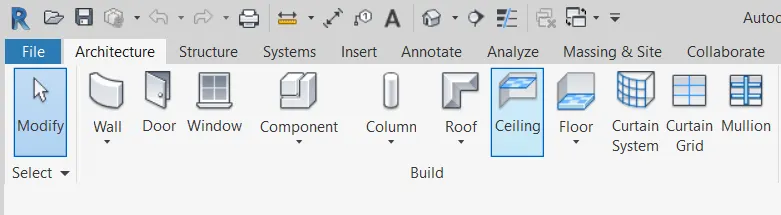

• now in architecture tab we have a option of ceiling click on it.

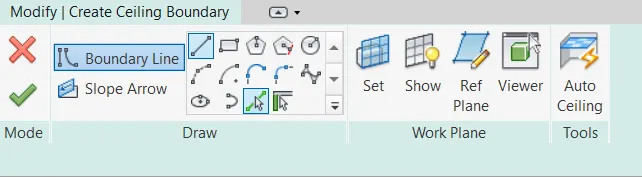

• now by using pick line option select all walls line.

• after selecting walls click ok for ceiling process.
• from the edit option we can change thickness and material of ceiling .

RESULT:- CEILING IS CREATED ON THE WALLS.

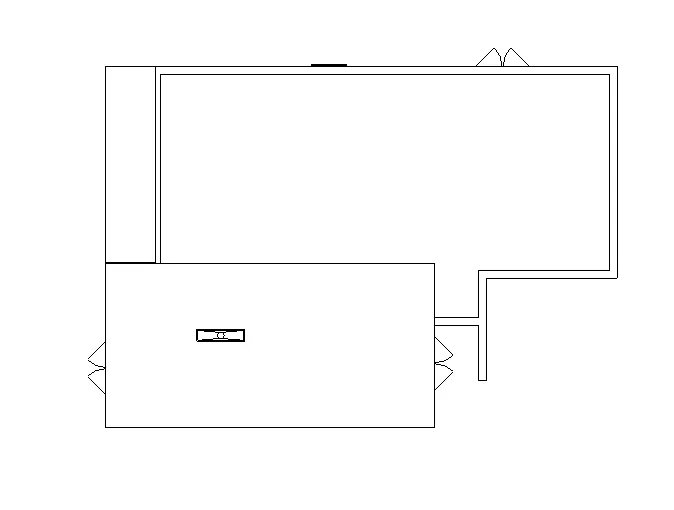

QUE-2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

ANS-2

AIM:- TO CREATE ROOF FROM THE ARCHITECTURE TAB AT THE FIRST FLOOR AND GIVE 10 DEGREES SLOP.

PROSEDURE:-

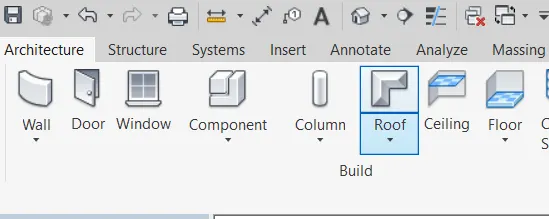

• now first open last project and same as first que from the architecture tab select roof option.

• now same as que 1 from the picking line option pick roof line.

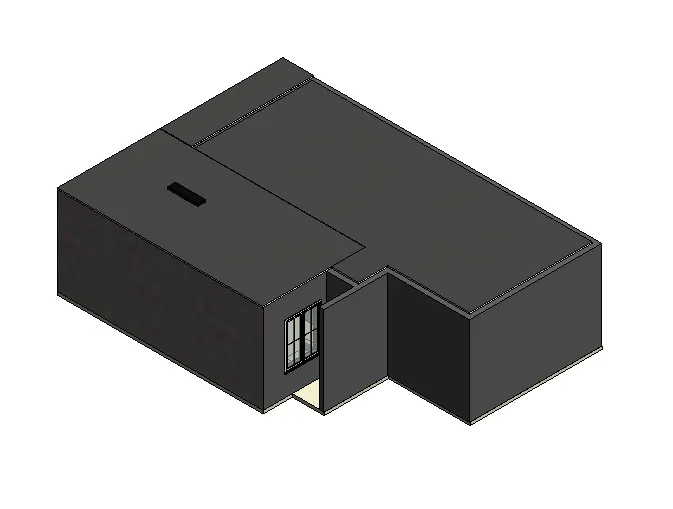

• after giving the roof , from the properties browser we can give slop of 10 degree.

QUE-3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

ANS-3

AIM:- TO CREATE STRUCTURE AND ARCHITECTURE PLAN.

PROSEDURE:-

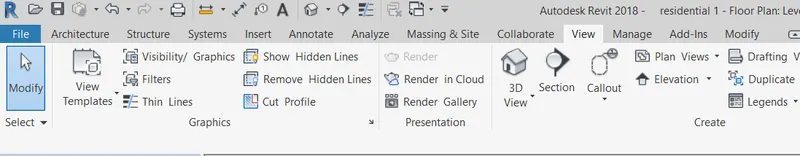

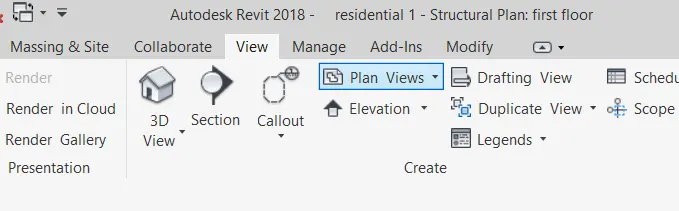

• for create a plan views go to the view option and select plan views.

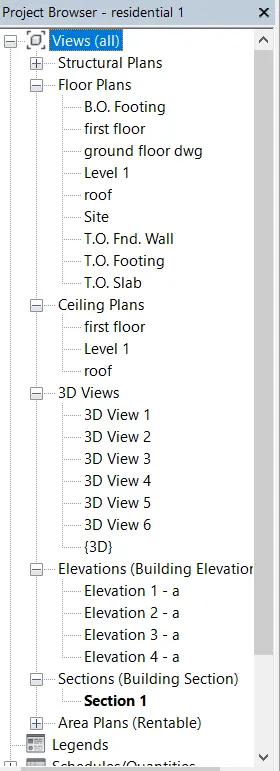

• now using different option like structure plan option in plan view we can create view in our project browser.

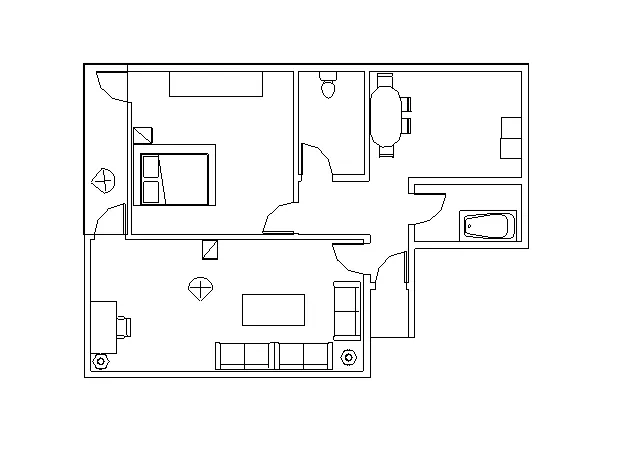

• architecture plan

• structure plan.

QUE-4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

ANS-4

AIM:- TO GIVE A DIMENSION TO THE OUR PLAN.

PROSEDURE:-

• first open our revit project .

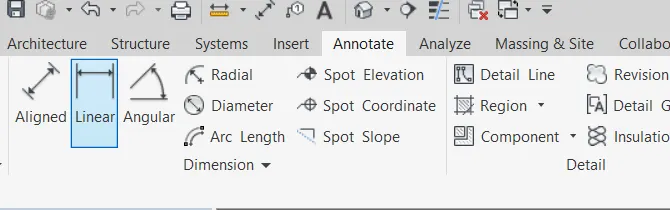

• now open annotate tool bar and select linear option.

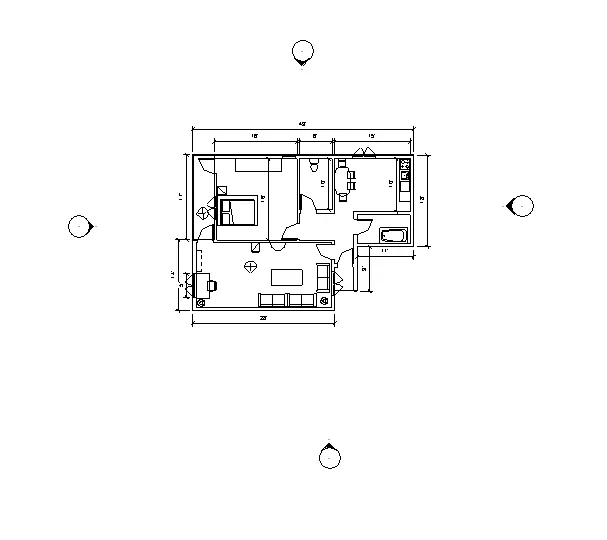

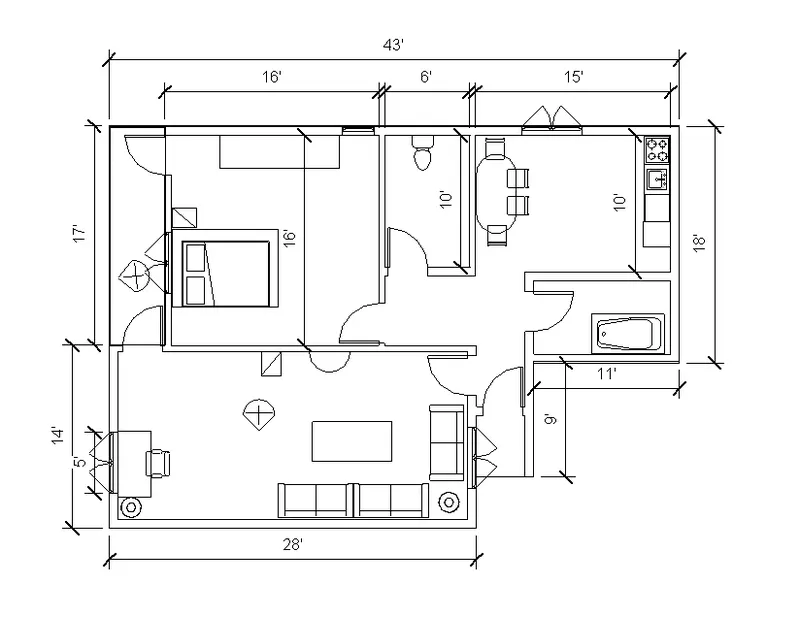

• now give all requirement dimension to the plan as per instruction.

RESULT:- ALL DIMENSIONS ARE GIVEN IN PLAN.

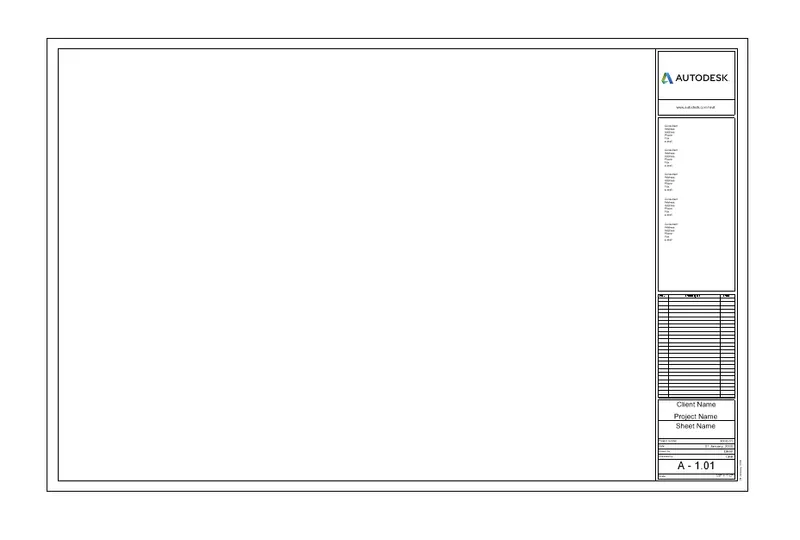

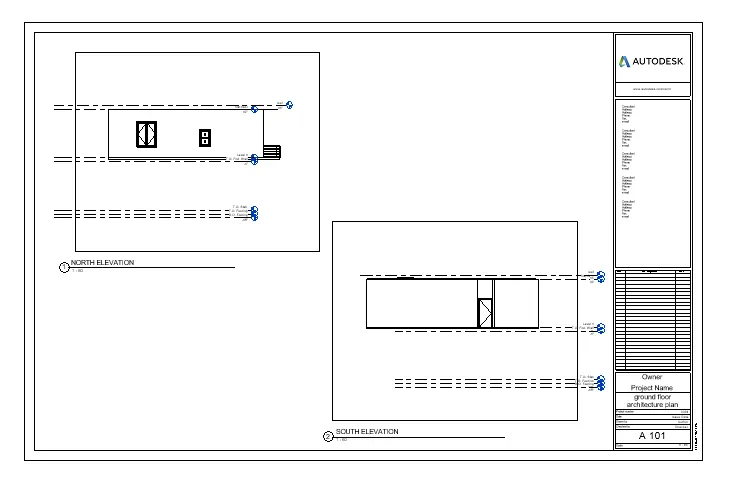

QUE-5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

ANS-5

AIM:- TO CREATE A SHEET TEMPLATE AND ADJUST THE PARAMETERS.

PROSEDURE:-

• first oprn revit and go to insert tab.

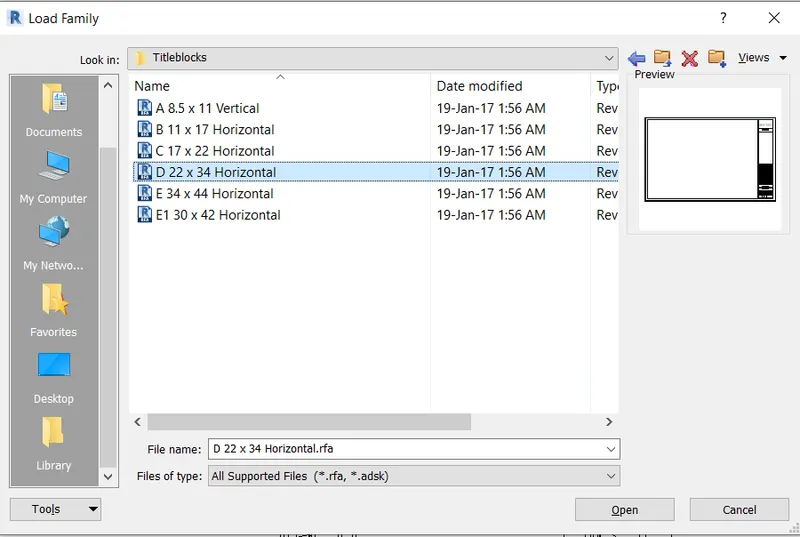

• in the load family option we have a option of titelbox .
• go and select a template as per requirement.

• after creating sheet template we can change and edit project details in the sheet.

QUE-6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

ANS-6

AIM:- USING ELEVATION TAB CREATE ELEVATION VIEWS .

PROSEDURE:-

• first open revit project .
• go to the view tab and select elevation option.

• after selecting elevation views place the elevations like this.

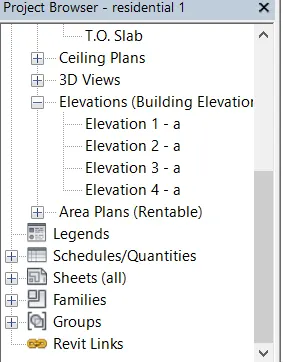

• after placing this we can see our elevation views from the project browser and we can rename these.

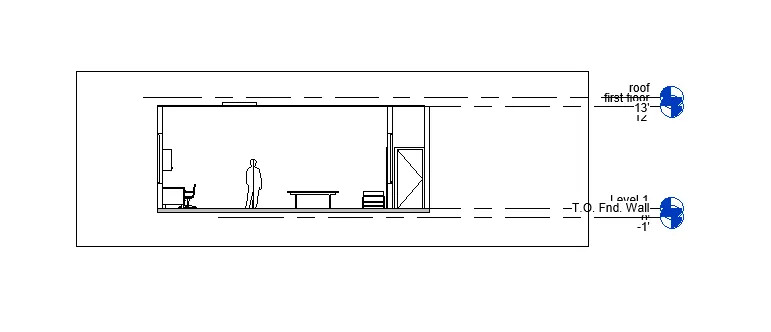

QUE-7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

ANS-7

AIM:- TO CREATE A SECTION VIEWS.

PROSEDURE:-

• first open revit project .

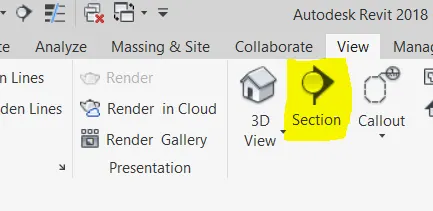

• go to the view toolbar and select the section option.

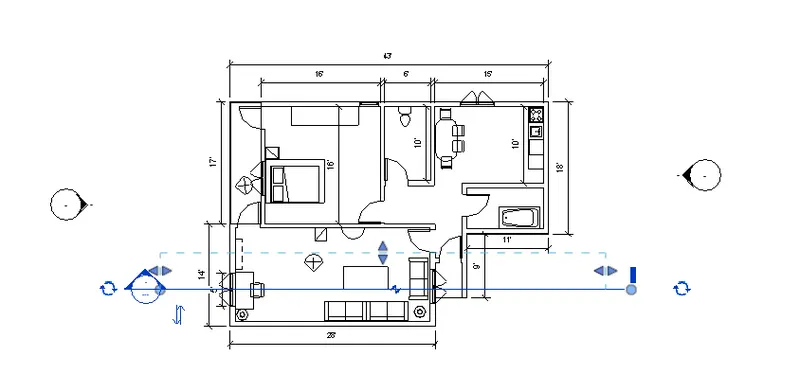

• after selecting create a section view as per requirement.

• as per our requirement we can change direction of our section.

RESULT:- SECTION VIEW CREATED IN REVIT.

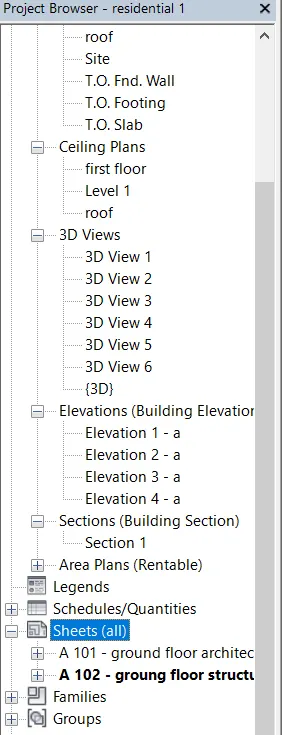

QUE-8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

ANS-8

AIM:- TO CREATE A SECTION VIEWS.

PROSEDURE:-

• FLOOR PLAN - Floor plan is a 2D view of residential building
• CEILING PLAN - Ceiling of different floor
• 3D VIEWS - 3D views are virtual presentation of structure.
• ELEVATION - elevation views are gives exact height of structure.
• SECTION - it's show cut view of structure.

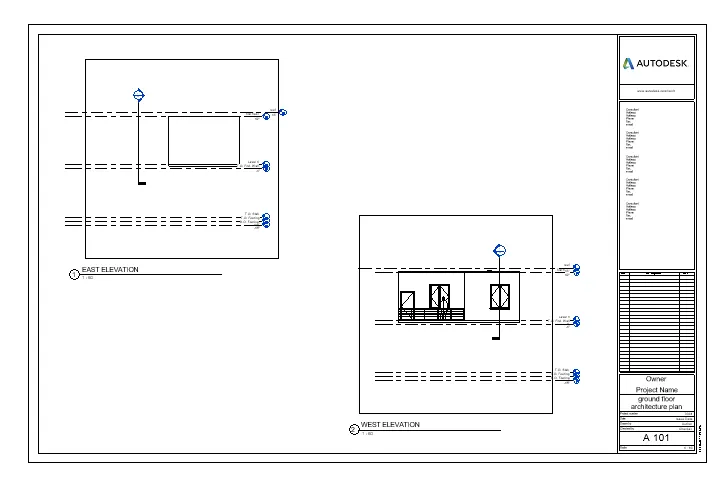

QUE-9) Using the sheet template produced create multiple sheets as follows

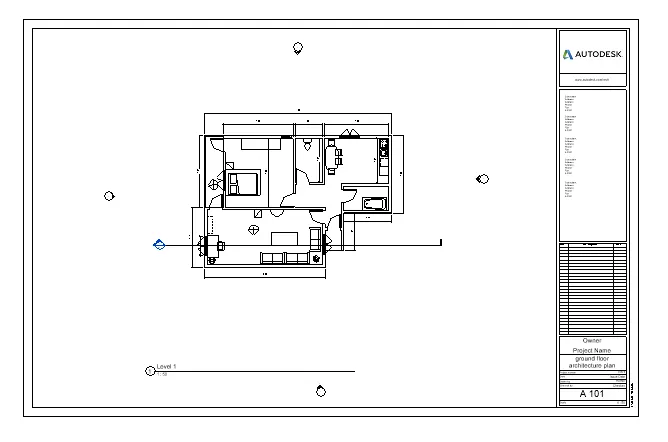

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan

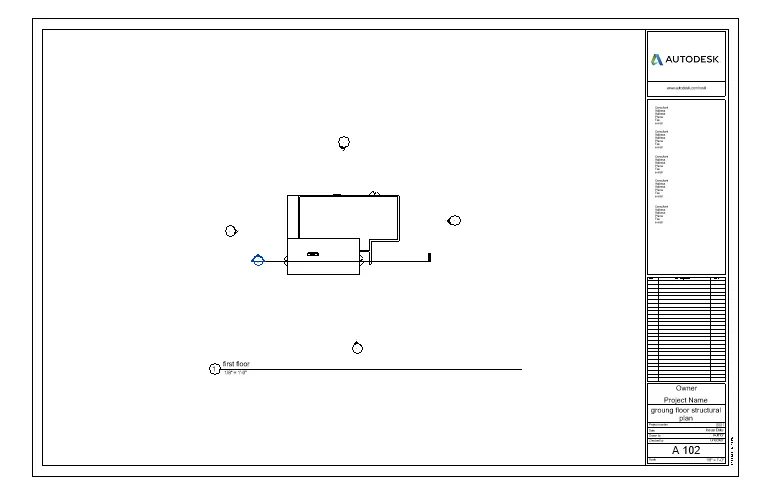

d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

ANS-9

AIM:- TO CREATE A SHEET VIEWS.

PROSEDURE:-

• First open revit project and insert a sheet as per que-5.
• now go to the properties browser and insert more sheets and after that add view into the sheets.

QUE-10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting

ANS-10

AIM:- TO CREATE A CAMERA VIEWS.

PROSEDURE:-

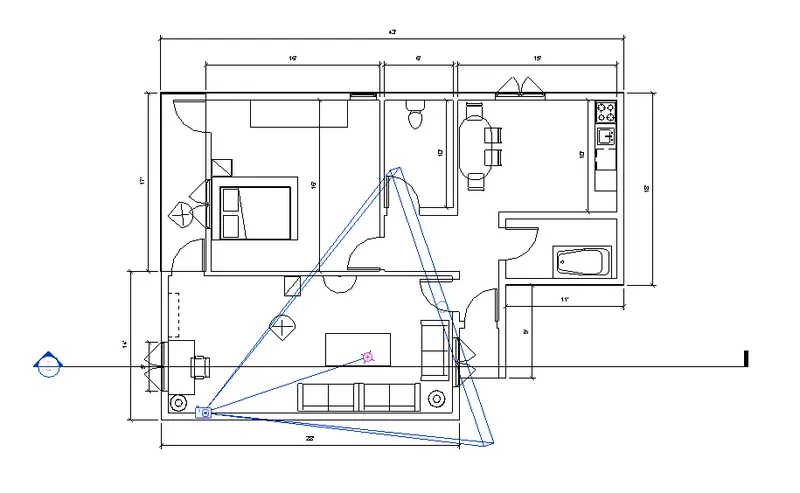

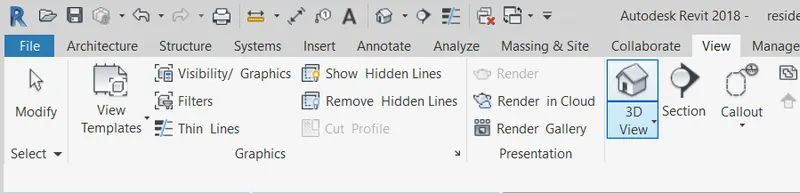

• first open revit project go to the view option select camera views.

• now place the camera in living room , bedroom , kitchen .

• now as per the last que add this views into the sheet.

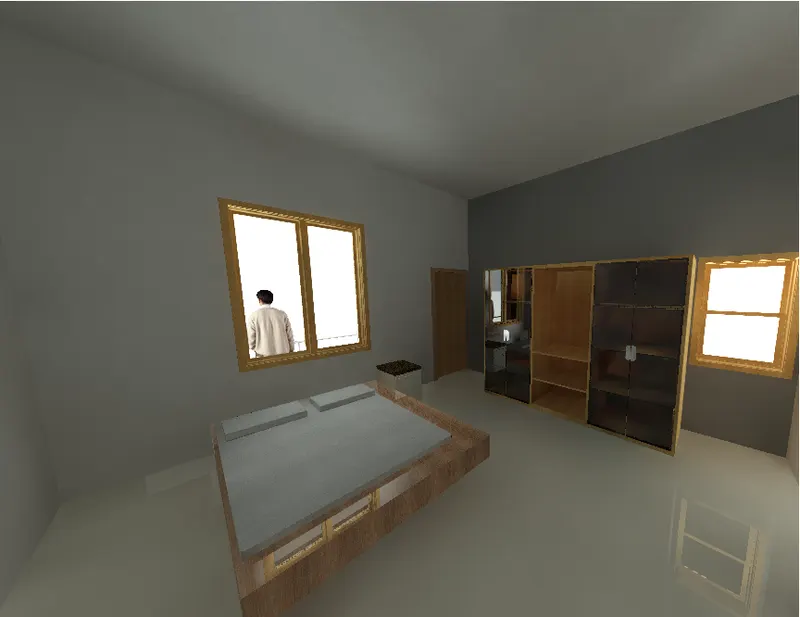

• here i render some images.
