3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM-1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

PROCEDURE:-

Step:-1

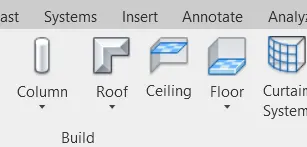

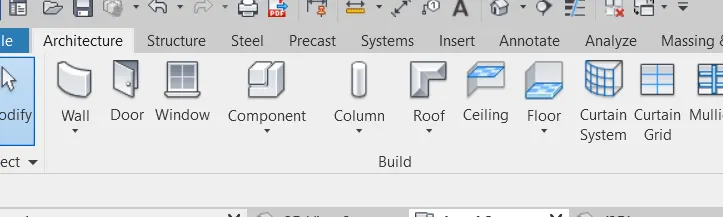

• First we open the revit sofware, and select the ceiling option from the architecture toolbar.

Step:-2

• After selecting the ceiling option, then select the each room one by one.
• Then the ceiling will be created, as shown in the below figure.

Step:-3

• Here we can the ceiling in the three dimensional view as shown in the below figure.

RESULT-

• The ceiling has been modeled successfully from the architecture tab above the walls at the first-floor level.

AIM- Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

PROCEDURE:-

Step:-1

• Open the architecture toolbar, and select the Roof by Footprint option as shown in the below figure.

Step:-2

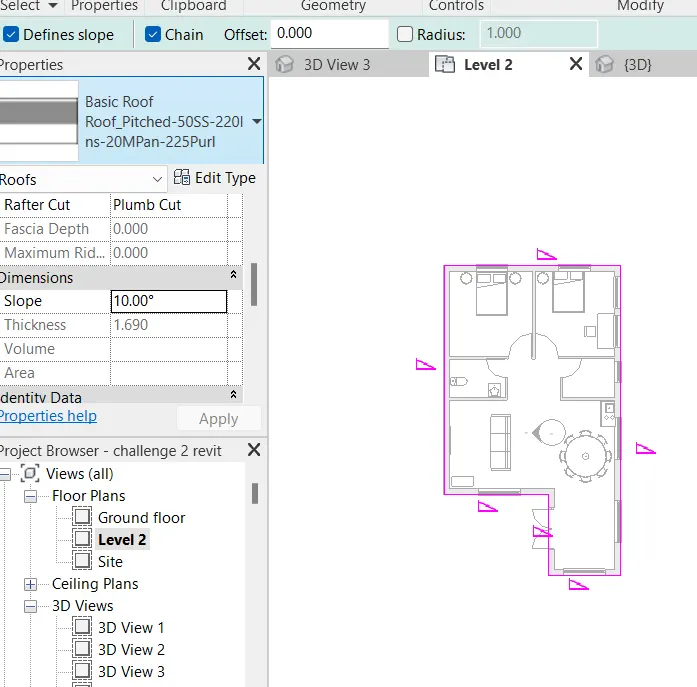

• Next we select the roof and adjust the roof to 10 degrees by selecting it, as shown in the figure

Step:-3

• The roof has been created, as shown below.

Result-

• The roof has been created successfully to the model in the revit in detailed manner.

AIM-

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

• Go to view on the top ribbon
• click on plan view

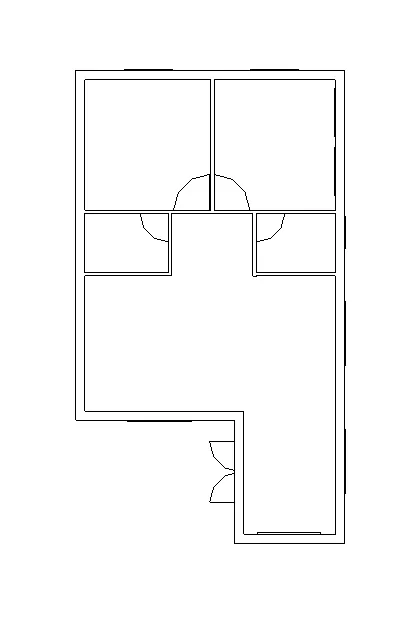

• Select floor plan for architectural view and click on structural plan for structural view.

RESULT-

• Created plan views for ground floor level and first-floor level including all the walls, floors, and components.
• And separated them to architecture and structural plans.

AIM-

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

PROCEDURE:-

Step:-1

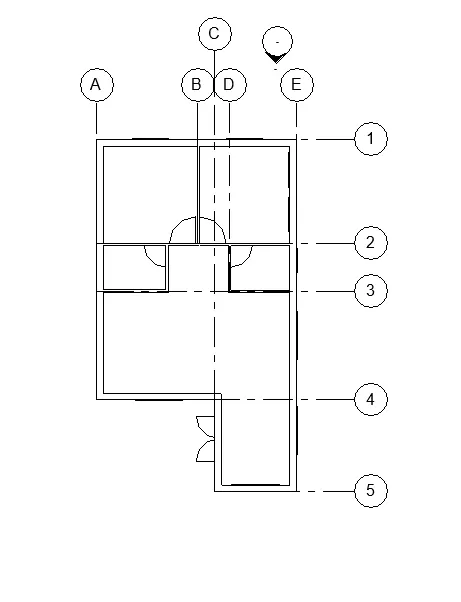

• Here we drawn the longitudinal and transverse grids to the architectural floor plans as shown below.

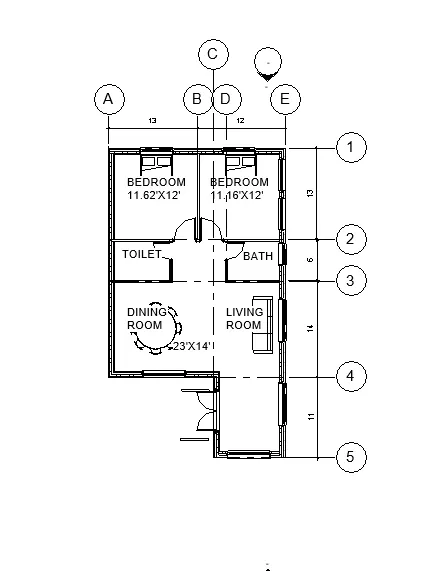

• And add the dimensions to the architectural plans as shown below.

Step:-2

• Next we draw the longitudinal and transverse grids to the Structural floor plans as shown below.
• And add the dimensions to the Structural plans as shown below.

RESULT:-

• The dimensions are added to the structural floor plans and the architectural floor plans.
• And the longitudinal and transverse grids are also created in the project file.

AIM-5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Step:-1

• First we click on the sheet option from the view toolbar, as shown below.
• After clicking the sheet, Thhe new tab will be visible on the screen.

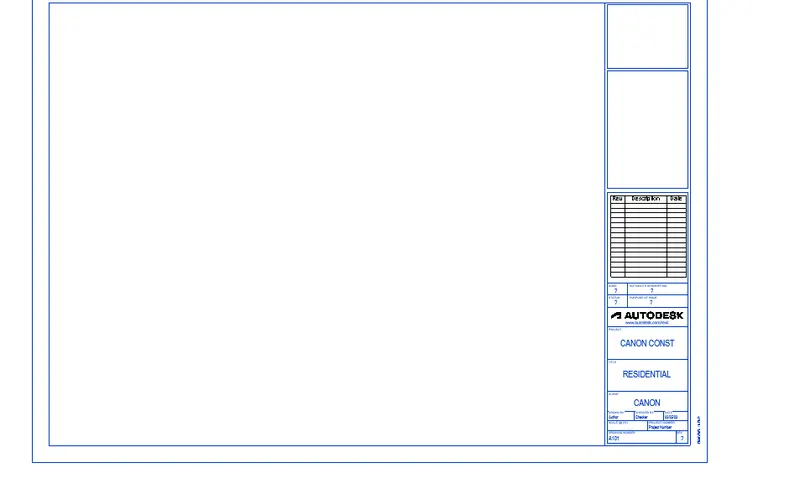

• In that new tab we select the A1 metric, then the sheet template will be displayed.

Step:-2

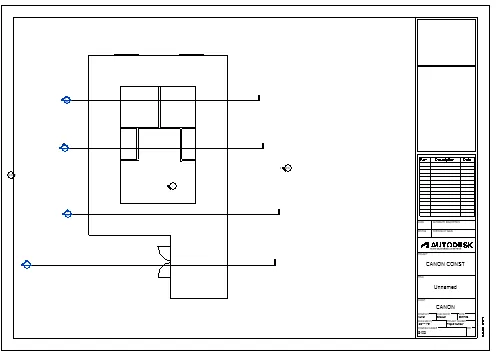

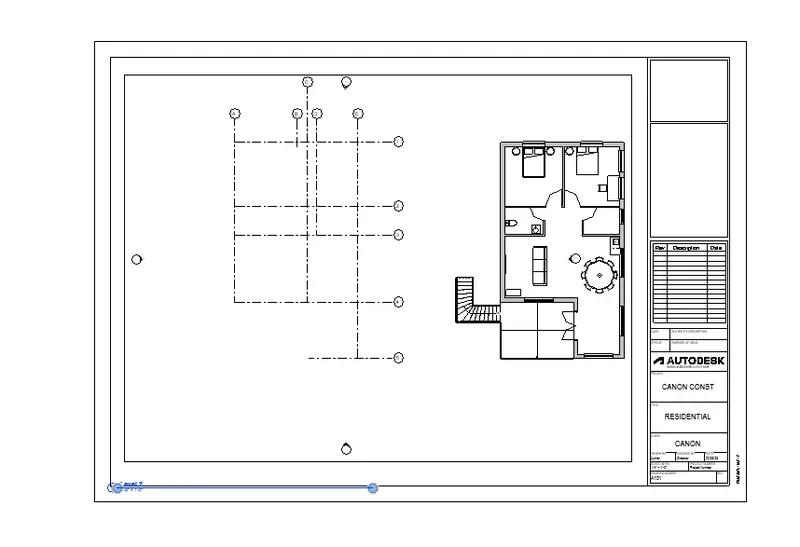

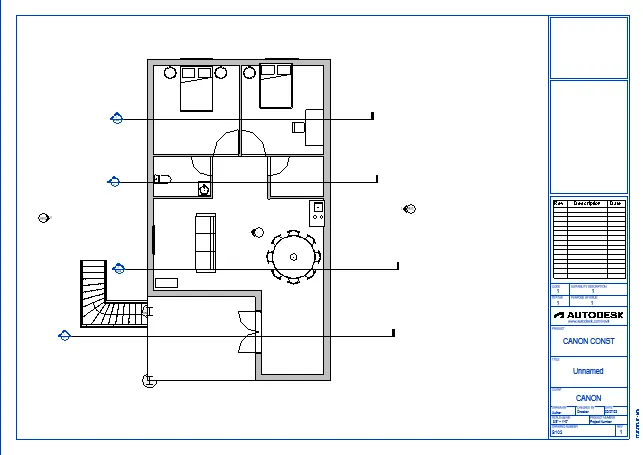

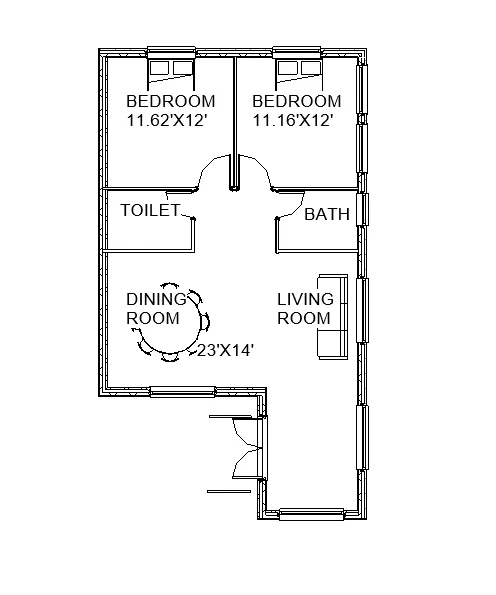

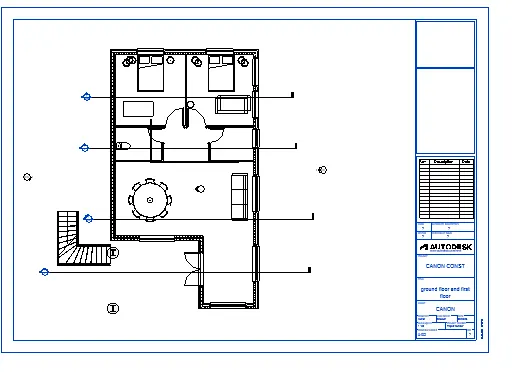

• In the sheet template we insert the first floor plan and second floor plan separately as shown below.
• Next edit the Project name and the sheet number as shown in the below figures.

RESULT:-

• Created a sheet template from the view tab and adjusted the parameters on the sheet for adding appropriate views.

AIM-) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

PROCEDURE:-

Step:-1

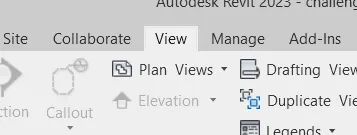

• First we click on the elevation option from the view toolbar, as shown below.

Step:-2

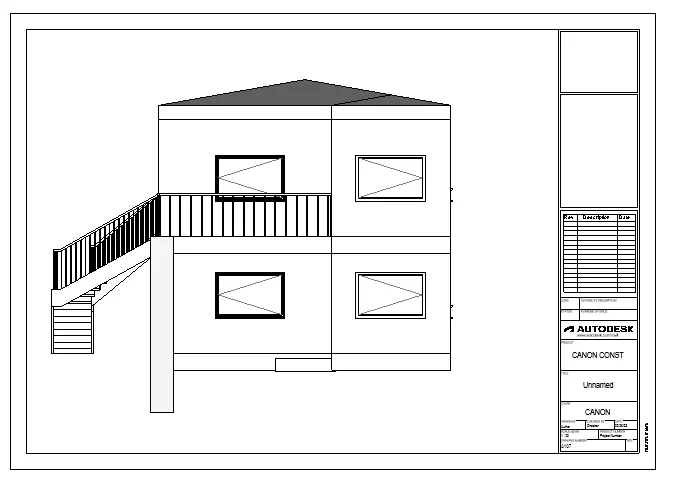

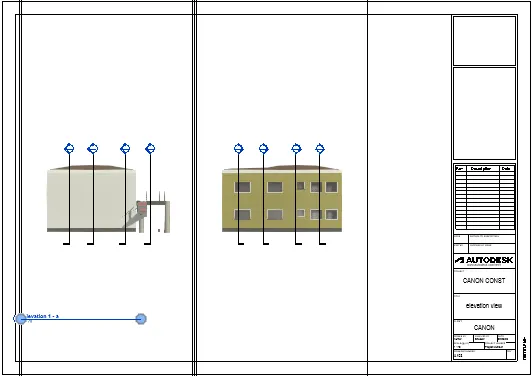

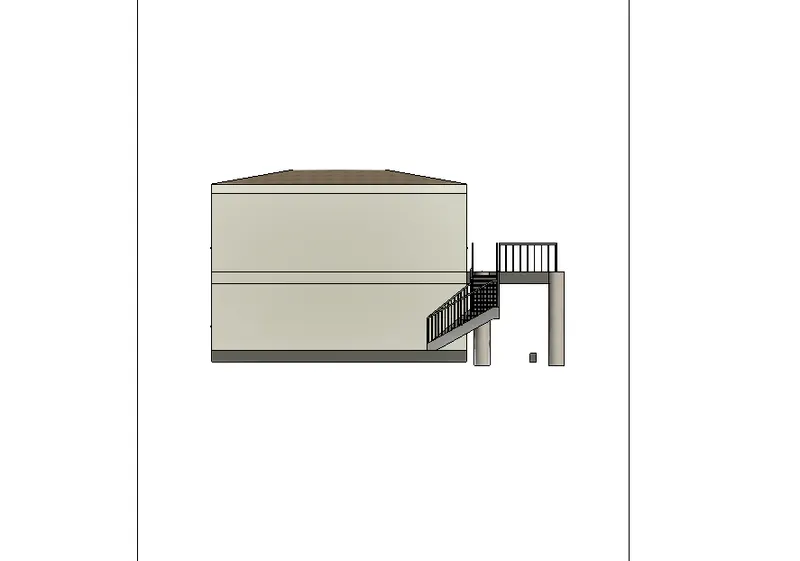

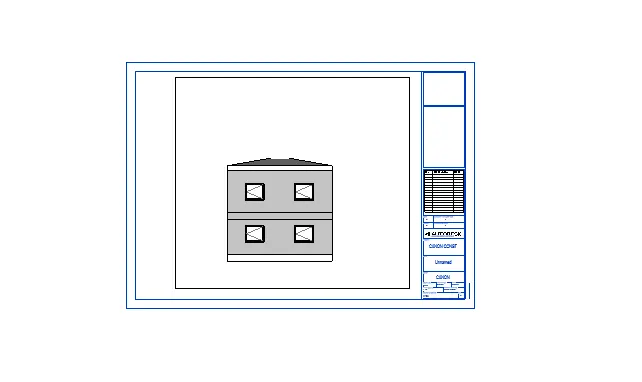

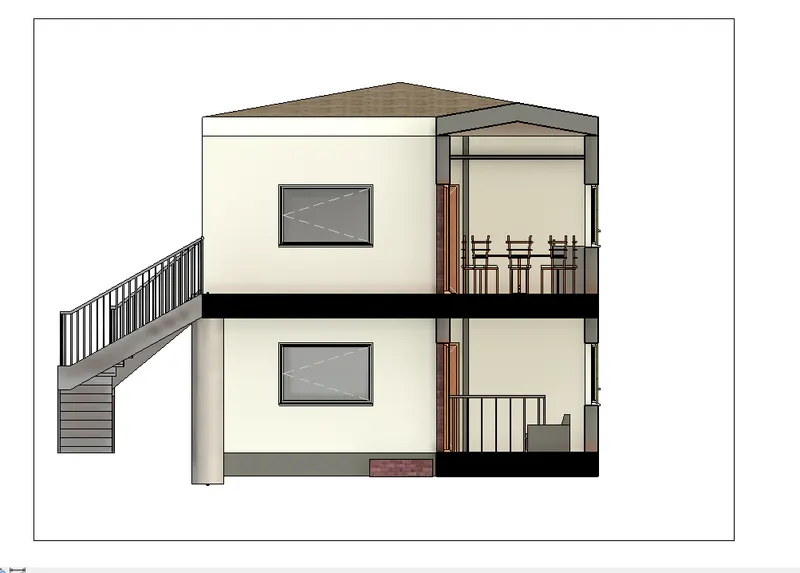

• Next the elevation from the east will be visible, as shown below.

Step:-3

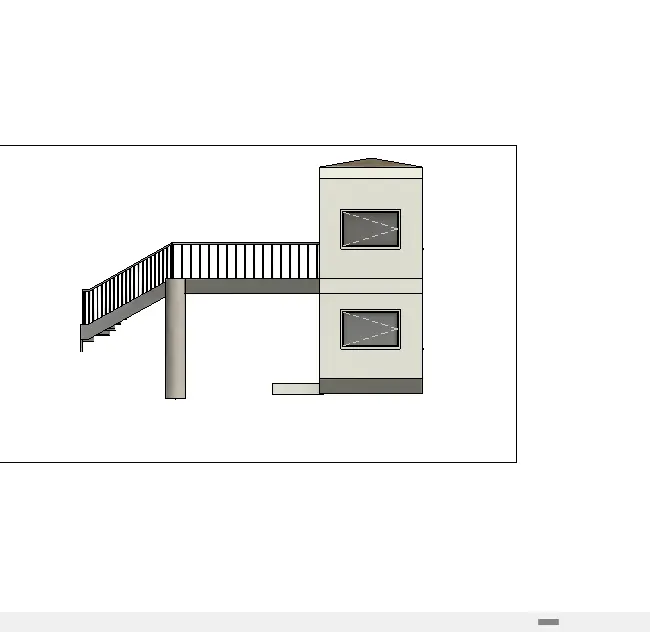

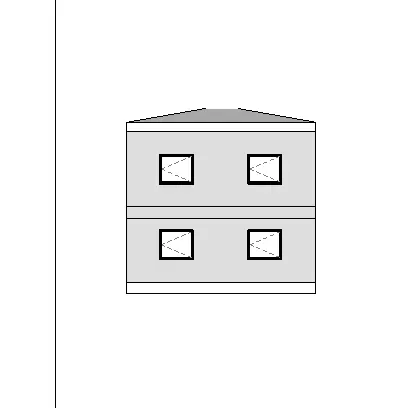

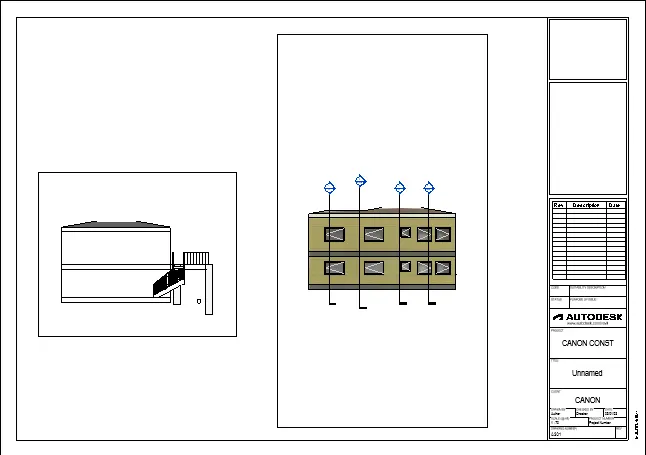

• Next the elevation from the south will be visible on the screen, as shown below.

Step:-4

• Next the elevation from the North will be visible on the screen, as shown below.

RESULT-ELEVATIONS ARE DRWAN USING REVIT

AIM-7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

PROCEDURE:-

Step:-1

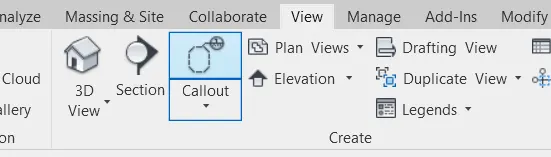

• First we click on the section option from the view toolbar, as shown below.

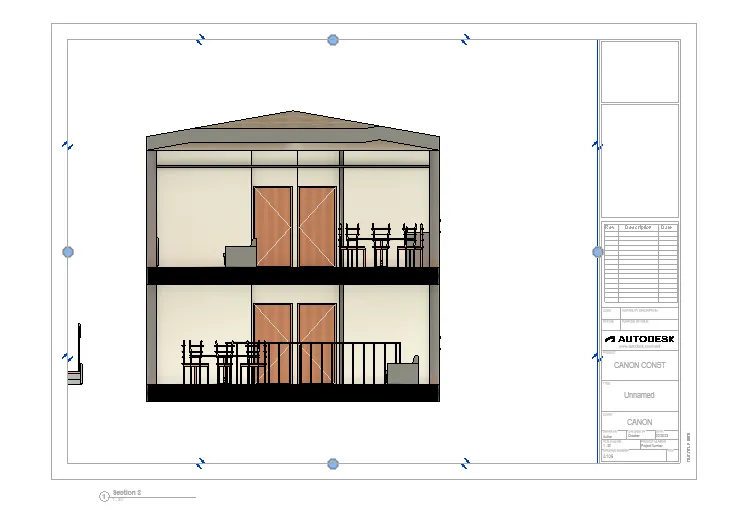

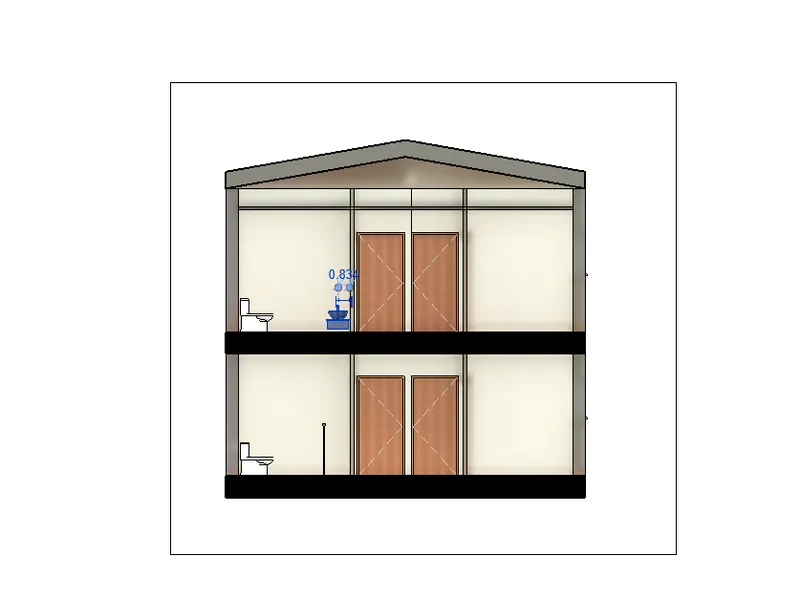

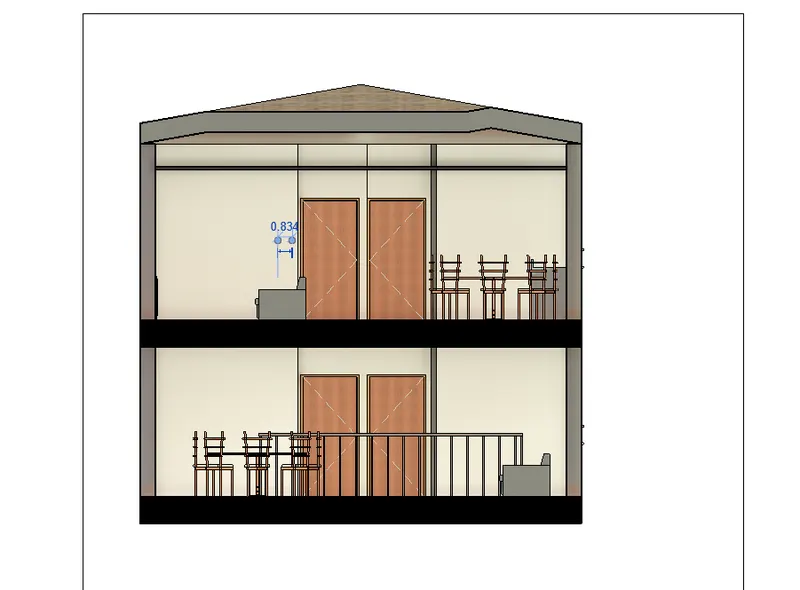

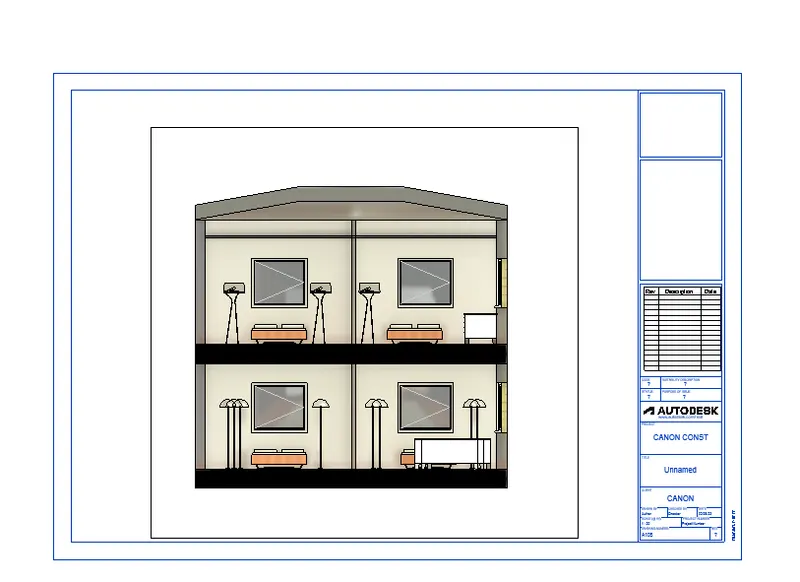

• Next we produce the section view of the bed room as shown in the below figure.

Step:-2

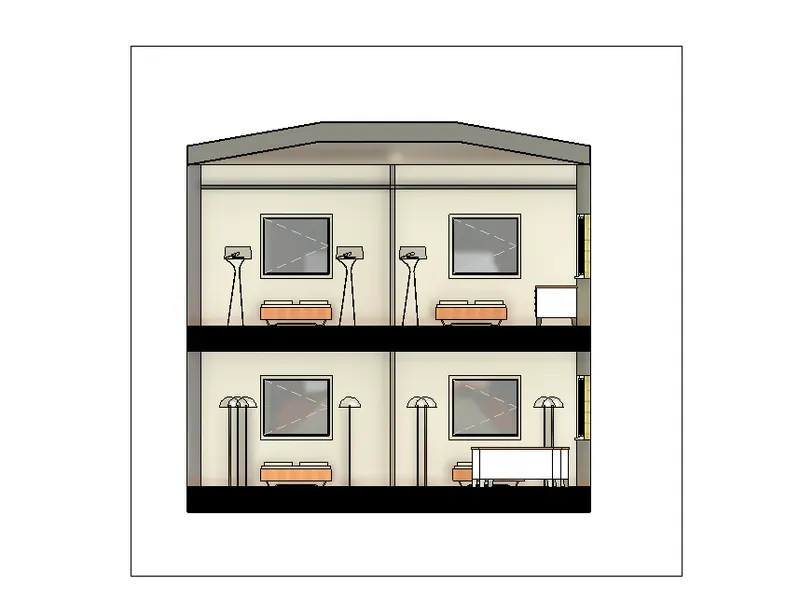

• Follow the same step as 1 procedure for toilet ,dining and kitcen etc.

Result-

AIM-8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

PROCEDURE

Step:1

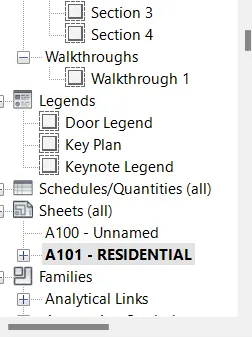

• First we open the project browser, the views, Plari Views, Section Views, and Elevation views are visible in that project browser as shown below.
• .
• Next we insert these plans one by one in the sheets separately
• STEP2- Now insert floor plan in the sheet

• Repeat the step for section view and elevation

RESULT-

AIM-

9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

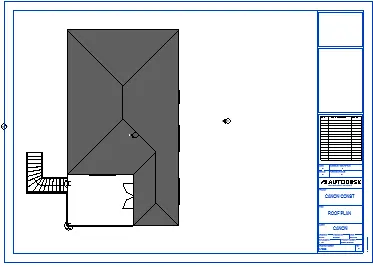

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations

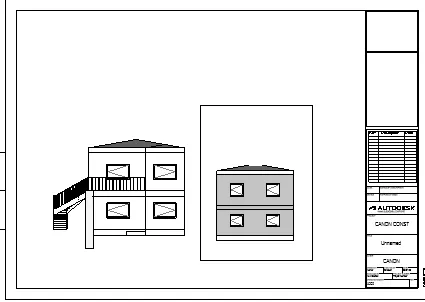

h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

PROCEDURE

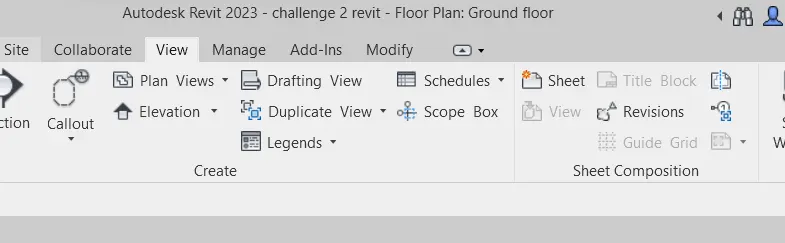

• Go to view option
• select new sheet

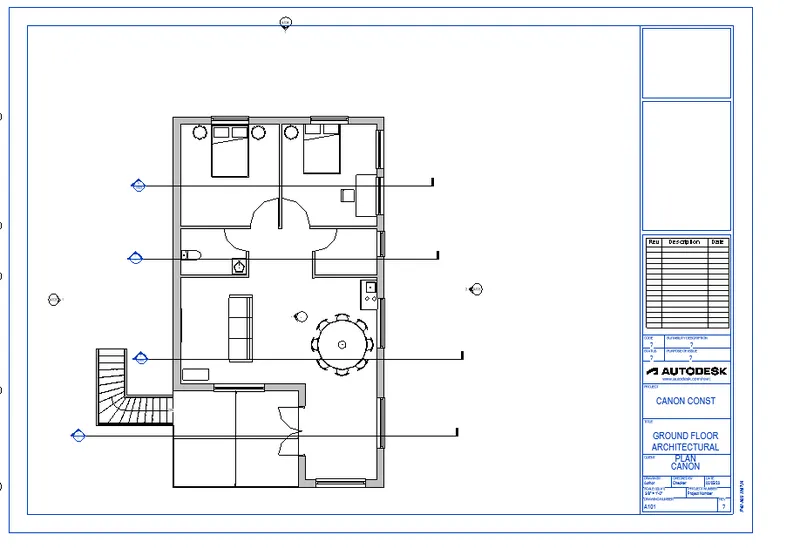

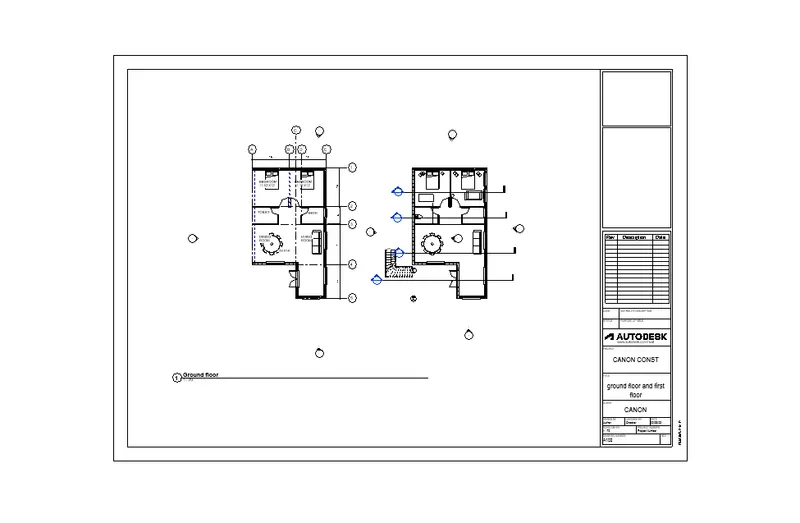

• insert ground floor architectural plan.
• adjust the scale and edit the sheet no as A 101.

• similar step for A102

• A103

• S101

• S102

• S103

• A201

• A202

RESULT-Multiple sheets have been created using revit.

AIM-10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Procedure-

• Go to view option
• go to 3d view and then click on camera
• Place the camera in the location you want.

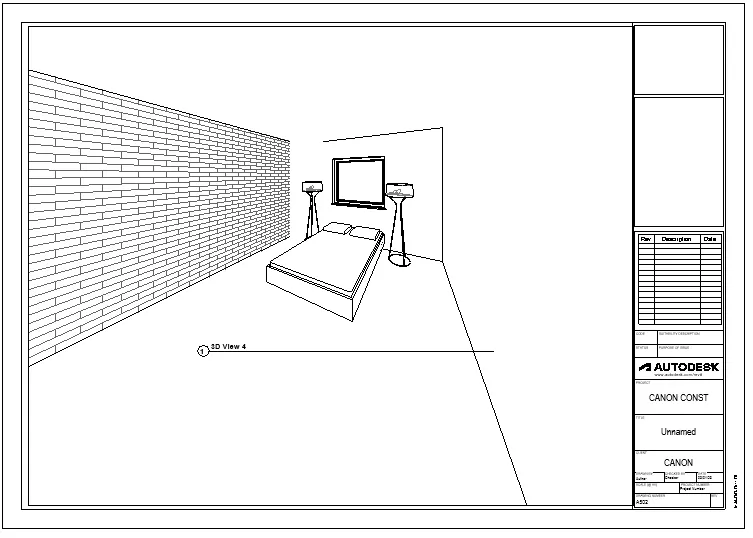

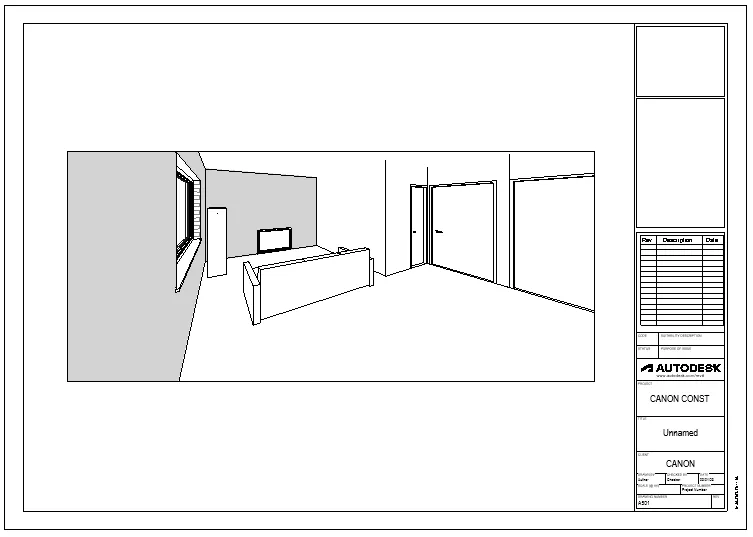

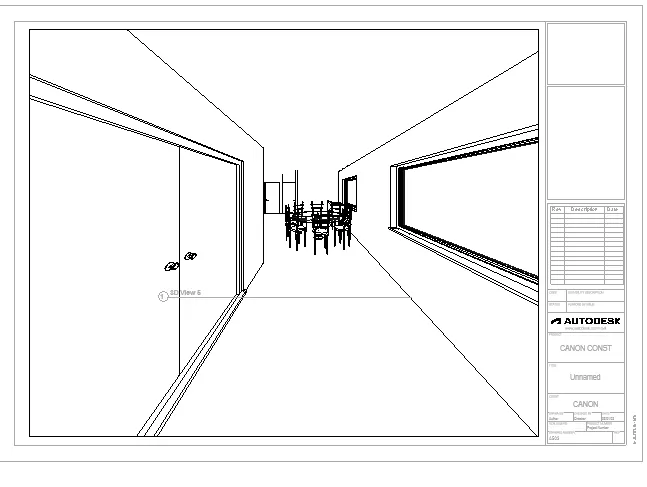

• insert new sheet and drag the camera 3d view in the sheet.
• adjust the scale and edit the sheet no as A 501.

• Similar step for A502,A503

RESULT-Camera specific 3d view is created using revit
