What Is a Wiring Harness and Why Is It Important? Parts, Sizing, 48 V
What a wiring harness is, why every vehicle depends on one, its parts, how wire size is chosen (with a worked 12 V vs 48 V example), what changes in EV high-voltage harnesses, and how harnesses are designed, built and tested.

A wiring harness is the organised bundle of wires, terminals and connectors that carries power and signals between every electrical part of a vehicle or machine. It matters because it turns hundreds of loose wires into one tested assembly that installs in a single step, survives vibration, heat and water for the life of the product, and is sized so each circuit gets the right voltage without wasting copper. A midsize car's harness has over 1,000 wires and weighs around 45 kg, so its design shapes cost, weight, reliability and safety.
In short
- An average midsize car harness has more than 1,000 wires, weighs about 45 kg and runs about 1 km end to end (NXP). Premium cars and full-size trucks can have 40 harnesses, 700 connectors, over 3,000 wires, about 4 km of wire and about 60 kg (SAE Mobility Engineering).
- In Skill-Lync's worked example, a 180 W load on 5 m of wire needs 4 mm² cable at 12 V to keep the voltage drop under 4% at 85 °C. At 48 V, 0.35 mm² is enough, and the cable is about 9.3 times lighter (FLRY-B datasheet values).
- Tesla moved the Cybertruck's low-voltage system from 12 V to 48 V, which allows thinner wires and a lighter harness with less copper (Notebookcheck, December 2023).
- In the US, high-voltage cables (above 60 V DC or 30 V AC) outside protective barriers must have an orange outer covering (FMVSS No. 305, S5.4.1.2).
This guide is for mechanical, electrical and electronics students who want to understand harnesses before an interview or a first job in automotive design. All worked numbers come from a script kept with this article's run notes, using published cable data.
What is a wiring harness?

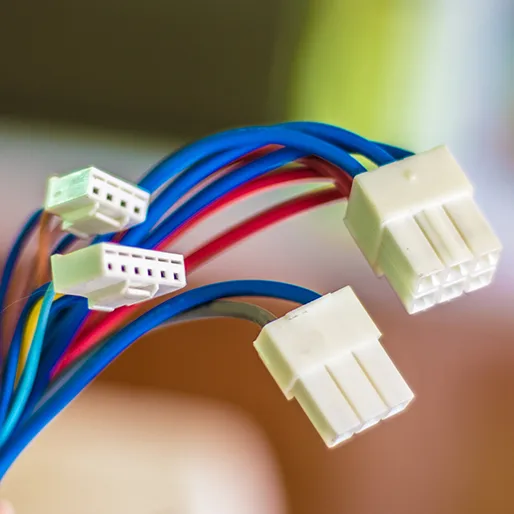

A wiring harness (also called a wire harness, cable harness or wiring assembly) is a set of insulated wires cut to exact lengths, fitted with crimped terminals, plugged into connectors and bound together with tape, conduit and clips. It is designed for one vehicle or product and installed as a single unit, instead of running each wire separately.
The figure below names the parts of one harness branch. A main connector at the control unit (ECU) feeds a trunk of wires. The trunk is wrapped and protected, passes through the body panels in grommets, is clipped to the body, and splits into branches that end at sensors, lamps and motors.
Why is a wiring harness important?
A wiring harness is important because it makes a vehicle's electrical system buildable, reliable and safe. It replaces hundreds of loose wires with one pre-tested assembly, protects every wire from vibration, heat, water and chafing, and sizes each circuit for the right voltage and fuse. It also drives a car's cost and weight.
Here is what each of those benefits means in practice:
- Faster, error-proof assembly. On the vehicle line, workers lay one harness in place and plug in its connectors. Connectors are keyed so they fit only one way into only one mating part, which removes a whole class of wiring mistakes.
- Protection for the life of the vehicle. Tape, corrugated conduit and grommets stop wires rubbing through on sharp sheet-metal edges. Sealed connectors keep water out of the engine bay and underbody, and clips stop wires flapping against the body.
- Repeatable quality. Wires are cut, stripped and crimped by machine to set dimensions, and each finished harness is electrically tested for continuity and short circuits before it leaves the plant.
- Electrical performance and safety. Each wire is sized for its current, voltage drop and fuse, so a fault blows the fuse before the wire overheats. High-voltage circuits in electric vehicles get their own insulation, shielding and orange marking.
- Weight and cost. With 1 to 4 km of copper in a car, every unnecessary square millimetre of wire adds mass and cost. Harness engineers trade these off against reliability on every circuit.
- Serviceability. Colour-coded wires, labelled connectors and documented pin-outs let a technician trace a fault in minutes instead of hours.
What are the main parts of a wiring harness?
Every harness is built from the same families of parts: wires that carry current, terminals crimped onto wire ends, connectors that hold the terminals, seals that keep water out, coverings that protect the bundle, and fixings that hold it to the body. Fuse and relay boxes sit at the power end.
| Part | What it does | What an engineer specifies |
|---|---|---|
| Wire (cable) | Carries current or signal | Conductor size (mm²), insulation material, temperature class (ISO 6722-1), colour |
| Terminal | Metal contact crimped onto the wire end | Size matched to the wire, plating, crimp dimensions |
| Connector housing | Holds terminals, mates with the device | Pin count, keying, locking, sealed or unsealed |
| Seals | Keep water and dust out | Wire seals and interface seals for wet areas |
| Coverings | Protect and bundle wires | Tape, corrugated conduit, braided sleeve, heat-shrink |
| Clips and grommets | Fix the harness and pass it through panels | Clip spacing and grommet size for the hole and bundle diameter |
| Fuses and relays | Protect circuits and switch loads | Fuse rating matched to the smallest wire it protects |
The common low-voltage automotive cable in Europe and India is FLRY-B: a flexible copper conductor with thin-wall PVC insulation, made to ISO 6722-1 and DIN 72551-6 and rated from −40 °C to 105 °C. Its datasheet gives the resistance that sizes every circuit, as the next section shows.
How is the wire size chosen in a harness?
Wire size is chosen so the voltage drop at the load stays within a target, the wire does not overheat at its maximum current, and the fuse protects it. For low-voltage circuits, voltage drop usually decides. It depends on current, length, the conductor's resistance per metre and its temperature.
The drop along a feed wire, with copper's resistance rising about 0.393% per kelvin, is:
where is the current, the cable's resistance per metre at 20 °C, the wire length and the conductor temperature in °C.
Worked example (Skill-Lync). A 180 W load sits 5 m of wire from its fuse box, with the return path through the vehicle body (we ignore the body's own resistance here). The design target is a drop of no more than 4% of system voltage, checked at 85 °C. At 12 V the load draws A and the limit is 0.48 V. With FLRY-B values:
- 1.5 mm² (12.7 mΩ/m): V, or 10.0%. Too much.
- 2.5 mm² (7.6 mΩ/m): 0.72 V, or 6.0%. Still too much.
- 4 mm² (4.71 mΩ/m): 0.44 V, or 3.7%. Passes.
Now the same 180 W load on a 48 V system draws only 3.75 A. The smallest size in the table, 0.35 mm² (54.4 mΩ/m), gives 1.28 V, which is 2.7% of 48 V and well inside the 1.92 V limit. The 5 m of 4 mm² cable weighs about 210 g; the 0.35 mm² cable weighs about 22.5 g, about 9.3 times less.
A real design also checks the wire's current rating at the hottest point on its route, bundle derating when many current-carrying wires share a bundle, the fuse curve, and the smallest size the OEM allows for mechanical strength. Voltage drop is the first filter, not the only one.
Why are carmakers moving to 48-volt wiring?
Because current, not voltage, decides how much copper a harness needs. For the same power, four times the voltage means a quarter of the current. Resistive loss is , so in the same wire it falls to one-sixteenth, or the wire can be made much thinner for the same loss.
A 3 kW load draws 250 A at 12 V but 62.5 A at 48 V. Tesla's Cybertruck, launched in late 2023, switched its low-voltage system from 12 V to 48 V. Notebookcheck's report notes that the lower current allows thinner wires and a lighter harness that uses much less copper, and that Tesla shared its 48 V documentation with other carmakers. Data cabling is changing too: Siemens describes how combining modules and sharing cables cuts harness weight, cost and bundle diameter, and how tools such as its Capital software run trade-off studies on module placement.
The catch is that 48 V is not free. Every 12 V component (lamps, motors, ECUs) needs a 48 V version or a DC-DC converter, arcing at 48 V is harder to interrupt than at 12 V, and the supply chain is built around 12 V parts. That is why 12 V is still the default low-voltage system in most cars, and 48 V has so far arrived mainly on newer, high-content platforms such as the Cybertruck.
How is an EV high-voltage harness different?
An electric vehicle has two harness systems: the usual low-voltage harness, and a high-voltage harness that links the battery, inverter, motor, charger and air-conditioning compressor at hundreds of volts. High-voltage cables are thicker, carry far more current, are usually shielded against electromagnetic noise, and are marked orange.
The orange colour is a safety rule as well as a convention. In the US, FMVSS No. 305 defines a high-voltage source as one with a working voltage above 60 V DC or 30 V AC, and requires that cables for such sources outside electrical protection barriers have an orange outer covering. That warns technicians and rescue crews before they cut or touch anything.
The same voltage logic applies here. A 100 kW drive draws 250 A at 400 V but 125 A at 800 V, which is why some newer EV platforms move to 800 V: half the current means a quarter of the loss in the same cable, or a thinner, lighter cable for the same loss.
How is a wiring harness designed and manufactured?
Harness work runs in six steps. Engineers draw the electrical schematic, route the harness in 3D through the vehicle model, and flatten it into a 2D formboard drawing. The plant then cuts, strips and crimps the wires, assembles them on the formboard, and tests every finished harness electrically.
- Electrical schematic. Every circuit, fuse, wire size and connector pin-out is defined, often with the sizing calculation above.
- 3D routing. The harness is routed through the car's CAD model in CATIA V5's electrical workbenches or NX. The engineer checks bend radius, clearance from hot and moving parts, clip positions and grommet holes.
- Flattening. The 3D harness is flattened into a 2D formboard drawing that shows every branch length, tape and connector, at full scale for the assembly board.
- Cut, strip and crimp. Automatic machines cut wires to length, strip the ends and crimp terminals. Crimp quality is checked because a poor crimp is a common cause of intermittent faults.
- Assembly on the formboard. Operators lay wires on the board, insert terminals into connector housings, and add tape, conduit, clips and grommets.
- Electrical test. Each harness is plugged into a test fixture that checks continuity and short circuits on every circuit, plus that each connector is complete and correctly latched.
What goes wrong in wiring harnesses, and how does design prevent it?
Most harness faults come from mechanics, not electronics: wires chafing through on sharp edges, water getting into connectors, terminals that were badly crimped or not fully latched, and wires fatigued by vibration or repeated door opening. Good routing, sealing, crimp control and testing prevent nearly all of them.
- Chafing: keep clearance from edges, use grommets at every panel hole and conduit near moving parts.
- Water ingress: sealed connectors in wet zones, with drip loops so water runs away from the connector.
- Bad crimps and loose terminals: crimp-height and pull checks in production; connectors with secondary locks that only close when every terminal is fully home.
- Vibration and flexing fatigue: clip spacing that stops the bundle moving, and flexible wire with the right bend radius across doors and hinges.
- Overheating: wire sized for current and bundle temperature, with the fuse chosen to protect the smallest wire on the circuit.
For a structured way to rank these risks, see how FMEA works, step by step. Harness design FMEAs list exactly these failure modes.
Is wiring harness design a good career for engineers in India?
Yes, for mechanical, electrical and electronics graduates who like both packaging and circuits. Harness roles sit with carmakers, Tier-1 harness suppliers and engineering service companies, and electrification is adding high-voltage and 48 V work. The core skills are vehicle electrical basics, CATIA V5 or NX electrical routing, and drawing standards.
Typical roles include harness design engineer (3D routing and drawings), electrical systems engineer (schematics and wire sizing), manufacturing or process engineer (crimping, formboards, test) and validation engineer. Skill-Lync placement records include wiring harness engineer roles at Ashok Leyland and Hinduja Tech, a small sample of three records from 2023 and 2024, so treat it as an example rather than a statistic. For more on the roles, read five job roles in automotive wiring harness and why companies hire wiring harness design engineers.
How can you learn wiring harness design?
Start with vehicle electrical basics (circuits, fuses, wire sizing), then learn a routing tool, then practise on a full vehicle sub-system. Interviewers ask about wire sizing, connector selection, routing rules and how a harness is flattened, so a portfolio project that routes and flattens a real harness is the strongest proof.
Skill-Lync's Automotive Wiring Harness using CATIA V5 course follows that path over 12 weeks: vehicle electrical distribution basics, the CATIA V5 electrical workbench and part design, harness assembly and installation, flattening, component selection, and routing and packaging. Its two projects route a harness on an engine and on a car body. If you are coming from EVs, how EV power converters work covers the high-voltage side. Not sure where to start? Talk to a Skill-Lync counsellor.
Frequently asked questions
What is a wiring harness in a car?
It is the network of wires, terminals and connectors that links a car's battery, fuse boxes, control units, sensors, lamps and motors. It is built as several pre-tested assemblies that are installed in one step. A midsize car's harness has over 1,000 wires and weighs about 45 kg; larger vehicles can carry about 60 kg.
What is the difference between a wiring harness and a cable assembly?
The terms overlap. A wiring harness usually means many individual wires bundled together with tape, conduit and clips, branching to many connectors across a vehicle or machine. A cable assembly usually means one or more conductors inside a single outer jacket, with connectors at each end, built to survive a harsher environment.
Which software is used for wiring harness design?
CATIA V5's electrical workbenches and Siemens NX are widely used to route harnesses in 3D through a vehicle model and flatten them into 2D drawings. Siemens Capital and similar electrical tools handle schematics, wire lists and trade-off studies. AutoCAD Electrical is used for simpler 2D schematics and panel wiring.
Why are high-voltage cables in electric vehicles orange?
Orange warns technicians and rescue crews that a cable carries a dangerous voltage. In the US, FMVSS No. 305 requires cables of high-voltage sources (above 60 V DC or 30 V AC) outside protective barriers to have an orange outer covering.
Why does a 48 V system need thinner wires than 12 V?
For the same power, a 48 V system draws a quarter of the current of a 12 V system. Voltage drop scales with current, and heating with current squared, so the wire can be much smaller. In Skill-Lync's example, a 180 W load on 5 m of wire needs 4 mm² at 12 V but only 0.35 mm² at 48 V.
Sources and further reading
- NXP, Smart communication network in cars (midsize car harness: over 1,000 wires, 45 kg, about 1 km).
- SAE Mobility Engineering, Wired for Autonomy (premium cars and full-size trucks: 40 harnesses, 700 connectors, over 3,000 wires, 4 km, 60 kg).
- FLRY-B cable datasheet (ISO 6722-1, DIN 72551-6): conductor resistance at 20 °C and temperature range; cable mass per km.
- ISO, ISO 6722-1:2011 Road vehicles, 60 V and 600 V single-core cables (catalogue entry).
- US eCFR, 49 CFR 571.305, FMVSS No. 305: high voltage source definition and S5.4.1.2 orange cable marking.
- Jalopnik, Why are high voltage cables orange on electric cars? (FMVSS 305 orange rule and its purpose).
- Notebookcheck, Tesla open-sources the Cybertruck's 48V architecture, 7 December 2023.
- Siemens, Wiring harness development in today's automotive world, Capital blog.
- Skill-Lync, Automotive Wiring Harness using CATIA V5 course syllabus, and Skill-Lync placement records (data pulled 18 Nov 2026; three wiring harness roles, 2023-24).
