The Evolution of Washing Machine Design: From Noise to Silent Efficiency

Do you remember those heavy washing machines our parents used to own? Back then, every time they operated, they produced loud noises, and if you touched them while they were running, you could feel intense vibrations shaking through your hands. Washing machines have come a long way since then, evolving into quieter, more efficient models.

In fact, did you know that some of the earliest automatic washing machines vibrated so much that they literally "walked" while they were operating? Back in 1937, Bendix Corporation manufactured the first automatic washing machines, but these machines vibrated so excessively that they had to be strapped down to the floor to prevent movement!

So, how did we move from those vibrating giants to the quieter, stable washing machines we have today? The answer lies in three vital components that early machines lacked: the drum suspension, a counterweight, and a vibration damper. In this blog, we’ll explore how these components helped optimize modern washing machine use and how they play a key role in reducing washing machine vibration.

1. Drum Suspension: The Backbone of Modern Washing Machines

The first issue with early washing machines was the absence of proper drum suspension. But what exactly is drum suspension, and why is it important?

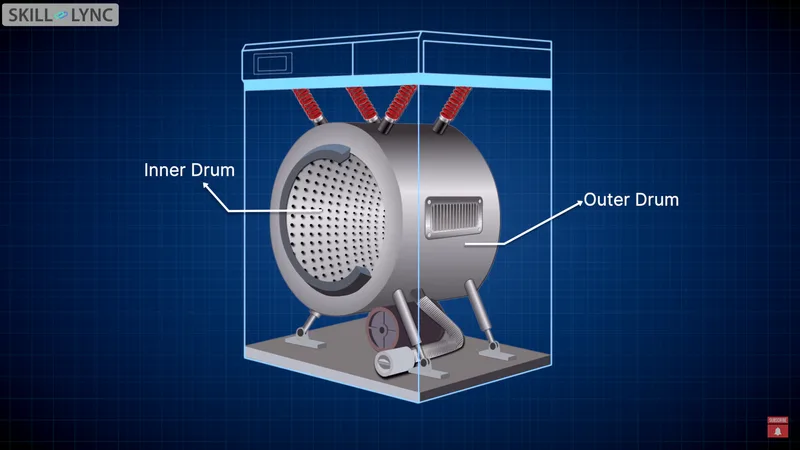

When you load your laundry, you’re actually placing it in the inner drum of the machine. This inner drum is mounted within an outer drum using a saddle-lock system. The outer drum is essential because, without it, the inner drum would vibrate and shake uncontrollably, banging against other machine parts. In modern washing machines, the outer drum is suspended using spring suspensions that absorb the vibrations caused by the rotating inner drum.

Early washing machines lacked this suspension system, meaning that vibrations from the spinning drum would travel through the outer drum and into the rest of the machine, causing the loud noises and excessive shaking. Adding drum suspension significantly reduced washing machine vibration, making the machine more efficient and quieter.

2. Counterweights: Balancing the Force

Even with drum suspensions in place, the inner drum produces powerful centrifugal forces when it spins, which still causes some movement. To counteract these forces, engineers introduced counterweights in washing machine design.

Most modern washing machines contain a block of concrete inside them. This counterweight helps weigh the machine down and keeps it stable during operation. The counterweight is placed opposite the motor to balance the heavy motor's weight, preventing the machine from moving due to the spinning drum. This simple addition was a game-changer in minimizing movement and reducing the need for washing machine repair caused by excessive vibrations.

3. Vibration Dampers: The Final Step to Silence

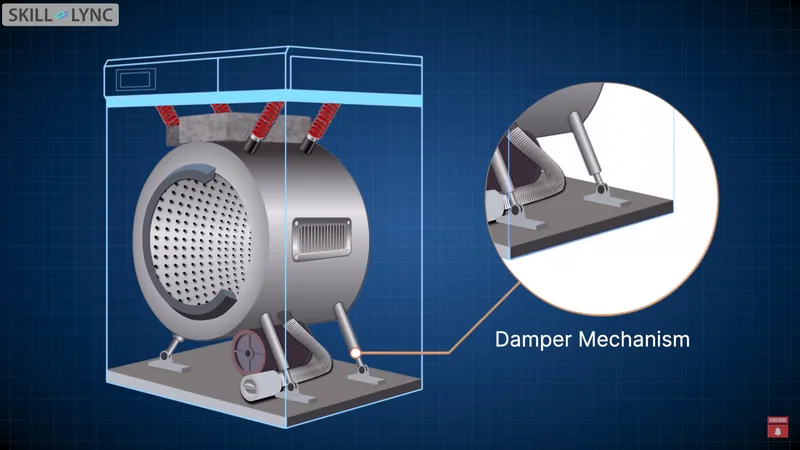

Despite suspensions and counterweights, there is always some residual vibration in the machine. To tackle this, engineers added vibration dampers under the drum. These dampers act as shock absorbers, connecting the drum to the machine’s frame and absorbing the last bit of vibration that would otherwise cause unwanted noise or movement.

In modern washing machine vibration solutions, this combination of drum suspension, counterweights, and dampers results in a much smoother and quieter operation, enhancing the overall experience of using a washing machine.

Additional Design Factors

Beyond these three components, there are other interesting design aspects in modern washing machines. For instance, the shape and design of the blades inside the drum significantly affect water flow, which can also influence the efficiency of the washing process.

Conclusion: From Vibrations to Stability

It’s fascinating to see how far washing machine design has come, moving from heavy, vibrating machines to the quieter models we have today. With the introduction of drum suspensions, counterweights, and vibration dampers, washing machine vibration solutions have made these appliances more user-friendly and long-lasting.
