Understanding Signal Losses in Fiber Optic Communication

Have you ever thought about how easy it is to make a call or stream a video today? You simply dial your friend’s number or click on a video, and in no time, the information is transmitted across long distances. While this may seem instantaneous, there can be instances where information gets lost in transmission. Identifying these losses is crucial to minimizing them and ensuring smoother communication.

Fiber optic cables are the backbone of modern communication systems, used to transmit telephone signals, internet data, and cable television signals. However, these optical fibers can have irregularities that lead to signal loss. In this blog, we will discuss the two main types of signal losses in fiber optics: absorption losses and scattering losses.

What Is Signal Loss in Optical Fibers?

Before diving into the types of losses, let's first understand how we measure them. When you speak into your phone, and the person on the other end hears your voice faintly or not at all, this indicates that part of the signal has been lost. In fiber optics, this loss of signal strength is referred to as attenuation.

Attenuation is measured using the ratio of input optical power to output optical power over the length of the fiber. Its unit is decibels per kilometer (dB/km). The primary causes of attenuation in fiber optic cables are absorption losses, scattering losses, dispersion losses, radiative losses, and coupling losses. In this post, we will focus on the first two.

Absorption Losses in Fiber Optics

Intrinsic and Extrinsic Absorption

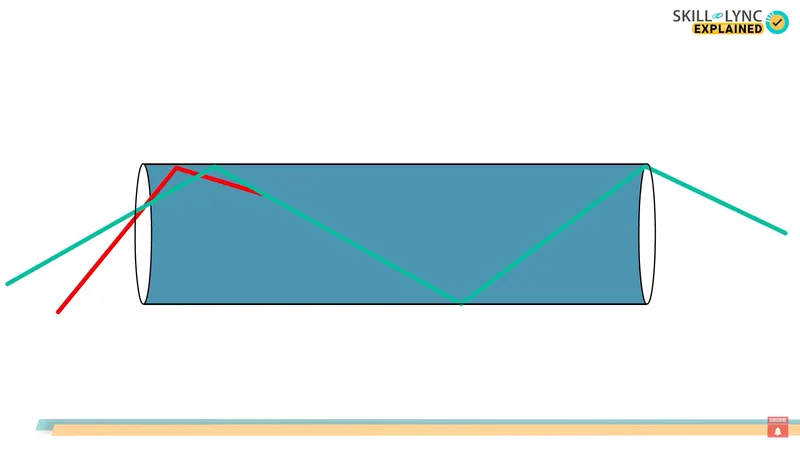

The first type of loss is absorption loss, which occurs when the light signal traveling through the fiber is absorbed and converted into another form, such as heat. This can happen due to impurities in the fiber material. Absorption losses are classified into two categories: intrinsic absorption and extrinsic absorption.

Intrinsic Absorption: Optical fibers are made from materials like glass or plastic, which contain particles called photons. When photons interact with the electrons in the fiber, they are absorbed by the electrons, causing them to move to a higher energy level. This interaction results in a loss of the light signal and is known as intrinsic absorption. Intrinsic absorption losses occur naturally due to the properties of the fiber material.

Extrinsic Absorption: Unlike intrinsic absorption, extrinsic absorption occurs due to impurities present in the fiber material, such as metals like iron, copper, cobalt, nickel, or chromium. These impurities absorb optical signals, leading to loss. The impurity concentration in optical fibers is typically kept below 1% to limit the loss to less than 1 dB/km. In some cases, hydroxyl ions (water vapors) left over from the manufacturing process can also cause significant absorption losses.

Scattering Losses in Fiber Optics

Linear and Non-linear Scattering

Next up are scattering losses, which occur when the signal is scattered within the optical fiber. Scattering losses can be further divided into two categories: linear scattering and non-linear scattering.

Linear Scattering: In linear scattering, a mode carrying the optical signal is scattered into a different mode within the fiber. There are two main types of linear scattering: Rayleigh scattering and Mie scattering.

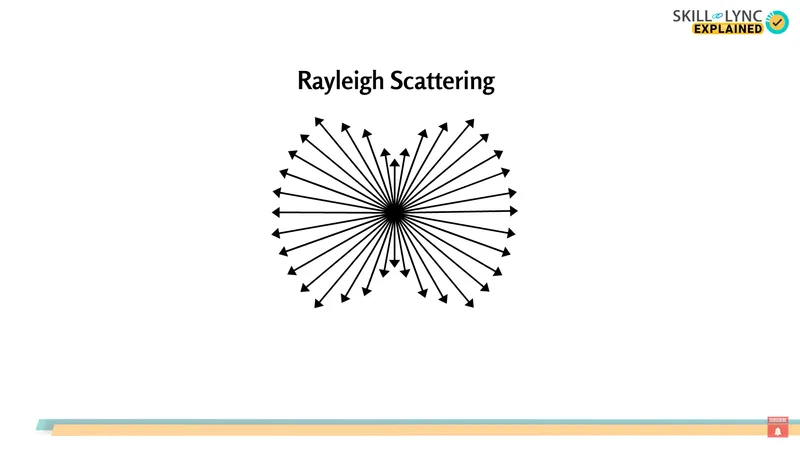

• Rayleigh Scattering: This occurs when the atoms inside the fiber absorb the light and then scatter it in different directions. Although it may appear similar to absorption loss, Rayleigh scattering differs because the light is not absorbed but scattered back. Fun fact: the blue color of the sky is caused by Rayleigh scattering of sunlight in Earth's atmosphere!

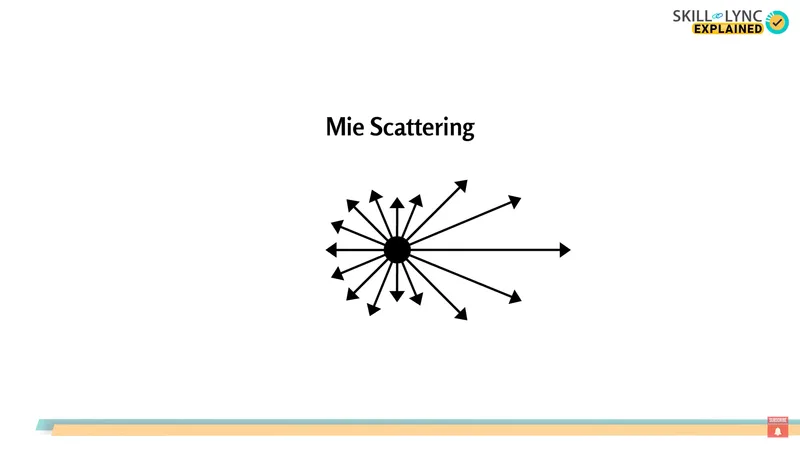

• Mie Scattering: This type of scattering occurs when the optical signal encounters particles that are roughly the size of the signal’s wavelength. When these particles are hit, the light is scattered in the forward direction, leading to a reduction in signal strength.

Non-linear Scattering: In non-linear scattering, optical power is transferred from one mode to another, either at the same frequency or at a different frequency. The direction of scattering can be forward or backward. Non-linear scattering is divided into two types: Stimulated Brillouin Scattering (SBS) and Stimulated Raman Scattering (SRS).

• Stimulated Brillouin Scattering (SBS): In SBS, strong optical signals inside the fiber are converted into acoustic (sound) waves. These acoustic signals travel backward and interfere with the incoming optical signals, causing a loss in signal strength.

• Stimulated Raman Scattering (SRS): In SRS, the signal with a shorter wavelength transfers its energy to a signal with a longer wavelength. This energy transfer between the signals limits the overall performance of the system, resulting in signal degradation.

Conclusion

In fiber optic communication, understanding absorption losses and scattering losses is essential for minimizing attenuation and maintaining strong signal transmission. These losses occur due to impurities in the fiber material, interactions between photons and electrons, and scattering of light within the fiber. Reducing these losses is crucial for improving the efficiency of optical communication systems.
