The Surprising Role of Dielectric Materials in Everyday Devices

Hey everyone, Today, we’re looking into the fascinating world of dielectric materials. Capacitors play a crucial role in energy-storing systems, but have you ever wondered what makes them so effective? The answer lies in the presence of dielectric materials between the conducting plates. In this blog, we’ll explore what dielectric materials are, how they work, and their various properties and applications.

What Are Dielectric Materials?

Before we dive into the details, let’s clarify what dielectric materials mean. Dielectric materials are a type of insulator that does not conduct electricity but can be polarized when an electric field is applied. In simpler terms, while these materials do not allow the flow of electricity, they do respond to electrical fields, making them essential in devices like capacitors.

The Role of Electric Dipoles

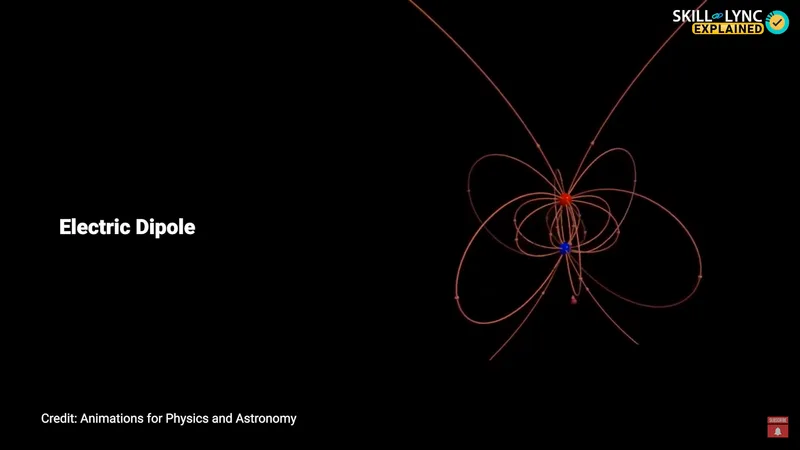

To understand dielectric materials, we first need to know what an electric dipole is. In every material, there are two kinds of electric charges: positive and negative. Most matter consists of atoms with positively charged nuclei and negatively charged electrons. Typically, the centers of these charges coincide. However, in some materials, they are separated by a small distance, forming an electric dipole.

There are two types of dipoles:

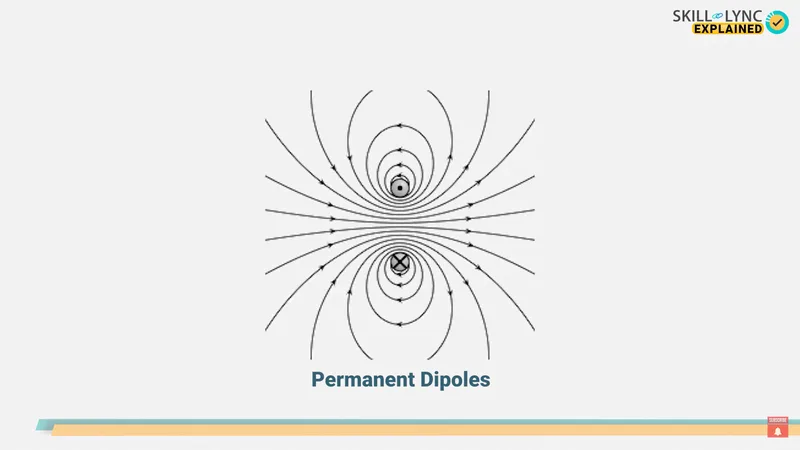

• Permanent Dipoles: Materials like water, carbon dioxide, and ammonia naturally have dipoles.

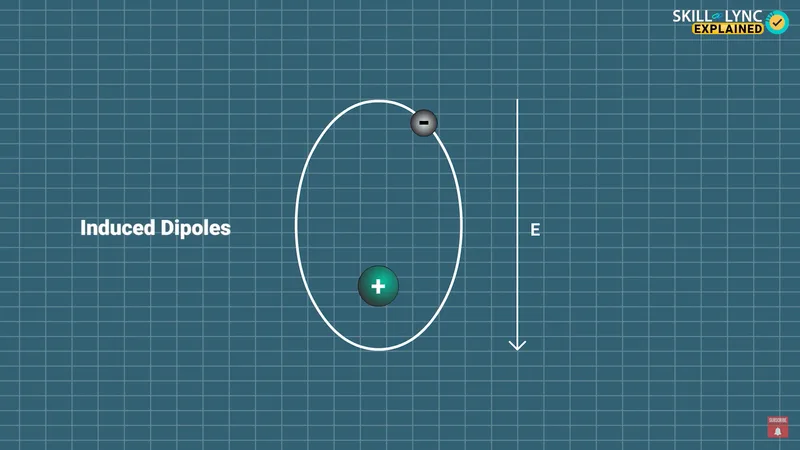

• Induced Dipoles: In some materials, dipoles form only when an electric field is applied.

How Do Dielectric Materials Work?

Dielectric materials do not conduct electricity because their electrons are tightly bound to the nucleus. However, when placed in an electric field, they form dipoles. Let’s break down the process:

Imagine two conducting plates separated by a distance, connected to a voltage source. One plate accumulates positive charges, and the other negative charges. Without a medium between them, there is no current flow. Now, if we insert a dielectric material between the plates, the positive charges in the material align with the negative charges on the plate, and vice versa. This process is called polarization.

Types of Polarization in Dielectric Materials

There are three types of polarization found in dielectric materials:

• Electronic Polarization: The displacement of negatively charged electrons from the center of the positively charged nucleus. This occurs in all types of dielectrics.

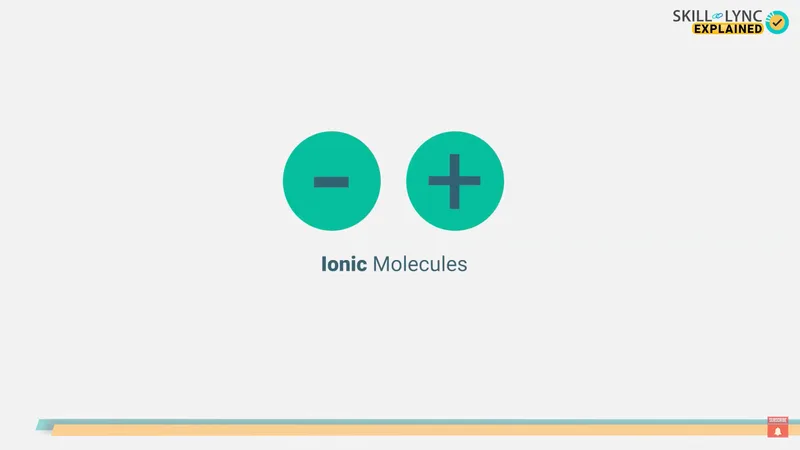

• Ionic Polarization: In ionic materials, cations move in one direction, and anions move in the opposite direction when a field is applied.

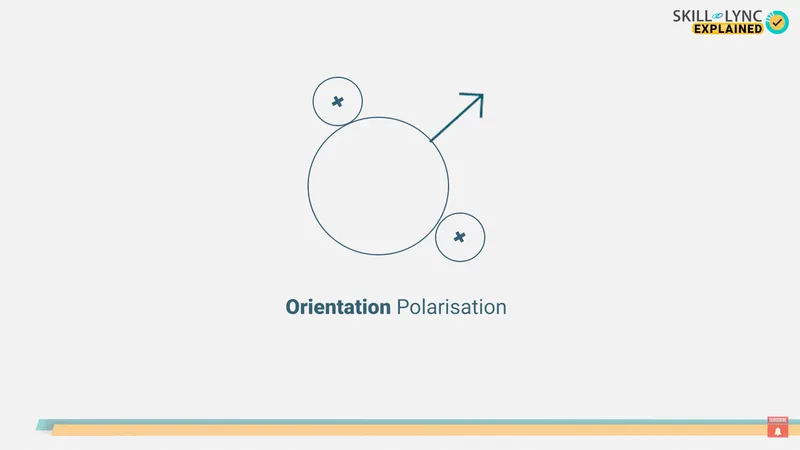

• Orientation Polarization: Found in dielectrics with permanent dipoles, where the electric dipoles rotate in the direction of the applied field.

The total polarization in a dielectric material is the sum of all three types.

Key Properties of Dielectric Materials

When selecting dielectric materials, certain properties need to be carefully considered:

• Dielectric Constant: Also known as relative permittivity, this is a measure of a material’s ability to store electrical charges when an electric field is applied. It is a critical factor in determining the efficiency of a dielectric material in capacitors.
• Relaxation Frequency: In practical applications, alternating current (AC) changes its direction periodically. Dielectric materials need time to reorient their dipoles according to the changing electric field. The reciprocal of the minimum reorientation time is known as relaxation frequency. If the applied electric frequency exceeds this value, no reorientation occurs, reducing the material's effectiveness.

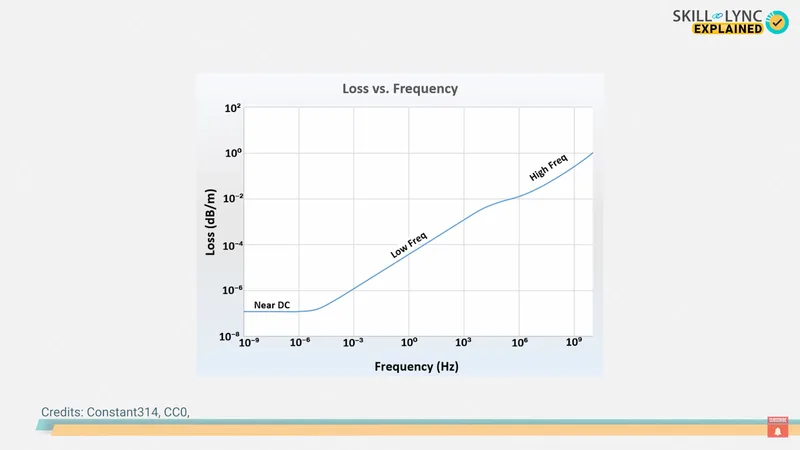

• Dielectric Loss: As alternating current is applied, dielectric materials absorb some electrical energy, which results in energy loss. This phenomenon is called dielectric loss.
• Dielectric Strength: The maximum electric field that can be applied to a dielectric material before it loses its insulating property and allows current to flow is known as dielectric strength or breakdown strength.

Types of Dielectric Materials

Dielectric materials come in various forms, each with specific applications:

• Solid Dielectrics: Examples include glass, mica, and porcelain, which are commonly used in capacitors and insulating components.
• Liquid Dielectrics: Materials like oil and distilled water are used in transformers and other electrical systems.
• Gaseous Dielectrics: Air, nitrogen, and sulfur hexafluoride are examples used in high-voltage equipment.
• Vacuum: Interestingly, vacuum can also act as a dielectric medium, especially in sensitive electronic components.

Applications of Dielectric Materials

Dielectric materials are widely used across multiple industries and applications, including:

• Capacitors: Used in electronic circuits for energy storage.
• Liquid Crystal Displays (LCDs): Polarization of light is controlled by the dielectric material in the display.
• Oscillators and Laser Printers: Dielectrics are used to regulate electronic signals.
• Thermal Insulation in Buildings: Dielectric materials are used as thermal insulation sheets to manage heat flow in modern construction.
• Roof Insulation: In buildings, thermal insulation for roofs involves dielectric materials to improve energy efficiency.

Conclusion

In conclusion, dielectric materials play a vital role in various electrical and electronic applications. Understanding their properties, such as the dielectric constant, dielectric strength, and polarization types, helps in selecting the right materials for specific uses. From dielectric materials in engineering physics to real-world applications in capacitors and insulation, their importance cannot be overstated.

We hope this blog helped you understand the fascinating world of dielectric materials. Stay tuned for more in-depth discussions, and don’t forget to check out our other content for a deeper dive into engineering and physics!
