The Basics of Independent Front Suspension Systems

The suspension system in a vehicle is a critical component that ensures smooth handling, ride comfort, and stability. It absorbs the shocks from bumps and uneven road surfaces while maintaining the connection between the wheels and the road. A key part of this system is the front suspension, which significantly affects how the vehicle steers and behaves while cornering or braking.

In modern cars, the independent front suspension has become a popular choice due to its flexibility, improved ride quality, and better handling characteristics. This blog will take you through the different types of independent front suspensions, how they work, their components, and the pros and cons of this system.

What is Independent Front Suspension?

Unlike rigid axle suspensions, where both wheels are connected by a single axle, independent front suspensions allow each wheel to move independently. This means that when one wheel hits a bump, it doesn't affect the other, providing better comfort and stability. This system is highly beneficial in terms of ride quality, handling, and cornering, making it the preferred option for most modern vehicles.

Types of Independent Front Suspension Systems

There are several designs of independent front suspension systems, each with its unique configuration and application. Let’s dive into the six main types:

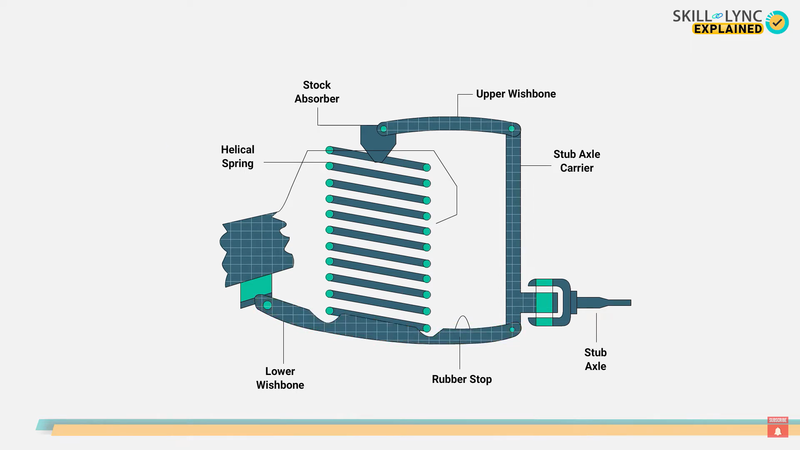

1. Longitudinal Independent Front Suspension

In this setup, a helical spring is connected between a U-shaped wishbone. The inner end of the upper wishbone attaches to a hydraulic damper, while the outer end hinges to the stub axle carrier. This type provides a constant track even when the wheels lift due to the length of the lower wishbone.

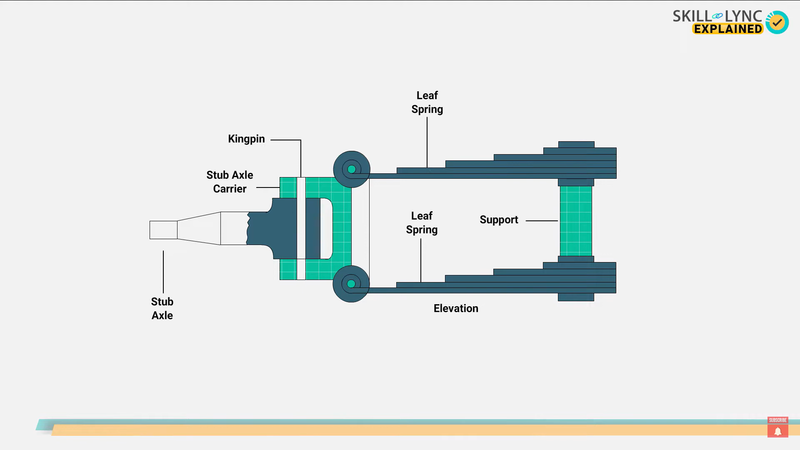

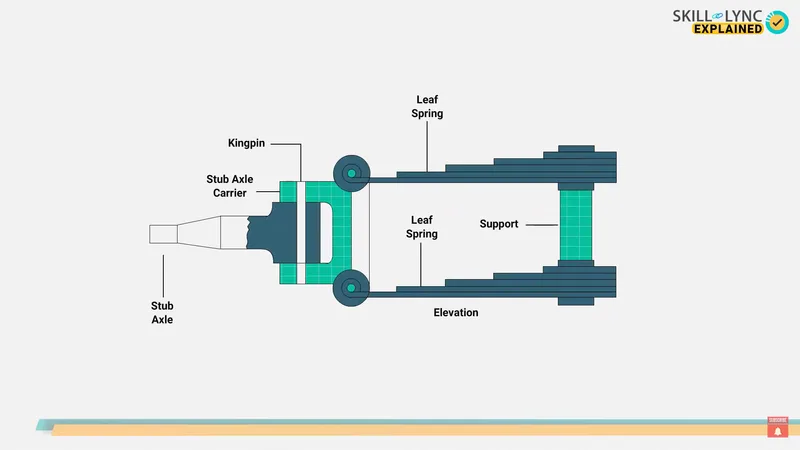

2. Transverse Independent Front Suspension

Used widely in Ford vehicles from 1908 to 1948, this system consists of two trailing arms connected transversely, one above the other. The stub axle is connected to the end of these arms, and radius rods support the centerline of the vehicle, enhancing stability and control.

3. Sliding Independent Front Suspension

First used in Corvel automobiles in 1898, this design features a stub axle and wheels attached to a vertical pillar, which moves up and down. In case of steering, the stub axle itself rotates. However, this system's downside is that the wheel track changes with suspension movement, affecting stability.

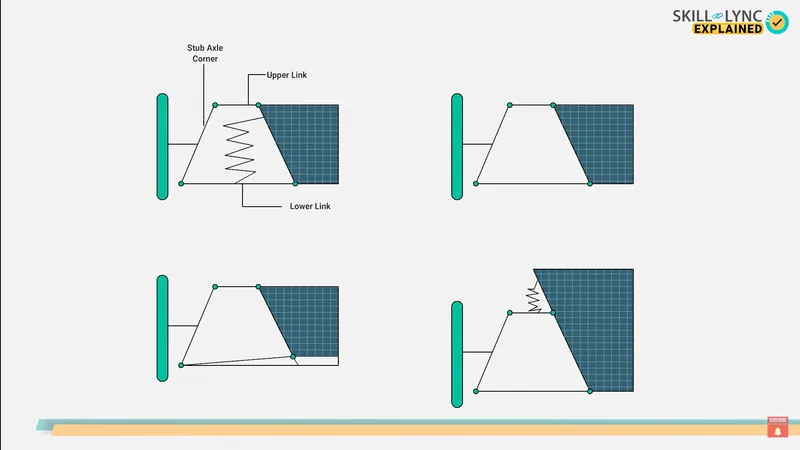

4. Parallelogram Independent Front Suspension

Here, the stub axle carrier connects the upper and lower wishbones. The lower wishbone is longer than the upper one. This system often uses coil springs to transfer the vehicle’s weight to the lower wishbone. It offers constant tracking, enhanced cornering, and a longer lifespan for tires.

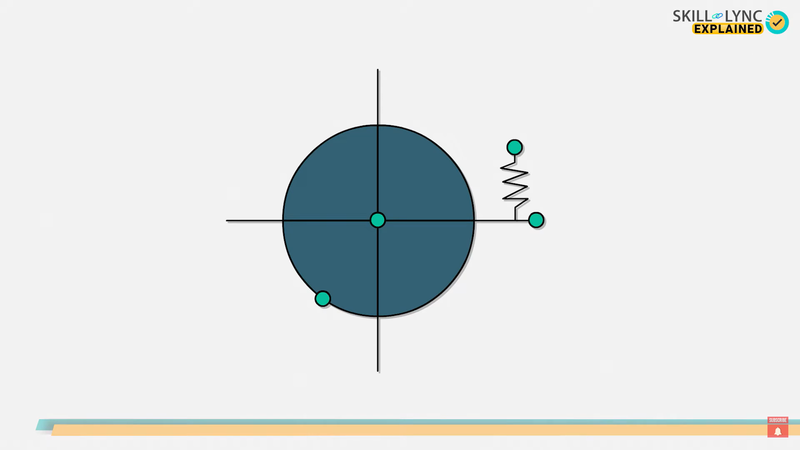

5. Trailing Link Independent Front Suspension

In this type, one end of the coil spring is connected to a trailing arm, and the other end is attached to a shaft pivoted to the trailing arm. The wheel hub is connected to the end of this shaft, enabling smooth up-and-down movement of the wheels. Torsion bars may replace coil springs in some versions of this system.

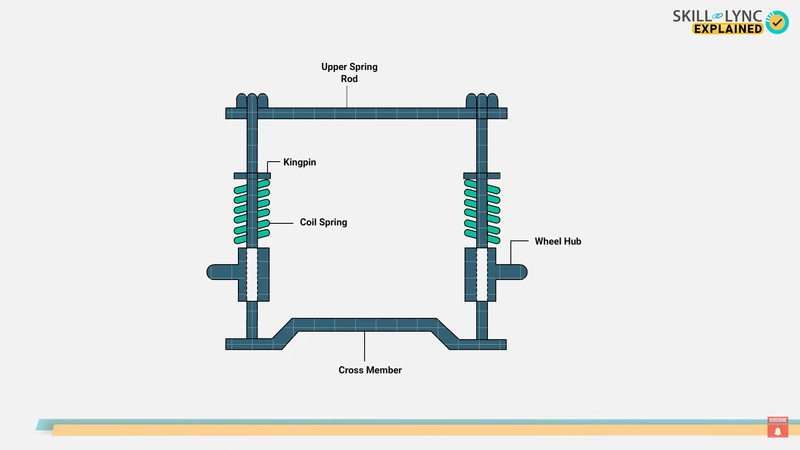

6. Vertical Guide Independent Front Suspension

This design features a kingpin directly connected to the cross member, allowing the kingpin to slide up and down as the wheel moves. The spring compresses or elongates accordingly, but this system is less stable compared to other types.

Advantages of Independent Front Suspension

Independent front suspension offers several advantages, making it a preferred choice in modern automotive design:

• Improved Ride Comfort: Because each wheel moves independently, road bumps are absorbed more effectively, providing a smoother ride.
• Better Handling and Stability: This system enhances vehicle stability during cornering by minimizing body roll and maintaining better contact between the tires and the road.
• Less Wheel Wobble: The independent suspension reduces wheel wobbling and gyroscopic effects when the vehicle turns.
• Enhanced Space: Independent suspensions are arranged to provide more space between components, offering better engine accommodation.
• Reduced Unsprung Weight: Lower unsprung weight results in improved ride quality and road-holding capabilities.

Disadvantages of Independent Front Suspension

Despite its many advantages, independent front suspension also comes with some drawbacks:

• Complex Steering Geometry: The steering geometry and alignment require more frequent adjustments, which can increase maintenance costs.
• Expensive to Manufacture: Due to the complexity of its components and arrangement, independent front suspension systems are generally more expensive to produce and maintain.
• Reduced Cornering Performance: In some cases, the camber angle and body roll may reduce the cornering performance, especially in high-performance applications.

Conclusion

The independent front suspension system is a vital innovation in vehicle engineering that offers greater comfort, handling, and performance. While it has some disadvantages, such as complexity and higher costs, the benefits far outweigh the drawbacks, especially for daily-driven cars. Understanding the different types of independent front suspension systems can help you appreciate the intricate engineering that goes into making modern cars more comfortable and safer to drive.

Happy Reading!
