Optical Fiber Types: What Makes Them Unique?

In the world of high-speed communication, not all optical fibers are created equal. Different types of optical fiber cables serve unique purposes depending on factors like distance, bandwidth, and installation requirements. Understanding these types can make a huge difference in optimizing your network’s performance. In this blog, we’ll break down the real differences between the various types of optical fiber cables and why it matters for modern communication. From material composition to refractive index and mode, let’s dive into what sets these fiber types apart.

A Shift from Copper to Fiber Optics

Humans have long relied on copper wires to transmit information over long distances. While copper served us well, the demands of modern communication have led to a significant shift towards fiber optic cables. These cables, which transmit information using light pulses, offer many advantages over copper, which uses electric pulses.

But why this shift? Fiber optic cables:

• Require less maintenance compared to copper.
• Transmit information faster and over greater distances without the need for signal amplification.
• Have a larger data-carrying capacity, making them ideal for today’s bandwidth-hungry world.

This combination of speed, efficiency, and capacity is why the communication industry is actively adopting optical fiber cables to replace copper wiring.

Types of Fiber Optic Cables

Fiber optic cables are categorized based on three main factors:

• Material used
• Refractive index
• Mode of transmission

1. Types Based on Material

Optical fiber communication can be achieved using different materials. Based on this, fiber optic cables are classified into two types:

a. Glass Optical Fibers

Made from silica, glass optical fibers are favored for long-distance communication. They can transfer data at speeds of 100 Mbps, which is remarkably fast. Although delicate, these fibers can withstand extreme temperatures. One downside is that they require trained technicians for installation because they cannot be easily cut or spliced.

b. Plastic Optical Fibers (POF)

On the other hand, plastic optical fibers use poly methyl methacrylate (PMMA) as their core material. They offer an impressive transfer rate of 2.5 Gbps. Known as "consumer fibers," they are easy to install, affordable, and flexible, making them great for short-distance communication. However, POFs exhibit higher signal loss, limiting their use to short distances.

2. Types Based on Refractive Index

The refractive index of a material determines how fast light can travel through it. Based on this, optical fibers are classified into two types:

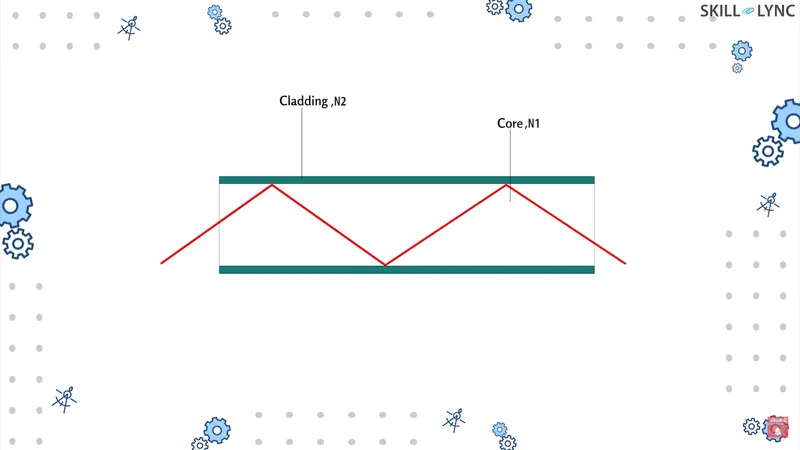

a. Step Index Fibers

In step index fibers, the refractive index remains constant throughout the core and cladding layers. The core, with a higher refractive index (n1), sharply contrasts with the cladding’s lower index (n2), causing light to propagate in sharp angles within the fiber. This structure is useful for simpler, low-bandwidth applications.

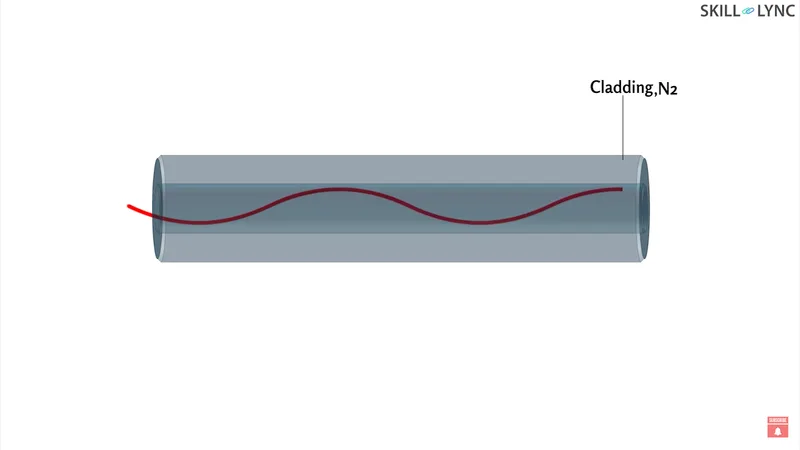

b. Graded Index Fibers

In graded index fibers, the refractive index of the core decreases from the center outwards, while the cladding maintains a constant refractive index. This variation allows the light to follow a more sinusoidal path, resulting in less signal loss and higher bandwidth compared to step index fibers.

3. Types Based on Mode of Transmission

The term "mode" refers to the number of light rays that can pass through a fiber at any given time. Based on this, optical fibers are divided into:

a. Single Mode Fiber

As the name suggests, single mode fibers allow only one light ray to pass through at a time. With core diameters as small as 10 micrometers, these fibers are used for long-distance transmission, ensuring that signals do not disperse and maintain their integrity over great distances. They are also capable of carrying a higher bandwidth than multi-mode fibers, making them ideal for high-speed data transfer.

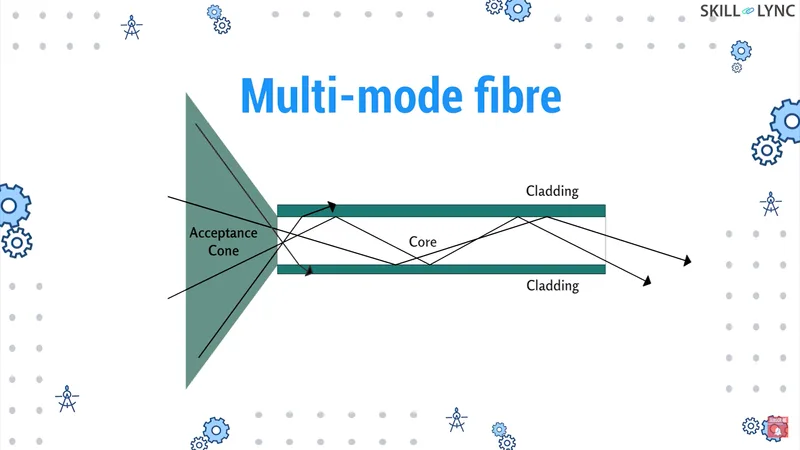

b. Multi-Mode Fiber

In contrast, multi-mode fibers allow multiple light rays to pass through simultaneously. These rays, each with a different angle of refraction, are used for short-distance communication. While multi-mode fibers have larger core diameters (around 50 micrometers) to accommodate multiple signals, they are prone to signal dispersion over longer distances, resulting in lower bandwidth.

Choosing the Right Optical Fiber

Whether you're working on long-distance communication or shorter, local setups, understanding the differences between single mode and multi-mode fibers helps in choosing the right optical fibre cable. If you need high-speed transmission over long distances, single mode is the way to go. For short-range applications, multi-mode offers a cost-effective solution.

Conclusion

The transition from copper cables to fiber optic communication represents a significant leap in technology. With advantages like higher speeds, better bandwidth, and lower maintenance, fiber optics are leading the way in revolutionizing how we communicate. Based on the material, refractive index, and mode, there are different types of fiber optic cables suited to various needs, making them an essential part of the modern communication infrastructure.

Stay tuned for more updates and as always, keep exploring and learning new technologies that are shaping the future!
