Mastering AutoCAD Design Center and Tool Palettes for Efficient Drawing Management

Welcome to AutoCAD Essentials for Mechanical Engineers blog series. In AutoCAD for mechanical engineers and AutoCAD for civil engineers, effective management of drawing content is vital. The Design Center and Tool Palettes are powerful AutoCAD tools that allow you to streamline your workflow, making it easy to reuse existing elements, manage layers, and access predefined blocks. Let’s dive into how to utilize these tools to improve your productivity and drawing organization in AutoCAD 2D and AutoCAD 3D.

Exploring AutoCAD’s Design Center

The Design Center in AutoCAD is a centralized space to organize and access drawing content like blocks, hatches, and layers. Think of it as a “drawing library” from which you can drag and drop items from any source drawing into your current project. This functionality is invaluable for repetitive tasks and is especially helpful for AutoCAD for beginners looking to speed up their workflow.

To open Design Center:

• Use the shortcut Ctrl + 2, or
• Go to the View tab, select Palettes, then choose Design Center.

Once in the Design Center, you’ll see a structured view of folders, open drawings, and block references. You can browse existing drawings, layers, and layouts and use the search function to locate content based on file name, title, or subject keywords. If you’ve already set up block definitions and attributes, Design Center’s search capability makes finding these resources quick and easy.

Using Design Center to Access and Insert Content

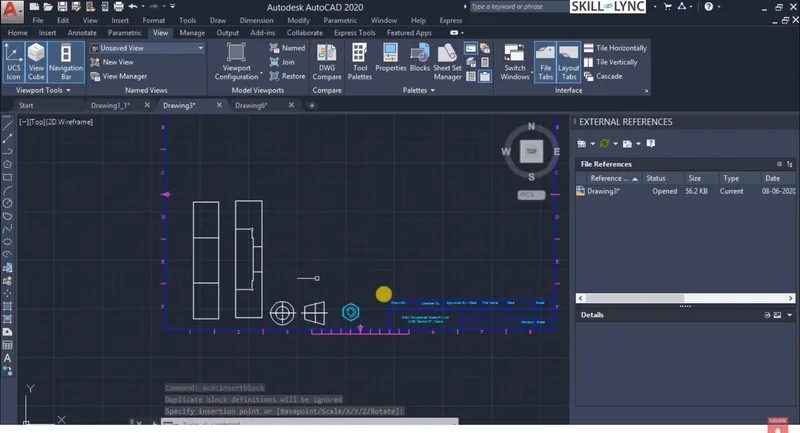

With Design Center, you can copy blocks and layer definitions from one drawing to another. For example, if you’re working on an AutoCAD mechanical drawing that requires standardized hex nuts or screws, you can simply drag and drop these items from your database into your current drawing.

To insert a block from Design Center:

• Select the block in Design Center.
• Double-click to open the Block Insertion command.
• Customize insertion options like scale and rotation as needed, and place the block in your drawing.

This feature allows you to maintain consistency across projects, making it a key tool in AutoCAD for mechanical engineers and CAD software in general.

Customizing Tool Palettes for Quick Access

While Design Center is your go-to for browsing drawing content, Tool Palettes offer a more personalized workspace. You can think of Tool Palettes as a custom collection of frequently used commands and blocks, tailored to the specific needs of a project. This is particularly useful in AutoCAD mechanical engineering projects, where specific components and symbols are reused regularly.

To open the Tool Palettes:

• Use Ctrl + 3, or
• Go to View tab > Palettes > Tool Palettes.

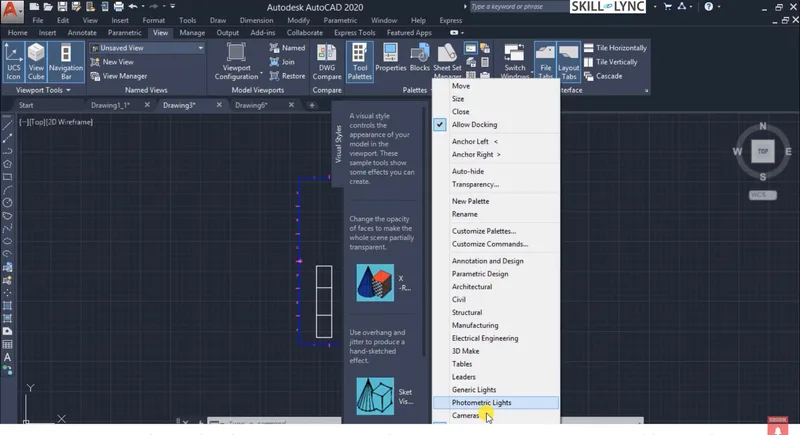

The Tool Palette organizes commands, hatches, dimensions, and blocks in tabbed sections for quick access. You can drag and drop commands or blocks directly from the Design Center to the Tool Palette, effectively creating a mini-library of tools that are specific to your project requirements.

Customizing Tool Palettes

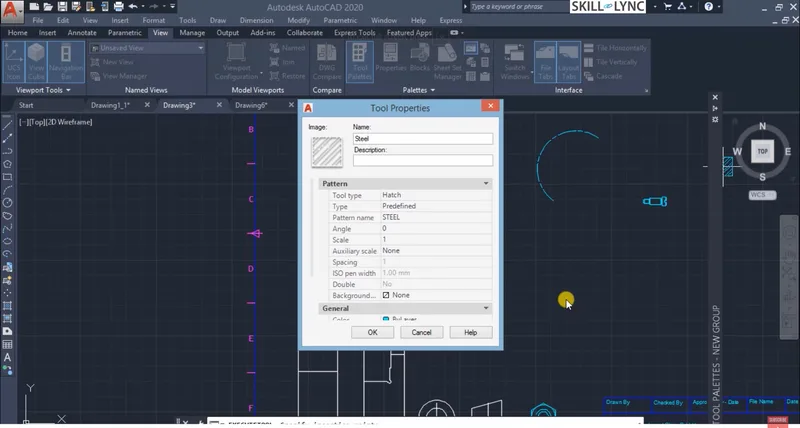

Customizing a Tool Palette is as easy as right-clicking and selecting Properties to adjust specific tool parameters, such as colors, line types, or layer settings. For example, if you frequently use a specific line style or a pre-defined color for dimensions, set these in the Tool Palette to eliminate repetitive adjustments.

• Add a new group: Right-click in the Tool Palette and choose to create a new group.
• Add content: Drag items such as blocks, hatches, or commands to the group.
• Customize settings: Right-click on individual items to set specific properties.

By setting up custom palettes, you save time by eliminating the need to search for commands, making this a critical feature in AutoCAD essential training.

Leveraging Tool Palettes for Consistency in Drawings

Using Tool Palettes not only boosts efficiency but also ensures consistency across projects. For example, in a CAD course for mechanical engineers, students are taught to set up specific styles and layers. Tool Palettes provide a single-click solution for applying these styles, which is essential for maintaining quality and standardization across drawings.

For instance, if you’re working on AutoCAD 3D projects and frequently use certain hatching patterns, you can store them in the Tool Palette. When needed, just drag the hatch pattern from the Tool Palette into your drawing area for immediate application.

Clearing Unused Content with Purge

Over time, your drawing may accumulate unused blocks, layers, and styles. To keep your file organized and efficient, use the Purge command to remove these unused items.

To purge unwanted content:

• Type Purge in the command line.
• Select the items you want to remove, like unused layers or block definitions.
• Confirm the purge to clear out the clutter.

This is especially useful in larger projects, where excessive unused items can slow down your drawing and increase file size.

Ensuring Drawing Integrity with Audit and Recover

Lastly, the Audit and Recover commands in AutoCAD help ensure your drawing’s integrity by identifying and fixing errors. The Audit command scans your file for errors and offers fixes, while Recover attempts to repair damaged files.

• Audit: Type Audit and follow the prompts to locate and fix errors.
• Recover: Open a drawing using the Recover command to repair issues automatically.

These commands are essential tools for anyone working with complex projects in AutoCAD mechanical or CAD design. They help maintain the quality and reliability of your drawing files, ensuring that each component is error-free.

Summary

In this section of our AutoCAD Essentials for Mechanical Engineers series, we explored how Design Center and Tool Palettes can significantly enhance your productivity by allowing quick access to frequently used components and commands. From managing blocks and layers with Design Center to creating a custom workspace with Tool Palettes, these tools offer an efficient way to maintain consistency and quality across drawings.

Whether you’re a seasoned professional or taking an AutoCAD crash course, integrating these techniques into your workflow will streamline your projects and reduce errors. Master these AutoCAD features to make your drawing process smoother and more efficient, enhancing your overall productivity and precision in AutoCAD for engineers.

This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
