How Thermal Insulation Works: The Key to Comfort in Aircraft, Space Shuttles, and Buildings

Hey guys, welcome back to the channel! Most of you have probably traveled by air at some point, right? Did you know that commercial aircraft fly at an altitude of around 35,000 feet, which is about 10.5 kilometers above the ground? To give you an idea of how high that is, you could stack 12 Burj Khalifa's on top of each other and still have space left! At this altitude, the temperature outside the aircraft is a chilling -50°C, but inside, it stays a comfortable 25°C. That’s a massive difference of 75°C. How is this possible? The answer lies in thermal insulation.

In today’s blog, we’ll explore how thermal insulation materials play a key role in maintaining temperature differences, not just in aircraft but in a wide range of applications, from space shuttles to your everyday coffee flask.

The Role of Thermal Insulation in Aircraft

Commercial aircraft are built with three layers of materials to keep the temperature inside stable. The first layer is the paint. Most aircraft are painted white on the outside, and for good reason—white reflects the sun’s radiation better than darker colors, helping to reduce the heat absorbed by the aircraft. If you’re curious to know more about why most planes are painted white, drop a comment below and we’ll create a dedicated video on the topic!

Inside the aircraft, there is a layer of thermal insulation materials. This layer is made of fiberglass, wrapped in plastic coverings—typically made from a material called Mylar. Fiberglass is an excellent insulator because it is lightweight and also acts as a great fire barrier. But how do we know if a material is an insulator?

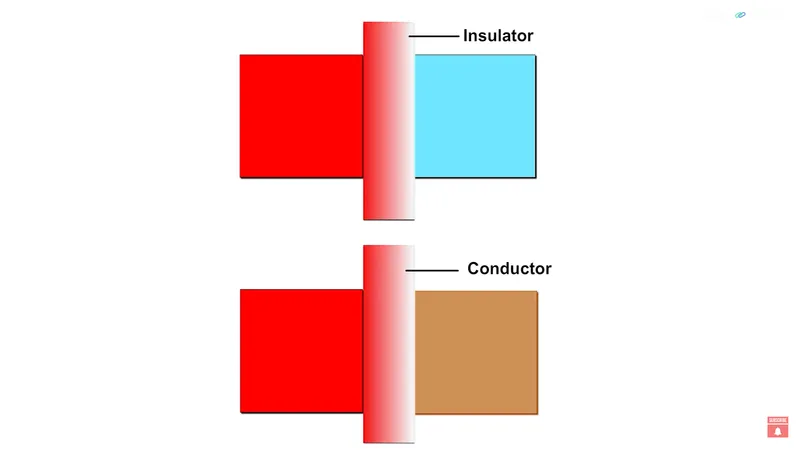

What Makes a Material an Insulator?

You may have read in your textbooks that insulators restrict the flow of heat, while conductors allow it to flow freely. But there’s a little more to it. Some materials, like diamonds, are excellent insulators electrically but are fantastic conductors of heat. In fact, diamonds conduct heat better than metals like copper or iron. So, how do we truly differentiate between conductors and insulators?

A more accurate way is to say that conductors transfer heat through the movement of electrons, while insulators transfer heat through vibrations. This distinction helps explain why some materials, like fiberglass, are great for thermal insulation.

Thermal Insulation in Space Shuttles

Now, let’s take a look at a more extreme example—space shuttles. When a shuttle re-enters Earth’s atmosphere, it faces tremendous atmospheric friction, causing temperatures to soar up to 1,600°C. Yet, inside the shuttle, it remains a comfortable 30°C. How is this possible? The answer lies in thermal insulation once again.

Space shuttles use heat tiles that are designed to radiate heat outward without conducting it inward. These tiles have a thermal conductivity value of just 0.126 W/m·K, meaning they conduct very little heat. On the other hand, their heat radiation value is 26.62 W/cm², meaning they radiate far more heat outward than they conduct inward. This is a prime example of how thermal insulation materials work to keep the inside of the shuttle cool, even in extreme conditions.

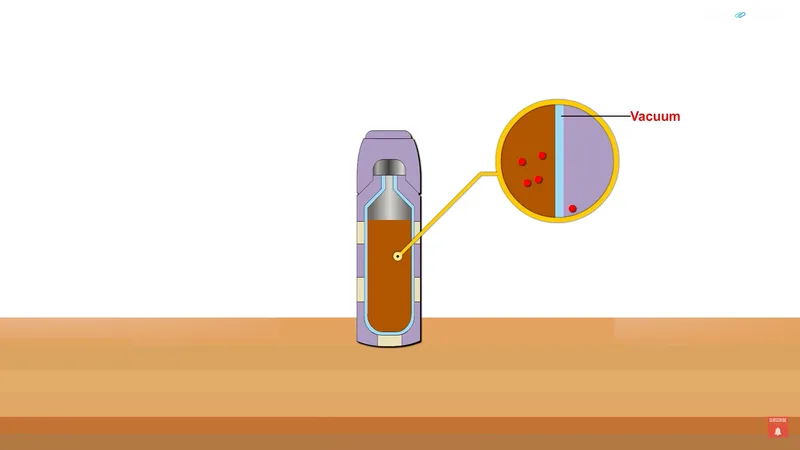

Everyday Thermal Insulation: How Flasks Keep Your Coffee Hot

Just like how insulation works to keep heat out, it can also be used to keep heat in. A great everyday example of this is your coffee flask. Flasks are designed with multiple layers to prevent heat loss and keep your drink hot for hours.

Here’s how it works:

• The outer layer is typically made of reflective metal or plastic.
• Inside, there’s a hollow container coated with a silvery, mirror-like finish. This prevents heat from escaping through radiation by reflecting it back into the liquid.
• The hollow container minimizes heat loss through convection, while the outer plastic layer prevents heat loss through conduction.

This combination of layers effectively insulates your coffee or tea, keeping it hot for much longer. To test if your flask is working properly, pour in some hot water and touch the exterior. If the flask feels cool or at room temperature, it’s functioning as it should. If it feels warm, then there is a heat leak and the flask may not be working correctly.

Thermal Insulation in Buildings and Roofs

Thermal insulation is not limited to aircraft and flasks. It plays a significant role in buildings as well, especially in areas with extreme weather conditions. Proper insulation in walls, floors, and roofs can help maintain indoor temperatures, reducing the need for excessive heating or cooling. In particular, thermal insulation sheets are used in construction to provide a barrier between the hot exterior and cooler interior spaces, helping to save energy and improve comfort.

Similarly, thermal insulation for roofs is essential in homes and commercial spaces. Roofs are one of the primary areas where heat enters or escapes a building. Insulating the roof with materials like fiberglass, foam boards, or reflective coatings helps prevent heat transfer, keeping homes cooler in the summer and warmer in the winter.

Conclusion: The Power of Insulation

Whether it's keeping the inside of an aircraft comfortable, protecting a space shuttle from extreme temperatures, or simply maintaining the warmth of your morning coffee, thermal insulation materials play a vital role in managing temperature differences. From thermal insulation in buildings to thermal insulation for roofs, the applications are endless, and the benefits—energy savings, comfort, and safety—are substantial.

We hope you found this blog informative. If you’d like to dive deeper into the science of insulation or explore more engineering topics, be sure to check out our other content. And don’t forget to like, share, and subscribe to our channel for more interesting videos. See you next time!
