How Shock Absorbers Work: Types, Functions, and Benefits

Imagine driving over a bumpy road, yet somehow feeling a relatively smooth ride inside the car. Have you ever wondered how that’s possible? Or thought about what keeps your car from bouncing around every time you hit a pothole? The answer lies in one of the most crucial parts of your vehicle's suspension system: shock absorbers. These marvels of engineering don’t just provide comfort—they ensure stability, control, and safety as you drive.

In this blog, we'll dive into the world of shock absorbers, exploring how they work, the different types available, and what makes them so essential to every vehicle on the road. Ready to uncover the secrets behind a smooth ride? Let’s get started!

 Understanding the Function of Shock Absorbers

The shock absorber function is simple yet essential: it dampens vibrations and minimizes unnecessary movement, keeping the vehicle stable. In the early days of rail and motor vehicles, leaf springs provided some level of damping, but the friction between the leaves was insufficient for smooth, comfortable rides. Spring suspensions were introduced as an improvement, but even they didn’t provide adequate damping. The solution came in the form of hydraulic shock absorbers, invented in 1901 by C.L. Horrock. These are now the standard in modern vehicles.

Shock absorbers work in harmony with suspension springs, which must be manufactured with balanced flexibility. Without shock absorbers, vehicles would experience uncomfortable rides due to excessive bouncing and jolts.

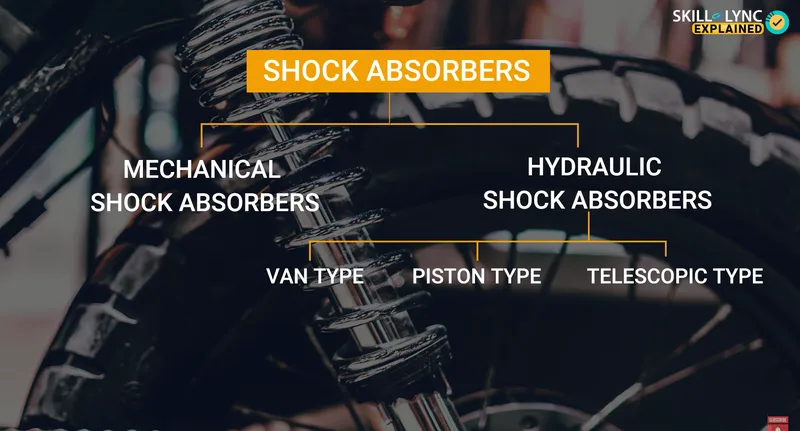

Types of Shock Absorbers

There are various types of shock absorbers used in different vehicle applications, each with unique construction and benefits:

1. Mechanical Shock Absorbers

2. Hydraulic Shock Absorbers - The most widely used type, subdivided into:

• Vane Type Hydraulic Shock Absorbers (Single-acting and Double-acting)
• Piston Type Shock Absorbers
• Telescopic Shock Absorbers - Commonly seen on motorbikes, also known as "telescopic forks."

The telescopic shock absorber is one of the most common types due to its efficiency and durability, so let’s explore how it works in more detail.

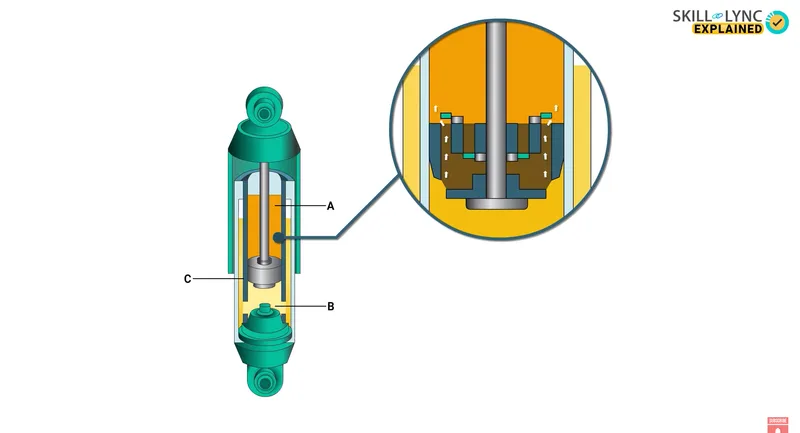

How Telescopic Shock Absorbers Work

A telescopic shock absorber consists of two main components:

• The Upper Eye: Connected to the vehicle axle
• The Lower Eye: Connected to the vehicle’s chassis

Between these two points is a cylinder that contains hydraulic fluid, which flows through specially designed valves to create resistance. Here’s a step-by-step look at its operation:

1. When the Vehicle Encounters a Bump:

• As the wheel moves upward, the piston inside the shock absorber compresses.
• The compression creates high pressure in chamber B, while chamber A has lower pressure.
• Hydraulic fluid flows from chamber B into chamber A through a valve (V1) to balance the pressure.
• Some fluid flows into chamber C through the foot valve (V2), which provides the necessary damping.

2. When the Vehicle Encounters a Pothole:

• The piston expands, creating high pressure in chamber A and low pressure in chamber B.
• Fluid flows from chamber A to B, and any extra fluid is drawn from chamber C.
• This balanced flow provides the damping needed for a smooth ride.

With every upward and downward movement, the fluid inside the chambers heats up and dissipates into the air. However, over time, the formation of air bubbles due to heat buildup can affect performance.

Advantages of Telescopic Shock Absorbers

The telescopic shock absorber is popular for various reasons, such as:

• Minimal Fluid Leakage: Compared to other types, telescopic absorbers experience less fluid leakage.
• Low Wear and Tear: The design minimizes wear, extending the lifespan.
• Maintenance-Free: Telescopic shock absorbers typically don’t require fluid top-ups, making them low-maintenance.

Common Shock Absorber Types and Their Functions

• Hydraulic Shock Absorbers: The most common, using hydraulic fluid to absorb and dissipate energy.
• Gas-Filled Shock Absorbers: Use gas in addition to fluid for better heat dissipation and reduced foaming.
• Electric Shock Absorbers: Advanced technology that adjusts damping in real-time, based on road conditions.

Each type offers specific advantages and is chosen based on the requirements of the vehicle suspension system.

Key Benefits of Shock Absorbers in Modern Vehicles

Shock absorbers play an integral role in vehicle safety and performance. Here’s a quick look at their key benefits:

• Enhanced Comfort: Shock absorbers absorb vibrations from rough roads, providing a smooth ride.
• Improved Stability: By preventing excessive bounce, shock absorbers enhance vehicle stability, especially around corners.
• Increased Safety: With better handling and stability, shock absorbers contribute to safer driving experiences.

Maintenance and Troubleshooting

Shock absorber maintenance is generally minimal, but periodic checks for wear and leakage are essential. Shock absorber replacement is recommended if signs of reduced performance, such as excessive bouncing, are observed. Shock absorber troubleshooting involves checking for leaks, ensuring the vehicle does not lean excessively, and verifying the condition of the suspension system.

Conclusion

From absorbing bumps to ensuring stability, shock absorbers are critical to vehicle performance and safety. With advanced materials and technology like gas-filled and electric shock absorbers, today’s vehicles can handle a wide range of conditions. As shock absorber design continues to evolve, they are becoming more efficient, ensuring that we enjoy smooth and comfortable rides even on the roughest roads.
