How Optical Fiber Technology Enhances Pressure Sensing

In today’s technological world, optical fibers have found applications beyond just data transmission. From communication networks to advanced sensing technologies, optical fiber technology plays a significant role in various industries. In this blog, we will explore one of the fascinating uses of optical fibers in sensing technology—fiber optic pressure sensors. These sensors are revolutionizing the way we measure pressure, especially in environments where traditional sensors face limitations.

We'll dive into the construction, working principles, advantages, disadvantages, and applications of fiber optic pressure sensors. Before we start, let's take a quick look at how optical fiber technology is utilized not just for communication, but also for sensing applications.

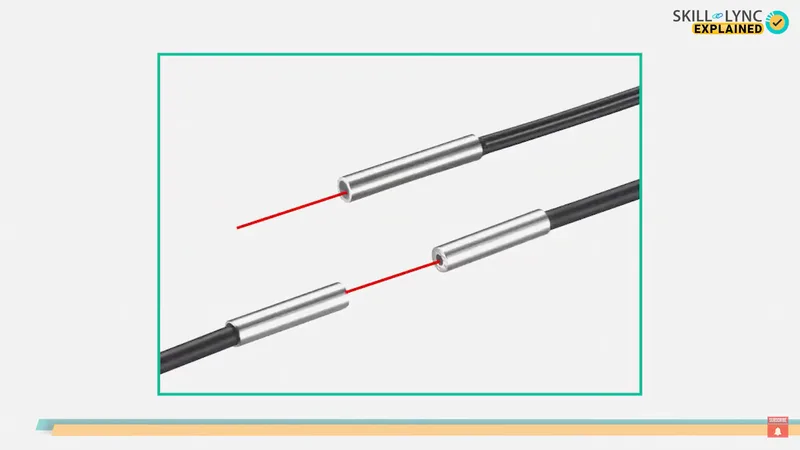

What is a Fiber Optic Pressure Sensor?

A fiber optic pressure sensor is an advanced device that measures pressure using the properties of light transmitted through optical fibers. The underlying principle of its operation is that the change in pressure affects the distance between two reflecting surfaces within the sensor, and this change is detected by analyzing the behavior of light within the fiber.

Construction of a Fiber Optic Pressure Sensor

The construction of a fiber optic pressure sensor is simple yet effective. It consists of an optical fiber with two reflecting surfaces:

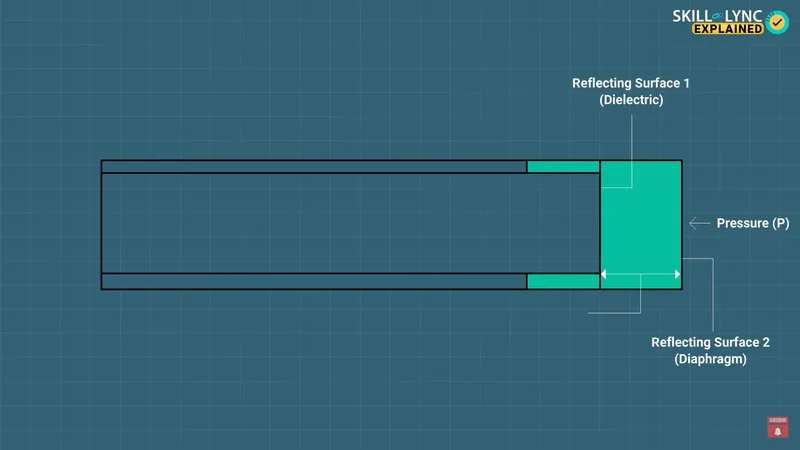

• First Reflecting Surface: This is semi-reflective and is coated with a dielectric medium. It reflects a portion of the light passing through the optical fiber.
• Second Reflecting Surface: This is a diaphragm that flexes in response to pressure changes. The distance between the two reflecting surfaces (denoted as Ls) forms the Fabry-Perot cavity.

Behind the second surface, the pressure to be measured is applied. The distance Ls changes based on this unknown pressure, and by analyzing the light that reflects from both surfaces, the pressure can be determined.

How Does It Work?

The fiber optic pressure sensor works by sending white light through the optical fiber. But why white light? Since white light consists of various wavelengths, it offers a broader spectrum for more precise measurement.

Here’s the step-by-step process of how it functions:

• Light Transmission: White light is passed through the fiber optic cable. Part of this light hits the first reflective surface and reflects back, while the remaining light travels further and reflects back from the second surface.
• Superimposition: The light waves reflected from the two surfaces superimpose on each other, creating an interference pattern.
• Measuring Pressure: By analyzing the distance Ls—the separation between the two reflective surfaces—pressure can be calculated. The time difference between the two reflected light waves is given by the equation:

                           T=2⋅LscT = \frac{2 \cdot Ls}{c}T=c2⋅Ls

Where c is the speed of light in a vacuum. By determining this time difference, we can accurately calculate the unknown pressure.

Advantages of Fiber Optic Pressure Sensors

Fiber optic pressure sensors offer several advantages over traditional sensors:

• Immunity to Electromagnetic Interference: One of the greatest strengths of fiber optic sensors is their immunity to electromagnetic waves. This ensures accurate measurements, even in environments where electromagnetic interference is a concern.
• Compact Size: The small size of optical fibers makes these sensors ideal for tight spaces where other sensors may not fit.
• Fast Response Time: Fiber optic sensors provide quick, real-time data, making them ideal for applications requiring fast response times.

Disadvantages of Fiber Optic Pressure Sensors

Despite their many advantages, fiber optic pressure sensors have a few drawbacks:

• High Sensitivity: While sensitivity is generally an advantage, it can make the sensors vulnerable to external factors such as acoustic waves.
• Delicate Structure: Due to their thin size, fiber optic sensors are not as robust as some traditional sensors and can be less durable in extreme environments.

 Applications of Fiber Optic Pressure Sensors

Fiber optic pressure sensors are used in a variety of industries due to their unique characteristics:

Medical Industry: These sensors are often used to measure pressure in sensitive areas such as the lungs, digestive tract, and brain.

Harsh Environments: Their immunity to electromagnetic interference makes them ideal for use in industries with high levels of electromagnetic activity.

Fiber Optic Technology: Beyond Communication

Although optical fiber communication systems are widely known for their ability to transmit data at high speeds over long distances, fiber optics are also revolutionizing sensing technology. Optical fiber cables are the backbone of modern communication networks, but they’re also proving to be indispensable in industries that require precise measurements and data acquisition in challenging environments.

Conclusion

Fiber optic pressure sensors are an incredible advancement in the world of sensing technology. Their ability to provide accurate measurements in harsh environments and tight spaces, along with their fast response times, make them invaluable in industries ranging from medical to industrial applications. As optical fiber technology continues to evolve, we can expect even more innovative uses for these versatile components.
