How do Turbo Prop Engines Work?

The evolution of aircraft propulsion systems has significantly transformed the way we travel, making air travel faster, more efficient, and widely accessible. From early propeller-driven planes to modern jet engines, advancements in technology have continuously improved performance and fuel efficiency. Among the different types of aircraft engines, turboprop engines hold a unique position, especially for short-haul flights and regional aircraft. In this blog, we’ll explore how turboprop engines work, their advantages over other engine types, and why they remain relevant in the aviation industry.

In this blog, we’ll break down the working principles of turboprop engines, explain how they differ from turbofan and turbojet engines, and explore their advantages and real-world applications.

What Is a Turboprop Engine?

A turboprop engine is an aircraft propulsion system that combines a gas turbine engine with a propeller to generate thrust. Although it shares many similarities with the turbojet and turbofan engines, there are a few key differences. Most notably, a turboprop engine focuses more on generating shaft power rather than relying solely on exhaust thrust for propulsion.

How Does a Turboprop Engine Work?

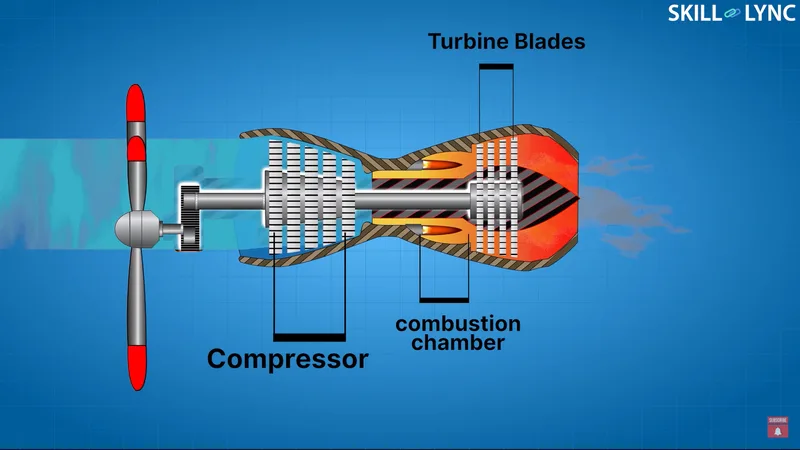

The working process of a turboprop engine is similar to that of other jet engines. Air is compressed by a series of compressors, then mixed with fuel in the combustion chamber. When the mixture combusts, it produces energy that drives the turbine.

However, the main difference lies in how the energy is used. In a turboprop engine:

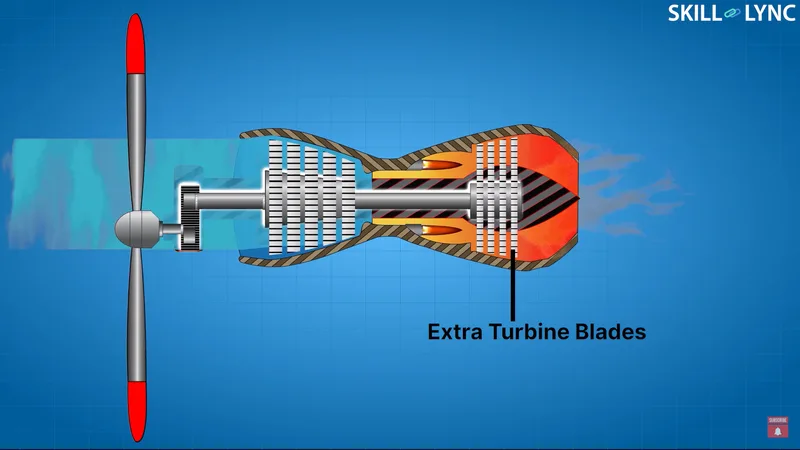

• The exhaust thrust is sacrificed in favor of extracting more shaft power at the turbine stage.
• This additional shaft power is used to turn the propeller at the front of the engine.

Unlike a turbojet, where high-speed exhaust gases provide the majority of the thrust, in a turboprop engine, the propeller provides the bulk of the thrust by rotating in the air and pushing the aircraft forward.

Why Is a Reduction Gearbox Needed?

Turboprop engines normally rotate at extremely high speeds (20,000 to 25,000 RPM). If the propeller were directly connected to the engine, the propeller tips would reach supersonic speeds, creating micro-shockwaves that could disintegrate the propeller blades.

To prevent this, the engine is connected to the propeller via a reduction gearbox, which reduces the rotation speed of the propeller to a safer and more efficient level.

Why Choose a Turboprop Engine Over Other Engines?

With the advancements in turbofan and turbojet engines, you might wonder why propellers are still used in some aircraft. The answer lies in the unique advantages of turboprop engines:

• Efficiency at Low Speeds: Turboprops are highly efficient at lower aircraft speeds, making them ideal for shorter routes where high-speed travel isn't essential. Airlines often prioritize fuel efficiency and lower operating costs for short-haul flights, which turboprop engines excel at.
• Cost-Effectiveness: Research has shown that passengers on domestic flights prefer lower fares over shorter travel times. For flights that only last slightly longer than their jet-engine counterparts, turboprops offer a more affordable option.
• Rugged and Durable: Turboprop engines are known for their ruggedness. Unlike turbofan and turbojet engines, which can be damaged by foreign objects (like birds or debris), turboprops are less susceptible to such damage. The propeller blades may take some wear, but the engine remains functional.

Interesting Fact: The World's Loudest Aircraft

Did you know that the world's loudest aircraft was a turboprop? The XF-84H Thunderscreech, an experimental aircraft designed to fly at supersonic speeds, holds this record. Its propellers rotated so fast that they continuously emitted a sonic boom, making it notoriously loud.

Applications of Turboprop Engines

Turboprop engines are commonly used in:

• Regional and short-haul flights: Aircraft like the ATR 72 and Dash 8 use turboprop engines to fly shorter distances efficiently.
• Military transport aircraft: Turboprops are often used in military aircraft due to their ruggedness and ability to operate in less-than-ideal conditions.
• Cargo planes: They are also favored for cargo operations, where speed is less critical, but durability and cost efficiency are paramount.

Conclusion

In conclusion, the turboprop engine is a versatile and highly efficient option for short-distance aviation. Its ability to operate at lower speeds while maintaining fuel efficiency and durability makes it a popular choice for regional airlines and cargo aircraft. While turbojets and turbofans dominate long-haul flights, turboprops continue to play an essential role in the aviation industry.

If you have any questions about turboprop engines, feel free to drop them in the comments below! And stay tuned for more exciting content on aircraft engines in our future videos.
