The Evolution and Mechanics of Seat Belts in Cars

Seat belts have been an integral part of car safety for decades, saving millions of lives in the process. But do you know how seat belts in cars actually work? In this blog, we’ll walk through the fascinating history and evolution of seat belts, their different types, and how they function during an accident to keep us safe. Whether you're a mechanical engineering enthusiast, looking for mechanical engineering jobs, or just curious, this article will give you some key insights into the working of seat belts in cars.

A Brief History of Seat Belts

When cars were first invented and hit the roads, safety measures were almost non-existent. It wasn’t until 1959 that the iconic three-point seatbelt was developed by Swedish engineer Nils Bohlin, working at Volvo. This revolutionary system quickly became the global standard due to its simplicity and effectiveness. Interestingly, Volvo decided to open up the patent for the three-point seatbelt, allowing any car manufacturer to incorporate this life-saving technology into their vehicles. They recognized its immense value as a free life-saving tool that would benefit society far more than any potential profit.

Before the three-point system, cars used two-point seat belts, which are still used in commercial aircrafts today. These early systems offered limited protection in high-speed crashes. Let’s now break down how modern seat belts work and why they are so essential.

How Do Seat Belts in Cars Work?

At first glance, a seatbelt might seem simple—a strap that holds you to your seat. However, the mechanism is far more complex. A three-point seatbelt system typically has two latch points on the car’s side frame and one on the door or seat, forming a triangular configuration that distributes the force of an impact evenly across the chest, shoulders, and hips.

Seat belts help protect occupants from three types of collisions in an accident:

• Collision 1: The vehicle strikes another vehicle or object.
• Collision 2: The driver and passengers collide with objects inside the vehicle.
• Collision 3: The internal organs of the person hit other organs and bones, potentially causing severe internal damage.

The primary goal of a seatbelt is to prevent the second and third types of collisions by securing the person to the seat and reducing the force of impact on their body.

The Mechanics Behind Seatbelts

Now that we understand the basic role of a seatbelt, let’s dive deeper into the mechanical engineering behind its operation. Modern seatbelts use retractors—mechanisms designed to pull the belt back into position or lock it during a sudden movement, like a crash.

There are three main types of retractors commonly found in cars:

1. Non-Locking Retractors

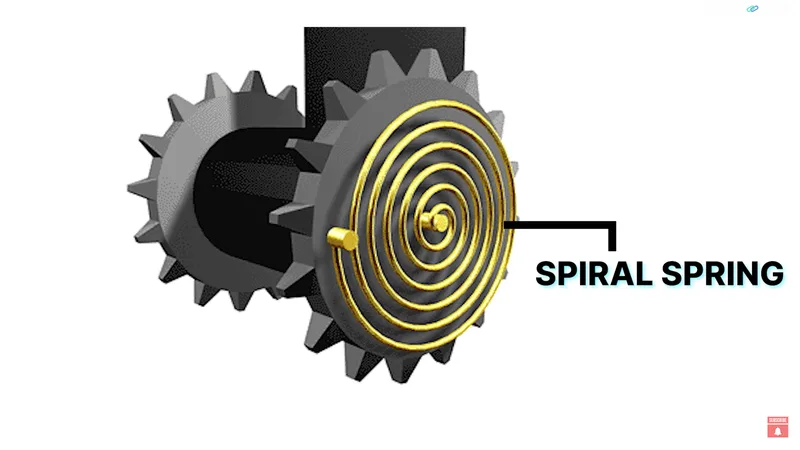

These are the most basic retractors. Their primary function is to retract the seatbelt back into its original position after use. This is done using a spiral spring inside the retractor mechanism. When you pull the seatbelt, the spring stores energy by twisting, and once released, it uses that energy to pull the belt back.

2. Emergency Locking Retractors (ELRs)

Emergency locking retractors are a more advanced mechanism that activates in response to sudden stops or deceleration during a crash. There are two key types of ELRs:

• Inertial Locking Mechanism: This system relies on a small weight connected to a gear inside the retractor. When the car stops suddenly, the weight moves due to inertia, causing an arm to block the gear and lock the seatbelt in place, preventing further movement.
• Centrifugal Locking Mechanism: This system uses locking pins connected to the seatbelt’s winding mechanism. When the belt winds rapidly during a collision, the pins are thrown out by centrifugal force, engaging the frame’s teeth and locking the belt. This is why pulling the seatbelt too quickly can sometimes engage the locking mechanism even when there’s no crash.

3. Pre-Tensioners

Pre-tensioners are the most sophisticated type of retractors. Their job is to tighten the seatbelt and pull the occupant back into the seat in the event of a crash. Pre-tensioners work in tandem with airbags to provide maximum protection.

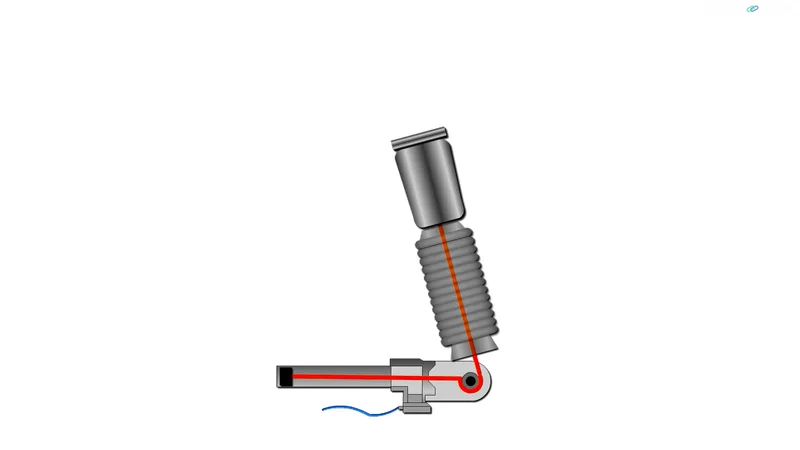

When a crash sensor detects an accident, a pyrotechnic charge—similar to a small explosion—goes off inside the retractor. This creates a burst of gas that rapidly pulls the seatbelt tight against the body, securing the person in their seat.

Why Seat Belts Are Critical for Safety

The role of seatbelts in cars extends beyond just holding passengers in place. They help prevent occupants from being thrown around inside the car or ejected from the vehicle, significantly reducing the risk of injury or death. Furthermore, they reduce the pressure exerted on the body during a crash by spreading the force over stronger areas, such as the chest and pelvis.

For those pursuing mechanical engineering jobs or currently enrolled in mechanical engineering programs, understanding the engineering principles behind safety devices like seatbelts is crucial. Mechanical engineers often play a role in the design, development, and testing of safety mechanisms, including seatbelts. Including such projects in your mechanical engineer resume can highlight your practical knowledge and expertise, making you more attractive to potential employers.

Seatbelts in Cars: The Present and Future

Today, seatbelt systems are more advanced than ever, incorporating technologies such as adaptive restraints and smart seatbelts that adjust tension based on the severity of the crash. As automotive safety continues to evolve, so does the technology behind seatbelts, ensuring they remain at the forefront of vehicle safety.

For mechanical engineers, the challenge is to continue innovating and improving these systems to save even more lives. In an industry where only 6.4% of mechanical engineering graduates find work in core engineering fields, having a deep understanding of real-world applications, such as the mechanics of seatbelts, can set you apart from the competition and improve your job prospects—and possibly even your mechanical engineer salary as a fresher or experienced professional.

Conclusion

Seat belts are a marvel of mechanical engineering, and their evolution has greatly contributed to car safety. From non-locking retractors to pre-tensioners, understanding how seatbelts function can give you a deeper appreciation for the technology that keeps us safe on the roads. If you’re a mechanical engineer or someone interested in the field, having a working knowledge of such systems can be a significant asset.

Next time you buckle up, remember there’s a sophisticated piece of engineering at play, designed to protect you in the most critical moments. Stay safe, and if you have any questions, feel free to drop a comment or check out our other videos for more detailed explanations.
