How do Airbags work?

The Indian automobile industry has come a long way since the days of the first mass-produced car, the HM Ambassador. Back then, cars had basic designs with manual steering, no power brakes, no side mirrors, and even lacked seat belts. Today, however, cars in India are equipped with state-of-the-art safety systems, one of the most crucial being airbags.

In this blog, we'll dive deep into how airbags in cars work, how airbag sensors function, and the technology that ensures passenger safety in case of a crash.

The Role of Airbags in Car Safety

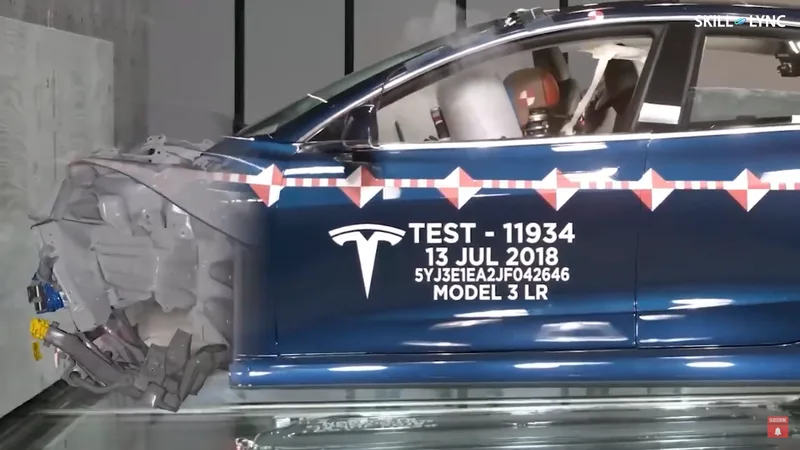

Car safety has improved drastically over the years, thanks in large part to advanced safety technologies like airbags. As car density on roads has increased, the number of accidents per 10,000 vehicles has decreased. This improvement can be attributed to the stringent safety standards that modern car manufacturers adhere to.

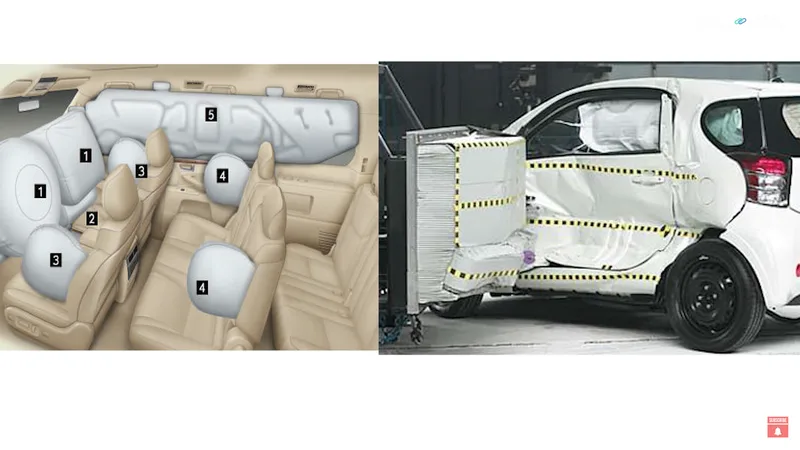

Airbags play a significant role in protecting passengers during a crash by reducing the risk of injury. Typically, cars are equipped with multiple airbags – for the driver, front passenger, and even backseat passengers, depending on the model. But how exactly do these lifesaving devices work?

How Airbags Work

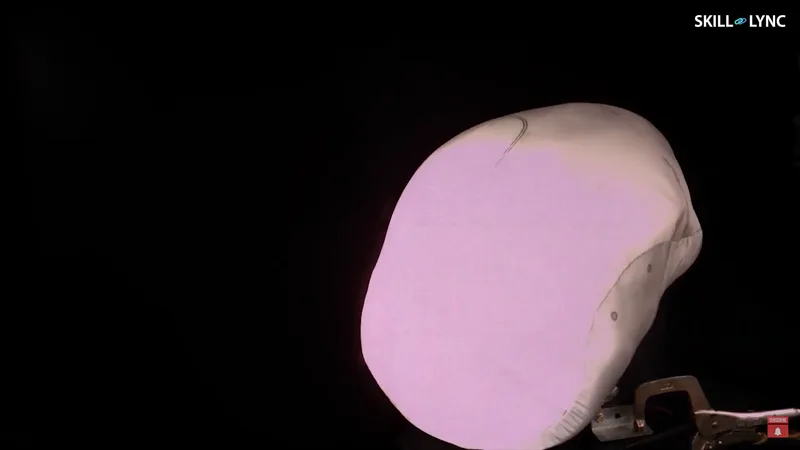

Airbags are made of strong, lightweight nylon fabric and are tightly folded and stored in compartments within the car. When a collision occurs, the airbags inflate almost instantly to cushion the impact and prevent passengers from colliding with hard surfaces like the dashboard, steering wheel, or windows.

Here's a step-by-step breakdown of how an airbag system works in a car:

• Sensors detect the crash: Sensors, usually located at the front of the car, measure sudden deceleration during a crash.
• Airbag deployment: The sensors trigger the inflator system, which releases gas to fill the airbags. This happens in milliseconds to ensure maximum protection.
• Deflation: After cushioning the impact, the airbag deflates through small outlets to prevent suffocation or further injury.

The Technology Behind Airbag Sensors

The airbag system's effectiveness largely depends on how quickly it can detect a crash and deploy the airbags. Older cars relied on a magnetic ball sensor, but most modern vehicles now use accelerometers to detect collisions.

How Airbag Sensors Work:

• Magnetic Ball Sensor (Older Models): In older cars, a small magnetic ball was held in place by a permanent magnet. In the event of a crash, the ball would dislodge due to inertial forces, completing an electrical circuit that triggered airbag deployment.
• Accelerometer Sensor (Modern Cars): Most modern cars use accelerometer sensors built into the inflator module. These sensors measure the rate of deceleration and activate the airbags if the change in speed indicates a crash.

The Airbag Inflation Process

Once the sensor detects a collision, it sends a signal to the airbag inflator module. Most vehicles use solid inflators, which produce large amounts of nitrogen gas rapidly through a decomposition reaction.

How Airbags Come Out:

• A current is sent to a heating element known as a squib.
• The squib heats up and ignites sodium azide pellets in the inflator module.
• These pellets rapidly produce nitrogen gas, inflating the airbag within 40 milliseconds of the crash detection.

The entire airbag system is designed to work in harmony with seatbelts, ensuring that passengers are restrained and protected during a collision. It’s important to note that airbags alone are not sufficient for safety – they must always be used in conjunction with seatbelts.

Advantages and Limitations of Airbags

Airbags significantly reduce the risk of serious injury during a crash. However, they are designed to work in tandem with seatbelts, and not wearing one can result in serious injury despite the airbag’s deployment.

Additionally, while airbags are designed to deploy in severe collisions, they may not deploy in minor accidents or in cases where the sensor does not detect a significant deceleration.

Conclusion

As car technology continues to evolve, the focus on safety features like airbags becomes even more critical. These systems, when combined with proper seatbelt use, provide essential protection to passengers in the event of an accident.

If you're interested in exploring the technology behind airbag systems and crashworthiness simulations, check out our specialized courses on crashworthiness analysis.

That’s it for this video and blog. Stay tuned for more insights into car safety and vehicle technology. Until next time, drive safe!
