Binding External References in AutoCAD: A Comprehensive Guide

logo

Skill-Lync

Welcome to AutoCAD Essentials for Mechanical Engineers blog series. In AutoCAD, managing external references (Xrefs) effectively is crucial for assembling complex drawings, particularly in fields like AutoCAD for mechanical engineers and AutoCAD for civil engineers. External references allow you to incorporate elements from other drawings without making them a permanent part of your current file. But when the project reaches a critical point, you might want to bind these references, converting them into integral elements. Here’s a guide to binding and managing external references to streamline your workflow and maximize productivity in AutoCAD.

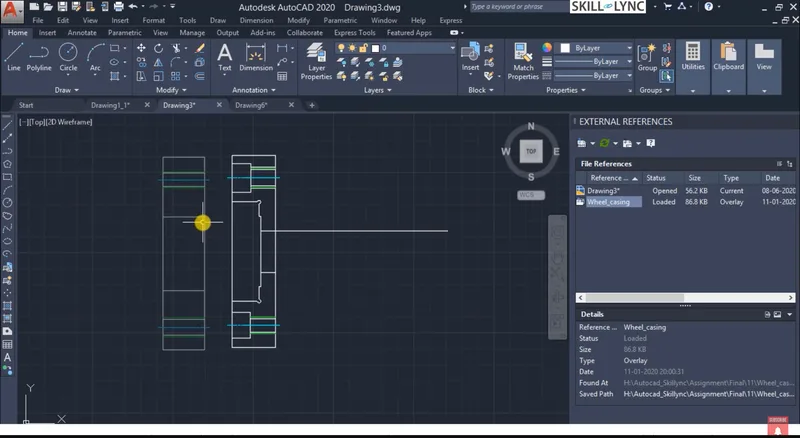

Binding vs. Inserting External References

To bind an external reference in AutoCAD 2D or AutoCAD 3D, right-click on the Xref, then choose Bind. AutoCAD provides two options: Bind and Insert.

  • Insert: Merges named objects without prefixes. If duplicate names exist, AutoCAD uses the name from the main drawing.
  • Bind: Retains the external reference as a unique block definition. This approach is safer when unsure about duplicate objects or various object types within the original Xref.

Converting External References into Blocks

Choosing Bind makes the external reference a permanent part of the drawing. After binding, the Xref transforms into a block within the current drawing, allowing you to apply all block-related operations. This is particularly useful in scenarios where the final AutoCAD drawing must be archived or further modified without changing the individual parts. Additionally, this approach is ideal when combining designs from multiple designers into one cohesive file.


Using XBind for Selective Binding

An advanced option is the XBind command, which provides control over the specific properties you wish to bind, including layers and line types. To access XBind, type XBind in the command prompt and select the attributes you want to bind.

For instance, if you only want to retain specific layers or line types (like Layer 0 or custom line types), you can selectively bind those. This flexibility helps in creating organized and efficient drawings by incorporating only the necessary elements from each reference.

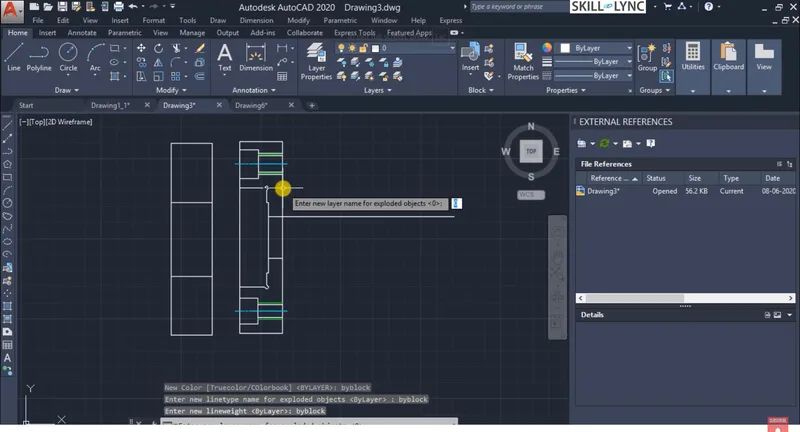

Modifying Bound References with Explode

Once bound, you may need to edit specific components of a reference. However, since it’s now a block, you must use the Explode command to break down the block into its individual elements. Exploding a block:

  • Select the block you wish to explode.
  • Type Explode in the command prompt.
  • Choose the All option to separate elements by color, line type, and other attributes.

Exploding can be essential when working on detailed AutoCAD mechanical drawings, as it enables access to individual parts for further customization and refinement.

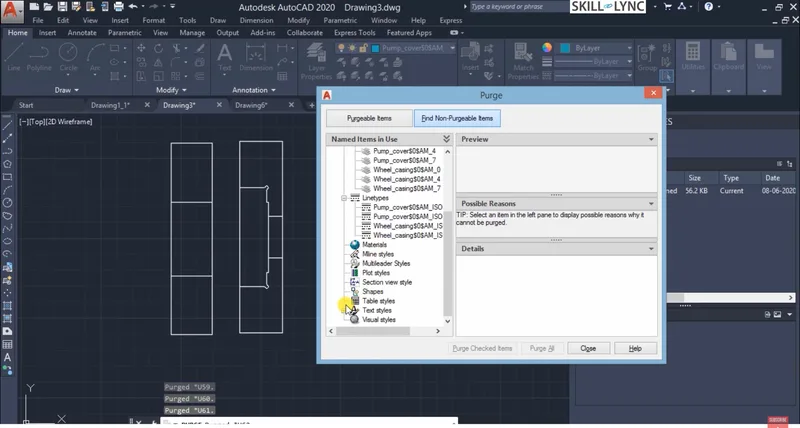

Cleaning Up with Purge

After binding and modifying references, you may notice unused layers, blocks, and styles within your drawing. Use the Purge command to remove any unreferenced elements. To purge:

  • Type Purge in the command prompt.
  • Select items to remove, such as unused layers or blocks.

Purge simplifies and optimizes your file, which is helpful for managing larger projects like AutoCAD mechanical engineering assemblies. It keeps the file size manageable and ensures only the relevant data remains.

Ensuring Drawing Integrity with Audit and Recover

AutoCAD provides tools to check and fix drawing errors. The Audit command examines the current drawing for issues and suggests corrective actions. This is crucial for maintaining drawing integrity, especially if files have been exchanged or edited across different CAD software programs.

  • Audit: Identifies errors and allows quick fixes.
  • Recover: Opens and attempts to repair damaged files.

These commands help maintain the robustness of your drawing, ensuring that it remains reliable and error-free during the design process.


Streamlining Content with Design Center and Tool Palettes

Once your drawing is in its final stages, using Design Center and Tool Palettes can further streamline your work. Design Center allows you to access blocks, layers, and more from other drawings or projects, providing a quick way to drag and drop elements into your current file.

Meanwhile, Tool Palettes offer a customizable interface for quick access to frequently used tools, blocks, and commands. This can significantly speed up the process for AutoCAD for students or AutoCAD for beginners by creating a personalized workspace that contains only the essentials for the current project.


Summary

In this post, we explored essential techniques for managing external references and bound elements in AutoCAD Essentials for Mechanical Engineers. By effectively using Bind, XBind, Explode, Purge, Audit, and Recover commands, you can keep your drawings organized and optimized. Leveraging Design Center and Tool Palettes allows for seamless content integration, saving time and enhancing workflow.

Whether you’re working on AutoCAD mechanical engineering projects or need an efficient way to maintain drawing integrity, these tools and techniques are invaluable. Incorporating them into your workflow not only simplifies project management but also enhances the collaborative potential of your AutoCAD online course learning and day-to-day practice.
