Mastering AutoCAD Navigation and Selection Techniques: A Comprehensive Guide

Welcome back to the AutoCAD Essentials for Mechanical Engineers series. In this session, we’ll delve deeper into the fundamental navigation and selection techniques in AutoCAD, essential for creating accurate and efficient 2D and 3D mechanical drawings. We’ll also explore how to use commands like zoom, pan, steering wheels, and various selection tools, providing you with hands-on tips and best practices to enhance your drafting skills.

As a mechanical engineer, learning how to navigate around complex drawings and select objects with precision is critical for optimizing your workflow in AutoCAD. So, let’s get started with understanding the key commands and techniques in this blog.

Mastering AutoCAD Selection Commands

AutoCAD provides multiple selection techniques that allow users to focus on specific parts of their drawings. Understanding these techniques is crucial, especially when working with intricate or complex mechanical components.

Box Selection

The box selection method is AutoCAD’s default selection tool. When you click and drag from left to right, the box turns blue, indicating that only objects completely within the selection box will be chosen. Conversely, if you click and drag from right to left, the box turns green, and it selects any objects that the box touches. This subtle difference ensures that you can control what gets selected based on your drawing needs.

Fence Selection

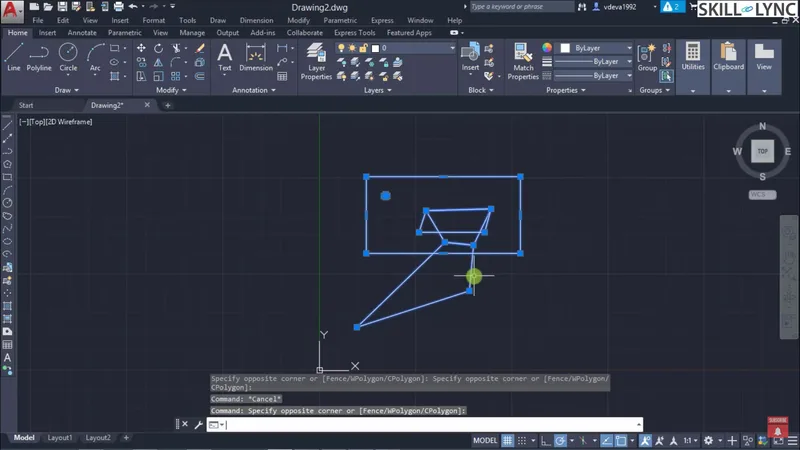

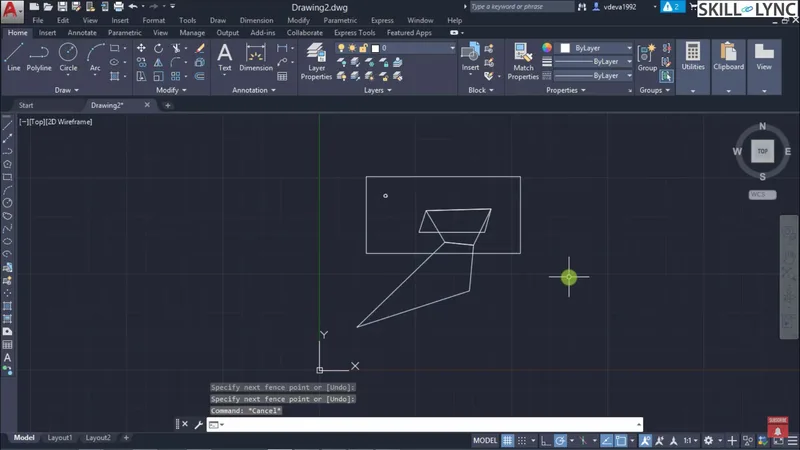

The fence command allows you to draw a line through multiple objects. Any object the line crosses gets selected. This method is useful when selecting multiple components that are not necessarily enclosed in a single area. For example, if you’re working on a complex polyline or arc, the fence command enables you to highlight multiple elements that span different regions of the drawing.

Window and Crossing Polygon Selection

The W-polygon command functions like the box selection but allows you to create a polygon shape instead of a rectangle. Any objects completely enclosed within the polygon are selected. On the other hand, C-polygon selects objects that the polygon crosses, even if they aren’t fully enclosed, providing flexibility in your selection process. This is highly beneficial when you need to select objects in irregular shapes.

Select Command

If you want more control, the select command allows you to individually pick objects. You can add or remove objects from the selection set as needed. For instance, if you accidentally select the wrong object, type R to remove it. This command is highly effective when working with smaller components in AutoCAD mechanical drawings.

Navigation Tools for Large Drawings

Navigating large mechanical drawings in AutoCAD requires proficiency in the zoom, pan, and steering wheel commands. These commands ensure that you can work on intricate details without losing track of the overall layout.

Zoom Commands

AutoCAD provides several zoom options to help you focus on different parts of your drawing:

• Zoom All: Displays the entire drawing, showing all objects within the drawing limits.
• Zoom Extents: Focuses on all visible objects in the drawing.
• Zoom Center: Allows you to zoom into a specific center point with a designated scale.
• Zoom Window: Lets you define a custom area to zoom into by specifying two opposite corners of a rectangle.
• Zoom to Object: Zooms in on a specific object for closer inspection.

For instance, when creating a mechanical drawing of a friction plate with M8 holes, you can use Zoom Window to focus on the corners where the holes need to be placed, ensuring accuracy.

Pan Command

The pan command allows you to move across the drawing while maintaining the current zoom level. This command is particularly useful when working with large drawings, such as layouts for AutoCAD mechanical engineering projects, where scrolling through the entire drawing is time-consuming.

Steering Wheels

The steering wheel is a unique and powerful tool in AutoCAD, allowing for intuitive navigation, especially in 3D CAD models. It provides functions like zoom, pan, and orbit in one interface, enabling you to easily switch between navigation tasks. This tool is particularly useful for engineers working on large 3D models or architectural plans, but it can also be beneficial in 2D CAD navigation.

Applying Selection and Navigation: Drawing a Friction Plate

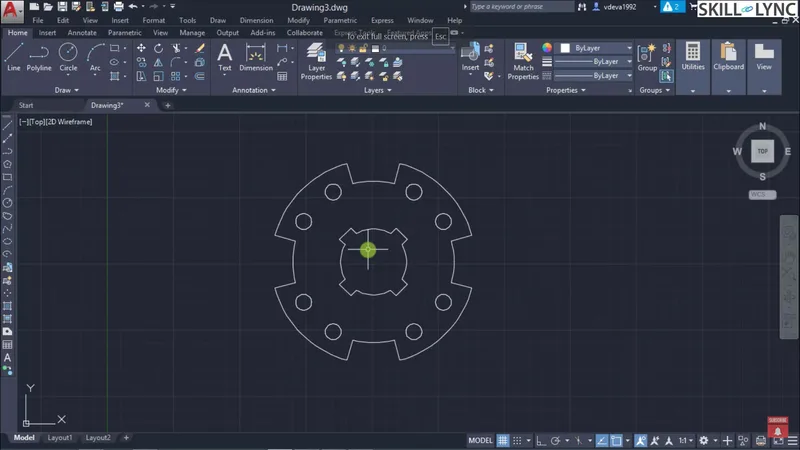

Let’s put these commands into practice by drawing a friction plate. The plate will have a diameter of 154 mm, with slots and M8 holes for riveting, commonly used in automotive applications.

1. Set Units and Limits: Ensure your units are in millimeters and set the drawing limits to 594 mm x 420 mm (A2 paper size).
2. Draw the Inner Circle: Start by drawing the inner circle with a diameter of 50 mm to represent the shaft.
3. Create Slots: Draw rectangular slots measuring 12 mm in width and 6 mm in height. These will be angled at 45° to the centerline of the shaft.
4. Use Polar Array: After creating one slot, use the polar array command to replicate it in four instances, ensuring equal spacing around the circle.
5. Draw Outer Circles: Draw the outer circle with a diameter of 154 mm and another with 122 mm for the PCD (pitch circle diameter).
6. Add Riveting Holes: Use the circle command to add riveting holes along the PCD, each with a diameter of 12 mm, spaced 30° apart.
7. Mirror Command: Mirror the objects symmetrically using the mirror command, replicating features across the axes.

By combining various navigation, selection, and editing tools, you can create this friction plate drawing efficiently.

Recap: Essential Commands for AutoCAD Efficiency

In this Blog session, we covered a wide array of tools that will enhance your productivity in AutoCAD:

• Zoom and Pan: These commands allow you to navigate your drawing with precision, whether you are zooming into small details or panning across large drawings.
• Steering Wheels: This versatile tool offers a comprehensive set of navigation options, especially useful for 3D models and presentations.
• Selection Commands: Understanding how to use box, fence, polygon, and select commands will improve your workflow when dealing with complex mechanical components.
• Solid and Donut Commands: These are crucial for creating filled 2D objects like washers or spacers, enhancing the detail and realism in your mechanical drawings.

Conclusion

By mastering these essential AutoCAD navigation and selection techniques, you’ll significantly improve your ability to handle complex 2D and 3D drawings in mechanical engineering. Whether you're working on a mechanical AutoCAD drawing or navigating through a large model, these tools will make your workflow smoother and more efficient.

Keep practicing, especially with commands like array, mirror, and polar array, to gain confidence in handling more intricate designs. With time and experience, these tools will become second nature, allowing you to produce high-quality technical drawings quickly.
