Productivity Enhancement Techniques in AutoCAD

Welcome back to the AutoCAD Essentials for Mechanical Engineers series! This blog, we’ll dive into productivity enhancement techniques in AutoCAD that streamline your drafting process and significantly reduce repetitive tasks. Up until now, we’ve covered various quality assurance techniques, particularly in Geometric Dimensioning and Tolerancing (GD&T). Now, we’ll shift our focus to efficiency tools that make AutoCAD more powerful and versatile.

Productivity Techniques in AutoCAD

To start, let’s explore some key techniques that boost productivity by reducing manual work:

Filters for Object Selection: The filter command is a robust feature in AutoCAD 2024 that allows you to quickly select objects based on specific properties or conditions. Unlike the Quick Select option, which lets you select objects based on a single property, filters let you combine multiple selection criteria. For instance, you can filter for circles with a radius under 5 mm and select all related linear dimensions and arc dimensions simultaneously. This level of selection precision makes the filter command indispensable for complex drawings.

To activate it:

• Type FILTER in the command line.

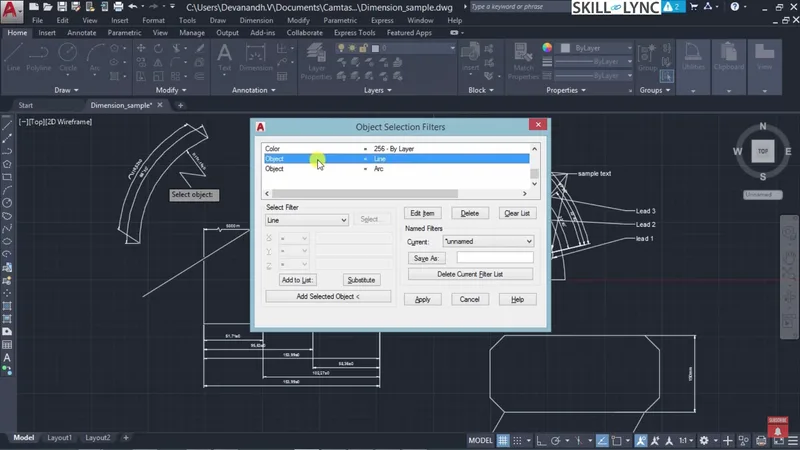

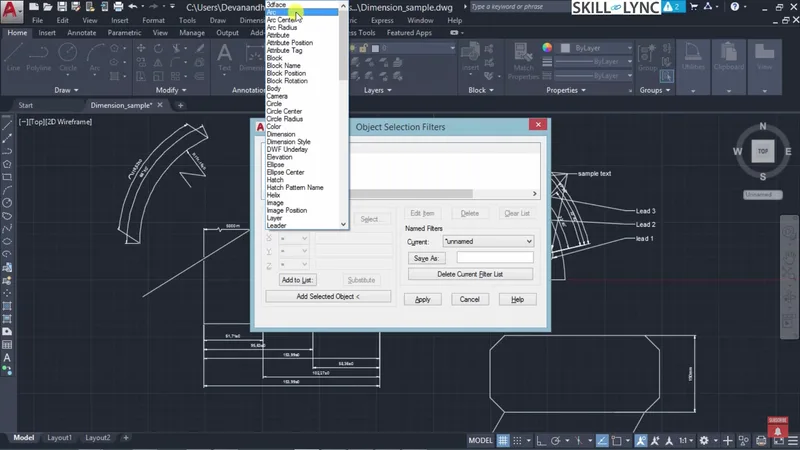

• The Object Selection Filter Dialog Box will appear, allowing you to specify object properties and selection conditions.
• Filters can be saved with names for easy recall and can be re-used across different projects, which is a huge time-saver, especially when managing multiple AutoCAD drawings in a project.

Quick Select: Quick Select is a useful, faster tool for selecting components with shared properties. For example, selecting all the multileaders in a drawing becomes straightforward with Quick Select. To use it:

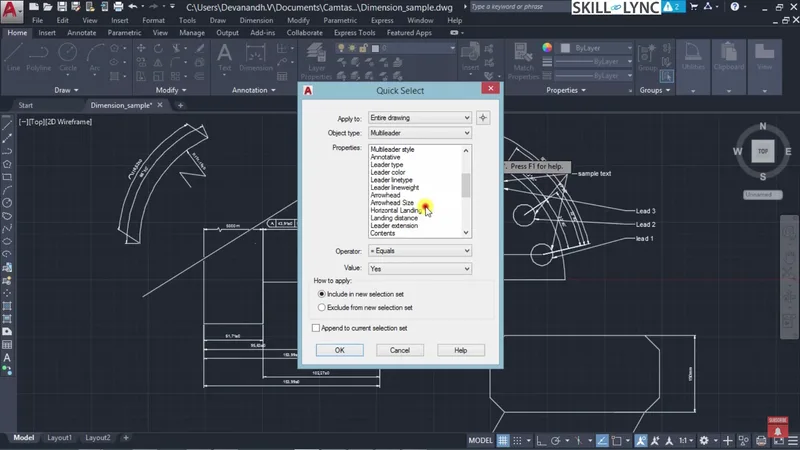

• Type QSELECT in the command line.
• Choose the object type and property.
• This is ideal for quick adjustments on multiple elements without setting specific filter rules.

Select Similar: Right-click on any object and select Select Similar to quickly highlight all objects of the same type. While it doesn’t offer the same flexibility as AutoCAD’s filter feature, it’s convenient when you need to apply changes to a broad category of elements quickly.

Advanced Object Filtering with Boolean Operators

In AutoCAD, filters can be more powerful when used with Boolean operators like AND, OR, NOT, and XOR. For example, if you want to select both single-leader and multi-leader dimensions, you can create an OR filter to grab both types in a single selection. Here’s how to utilize these operators in the Object Selection Filter dialog box:

• AND: Specifies that only objects meeting all conditions are selected.
• OR: Includes objects that satisfy at least one of the listed conditions.
• NOT and XOR: Refine selection further, excluding or including unique objects.

By mastering Boolean operators in filters, you can automate complex selection scenarios, saving time and enhancing drawing accuracy.

Productivity with Blocks and Dynamic Blocks

AutoCAD’s Block feature enables users to group and reuse objects in different parts of the drawing or across multiple projects. Key types of blocks include:

• Static Blocks: These are traditional, reusable groups of objects.
• Dynamic Blocks: With Dynamic Blocks, you can control parameters to adapt the block for different uses. For example, a single block can represent a standard bolt, but by adjusting length or diameter, it can suit various requirements without creating multiple blocks. This reduces drawing clutter and simplifies modifications.

Assigning Attributes to Blocks

Adding attributes allows blocks to carry essential data, like part numbers or material details, that is both editable and retrievable in AutoCAD 2D and AutoCAD 3D drawings. Using Attribute Definitions:

• Type ATTDEF to create attributes for blocks.
• Attributes ensure each instance of a block carries customizable information, allowing for efficient documentation and object tracking within CAD programs.

Layer Management for Drawing Organization

Layers are critical in AutoCAD for engineers to control the visibility, color, and line type of different parts of the drawing. By organizing content on different layers, you can hide, isolate, or lock components without affecting other elements in your AutoCAD mechanical drawing:

• Create and Manage Layers: The Layer Manager lets you adjust each layer’s properties. For instance, mechanical AutoCAD drawings often separate construction lines, annotations, and model elements into distinct layers to reduce visual clutter.
• Layer Filters: Applying filters to layers allows for selective viewing based on parameters like color, type, or block reference, ideal for managing complex assemblies or architectural layouts.

Shortcut Keys for Speed and Efficiency

AutoCAD offers many shortcuts that simplify and expedite your workflow. This week, focus on mastering essential shortcuts and toggle keys:

• Alphabetical Shortcuts: For quick commands like copy (C), move (M), and rotate (RO).
• One-Key Shortcuts: Quick single-key toggles, such as pressing F8 for Ortho Mode.

These shortcuts reduce time spent on routine tasks and enhance drawing accuracy by eliminating mouse navigation.

Real-Life Application Example: Creating Custom Filters

Consider a scenario where you’re working on a large mechanical CAD design. You need to adjust all circular dimensions below 5 mm and select only those that are within a specific layer. Here’s a step-by-step outline of how to achieve this in AutoCAD:

• Open the Object Selection Filter dialog box.
• Add filter parameters for circles with the radius set to under 5 mm.
• Add a condition for layer selection.
• Save the filter for future use in similar drawings, allowing you to apply bulk modifications without disturbing other elements.

Wrap-Up and Key Takeaways

By the end of the blog, you’ll be equipped with various AutoCAD productivity enhancement techniques to speed up your drafting and editing workflows. Whether using filter commands to target specific elements, setting up dynamic blocks for flexibility, or applying layer management strategies, these techniques will help you work smarter and make the most of AutoCAD’s capabilities. Each tool—from attribute tagging to shortcut keys—provides building blocks for a more streamlined and efficient drafting process, whether in AutoCAD 2D or AutoCAD 3D formats.

Stay tuned for more tips in the AutoCAD Essentials for Mechanical Engineers series, where we’ll continue exploring the advanced functions and tools that make AutoCAD one of the top design software choices for professionals in mechanical and civil engineering.
