Welcome back to the AutoCAD Essentials for Mechanical Engineers series! In this blog, we’ll explore the core concepts of orientation and profile tolerances in Geometric Dimensioning and Tolerancing (GD&T). These tolerances ensure that parts maintain their required orientation and alignment, enabling precise assembly and functionality. Familiarity with these principles is crucial for anyone involved in AutoCAD mechanical engineering.
Orientation Tolerances in AutoCAD
Orientation tolerances help control angles and alignments of parts relative to one another and to reference datums. They’re indispensable in both AutoCAD 2D and AutoCAD 3D settings. Here, we’ll discuss the three primary orientation tolerances: angularity, perpendicularity, and parallelism.
Angularity

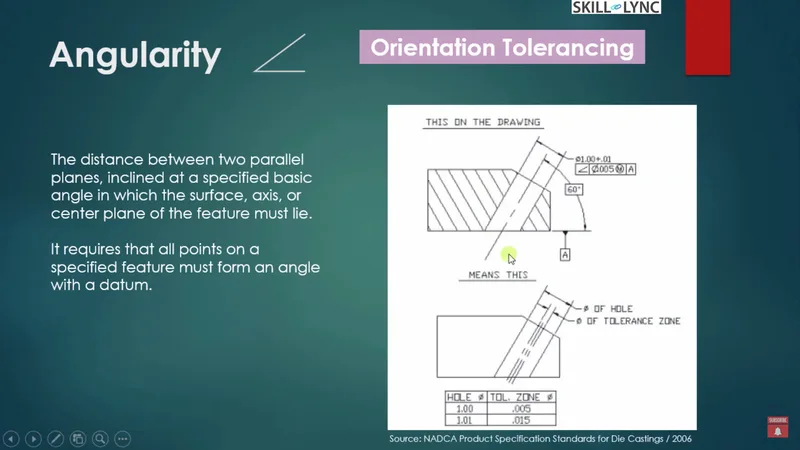

Angularity is represented by a symbol indicating the relationship between two parallel planes set at a specified angle. The feature’s surface, axis, or center plane must stay within this angular tolerance zone.
For example, if an inclined hole is drilled through a part with an angularity tolerance of 0.05, the hole’s axis must align with the datum plane at a specified angle while remaining within a tolerance of 0.05 mm. This angular tolerance ensures precise alignment, especially important in AutoCAD for mechanical engineers where accuracy is key.
Perpendicularity

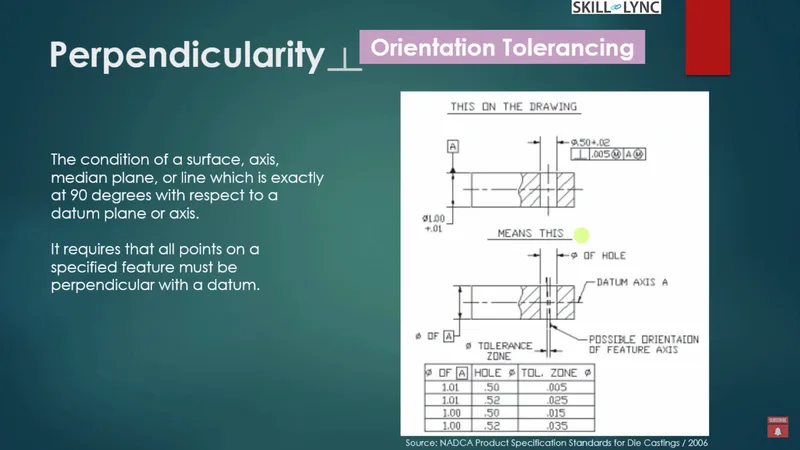

Perpendicularity controls how precisely a surface or axis is aligned at 90° relative to a datum. It is crucial for parts that require perfect alignment, such as joints or fasteners in mechanical AutoCAD designs.
In one example, if a 0.5 mm perpendicularity tolerance is applied to a hole drilled through an element, the hole’s axis must remain within this tolerance zone. With the maximum material condition (MMC) applied, the alignment is maintained, ensuring smooth assembly in cases where strict perpendicularity is essential.
Parallelism

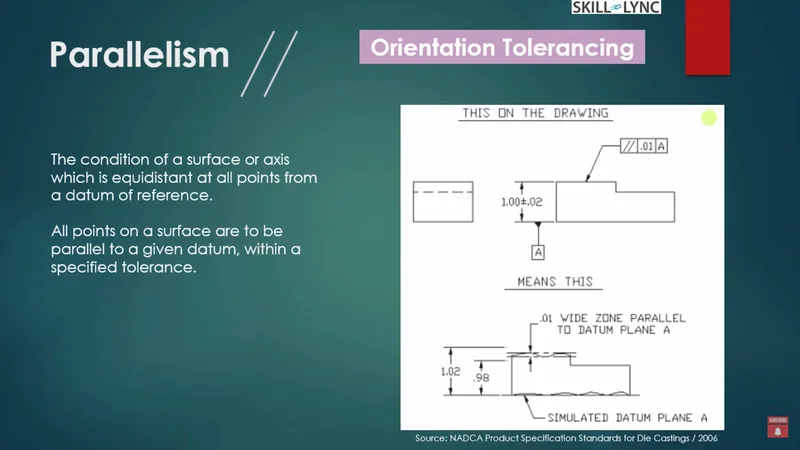

Parallelism controls the orientation of a surface or axis so that all points on it remain equidistant from a reference datum. This tolerance is commonly used to ensure consistent spacing between surfaces in assemblies.
For instance, if a flat surface has a 0.01 mm parallelism tolerance with a reference plane, all points on the surface must be within this tolerance range. CAD software such as AutoCAD 2024 allows precise control over parallelism, making it an essential tool in achieving high accuracy in designs.
Profile Tolerances in AutoCAD
Profile tolerances control the contours of parts, ensuring that complex shapes conform to design requirements. They are divided into the profile of a line and profile of a surface, applicable to both 2D and 3D models in CAD programs.
Profile of a Line

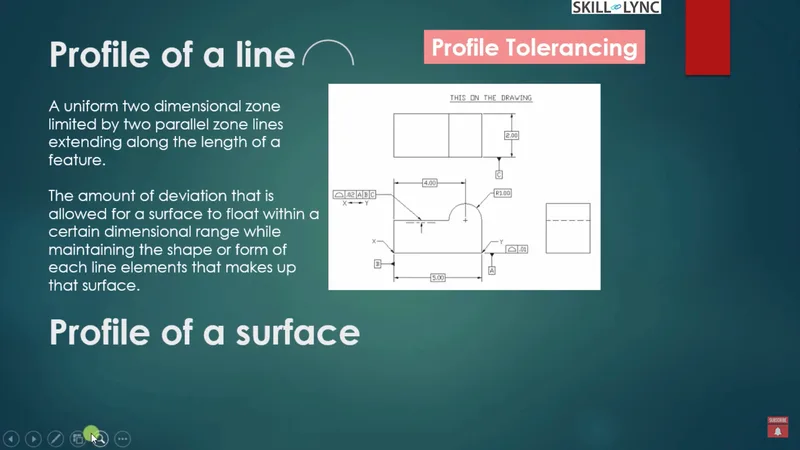

The profile of a line tolerance manages the 2D outline of a surface, ensuring it stays within a specific tolerance zone along its length. For example, a 0.02 mm profile of a line tolerance could apply to a curved feature, maintaining its contour within strict limits.
This tolerance is ideal in AutoCAD 2D drawing for beginners learning to control fine details and in AutoCAD 3D crash courses where engineers aim to achieve accurate line profiles on complex surfaces.
Profile of a Surface
Profile of a surface tolerances extends the control to a 3D area, ensuring that all points on the surface remain within the specified tolerance zone. This tolerance is essential for intricate designs where every part must conform to exact specifications.
For instance, a 0.03 mm profile of a surface tolerance applied in 3D CAD allows engineers to control an entire surface’s accuracy, making it especially useful in advanced CAD courses for mechanical engineers.
Runout Tolerances
Runout tolerances control variations in the rotation of a part relative to a datum, which is essential for parts with rotational functions. There are two main types: circular runout and total runout.
Circular Runout

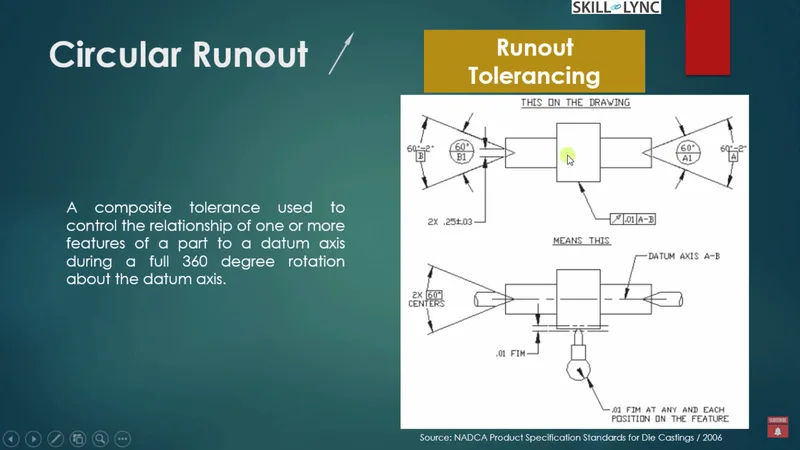

Circular runout applies to individual points along a surface during a 360° rotation about a datum axis. It’s commonly used to control the consistency of rotating parts, such as shafts or wheels.
For example, a 0.01 mm circular runout tolerance applied to a rotating shaft means that any variation during rotation must stay within this limit, preventing issues with uneven rotation or misalignment.
Total Runout
Total runout extends circular runout across the entire length of a rotating part, ensuring all points along the surface remain within a specified tolerance.
This tolerance is applied to longer rotating surfaces, ensuring they do not deviate from the reference datum, maintaining high precision in assemblies.
Modifiers in GD&T
Modifiers such as Maximum Material Condition (MMC) and Regardless of Feature Size (RFS) add flexibility to tolerance application, allowing for tailored tolerance zones to meet specific functional requirements in AutoCAD essentials.
Maximum Material Condition (MMC)
The MMC modifier specifies that the tolerance applies when a feature has the maximum material present (e.g., smallest hole size or largest shaft size). It is crucial for ensuring that parts still function when tolerances are tight, providing a safeguard in designs where excess material would impair functionality.
For instance, with an MMC applied to a 1 mm hole, the tolerance may be more relaxed when the hole is slightly larger, allowing assembly to proceed smoothly. This flexibility is a powerful tool in AutoCAD mechanical engineering where strict tolerance control is necessary.
Regardless of Feature Size (RFS)

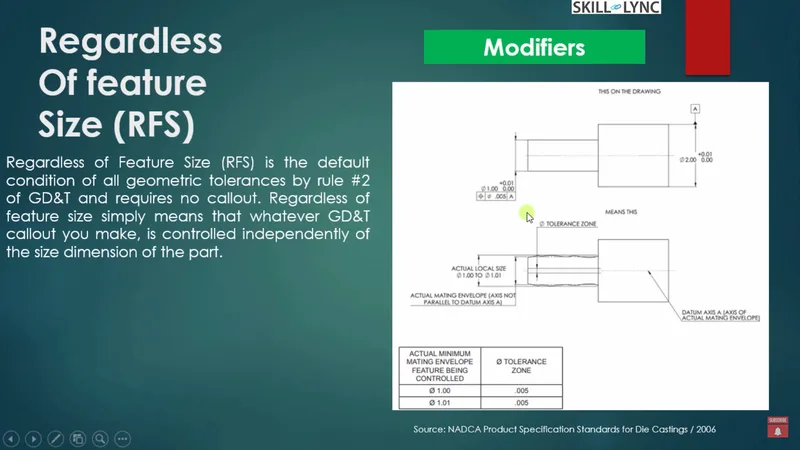

RFS is a default setting for geometric tolerances, indicating that tolerance control applies independently of feature size. It eliminates bonus tolerances and is often used for parts where consistent performance is critical, regardless of minor size variations.
RFS is commonly applied in CAD training for features such as concentricity and symmetry, maintaining strict control over the feature’s location relative to its nominal size.
Incorporating GD&T in AutoCAD Drawings
Applying GD&T in AutoCAD mechanical drawings ensures that tolerances align with engineering standards. In AutoCAD, engineers can invoke tolerance commands to add these essential specifications to their designs. To create a tolerance annotation, use the D command for Geometric Dimensioning and Tolerancing (GD&T), then enter the tolerance frame to define parameters like symbol, tolerance value, and material condition.
Practical Example: Adding Tolerance Annotations in AutoCAD
Let’s look at a practical example for adding a tolerance annotation in AutoCAD 2024:
Using these steps, engineers can apply tolerances precisely, ensuring that parts fit and function as intended.
Conclusion
By integrating these GD&T principles, engineers can elevate their AutoCAD online skills and deliver high-quality, precise designs. With these concepts, you’ll be better equipped to take on challenging projects, from basic AutoCAD essentials to advanced 3D CAD applications. Whether you’re diving into CAD training online or enrolling in an AutoCAD free certification course, mastering these tolerances is a valuable skill in the journey toward engineering excellence.
This blog is part of our ongoing AutoCAD Design Series. If you missed the previous posts, check them out here.
Would you like to have a more interactive experience going through the AutoCAD essentials?
Skill-Lync has released a FREE comprehensive course covering AutoCAD Essentials for Mechanical Engineers in detail! Check it out here.
If you’re looking to go deeper into AutoCAD Essentials check out Skill-Lync’s AutoCAD certification course.
Check out our hands-on course today and add AutoCAD to your list of skills!
Let’s get #IndustryReady together, one skill at a time!
