Mastering Navigation, Selection, and Drafting Techniques in AutoCAD for Mechanical Engineers

Welcome back to the AutoCAD Essentials for Mechanical Engineers series! Over the past blogs, we have explored essential drafting settings, object snapping, dynamic input, units and limits specification, and some fundamental editing commands such as move, copy, array, break, mirror, and offsetting. By now, you should have a strong foundation for working with AutoCAD, especially when handling repetitive tasks.

In this guide, we are diving deeper into navigation techniques and selection techniques in AutoCAD. We’ll cover navigation methods such as zoom, pan, and steering wheels to help you smoothly explore your drawings. Additionally, we’ll focus on selection techniques, including box, fence, W-polygon, C-polygon, and the use of add/remove objects commands. Lastly, we will introduce new 2D drafting elements, including solids and donuts, which will help elevate your drafting skills.

So, let's dive into how we can refine these tools for our drafting projects. Get ready for some hands-on learning!

Zoom Functionality: Efficient Navigation for Large Drawings

Zooming is an essential feature in AutoCAD, particularly for working with large or complex drawings where you need to focus on specific details. AutoCAD provides multiple zoom options that allow you to easily zoom in and out on particular sections of your drawing.

Types of Zoom Commands

• Zoom All: This command zooms out to display the entire drawing, including all objects, so you can have a complete view of the design.
• Zoom Extents: This zooms to the largest possible view of your drawing, showing the full extents of all objects within the drawing limits.
• Zoom Center: This allows you to zoom into a specific center point of your drawing and control the magnification level.
• Zoom Dynamic : In this option, you define a view box that lets you manually control the zoom level and zoom in or out by adjusting the size of the box.
• Zoom to Object: This command focuses the view on a specific object, allowing you to zoom in closely on the object’s details.
• Zoom Previous: This rolls back your zoom to the previous view. It’s a handy tool when you need to return to earlier views.
• Zoom to Scale: Zoom to a specified scale factor. You can zoom in at different multiples of the current view for precise control.

Hands-On Example: Drawing a Rectangular Plate with Holes

Let’s apply this knowledge by drawing a rectangular plate with dimensions of 300 mm x 200 mm and four M8 holes at the corners, along with 5 mm fillets on the edges.

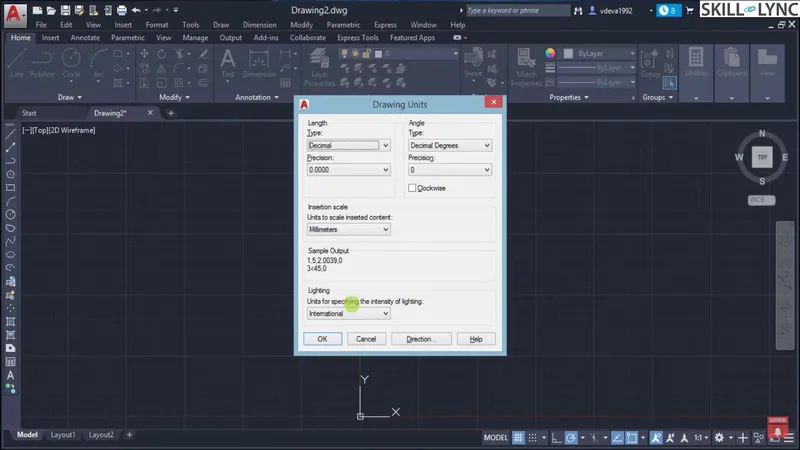

• Setting Units and Limits: Before you begin, set your units to millimeters and your drawing limits to an A2 page size (594 mm x 420 mm). This ensures that your drawing fits correctly within the working space.
• Drawing the Rectangle: Start by using the rectangle command to create a rectangular plate of 300 mm x 200 mm. Use the Zoom All command to view the entire drawing area.
• Zooming for Detail: Use the Zoom to Center command to focus on one corner of the rectangle. Once you’ve zoomed in, place the M8 holes in each corner using the circle command and set the diameter to 8 mm.
• Fillet the Edges: Apply a 5 mm fillet to the edges of the rectangular plate. You can zoom into each corner for precise control using the Zoom to Window or Dynamic Zoom options.

The Zoom functionality in AutoCAD allows you to easily manage large-scale drawings and ensures precision when working on intricate details.

Selection Techniques: Choosing Objects with Precision \

Once you’ve zoomed into a particular section of your drawing, the next task is selecting the right objects. AutoCAD provides several selection methods to help you accurately choose objects, especially in complex or densely packed drawings.

Selection Commands

1. Box Selection: Click and drag a box from left to right to select all objects within the box.
2. Fence Selection: Use this when you need to create a freeform selection by drawing a fence around the objects you want to select.
3. W-Polygon and C-Polygon: These commands allow you to select objects by drawing a polygon shape around them. This is useful when the objects don’t fit neatly into a rectangular box.
4. Add or Remove Objects: While making a selection, you can use these commands to add more objects or remove objects from your selection.

Using the right selection technique will save time and improve accuracy, particularly in AutoCAD mechanical drawing, where precision is critical.

Drafting Fundamentals: Solids and Donuts

Now let’s explore two 2D drafting tools: Solids and Donuts. These are often used in mechanical drawings to represent solid or filled objects.

Solids

The Solid command allows you to create filled shapes such as triangles and quadrilaterals. Solids are often used in AutoCAD 2D to represent filled sections of mechanical components.

Donuts

The Donut tool is a quick way to create filled rings. You define the inner and outer diameters, and AutoCAD will fill the shape accordingly. Donuts are often used to represent mechanical parts like bolts in mechanical AutoCAD 2D drawings.

For example, if you are drawing an M8 bolt, the Donut tool can be used to create its profile by specifying the appropriate dimensions for the inner and outer diameters.

Pan Command: Moving Around Your Drawing

The Pan command allows you to move across your drawing without changing the zoom level. This is useful when working on large components where you need to keep the same magnification but shift focus to different parts of the drawing.

• Activate the Pan command by typing "P". You’ll see a hand icon appear on your screen, which allows you to click and drag your drawing to different positions.

The Pan command ensures that you can quickly move around your drawing without losing focus on the magnified view.

Zoom and Pan Tips: Enhancing Productivity

Once you become comfortable with AutoCAD’s zoom and pan functionalities, you’ll be able to navigate large and complex drawings quickly and efficiently. Here are a few tips to further enhance your workflow:

• Control + 9: Use this shortcut to hide the command prompt, giving you more workspace.
• Control + 0: Activate the Clean Screen function to hide toolbars and maximize your drawing area. This is especially useful for improving rendering speed on larger projects.

These shortcuts are valuable when working on detailed AutoCAD 2D drawings for mechanical engineers and help you maintain focus on the most critical parts of your design.

Conclusion

This guide focused on improving navigation and selection skills within AutoCAD. We explored different zoom techniques like Zoom All, Zoom to Extents, and Zoom to Object, which allow you to efficiently control the view of your drawing. The Pan command adds further flexibility by letting you move across the workspace without altering the zoom level.

Additionally, we discussed selection techniques such as box, fence, and polygon selections, which are crucial for working with intricate designs. Finally, by introducing solids and donuts, we expanded our drafting abilities to represent filled components commonly used in mechanical AutoCAD drawings.

By mastering these techniques, you can greatly enhance your productivity and precision when working with AutoCAD 2024 in mechanical design. Continue practicing these tools to sharpen your skills, and stay tuned for the next lesson, where we will dive into more advanced drafting and editing techniques.

Until next time, happy drafting!
