Mastering Dimension Constraints and Dynamic Blocks in AutoCAD

In this section of the AutoCAD Essentials for Mechanical Engineers series, we’ll explore dimension constraints and dynamic blocks—two powerful features in AutoCAD that enhance productivity and precision in design. Whether you’re an AutoCAD beginner or a seasoned professional, understanding these features will elevate your design work in AutoCAD 2D and 3D CAD. Let's dive in!

Dimension Constraints: An Overview

In AutoCAD for Mechanical Engineers, dimension constraints provide a way to control the measurements and relationships between elements. Located in the Parameters tab, dimension constraints include Linear, Align, Angular, Radius, and Diameter constraints. You can even convert existing dimensions into constraints, ensuring that your design elements maintain their relative sizes and positions when scaled or modified.

However, be mindful of over-constraining your object. AutoCAD will issue an error if you attempt to apply a dimension constraint that conflicts with existing constraints. For instance, if you apply a linear constraint to a point already bound by other constraints, AutoCAD warns that it may over-constrain the geometry. In this case, consider using a Reference Dimension—a non-modifying constraint used solely to reference other elements in an expression, without impacting geometry.

Removing Constraints

You can remove unnecessary constraints in two ways:

• Click the “X” next to the constraint.
• Right-click and choose “Delete.”

By clearing unwanted constraints, you ensure that only essential constraints remain, giving you more control over the design process.

Applying Dimension Constraints Step-by-Step

Let’s apply dimension constraints to a hexagonal nut design:

• Start with Nominal Diameter (D): Define the hex nut's diameter as a base dimension (D) to control the entire structure.
• Set Constraints for All Edges: Use the Equal Constraint to ensure that all sides are uniform. This is vital when using CAD for mechanical engineers, as consistency is key.
• Assign Tangent Restrictions: Apply tangent restrictions to ensure that each contact point of the polygon aligns smoothly with the inner circle.

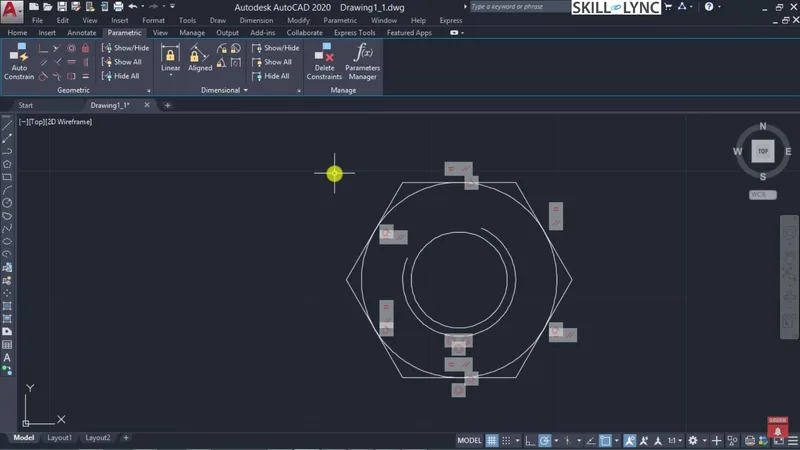

The Parameters Manager in AutoCAD 2024 is invaluable here. It lets you adjust names, values, and expressions for each dimension constraint. For example:

• Let’s define the nominal diameter as D.
• Set a derived dimension D2 as 0.85 times D for the inner pitch diameter.

With these relationships defined, modifying the primary diameter (D) will automatically adjust the related dimensions, preserving consistency and saving time.

Using Dimension Constraints to Drive Dynamic Changes

Let’s test the flexibility of dimension constraints:

• Copy and paste your constrained hex nut.
• Change the nominal diameter to, say, 12mm.

You’ll observe that all associated dimensions update dynamically, reflecting the changes accurately across the design. This is particularly useful for mechanical CAD applications, where precision and adaptability are paramount.

Creating and Saving Blocks with WBLOCK

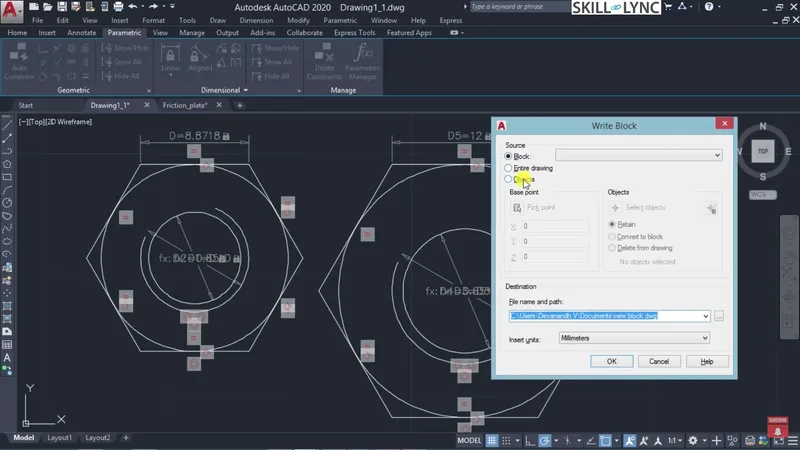

Once your block is defined with the desired dimensions, saving it for future use is crucial. This function, called WBLOCK (Write Block), allows you to save the block in a separate file, enabling you to reuse it in other drawings.

• Select the Base Point and Objects: Choose the objects that constitute your hex nut and specify the base point.
• Define Units: Always ensure the units match your project requirements, as they influence how the block scales in different AutoCAD drawings.
• Save the Block: Click "OK" to create a reusable block file.

Now, if you open a new drawing, you can quickly insert the hex nut without recreating it, making AutoCAD for engineers much more efficient.

Dynamic Blocks: Enhancing Flexibility

To make blocks more versatile, AutoCAD offers Dynamic Blocks. These allow you to modify blocks with dynamic parameters and actions, making them adaptable to different design scenarios. This functionality is particularly beneficial in mechanical AutoCAD 2D drawing for repetitive or adjustable components.

Editing a Block with Dynamic Settings

• Use the Block Edit (BEDIT) command to modify an existing block.
• In the Block Editor, add parameters and actions to enable dynamic adjustments such as scaling, rotation, or even visibility states.

For instance, by setting a nominal diameter in the Parameters Manager, you can predefine options (e.g., 5mm, 8mm, 10mm) in a block table. Now, each time you insert the block, you can select a diameter from a dropdown, streamlining the design process.

Adding Attributes for Additional Information

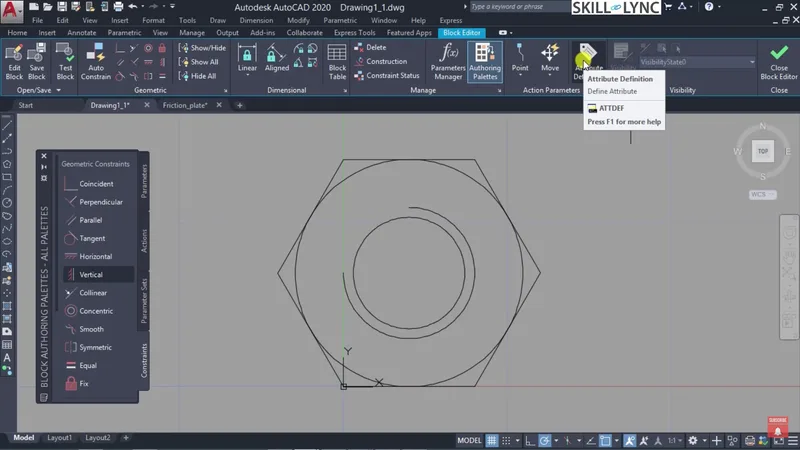

Dynamic blocks can also contain Attribute Definitions, useful for attaching metadata like part numbers, materials, and specifications to blocks. This is helpful in AutoCAD for mechanical drawing where build specifications and BOMs (Bill of Materials) are often necessary.

• Invisible Attribute: Stores information within the block without displaying it in the drawing.
• Constant: Assigns a fixed attribute value to each instance.
• Preset Condition: Automatically fills in the default attribute value when the block is inserted.

With these options, you can store critical information directly within blocks, maintaining a cleaner, more organized drawing.

Conclusion

Dimension constraints and dynamic blocks transform AutoCAD essentials from static to adaptable, making it a powerful tool in design software for mechanical engineers. By mastering these functions, you can enhance the precision, efficiency, and flexibility of your designs. Whether creating reusable blocks or adding dynamic attributes, these tools ensure you’re leveraging CAD software to its full potential. For mechanical engineers, this skill is invaluable in creating detailed and functional designs swiftly and efficiently.

For more tutorials on AutoCAD essentials, follow along in this series as we dive deeper into other productivity-enhancing tools within AutoCAD. Whether you’re learning AutoCAD from starting or advancing your skills, these insights will prove essential in your AutoCAD for engineers journey.
